DC-91 Dual Clamp Pallet Inverter


DC-91P

The DC Series Inverter offers a faster, easier way to rotate, switch or transfer loads and replace broken pallets. Free standing 180° inverter with twin moving tables, loaded and unloaded & relocated by forklift truck. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

BrochureDC-91P-GRDC-91P-HSGDC-91P-HSG-LC
DC-91 Dual Clamp Pallet Inverter
DC-91 Dual Clamp Pallet Inverter Image 1
DC-91 Dual Clamp Pallet Inverter Image 2
DC-91 Dual Clamp Pallet Inverter Image 3
DC-91 Dual Clamp Pallet Inverter Image 4
DC-91 Dual Clamp Pallet Inverter Image 5
DC-91 Dual Clamp Pallet Inverter Image 6
DC-91 Dual Clamp Pallet Inverter Image 7
DC-91 Dual Clamp Pallet Inverter Image 8

See it in the Wild

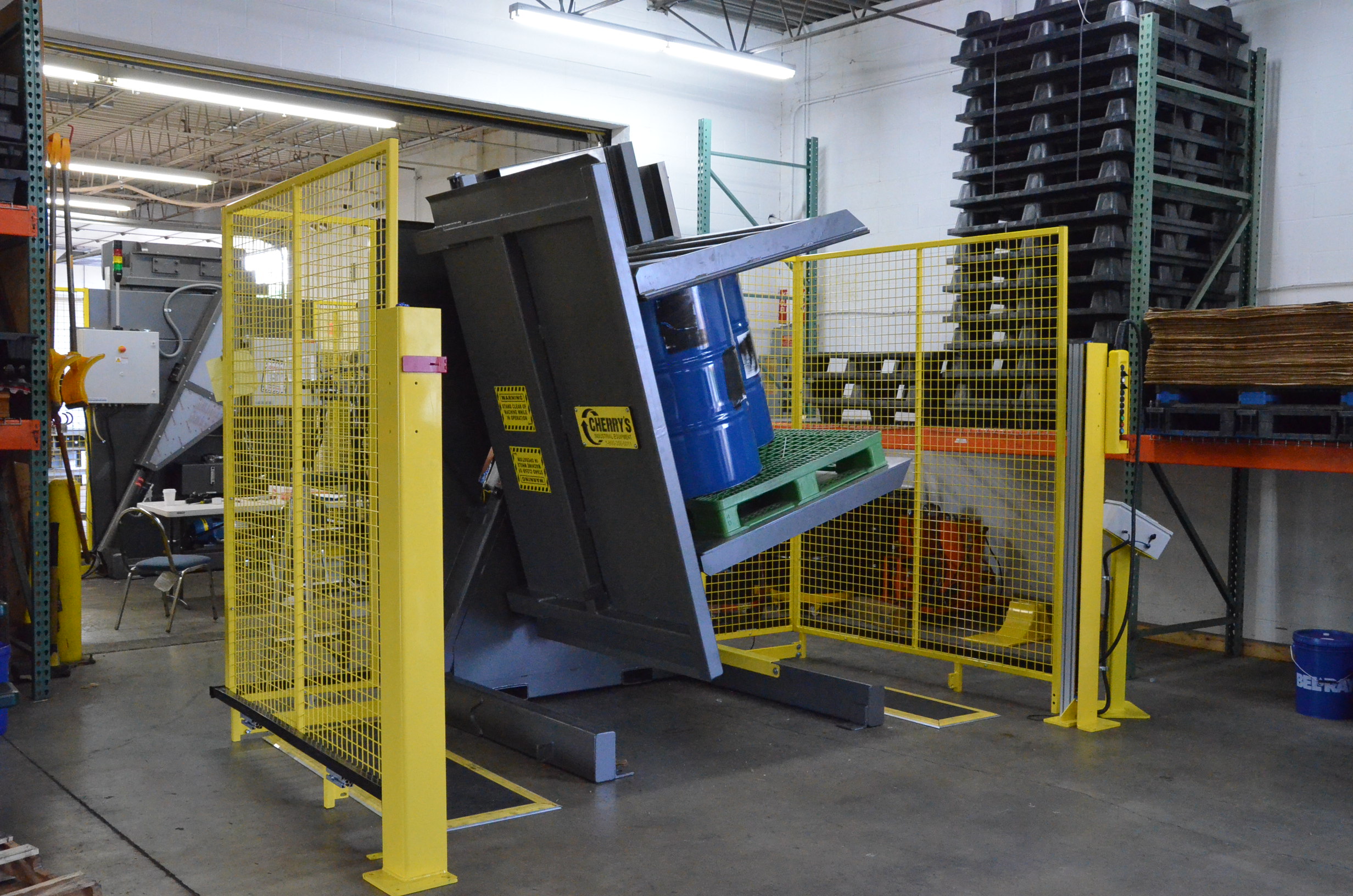

DC Pallet Inverter with leveling plates DC Pallet Inverter with leveling plates

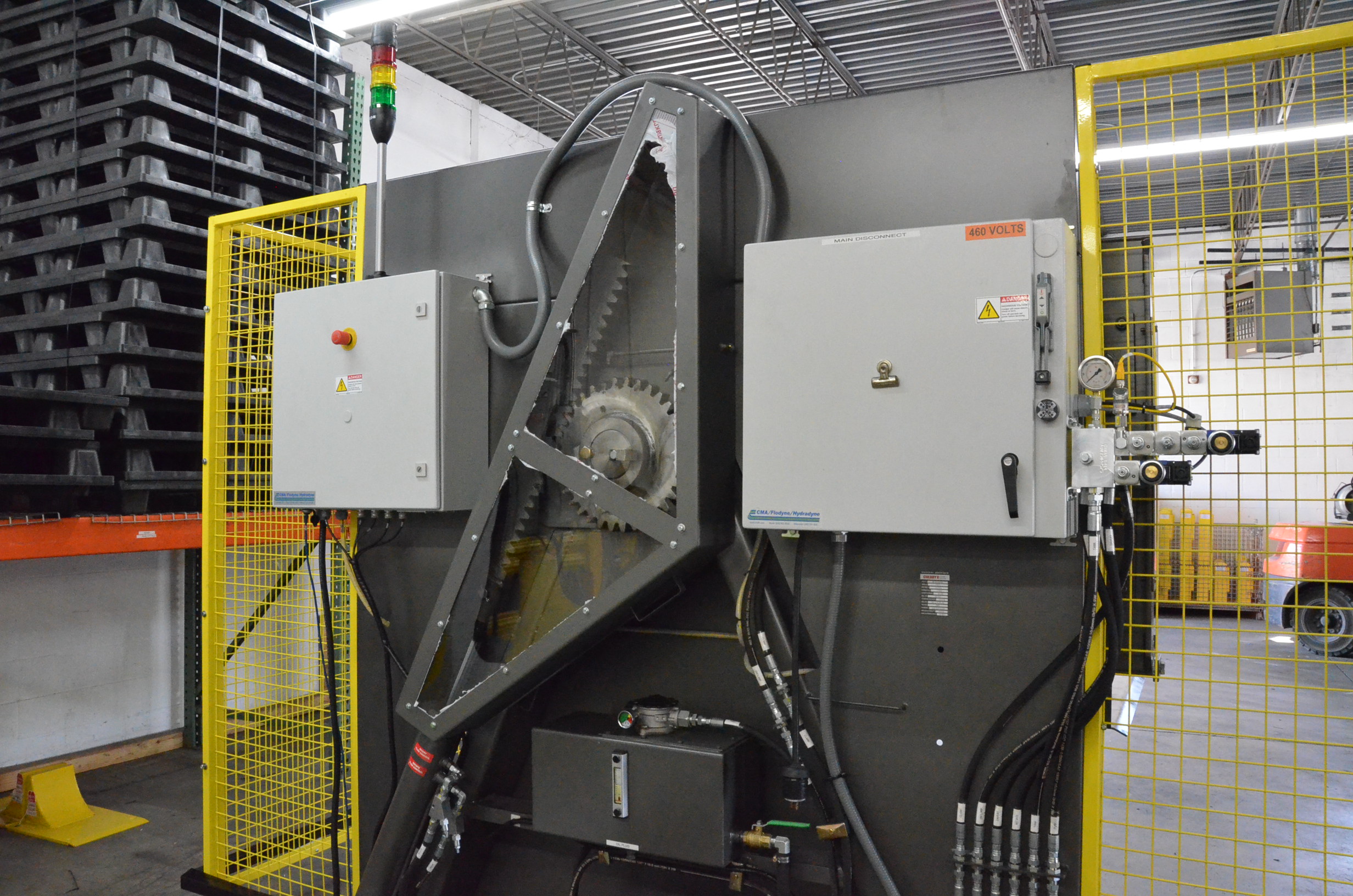

DC Pallet Inverter with Lexan rack cover DC Pallet Inverter with Lexan rack cover

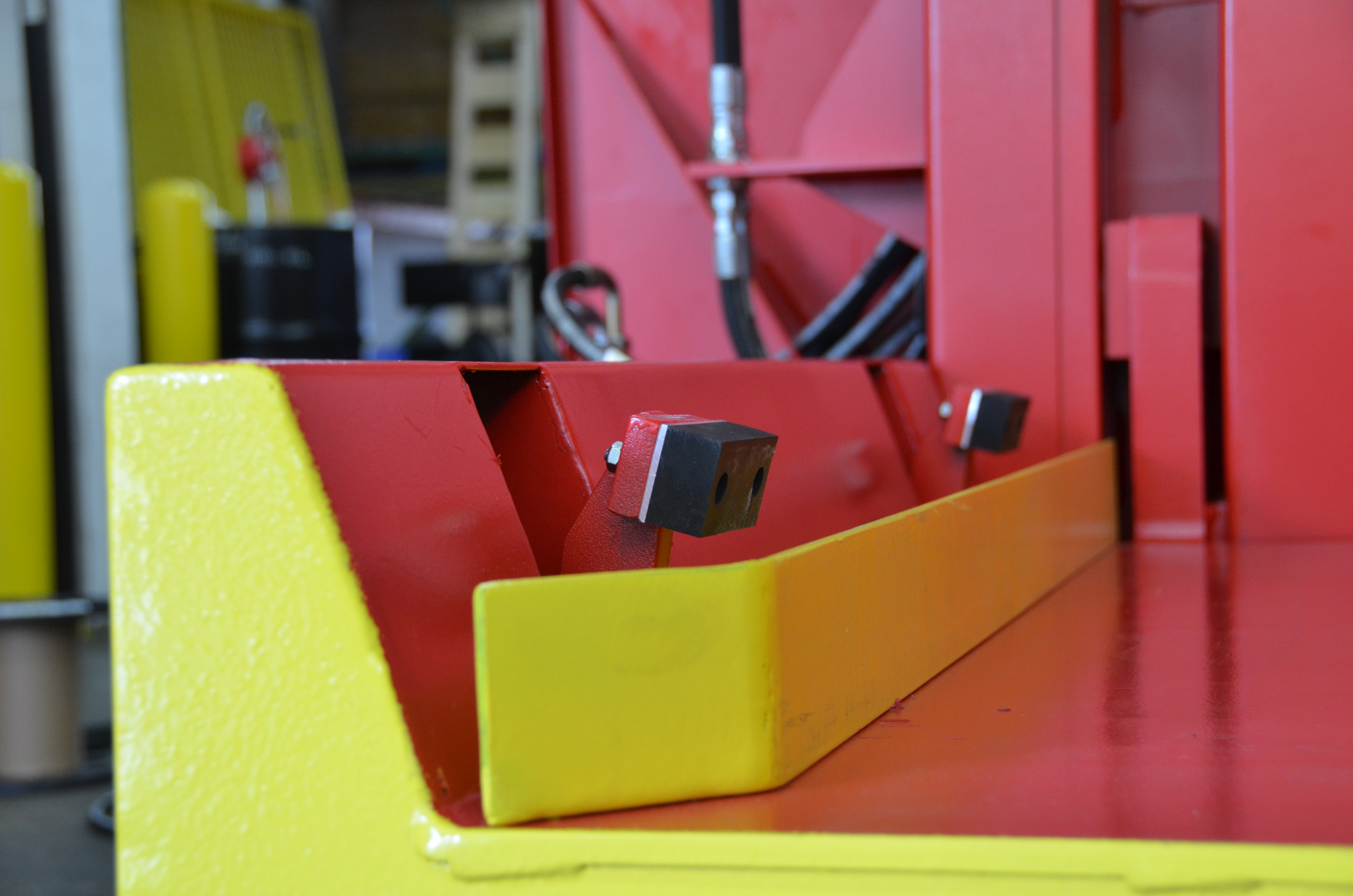

DC Pallet Inverter with pallet grippers DC Pallet Inverter with pallet grippers
×

Product Information

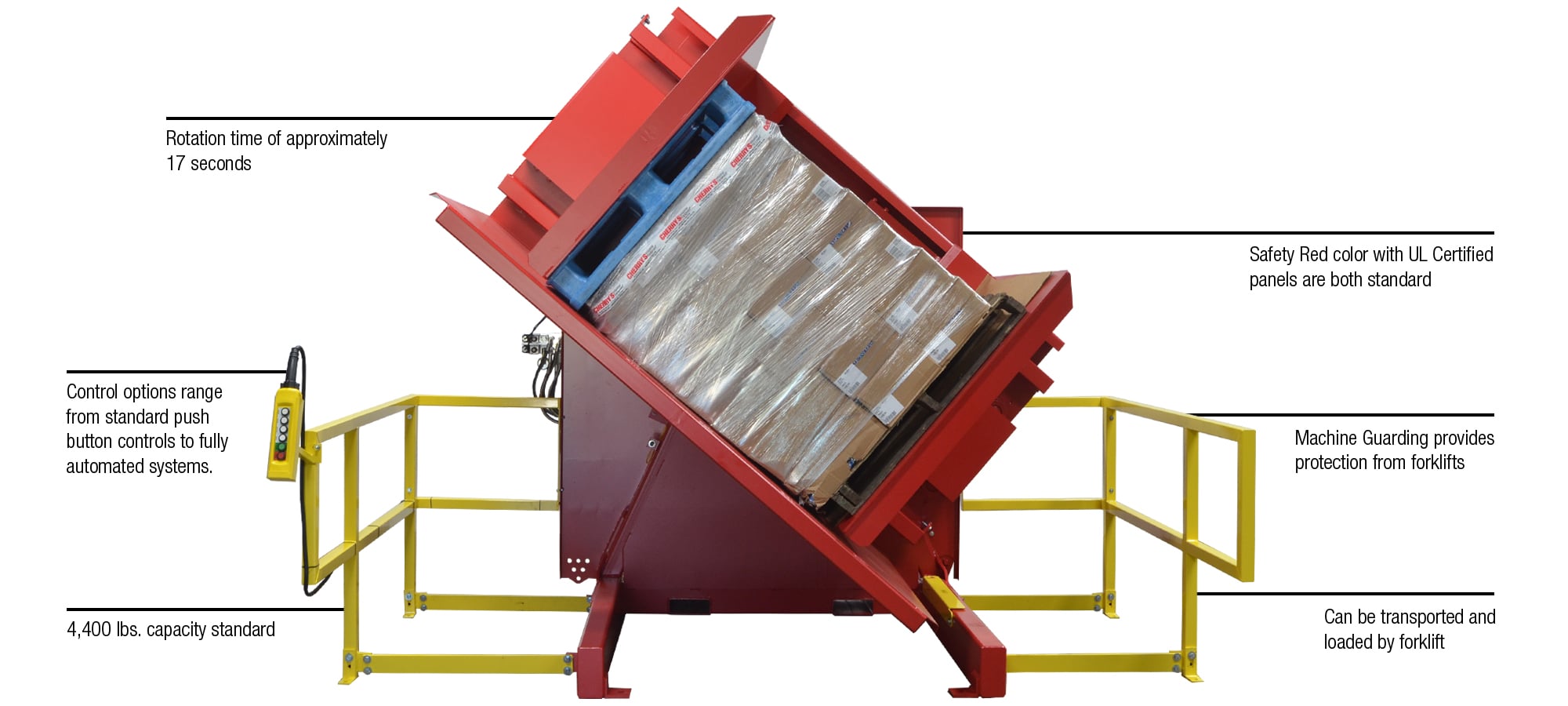

DC-91 Free standing 180º inverter with chain balanced dual clamping plates to handle a greater range of tall and short products • (Optional) loading ramp for pallet jack entry • Can be transported and loaded by forklift • Control options range from standard pendant controls to fully automated systems • Easy load transfer from wood pallet to plastic pallet, slip sheet or rental pallet • Ideally suited for inbound load transfers where a variety of products may be handled: boxes, drums, pails and packaging material • Significant reduction in back injuries


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time Safety Circuit (Pld)
DC-91P Push buttons 5/3.7 18 Invert/18 Rotate Standard
DC-91HSP Push buttons 5/6.6 10 Invert/8 Rotate Standard



Product Tour


Specifications


ModelDC-91
ControlsEnergy saver push button pendant
Max. Jaw Opening91
Min. Jaw Opening23"
Capacity4400 lbs.
Adjustable Clamp Pressure400-2000 PSI
System Pressure2200 PSI
Maintenance Lock Outs4
Motor5 horsepower motor
Power Source208/230/460/575V
CertificationsUL 508a Certified panel
Warranty3 year parts and 1 year labor. Extended service agreements available
Loading Height17.50"
Operating Width110.75 excluding guards
Operating Depth87"
Operating Height118.375
Shipping weight*5600 lbs.
Shipping Dimensions84" L X 84" W X 96" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

The standard operator controls are an energy saver pendant with press and maintain push buttons that illuminate when activated. A safety rated pendant adds a reset button and E-stop plus a PLd safety circuit to the main panel. A variety of additional control configuration options are available for the DC-91 including: an operator console, HMI touchscreen, auto controls, RF radio remote and high-speed motion controls.

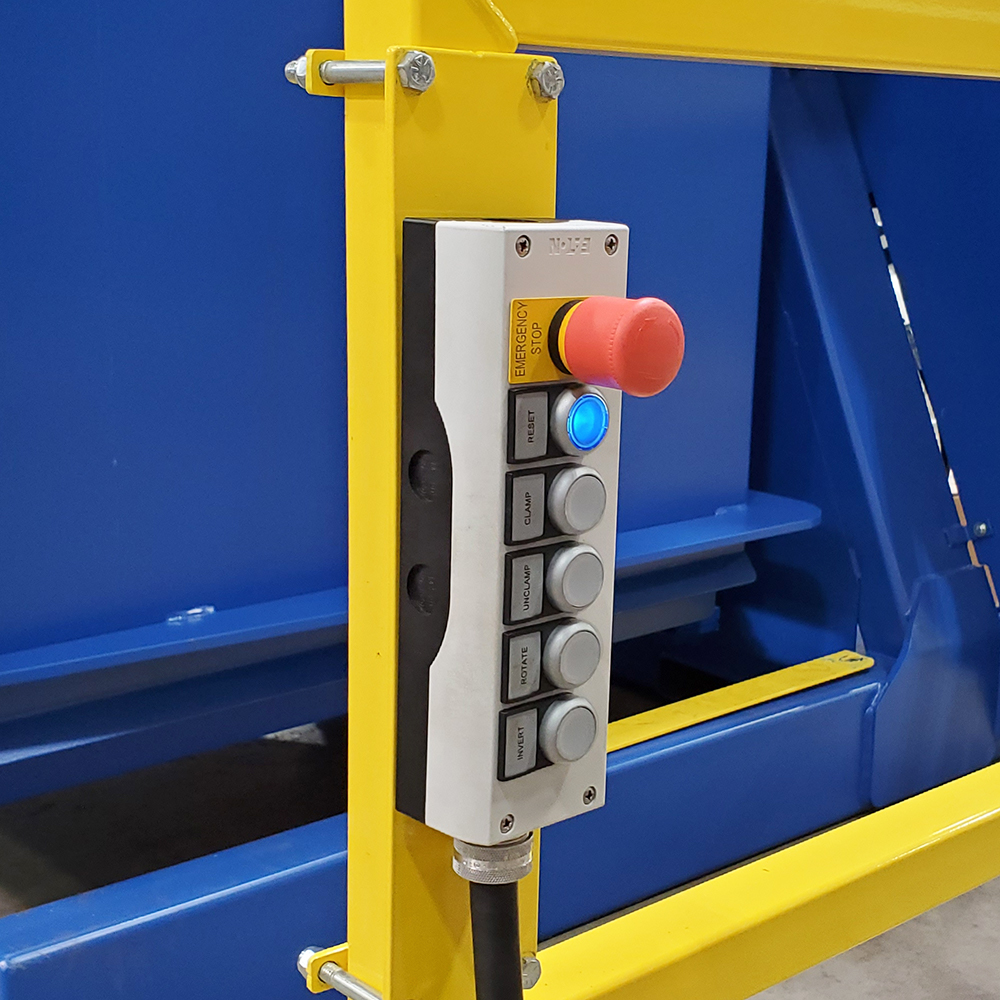

Pendant with E-stop and resetPendant with E-stop and reset

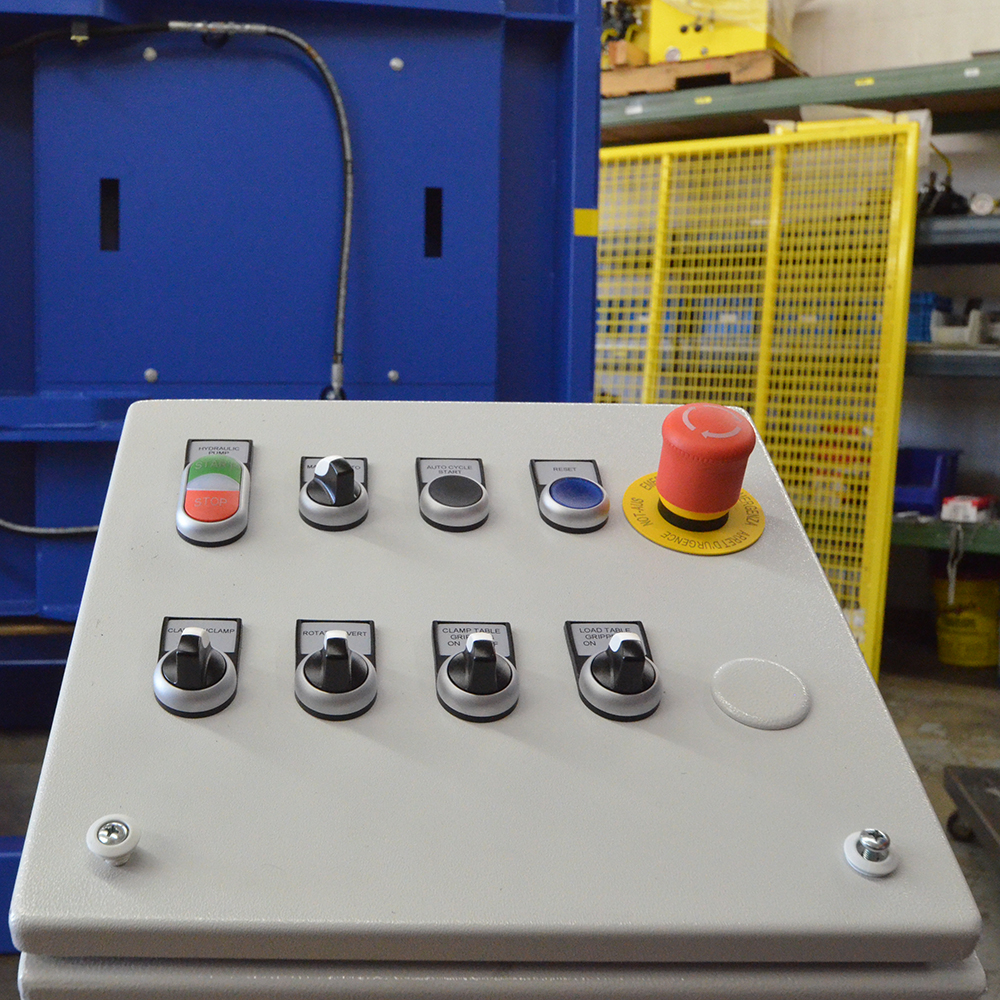

Control console with push buttonsControl console with push buttons

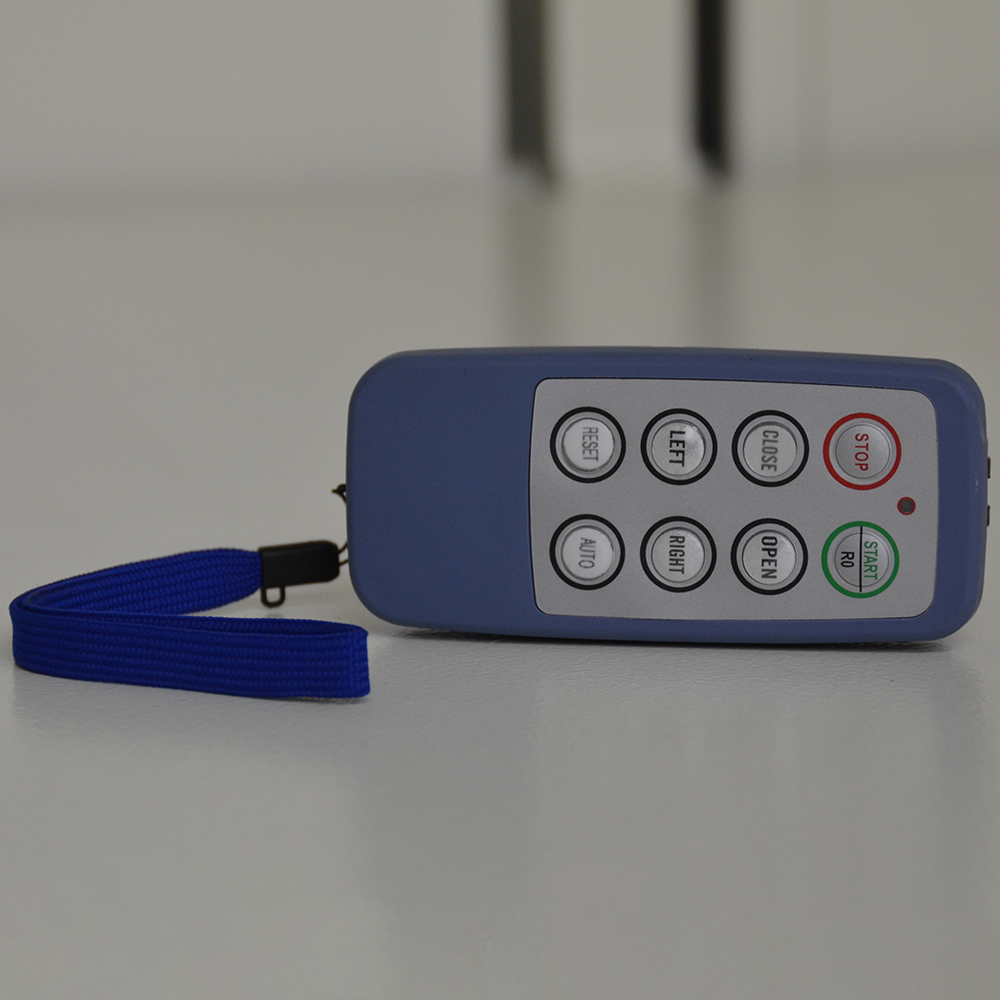

Radio remote controlsRadio remote controls

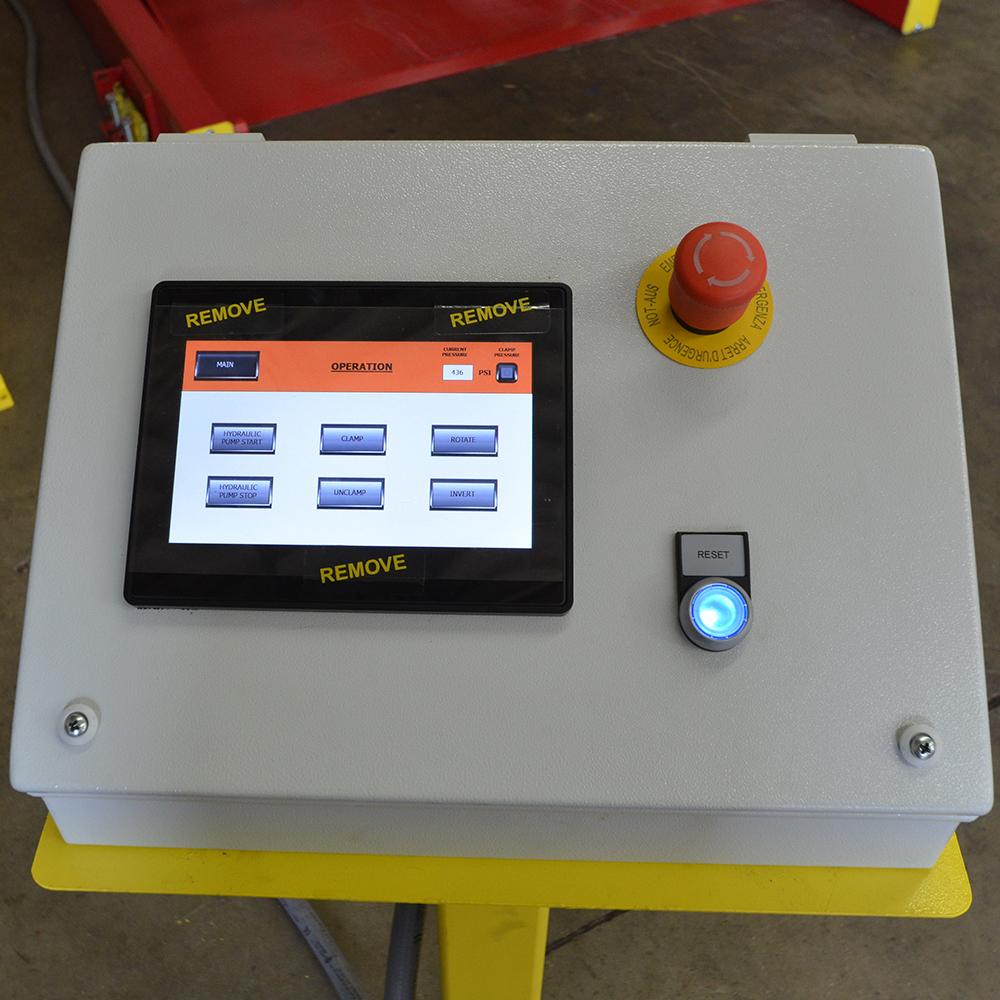

Color TFT touchscreenColor TFT touchscreen

Guards

The standard operator controls are an energy saver pendant with press and maintain push buttons that illuminate when activated. A safety rated pendant adds a reset button and E-stop plus a PLd safety circuit to the main panel. A variety of additional control configuration options are available for the DC-91 including: an operator console, HMI touchscreen, auto controls, RF radio remote and high-speed motion controls.

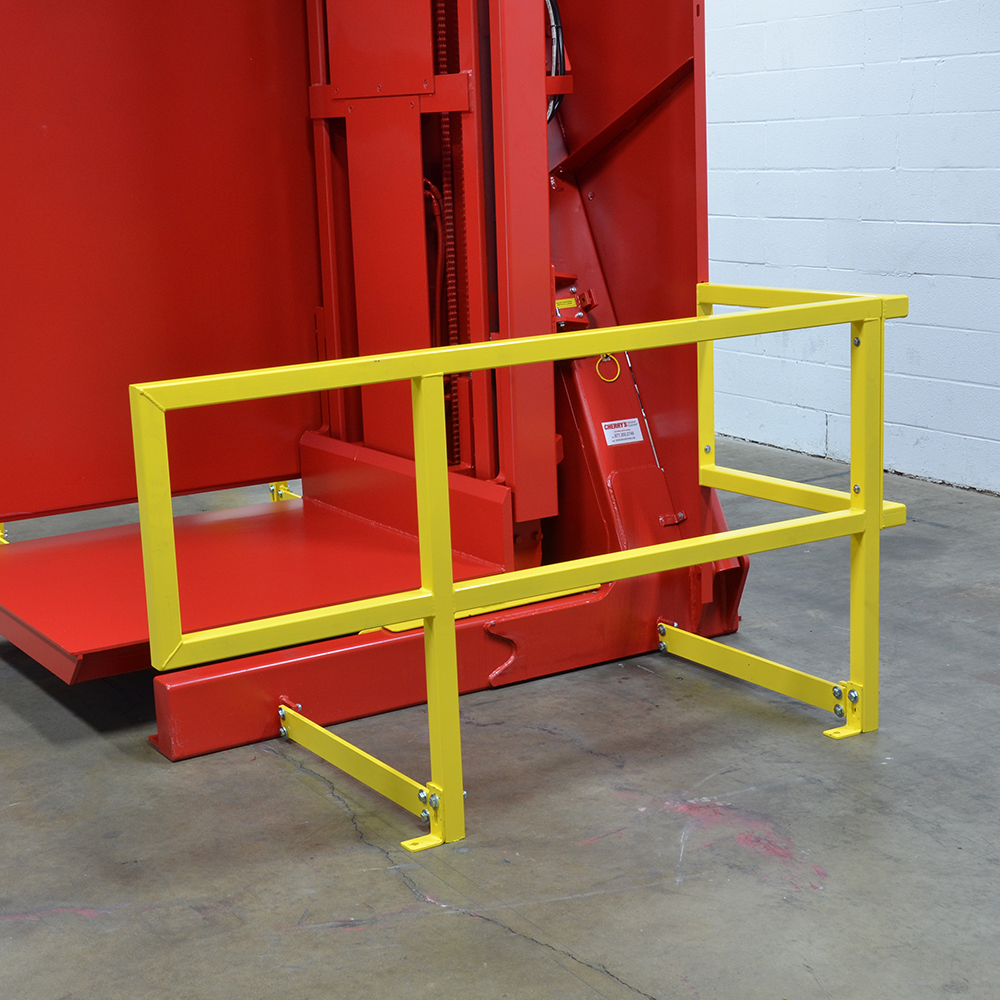

Protective rail guardsProtective rail guards

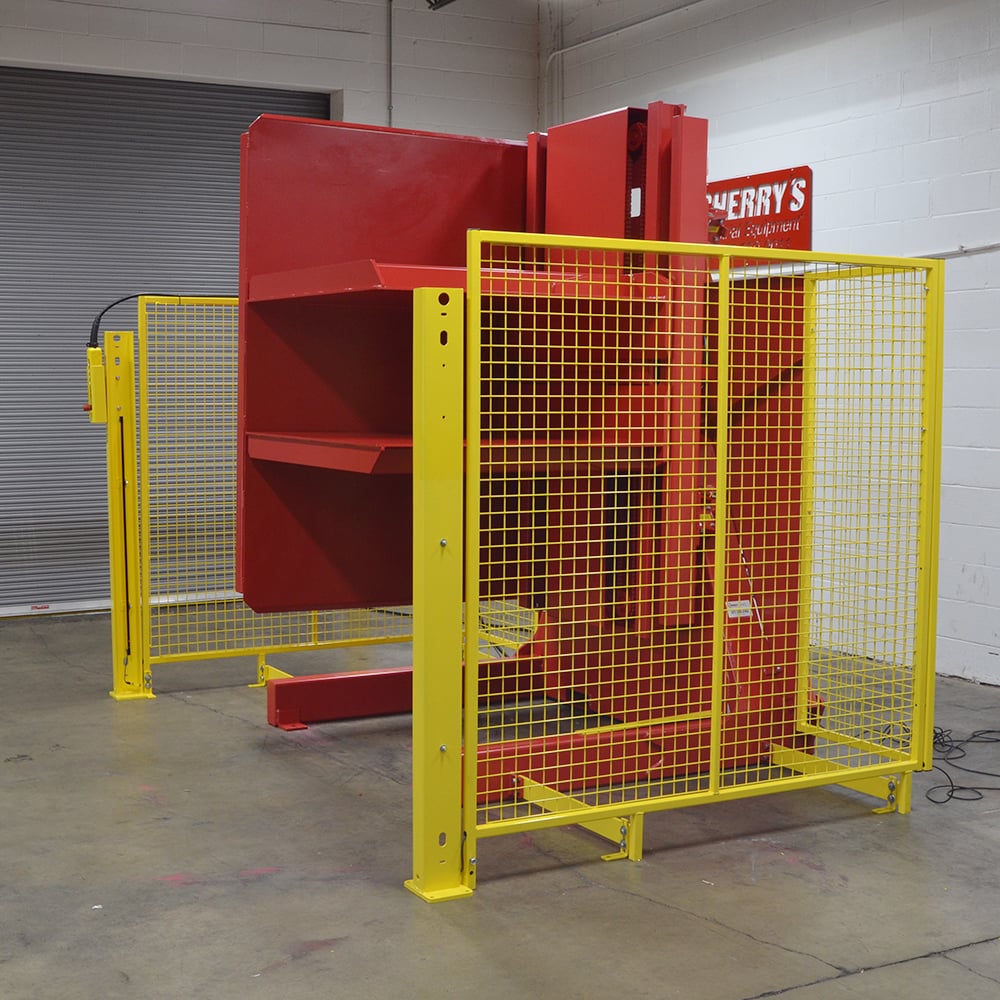

High style perimeter guardingHigh style perimeter guarding

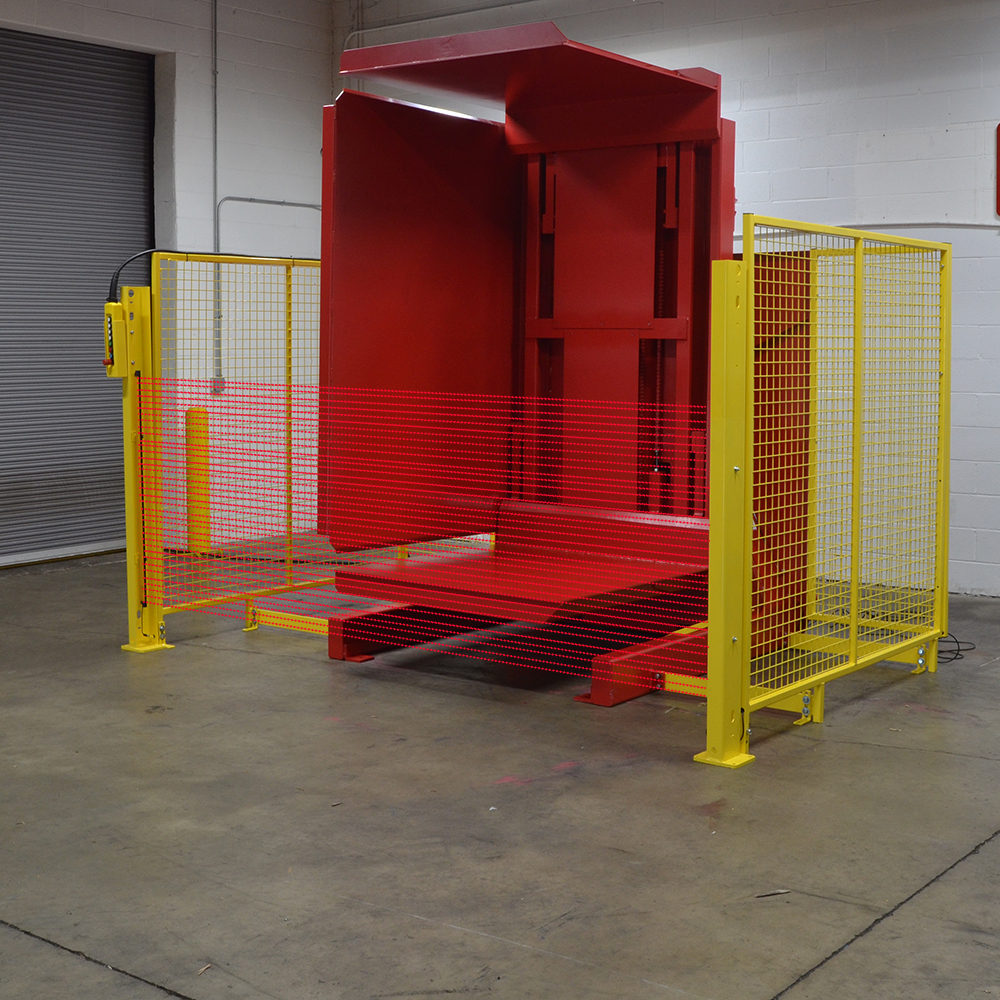

Class 4 hand type light curtainsClass 4 hand type light curtains

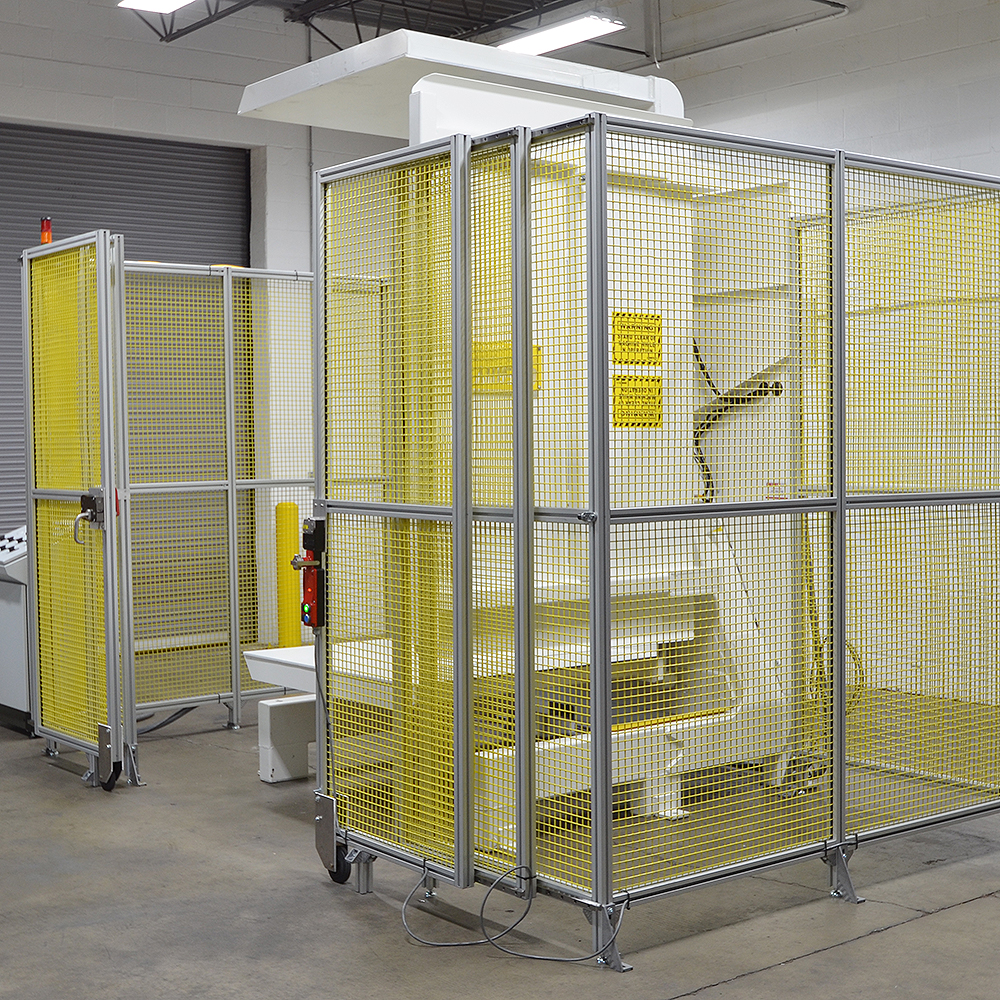

Safety matsSafety mats

Options

The DC-91 ships complete with floor anchors, hydraulic oil, operator controls, rail guarding and hydraulic power unit. A profile plate, slip sheet profile, adjustable leveling plates, custom paint colors, stainless steel finishes and upgraded components are available to meet your application or corporate specifications.

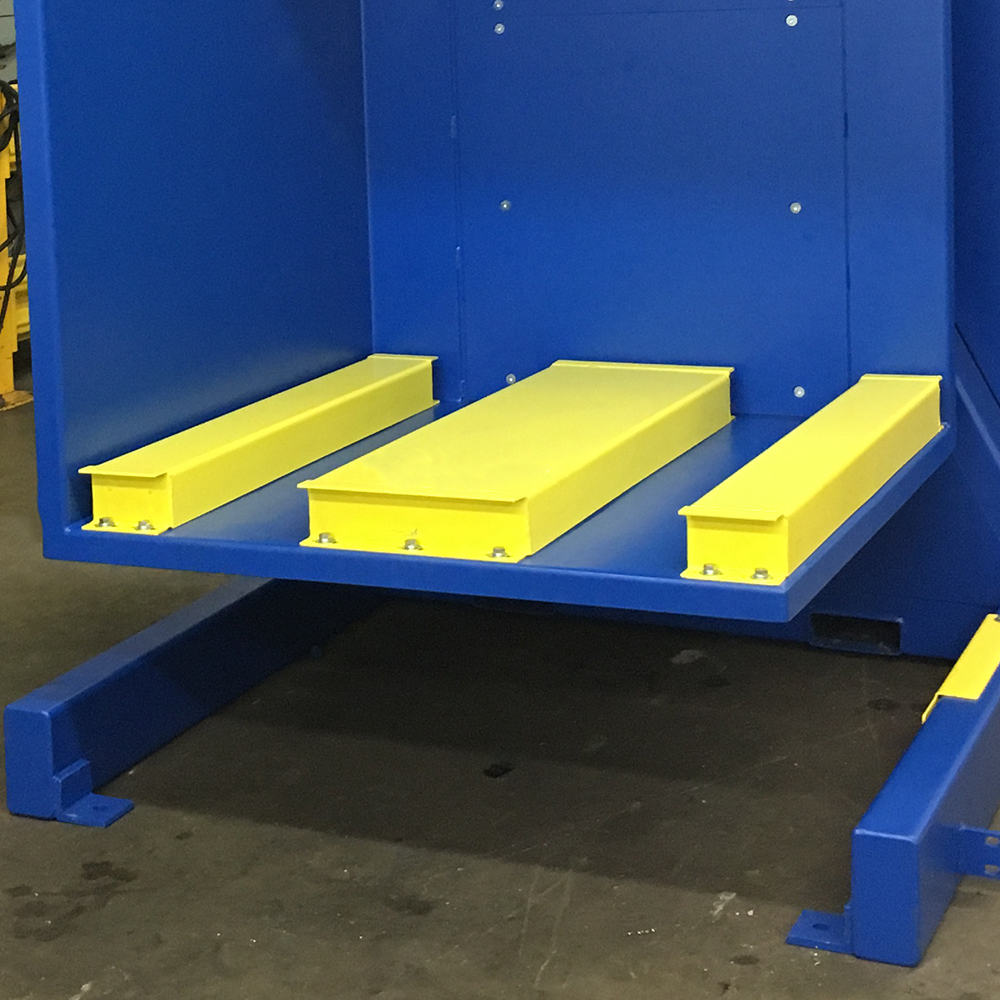

Slipsheet profilesSlipsheet profiles

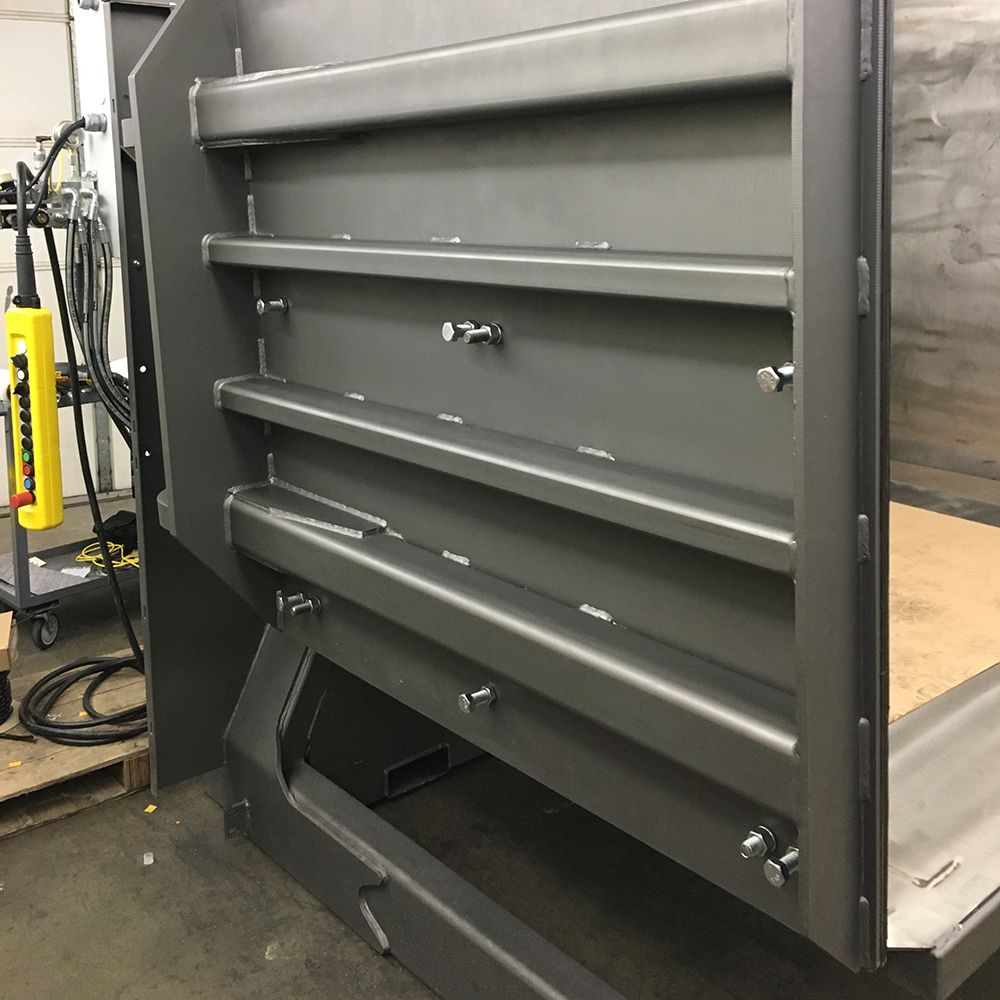

Adjustable leveling platesAdjustable leveling plates

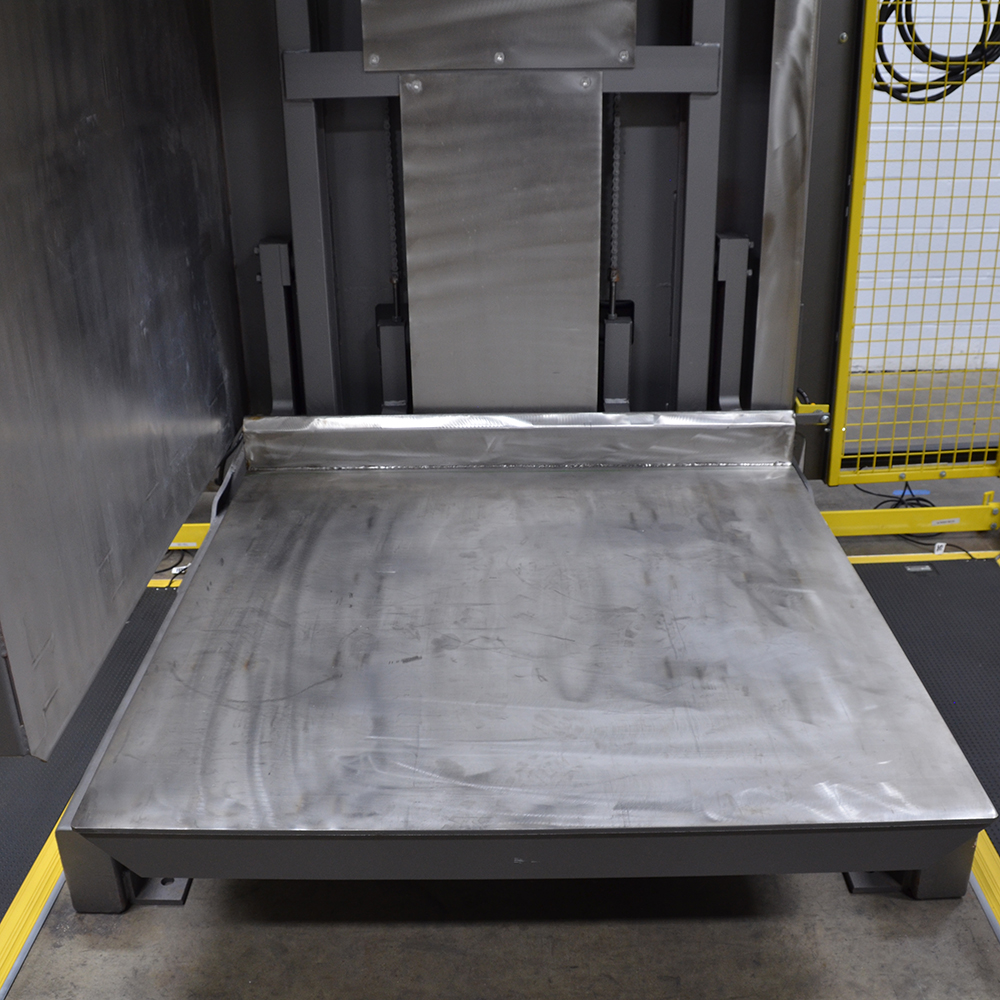

Stainless steel constructionStainless steel construction
Paint finish/colorPaint finish/color
