SC-90P Single Clamp Pallet Inverter


SC-90P

Free standing 180 degree inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert and transfer loads ranging from 42'' to 90''. Features include: UL508 Certified electrical panel, six button operator pendant, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. (MTO) MADE TO ORDER. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

SC-90-GRSC-90-HSG
SC-90P Single Clamp Pallet Inverter
SC-90P Single Clamp Pallet Inverter Image 1

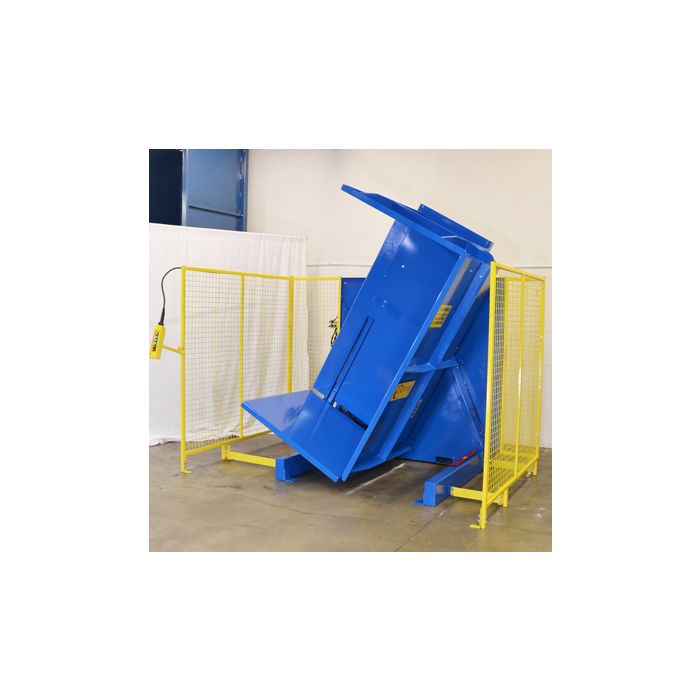

SC-90P Single Clamp Pallet Inverter Image 2
SC-90P Single Clamp Pallet Inverter Image 3

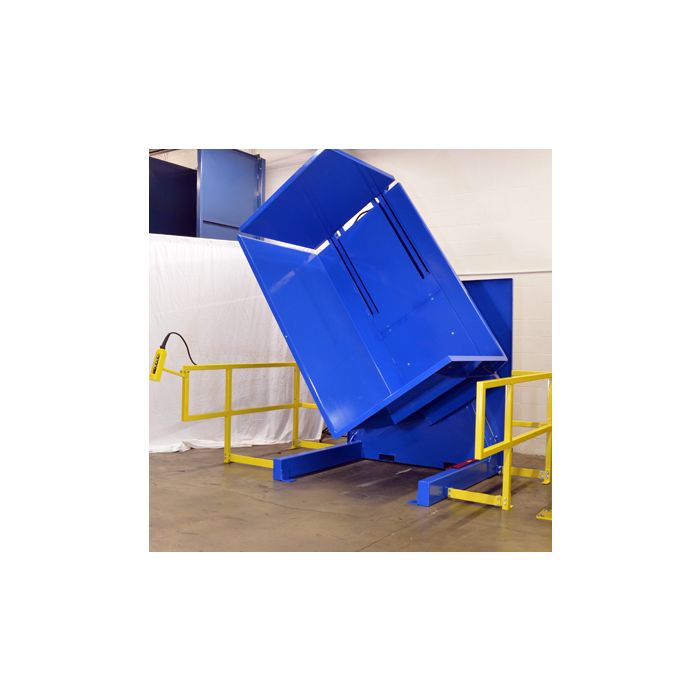

SC-90P Single Clamp Pallet Inverter Image 4

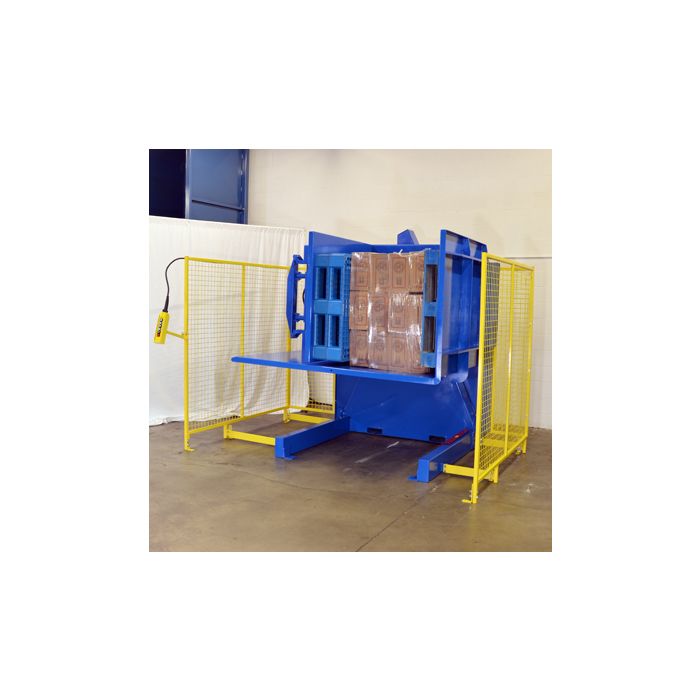

SC-90P Single Clamp Pallet Inverter Image 5

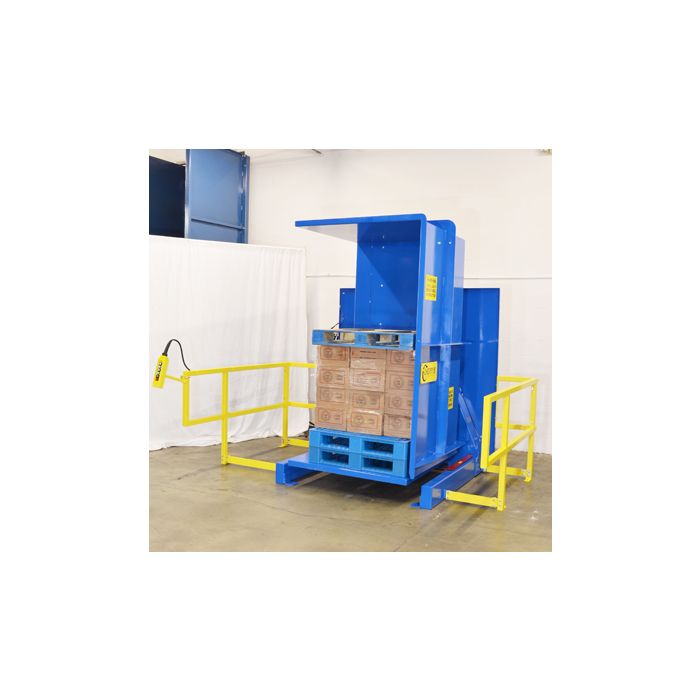

SC-90P Single Clamp Pallet Inverter Image 6

Product Information

Commonly used by stevedores, fruit & vegetables importers, shredded cheese manufactures or any other company requiring an extended range from 48" up to 90". 6-button momentary contact pushbutton on a 30' cord. 6-functions include START, STOP, CLAMP UNCLAMP, ROTATE, INVERT. 24V primary voltage. Pendant can be hung from the ceiling or machine mounted with attached pendant holder.


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
SC-90P Push buttons 5/3.7 18 Invert/18 Rotate Standard
SC-90HSP Push buttons 5/6.6 10 Invert/8 Rotate Standard



Product Tour


Specifications


ModelSC-90P
ControlsSix Button Pendant
Loading Table Size50 x 50
Max. Jaw Opening90''
Min. Jaw Opening42''
FinishBlue Epoxy Paint
Capacity4,000 lbs
Adjustable Clamp Pressure400-2000 PSI
System Pressure2200 PSI
Maintenance Lock Outs4
Motor5 HP
Power Source208/230/460/575V
CertificationsUL 508a Certified Panel
Warranty3 year parts and 1 year labor. Extended service agreements available.
FOBRoselle, IL
Loading Height Upright25"
Operating Width115"
Operating Depth71.4"
Operating Height123-3/4"
Loading Height Inverted11-1/8"
Width With GuardsGR-134-3/4"/HSG-138"
Shipping weight*5,500 lbs
Shipping Dimensions96" L x 96" W x 96" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

Floor anchors, hydraulic oil, operator controls and a power unit all are standard items shipped complete on the SC-90P Pallet Inverter. A profile plate, slip sheet profile, upgraded components plus custom paint colors, stainless steel finishes are available to meet your application or corporate specifications.

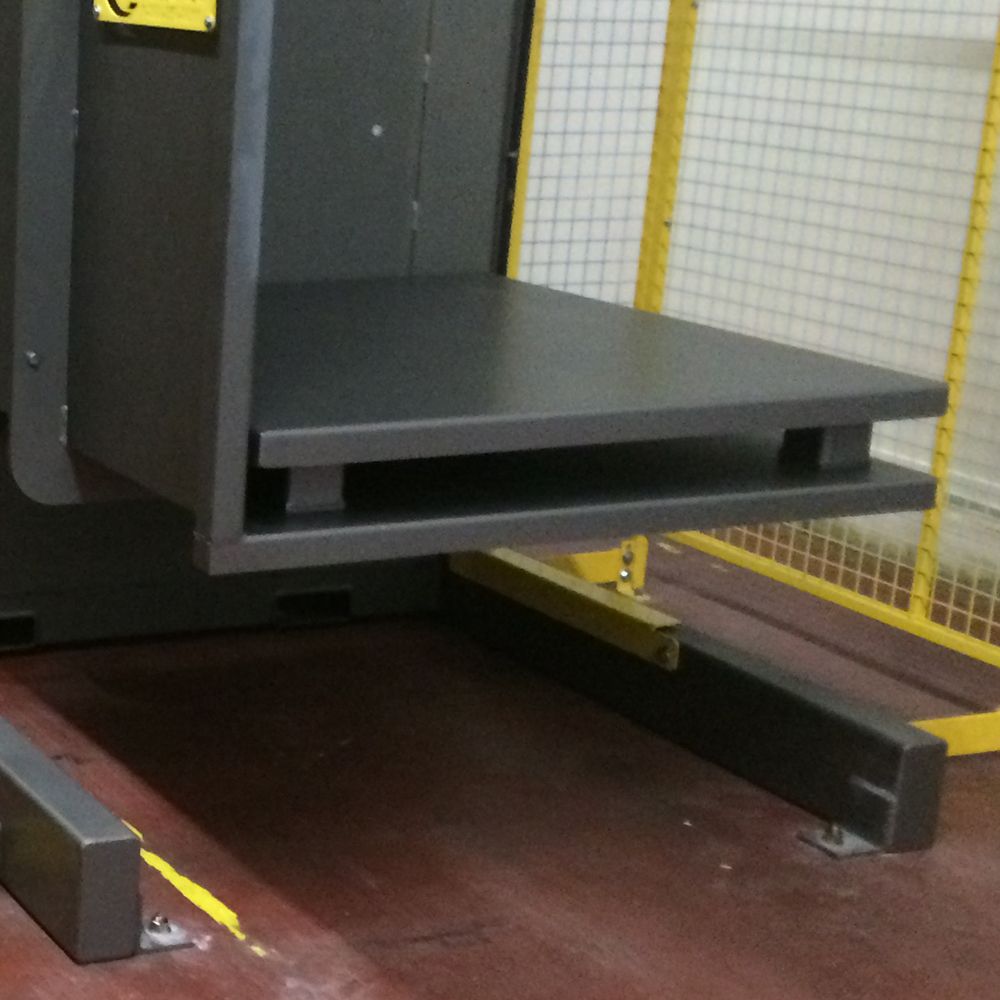

Profile PlateProfile Plate

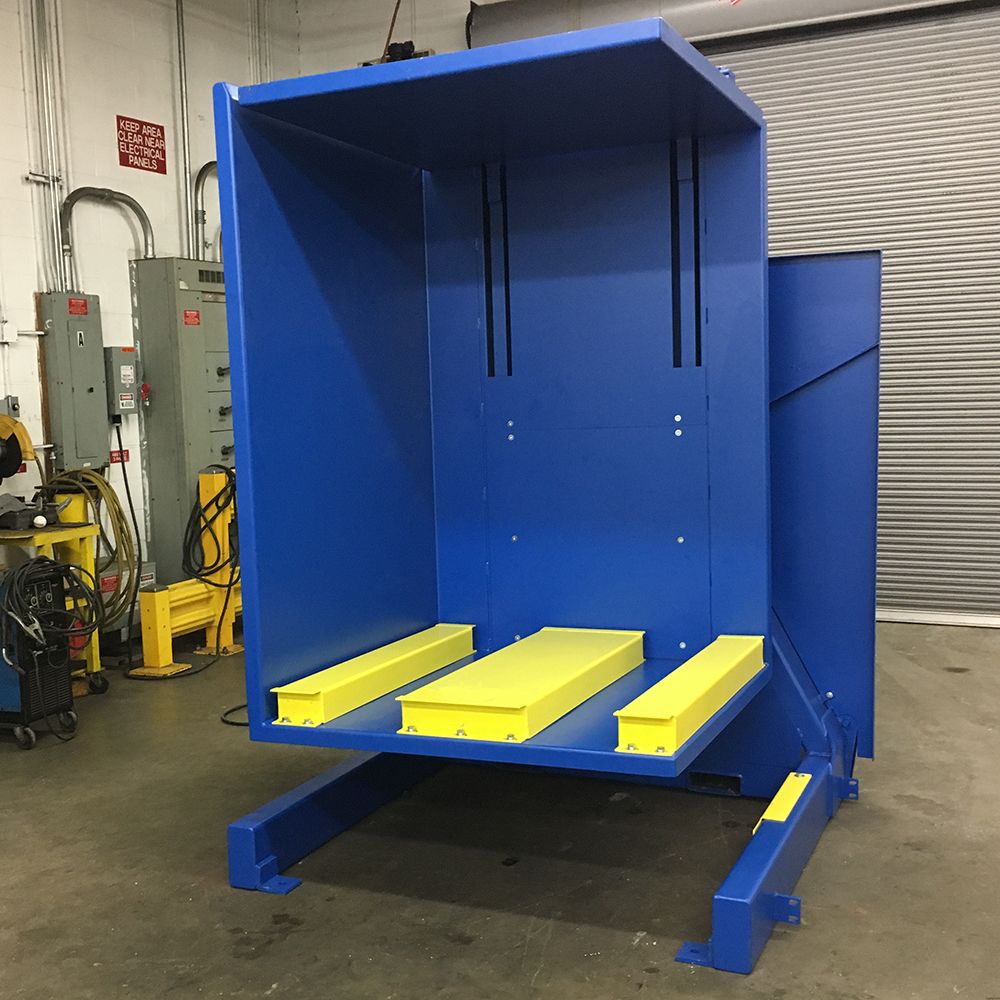

Slip Sheet ProfileSlip Sheet Profile

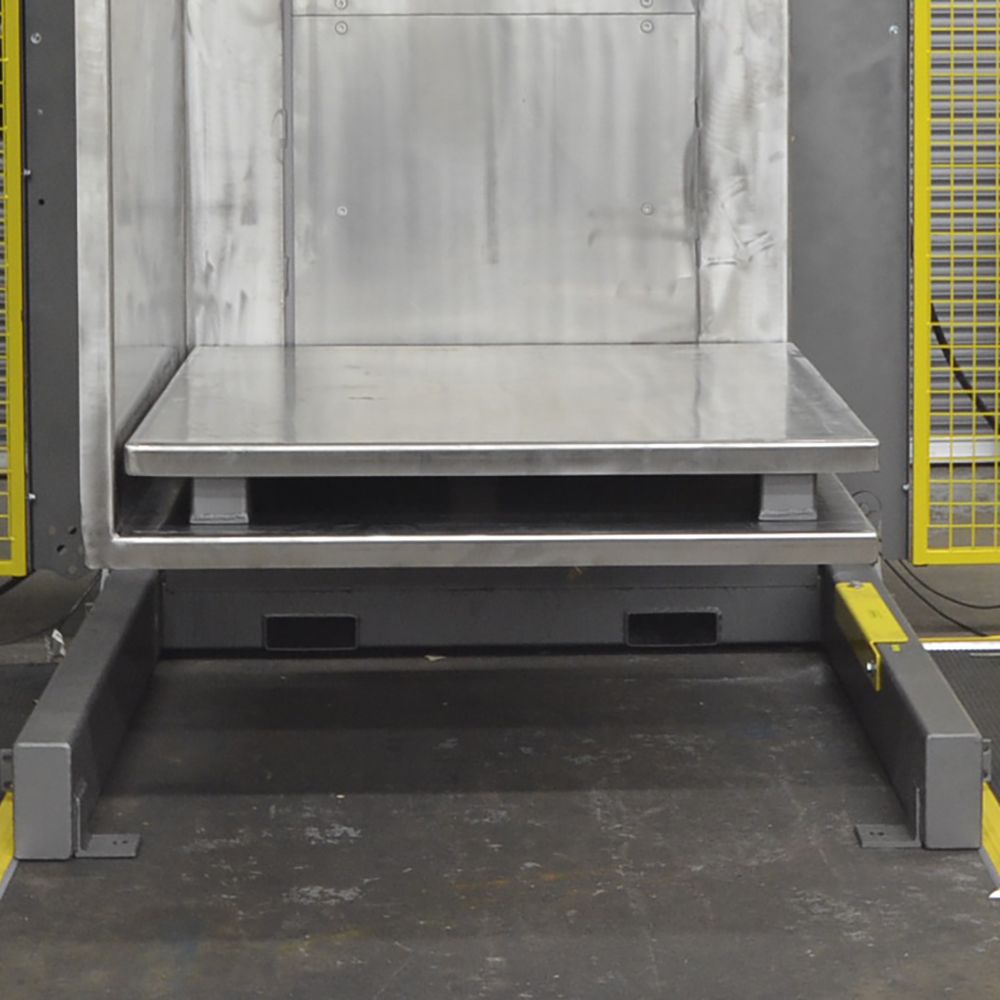

Stainless SteelStainless Steel
Paint color/finishPaint color/finish

Controls

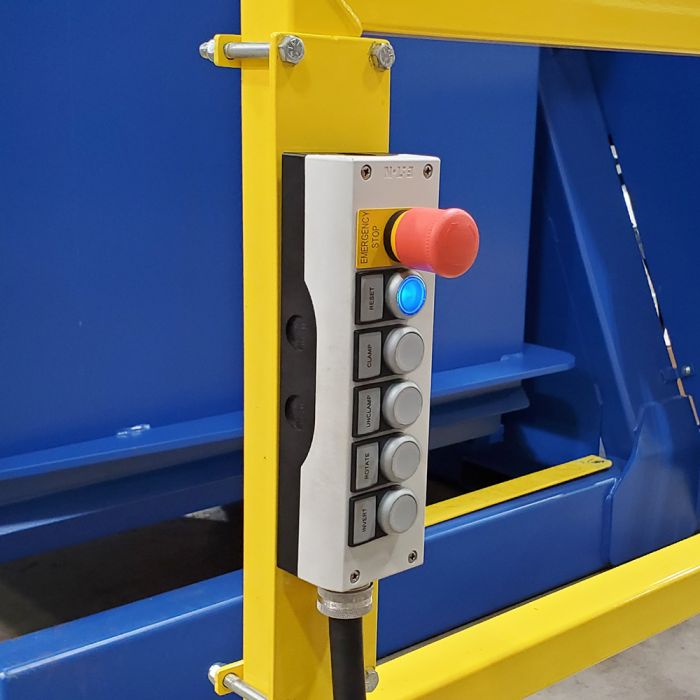

Built standard with an energy saver pendant with press and maintain push buttons that illuminate when activated. The pendant can be magnetically held in placed on a post, column or on the side of the guarding, depending on your needs. A variety of control configuration options are available for the SC-90P including: an operator console, auto controls, RF radio remote, high speed motion controls or a downgrade to lever controls.

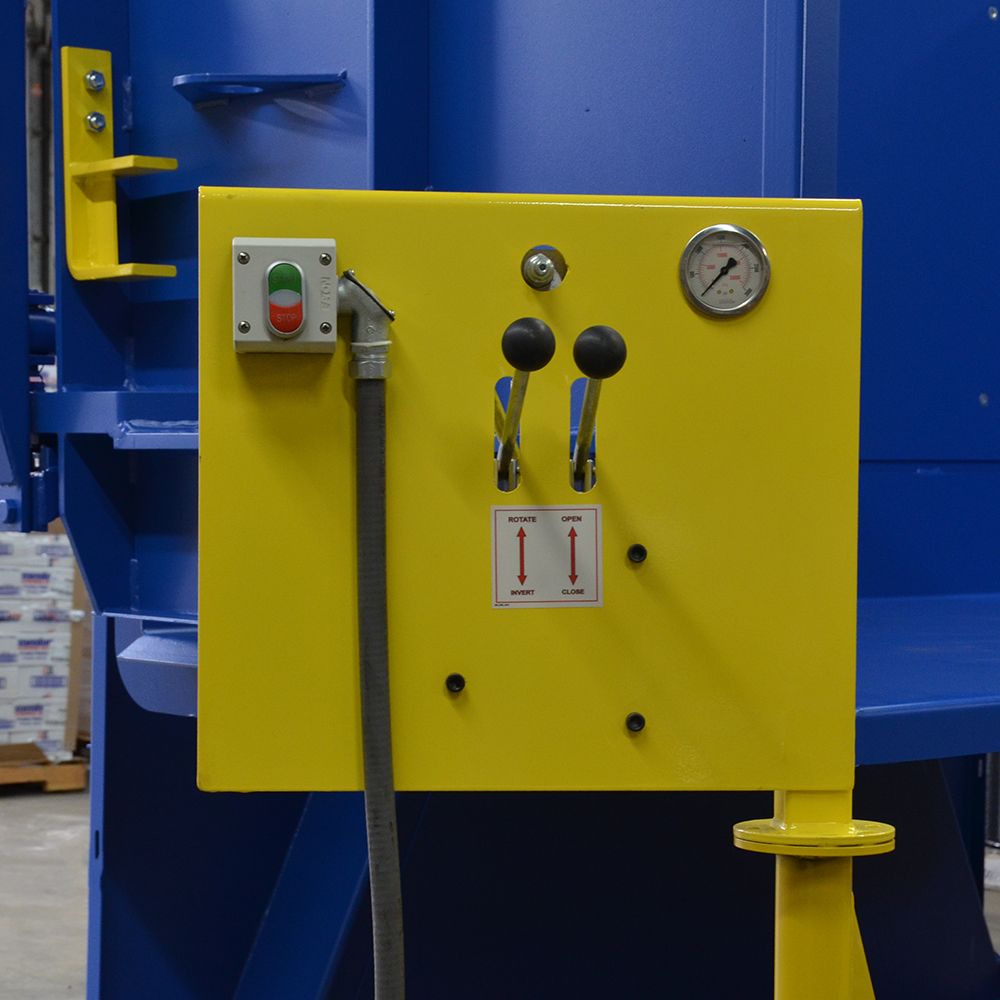

Lever ControlLever Control

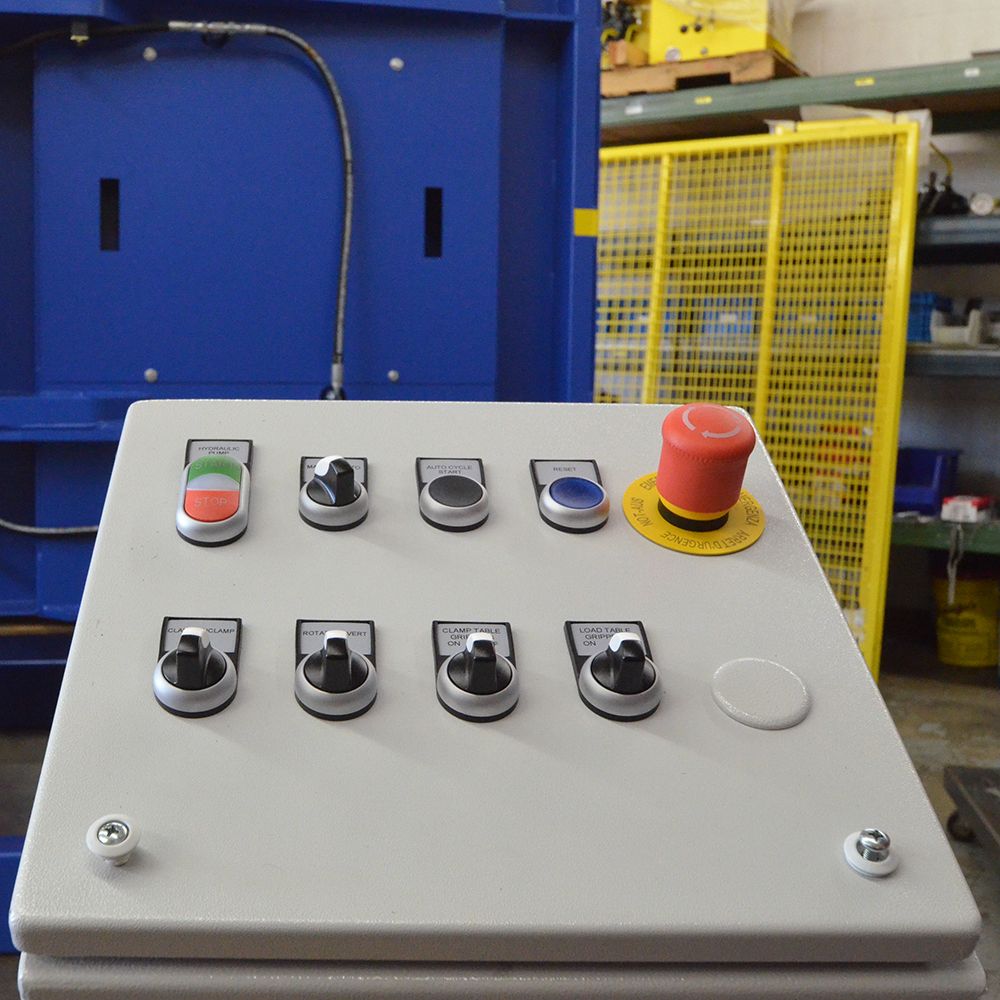

Control ConsoleControl Console

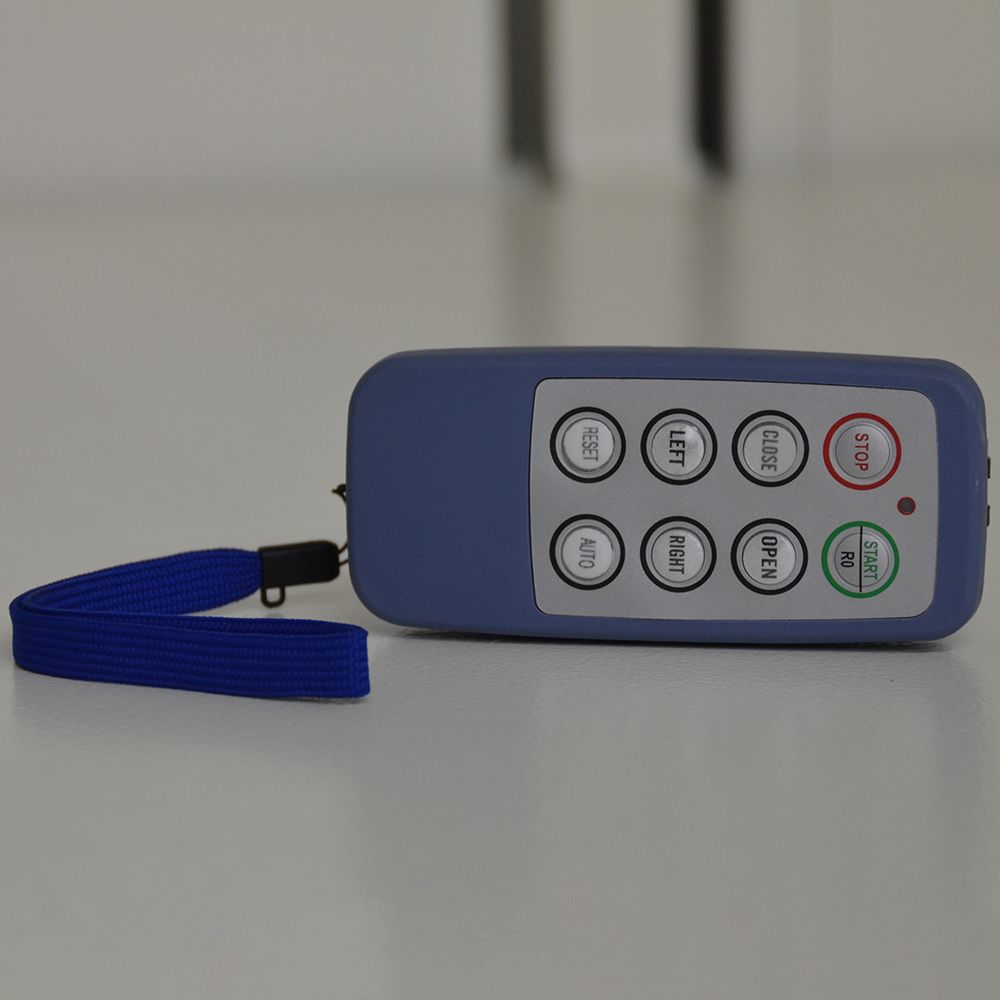

Remote ControlRemote Control

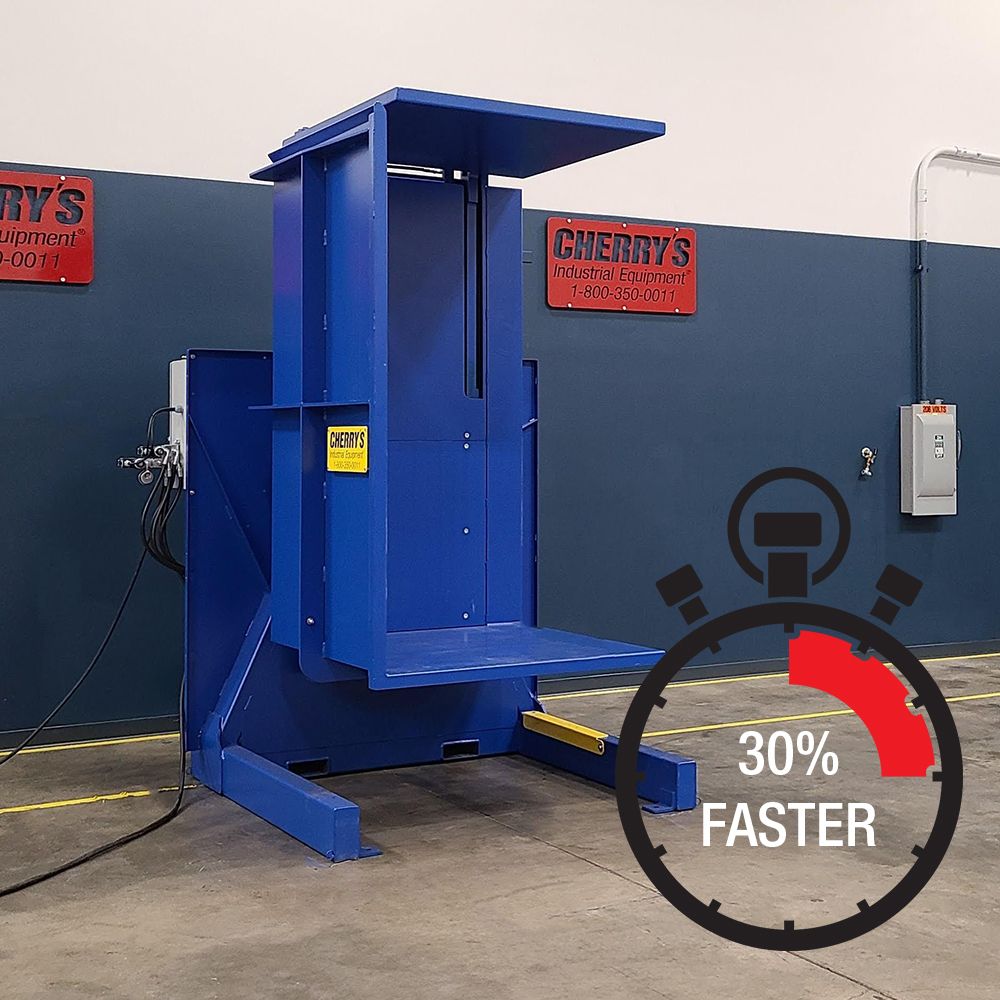

High Speed Controls for faster cyclesHigh Speed Controls for faster cycles

Guards

Rail guarding is standard with the SC-90Pto protect against injury or forklift damage. Personnel guarding can be configured to the machine to enhance the safety and security of the operator. Options include Bosch guarding with removable maintenance sections, 3-sided 78 high style perimeter guards or light curtains and safety mats. These guards protect the front entrance and surrounding areas of the equipment.

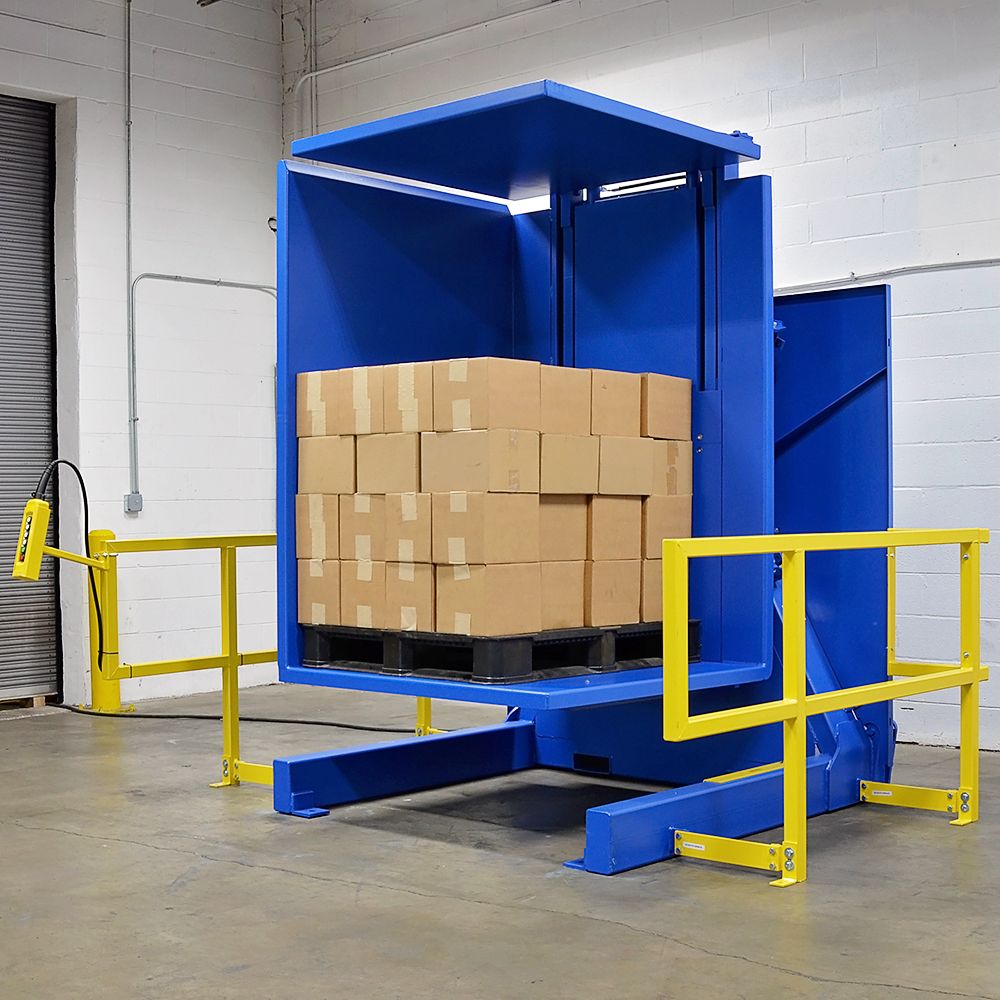

Rail GuardsRail Guards

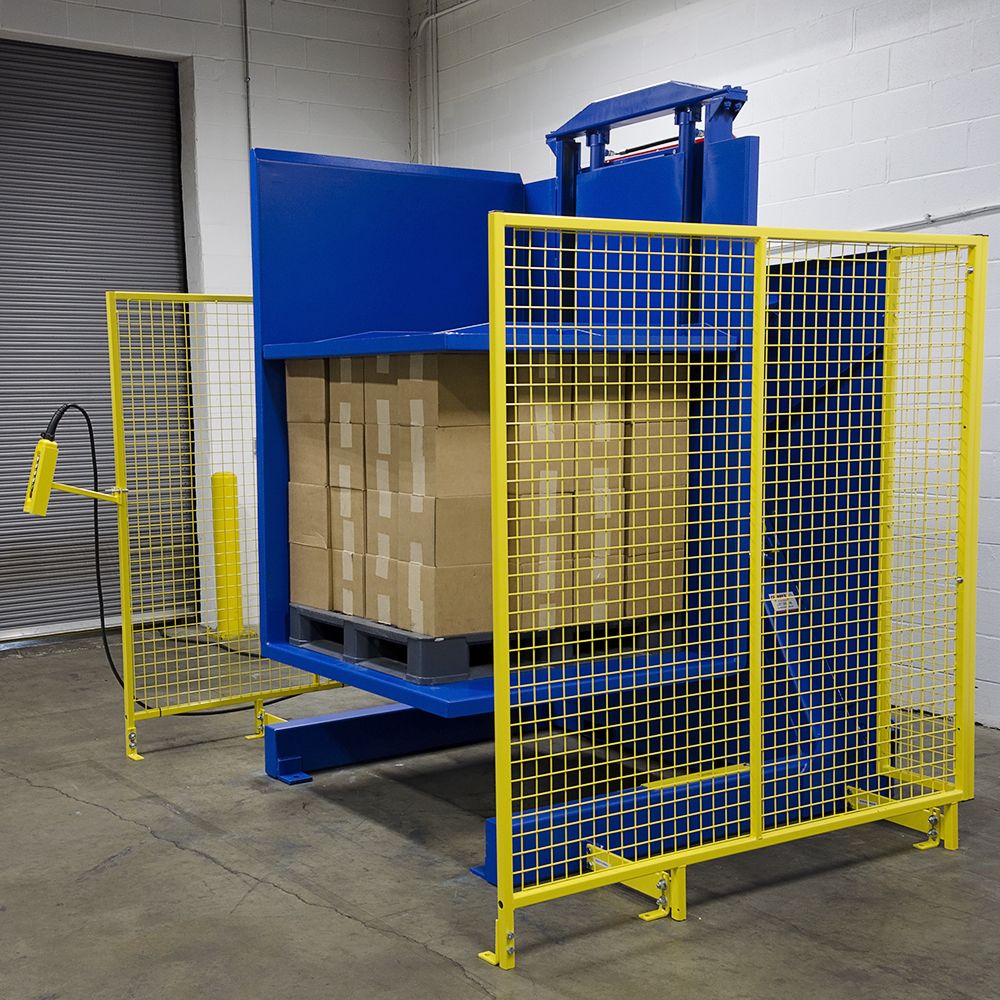

High Style GuardsHigh Style Guards

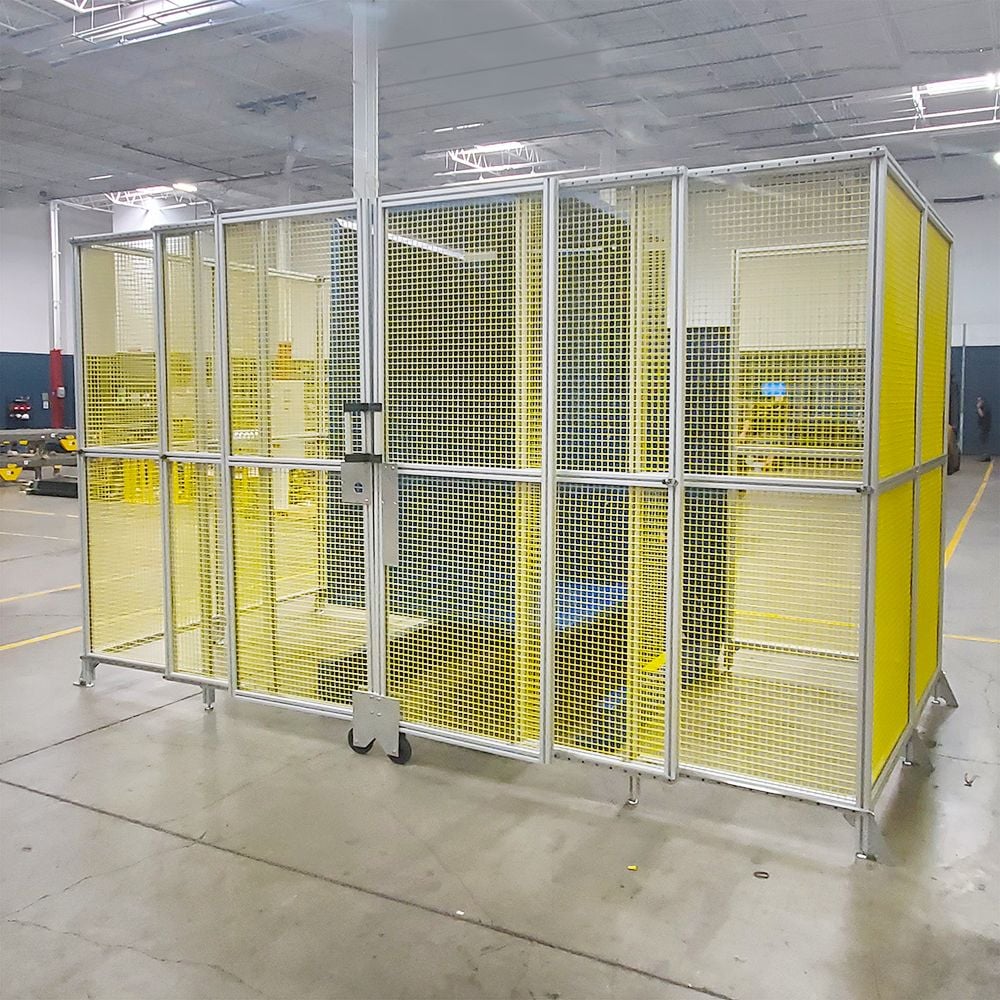

Bosch GuardsBosch Guards

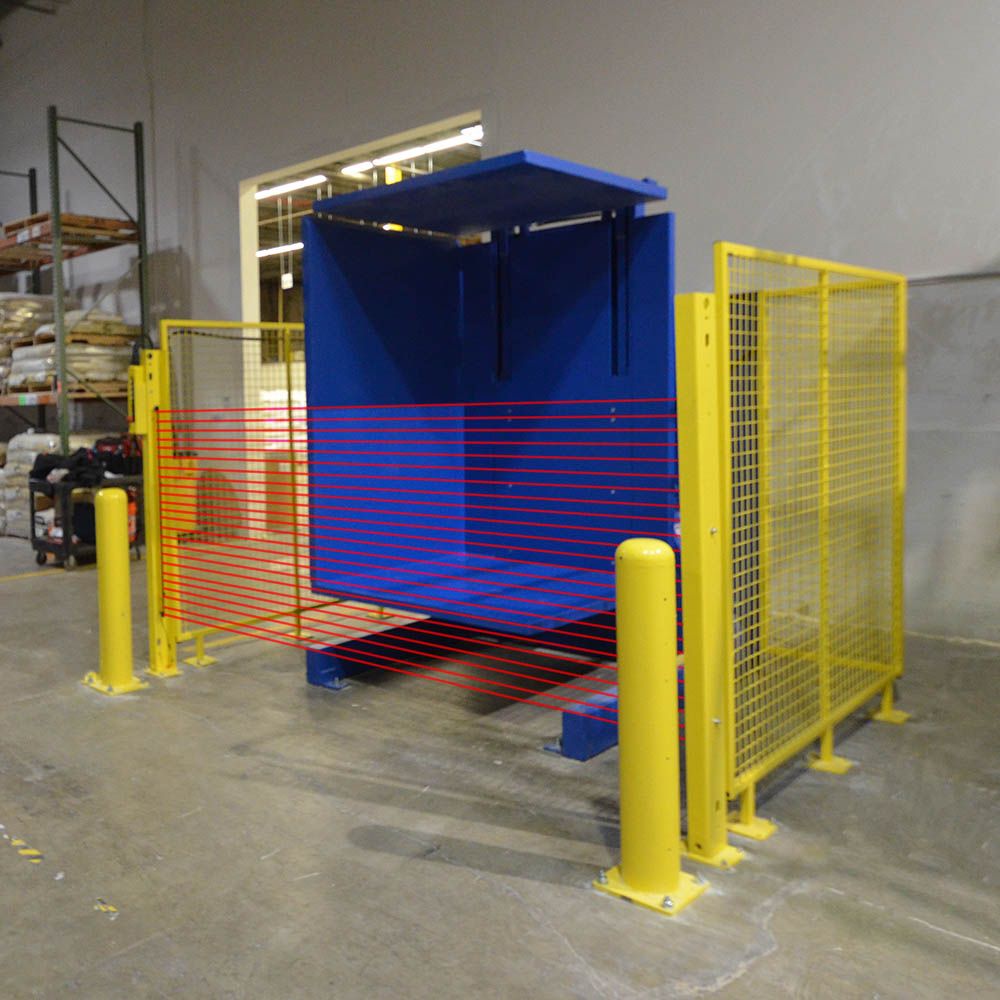

Safety light curtain - not available with lever controlsSafety light curtain - not available with lever controls
