SC-86P Single Clamp Pallet Inverter

SC-86P

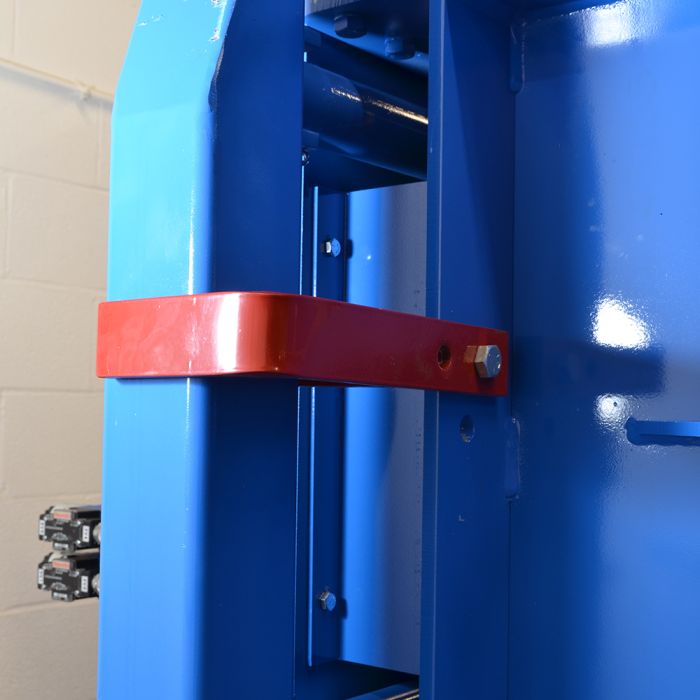

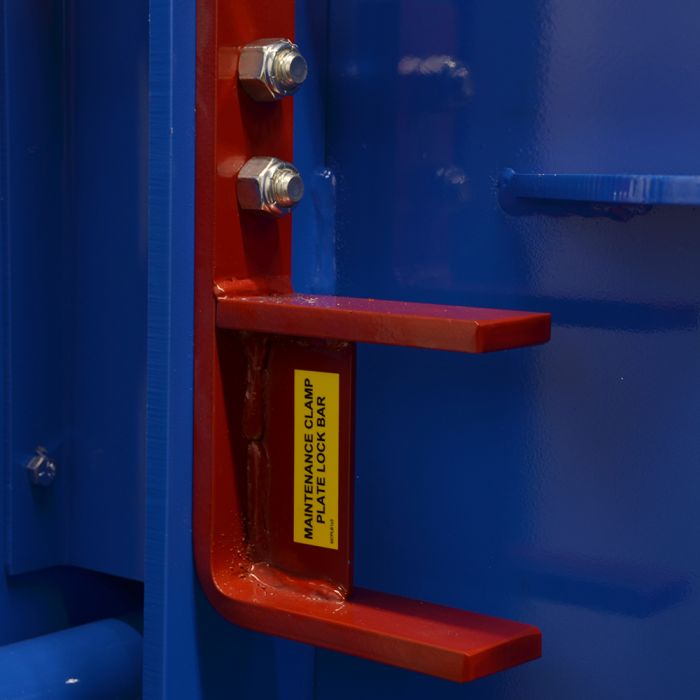

Free standing 180° inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert or transfer loads ranging from 44'' to 86''. Features include: UL508 certified electrical panel, sx button operator pendant, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. STANDARD UNIT - Always in Stock. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

SC-86PSC-86-GRSC-86-HSG

SC-86P Single Clamp Pallet Inverter Image 1

SC-86P Single Clamp Pallet Inverter Image 2

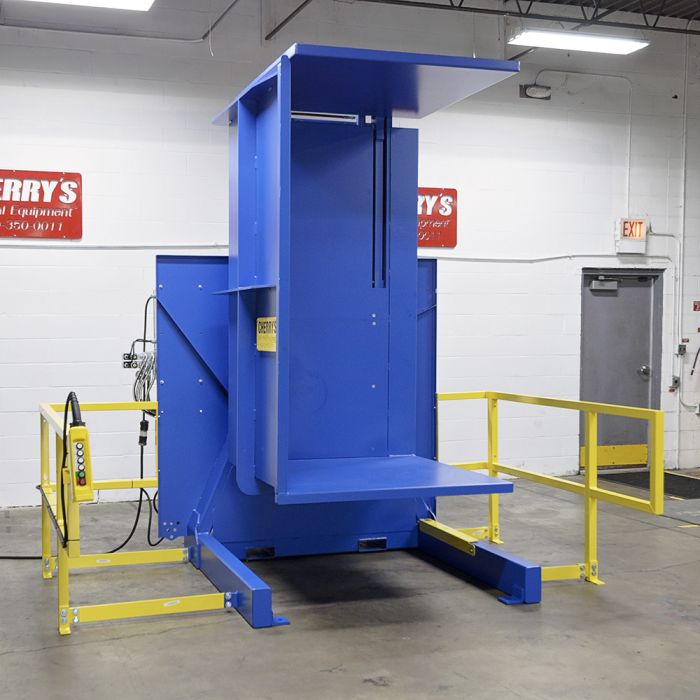

SC-86P Single Clamp Pallet Inverter Image 3

SC-86P Single Clamp Pallet Inverter Image 4

SC-86P Single Clamp Pallet Inverter Image 5

SC-86P Single Clamp Pallet Inverter Image 6

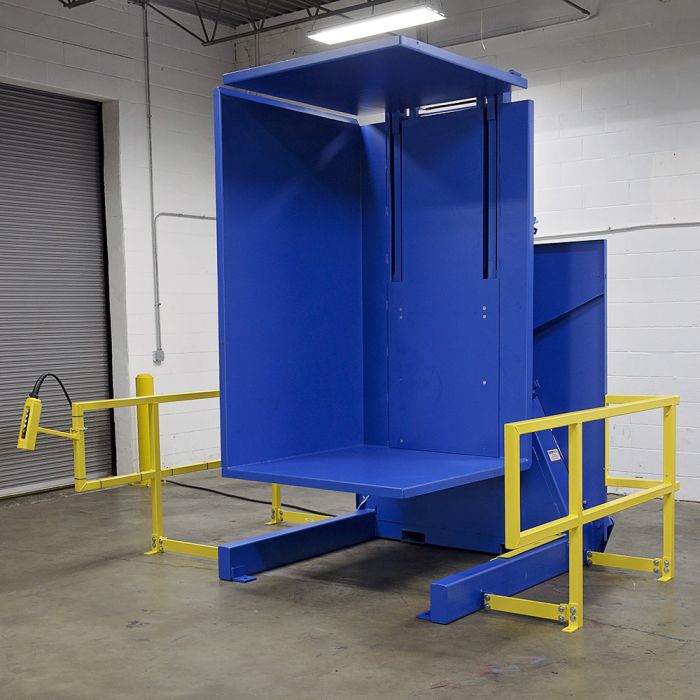

SC-86P Single Clamp Pallet Inverter Image 7

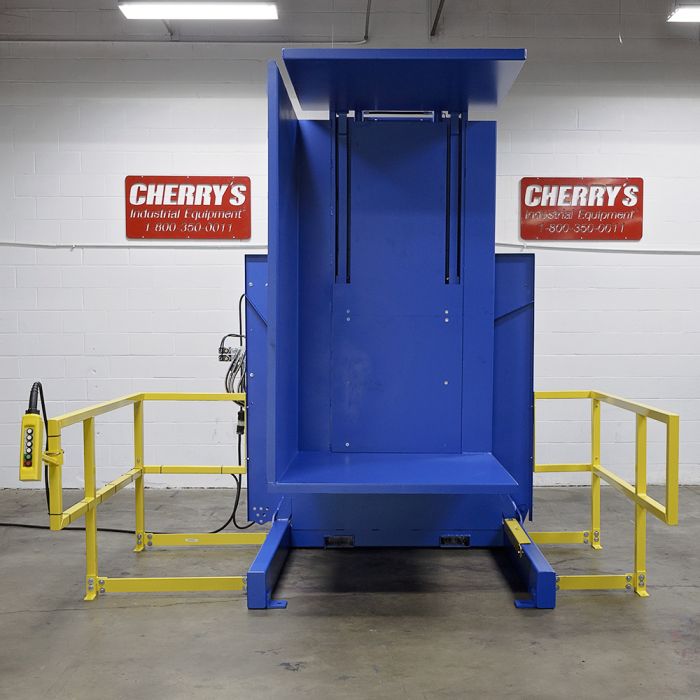

SC-86P Single Clamp Pallet Inverter Image 8

See it in the Wild

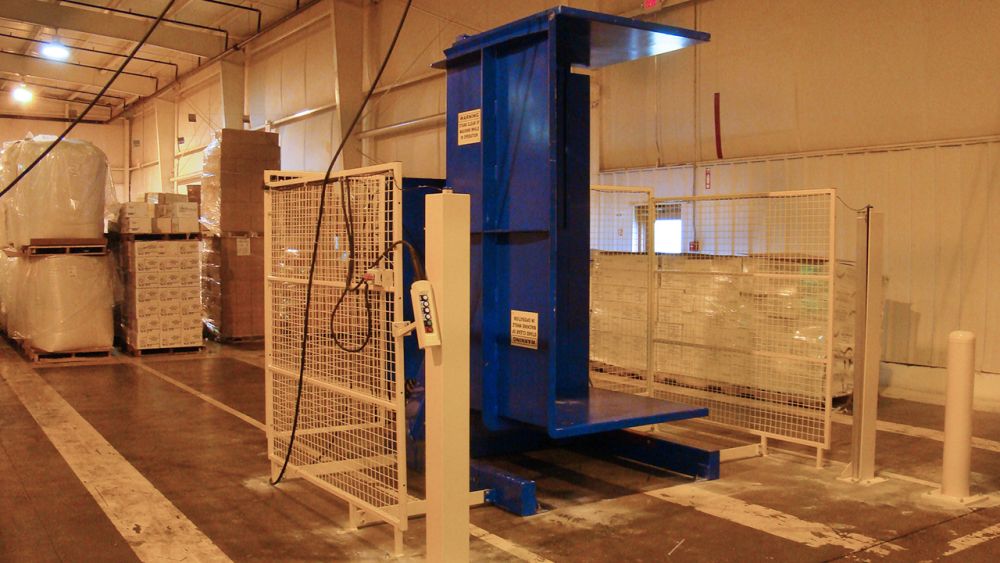

Pallet Inverter with guarding on a receiving dock

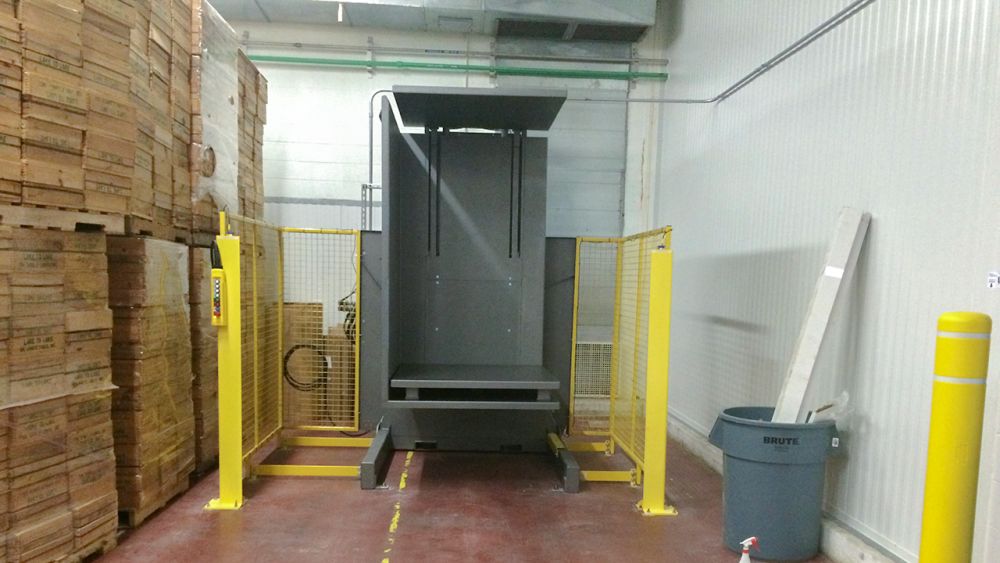

SC-86 Pallet Inverter with USDA approved steel paint

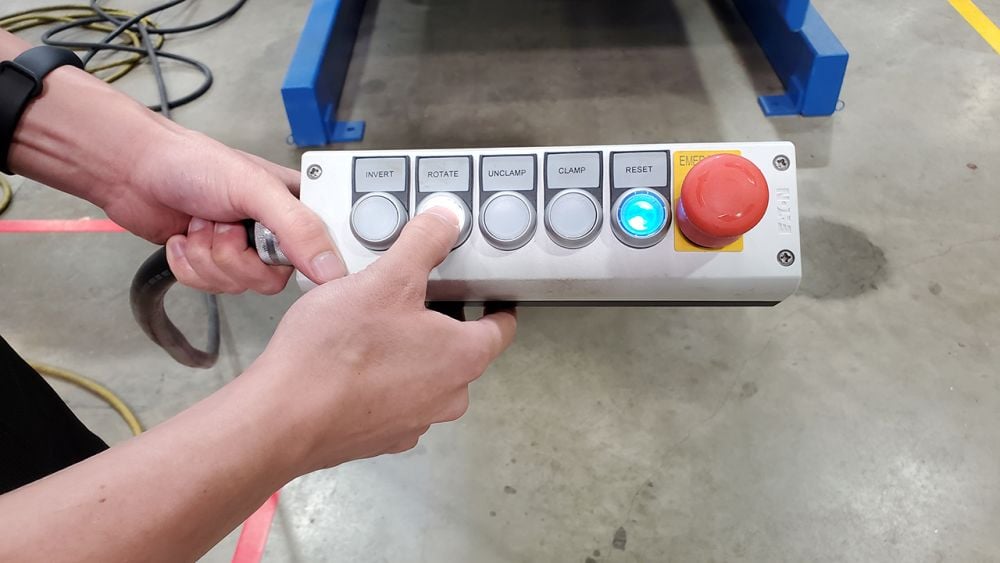

Hand held pendant with reset

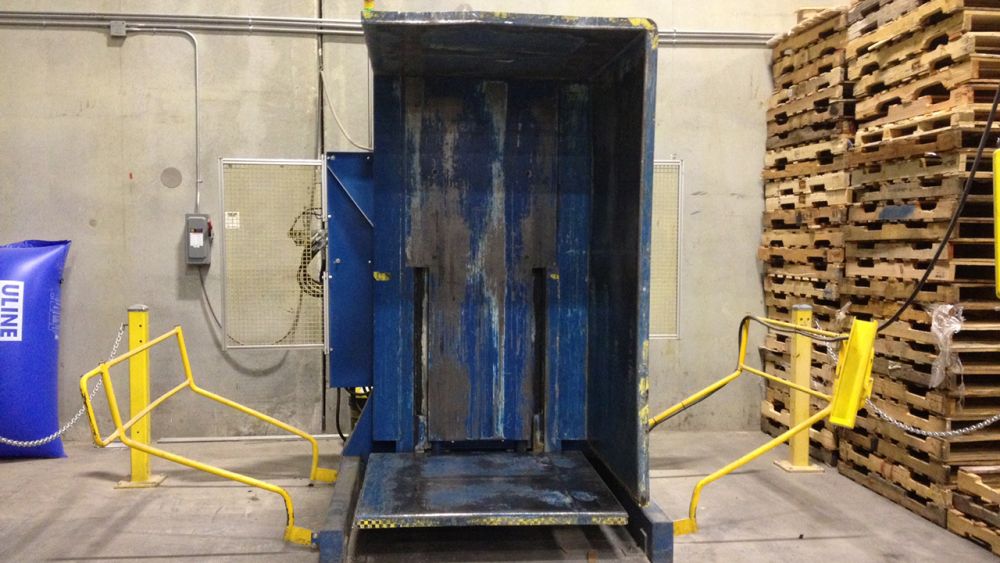

Pallet Inverter at pharma plant

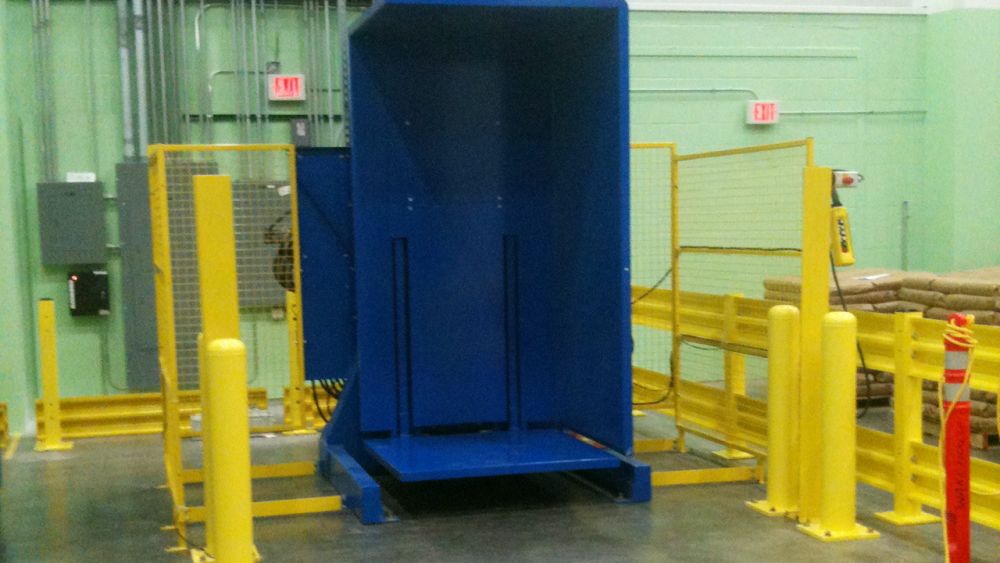

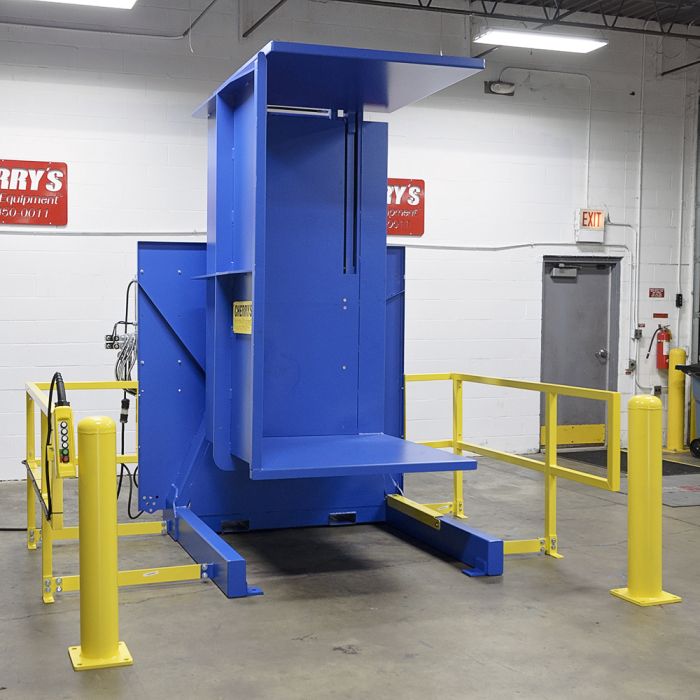

SC-86 with guards and bollards

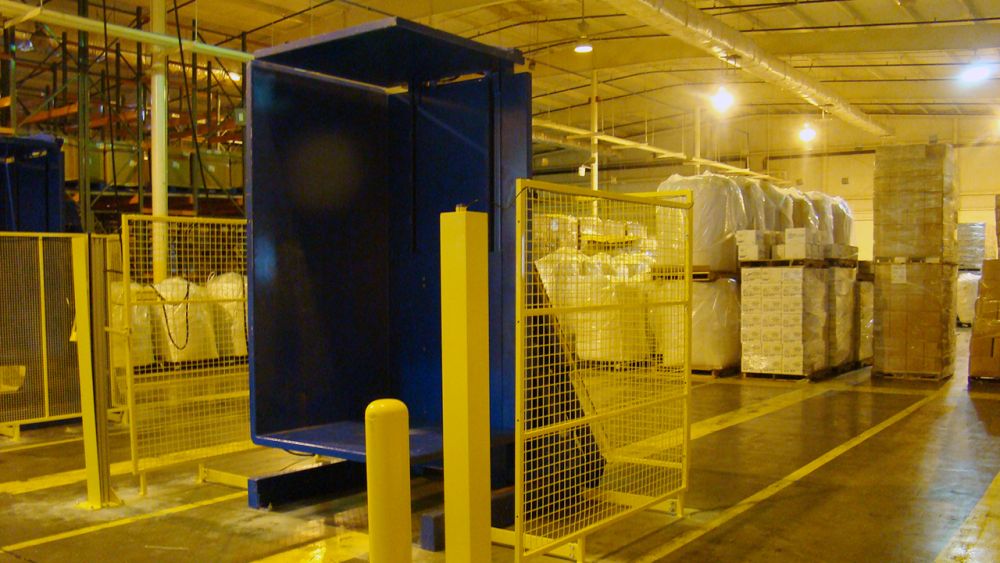

SC-86 handling bags and supersacks

Product Information

Free Standing 180° inverter best suited for tall loads ranging from 46" up to 86". Commonly used at most food service companies, distribution centers & public warehouses. 6-button momentary contact pushbutton on a 30' cord. 6-functions include START, STOP, CLAMP UNCLAMP, ROTATE, INVERT. 24V primary voltage. Pendant can be hung from the ceiling or machine mounted with attached pendant holder.

Product Variations

SKU	Controls	Motor HP/Pump displacement	Cycle Time (seconds)	Safety Circuit

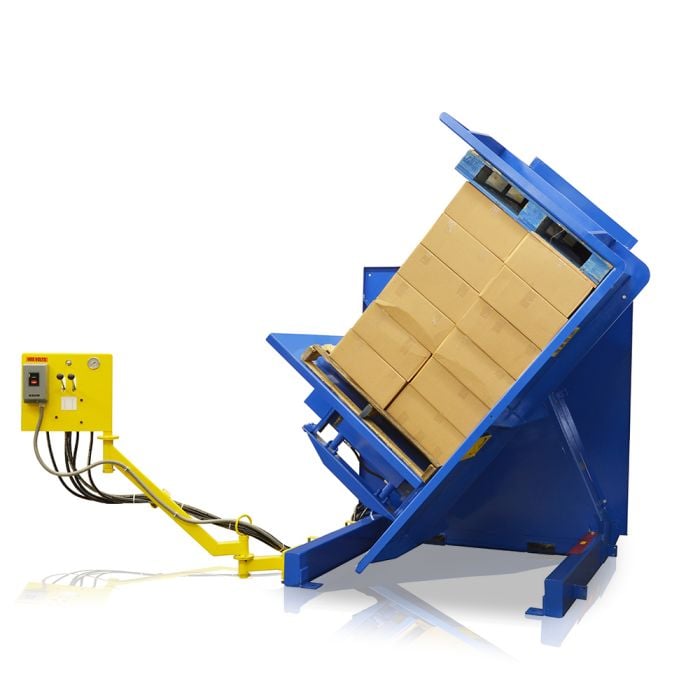

SC-86L	Lever controls	5/3.7	18 Invert/18 Rotate	N/A
SC-86HSP	Push buttons	5/6.6	10 Invert/8 Rotate	Standard

Product Tour

Specifications

Model	SC-86P
Controls	Six Button Pendant
Loading Table Size	50 x 50
Max. Jaw Opening	86"
Min. Jaw Opening	44-1/8"
Finish	Blue Epoxy Paint
Capacity	4,400 lbs
Adjustable Clamp Pressure	400-2000 PSI

System Pressure	2200 PSI
Maintenance Lock Outs	4
Motor	5 HP
Power Source	208/230/460/575V
Certifications	UL 508a Certified Panel
Warranty	3 yr parts 1 year labor. Extended warranty available
FOB	Roselle, IL
Loading Height Upright	27-1/8"

Operating Width	118-1/4"
Operating Depth	78.5"
Operating Height	122-1/8"
Loading Height Inverted	13"
Width With Guards	GR-134-3/4"/HSG-138"
Shipping weight*	5,500 lbs
Shipping Dimensions	96" L x 96" W x 96" H
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Options

The standard SC-86P Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: a profile plate to reduce the usable opening, a slip sheet profile and custom color/finishes and upgraded components to meet your application or corporate specification.

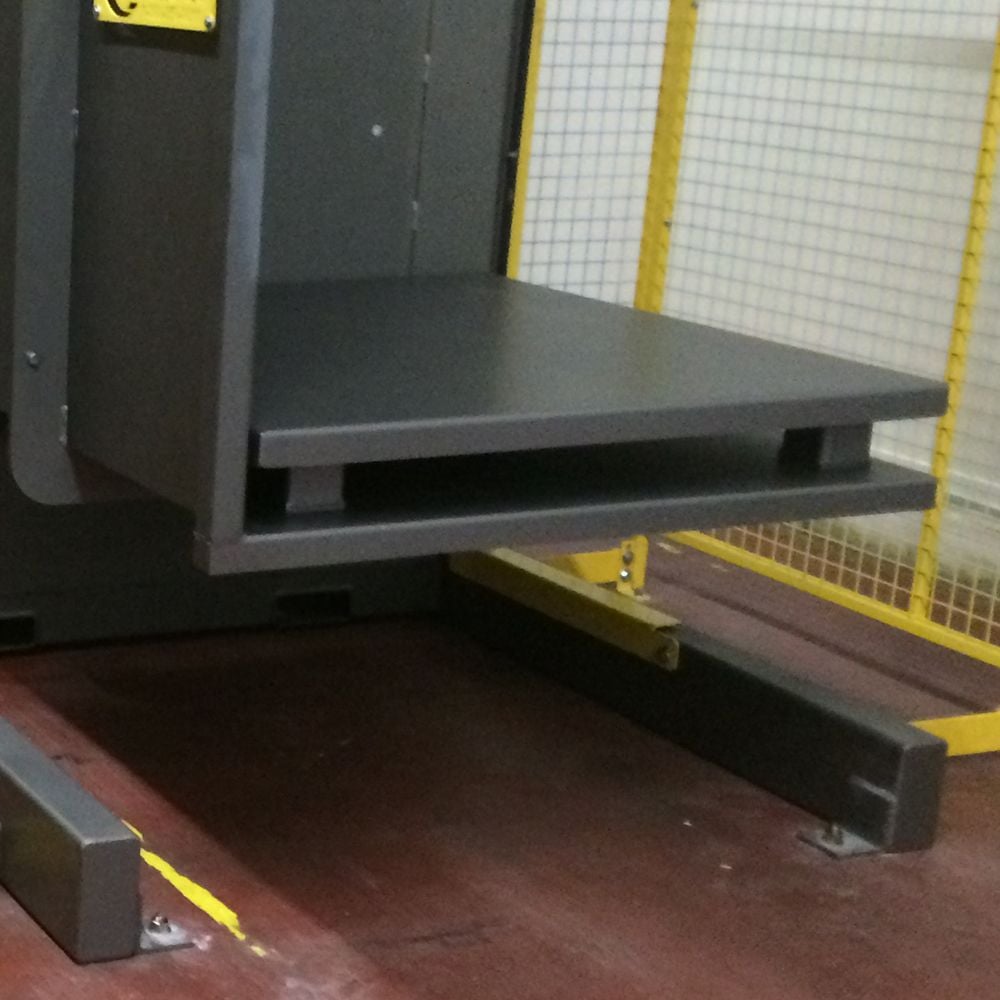

Profile Plate

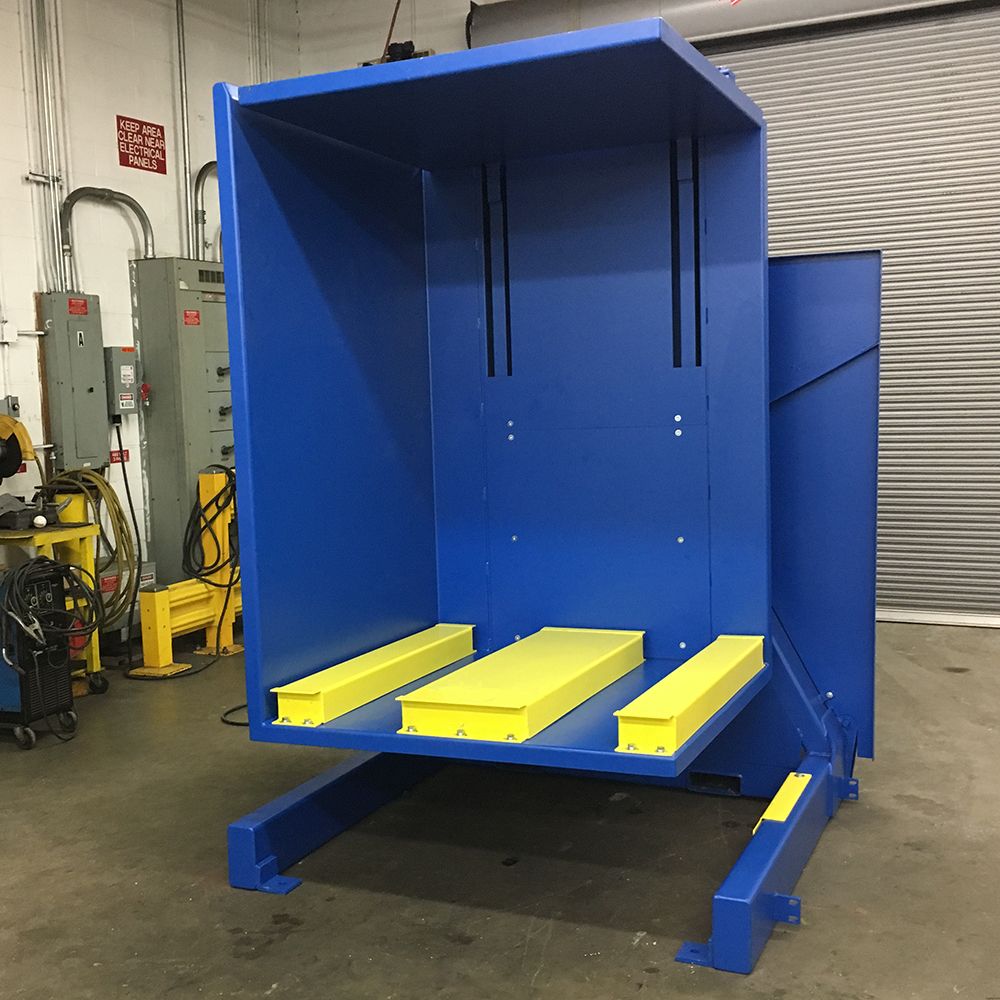

Slip Sheet Profile

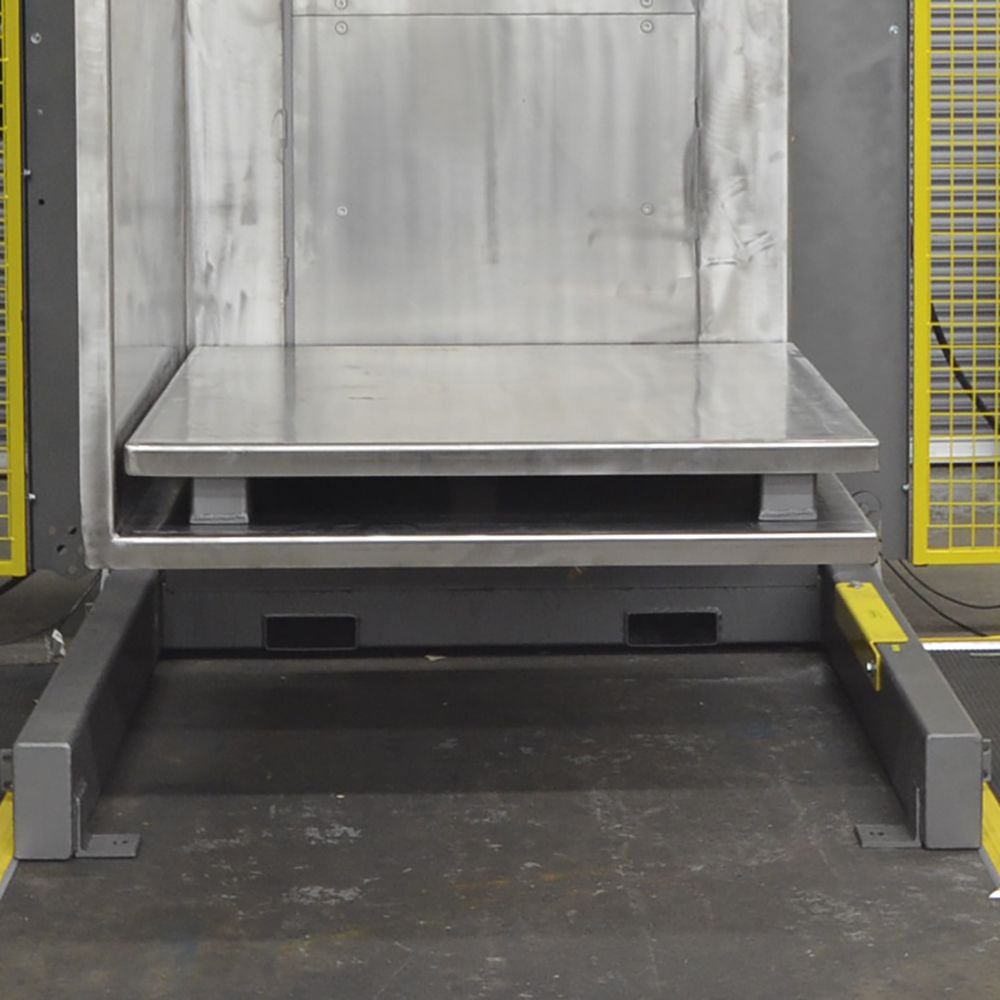

Stainless Steel

Paint color/finish

Guards

The standard SC-86P includes square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78” high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, light curtains and safety mats can be added to protect the area inside of the fence and around the machine.

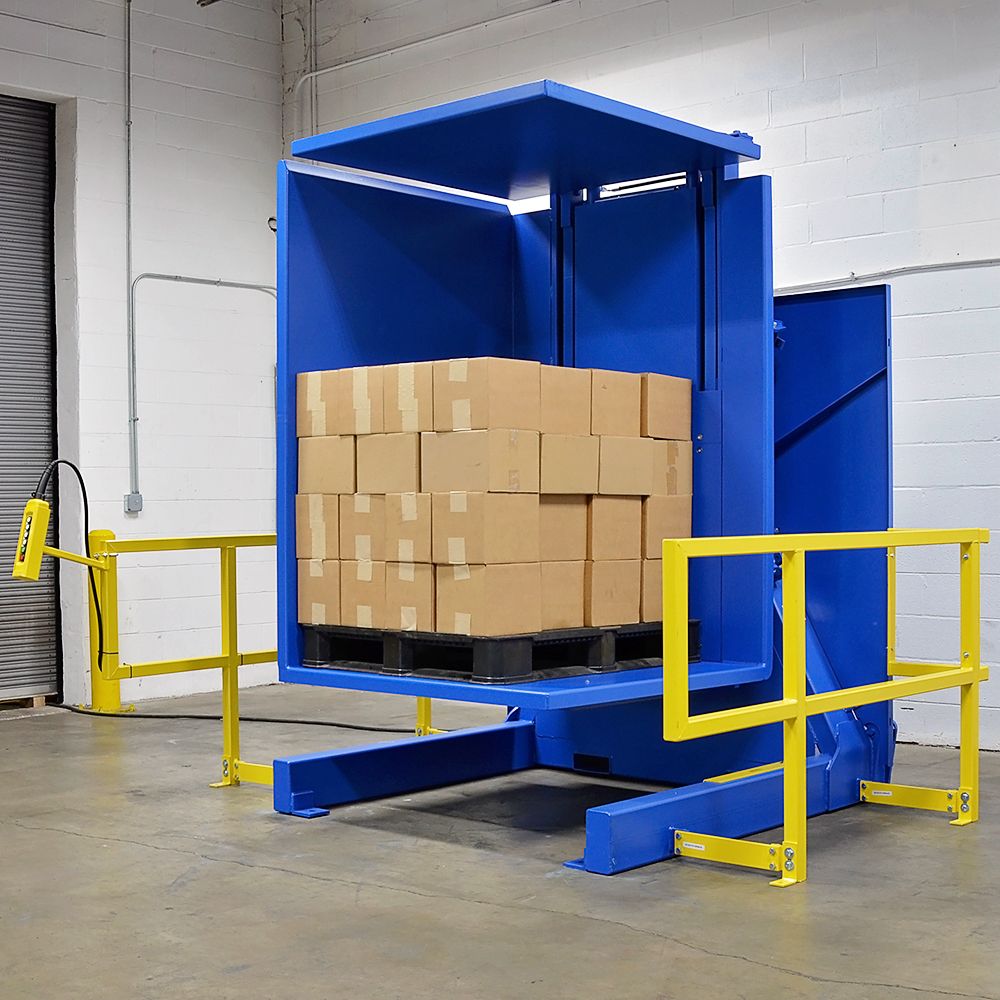

Rail Guards

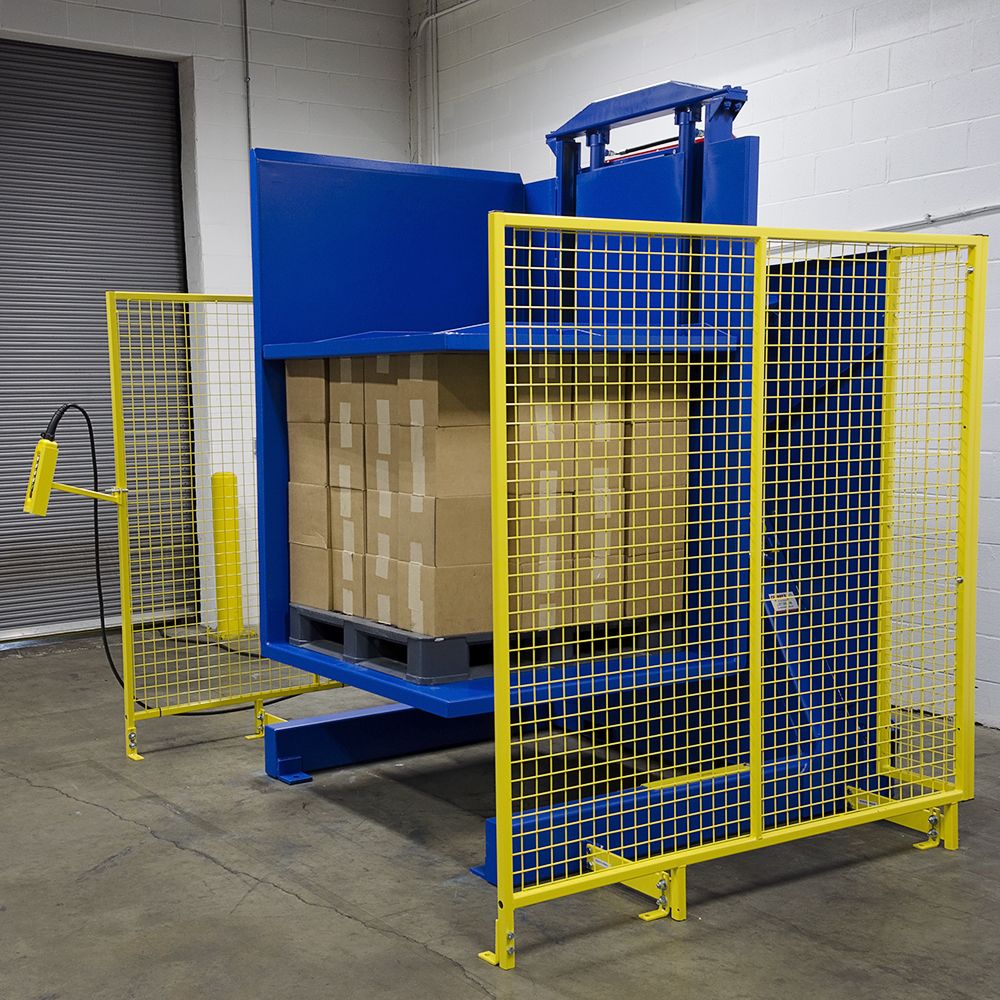

High Style Guards

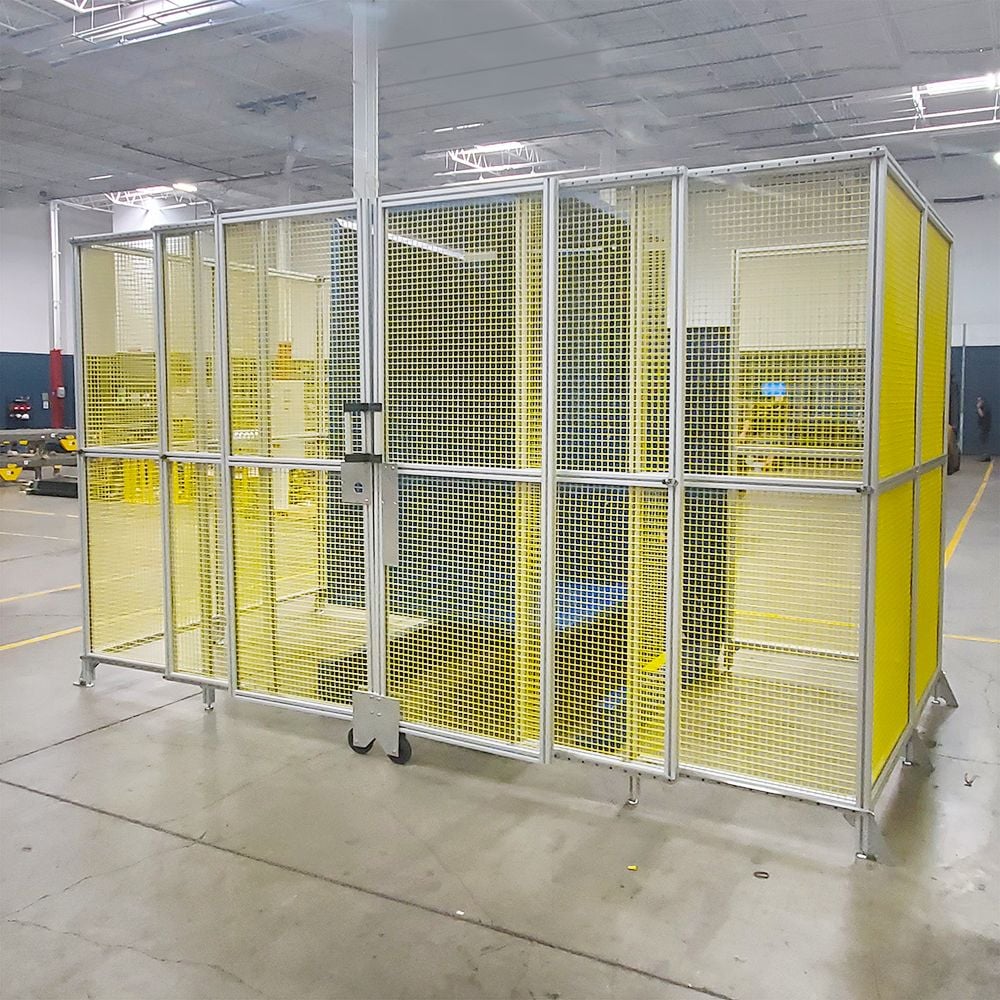

Bosch Guards

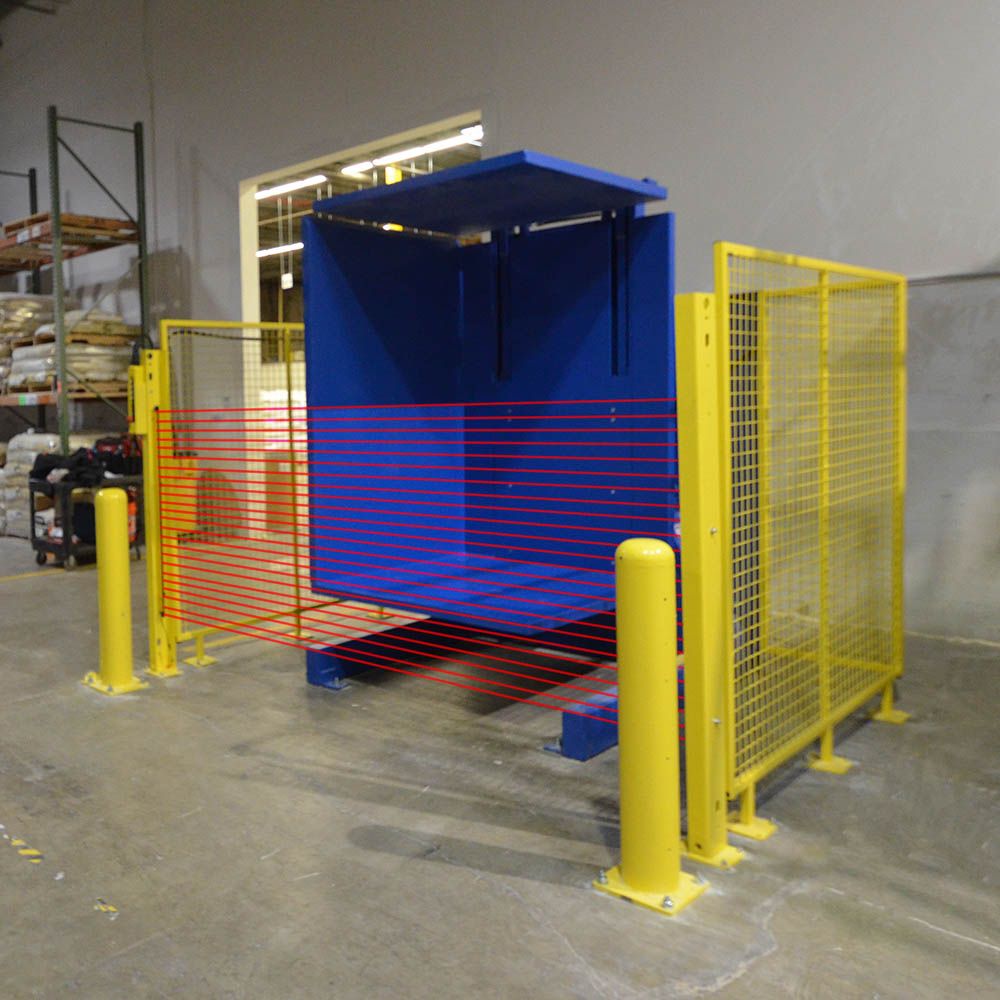

Safety light curtain - not available with lever controls

Controls

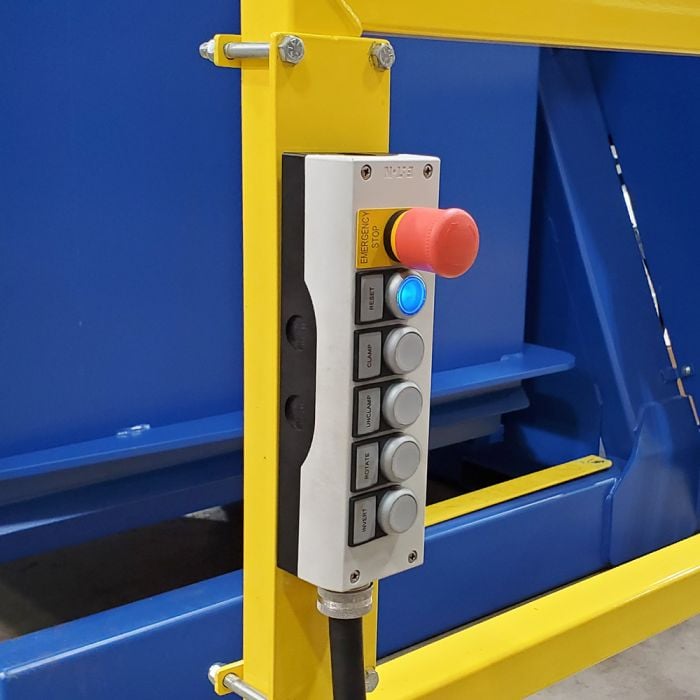

The SC-86P offers many controls configuration options to fit the needs of your warehouse operations. The standard pendant control can be magnetically held in placed on post, column or side of the guarding. It features energy saver press and maintain push buttons that illuminate when activated. Downgrade to lever controls or add-on auto controls, RF radio remote controls, high speed motion or a console with a pedestal.

Lever Control

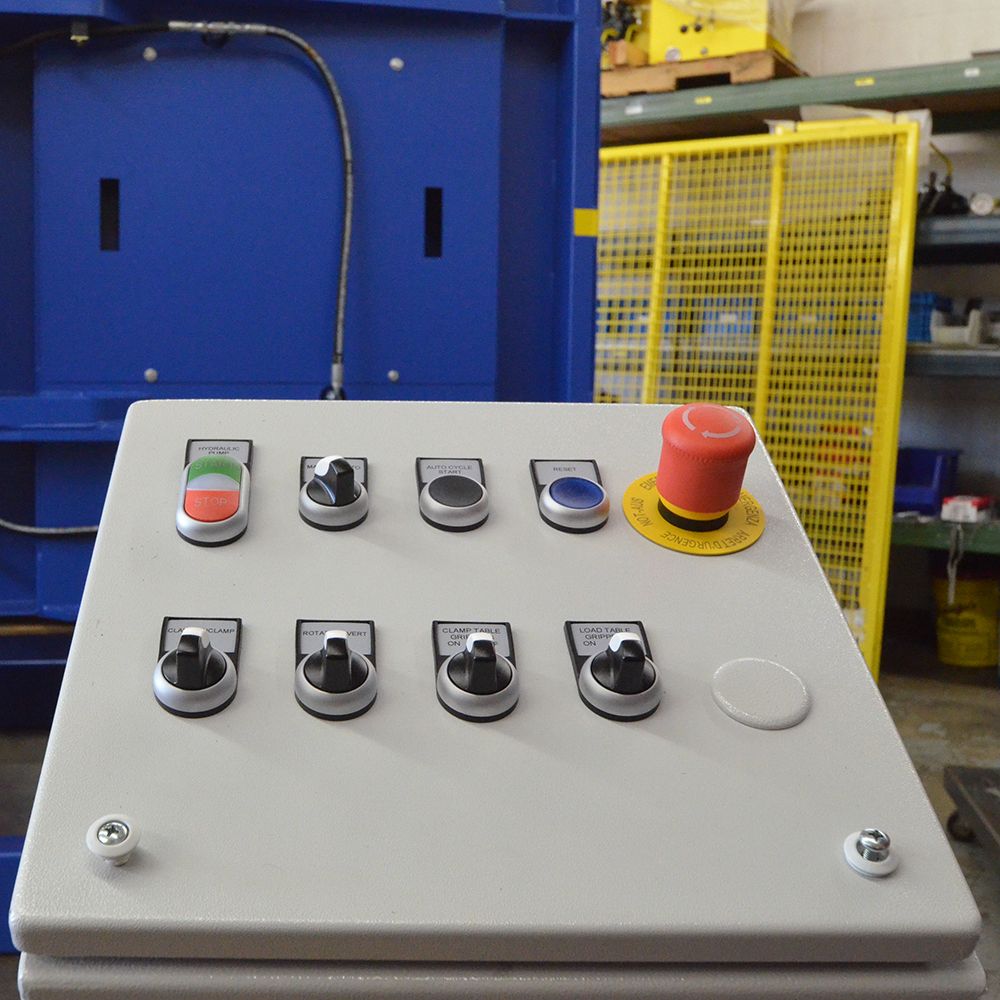

Control Console

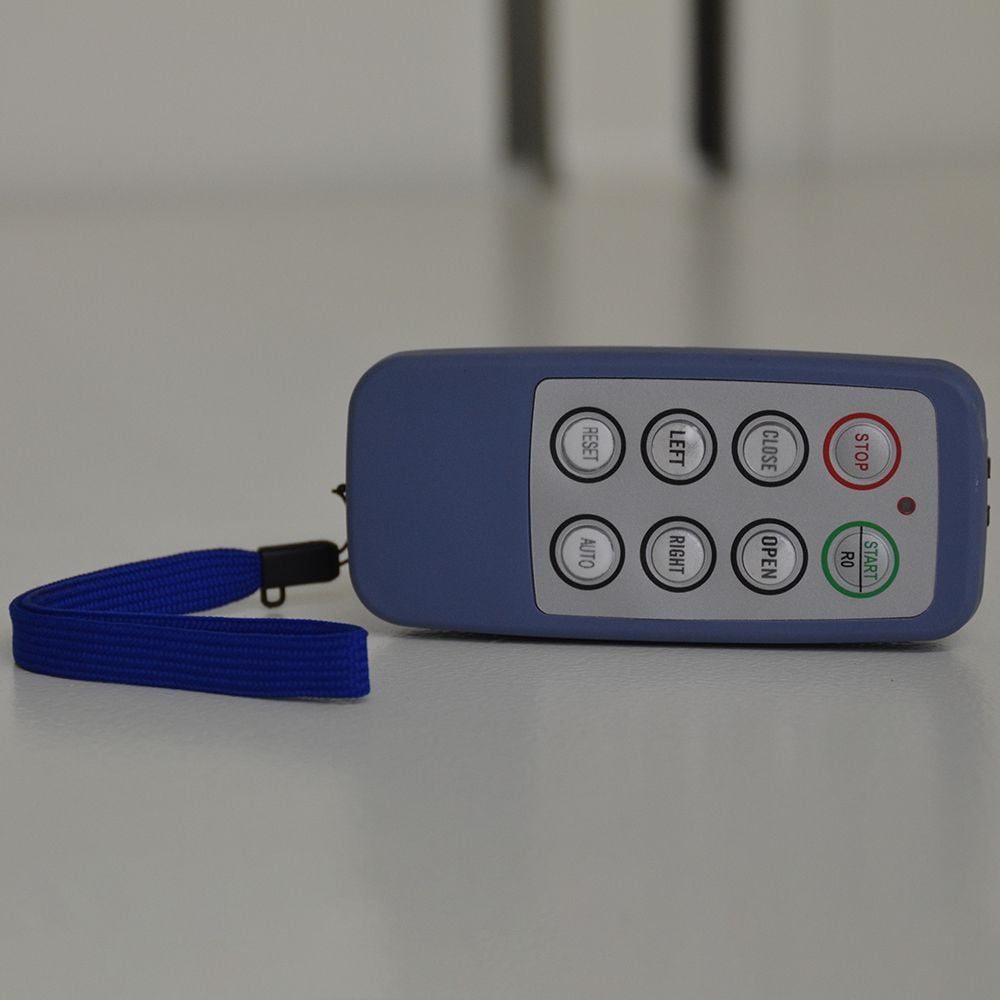

Remote Control

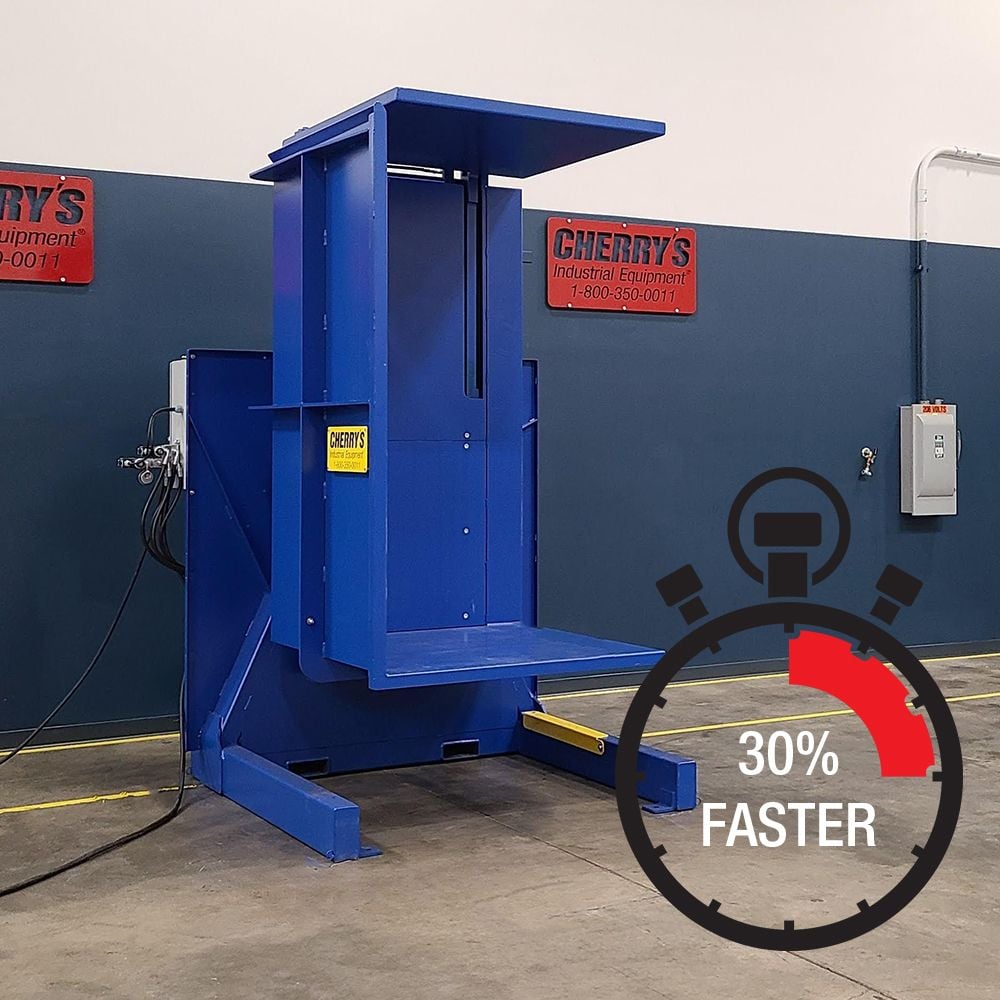

High Speed Motion Controls for faster controlled movements
