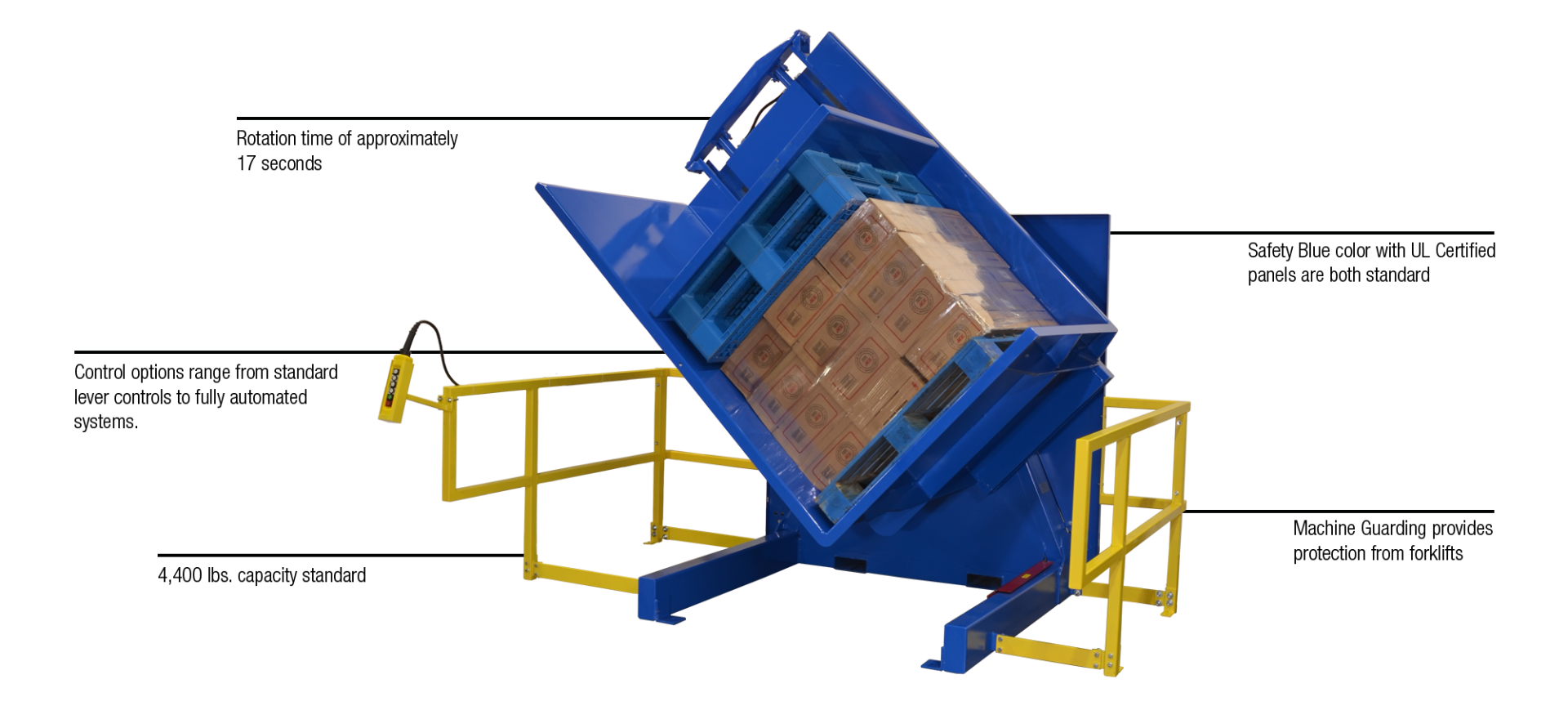

SC-86L Single Clamp Pallet Inverter

SC-86L

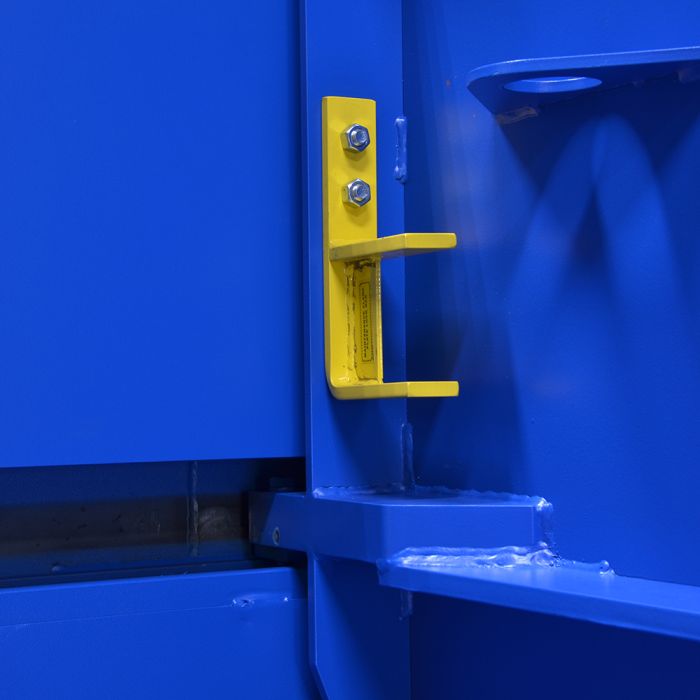

Free standing 180 degree inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert and transfer loads ranging from 44'' to 86''. Features include: (Optional) UL508 Certified disconnect panel, dual lever controls on short arm boom, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. STANDARD UNIT - Always in Stock. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

Technical Drawing

SC-86L Single Clamp Pallet Inverter Image 1

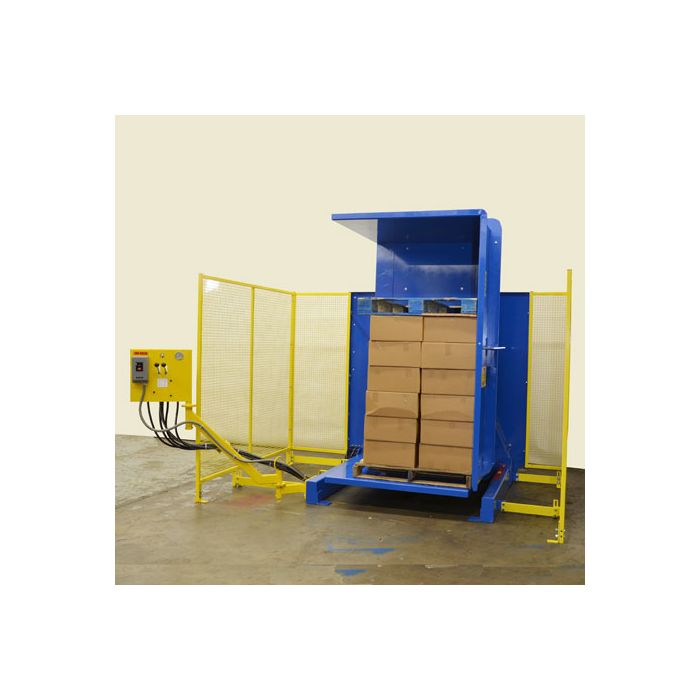

SC-86L Single Clamp Pallet Inverter Image 2

SC-86L Single Clamp Pallet Inverter Image 3

SC-86L Single Clamp Pallet Inverter Image 4

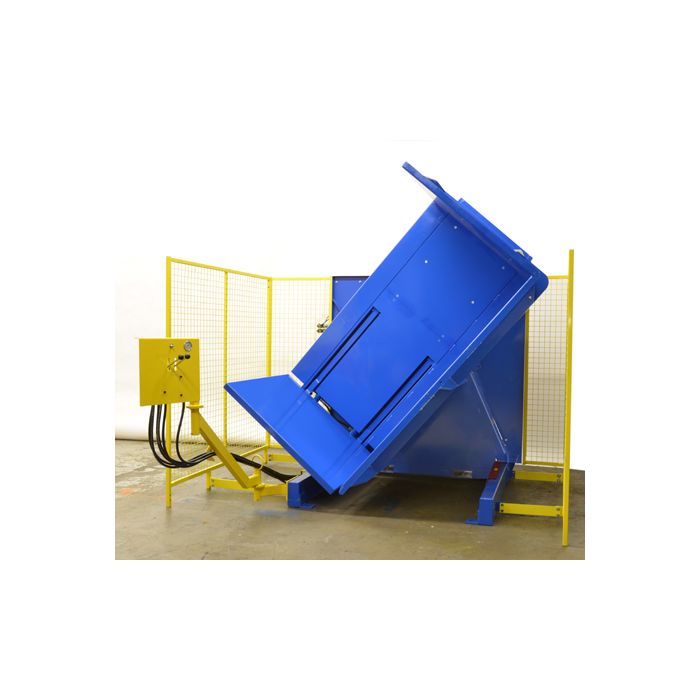

SC-86L Single Clamp Pallet Inverter Image 5

SC-86L Single Clamp Pallet Inverter Image 6

SC-86L Single Clamp Pallet Inverter Image 7

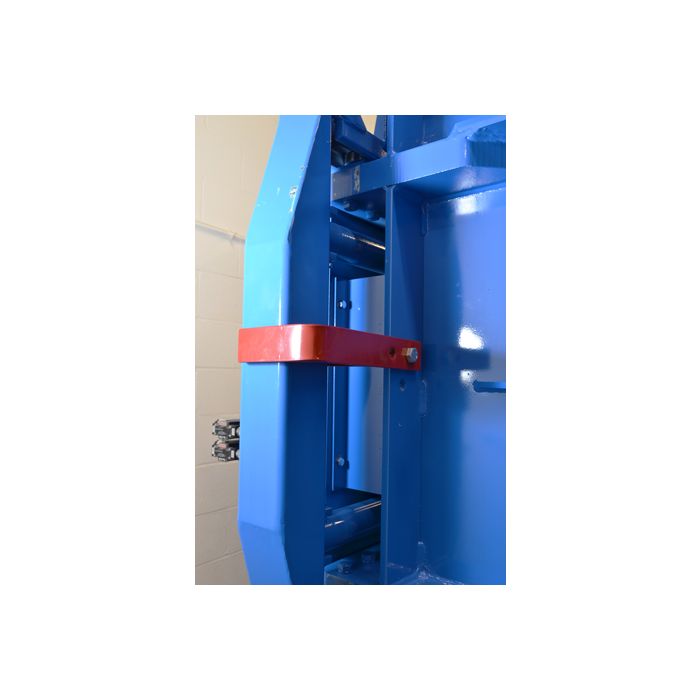

SC-86L Single Clamp Pallet Inverter Image 8

See it in the Wild

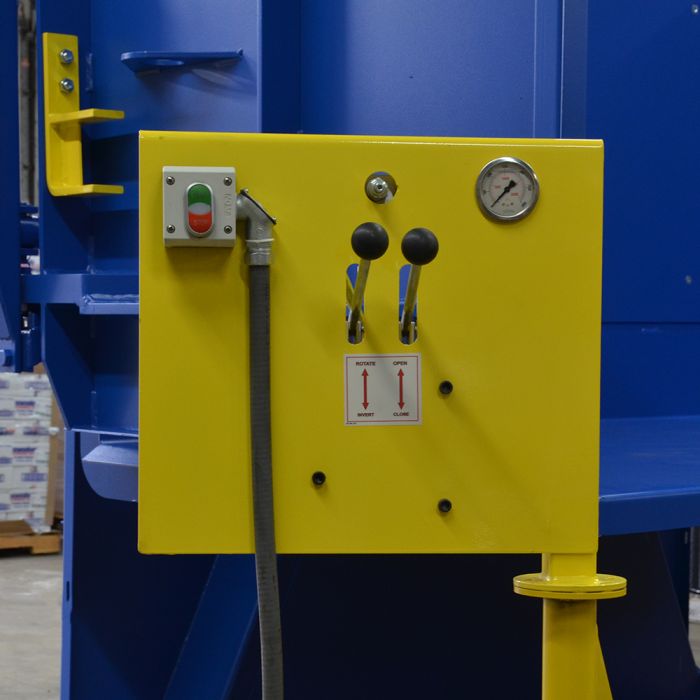

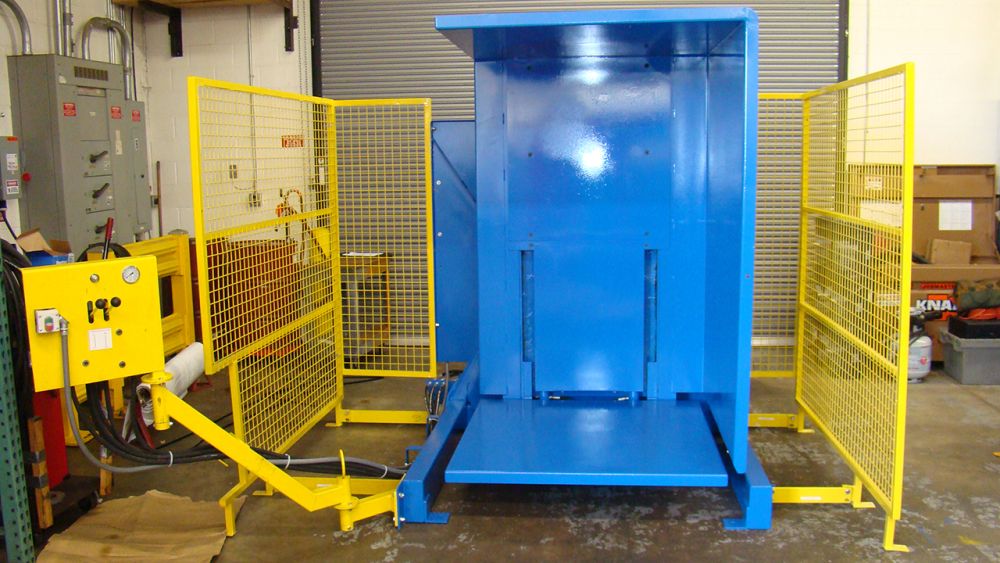

Lever controls with high style guarding

Product Information

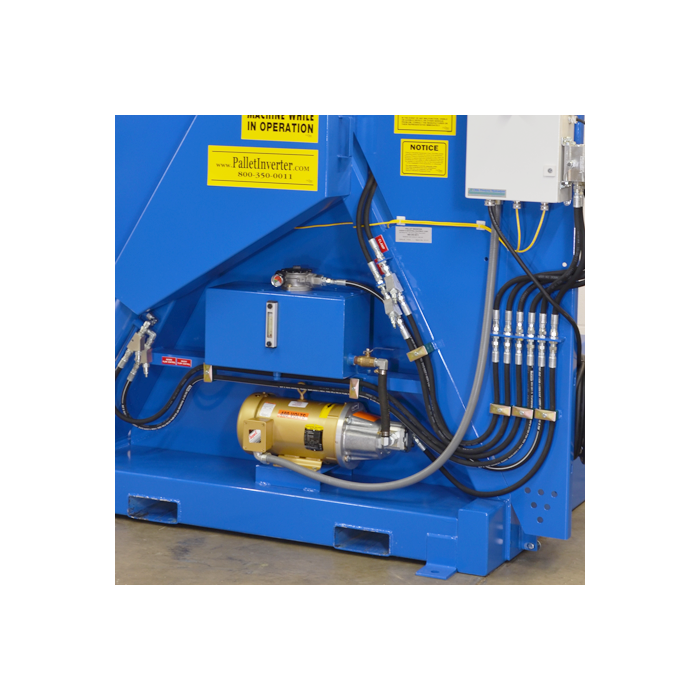

Best suited for tall loads ranging from 46" up to 86". Commonly used by most food service companies, distribution centers & public warehouses. Budget friendly hydraulic lever controls offer a lower cost alternative to push button controls. Clamp/unclamp and rotate/inverter levers are mounted on a flag attached to a short arm, located out in front of the machine. Manual motor starter box to start and stop electric motor.

Product Tour

Specifications

Model	SC-86L
Controls	Dual Lever Controls
Loading Table Size	50 x 50
Max. Jaw Opening	86"
Min. Jaw Opening	44"
Finish	Blue Epoxy Paint
Capacity	4,400 lbs
Adjustable Clamp Pressure	400-2,000 PSI

System Pressure	2,200 PSI
Maintenance Lock Outs	4
Motor	5 HP
Power Source	208/230/460/575V
Certifications	0
Warranty	3 yr parts/labor. Extended warranty available.
FOB	Roselle, IL
Loading Height Upright	29"

Operating Width	122.55"
Operating Depth	78.5"
Operating Height	123.56"
Loading Height Inverted	10.25"
Width With Guards	131.6"
Shipping weight*	4,100 lbs
Shipping Dimensions	96" L x 100" W x 96" H
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Options

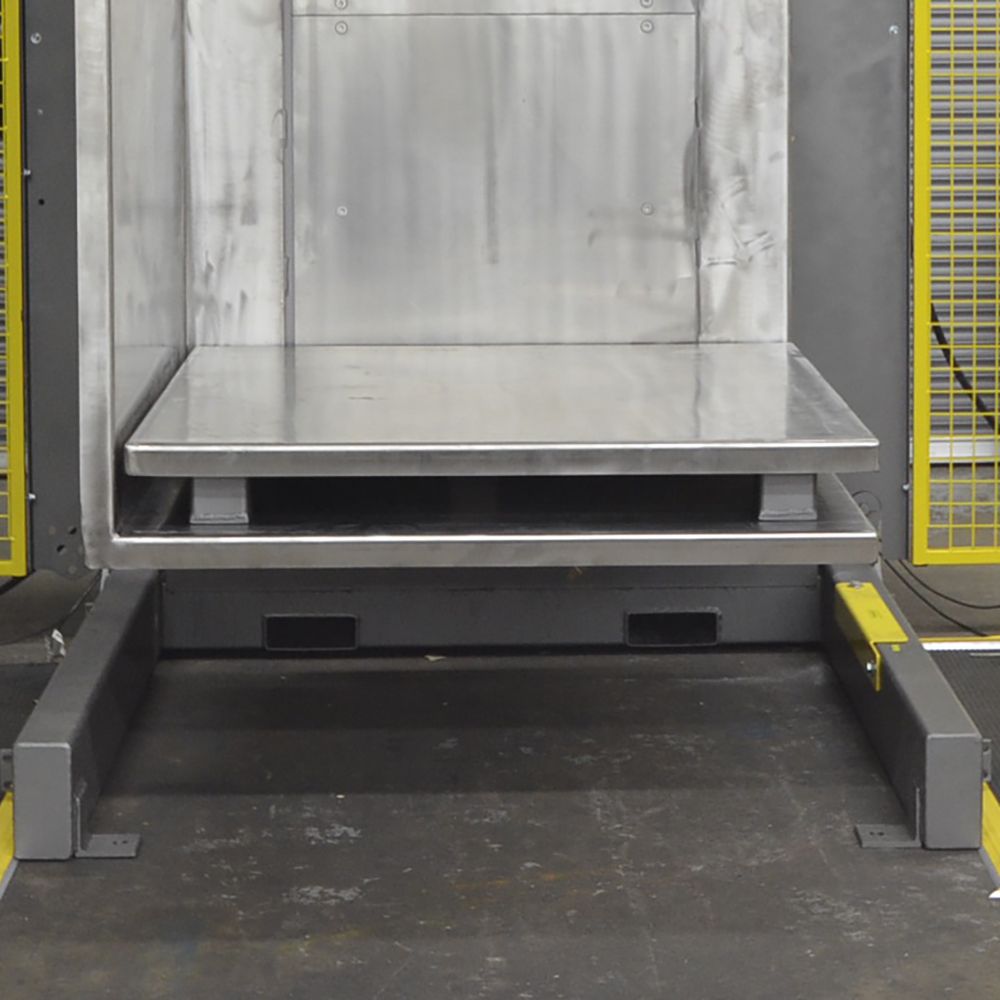

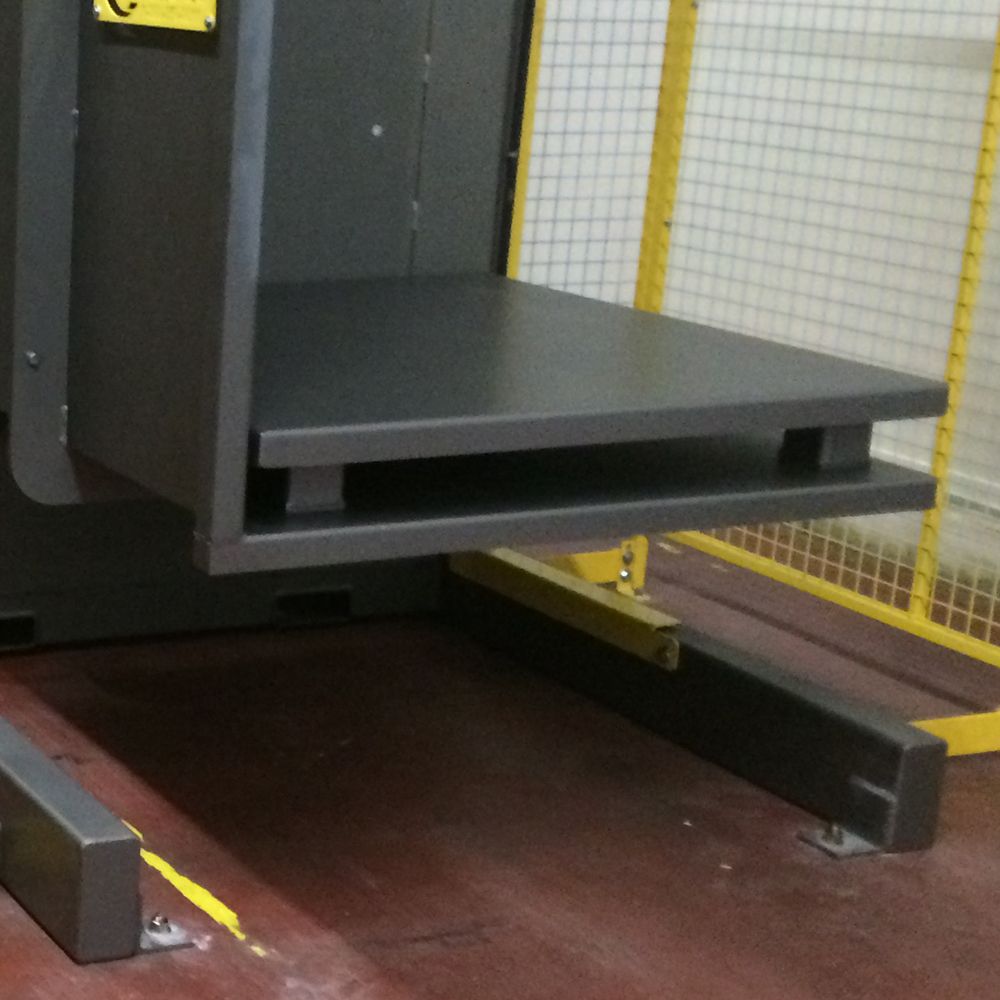

The standard SC-86L Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: a profile plate to reduce the usable opening, a slip sheet profile and custom color/finishes and upgraded components to meet your application or corporate specification.

Controls

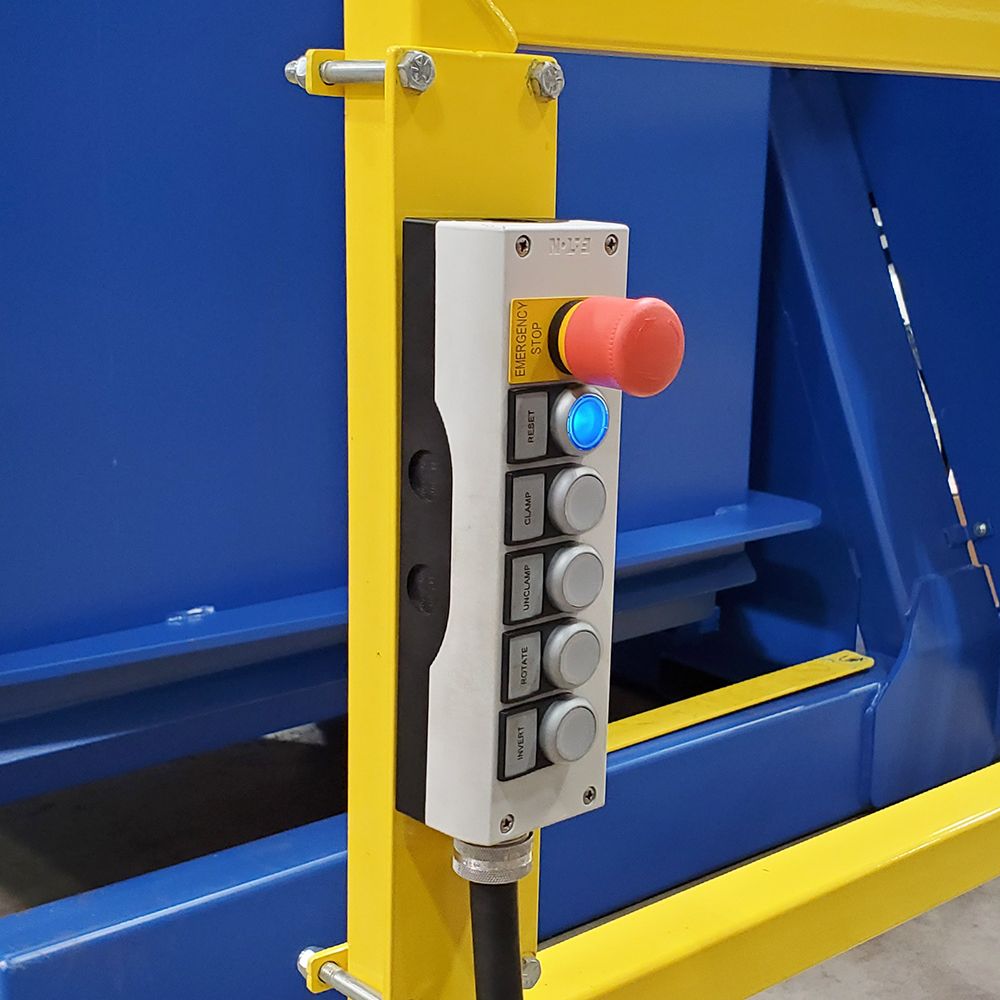

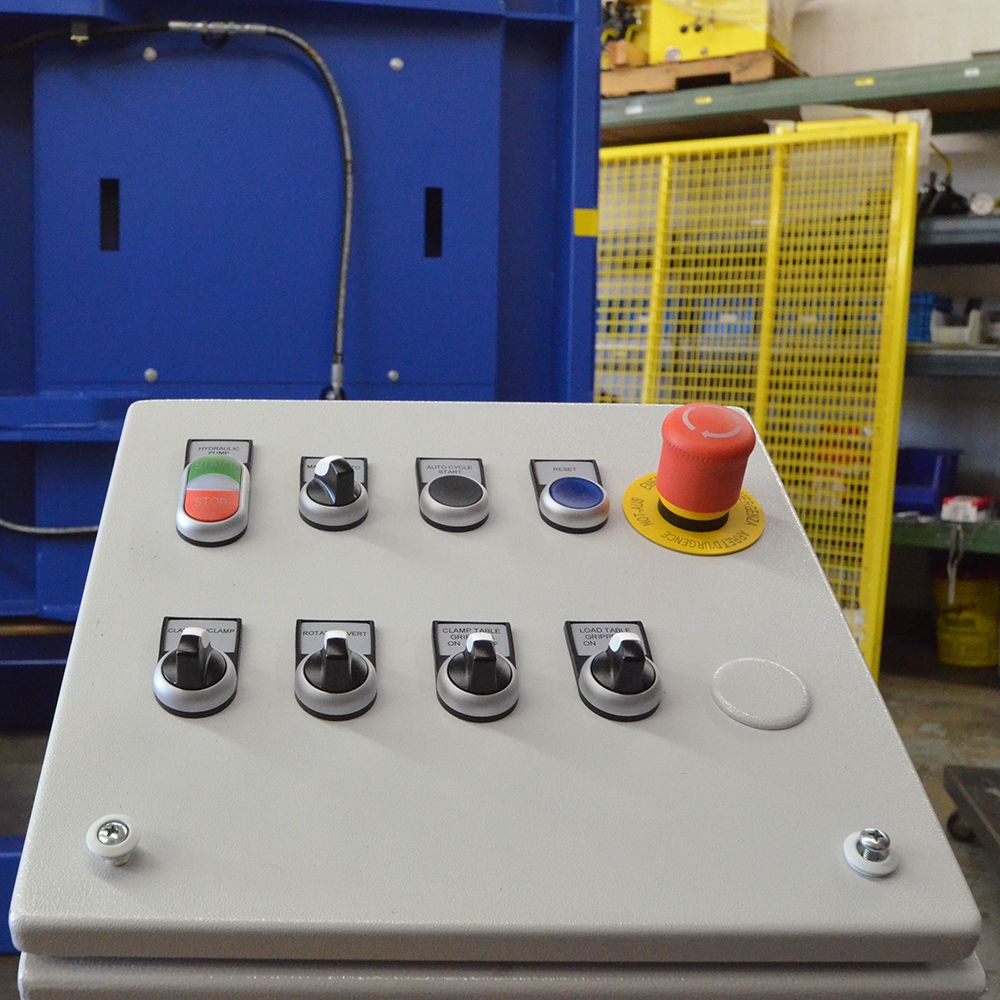

The SC-86L is outfitted with lever controls on a short arm boom with a manual on-off starter. Add-on an energy saver disconnect panel for overcurrent protection. Many controls configuration options are available to fit the needs of your warehouse operations. Upgrade to a push button pendant, a radio remote control, auto cycle, high speed or a console with a pedestal.

Guards

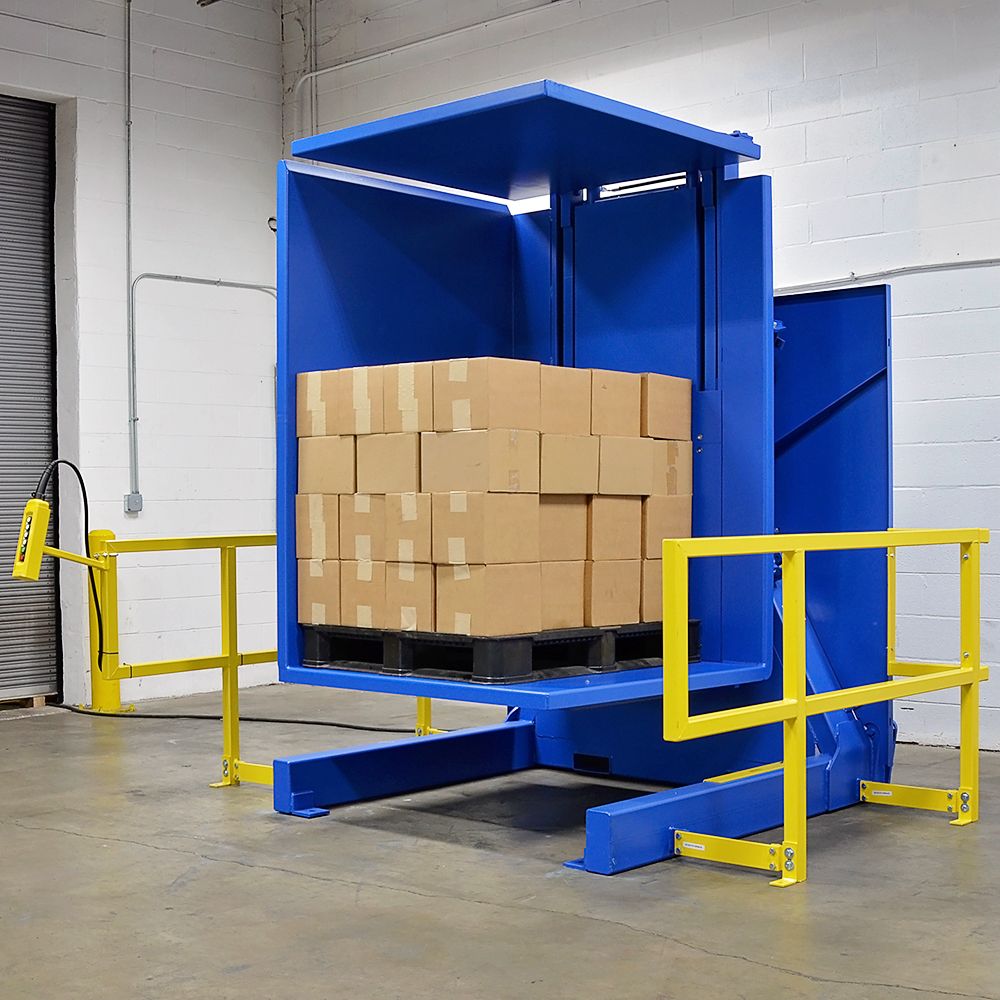

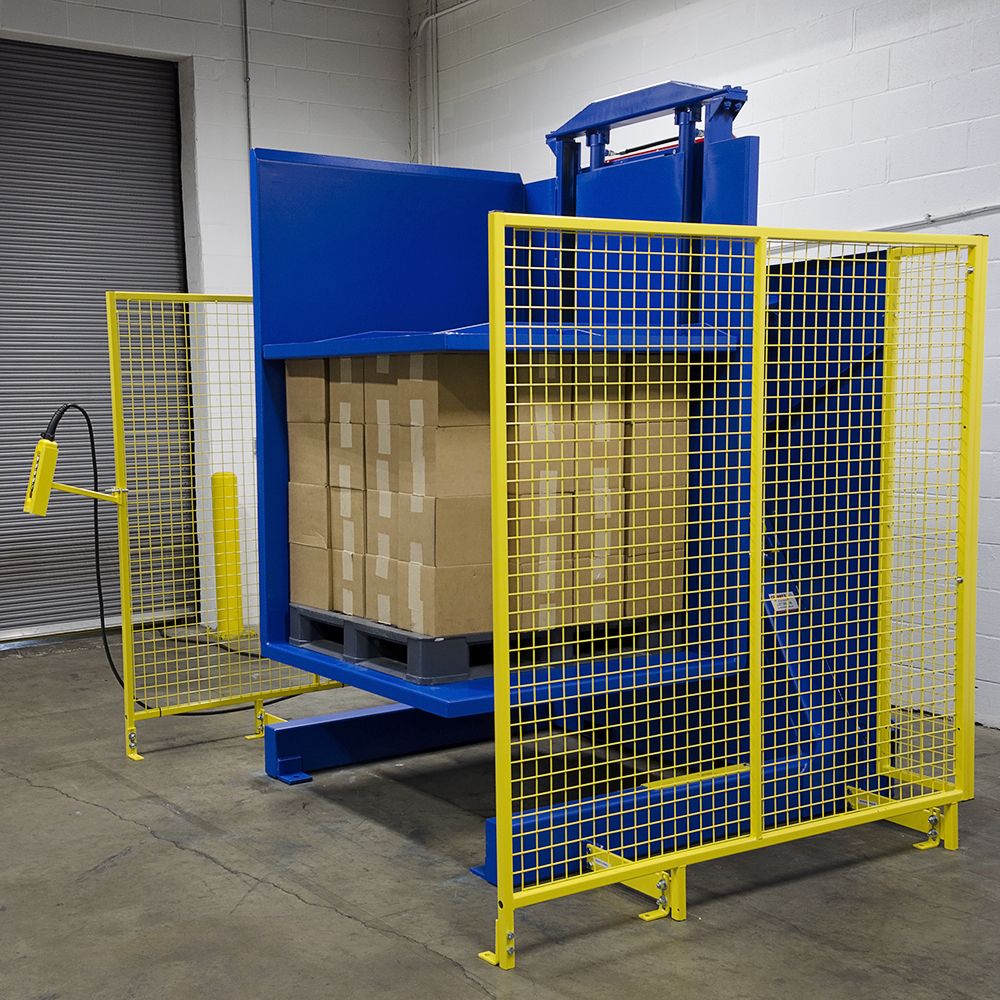

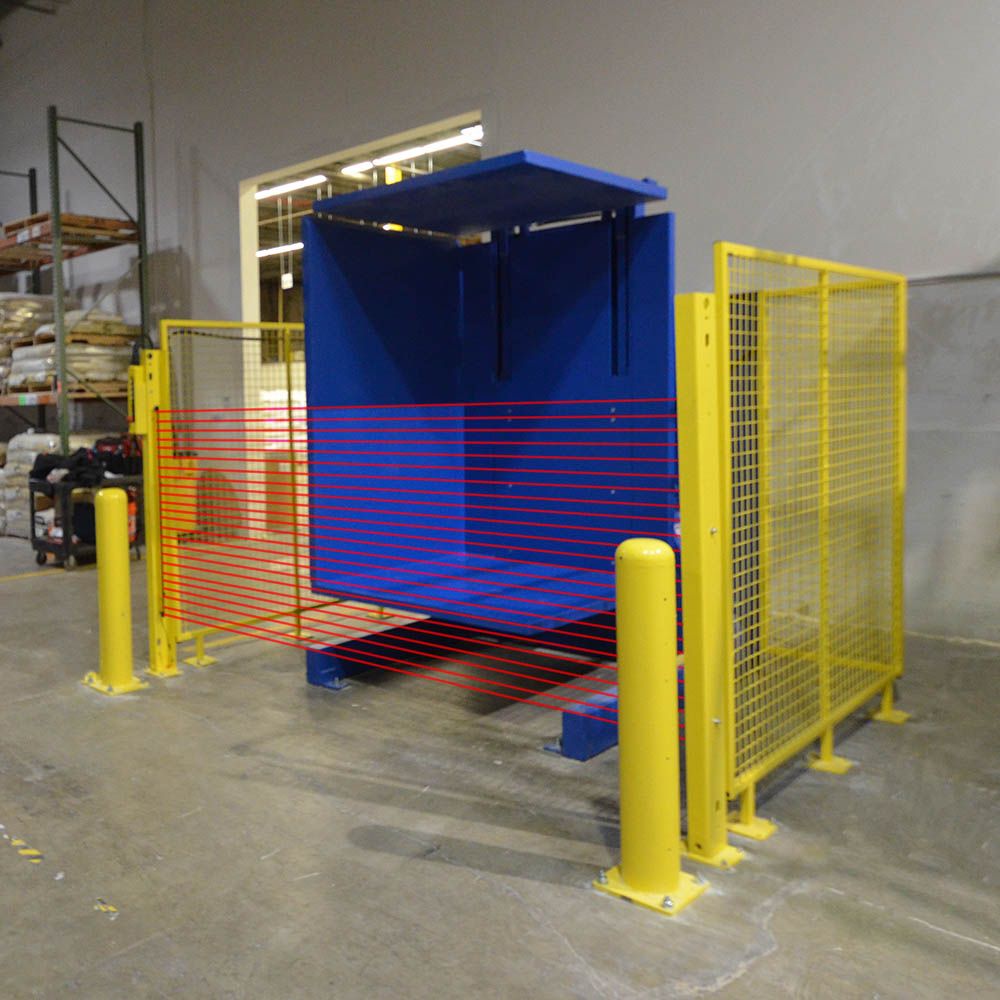

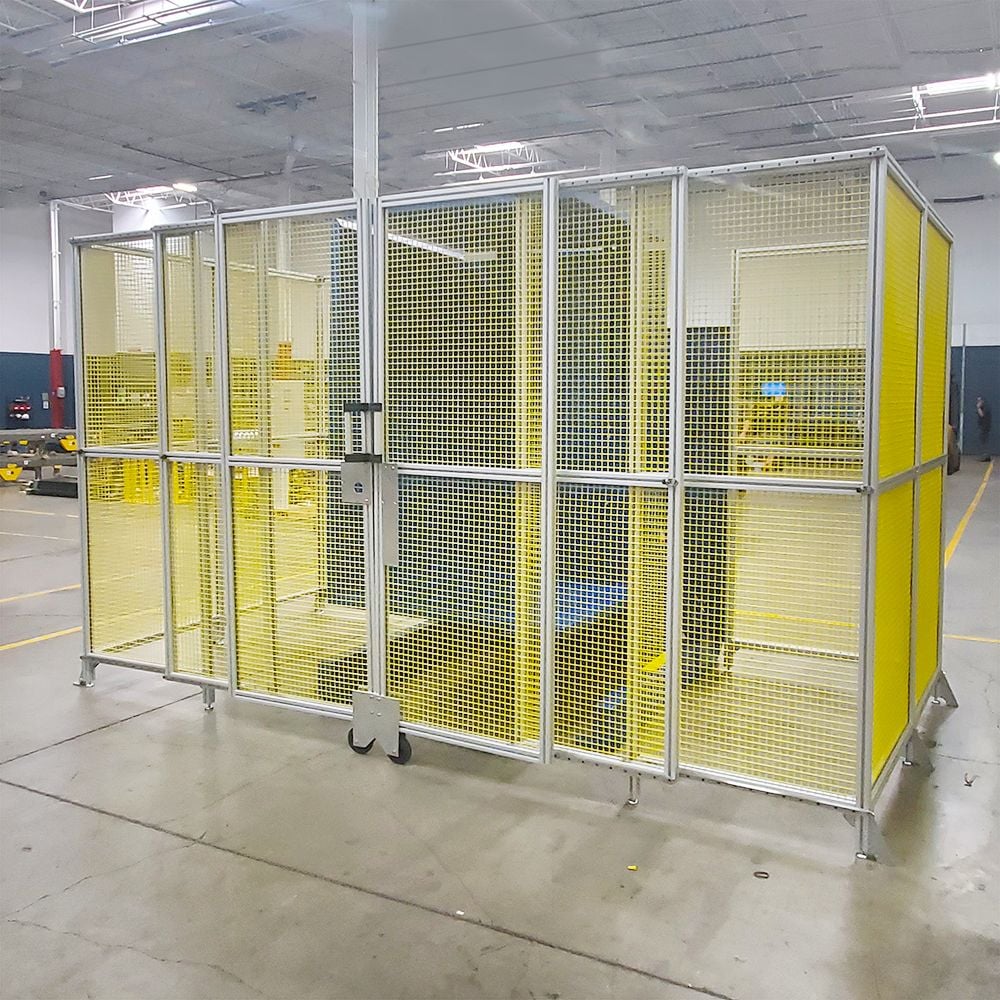

Rail guarding is standard with the SC-86L to protect against injury or forklift damage. Personnel guarding can be configured to the machine to enhance the safety and security of the operator. Options include 3-sided 78 high style perimeter guards. These guards protect the surrounding areas of the equipment. Note: The light curtain option is only available with electrical push button controls.
