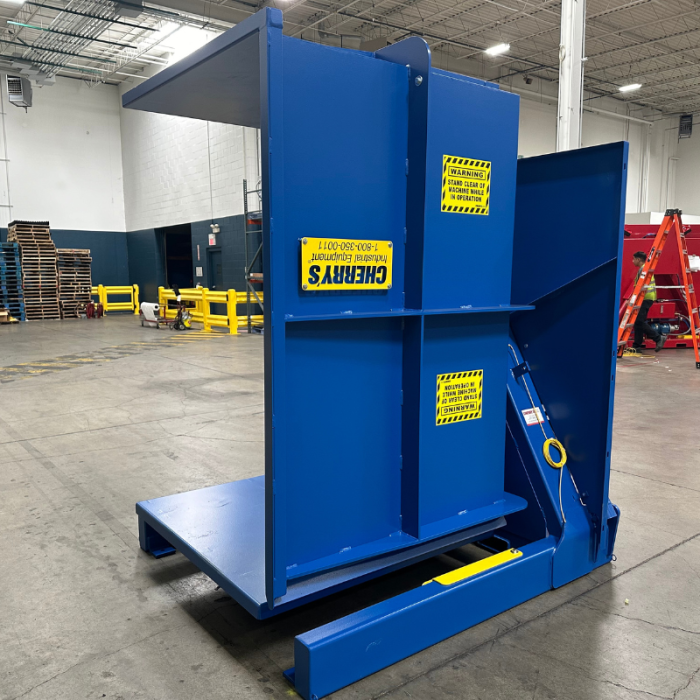

SC-75P Single Clamp Pallet Inverter


SC-75P

SC-75P Named in part for its ability to handle loads of up to 75", the SC-75P single clamp skid turner provides a faster, easier solution for transferring, switching or rotating loads weighing as much as 4,400 lbs. You can also use it to replace damaged pallets with greater speed and efficiency.

Call 847-443-3861 to speak with our experts

SC-75-GRSC-75-HSGSC-75
SC-75P Single Clamp Pallet Inverter

See it in the Wild

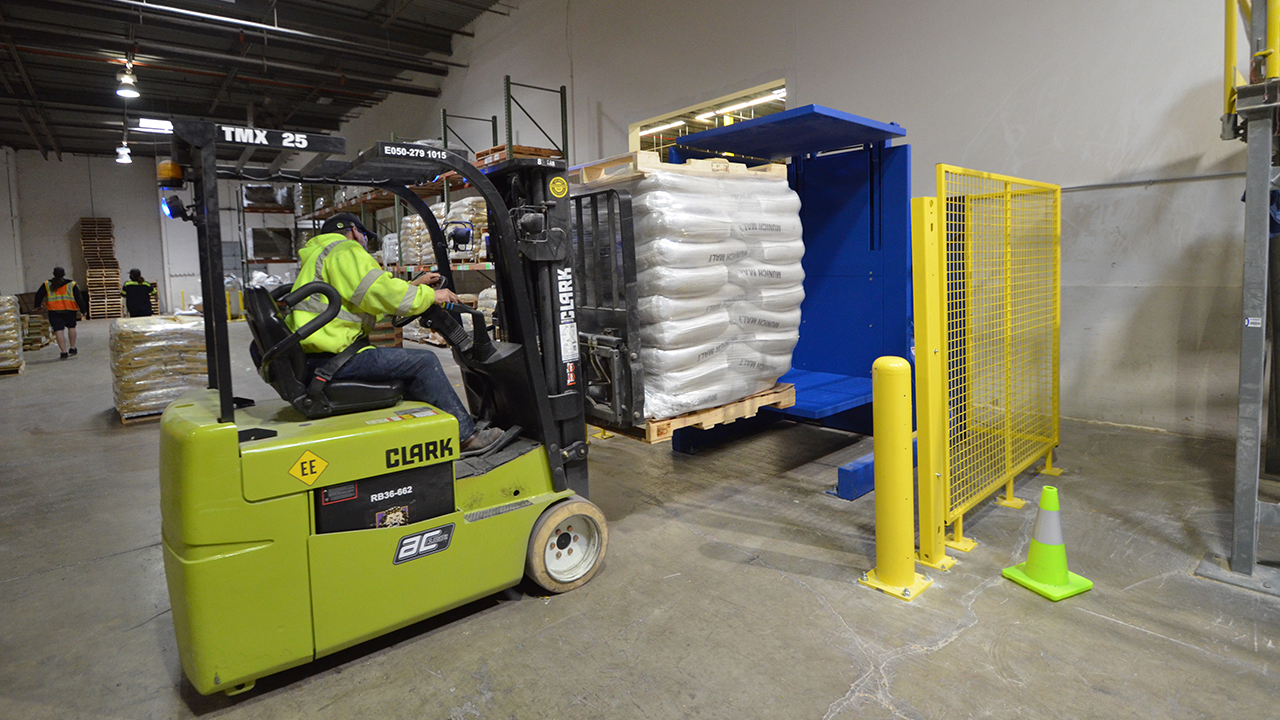

Pallet Inverter with bagged product Pallet Inverter with bagged product

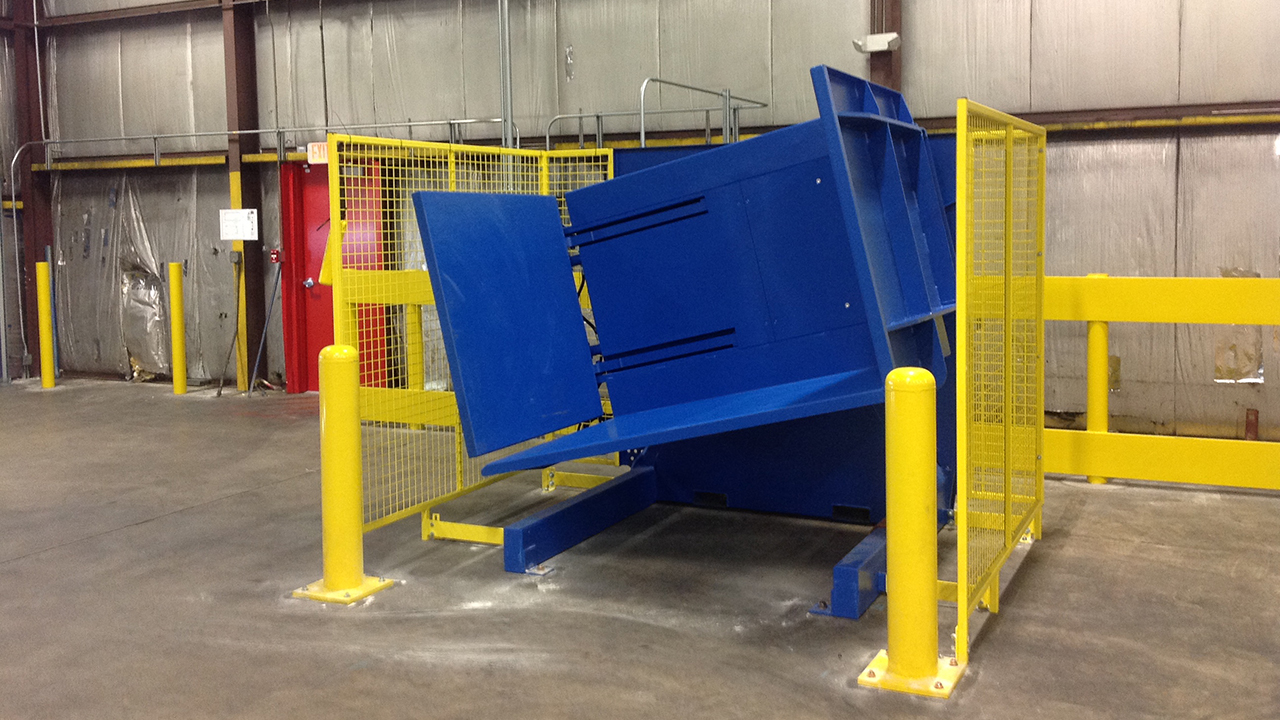

Pallet Inverter with protective guarding and bollards Pallet Inverter with protective guarding and bollards

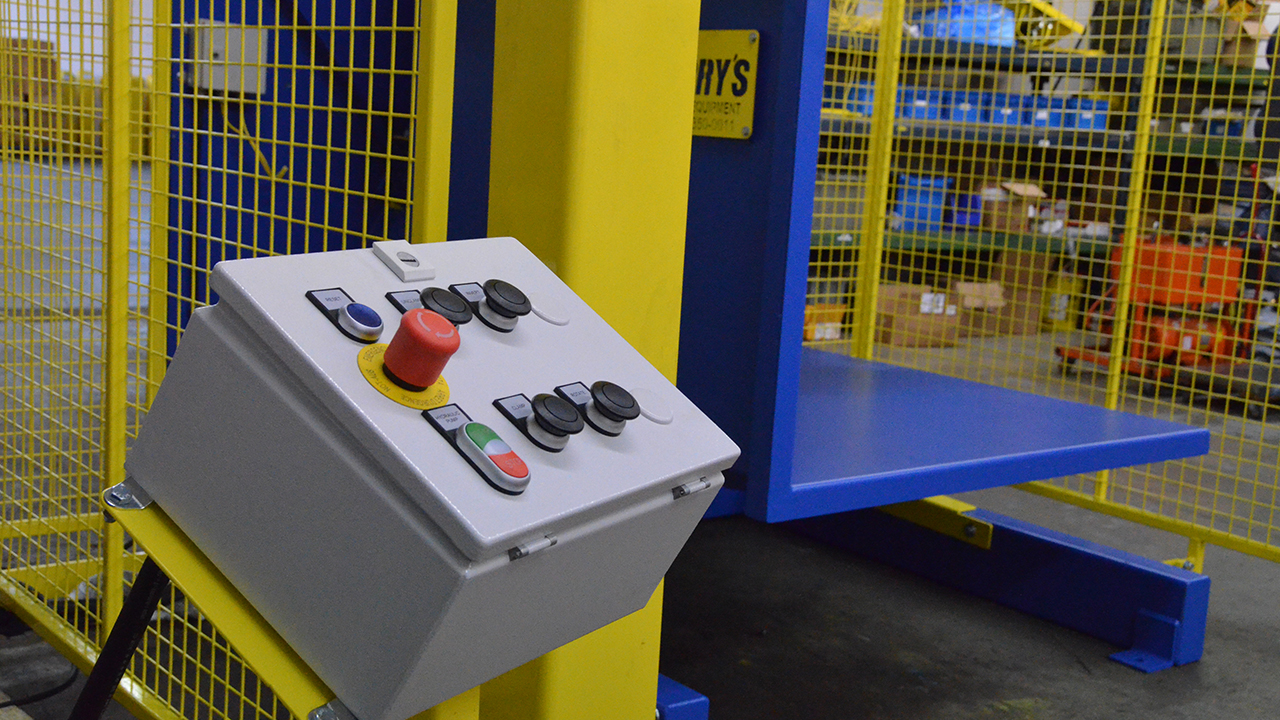

Pallet Inverter with control console Pallet Inverter with control console

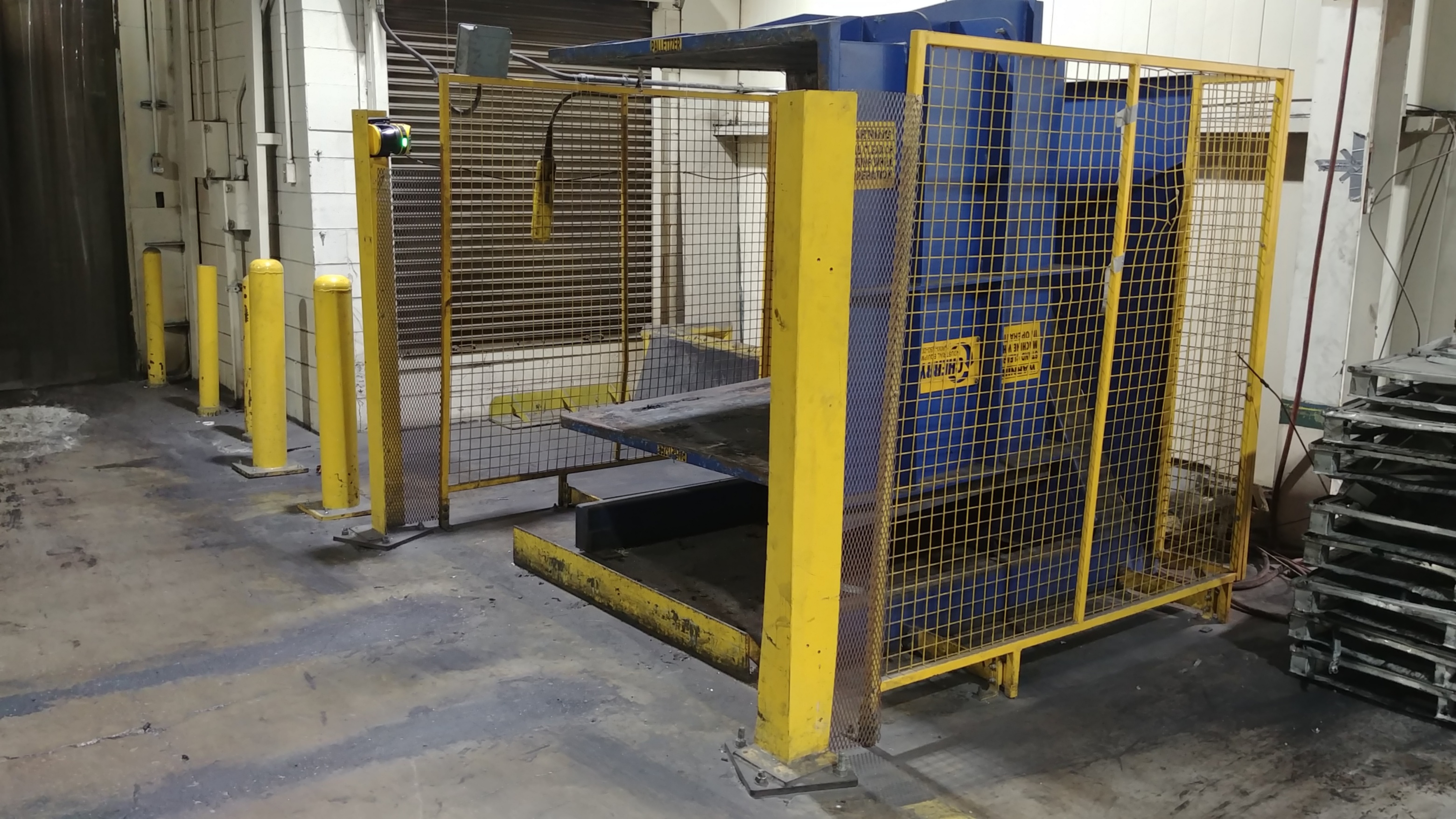

Pallet Inverter with safety laser scanner Pallet Inverter with safety laser scanner
Pallet Inverter with protective rail guards Pallet Inverter with protective rail guards

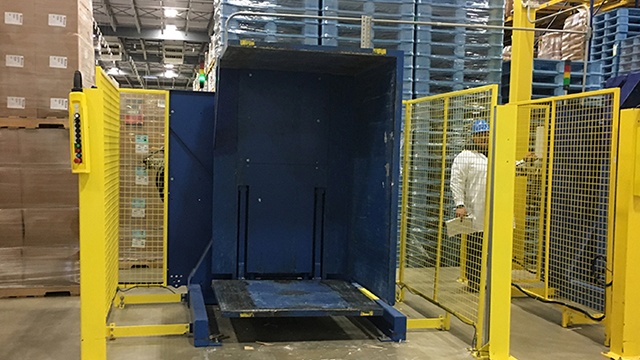

Pallet Inverter for wood to plastic pallet transfer Pallet Inverter for wood to plastic pallet transfer

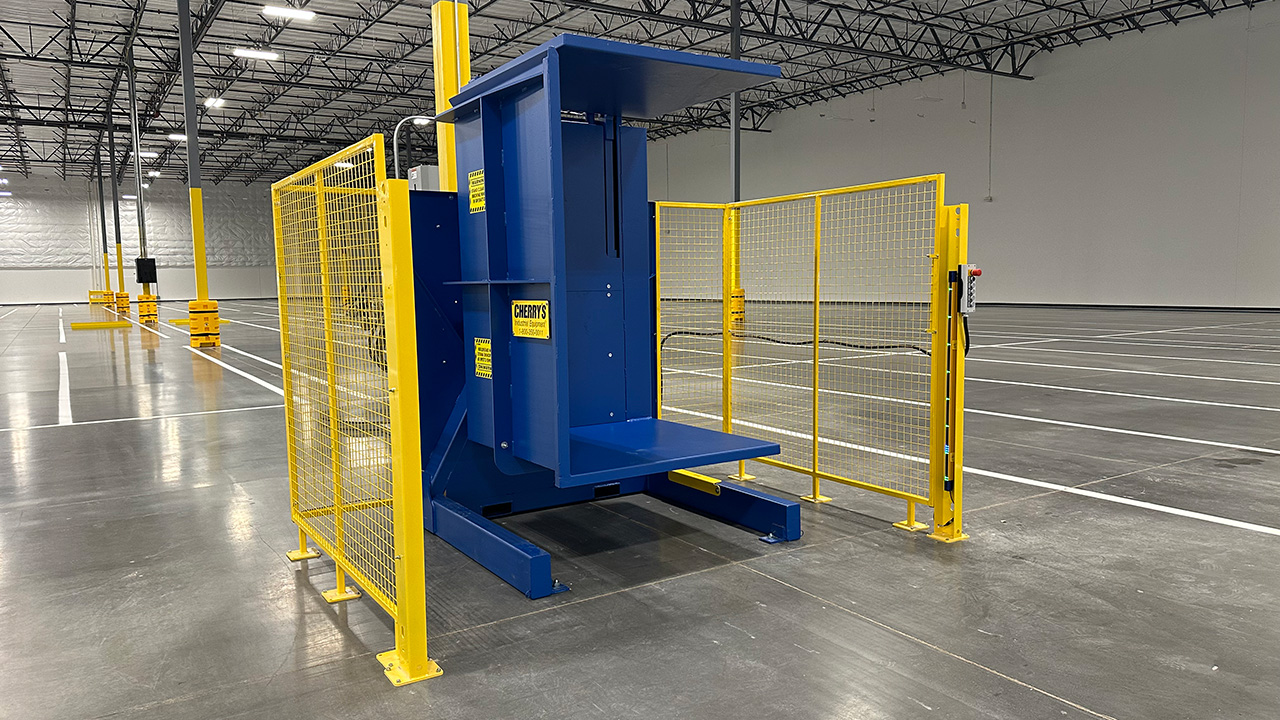

SC-75 Pallet Inverter in pharmaceutical warehouse SC-75 Pallet Inverter in pharmaceutical warehouse

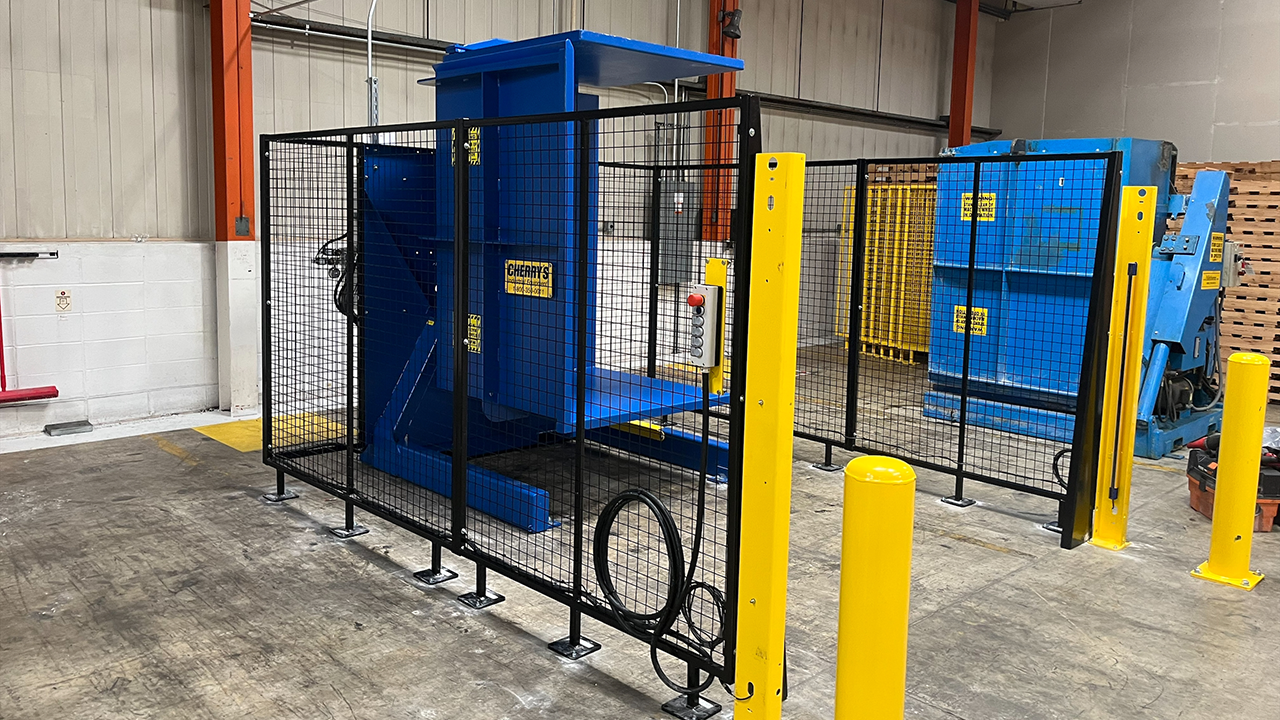

Pallet Inverter with extended guarding and light curtains Pallet Inverter with extended guarding and light curtains
×

You may also be interested in:

SC-75L Single Clamp Pallet Inverter

SC-75L Single Clamp Pallet Inverter

Learn More

Product Information

The SC-75P skid turner enables you to perform six essential functions with a press of a button. When full, you can easily transport and load the unit with a forklift. The easy-mount pendant allows you to hang the inverter from the ceiling or a machine. The approximate 17-second rotation time and 180-degree rotating capability offer the speed and flexibility you need to complete more tasks in less time. Other features, benefits and specs include: Jaw opening 75" max down to 42" min, substantial 50" x 50" loading table sizes, adjustable clamp pressure range of 400-2,000 psi, UL-approved electrical panel to ensure worker safety, three-year parts and labor warranty. Ideal for manufacturing/distribution environments such as pet food, chemical plants, consumer products and cereal. Cherry's Industrial Equipment simplifies the equipment purchasing process with access to trained product specialists who can assist you. It's part of our ongoing commitment to help you get high-quality equipment and machinery that resolves your most demanding business challenges.


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
SC-75L Lever Controls 5/3.7 15 Invert/15 Rotate N/A
SC-75HSP Push buttons 5/6.6 8 Invert/7 Rotate Standard



Product Tour


Specifications


ModelSC-75P
ControlsSix Button Pendant
Loading Table Size50 x 50
Max. Jaw Opening75"
Min. Jaw Opening42"
FinishBlue Epoxy Paint
Capacity4,400 lbs
Adjustable Clamp Pressure400-2,000 PSI
System Pressure2,200 PSI
Maintenance Lock Outs4
Motor5 HP
Power Source208/230/460/575V
CertificationsUL 508a Certified Panel
Loading Height Upright22"
Operating Width104"
Operating Depth78.5"
Operating Height105-7/8"
Loading Height Inverted11-1/8"
Width With GuardsGR-122-3/4"/HSG-126"
Shipping weight*4,300 lbs
Shipping Dimensions84" L x 84" W x 96" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

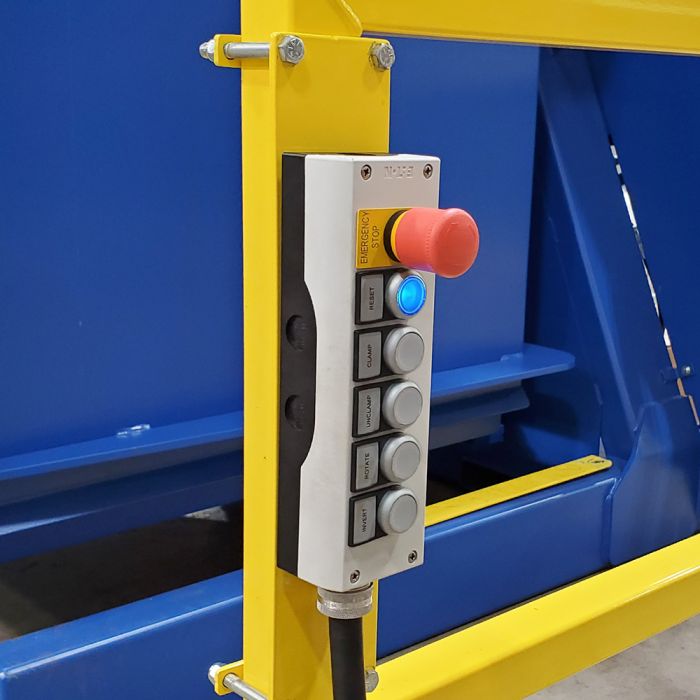

The SC-75P offers many controls configuration options to fit the needs of your warehouse operations. The standard push button pendant control can be magnetically held in placed on post, column or on the side of the guarding. It features energy saver press and maintain push buttons that illuminate when activated. Downgrade to lever controls or add-on auto controls, a radio remote, high speed motioncontrols or a console with a pedestal.

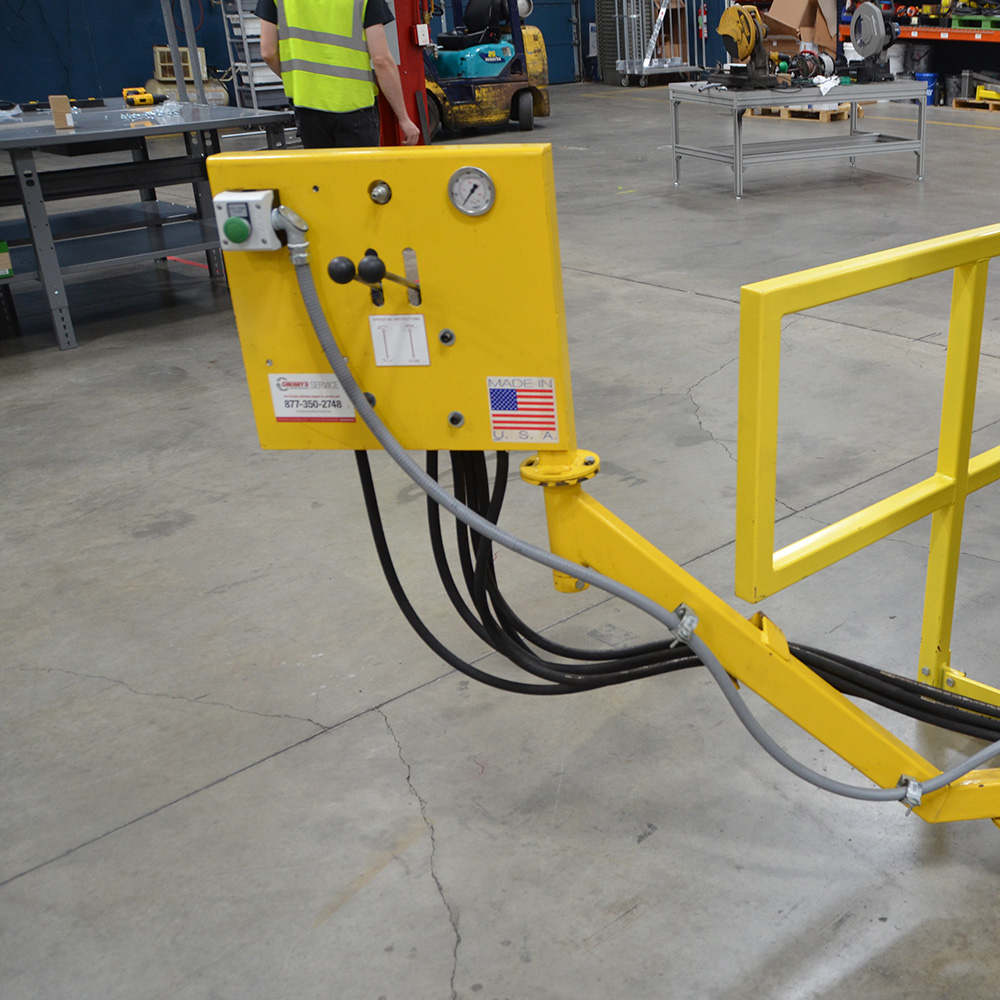

Lever Controls with manual on/offLever Controls with manual on/off
Control Console with Auto CycleControl Console with Auto Cycle

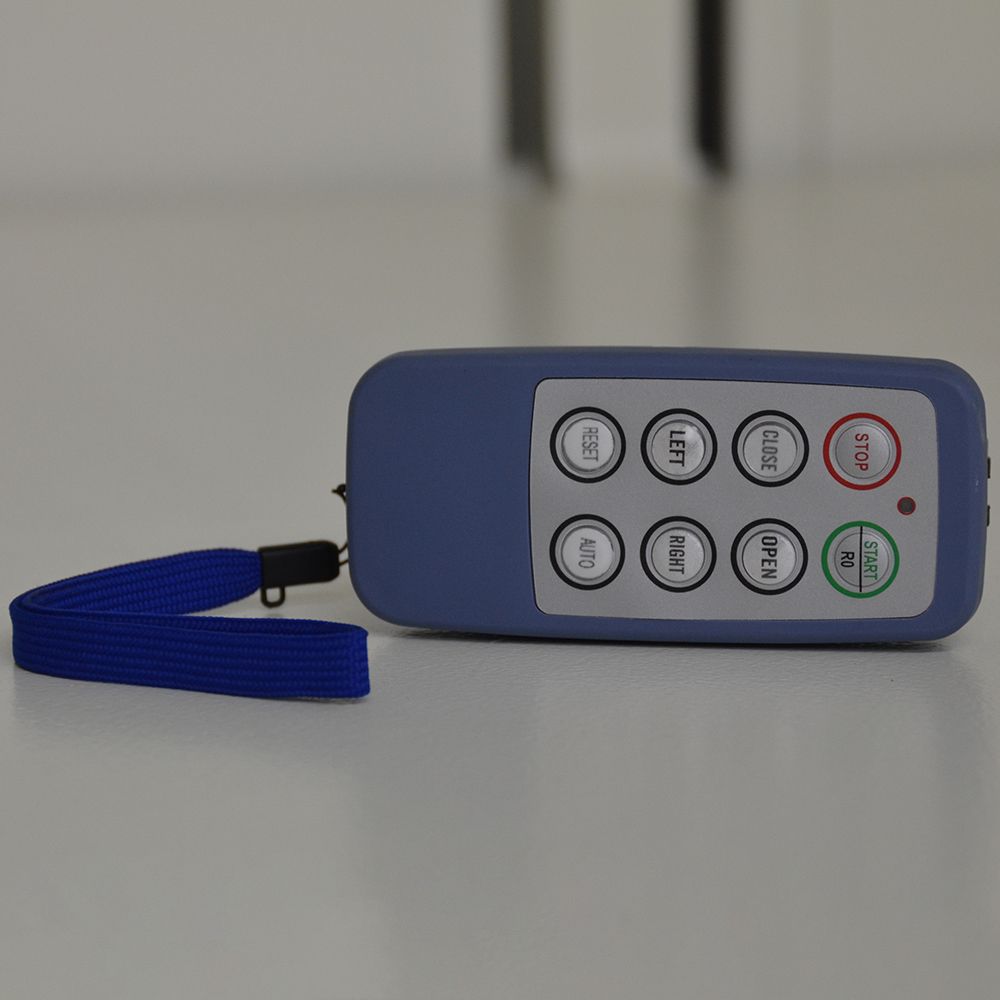

RF Remote ControlRF Remote Control

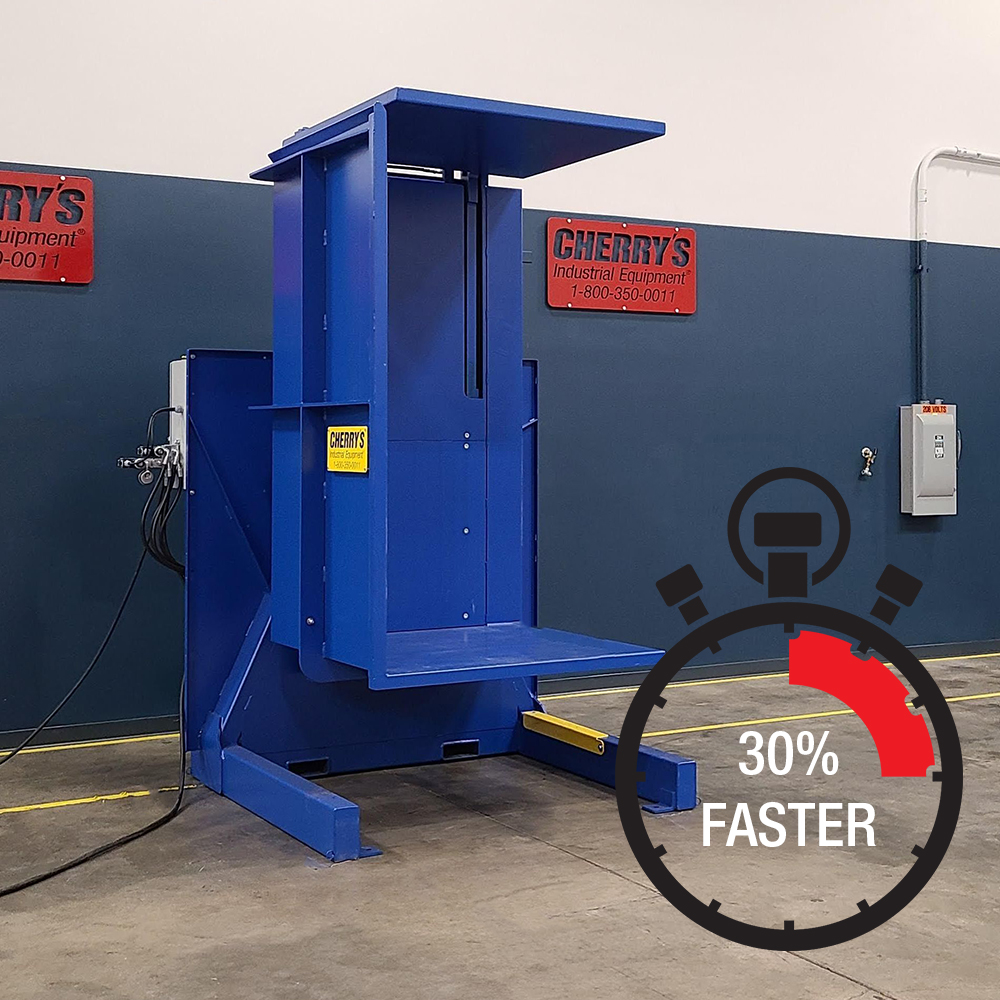

High speed motion controls for increased throughputHigh speed motion controls for increased throughput

Guards

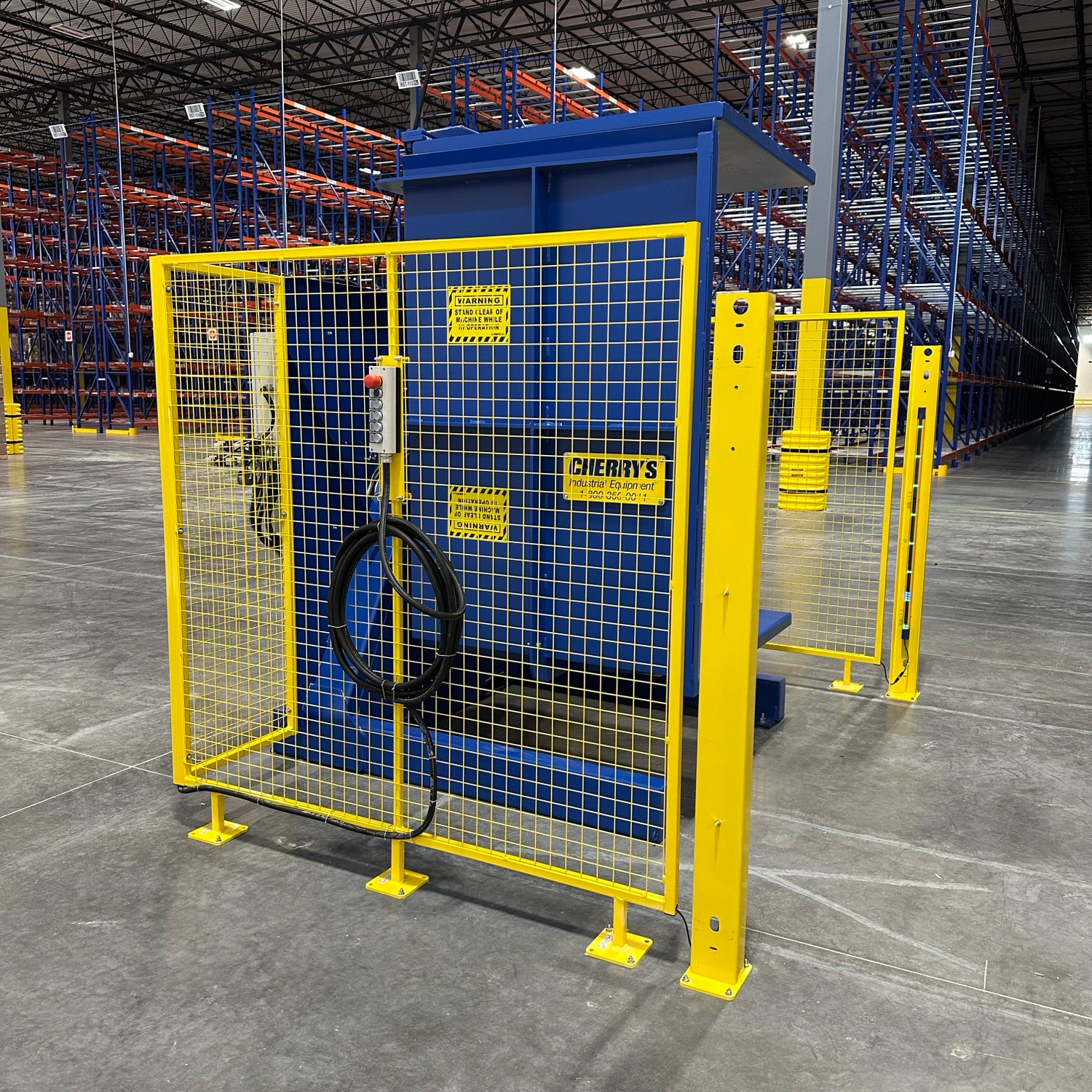

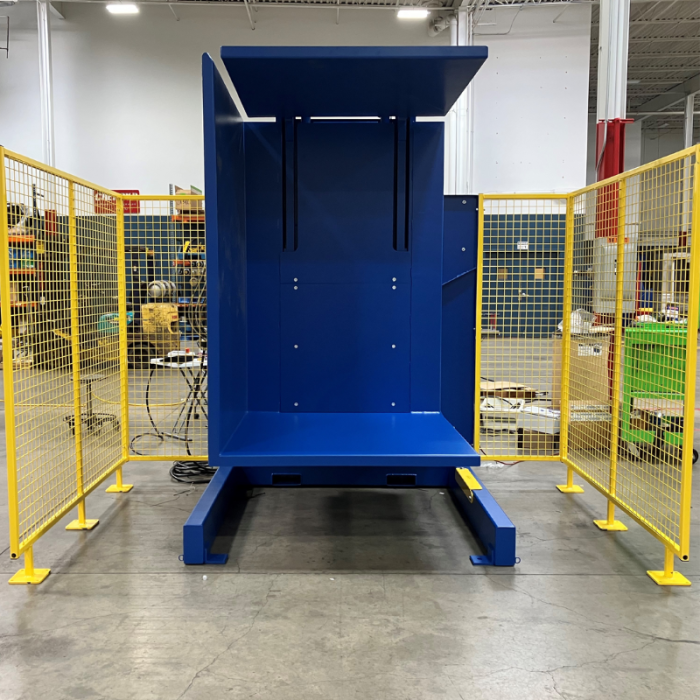

The standard SC-75P includes square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78 high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, light curtains and safety mats can be added to protect the area inside of the fence and around the machine.

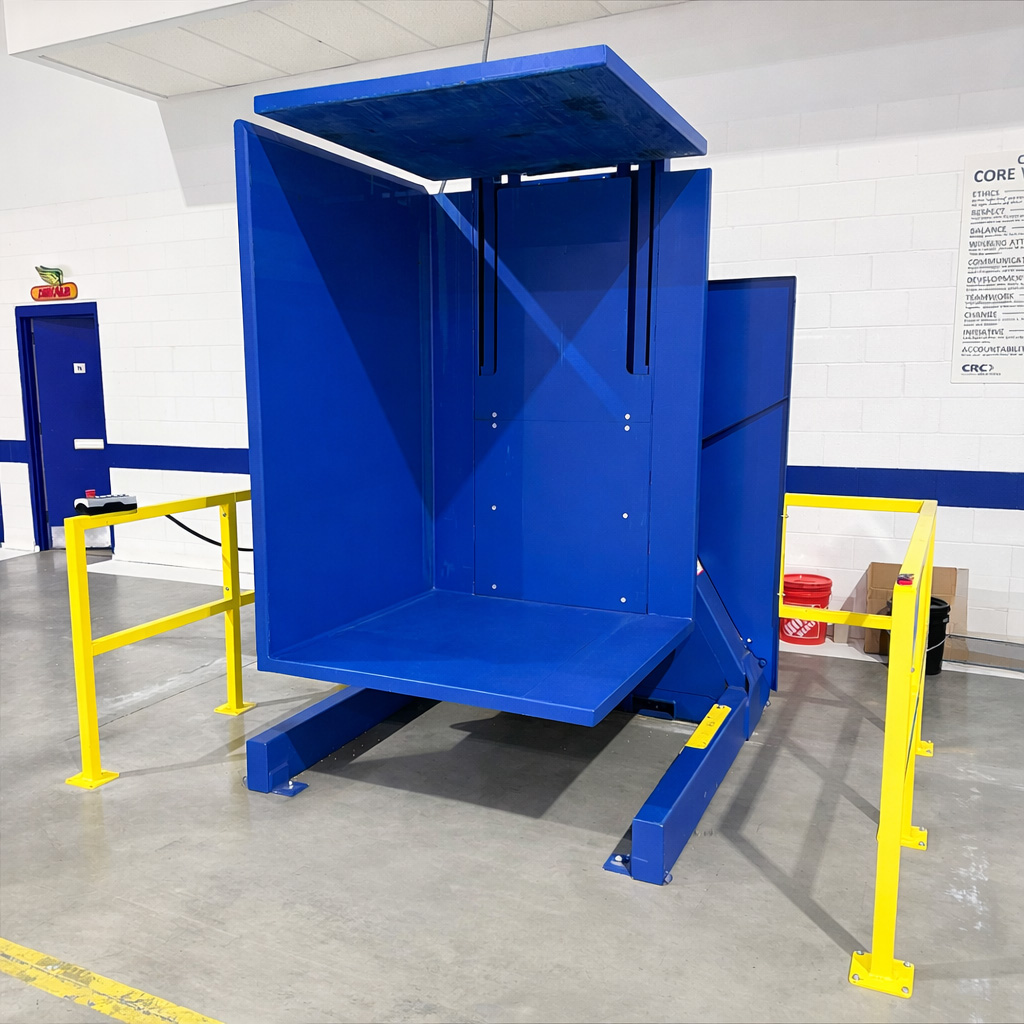

Rail GuardsRail Guards

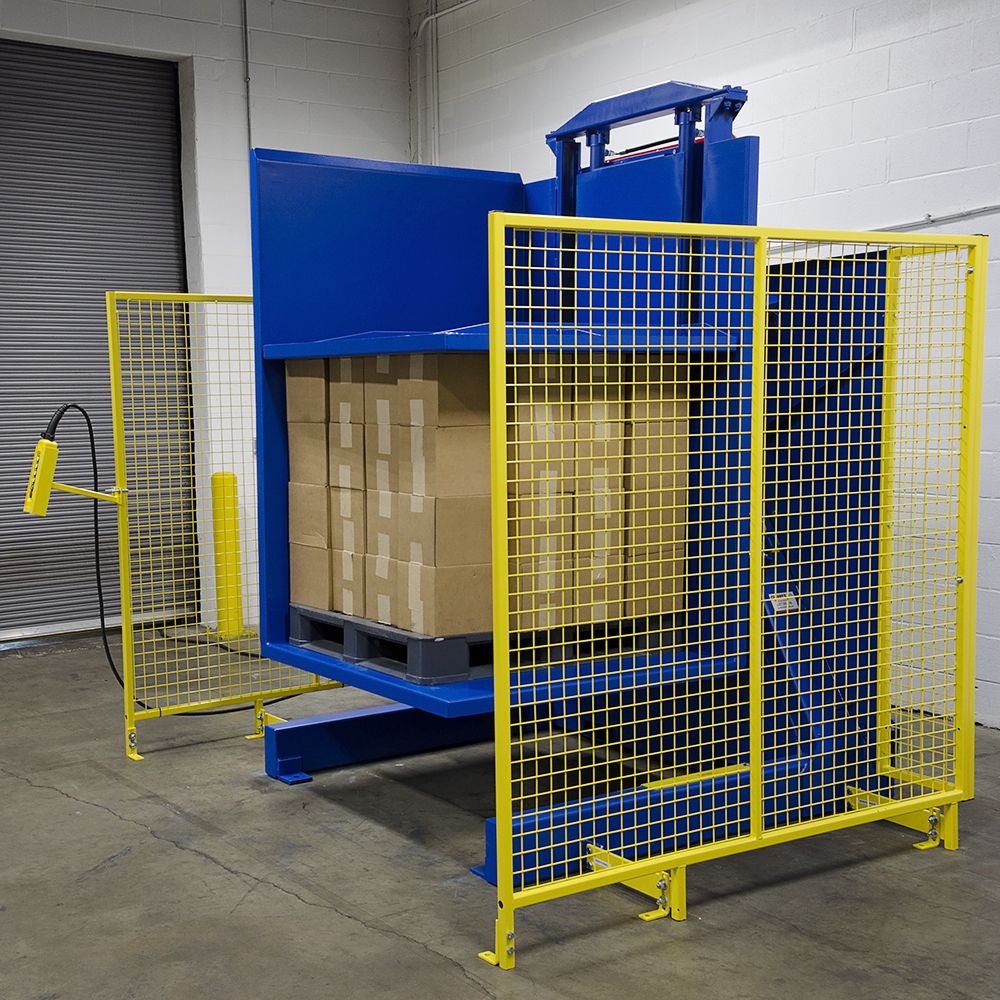

High Style GuardsHigh Style Guards
Safety light curtain - not available with lever controlsSafety light curtain - not available with lever controls

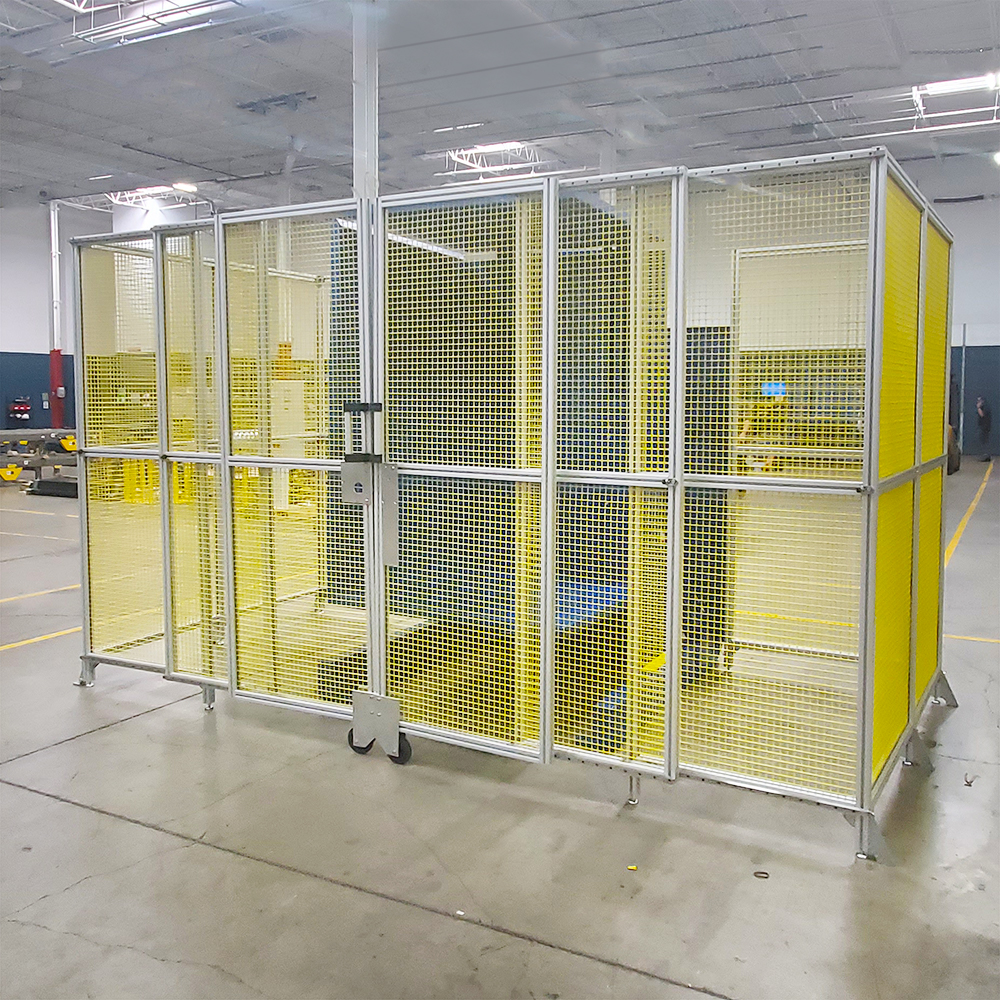

Bosch GuardsBosch Guards

Options

The standard SC-75P Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: a profile plate to reduce the usable opening, a slip sheet profile and custom color/finishes and upgraded components to meet your application or corporate specification.

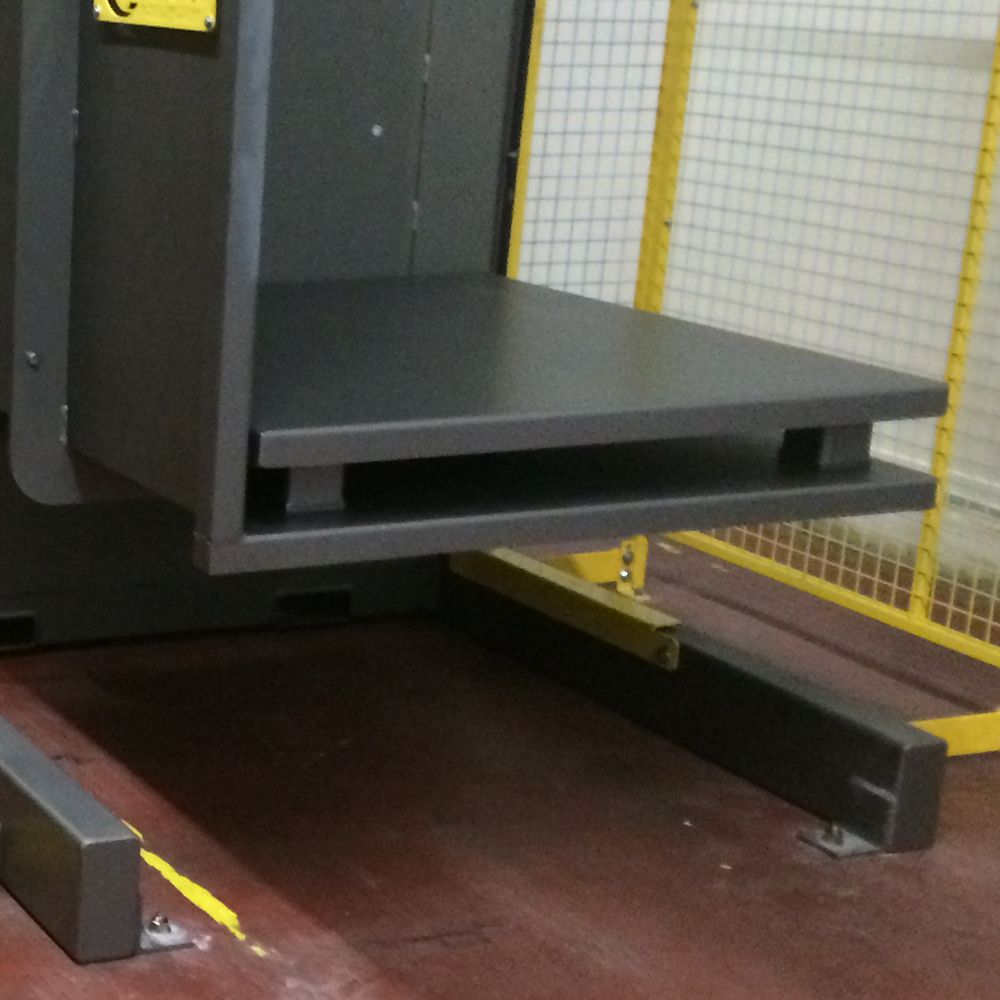

Profile PlateProfile Plate
Slip Sheet ProfileSlip Sheet Profile
Stainless SteelStainless Steel
Paint FinishesPaint Finishes
