SC-75L Single Clamp Pallet Inverter

SC-75L

Free standing 180 degree inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert and transfer loads ranging from 42'' to 75''. Features include: (Optional) UL508 Certified disconnect panel, dual lever controls on short arm boom, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. STANDARD UNIT - Always in Stock. Made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

Technical Drawing

SC-75L Single Clamp Pallet Inverter Image 1

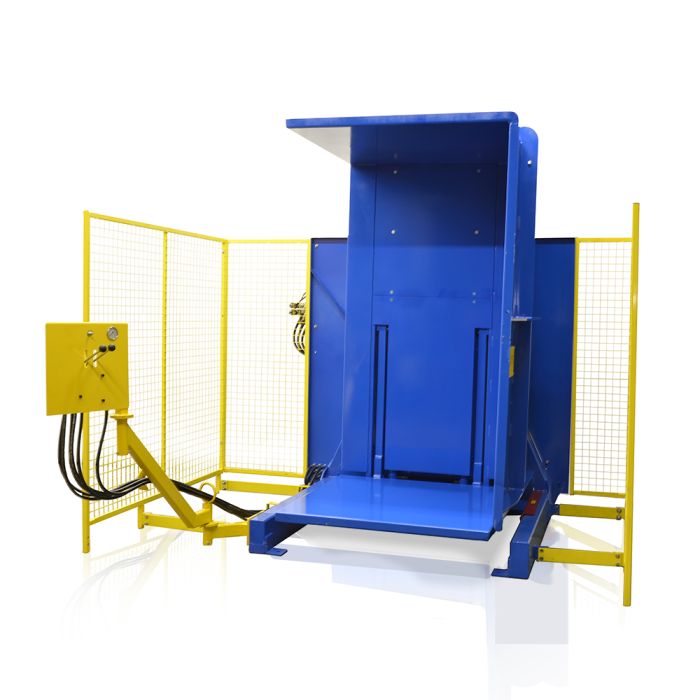

SC-75L Single Clamp Pallet Inverter Image 2

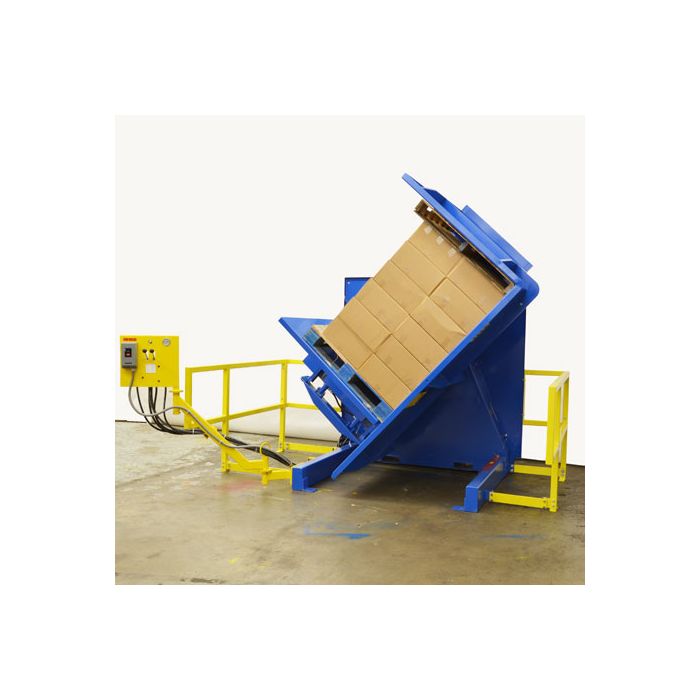

SC-75L Single Clamp Pallet Inverter Image 3

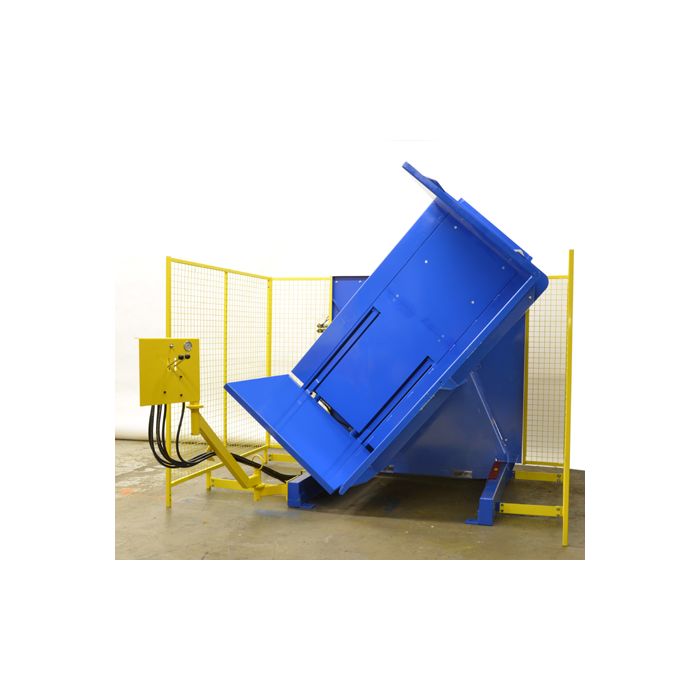

SC-75L Single Clamp Pallet Inverter Image 4

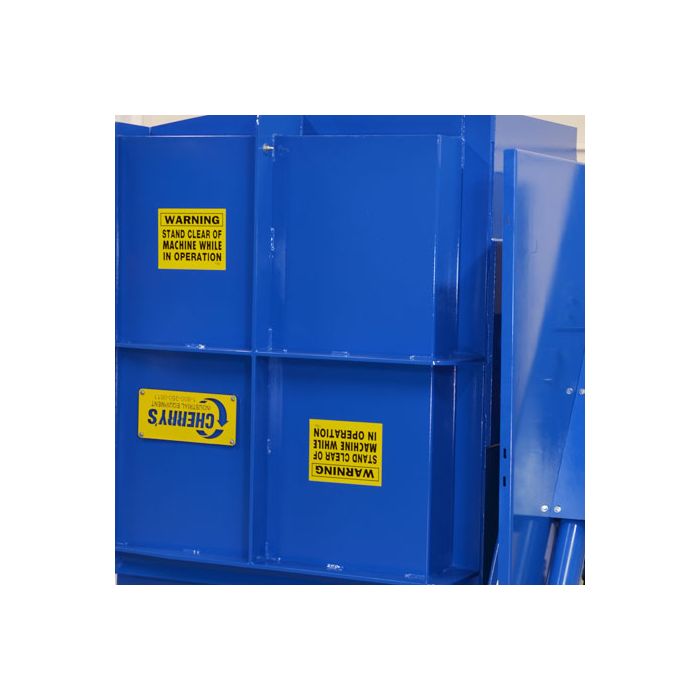

SC-75L Single Clamp Pallet Inverter Image 5

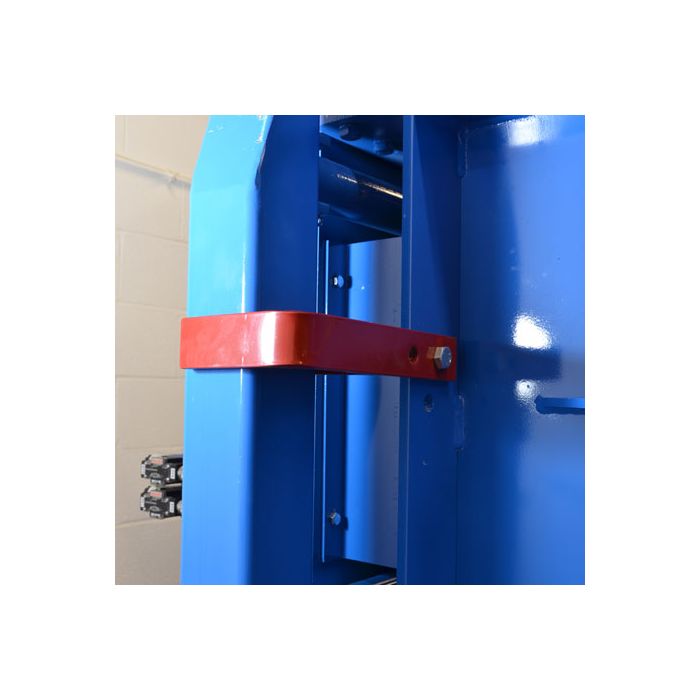

SC-75L Single Clamp Pallet Inverter Image 6

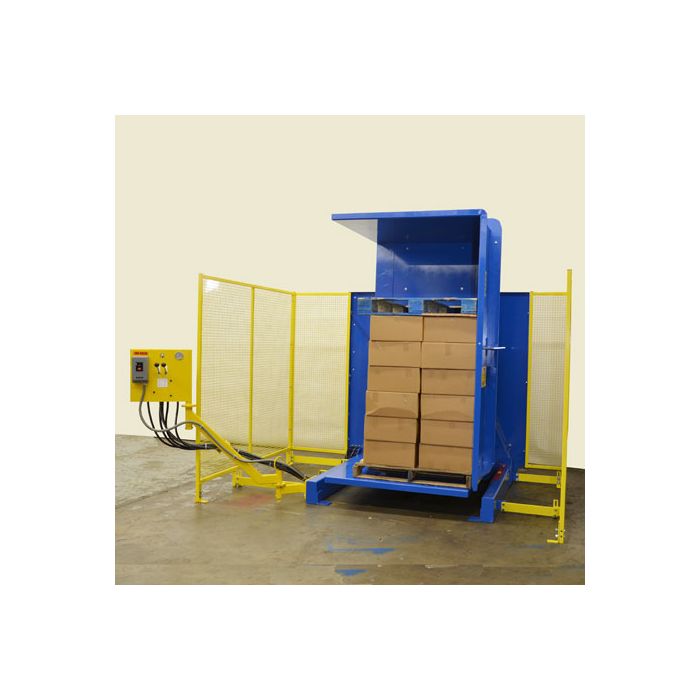

SC-75L Single Clamp Pallet Inverter Image 7

SC-75L Single Clamp Pallet Inverter Image 8

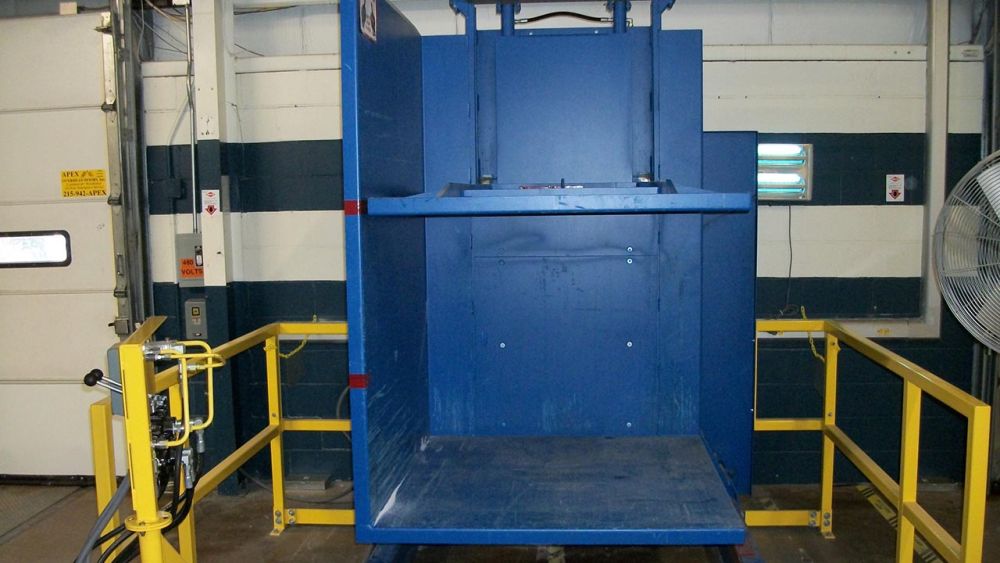

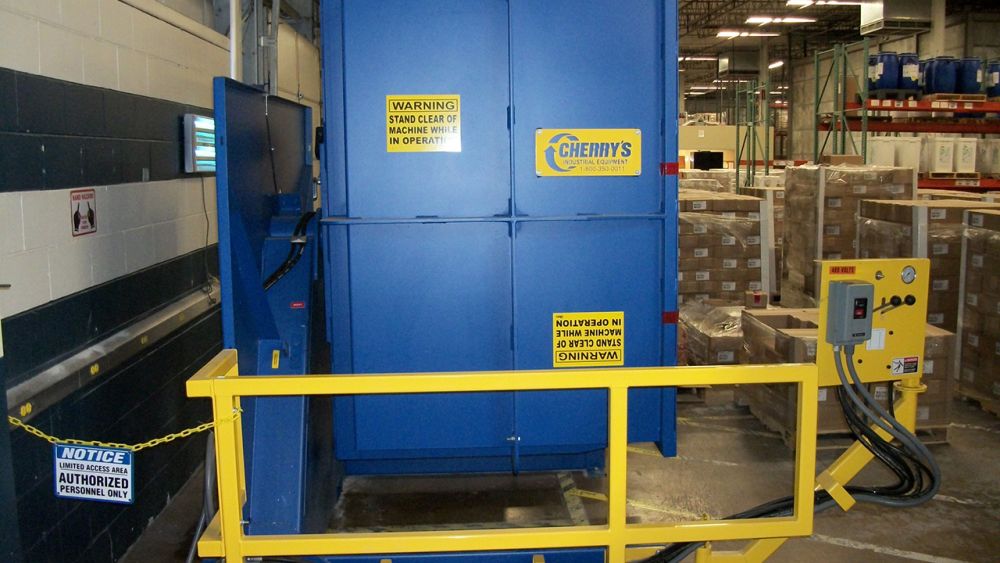

See it in the Wild

Product Information

Our most popular model in the range handling loads from 42" up to 75". Typical applications include wood to plastic pallet transfers, outbound shipments requiring CHEP, export pallets or slip-sheets. Widely in use at most processed food, pet food, cheese, consumer products, bakery, chemical and cereal plants. Budget friendly hydraulic lever controls offer a lower cost alternative to push button controls. Clamp/unclamp and rotate/inverter levers are mounted on a flag attached to a short arm, located out in front of the machine. Manual motor starter box to start and stop electric motor.

Product Tour

Specifications

Controls	Dual Lever Control
Model	SC-75L
Loading Table Size	50 x 50
Max. Jaw Opening	75"
Min. Jaw Opening	42"
Finish	Blue Epoxy Paint
Capacity	4,400 lbs
Adjustable Clamp Pressure	400-2,000 PSI

System Pressure	2,200 PSI
Maintenance Lock Outs	4
Motor	5 HP
Power Source	208/230/460/575V
Certifications	0
Warranty	3 yr parts/labor. Extended warranty available.
FOB	Roselle, IL
Loading Height Upright	22.56"

Operating Width	104"
Operating Depth	78.5"
Operating Height	105.5"
Loading Height Inverted	10.76"
Width With Guards	131.6"
Shipping weight*	3,700 lbs
Shipping Dimensions	84" L x 84" W x 96" H
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Controls

The SC-75L is built with a two spool hydraulic valve with levers on a short arm boom and a manual starter to turn the motor on and off. Add a disconnect panel for overcurrent protection. Available control options include an electrical push button pendant, auto controls, high speed, radio remote control or an operator console on a pedestal.

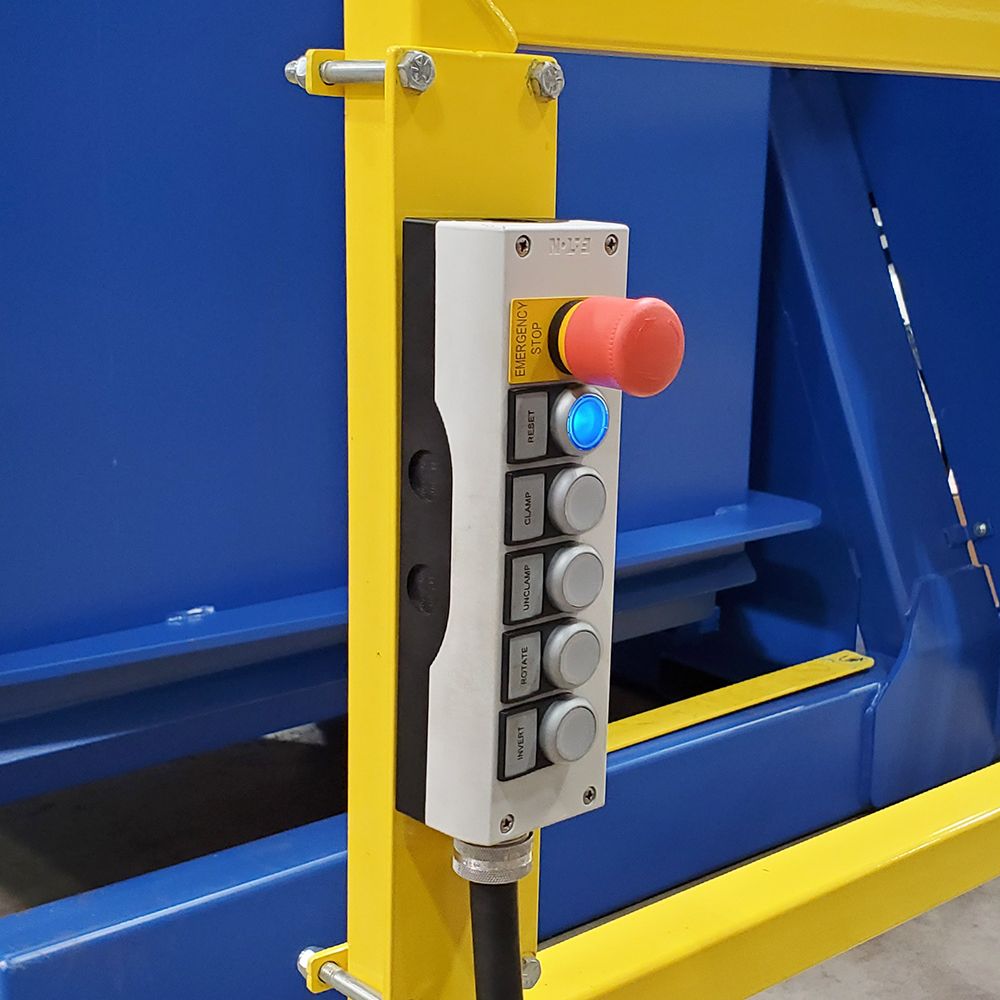

Pendant with E-stop and reset

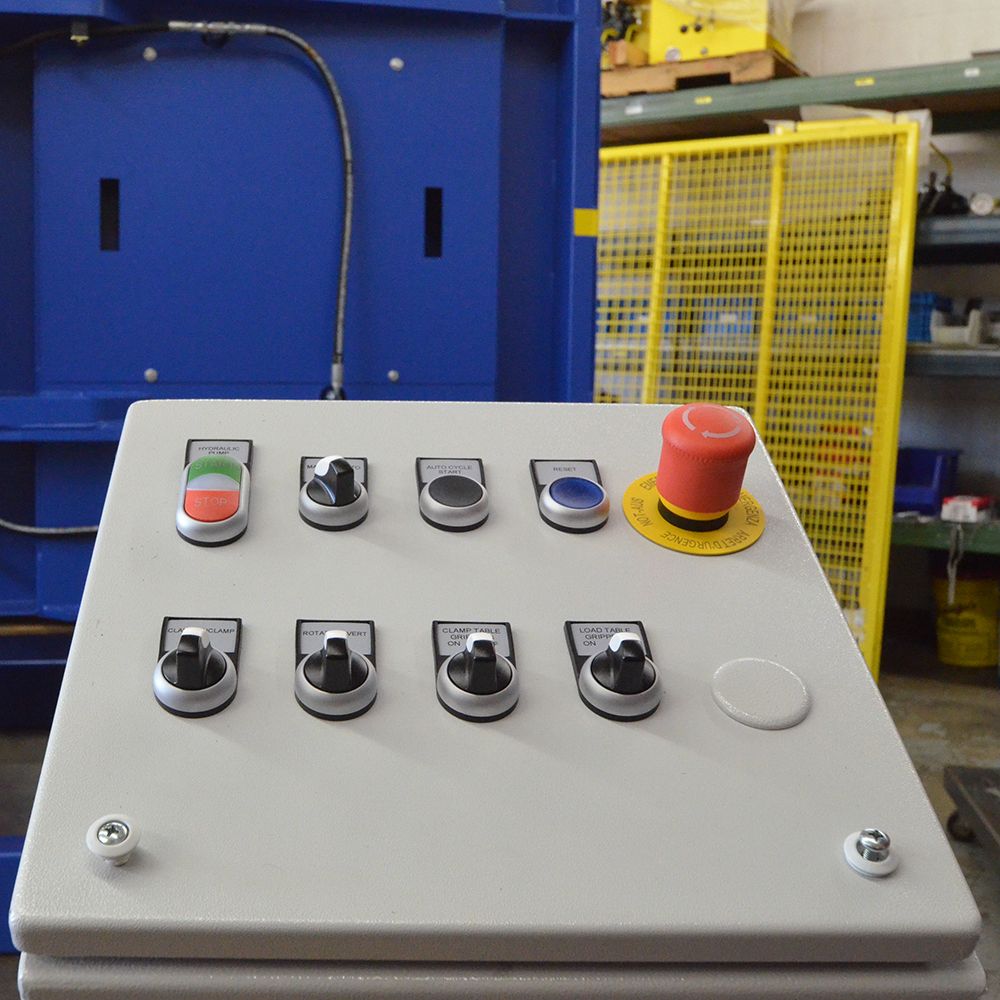

Control Console

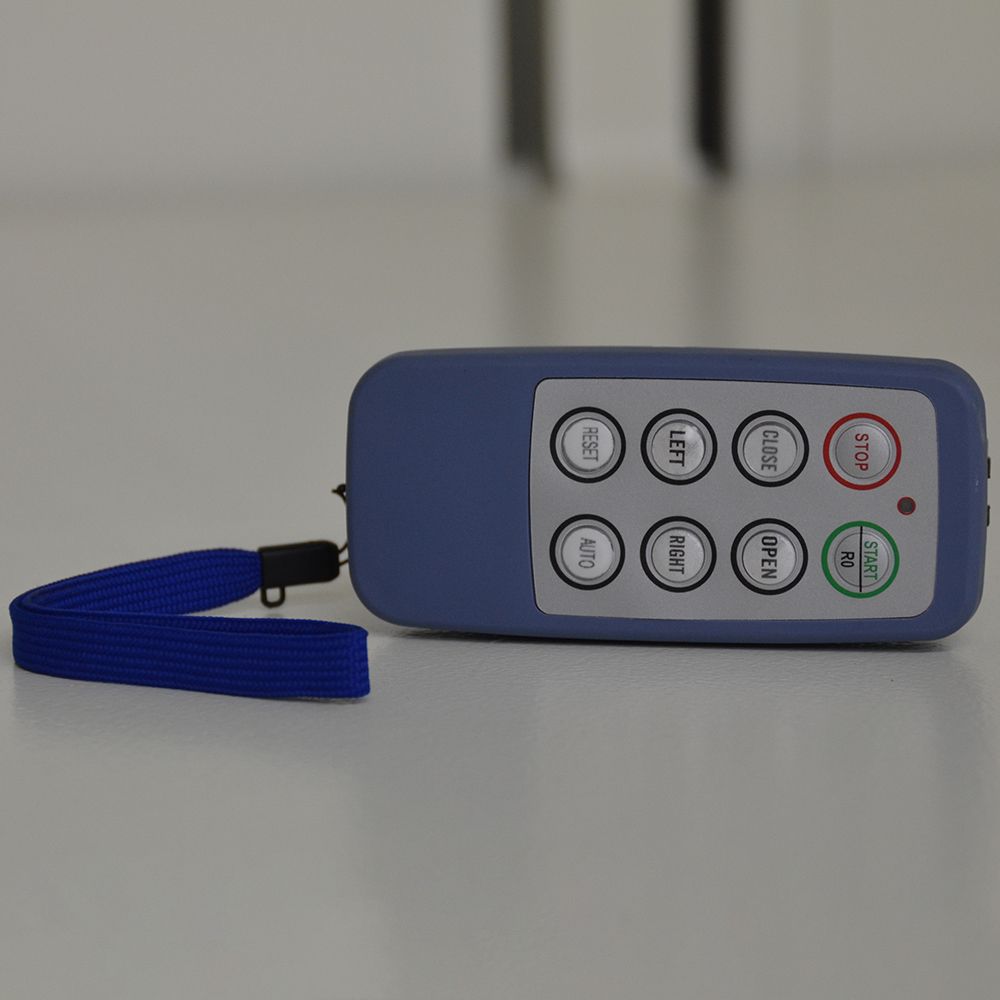

Remote Control

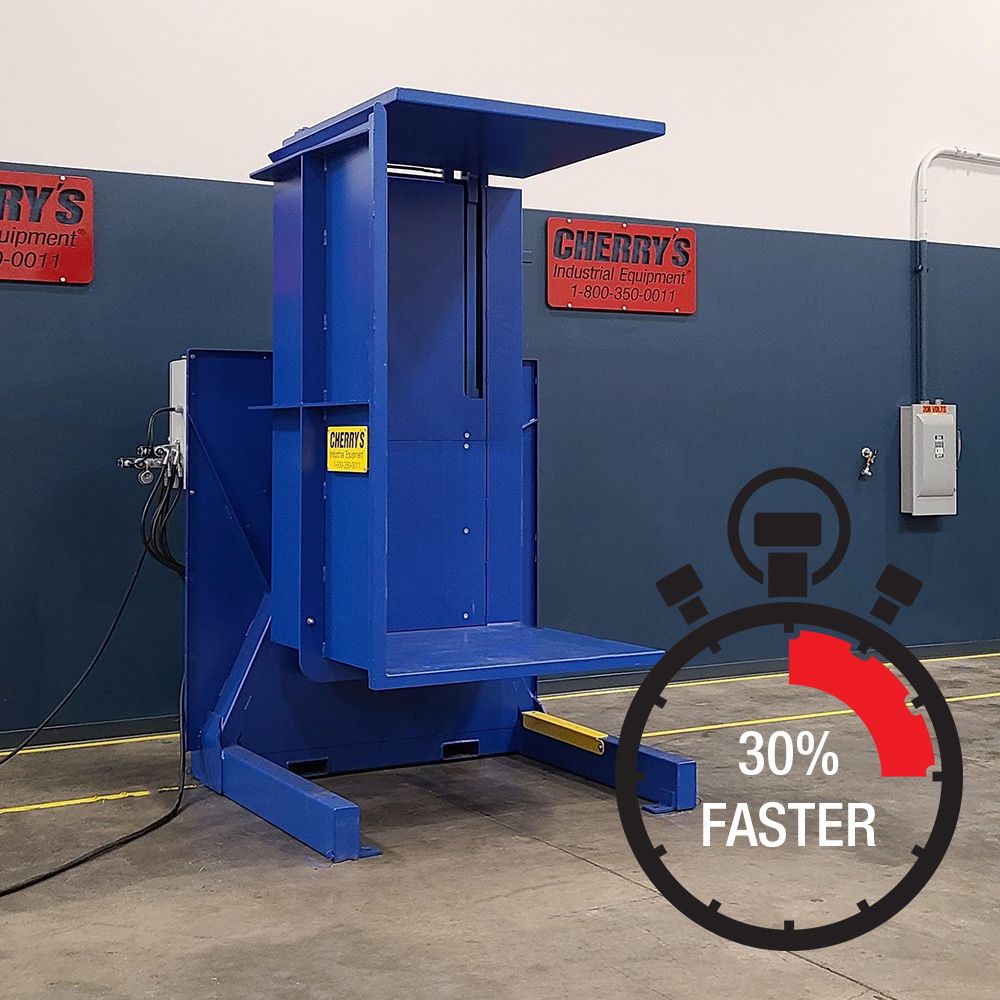

High Speed Movement Controls

Options

Floor anchors, hydraulic oil, operator controls and a power unit all are standard items shipped complete on the SC-75L Pallet Inverter. A profile plate, slip sheet profile, upgraded components plus custom paint colors, stainless steel finishes are available to meet your application or corporate specifications.

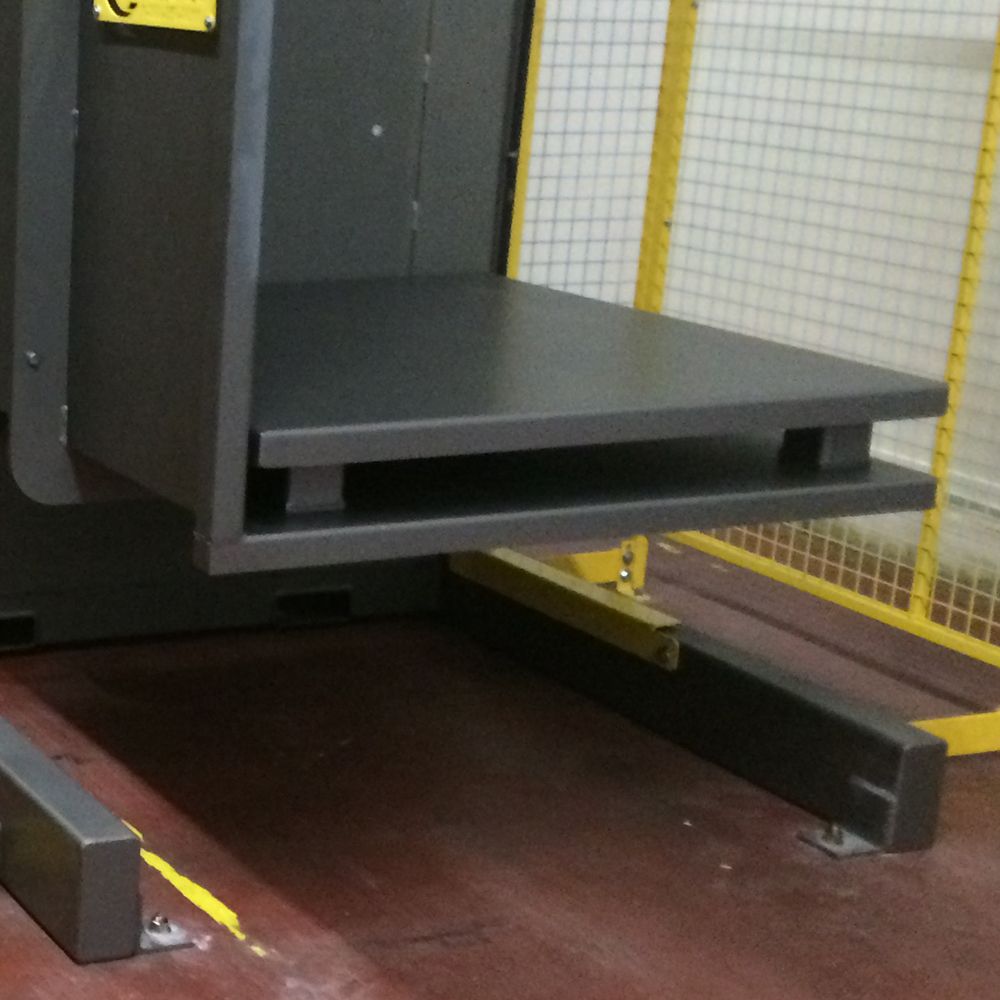

Profile Plate

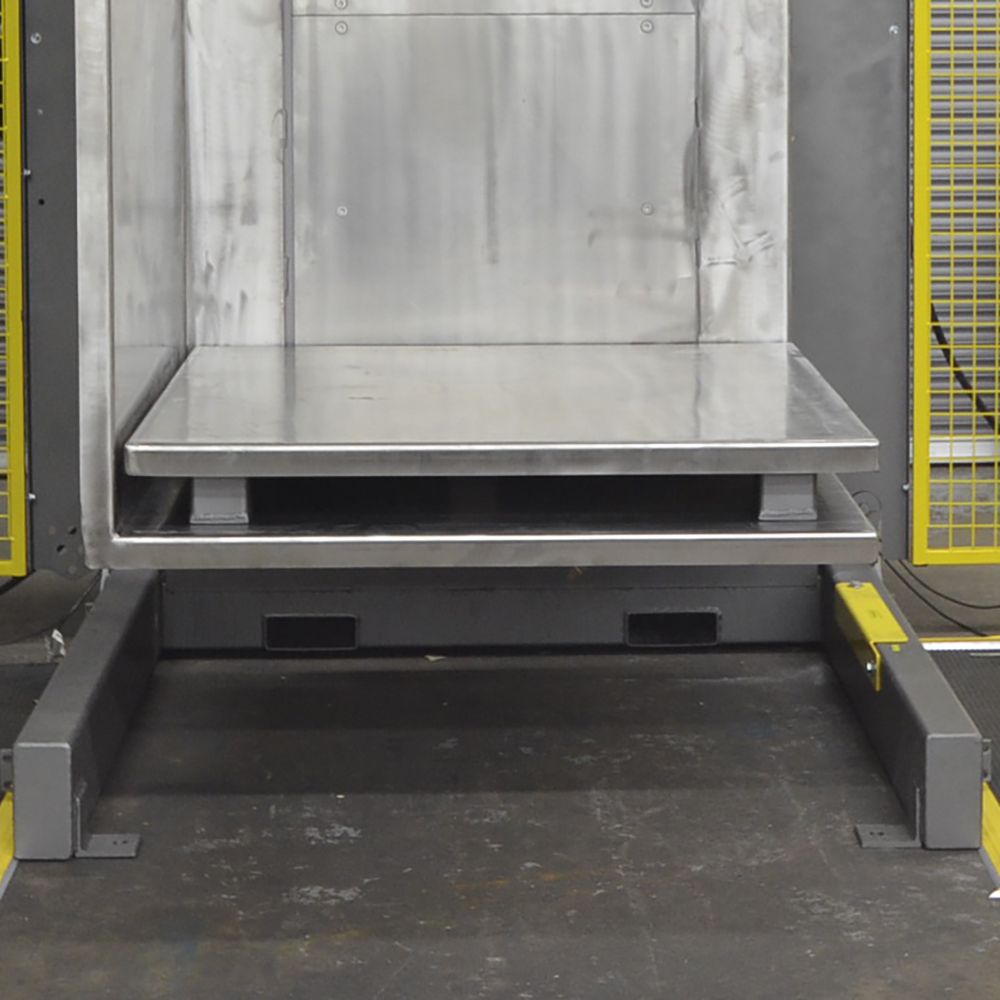

Stainless Steel

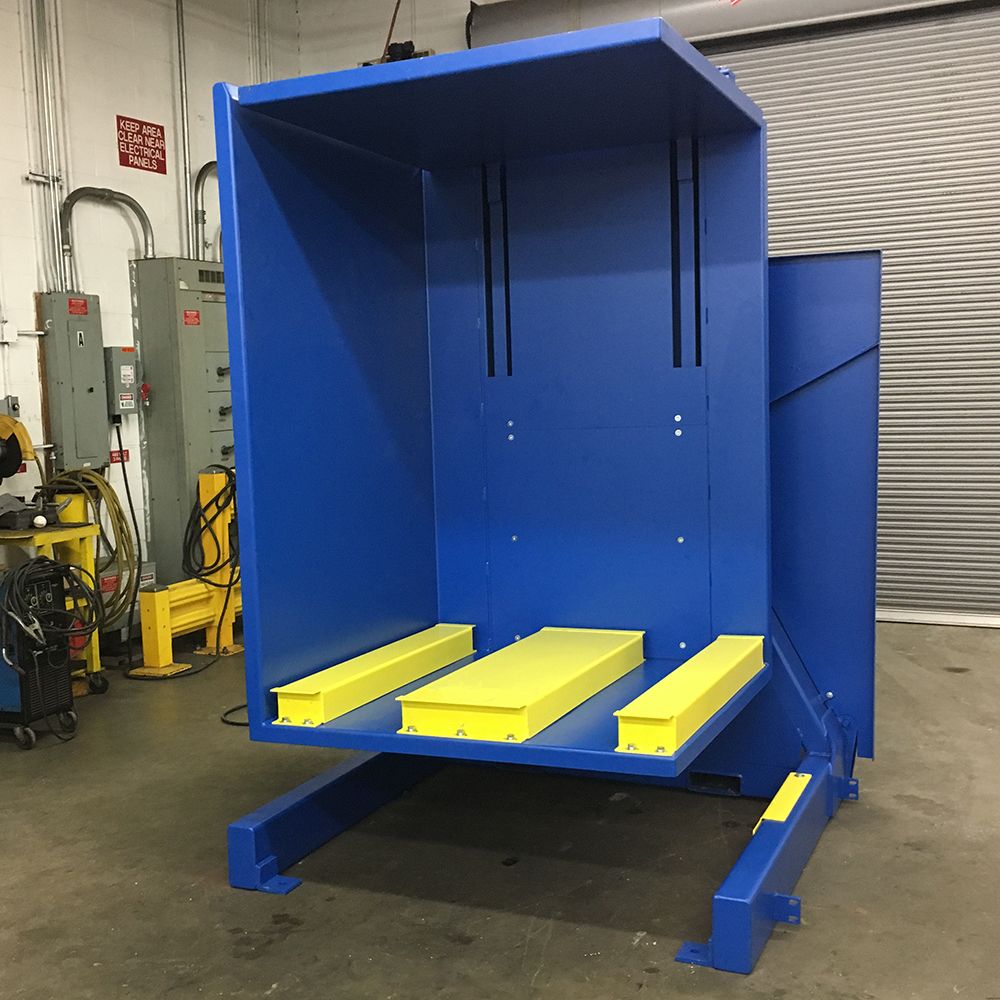

Slip Sheet Profile

Paint color/finish

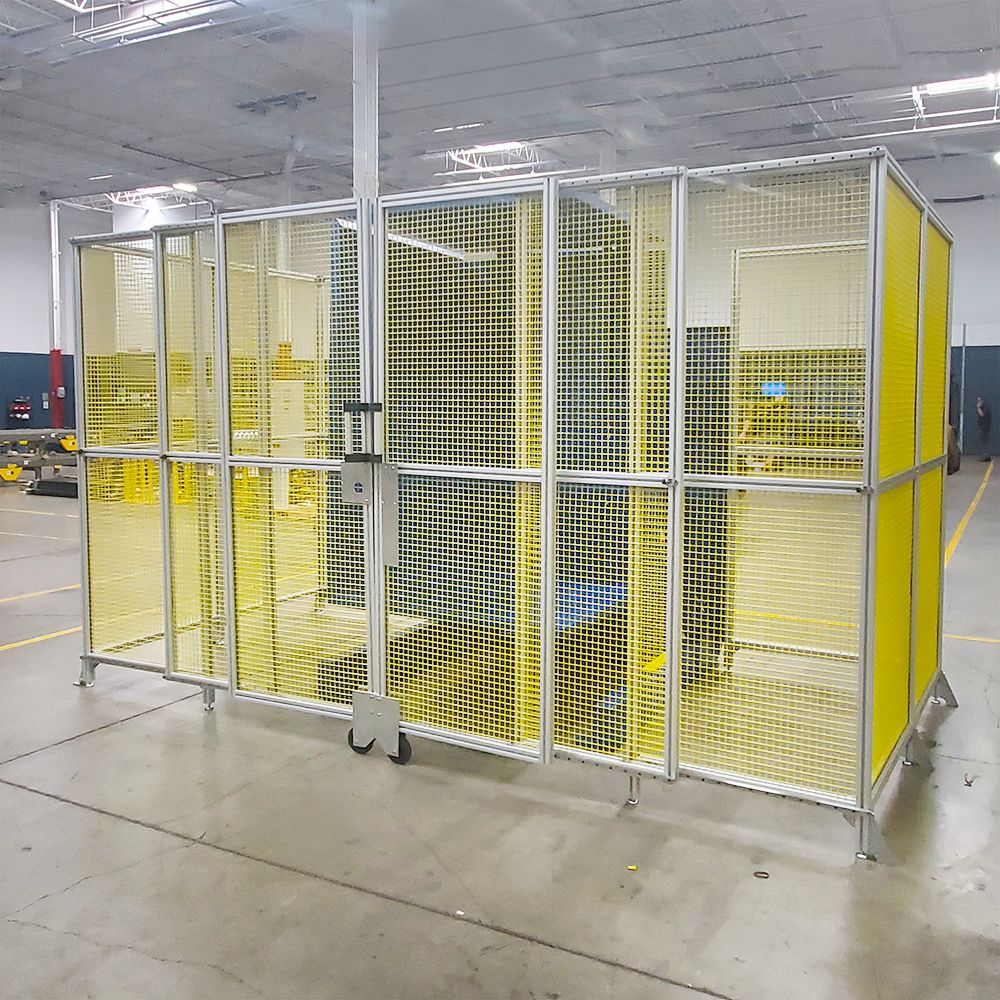

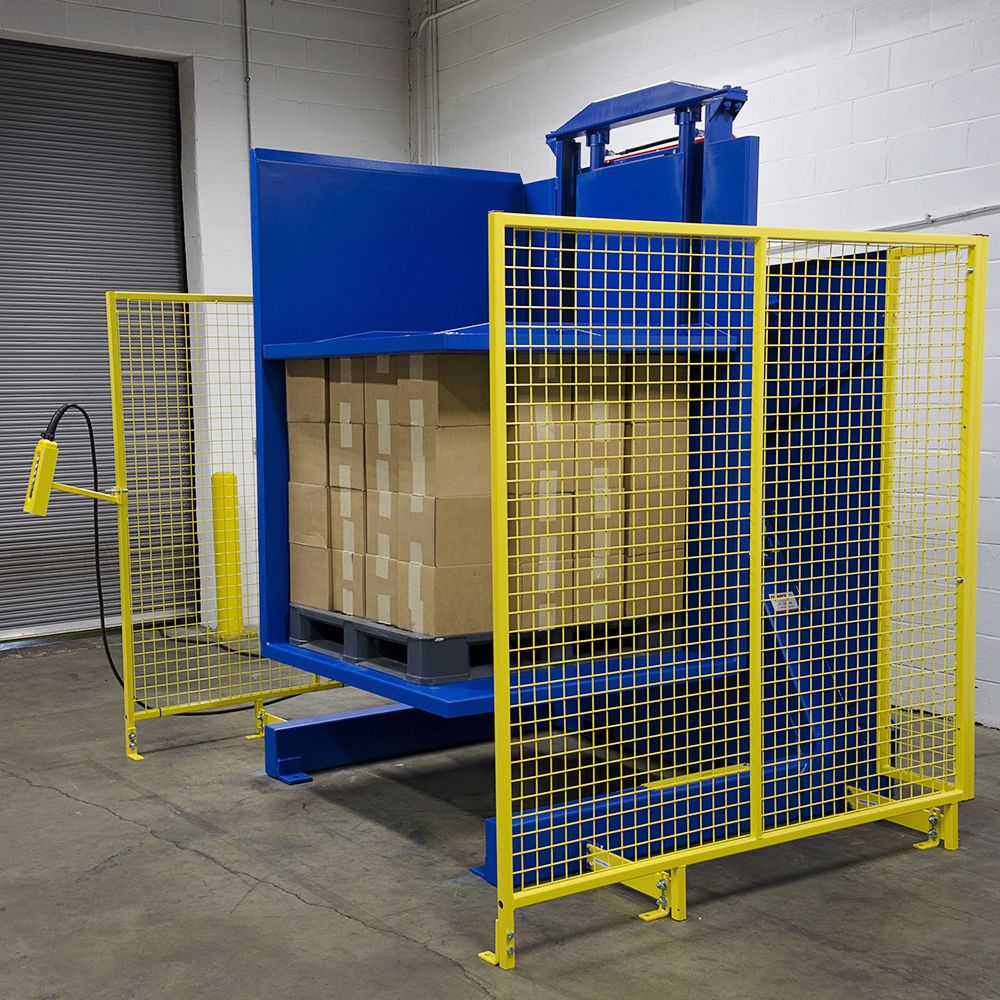

Guards

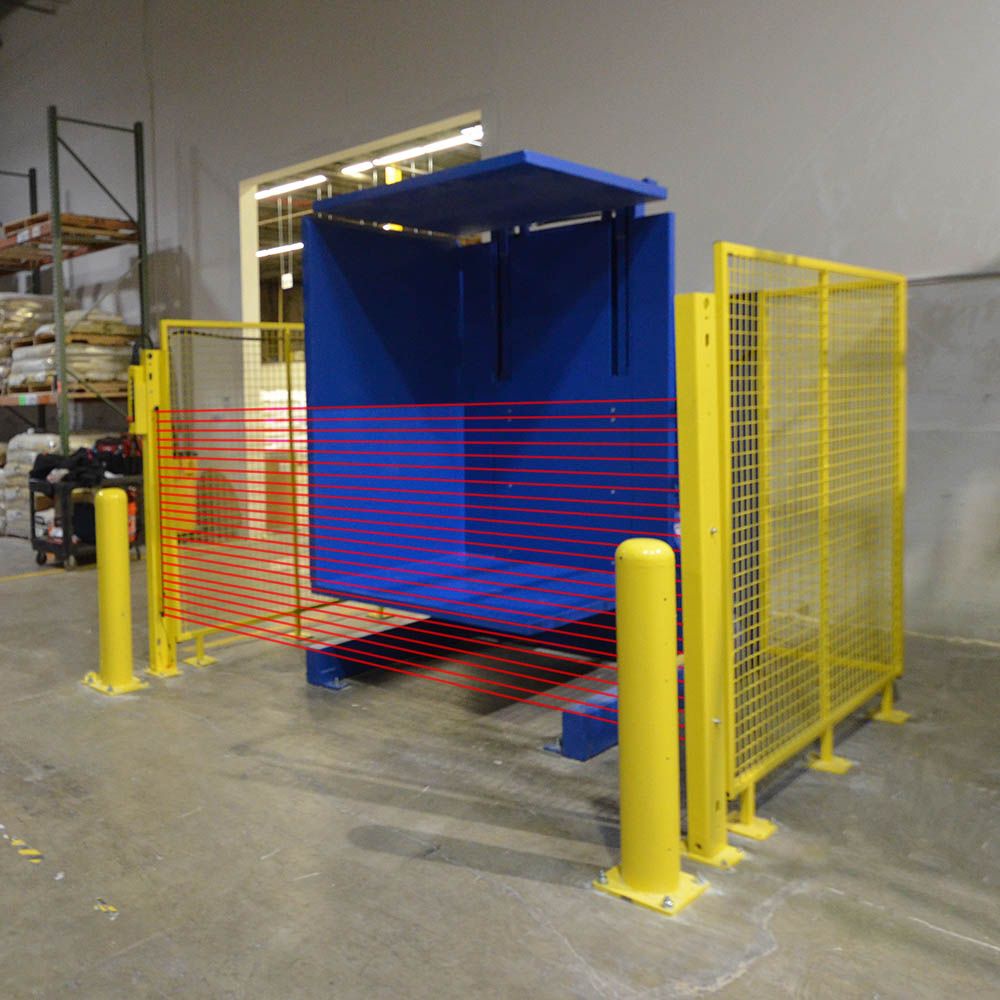

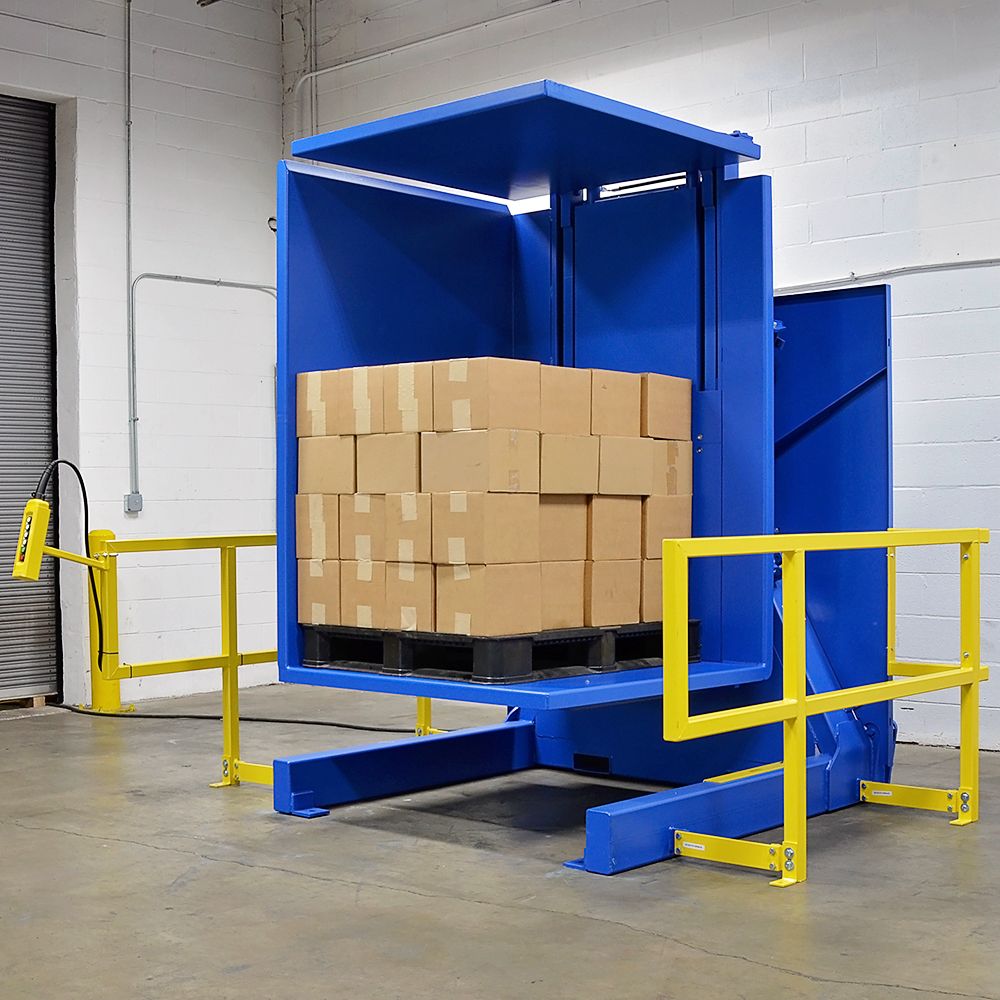

Rail guarding is standard with the SC-75L to protect against injury or forklift damage. Personnel guarding can be configured to the machine to enhance the safety and security of the operator. Options include 3-sided 78 high style perimeter guards. These guards protect the surrounding areas of the equipment. Note: The light curtain option is only available with electrical push button controls.
