SC-63P Single Clamp Pallet Inverter


SC-63P

The SC-63P 180° pallet inverter works well for everything from pallet replacement applications to recovering damaged bags of materials. You'll be able to complete more tasks in less time and minimize the risk of debilitating back injuries that could keep your workers off the job.

Request a Quote

Call 847-443-3861 to speak with our experts

SC-63-GRSC-63-GRSC-63-HSG
SC-63P Single Clamp Pallet Inverter
SC-63P Single Clamp Pallet Inverter Image 1

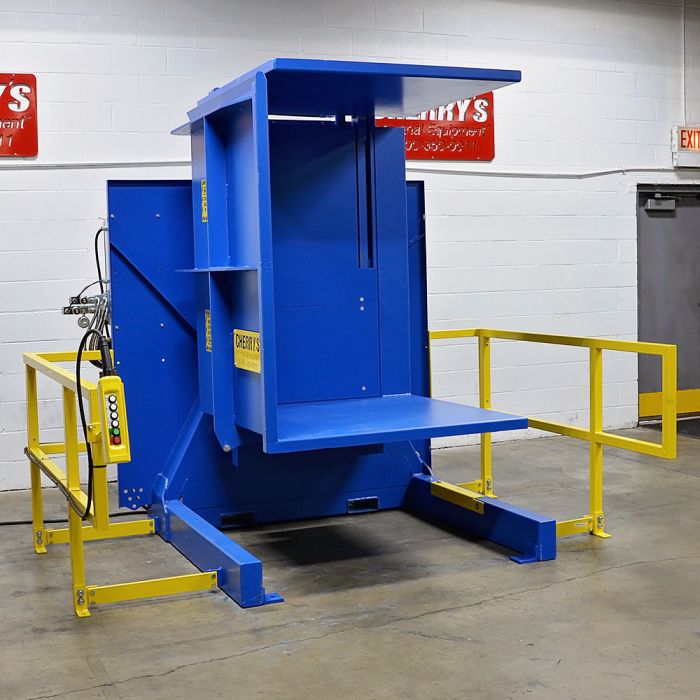

SC-63P Single Clamp Pallet Inverter Image 2

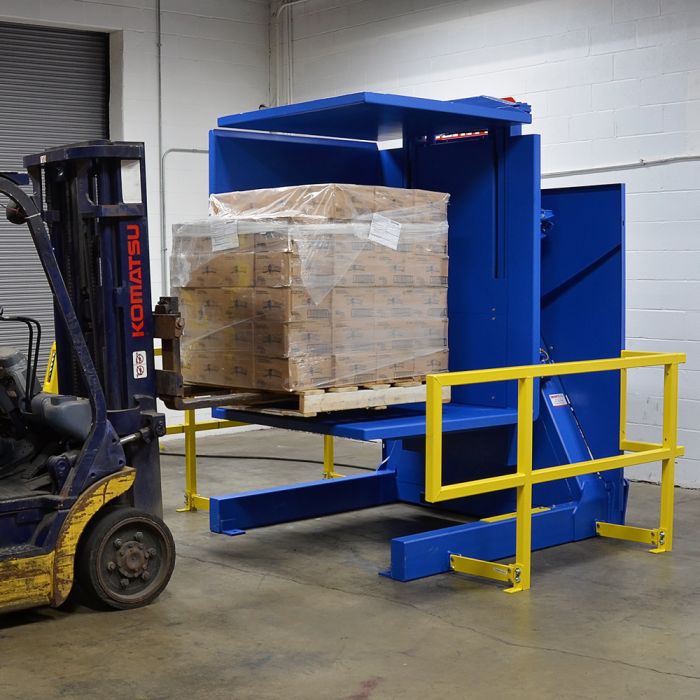

SC-63P Single Clamp Pallet Inverter Image 3

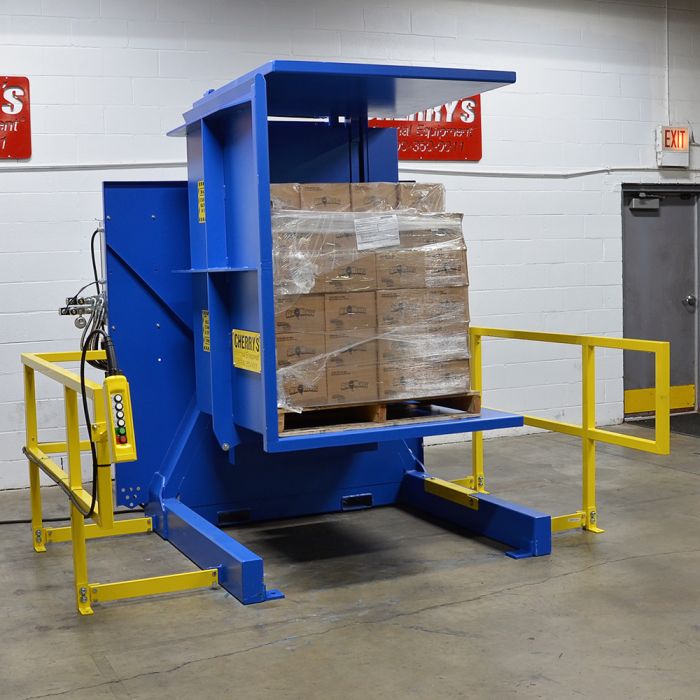

SC-63P Single Clamp Pallet Inverter Image 4

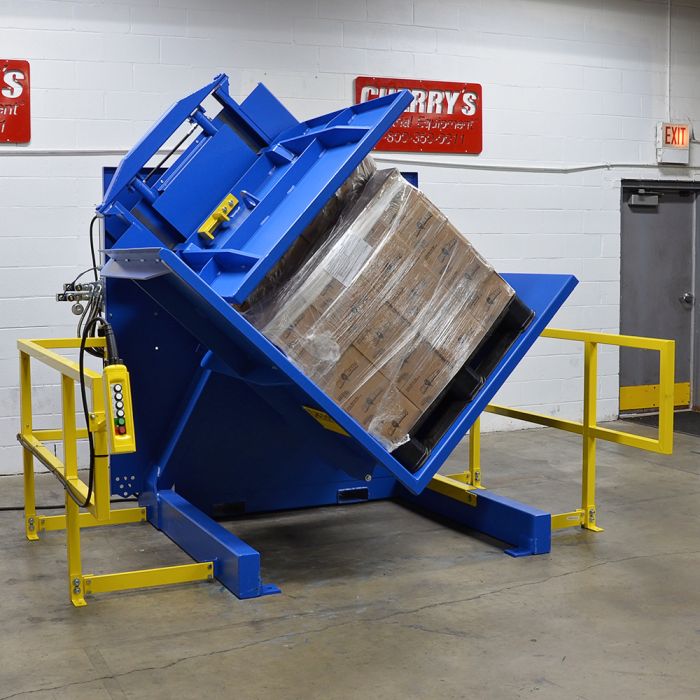

SC-63P Single Clamp Pallet Inverter Image 5

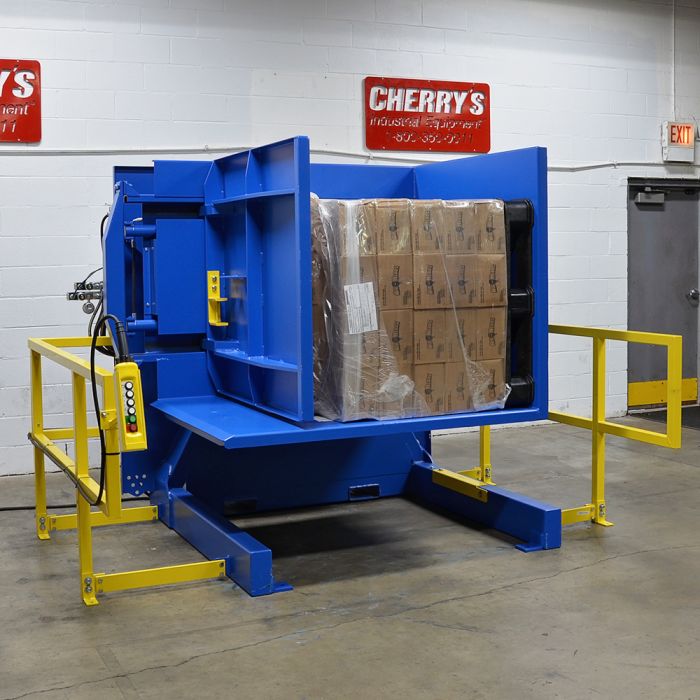

SC-63P Single Clamp Pallet Inverter Image 6
SC-63P Single Clamp Pallet Inverter Image 7
SC-63P Single Clamp Pallet Inverter Image 8

See it in the Wild

Pallet Inverter turning over boxes of kitty litter to recover damages cases Pallet Inverter turning over boxes of kitty litter to recover damages cases
Pallet Inverter in heavy use at a manufacturing facility Pallet Inverter in heavy use at a manufacturing facility
Customer specific controls for a SC-63 Pallet Inverter Customer specific controls for a SC-63 Pallet Inverter
Pallet Inverter with protective rail guards Pallet Inverter with protective rail guards
Pallet Inverter with guarding at a chemical plant Pallet Inverter with guarding at a chemical plant
Pallet Inverter turning over cases Pallet Inverter turning over cases
Pallet Inverter flipping over plastic film Pallet Inverter flipping over plastic film
Pallet inverting transfering flooring to an export pallet Pallet inverting transfering flooring to an export pallet
Pallet Inverter built with risers for easy cleaning around the machine Pallet Inverter built with risers for easy cleaning around the machine
×

You may also be interested in:

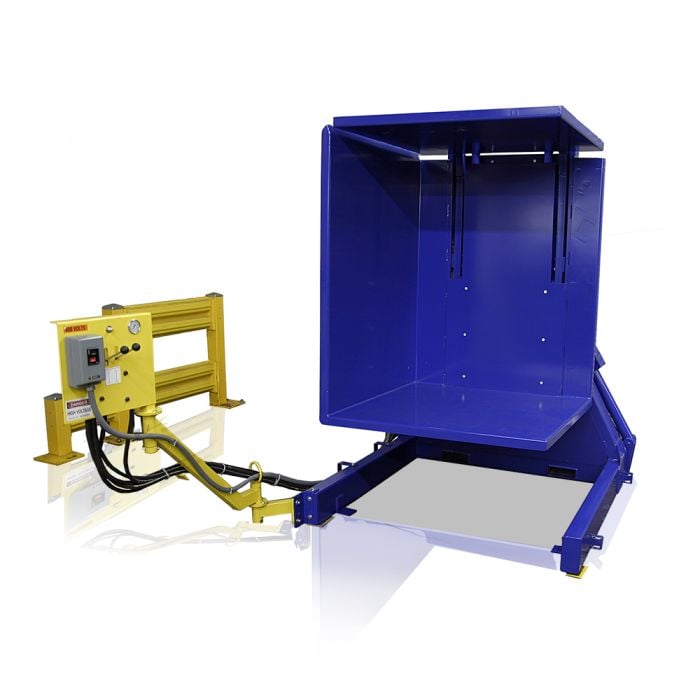

SC-63L Single Clamp Pallet Inverter

SC-63L Single Clamp Pallet Inverter

Learn More

Product Information

This flexible 30"-63"-capacity pallet inverter can accommodate loads weighing up to 4,400 lbs. The inverter can achieve full 180° rotation in approximately 17 seconds, ensuring faster transfer or damage recovery time. The SC-63P skid turner also includes machine guarding for protection against forklifts. Other SC-63P freestanding pallet turner features, benefits and specs include: Simple push-button operation makes the pallet inverter easy to use, substantial loading table size of 50" x 50", adjustable clamp pressure ranging from 400-2,000 psi, UL-approved electrical panel to ensure worker safety, attractive blue epoxy paint finish and a three-year parts and labor warranty for your protection and peace of mind. Order Your SC-63P Single Clamp Inverter From Cherry's Industrial Equipment today!


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
SC-63L Lever Controls 5/3.7 15 Invert/15 Rotate N/A
SC-63HSP Push buttons 5/6.6 8 Invert/7 Rotate Standard



Product Tour


Specifications


ModelSC-63P
ControlsSix Button Pendant
Loading Table Size50" x 50"
Max. Jaw Opening63"
Min. Jaw Opening30"
Working Table Height28.75"
FinishBlue Epoxy Paint
Capacity4,400 lbs
Adjustable Clamp Pressure400-2,000 PSI
System Pressure2,200 PSI
Maintenance Lock Outs4
Motor5 HP
Power Source208/230/460/575V
CertificationsUL 508a Certified Panel
Warranty3 year parts and 1 year labor. Extended service agreements available.
FOBRoselle, IL
Loading Height Upright28-3/4"
Operating Width95"
Operating Depth78.5"
Operating Height101-1/2"
Loading Height Inverted16-3/8"
Width With GuardsGR-123"/HSG-126"
Shipping weight*3,500 lbs
Shipping Dimensions84" L x 84" W x 84" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The standard SC-63P Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: a profile plate to reduce the usable opening, a slip sheet profile and custom color/finishes and upgraded components to meet your application or corporate specification.


Profile PlateProfile Plate

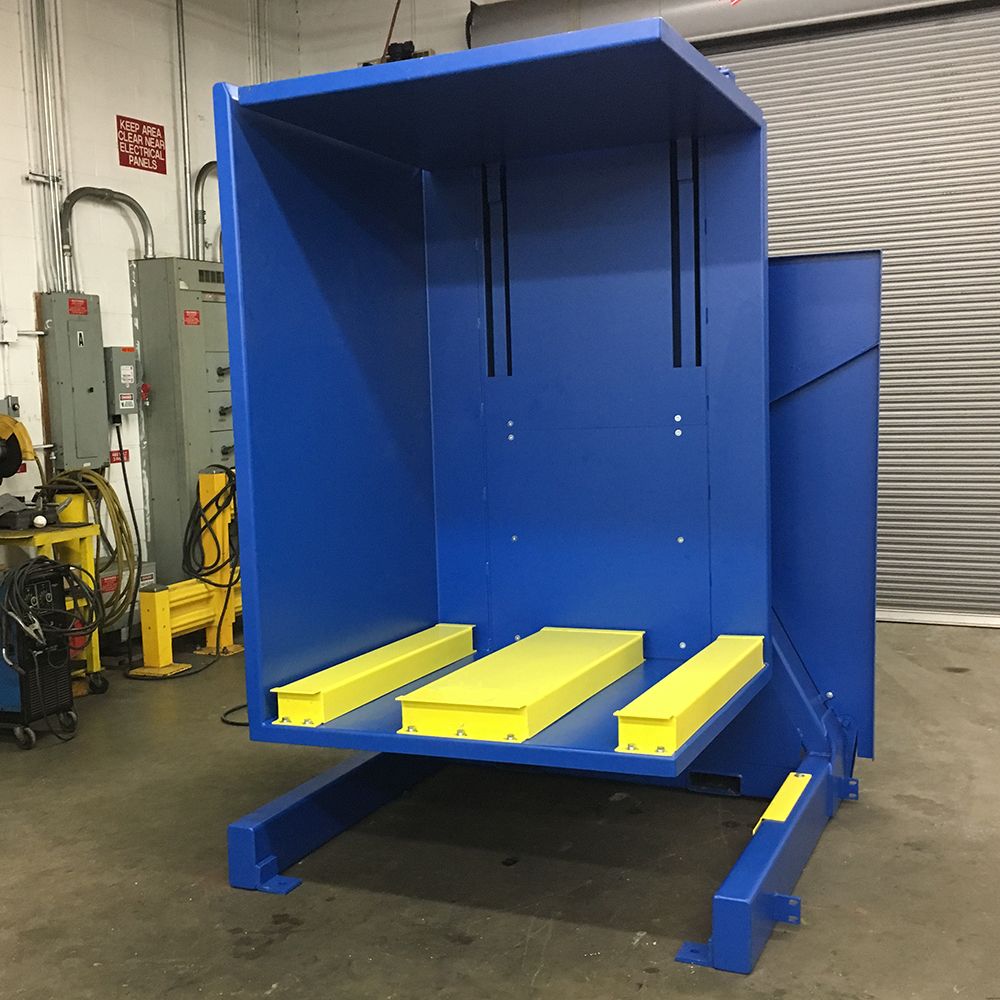

Slip Sheet ProfileSlip Sheet Profile

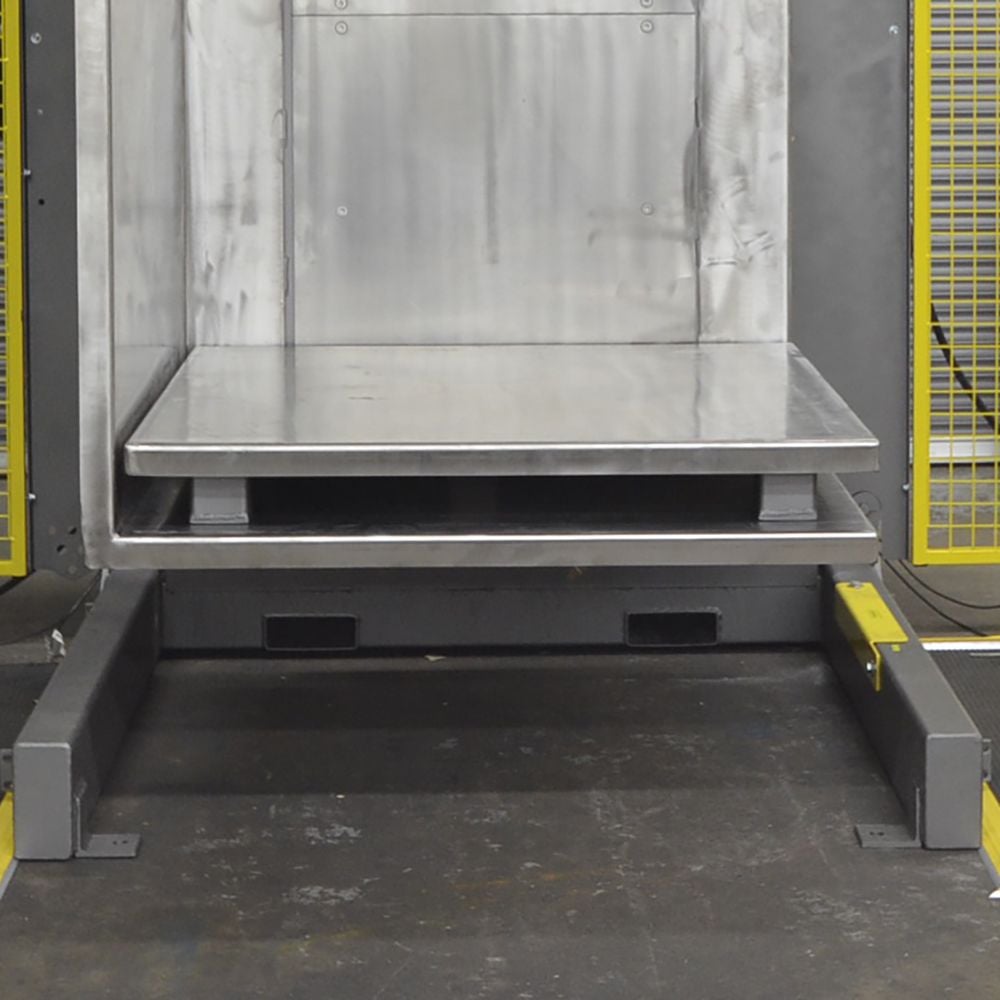

Stainless SteelStainless Steel
Paint FinishesPaint Finishes

Guards

The standard SC-63P includes square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78 high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, light curtains and safety mats can be added to protect the area inside of the fence and around the machine.

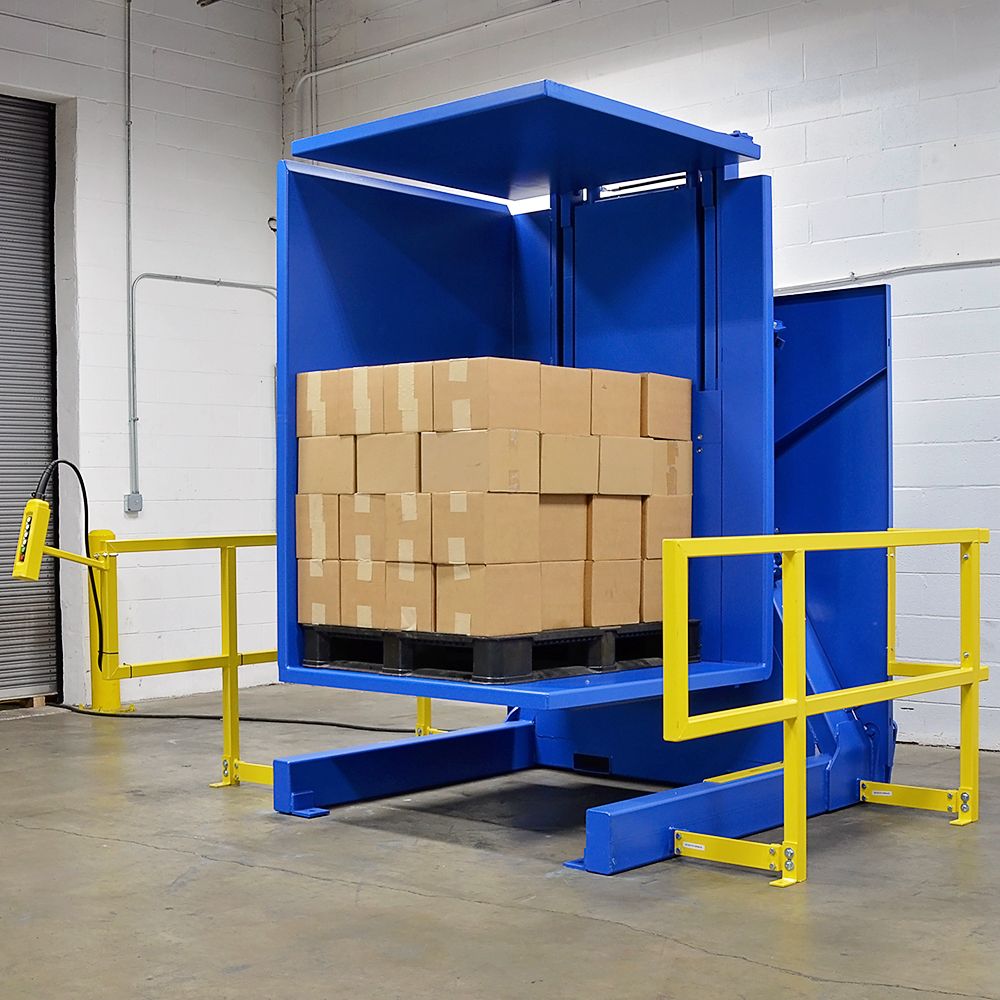

Rail GuardsRail Guards

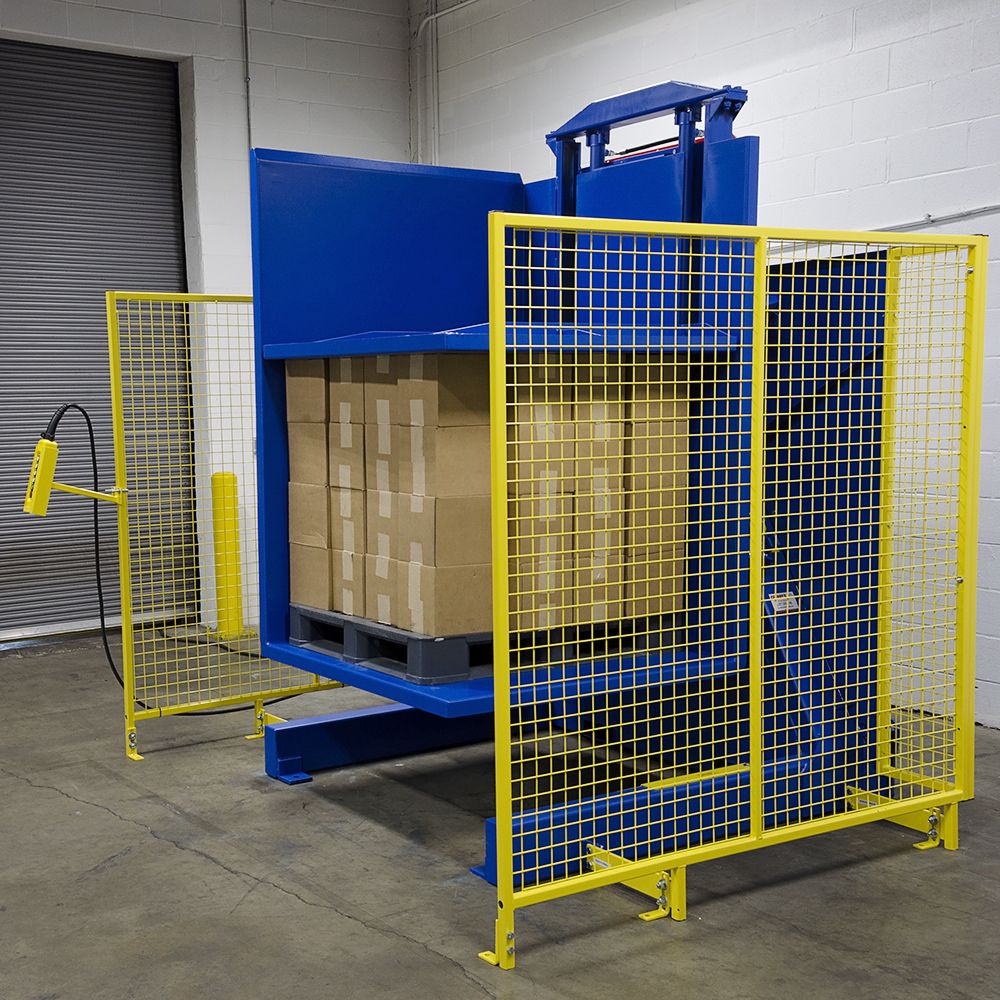

High Style GuardsHigh Style Guards
Bosch GuardsBosch Guards

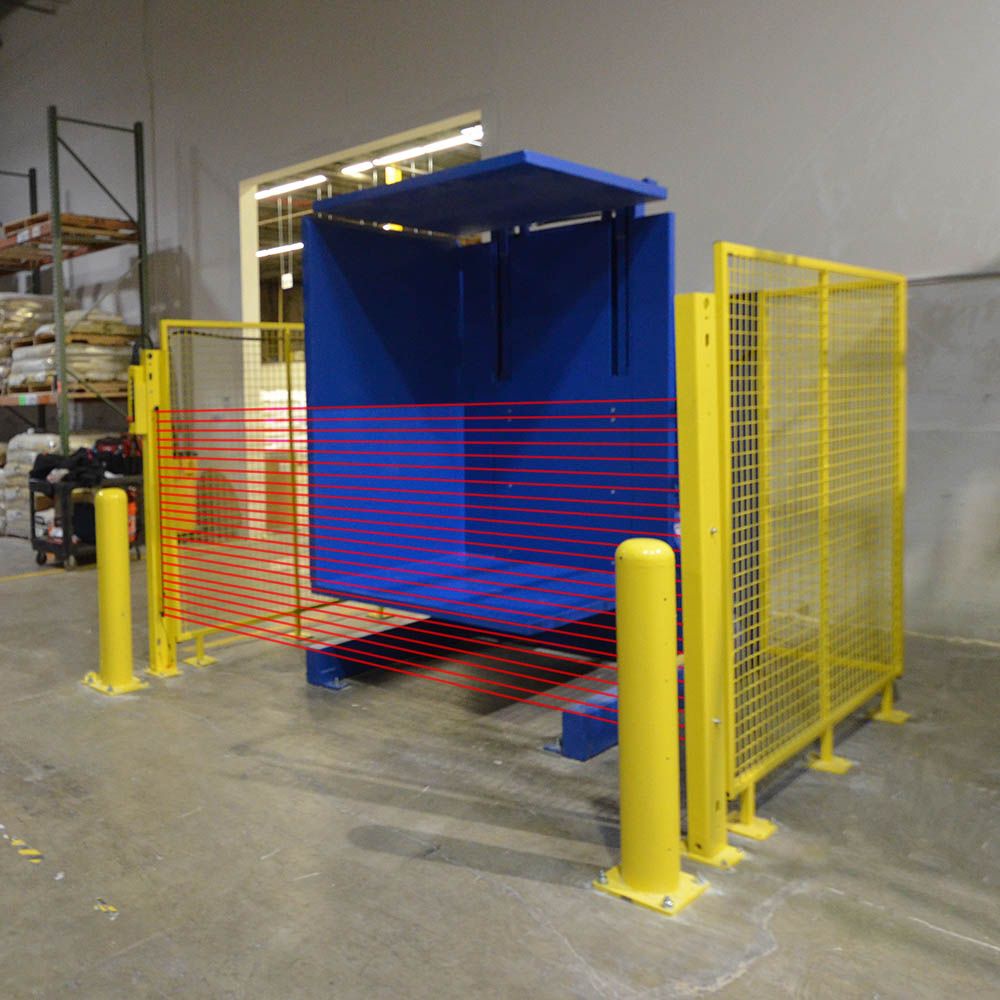

Safety light curtain - not available with lever controlsSafety light curtain - not available with lever controls

Controls

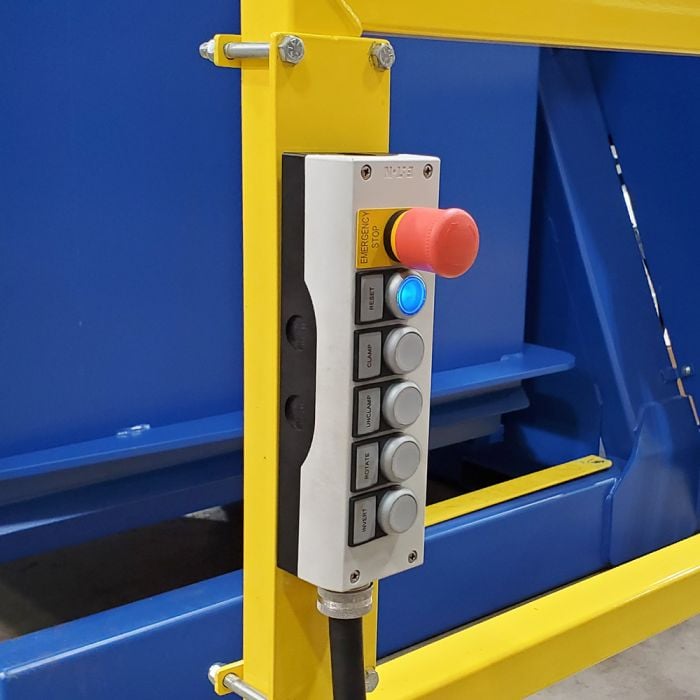

The SC-63P offers many controls configuration options to fit the needs of your warehouse operations. The standard push button pendant control can be magnetically held in placed on post, column or on the side of the guarding. It features energy saver press and maintain push buttons that illuminate when activated. Downgrade to lever controls or add-on auto controls, a radio remote, high speed motioncontrols or a console with a pedestal.

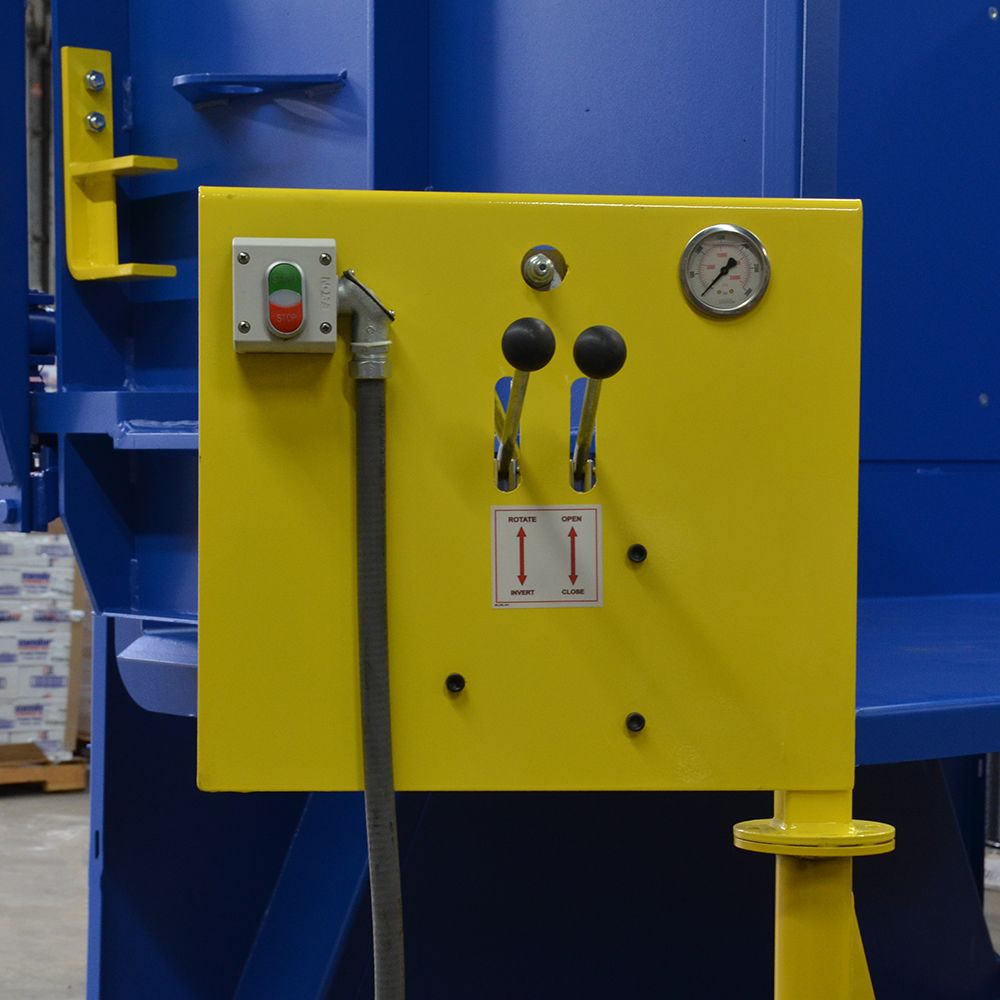

Lever Controls with manual on/offLever Controls with manual on/off

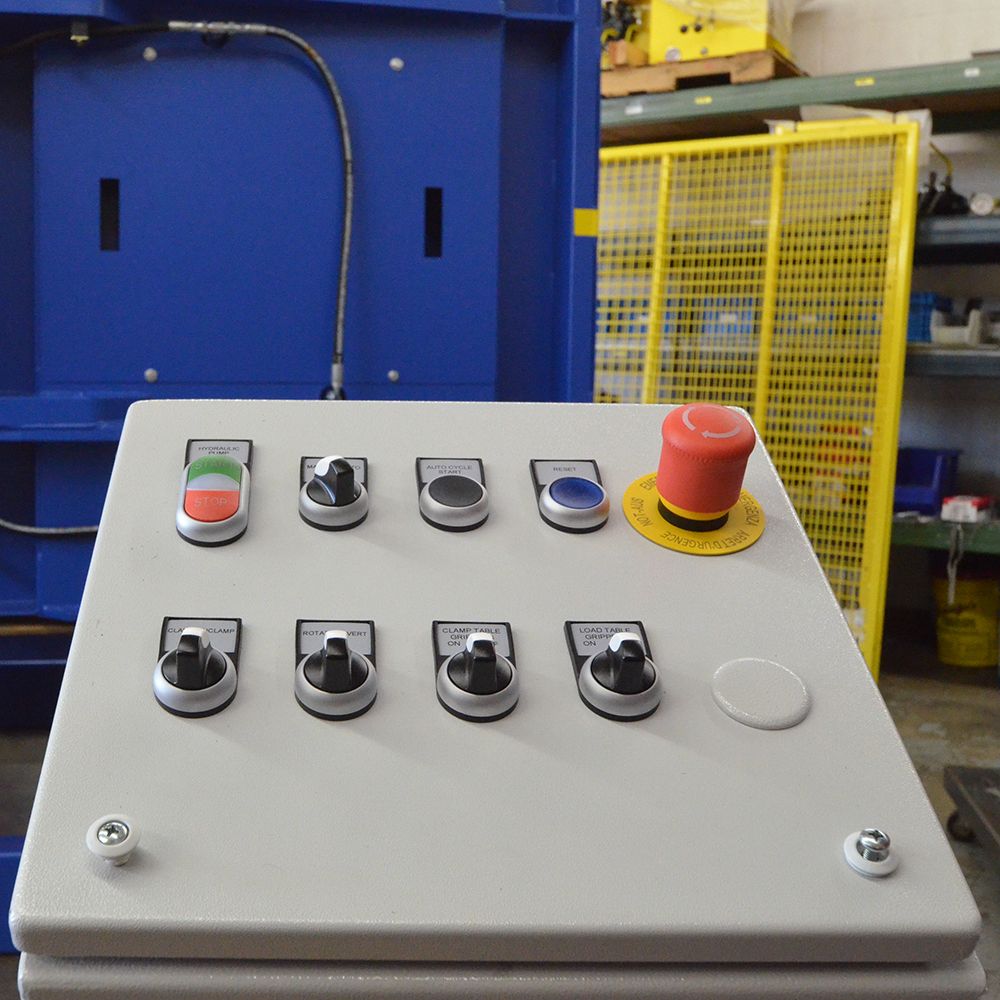

Control Console with Auto CycleControl Console with Auto Cycle

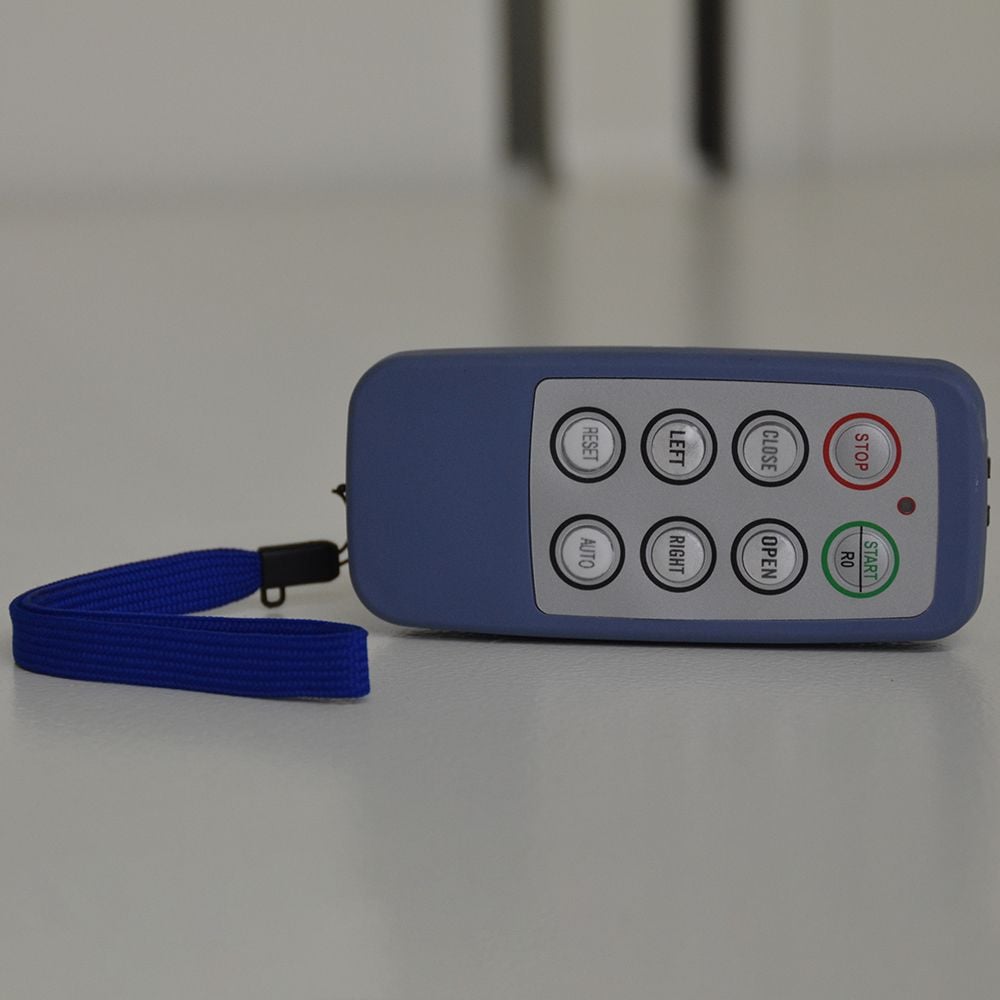

RF Remote ControlRF Remote Control
High speed motion controls for increased throughputHigh speed motion controls for increased throughput
