SC-63L Single Clamp Pallet Inverter


SC-63L

With a clamp range from 30"-63", this pallet inverter is ideal size for handling shorter loads in industries such as pharmaceutical, food, printing and many others. You can use the SC-63L pallet inverter for various applications including replacing pallets, inverting printed materials and recovering damaged bags of flour or sugar, to name a few.

Request a Quote

Call 847-443-3861 to speak with our experts

SC-63L-GR
SC-63L Single Clamp Pallet Inverter
SC-63L Single Clamp Pallet Inverter Image 1

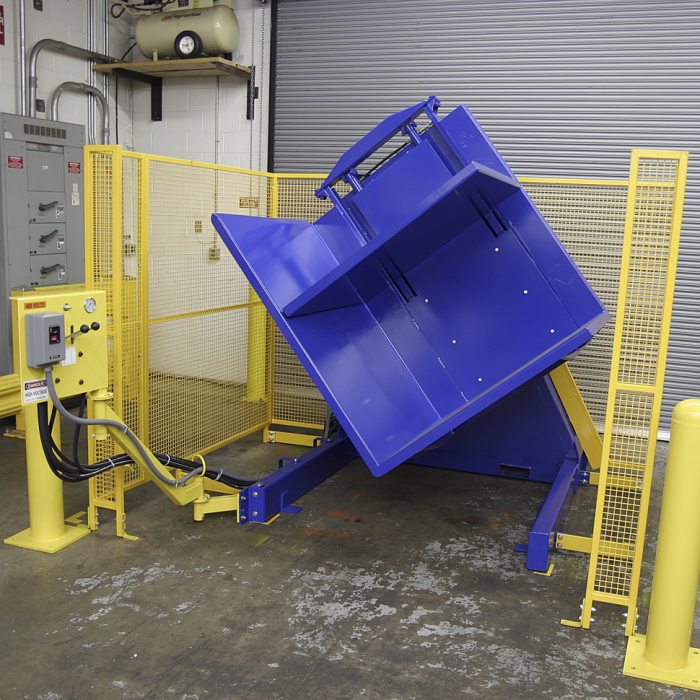

SC-63L Single Clamp Pallet Inverter Image 2

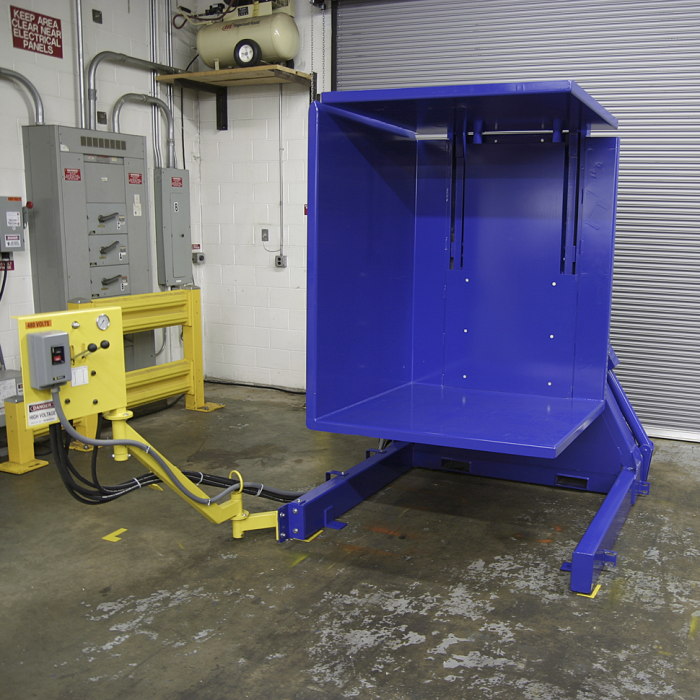

SC-63L Single Clamp Pallet Inverter Image 3

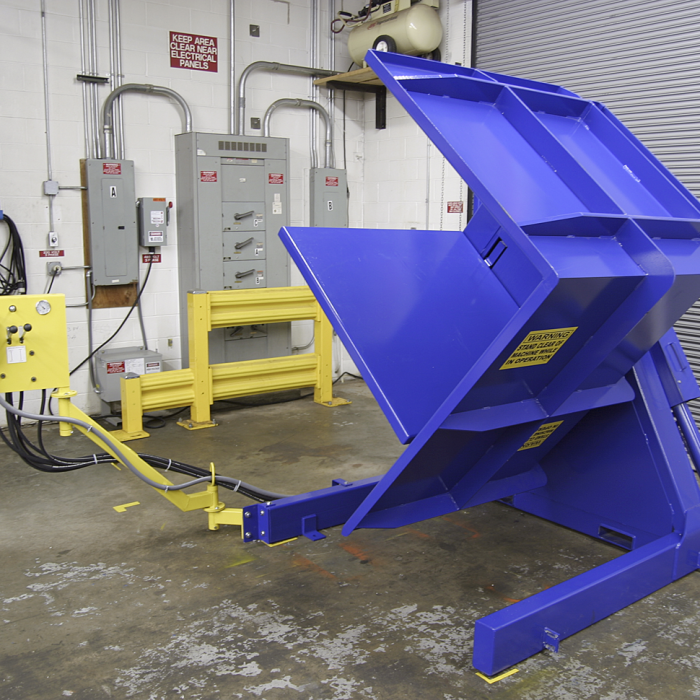

SC-63L Single Clamp Pallet Inverter Image 4

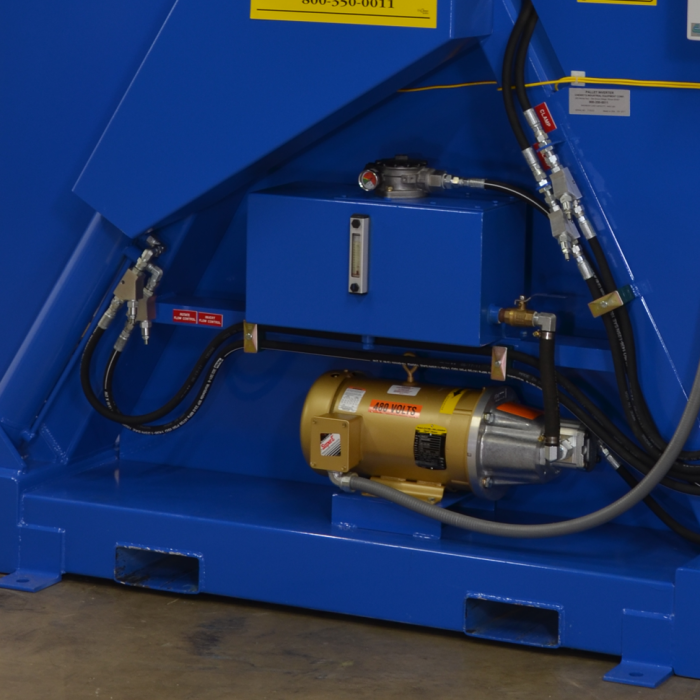

SC-63L Single Clamp Pallet Inverter Image 5

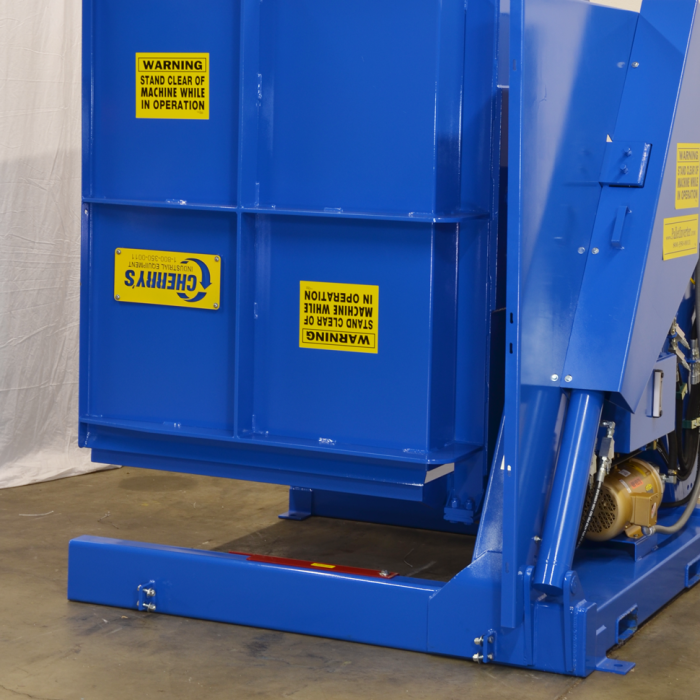

SC-63L Single Clamp Pallet Inverter Image 6

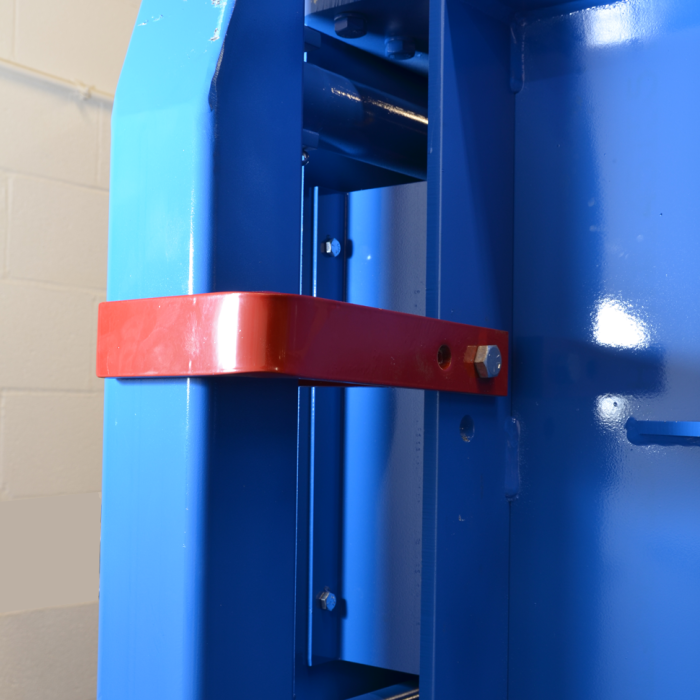

SC-63L Single Clamp Pallet Inverter Image 7

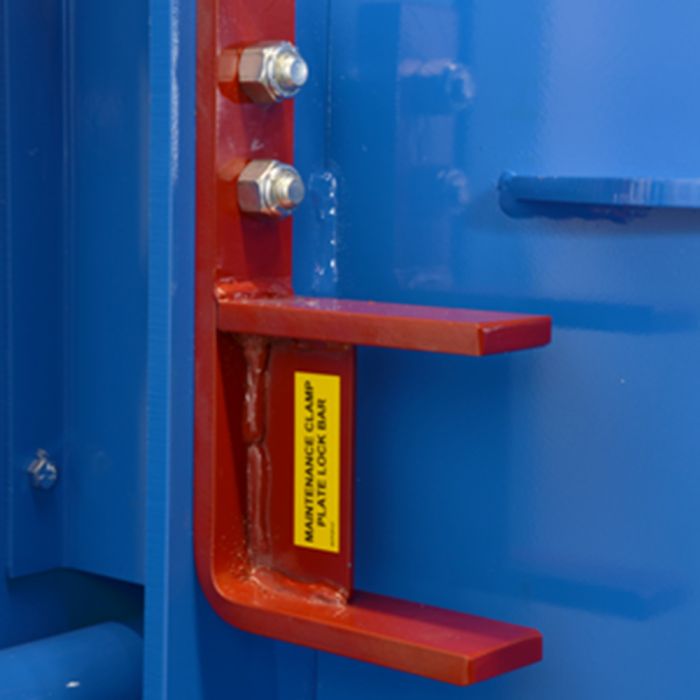

SC-63L Single Clamp Pallet Inverter Image 8

See it in the Wild

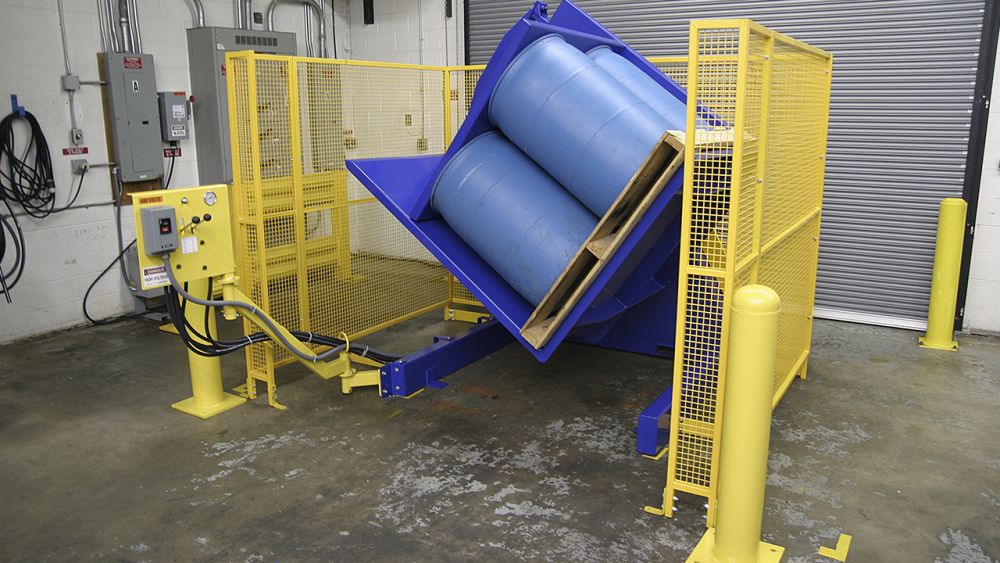

SC Pallet Inverter with drums SC Pallet Inverter with drums

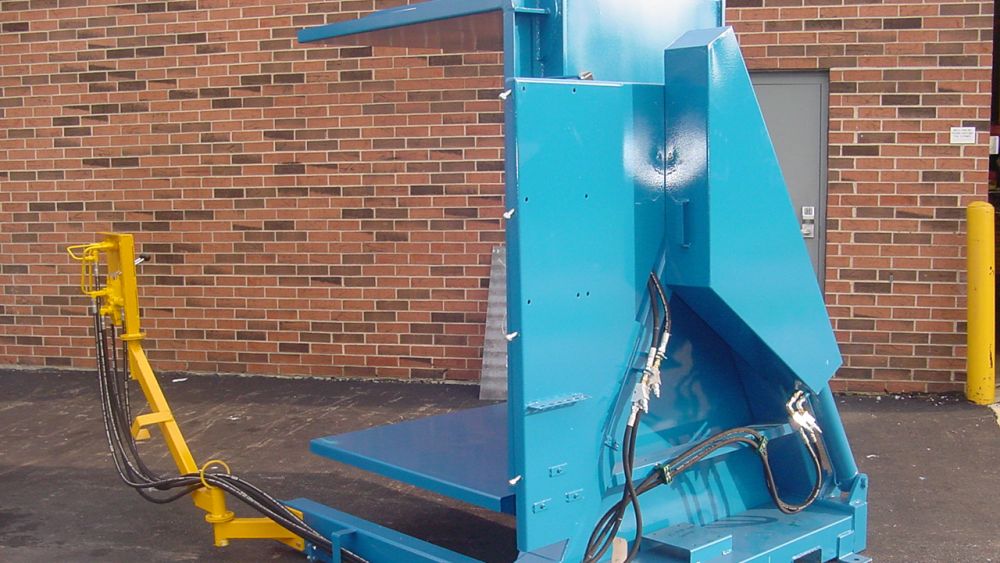

Pallet Inverter opposite handed controls on right side Pallet Inverter opposite handed controls on right side

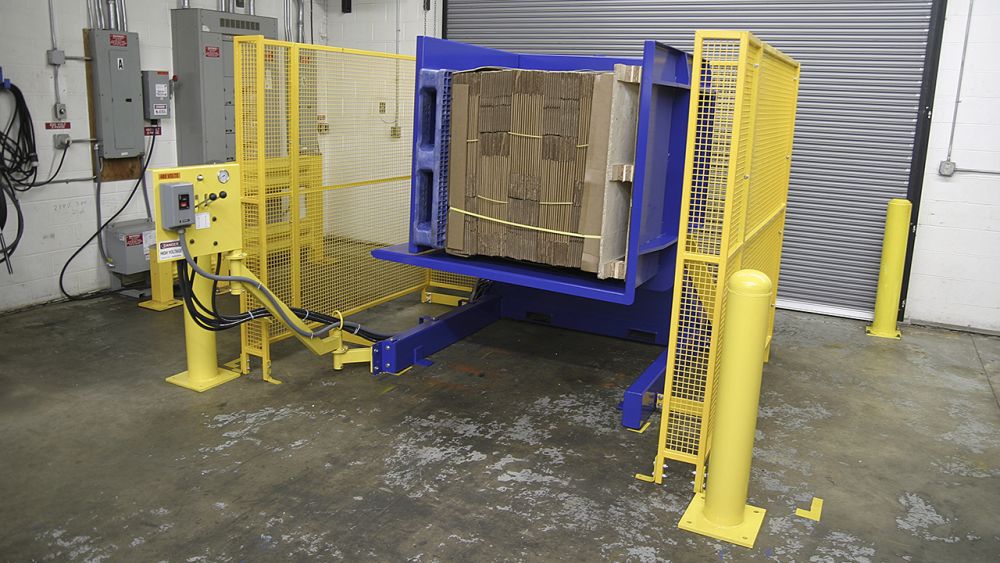

Pallet Inverter transferring packaging material Pallet Inverter transferring packaging material

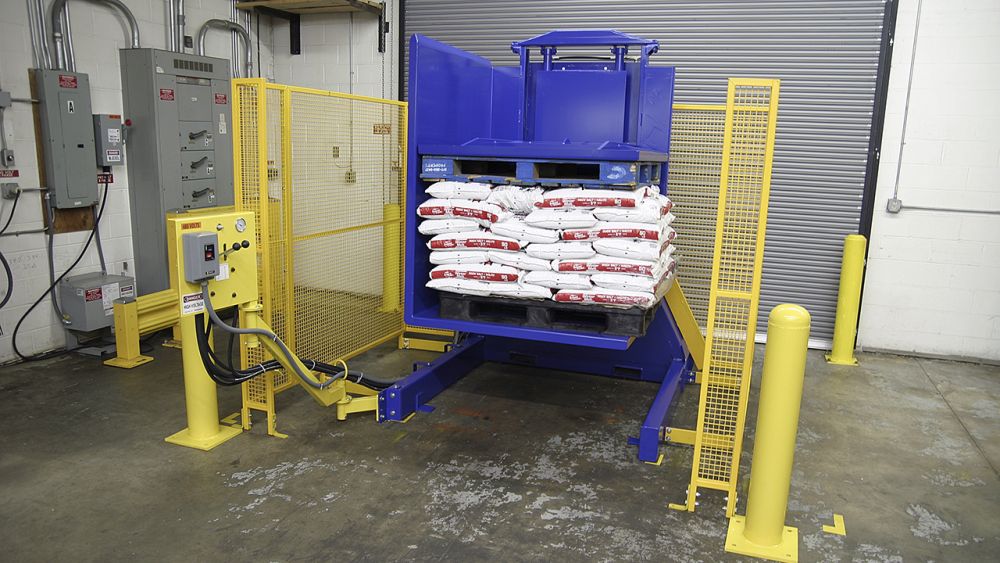

Pallet Inverter transferring bagged product Pallet Inverter transferring bagged product

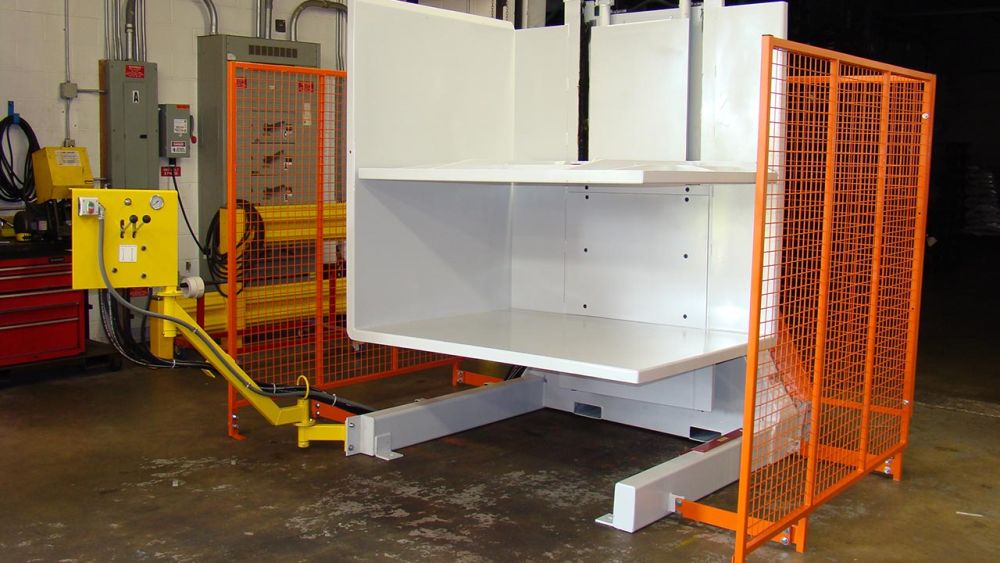

Pallet Inverter with custom color scheme Pallet Inverter with custom color scheme

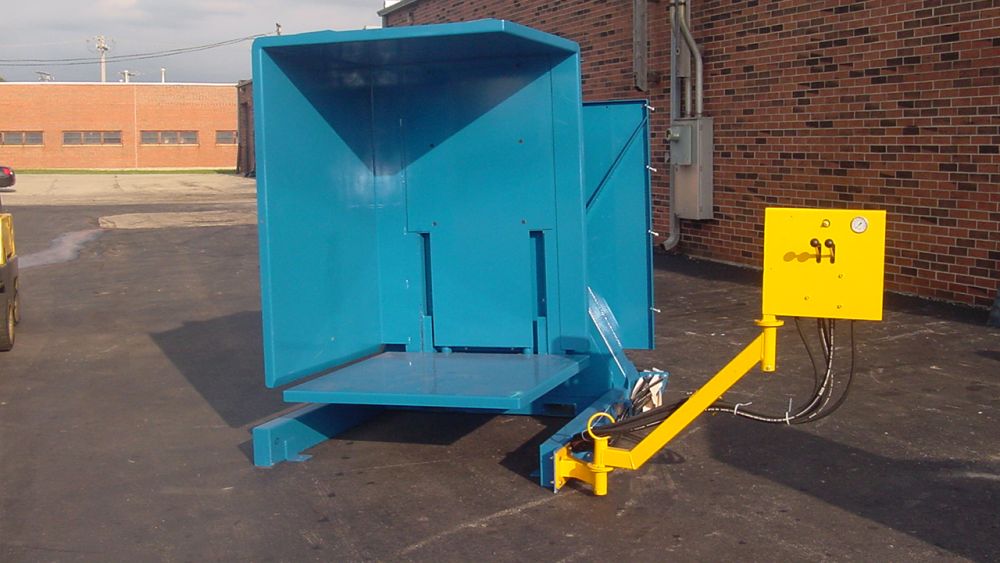

Pallet Inverter with lever controls Pallet Inverter with lever controls

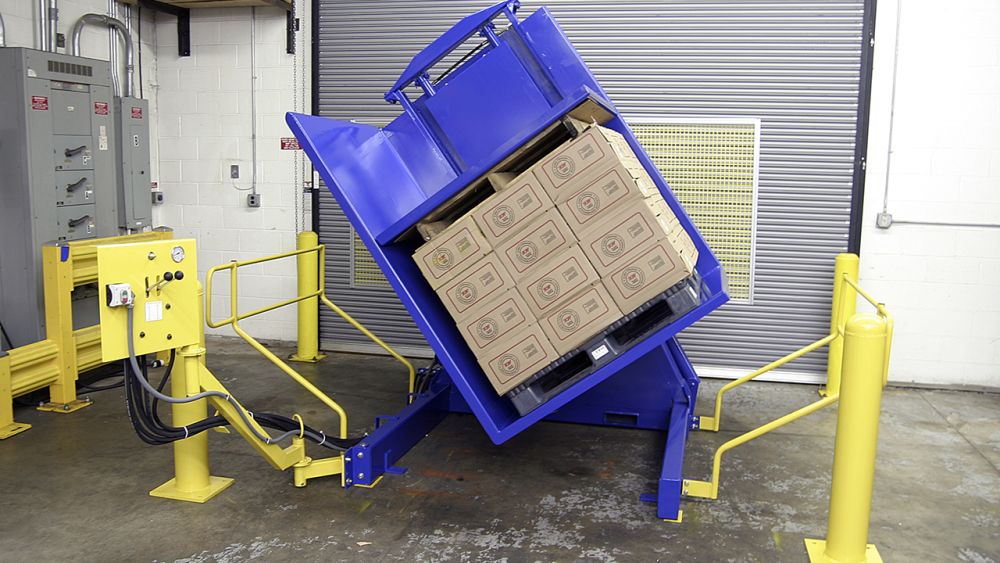

Pallet Inverter transferring boxed product Pallet Inverter transferring boxed product
×

You may also be interested in:

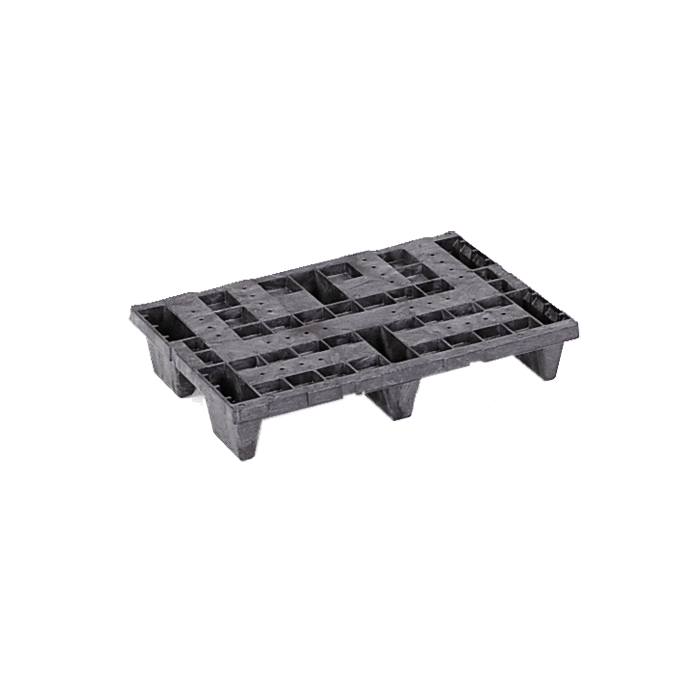

20 x 28 CISF

20 x 28 CISF

Learn More

Product Information

The SC-63L skid turner is equipped with operator-friendly hydraulic lever controls which offer a cost-effective alternative to push-button operation. The levers are mounted at the front of the machine for easy accessibility. You can invert pallets at a 180 degree angle for maximum task flexibility. Other valuable SC-63L single-clamp skid turner features, benefits and specs include: Manual motor start box enables quick, simple motor starting and stopping, rail style machine guarding for forklift protection, powerful, efficient 5 HP motor, three-year warranty on parts and labor - extended warranty coverage is also available

Product Tour


Specifications


ModelSC-63L
ControlsDual Lever Controls
Loading Table Size50 x 50
Max. Jaw Opening63"
Min. Jaw Opening30"
FinishBlue Epoxy Paint
Capacity4,400 lbs
Adjustable Clamp Pressure400-2,000 PSI
System Pressure2,200 PSI
Maintenance Lock Outs4
Motor5 HP
Power Source208/230/460/575V
CertificationsOptional UL 508a Certified Panel
Warranty3 year parts 1 year labor. Extended warranty available.
Loading Height Upright28-3/4"
Operating Width95"
Operating Depth129.5"
Operating Height101-1/2"
Loading Height Inverted17.5"
Width with Guards122-3/4"
Shipping weight*3,500 lbs
Shipping Dimensions84" L x 84" W x 84" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The standard SC-63L Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: a profile plate to reduce the usable opening, a slip sheet profile and custom color/finishes and upgraded components to meet your application or corporate specification.

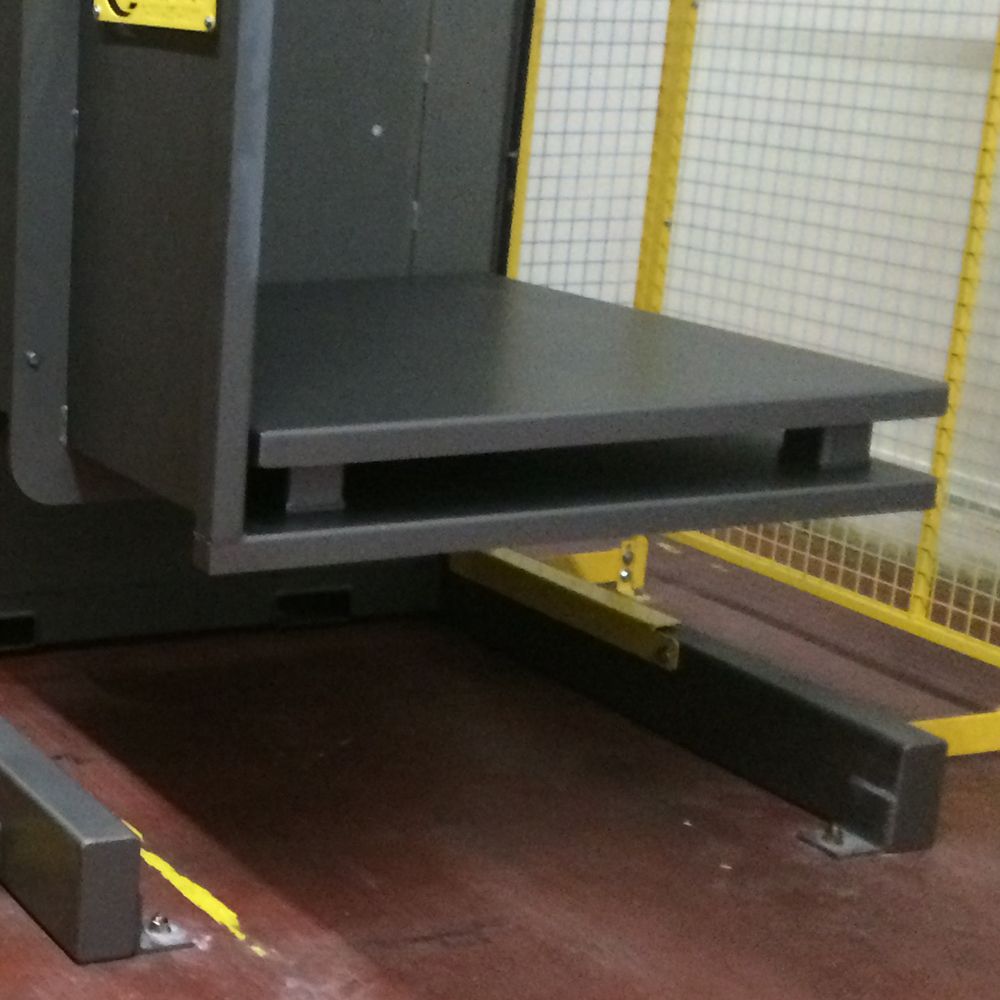

Profile PlateProfile Plate
Slip Sheet ProfileSlip Sheet Profile
Stainless SteelStainless Steel
Paint color/finishPaint color/finish

Guards

Rail guarding is standard with the SC-63L to protect against injury or forklift damage. Personnel guarding can be configured to the machine to enhance the safety and security of the operator. Options include 3-sided 78 high style perimeter guards. These guards protect the surrounding areas of the equipment. Note: The light curtain option is only available with electrical push button controls.

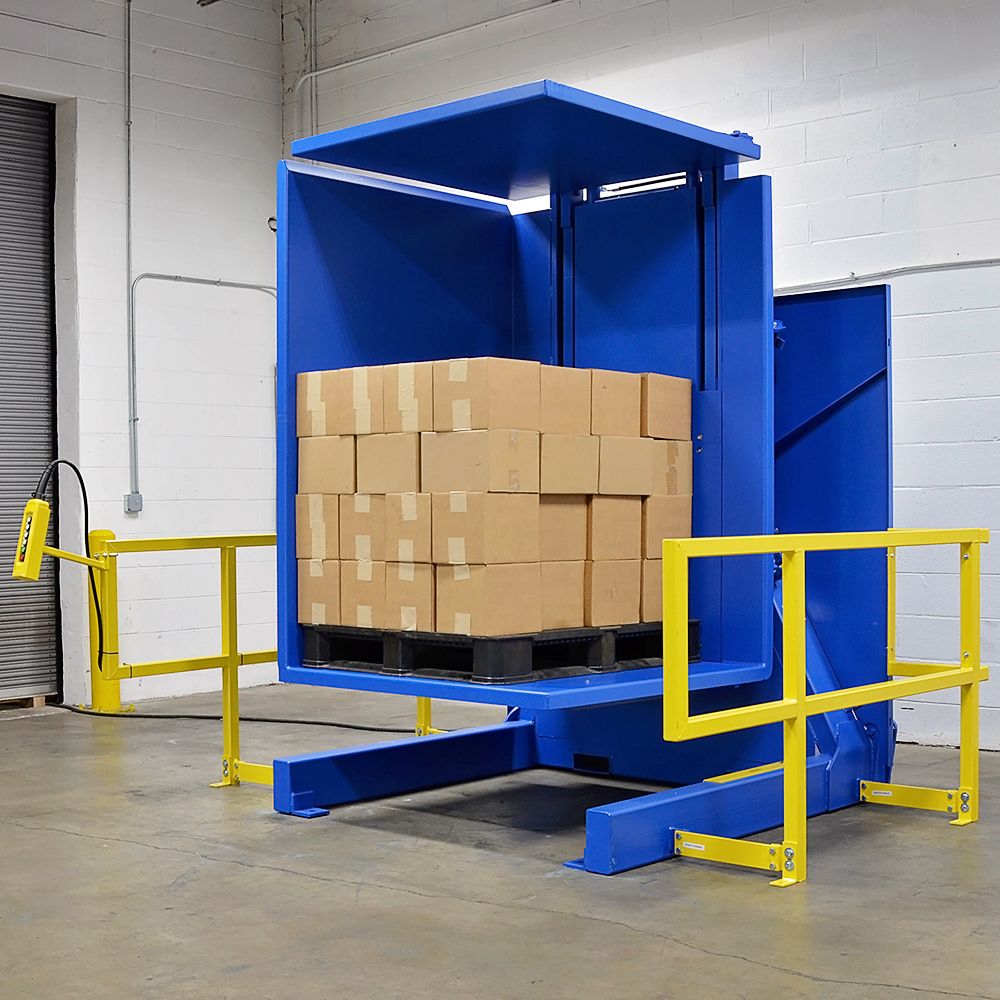

Rail GuardsRail Guards

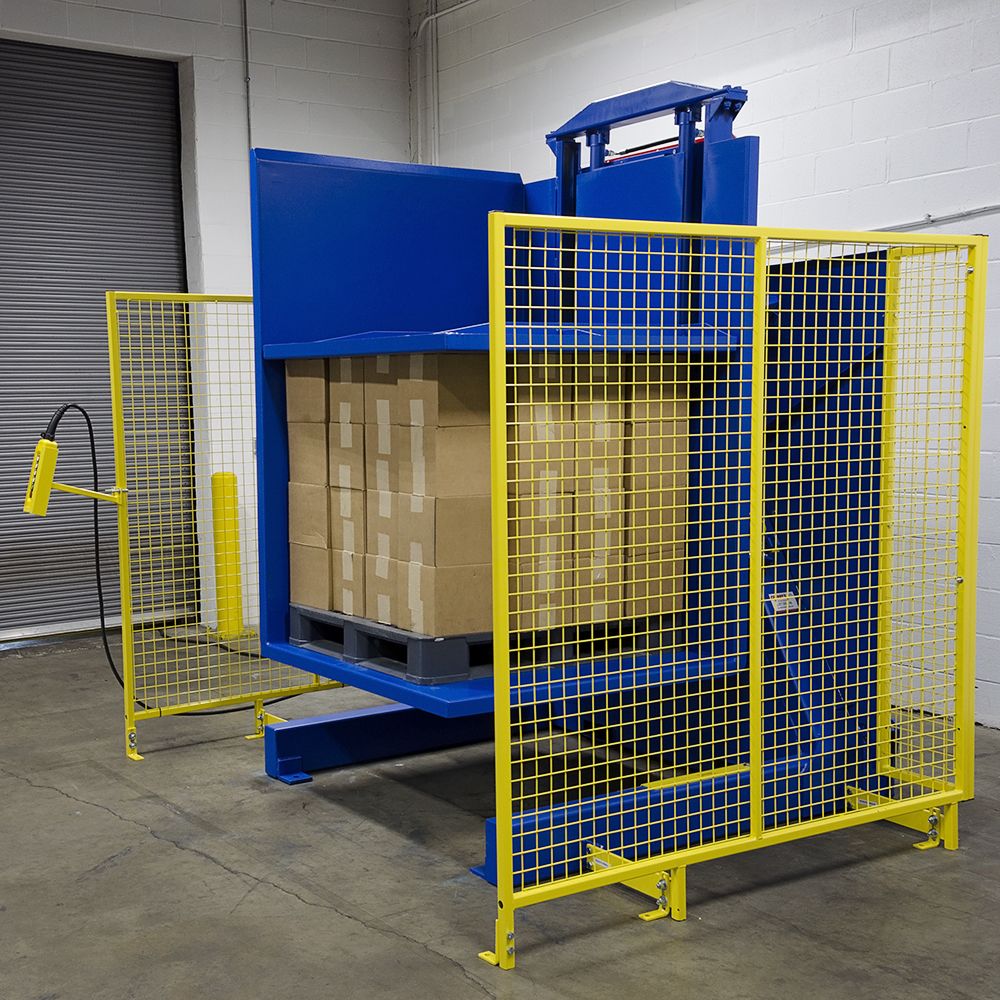

High Style GuardsHigh Style Guards

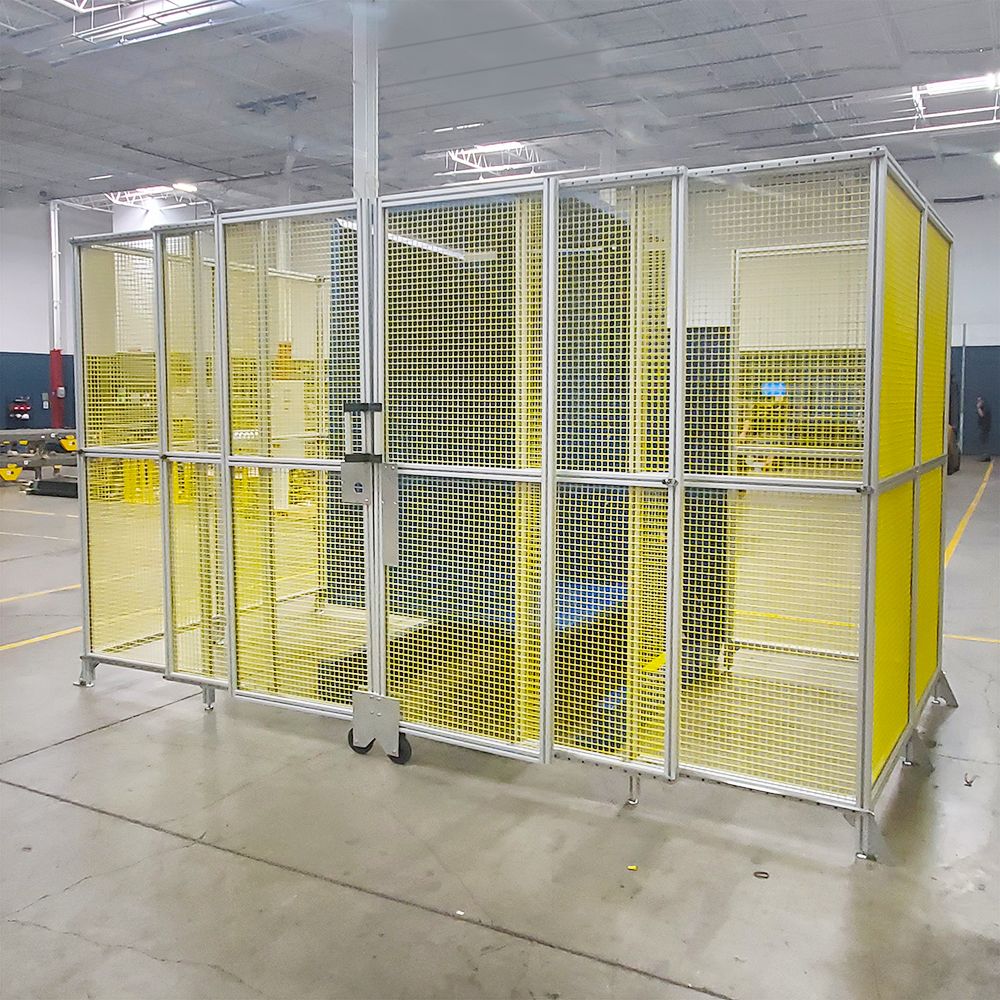

Bosch GuardsBosch Guards

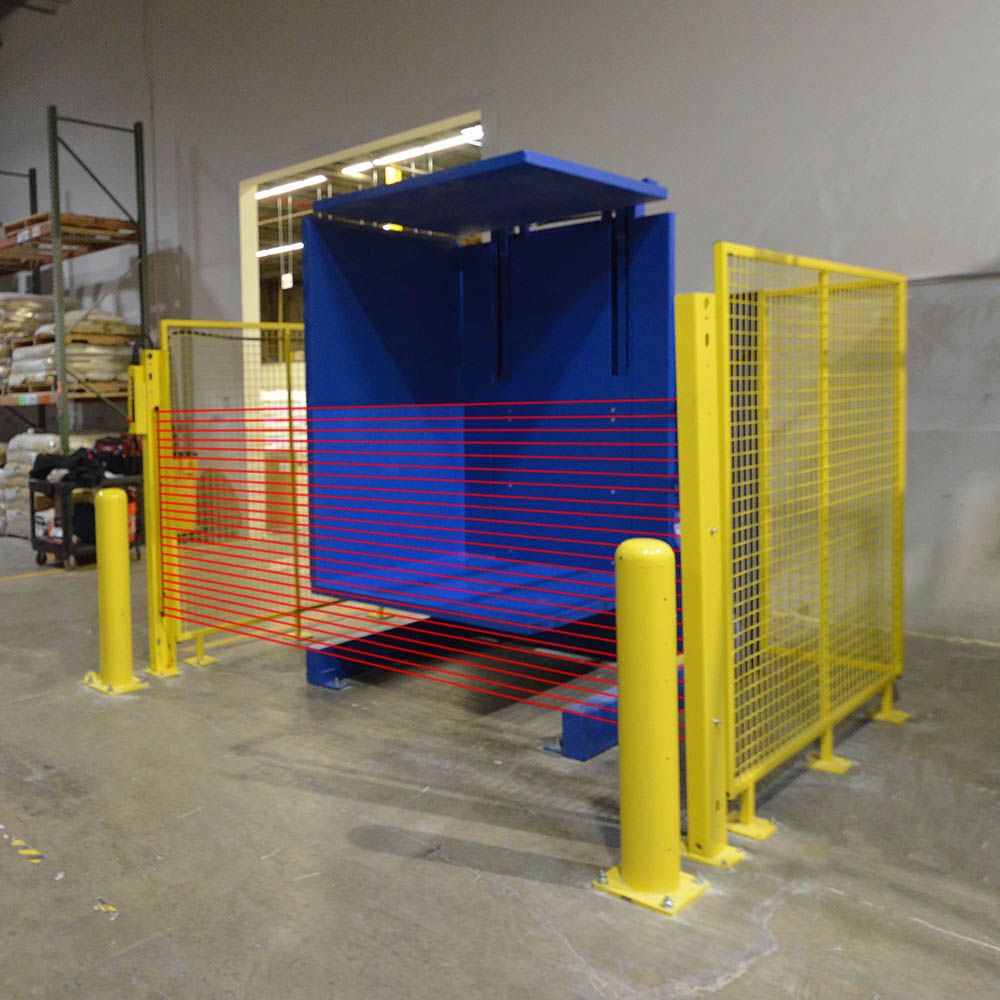

Safety light curtain - not available with lever controlsSafety light curtain - not available with lever controls

Controls

The SC-63L is outfitted with lever controls on a short arm boom with a manual on-off starter. Add-on an energy saver disconnect panel with overcurrent protection. Many controls configuration options are also available to fit the needs of your warehouse operations. Upgrade to a push button pendant, a radio remote control, auto cycle, high speed or a console with a pedestal.

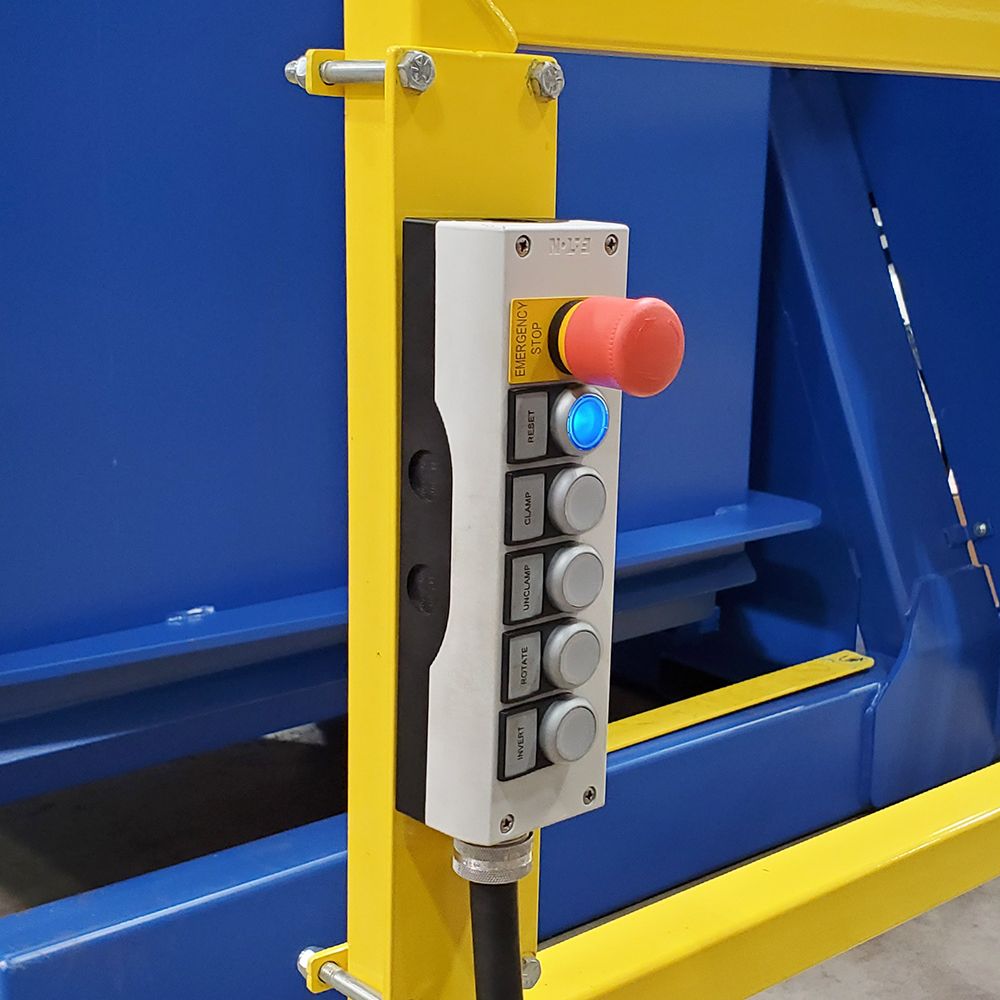

Pendant Control with E-stop and resetPendant Control with E-stop and reset

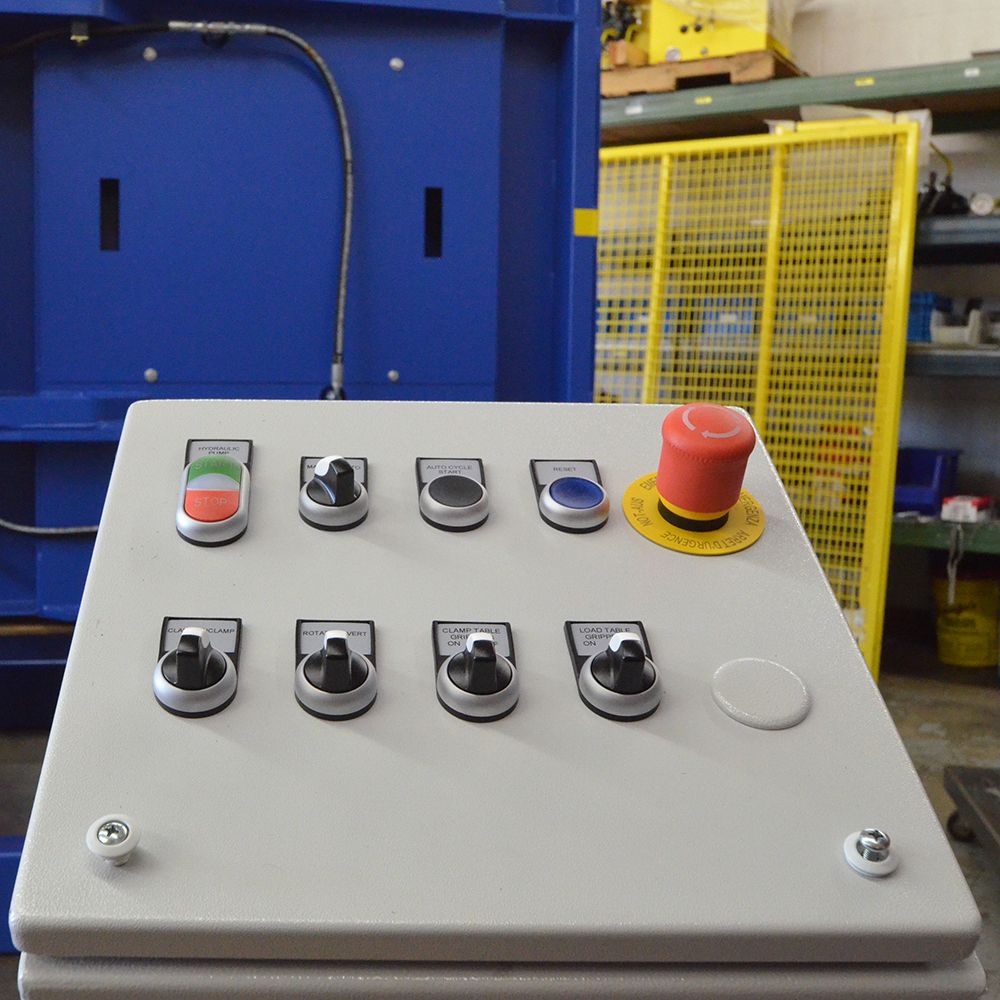

Control ConsoleControl Console

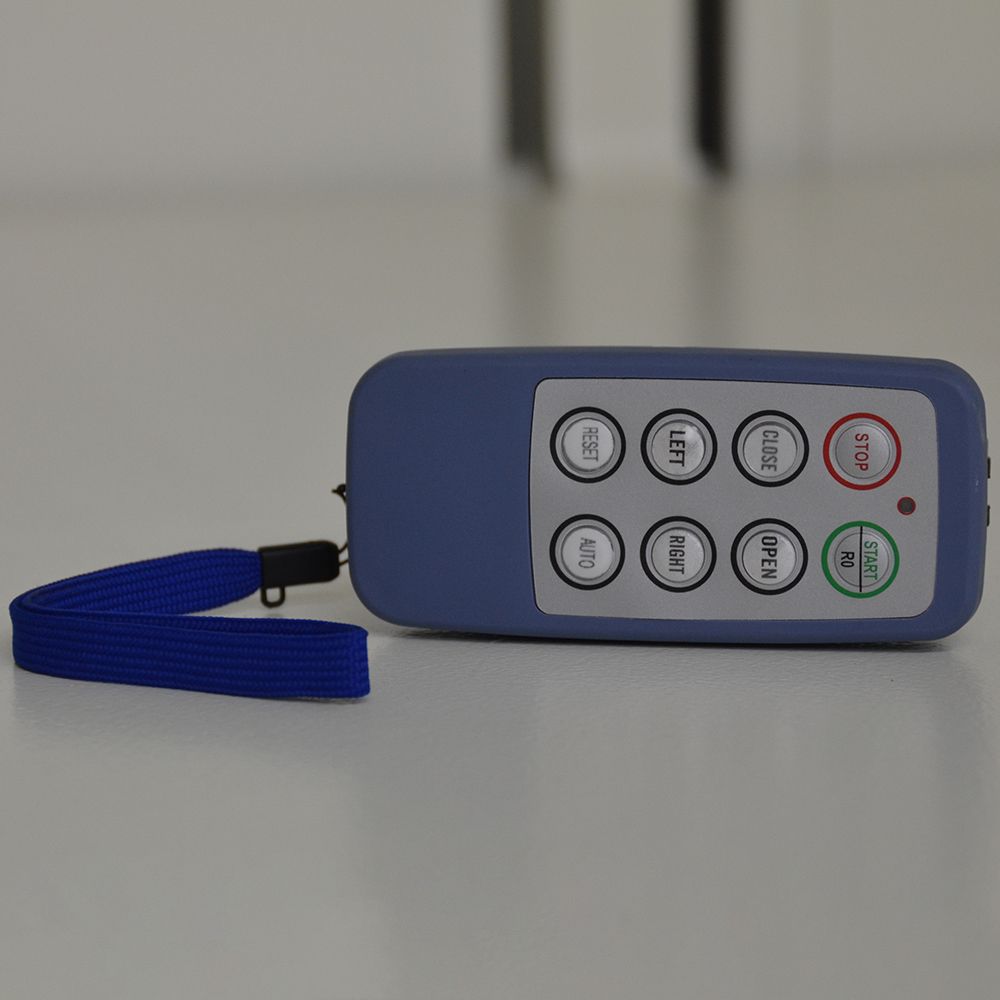

Radio remote ControlRadio remote Control

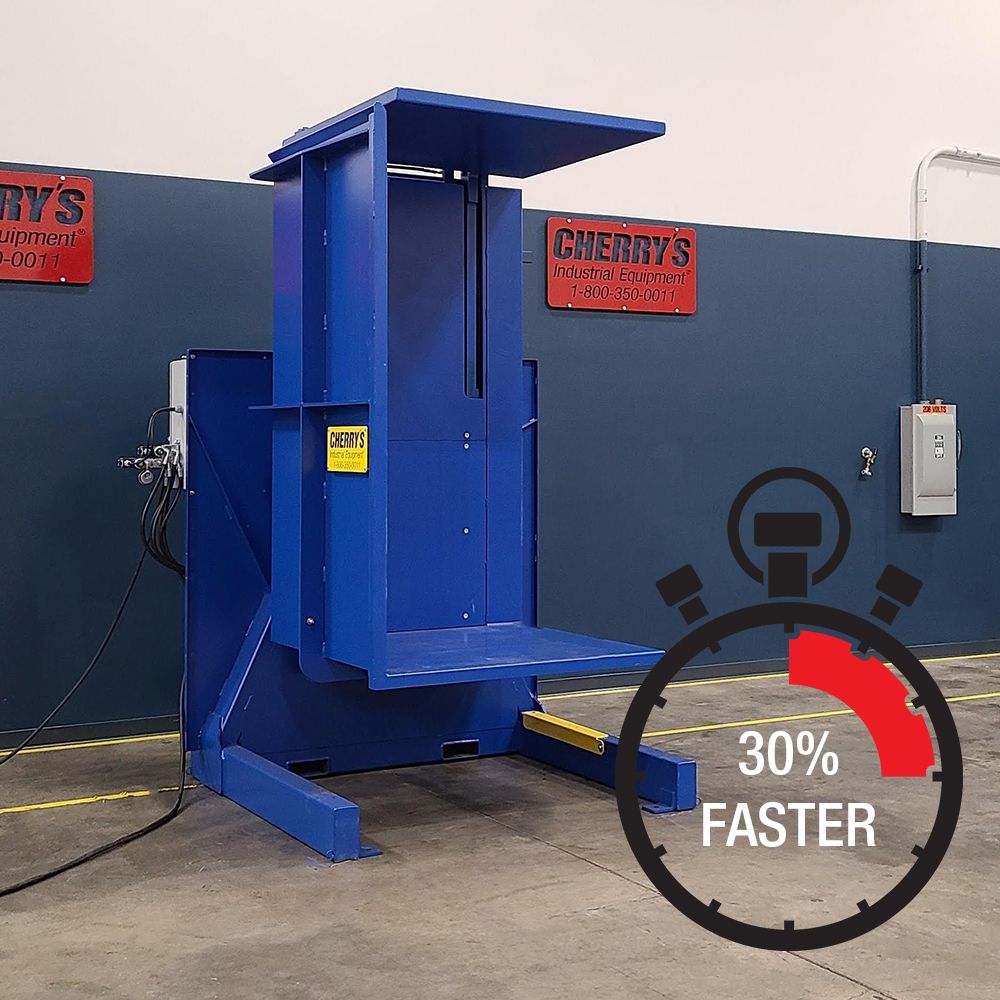

High Speed Motion ControlsHigh Speed Motion Controls
