PPW-C24-SZ5-FRZ1-DAHZ5 Stainless Steel Automatic Pallet Washer with Fresh Rinse & Heated Dryer


PPW-C24-SZ5-FRZ1-DAHZ5

The PPW-C24-SZ5-FRZ1-DAHZ5 Stainless Steel Automatic Pallet Washer is specifically designed to clean pallets as large as 48" x 48" x 6.5". This Stage 3 model provides a 60" spray zone to cleanse plastic pallets utilizing heated recirculating water. The unit has a 7.5 HP pump that generates an output of 150 GPMs at 50 PSIs. The Fresh Rinse portion of the unit has a 12" spray zone and utilizes approximately 3 gallons per minute. The Dry Air Heat module has a 60" air blast zone and heats up to 200 degrees Fahrenheit.

Call 847-443-3861 to speak with our experts

PPW-C24-SZ5-FRZ1-DAHZ5 Stainless Steel Automatic Pallet Washer with Fresh Rinse & Heated Dryer

Product Information

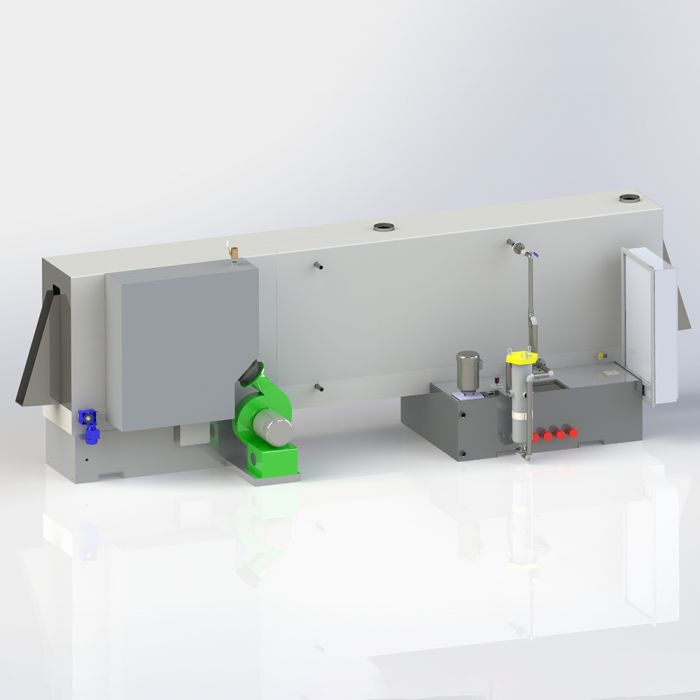

The PPW-C24 stainless steel automatic pallet washer is a multi-modular system that fulfills 3 specific stages:1) Spray Wash, 2) Fresh Rinse, and 3) Dry. Each of its modules or sections contain buffer zones that essentially keeps each stage completely independent from the other. For example, when a pallet is conveyed from the Spray module to the Fresh Rinse module the water from the Spray module does not cross over and contaminate the water in the Fresh Rinse module. The beauty of the modular design is that additional modules [e.g. Heated Dry Air Module] can be added at a later time as budget permits. The PPW-C24-SZ5-FRZ1-DAHZ5 represents our Stage 3 (Spray Wash + Fresh Rinse + Dry) Automatic Pallet Washer. Please call 847-696-8889 and consult our product specialists for pricing and details regarding this Stage 3 unit along with the additional options available.

Product Tour


Specifications


ModelPPW-C24-SZ5-FRZ1-DAHZ5
Capacity Per HourApproximately 100 pallets
# of Nozzles52
Type of NozzleSS V-Jet nozzles (most at 65 degrees)
Recirculating Tank400 Gallon Tank

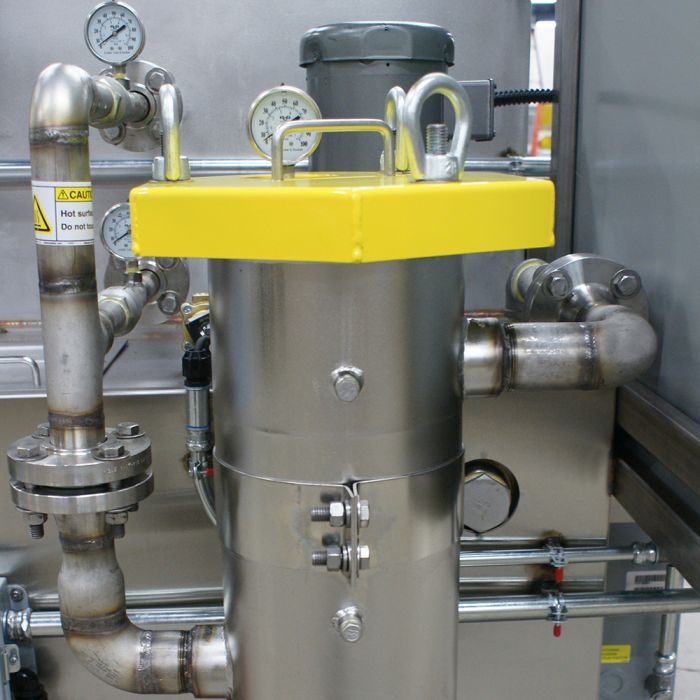

Filters2 vertical filter screens in front of the pump
Pump Drive7.5 HP
Water Pump GPM150 GPM at 50 PSI
Wash TempuratureUp to 140° F
Construction304 SS
Load/Unload Height34"
FinishPolished Stainless Steel Finish
Voltage480 V/ 3 PH/ 60 Hz
BrandCherry's Industrial Equipment Corp
