GL-94 Ground Loaded Pallet Inverter


GL-94

The GL-94 ground-level loaded pallet inverter offers a reliable material handling solution for staging applications in areas that are off-limits to forklifts. It's also an excellent option for use near clean rooms and WIP and production areas. No matter where or how you use this freestanding 180 degree GL Series pallet inverter, you'll experience faster and easier product inversion and load transfers.

Call 847-443-3861 to speak with our experts

GL-94-GRGL-94-HSG

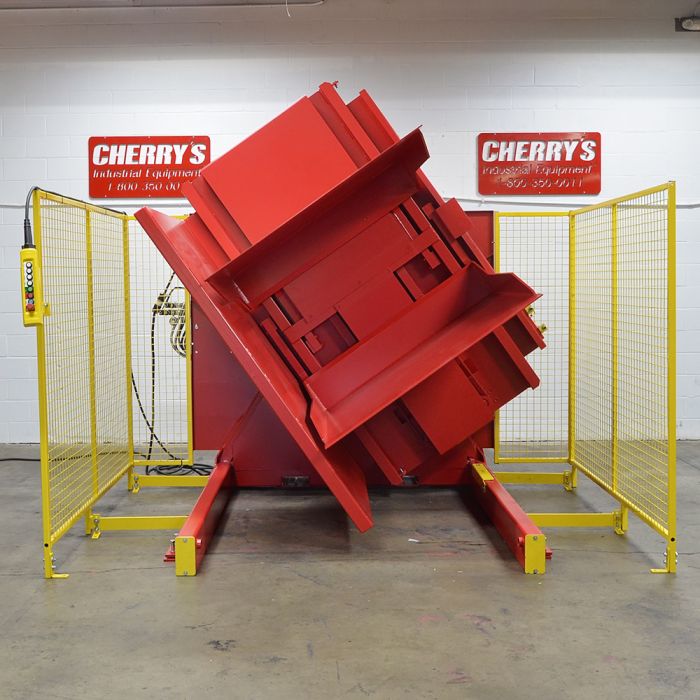

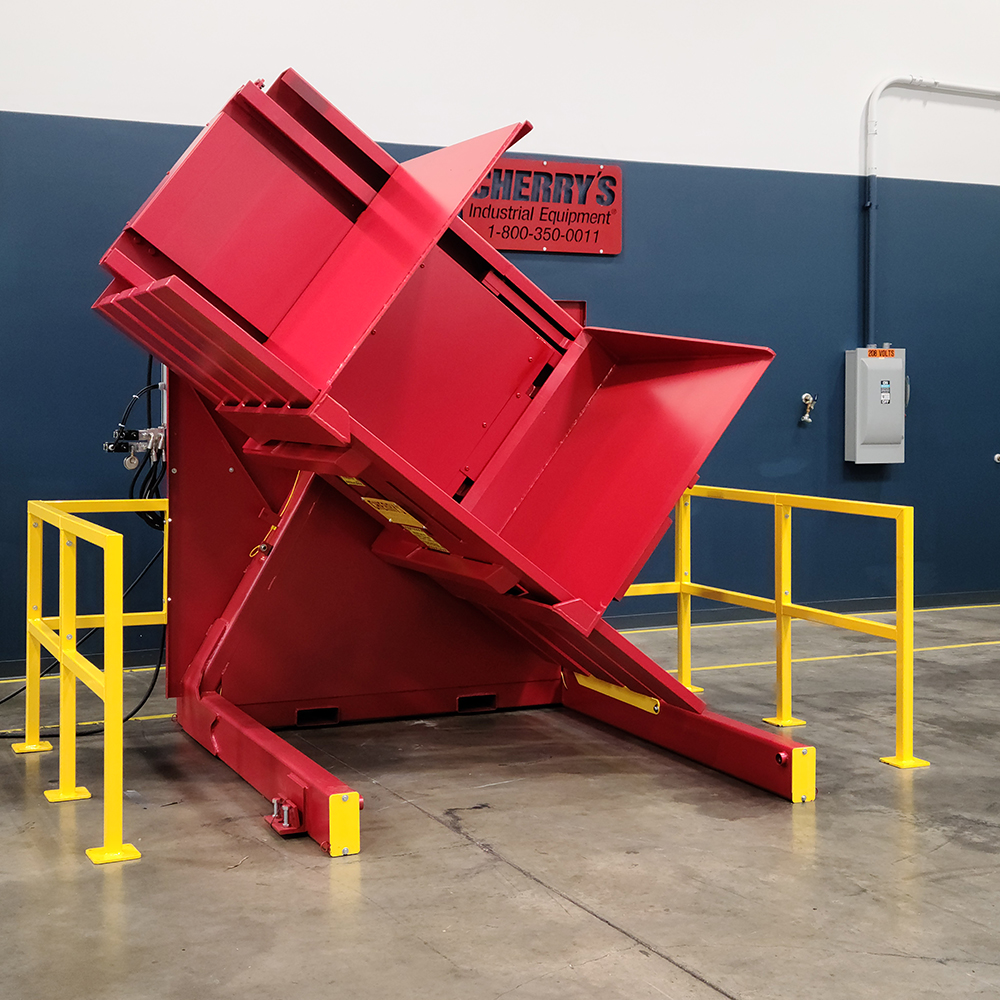

GL-94 Ground Loaded Pallet Inverter

See it in the Wild

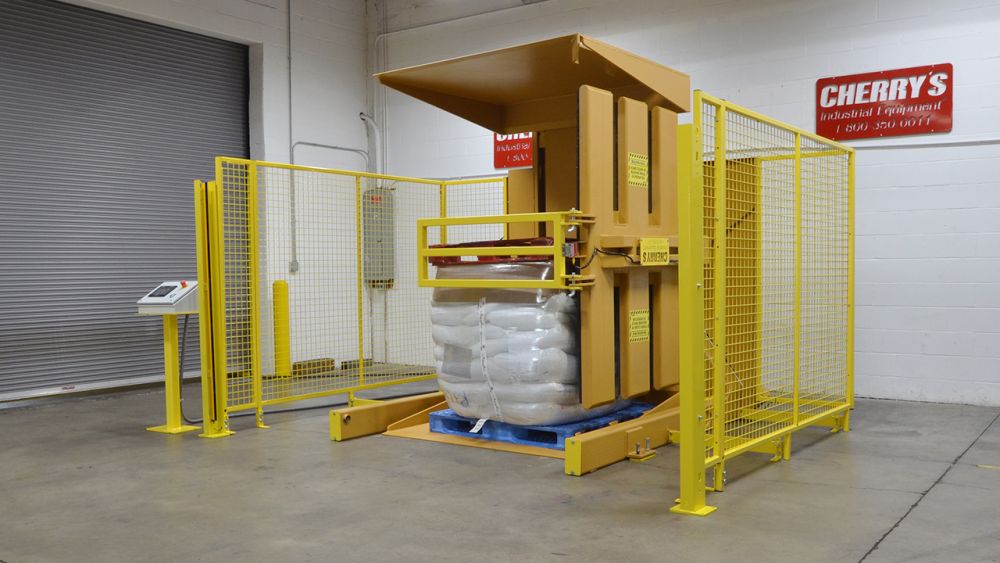

GL-94 with safety gate GL-94 with safety gate
GL ground level pallet inverter with stainless lined basket GL ground level pallet inverter with stainless lined basket

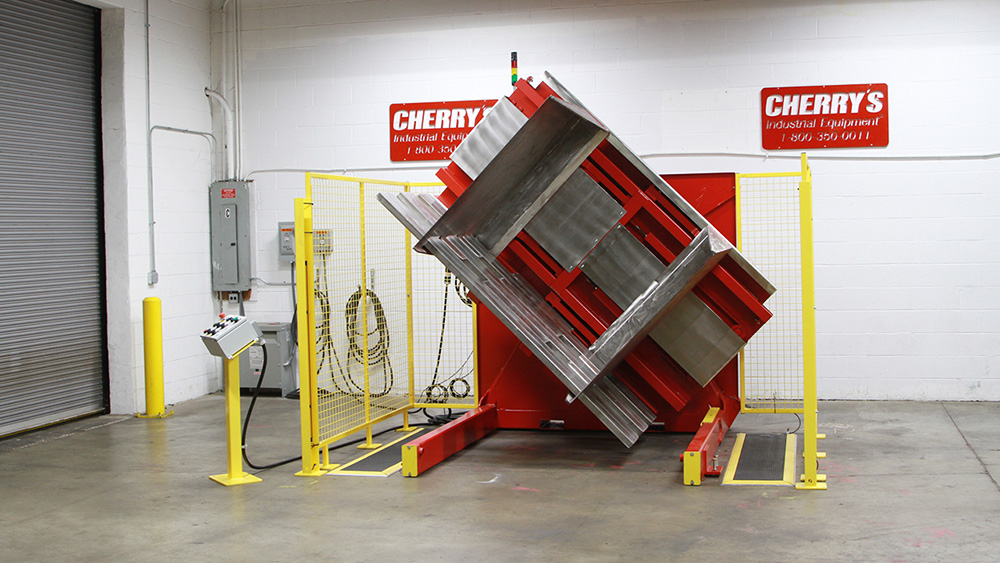

GL-94 Ground level pallet inverter GL-94 Ground level pallet inverter

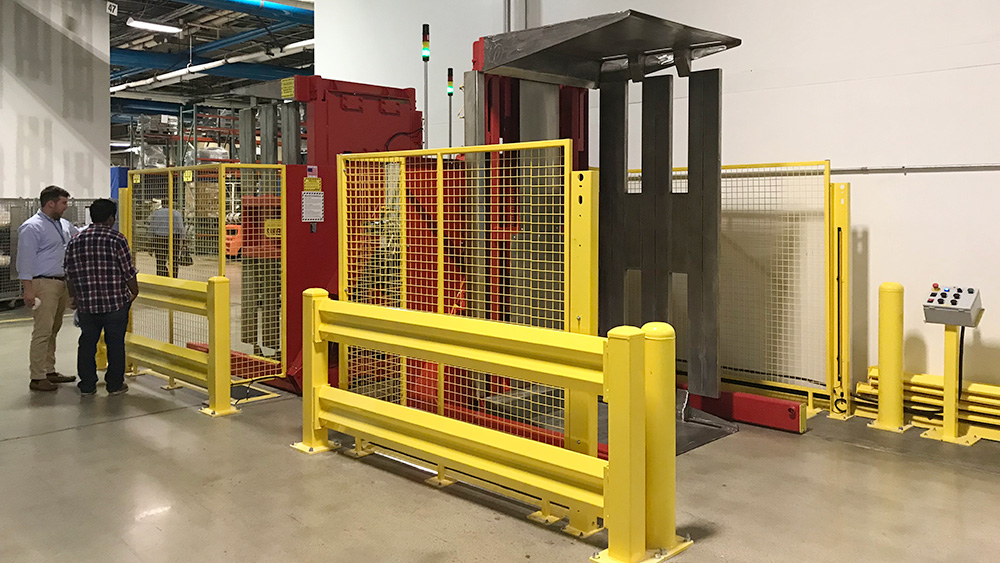

GL Pallet Inverters side by side GL Pallet Inverters side by side

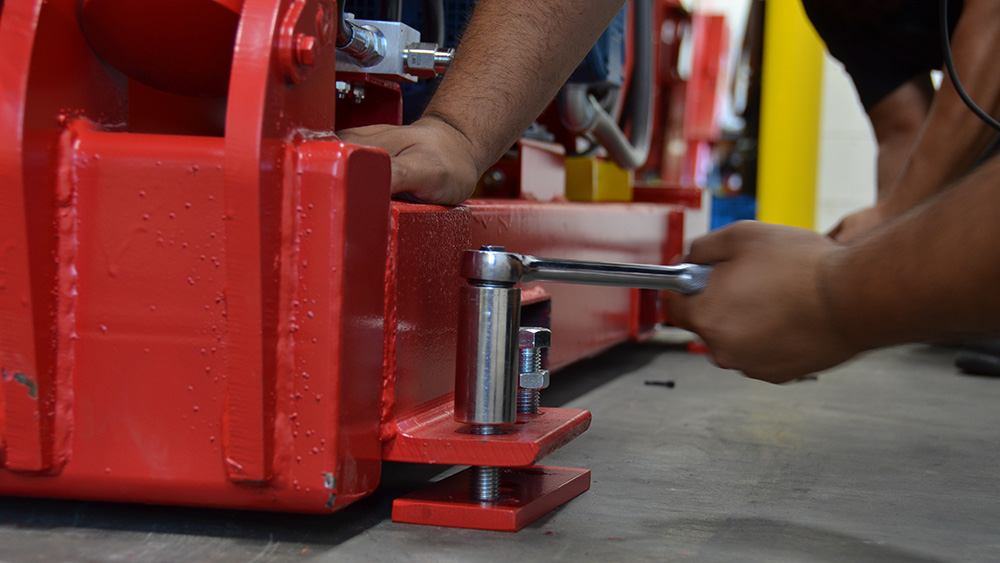

GL Pallet Inverter with leveling jack bolt GL Pallet Inverter with leveling jack bolt
×

Product Information

The GL-94 dual-clamp pallet inverter features an advanced design that provides exceptional balance and ensures maximum stability when inverting short, tall, or partial loads. The dual clamping plates travel flush to the ground or floor, eliminating the need for ramp installation. The adjustable clamping pressure reduces the risk of crushing materials. GL-94 skid turner features, benefits and specs include: Compact footprint facilitates use in confined warehousing or production areas, six-button operator pendant makes the pallet inverter easy to use and control, UL508-certified electrical panel ensures safe operation, heavy-duty machinery guards protect against forklift collisions and a three-year parts and labor warranty.


Product Variations

SKU Controls Motor HP/ Pump Displacement Cycle Time (seconds) Safety Circuit
GL-94 Push button 5/3.7 18 Invert/18 Rotate Standard
GL-94HSP Push button 5/6.6 9 Invert/8 Rotate Standard

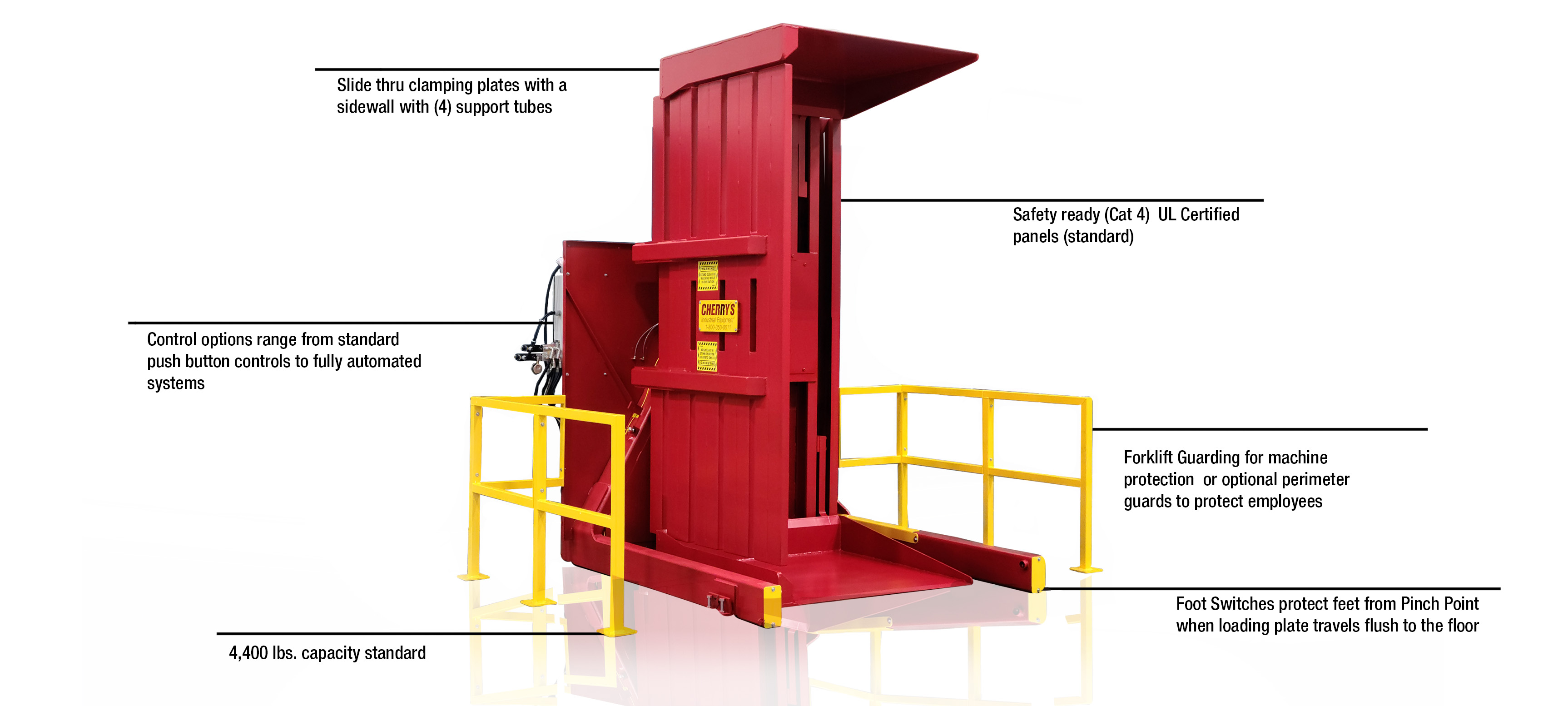

Product Tour


Specifications


ModelGL-94
Controls6 Button pendant with E-stop & LC reset
Energy Saver FunctionYes
Loading Table Size50" x 50"
Max. Jaw Opening112" overall
Usable Jaw Opening94"
Min. Jaw Opening45"
FinishSafety Red 2-Part Epoxy Paint
Capacity4,400 lbs.
Adjustable Clamp Pressure400-2000 PSI
System Pressure2200 PSI
Load HoldingCounterbalance valves
Maintenance Lock Outs5
Motor5 HP
Power Source208/230/460/575V
CertificationsUL 508a Certified Panel
Warranty3 year parts and 1 year labor. Extended warranty available.
Loading HeightFloor level
Shipping weight*6,000
Shipping Dimensions108" L x 108" W x 96" H
Side wall tube supports4

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The standard GL-94 Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls, rail guarding and power unit. More Options are available including: custom color, stainless steel platform, custom safety gate, and upgraded components to meet your application or corporate specification.


Custom Paint FinishesCustom Paint Finishes
Stainless Steel PlatformStainless Steel Platform

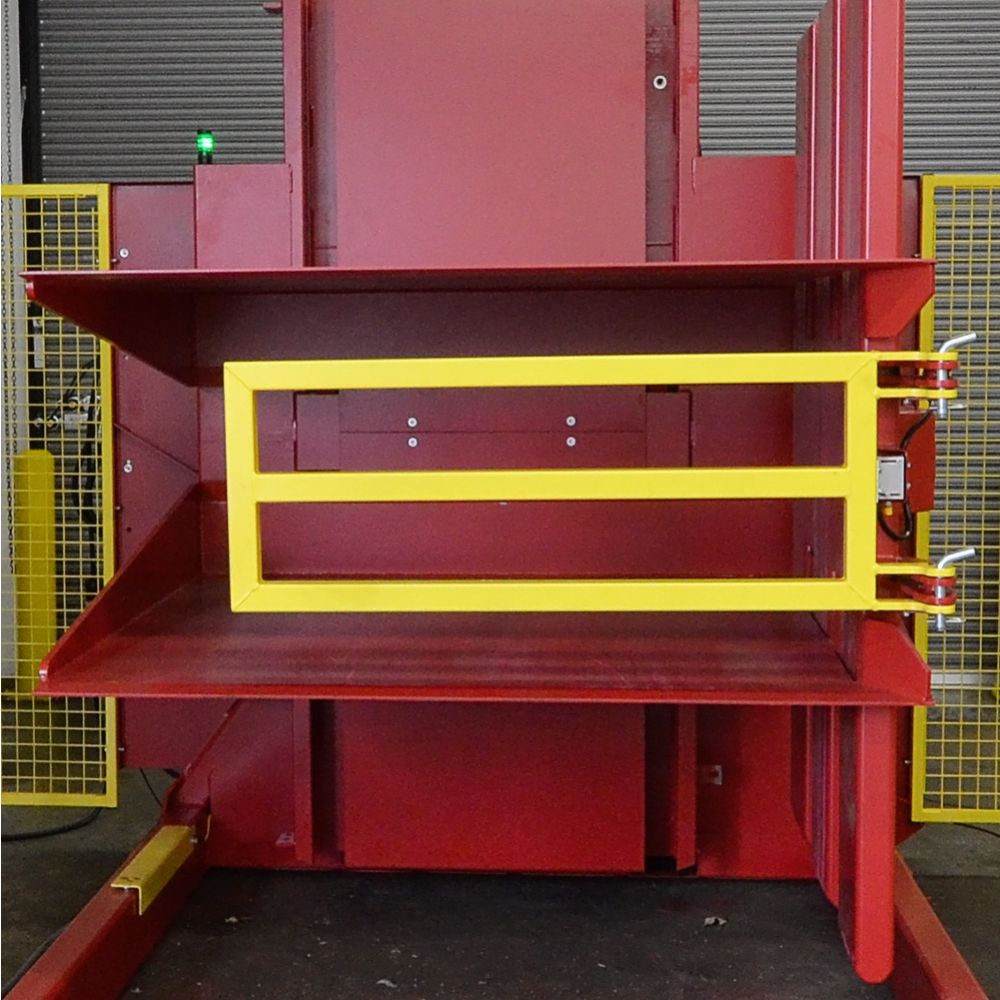

Custom Safety GateCustom Safety Gate

Controls

The GL-94 offers many controls configuration options to fit the needs of your warehouse operations. The standard energy saver push button pendant control can be magnetically held in placed on post, column or on the side of the guarding. A safety rated pendant adds a reset button and E-stop plus a PLd safety circuit to the main panel. Add-on auto controls, a radio remote, high-speed motion controls or a HMI console with a pedestal.

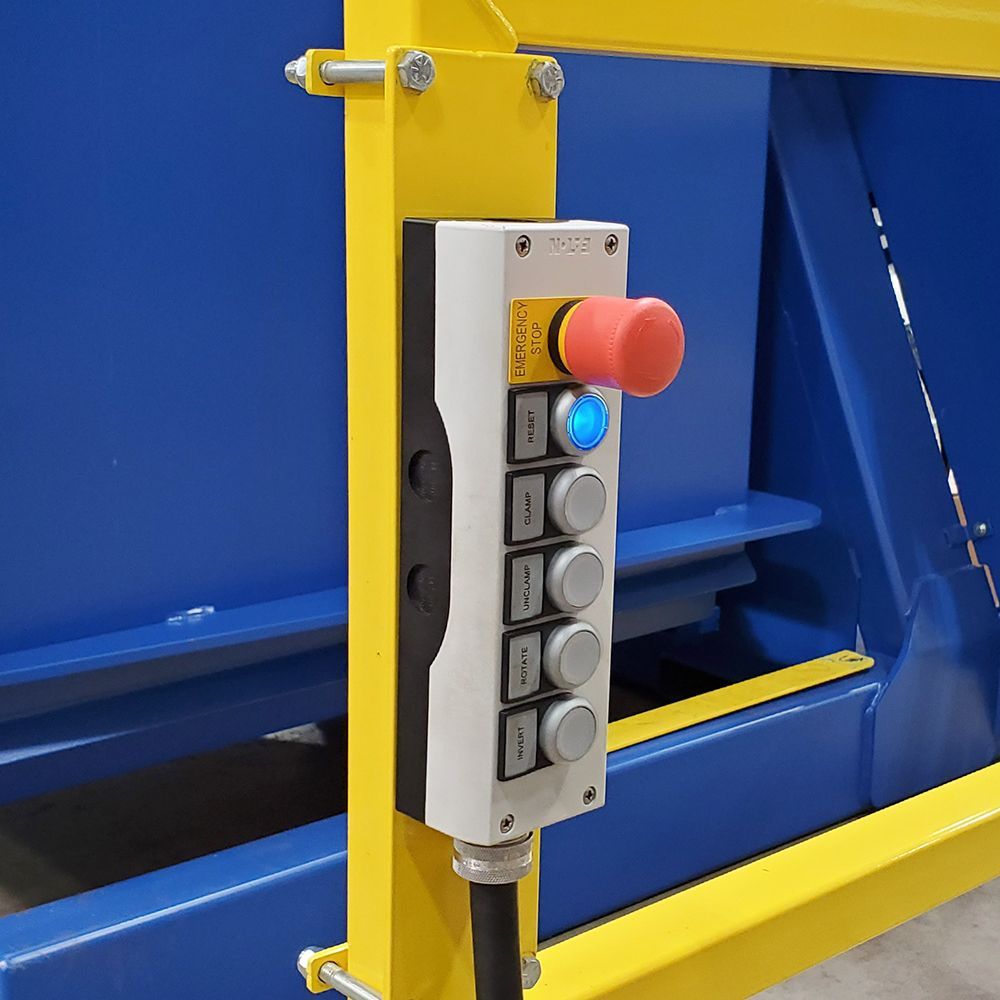

Operator pendantOperator pendant

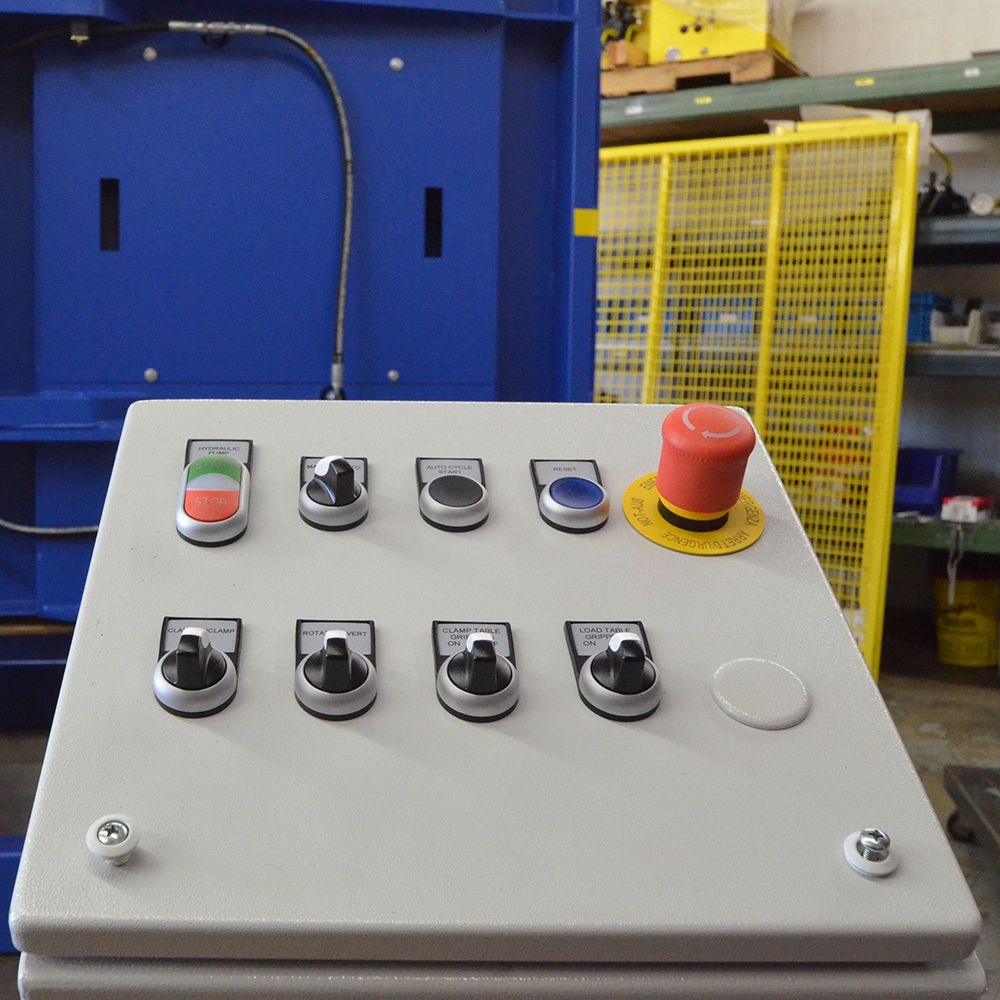

Control ConsoleControl Console

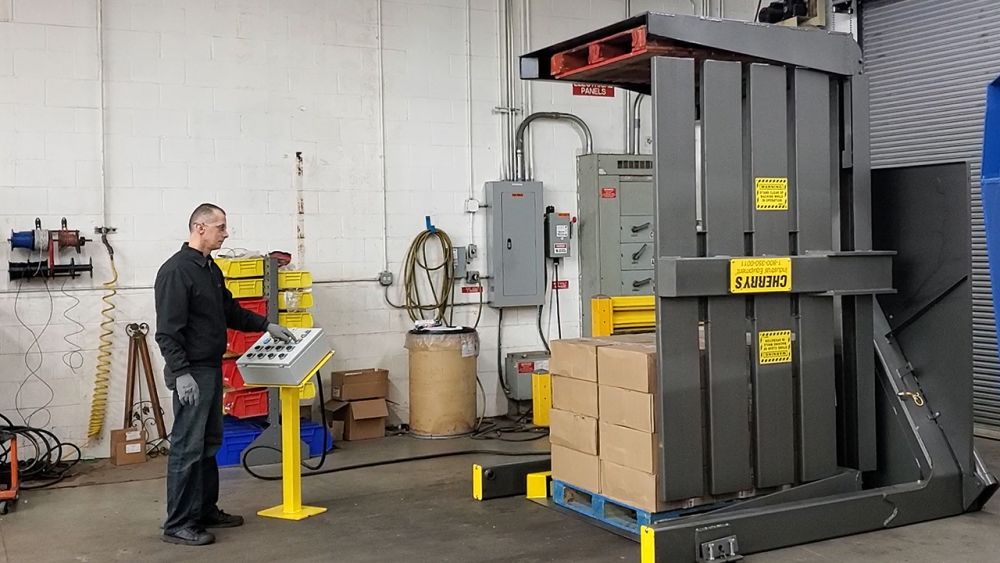

HMI Control PanelHMI Control Panel

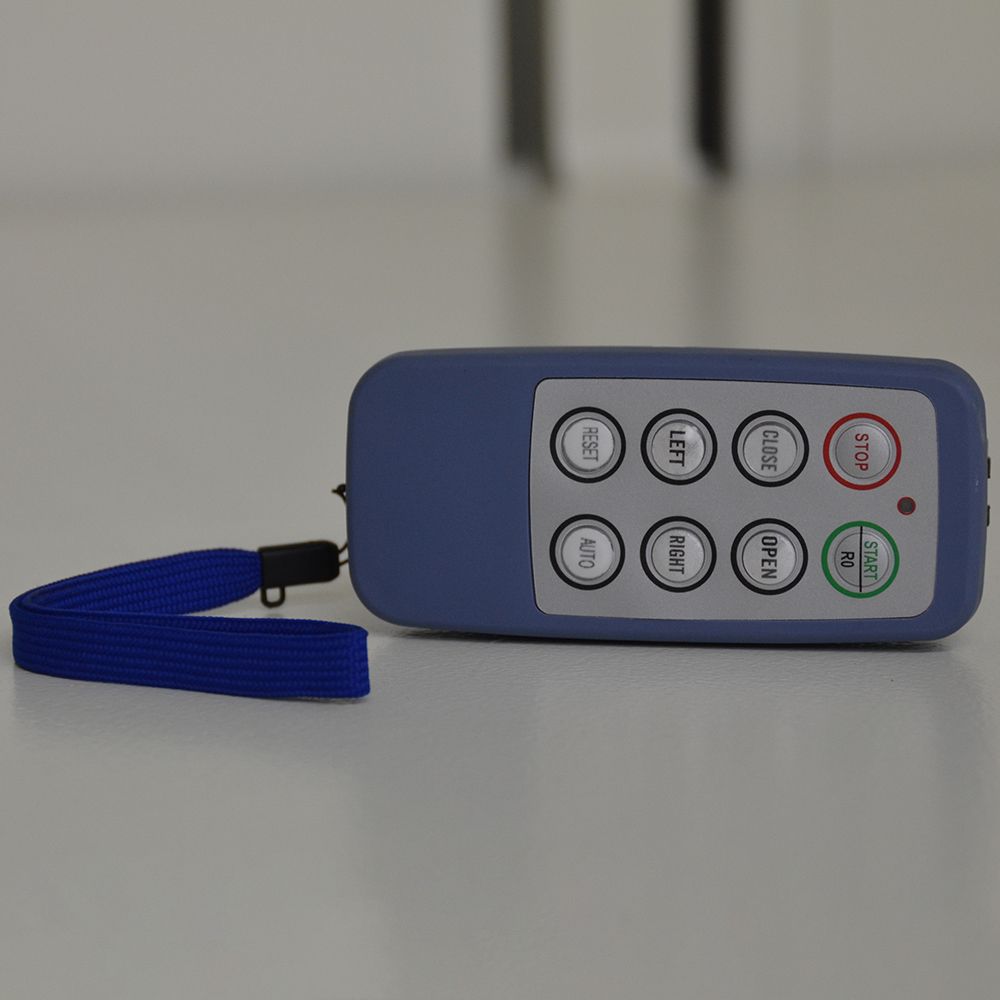

Remote ControlRemote Control

Guards

The standard GL-94 includes square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78 high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, light curtains can be added to protect the area inside of the fence and around the machine.


Rail GuardsRail Guards

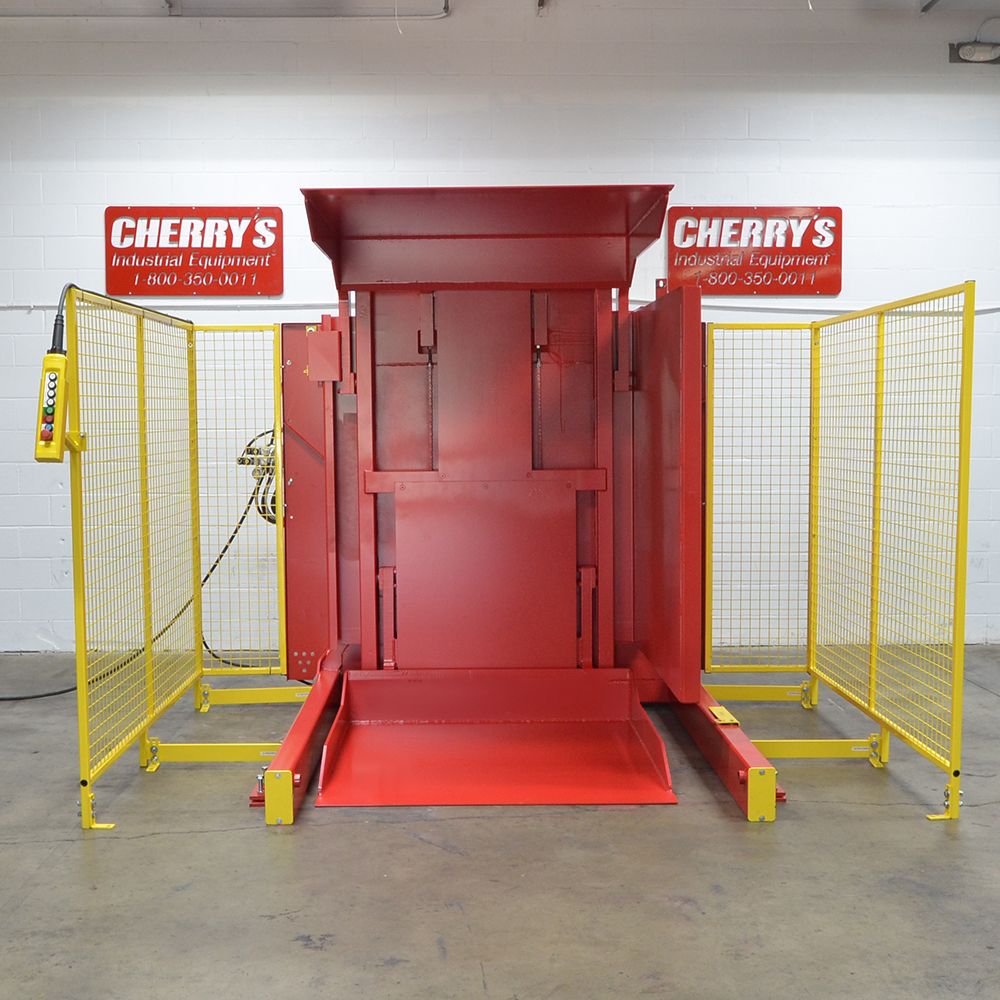

High Style GuardsHigh Style Guards

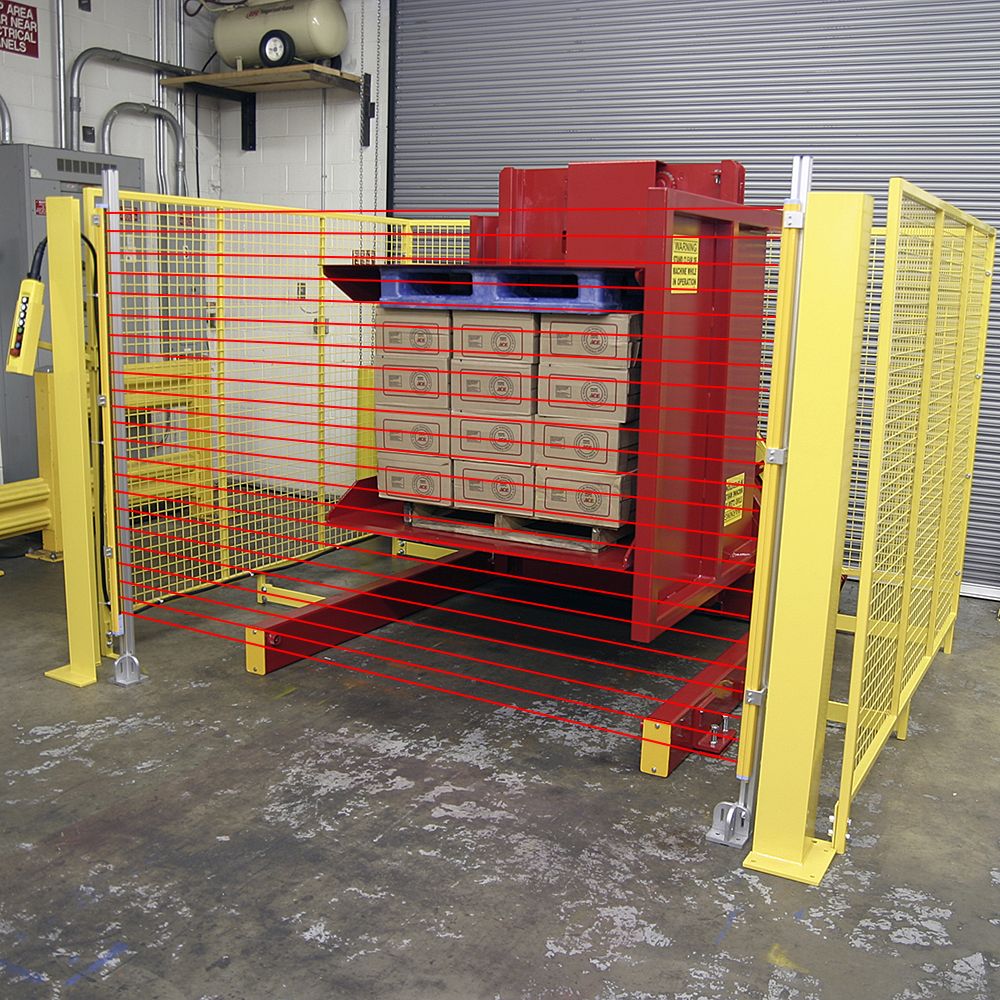

Light CurtainsLight Curtains

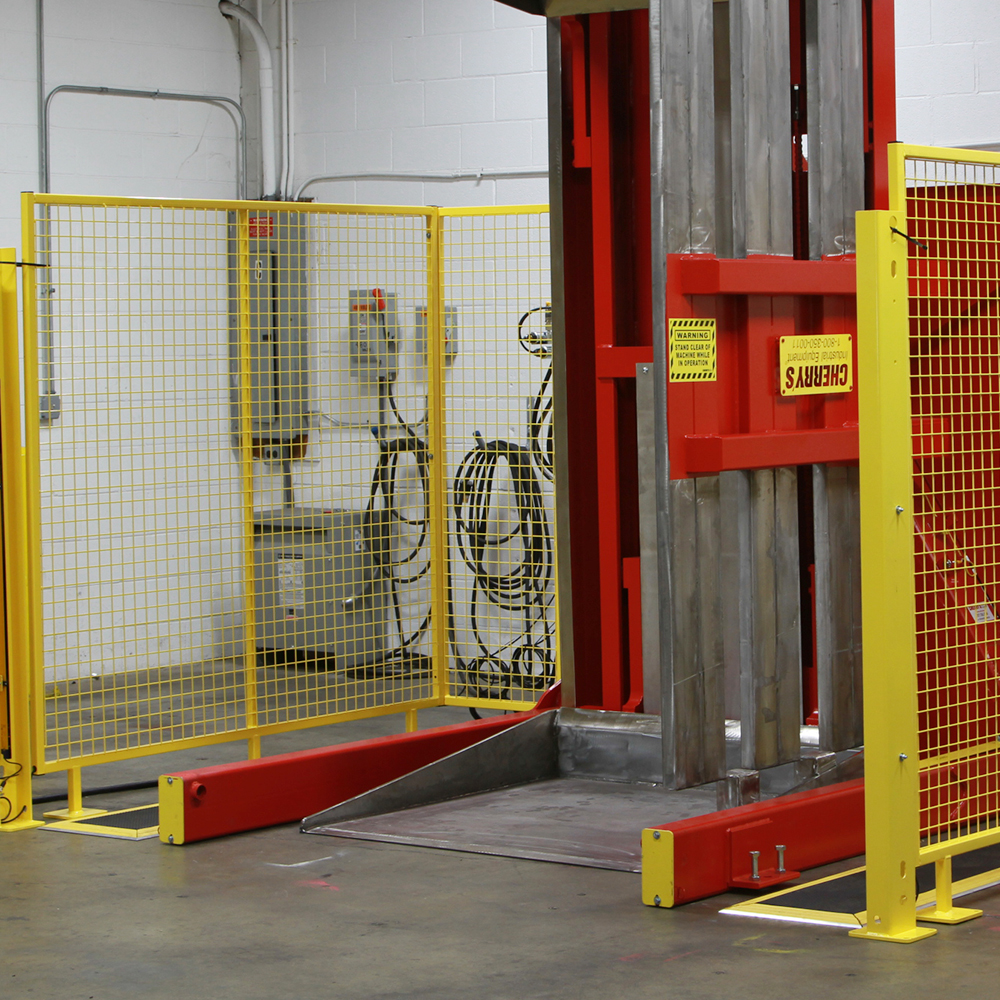

Safety MatsSafety Mats
