EM1 Efficiency Master Economy Tilt Tables


EM1-500 Series Tilt Table

The model EM1-500 features a full 90 degrees of tilt. Unit is ideal for upending products in shipping and receiving operations. Standard with double acting cylinder for controlled tilt and return. Unit must be lagged to floor.
EM1-500-4250-2 42"W X 50"L X 24"H Hydraulic Upender
EM1-500-4250-4 42"W X 50"L X 24"H Hydraulic Upender
EM1-500-4250-6 42"W X 50"L X 24"H Hydraulic Upender
EM1-500-6050-2 60"W X 50"L X 24"H Hydraulic Upender
EM1-500-6050-4 60"W X 50"L X 24"H Hydraulic Upender
EM1-500-6050-6 60"W X 50"L X 24"H Hydraulic Upender

Request a Quote

Call 847-443-3861 to speak with our experts

EM1 Efficiency Master Economy Tilt Tables

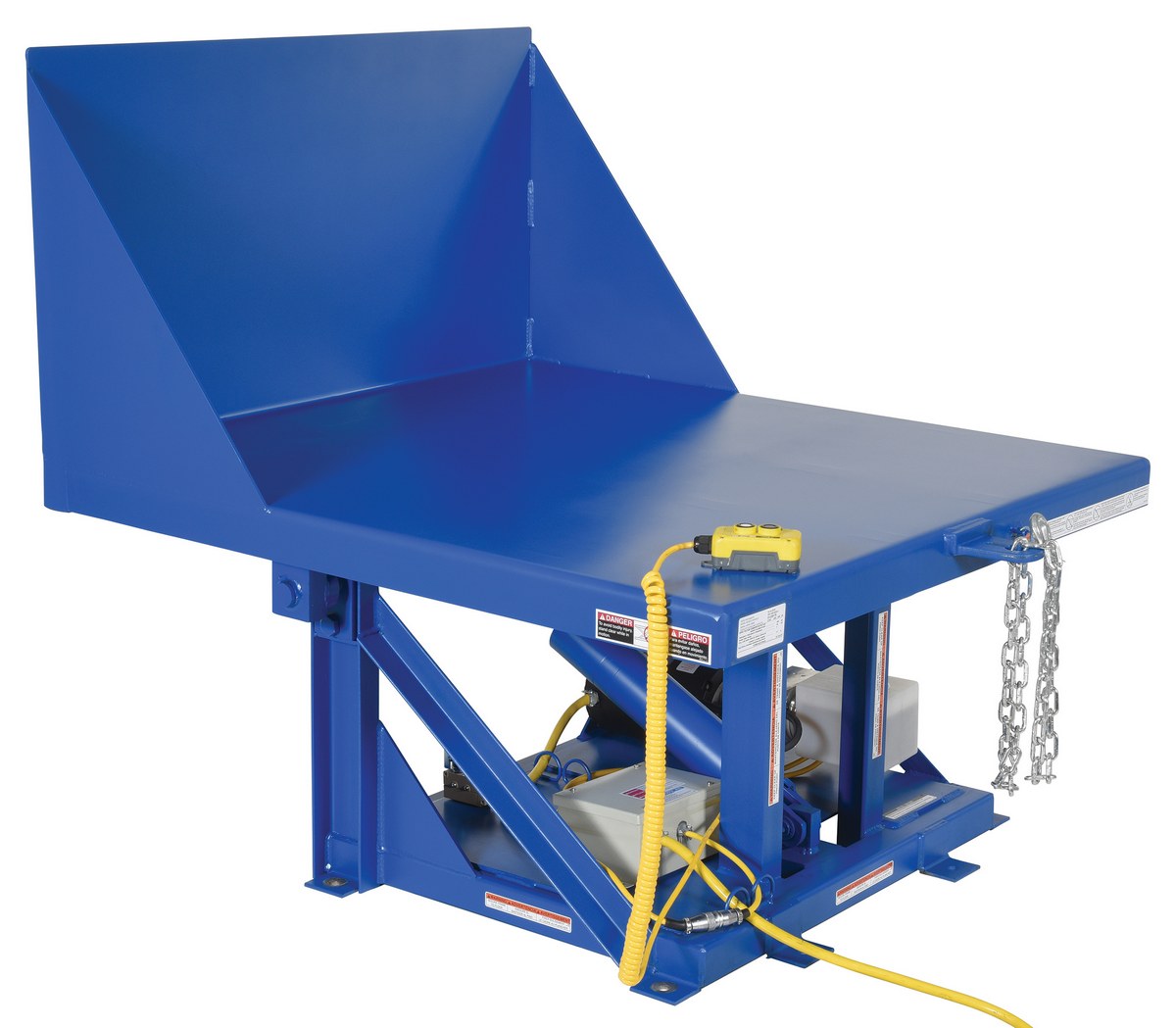

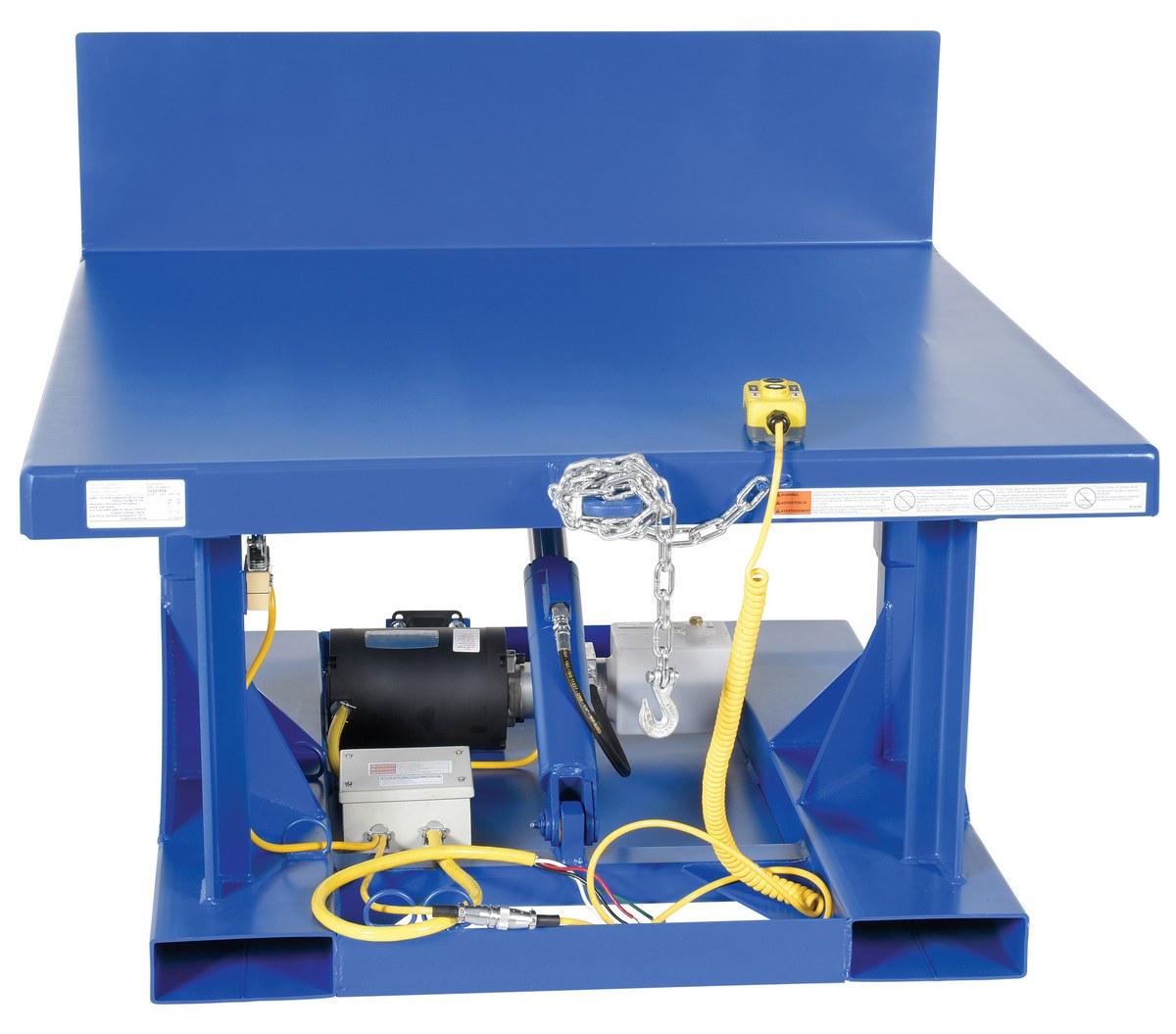

EM1 Efficiency Master Economy Tilt Tables Image 1
EM1 Efficiency Master Economy Tilt Tables Image 2
EM1 Efficiency Master Economy Tilt Tables Image 3

Product Information

Tables have all welded steel construction for years of durability. Unique design minimizes pinch points to meet OSHA requirements. The EM1-500 is equipped with an industrial quality, 56 frame 2 HP motor. This motor delivers best torque with minimal amperage draw and maximum life. Standard voltage is 460/3Ph (other voltage options available). A push button hand control with a NEMA type 4 enclosure is standard. Base includes 7-1/2" W x 2-1/2" H usable fork pockets on 30" centers for portability with forklift. Optional foot control with guard is available.

Specifications


BrandVestil
