EM1-500-4250-4 42"W x 50"L x 24"H Hydraulic Upender


EM1-500-4250-4

42"W x 50"L x 24"H Tilt table with a 90 degree tilt angle capable of handling loads up to 4,000 lbs. Equipped with a push button hand control. Must be anchored to floor.
EM1-500-4250-2 42"W X 50"L X 24"H Hydraulic Upender
EM1-500-4250-4 42"W X 50"L X 24"H Hydraulic Upender
EM1-500-4250-6 42"W X 50"L X 24"H Hydraulic Upender
EM1-500-6050-2 60"W X 50"L X 24"H Hydraulic Upender
EM1-500-6050-4 60"W X 50"L X 24"H Hydraulic Upender
EM1-500-6050-6 60"W X 50"L X 24"H Hydraulic Upender

Request a Quote

Call 847-443-3861 to speak with our experts

EM1-500-4250-4 42'W x 50'L x 24'H Hydraulic Upender
EM1-500-4250-4 42
EM1-500-4250-4 42
EM1-500-4250-4 42

Product Information

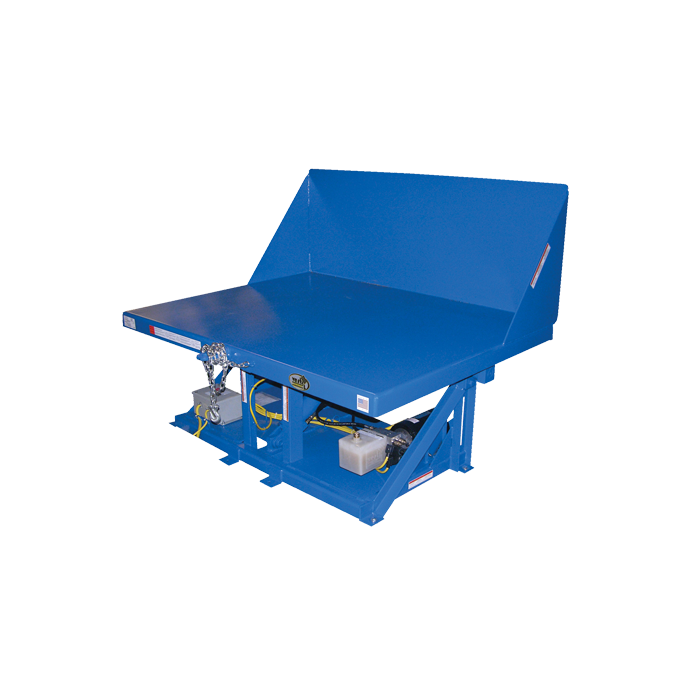

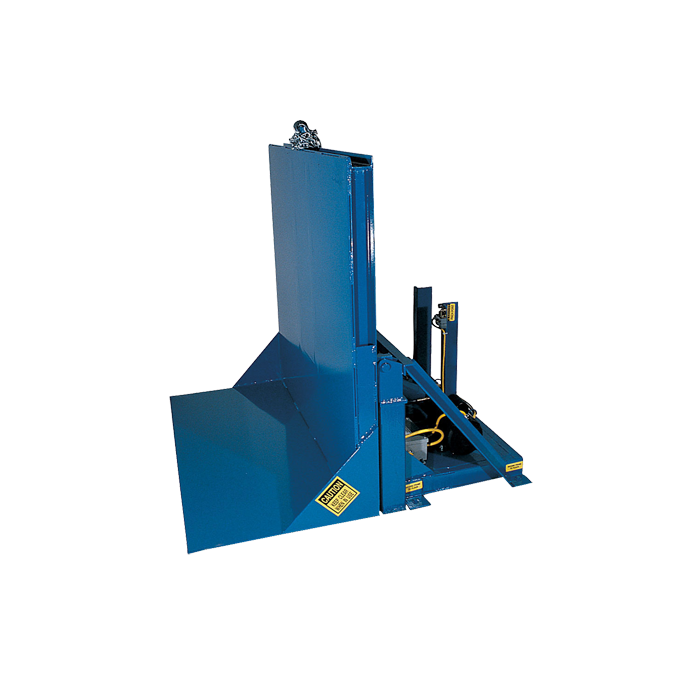

The EM1-500-4250-4 is specifically designed to tilt pallets, crates, boxes and/or baskets 90 degree to facilitate easy container loading or unloading and is ideal for upending products in shipping and receiving operations. Unique design minimizes pinch points to meet OSHA requirements. Equipped with an industrial quality, 56 frame 2 HP motor which delivers best torque with minimal amperage draw for maximum life. Standard voltage is 208-230/460 V 3 phase, with other voltages available.

Specifications


ModelEM1-500-4250-4
Motor56 Frame 2 HP
Controls24V Push Button Hand Control
Horizontal Height24''
Max. Tilt90°
Certifications0
Usable Size W x L42'' x 50''
Capacity4,000 lbs
Loading Table Size42" x 50"
BrandVestil
FOBAngola,IN
Warranty1 YEAR
NMFC120080
Shipping weight*840
Shipping Dimensions68 x 46 x 52
Shipping Class*175
