Pop up Chain Transfer with CDLR Conveyor

TFT251140-3.25-3S

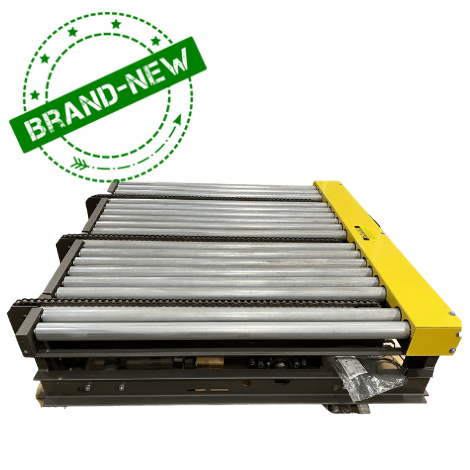

New Stock - Alba Chain Driven Live Roller Conveyor This hydraulically driven Alba Model TFT251140-3.25-3S features a 3-strand, 90-degree thru-frame transfer with RC-40 roll-to-roll chain drive. The unit has a 64" overall length, 52" effective width, and 3.25" roller centers. Finished in Steel-It two-part epoxy with yellow safety guards, it runs at 30 FPM and is built for robust, efficient material handling.

Request a Quote

Call 847-443-3861 to speak with our experts

Drawing

Pop up Chain Transfer with CDLR Conveyor

Pop up Chain Transfer with CDLR Conveyor Image 1

Pop up Chain Transfer with CDLR Conveyor Image 2

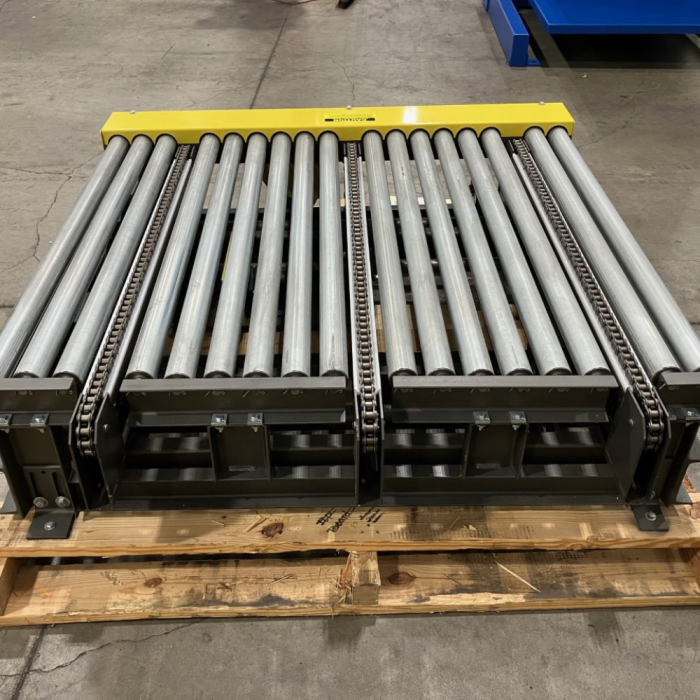

Pop up Chain Transfer with CDLR Conveyor Image 3

Pop up Chain Transfer with CDLR Conveyor Image 4

Pop up Chain Transfer with CDLR Conveyor Image 5

Pop up Chain Transfer with CDLR Conveyor Image 6

Pop up Chain Transfer with CDLR Conveyor Image 7

Pop up Chain Transfer with CDLR Conveyor Image 8

Product Information

Product Tour

Specifications

Model	TFT251140-325-3S- VER A
CDLR Length x Width	5'7 -1/2" L overall x 52 effective coneying surface
CDLR Drive	Char Lynn hydraulic motor RC-40 drive chain
Centers CDLR Speed	3-1/4" CDLR SPEED: Adjustable, 30 FPM

Drive and Bed Rollers	2-1/2" diameter with FR grease packed ball bearings
Devices Brand	Two proximity sensors (1 up and 1 down position)
Setting	Set 7/8" low driven side and 1/4" high other side
Elevation	18" top of roller

Transfer L X W	0.6" beyond inside frame, chains 22 -1/4" spaced on centers
Transfer Lift Type	Positive type using a hydrualic cylinder and cam rollers, cahins are 3/4" above rollers in the raised position
Warranty	1 year parts only
Brand	Alba Conveyor
