Turntable Lifts

AXR20-4860

Engineered for handling bulky, heavy items, the AXR20-4860 features a 48" x 60" platform and a pneumatic turntable to reduce manual handling. Ideal for large-assembly work or pallet staging, this model increases productivity while promoting safer, more ergonomic practices.

AXR Series Turntable Lift Tables

Turntable Lifts

Request a Quote

Call 847-443-3861 to speak with our experts

Product Information

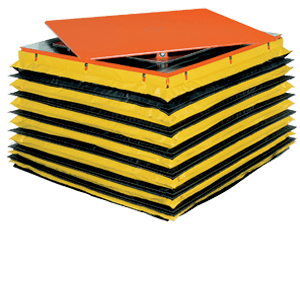

These pneumatic lift tables feature an integrated turntable platform that allows workers to rotate loads for access to all sides without walking around the lift. This is especially helpful in manufacturing and assembly when tools are only available on one side of the lift table. In palletizing applications it eliminates the need to stretch for boxes on the farside or walking around the load. Unit shown with optional accordian bellows skirting.

Specifications

Load Capacity	2,000 lbs
Raised Height	35"
Lowered Height	11"

Vertical Travel	24"
Base Size (W x L)	36" x 48"
Platform Size (W x L)	48" x 60"

Shipping Weight

1,450 lbs
