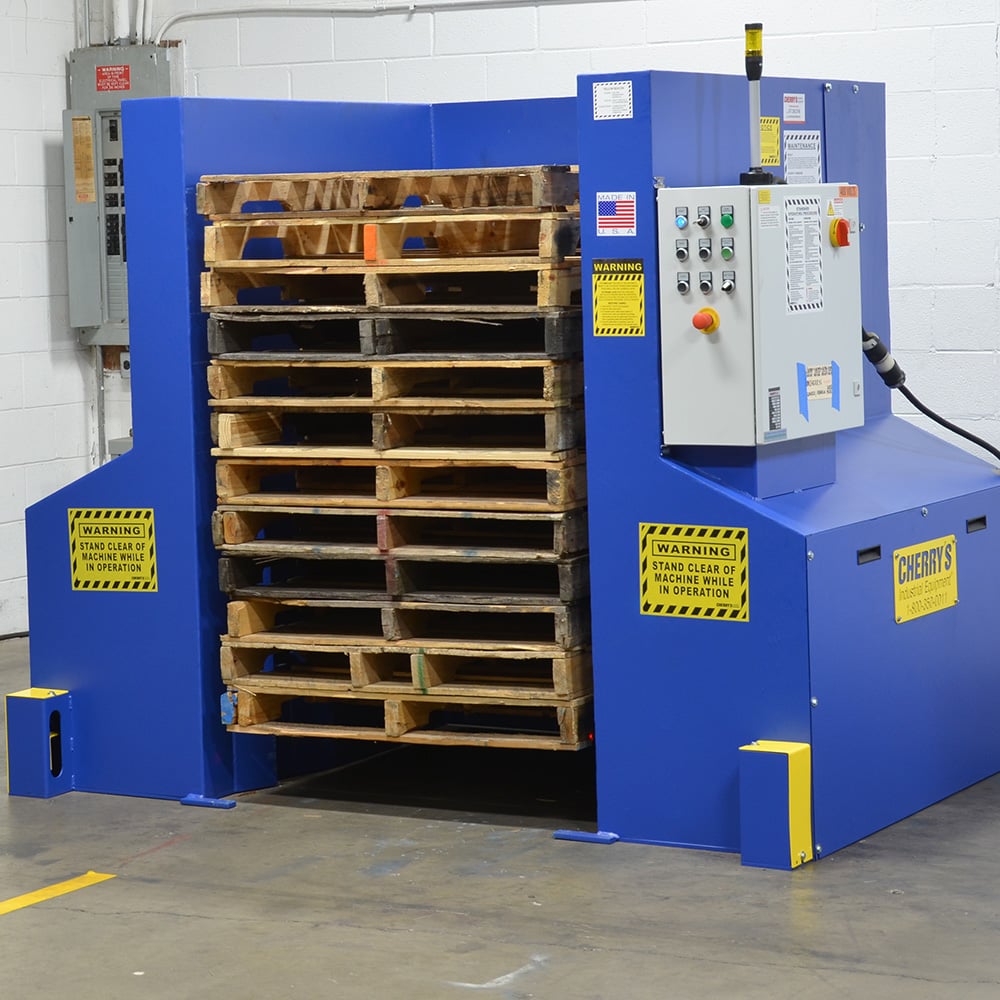

LDD Pallet Dispenser

LDD-STK-1400-10/20

The light-duty pallet dispenser can manage loads weighing up to 1,400 lbs., making it ideal for your less demanding material handling applications. Cherry's low-duty pallet dispenser can hold 10-20 pallets for individual distribution at ground level and accumulate up to 10 pallets. This durable 40" x 48" pallet dispenser is manufactured with pride in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

Layout drawing

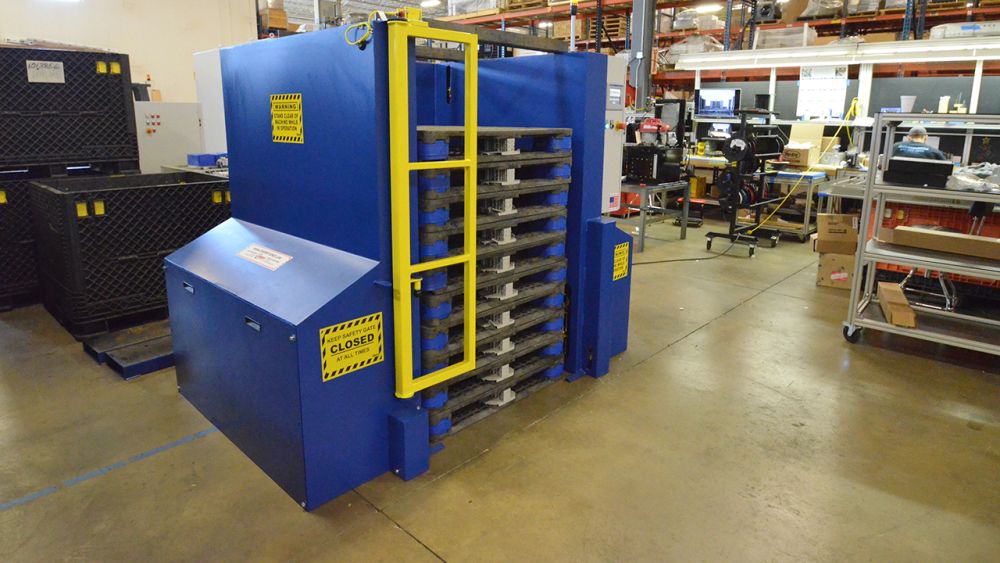

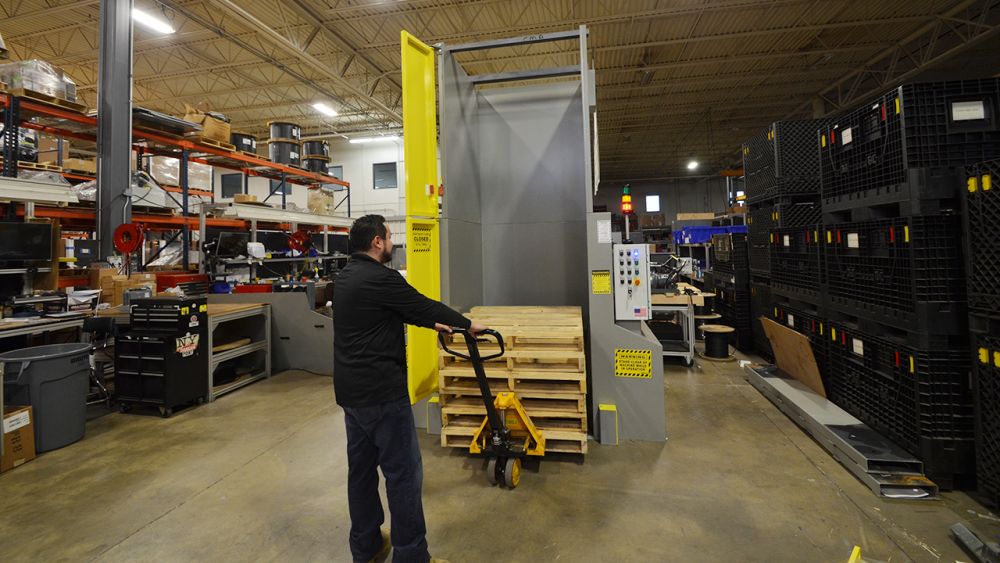

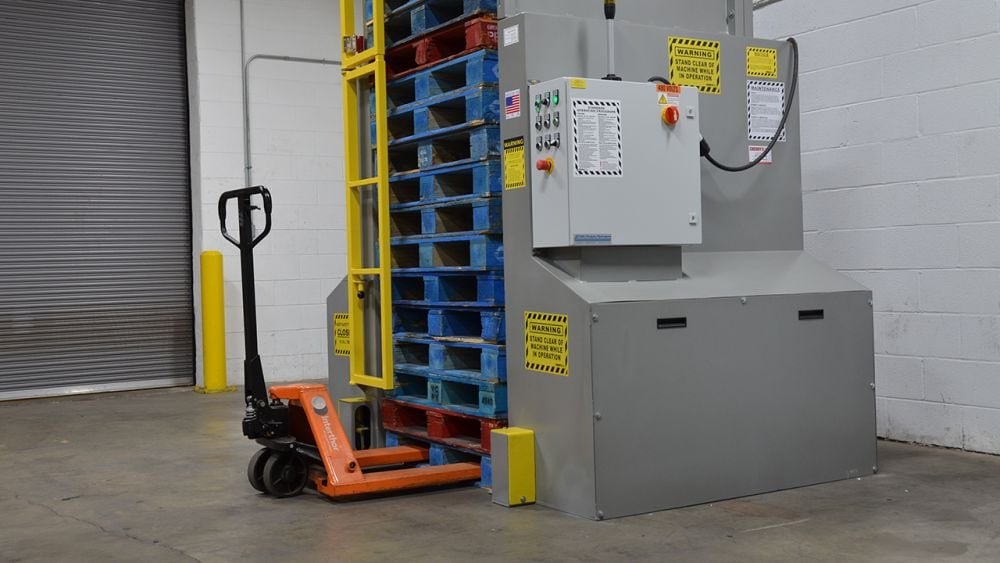

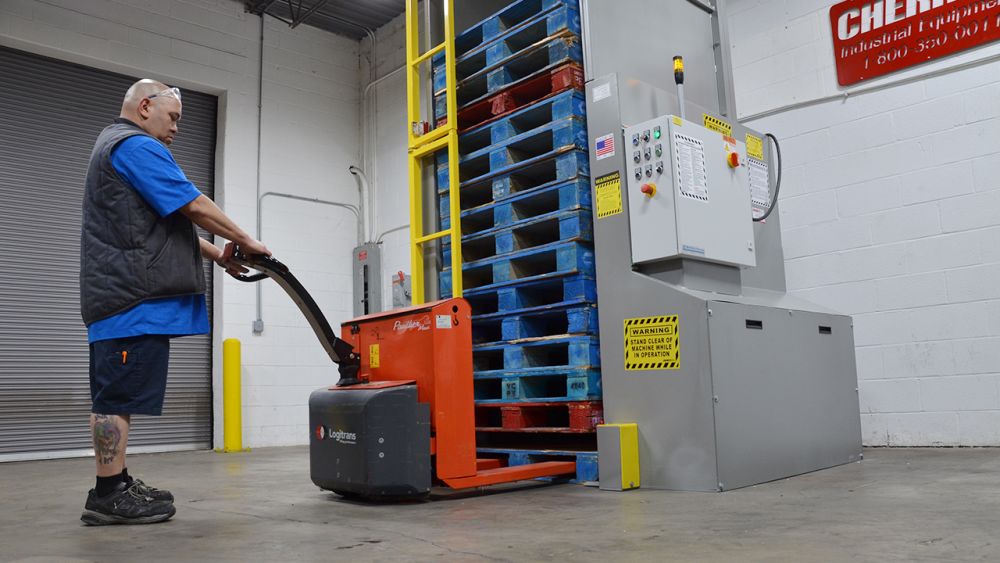

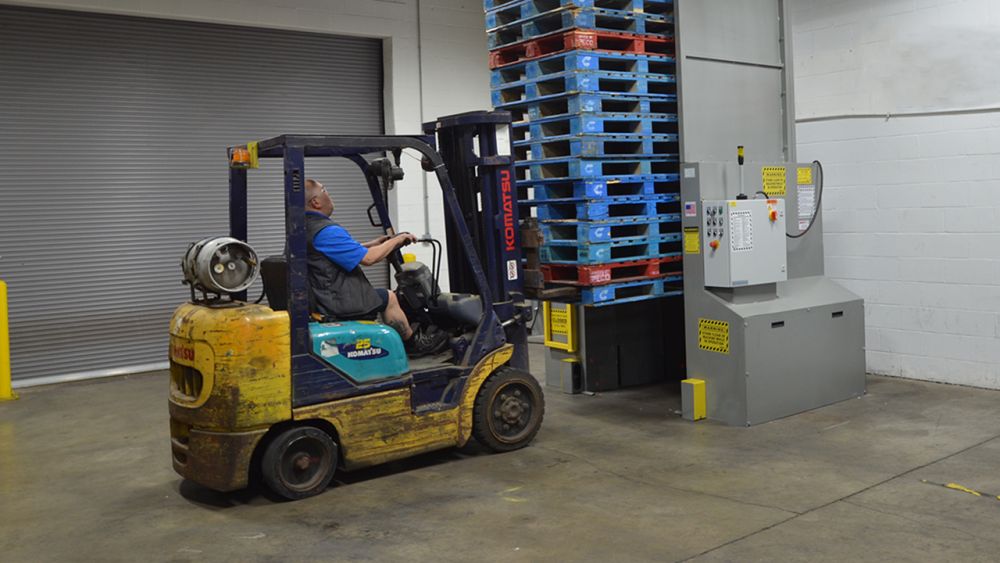

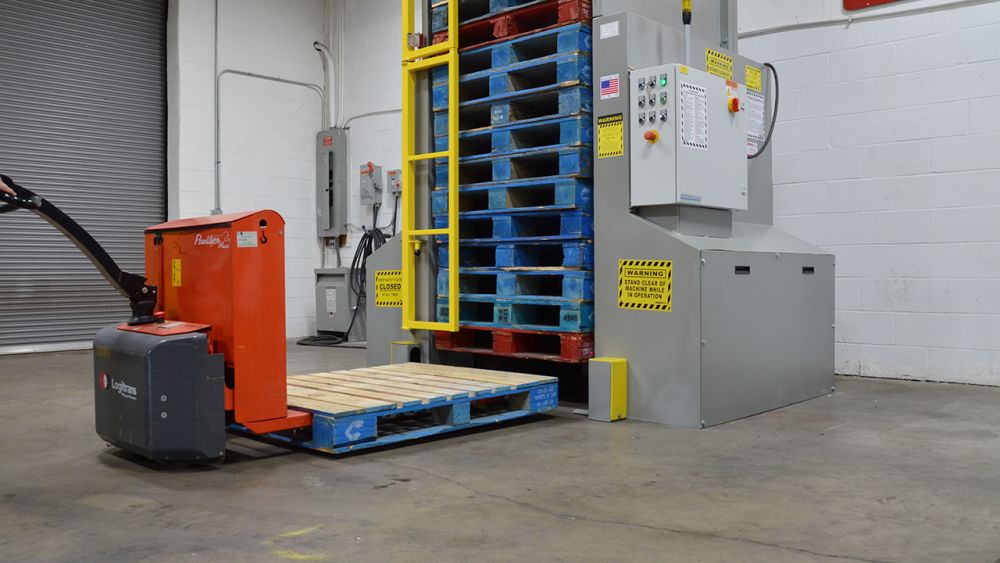

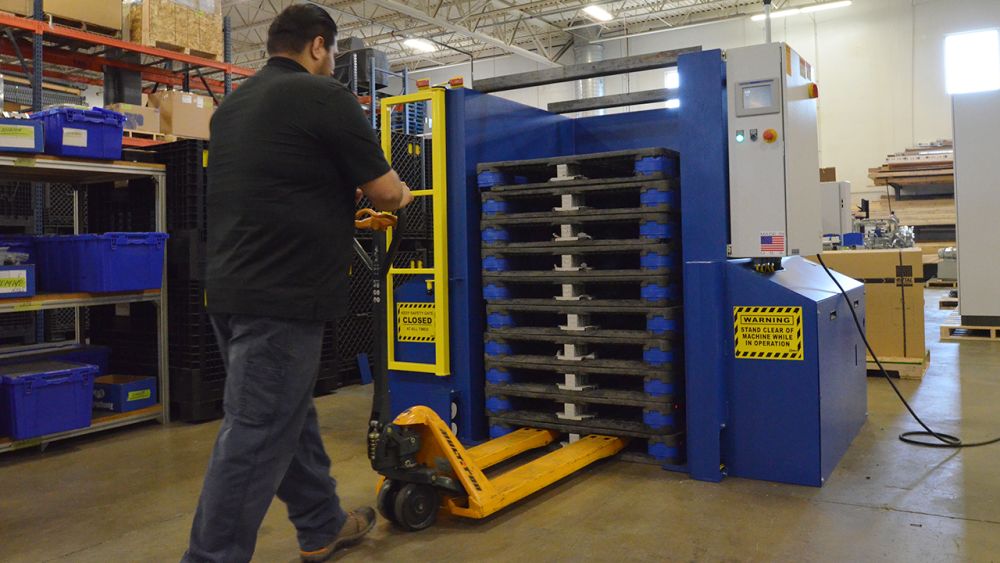

See it in the Wild

Product Information

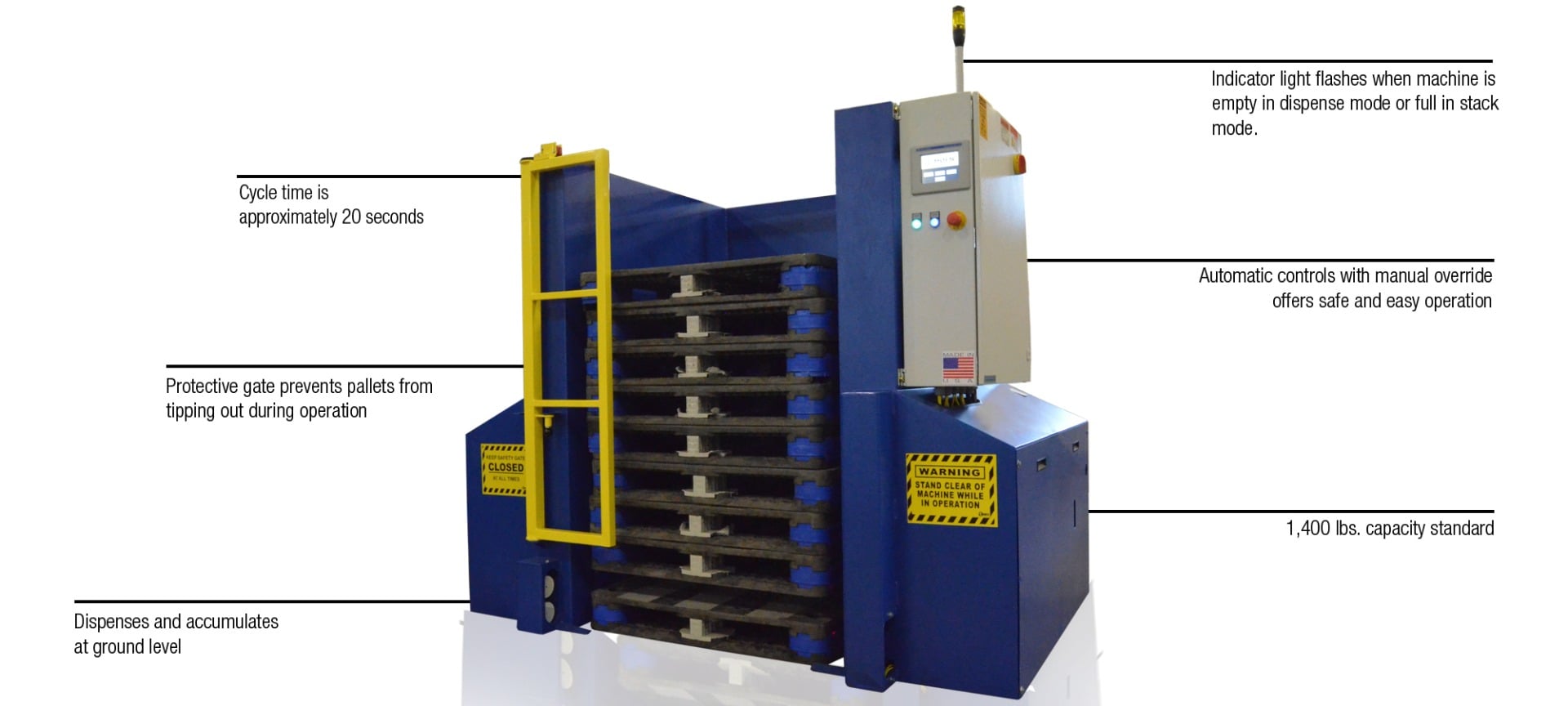

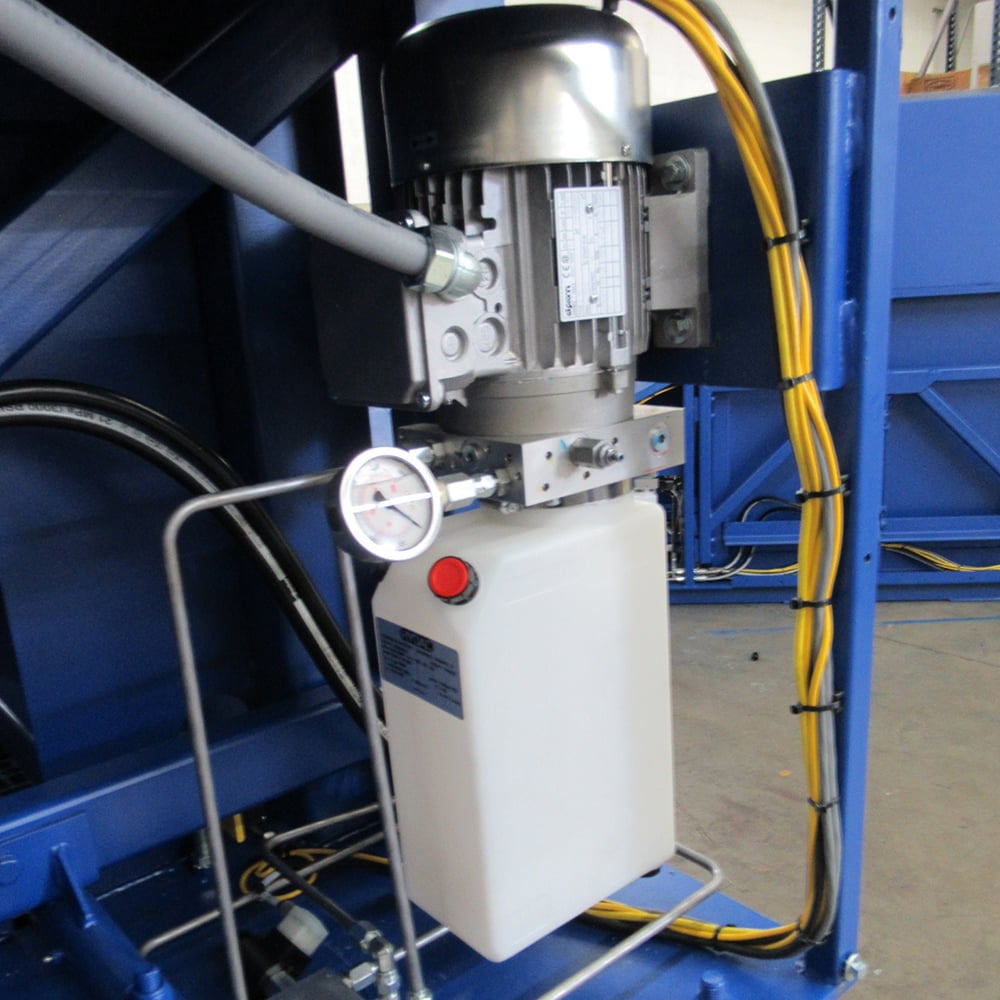

The low-duty pallet dispenser features a surprisingly powerful 2 HP, 230V or460V three-phase motor that produces a 20-second cycle time. Automatic controls simplify the dispenser's operation with a manual override for troubleshooting and maintenance. The protective gate minimizes the risk of worker injury by keeping pallets from falling out during use. Other features, benefits and technical specifications include: a flashing indicator light that lets operators know whether the machine is empty or full, power-on-demand system maximizes energy efficiency, hydraulic power pack delivers precise, trouble-free operation, one-year warranty protects your investment and gives you peace of mind

Product Tour

Specifications

Model	LDD-STK-1400-10/20
Operating Height	Floor/Ground level
Brand	Cherry's Industrial
Cycle Time	30 Sec
Controls	Auto controls with manual overide
Capacity	1400 lbs

Type Of Pallet	40 x 48 CHEP/Block pallet
Power Source	208/230/460/575V
# of Pallets	10 - 20
Certifications	UL Certified Panel
Motor	2HP
System Pressure	800

Warranty	1 Year
Shipping Dimensions	60" L X 84" W X 62" H
# of Pallets	20-Oct
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Controls

The LDD offers standard an automatic operator control panel with a manual override for maintenance. Upgrade to the Allen Bradley TFT Color touchscreen for diagnostics, and user input. Add the RM node to monitor critical machine data, mantenance alerts and notifications wirelessly.

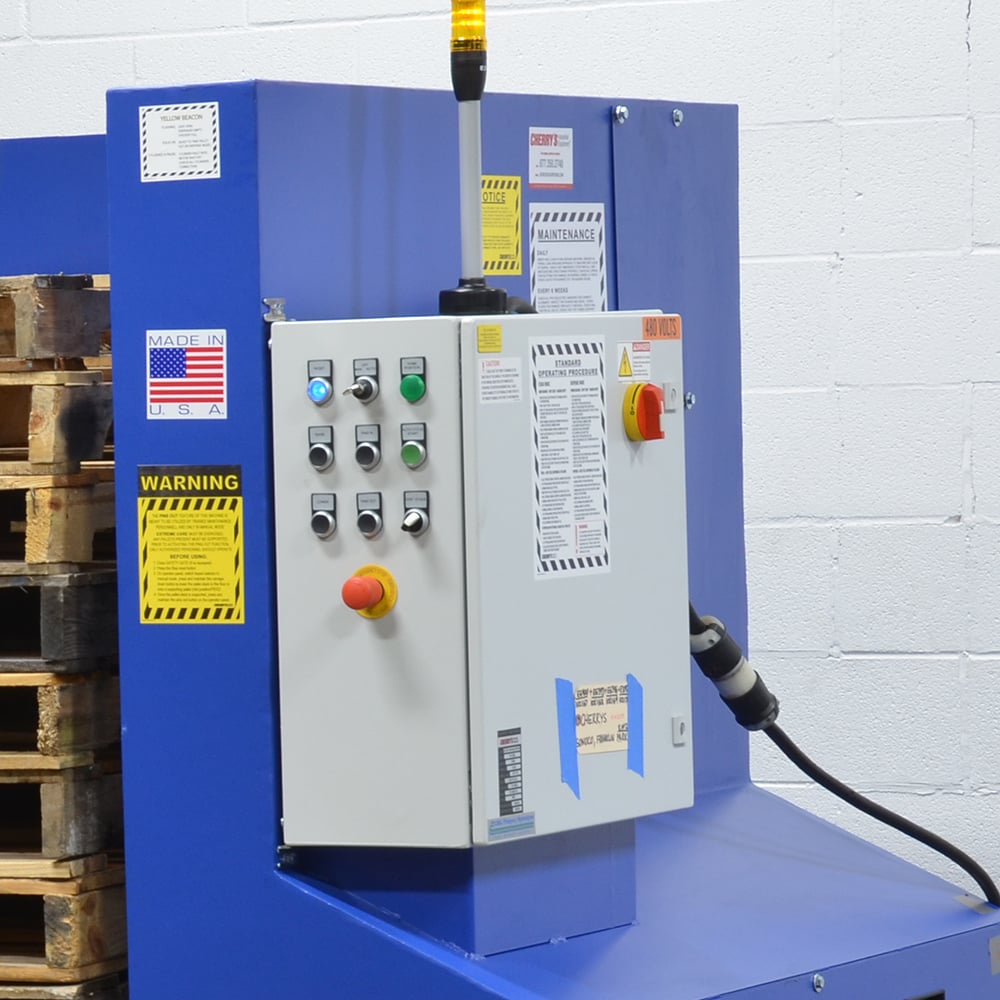

Push buttons with manual override

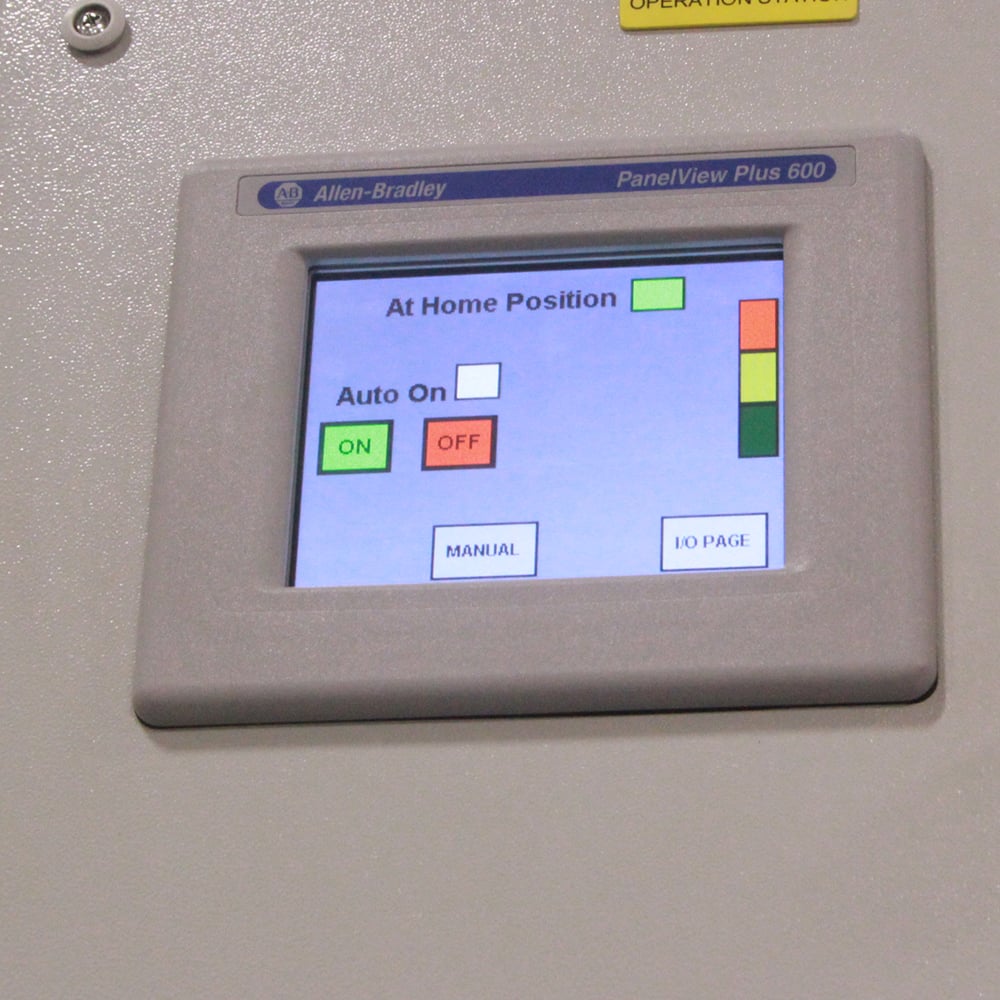

AB Color TFT HMI

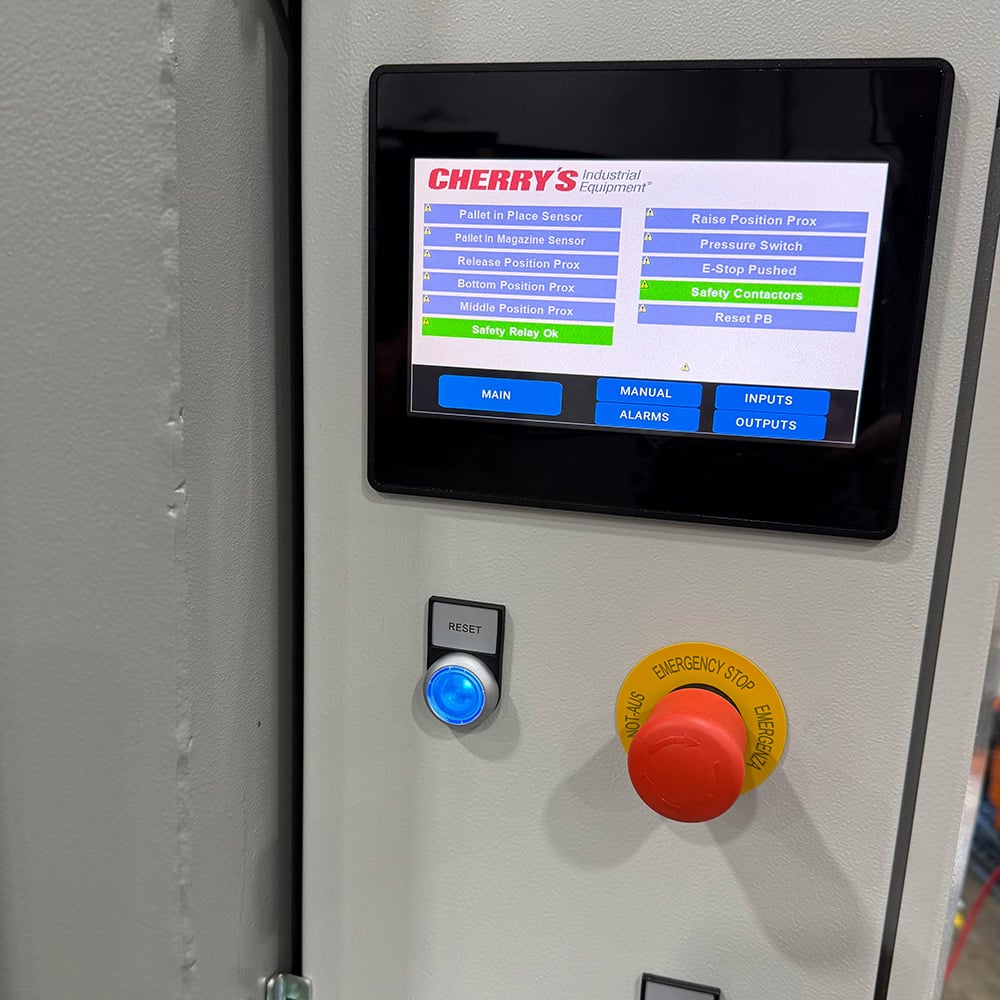

Exor HMI with RM node

Guarding

The LDD Pallet Dispenser includes a foot obstruction sensor that protects against pinch points at the machine entrance. Optional guarding features protective crash guarding, pallet gate with safety rated switch that deactivates the machine when open.

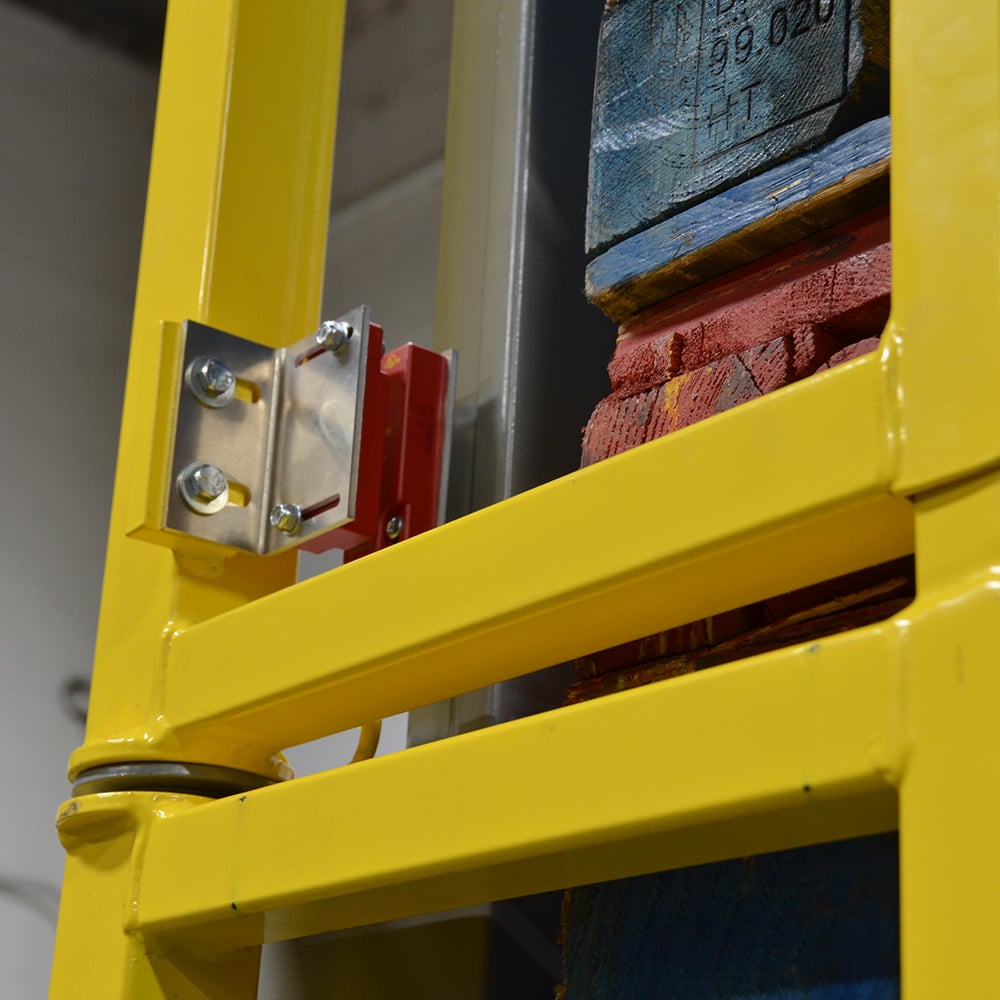

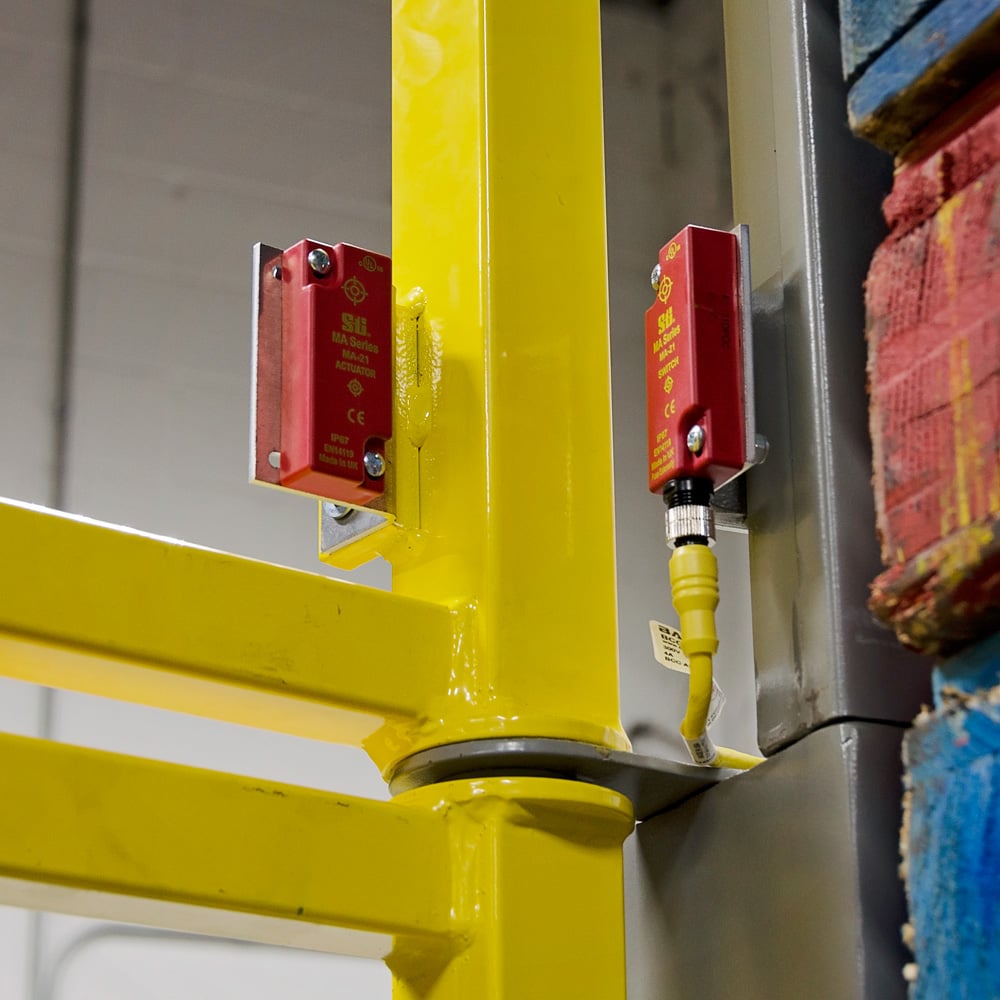

Safety rated gate switch

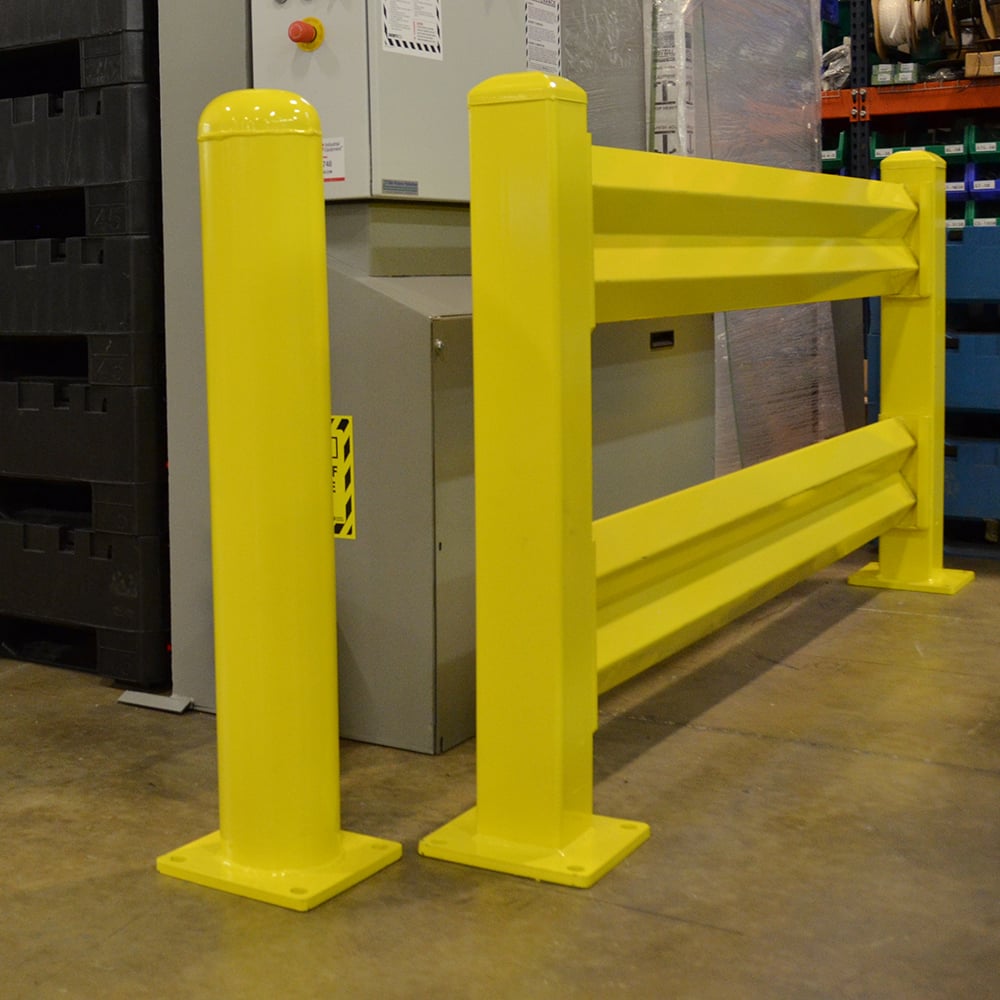

Protective crash guards

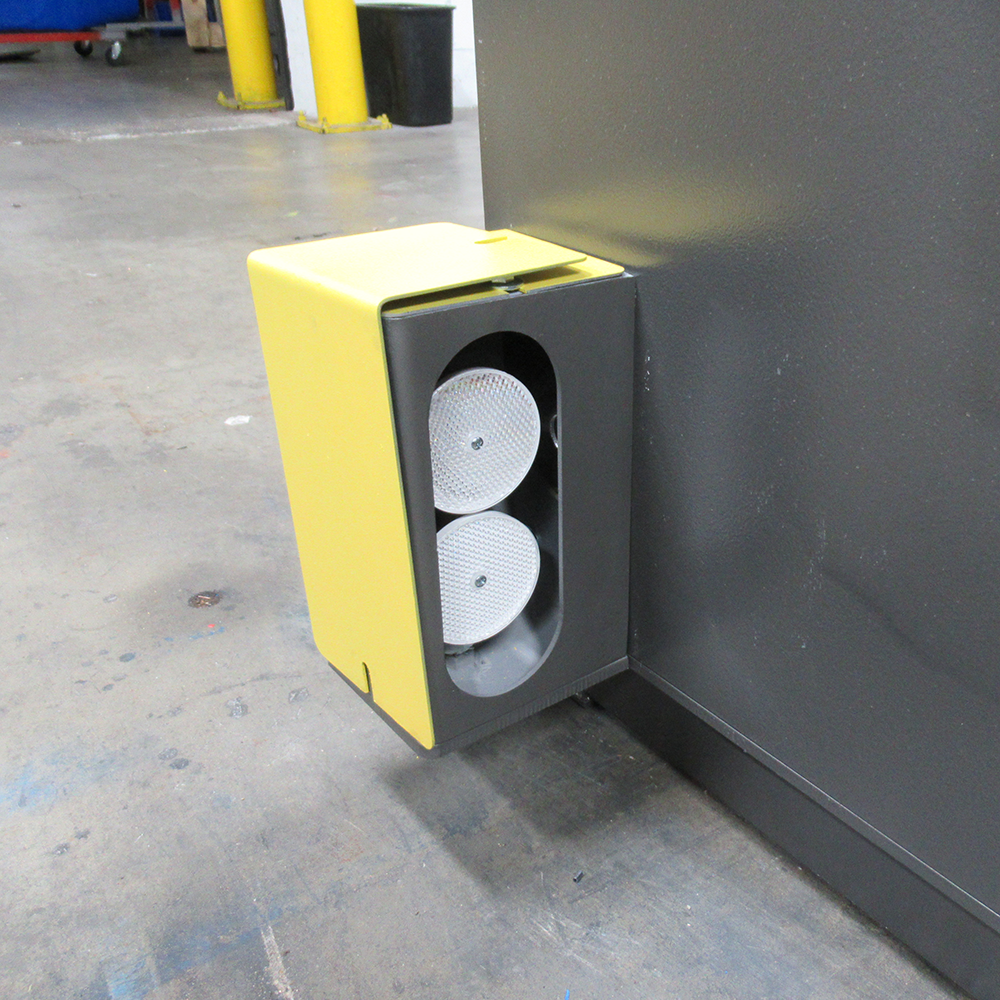

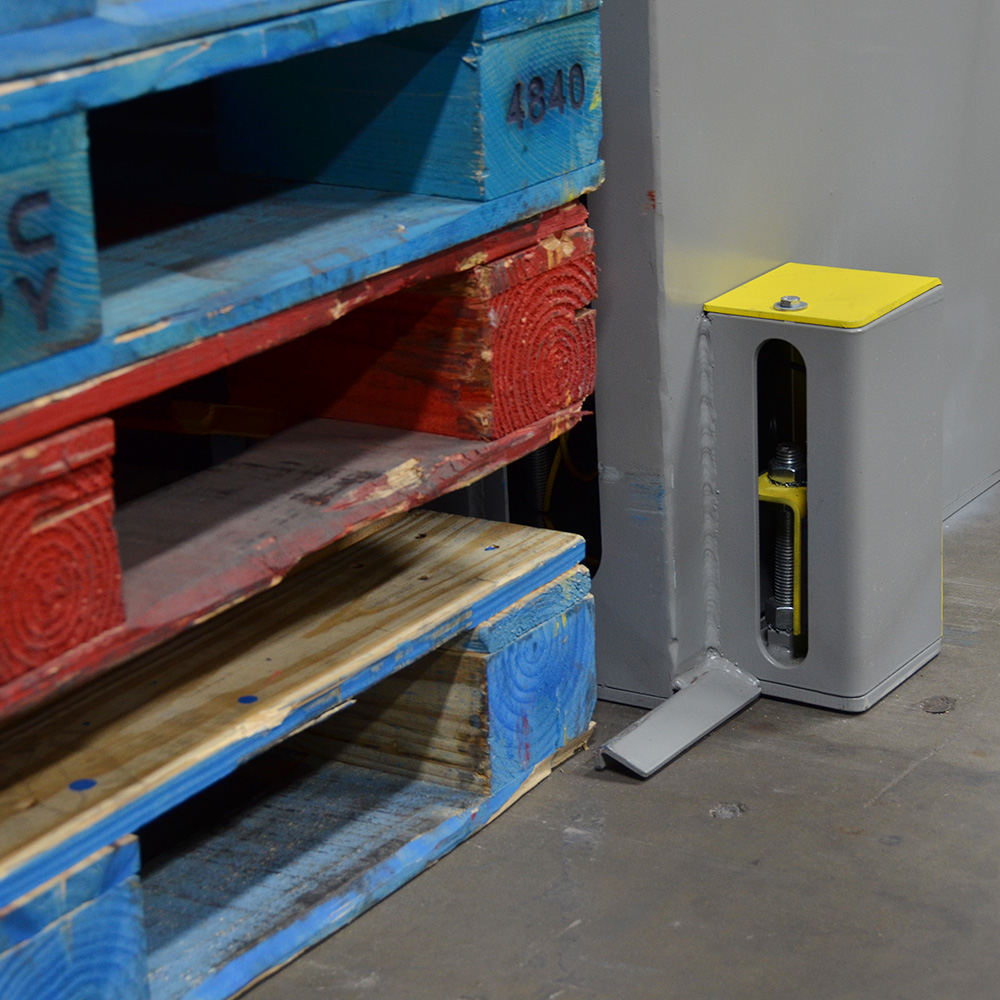

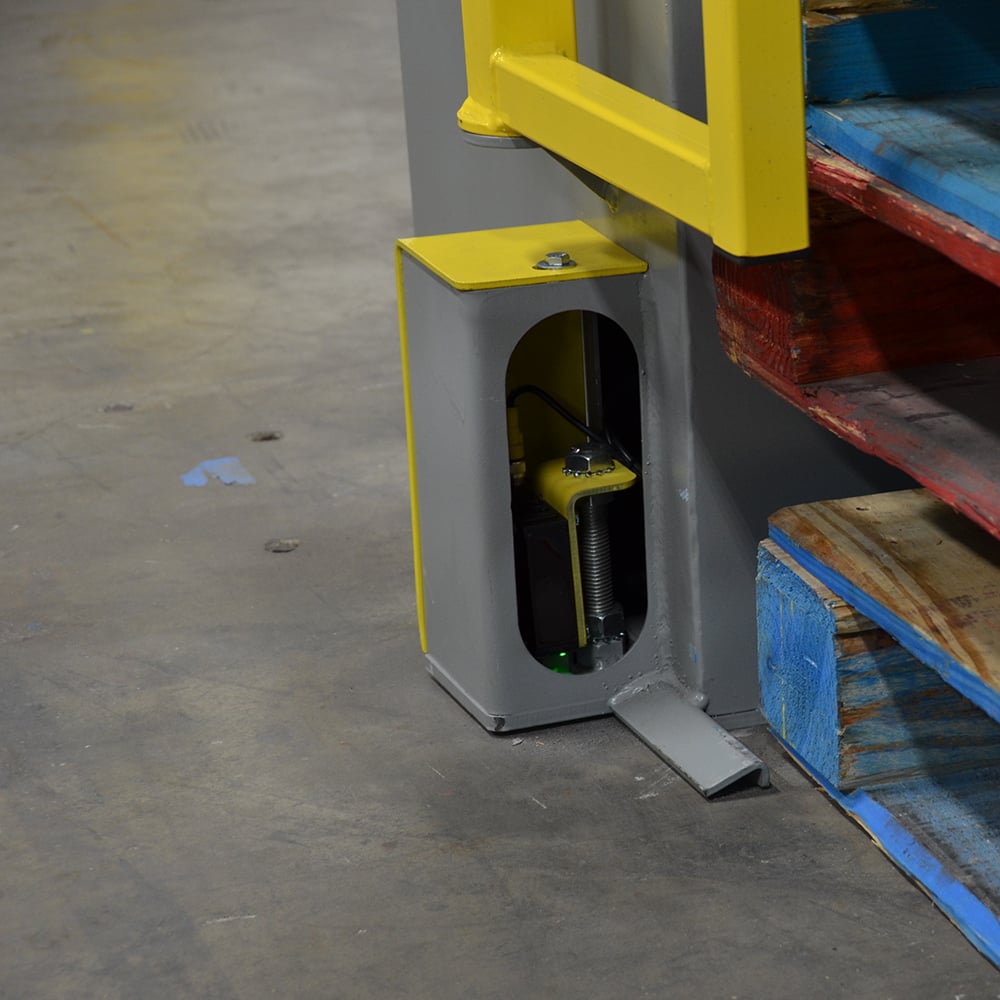

Safety rated foot obstruction sensor

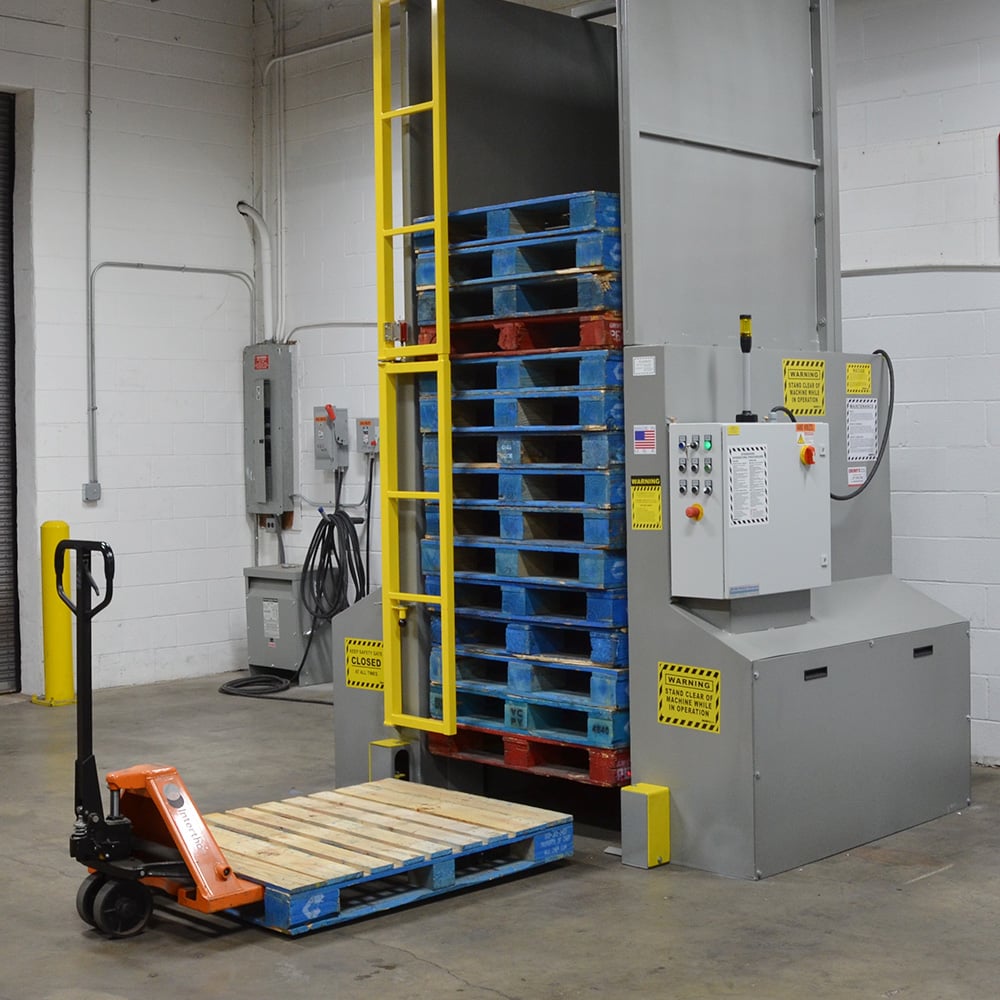

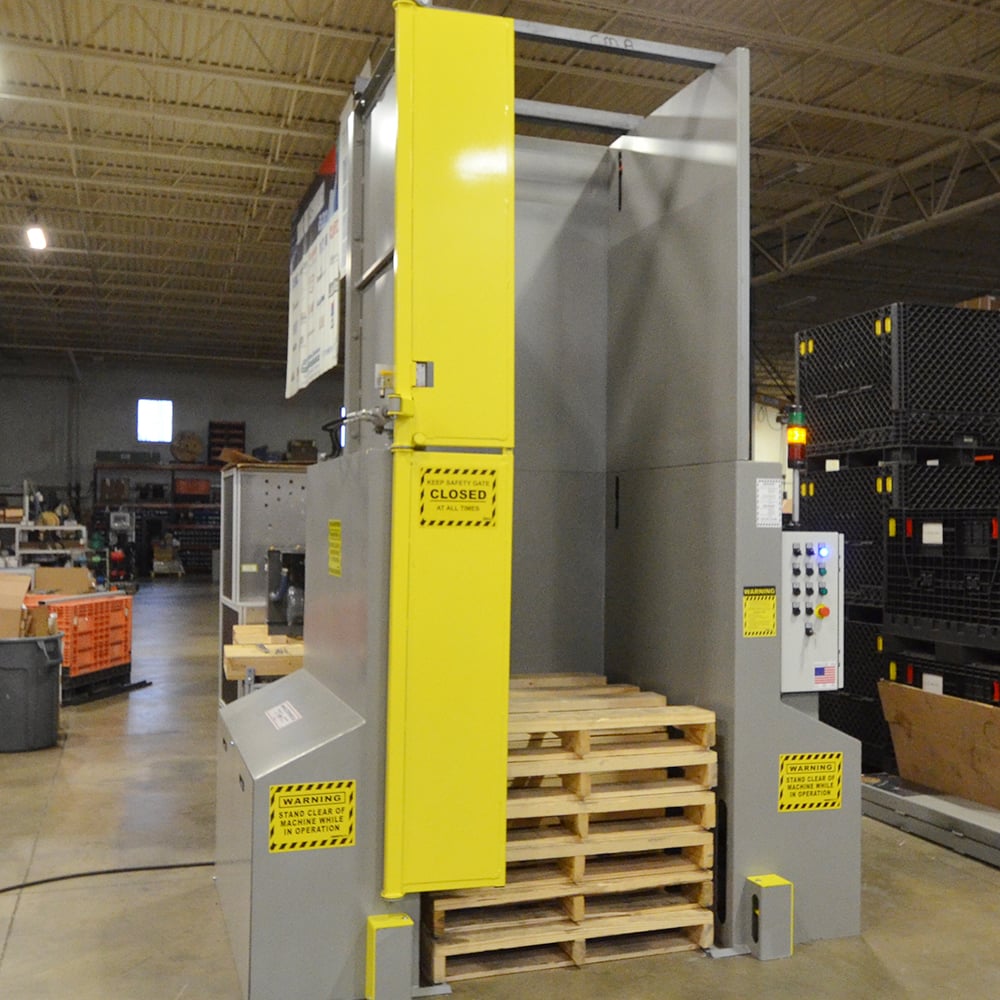

Full panel protective gate

Options

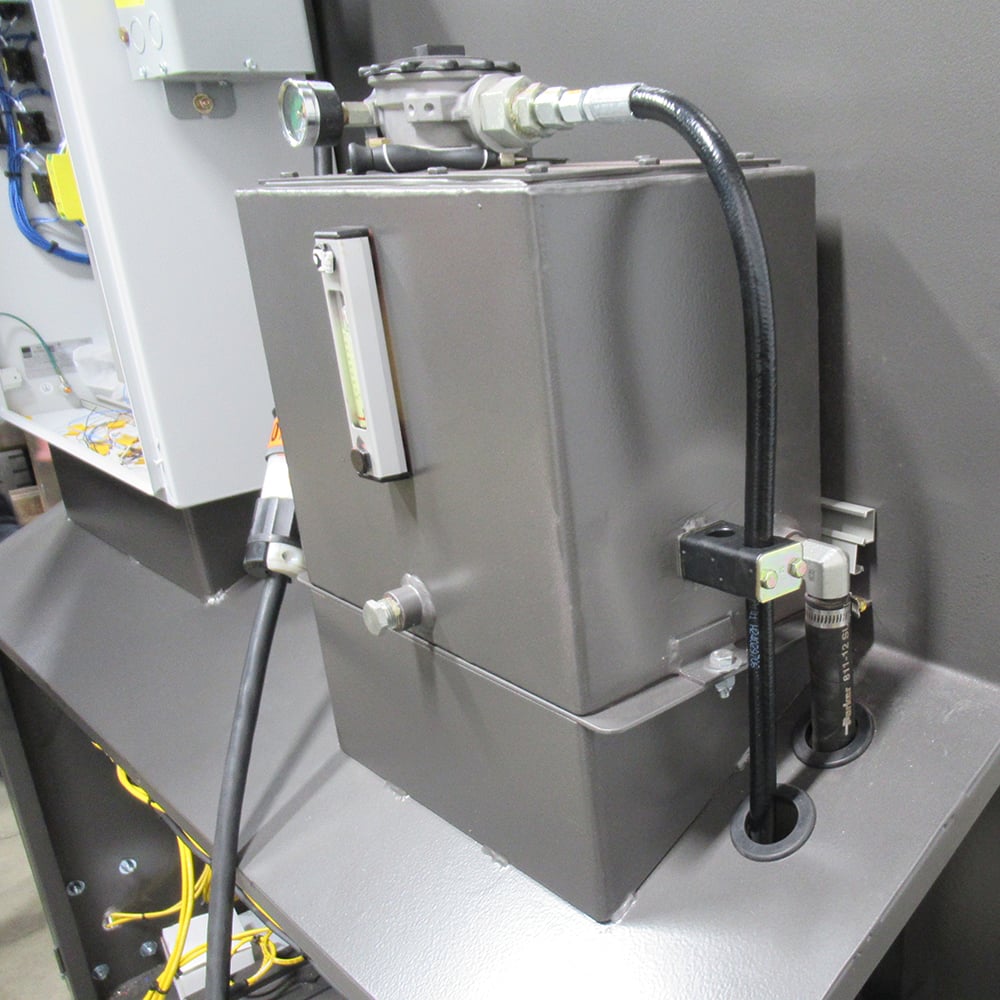

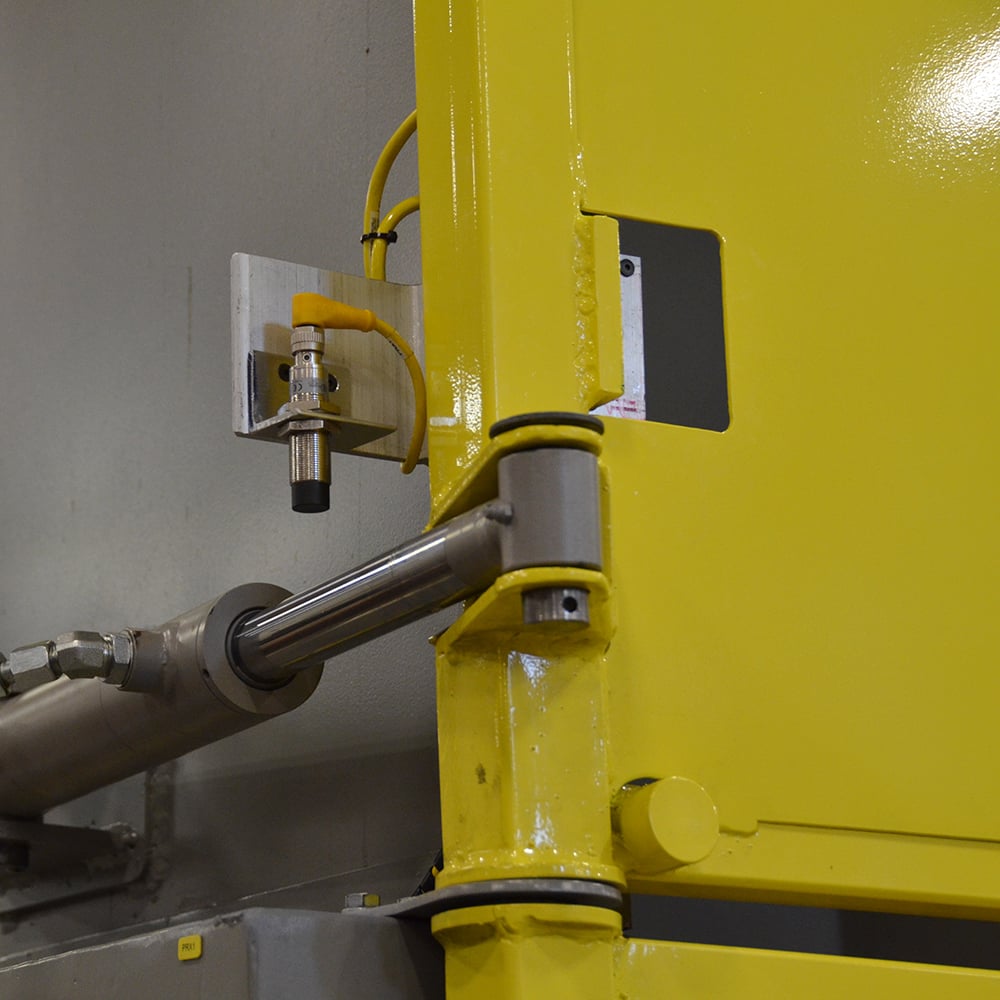

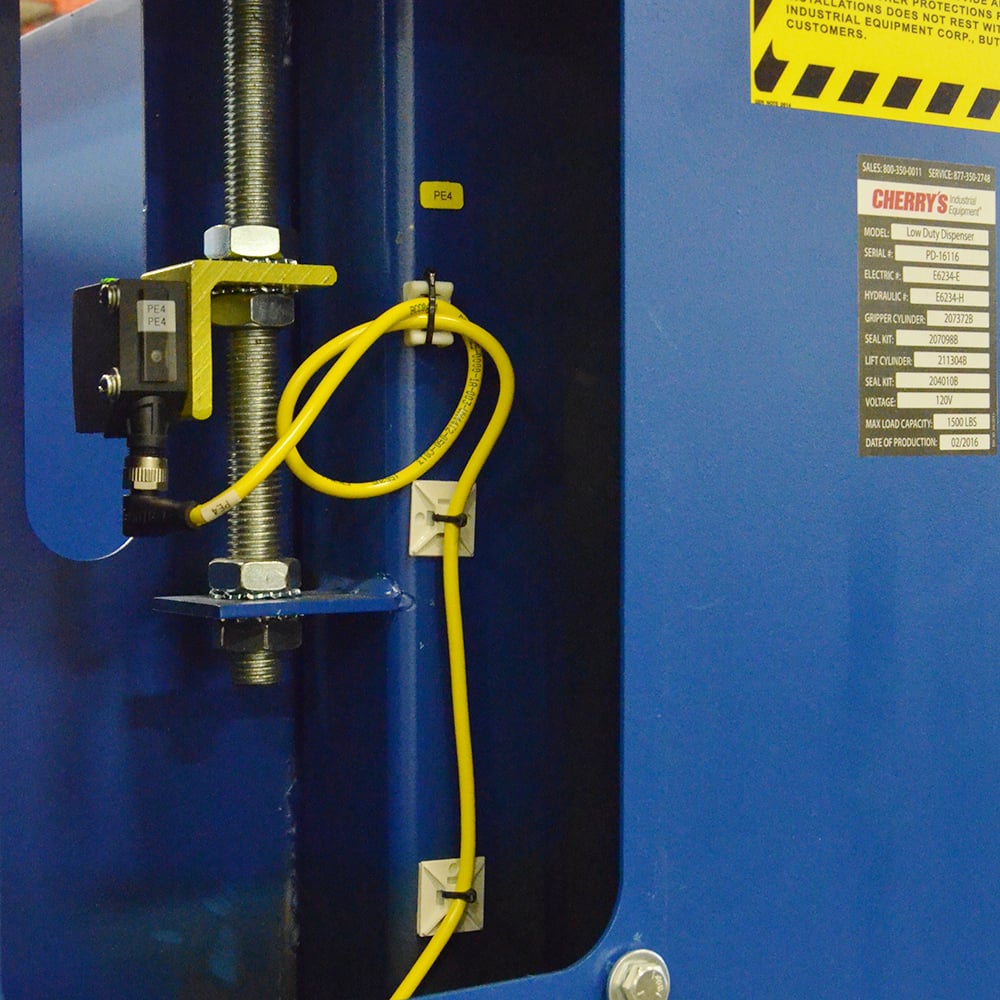

The LDD Pallet Dispenser ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: continuous duty power unit, a dispenser full photo for stacking pallets, powered safety gate and upgraded components to meet your application or corporate specification.
