STK/DSTK/TP-CIE Stacker Tipper

STK/DSTK/UTP-CIE-M

The Modular Pallet De-stacker STK/DSTK/TP-CIE is a hydraulically or pneumatically operated system designed to unstack one pallet at a time from the bottom of a loaded stack. As part of a fully integrated pallet washer and dryer system, the unit not only un-stacks pallets automatically but also tips individual pallets vertically - preparing them for efficient washing and drying.

Request a Quote

Call 847-443-3861 to speak with our experts

Layout

See it in the Wild

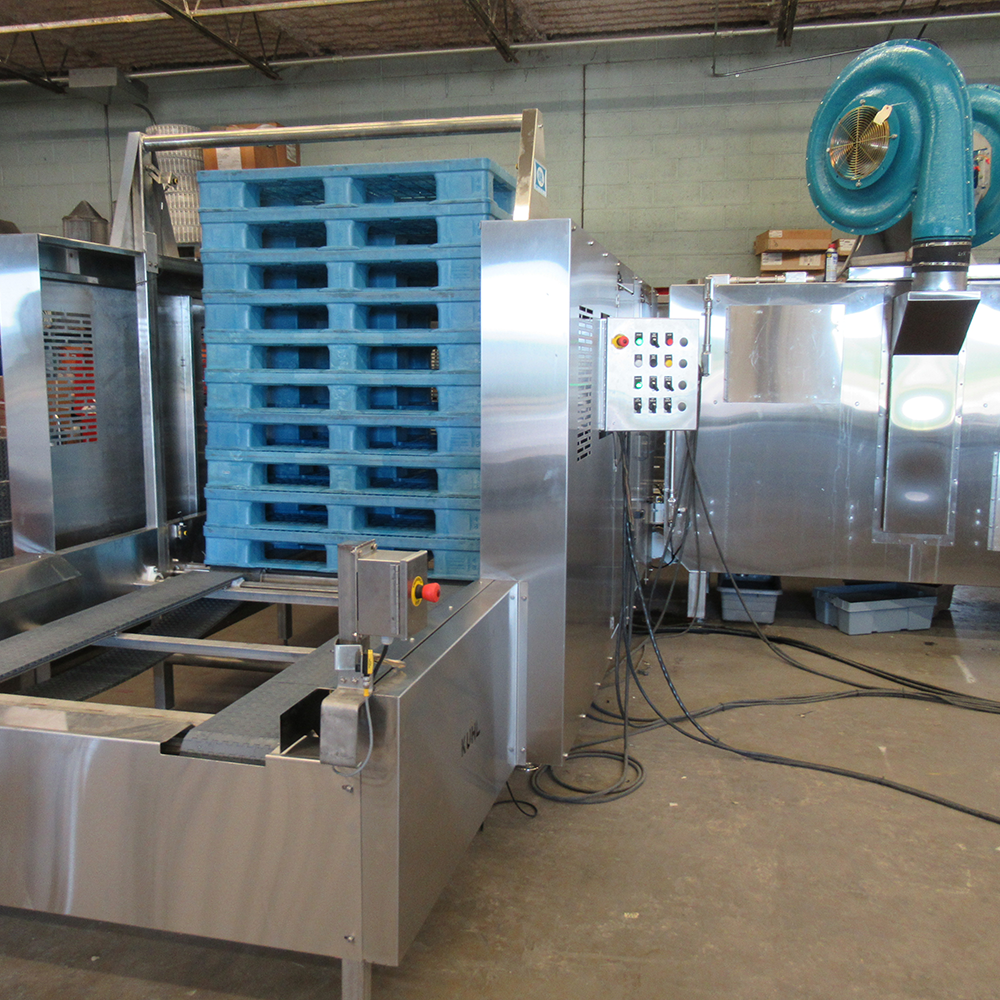

Pallet stacker tipper utilzed in automatic pallet washing system

Modular Pallet Stacker integrated into washing system

Product Information

A forklift operator loads a stack of 10 pallets, after which the system takes over, eliminating all manual loading, unloading, or handling by employees. The hydraulically or pneumatically unit unstacks a pallet from the bootom of the load, then tilts a single pallet on its edge, positioning it for vertical cleaning within the washer. This ensures consistent, thorough sanitation - ideal for industries with strict hygiene standards. For safety and reliability, the DSTK includes automatic shutoff functionality when no pallets are present or in the event of a pallet jam. This modular, hands-free solution is designed to boost productivity, improve cleanliness, and enhance worker safety in industrial and distribution environments.

Specifications

Model	STK/DSTK/TP-CIE
Capacity	10 pallets
Lift/lower/hold cylinders	Pneumatic or hydraulic
Tilt cylinder	Pneumatic or hydraulic

Electrical panel	Plug and play with main panel
Access door	Door Key or tool required
Operator panel	HMI
Construction	304 Stainless Steel with # 3 Polish

Infeed/Outfeed conveyor	One section 5'
Conveyor type	Intralox plastic belt
Conveyor speed	Variable controlled via VFD
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

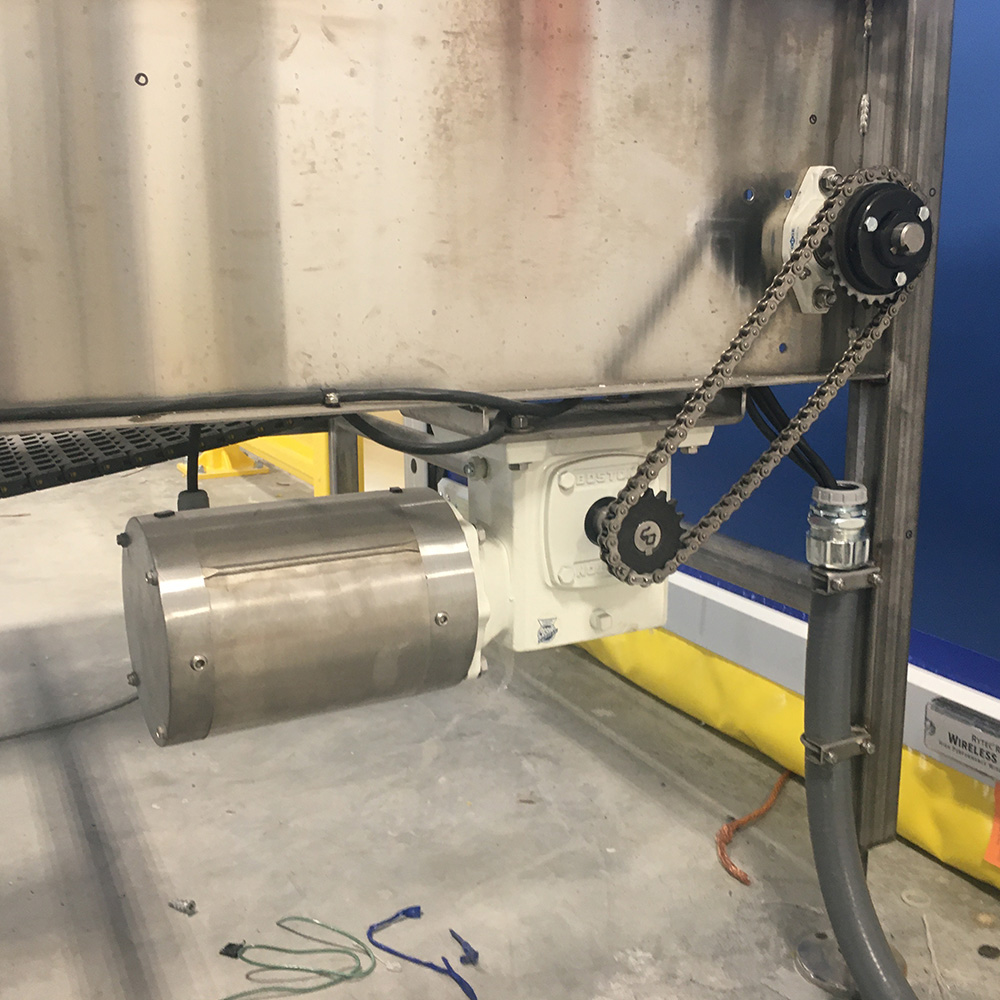

Infeed/Exit Conveyor

The current unit includes one pallet conveying position in front of the stacker and de-stacker. Adding a 5-foot conveyor section will increase accumulation capacity and add more pallet positions. To ensure smooth transitions, pallet guides will help direct pallets onto the next conveyor. The infeed conveyor will also be fitted with extended sheet metal guards to protect operators from moving belts.

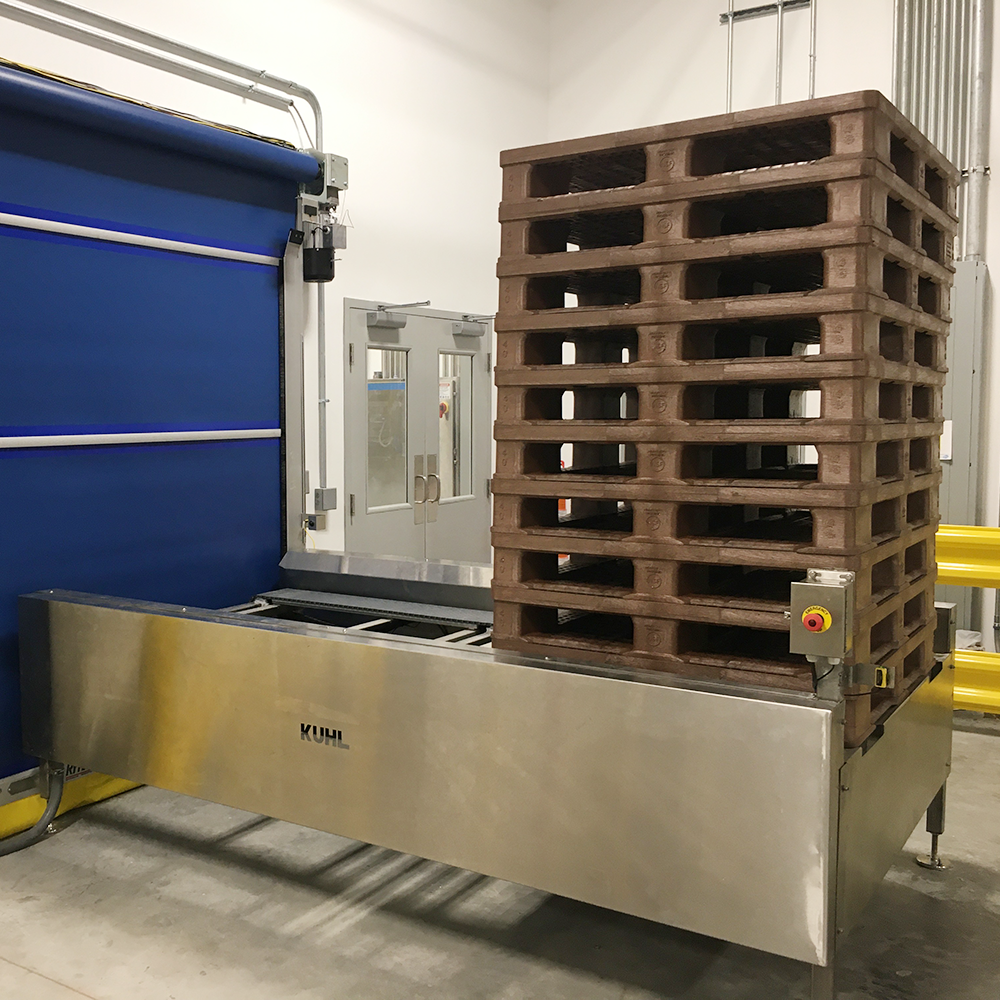

Staging conveyor

Transistion rollers

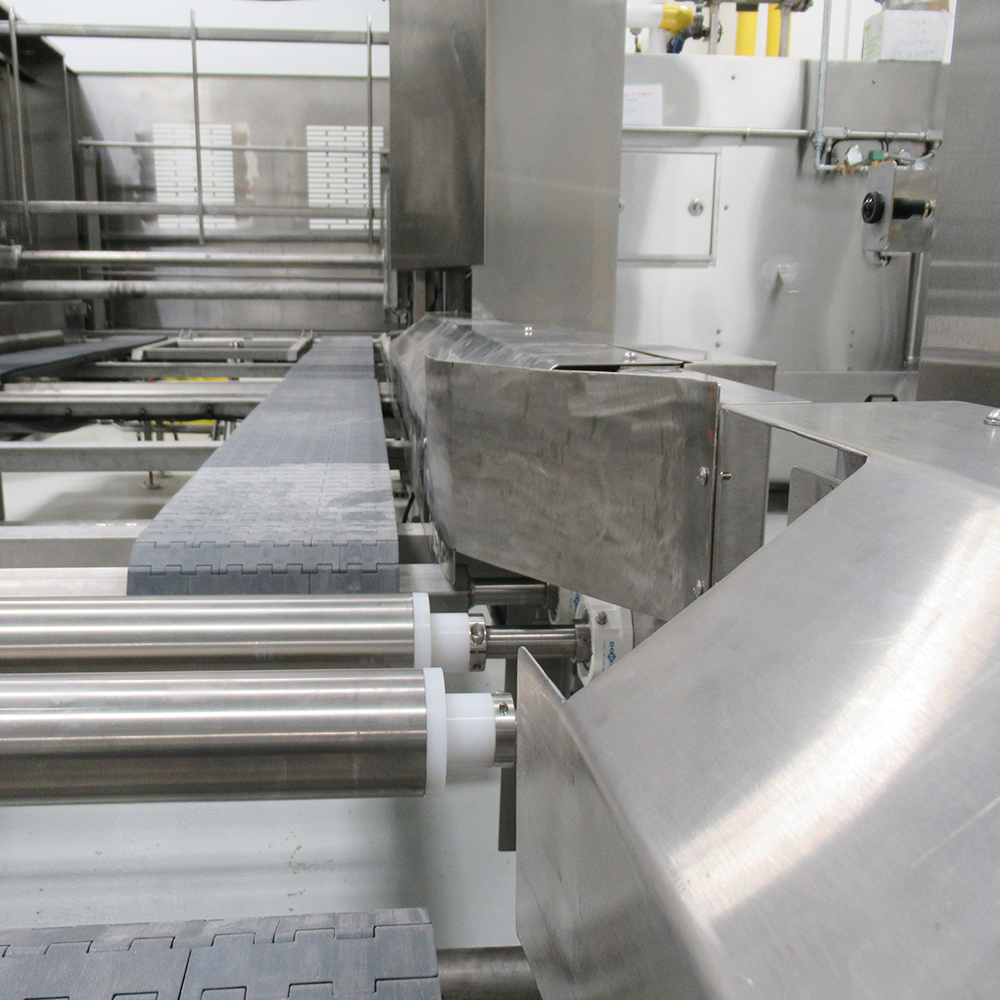

Pallet stack guide

Loading funnel

Lift/Hold and Tilt

For sites without shop air, the lift, hold, and tilt functions can be upgraded to hydraulic operation. Optional stainless steel cylinders offer enhanced durability and support hygienic operation in sensitive environments. A remote E-stop provides added safety and quick system shutdown when necessary.

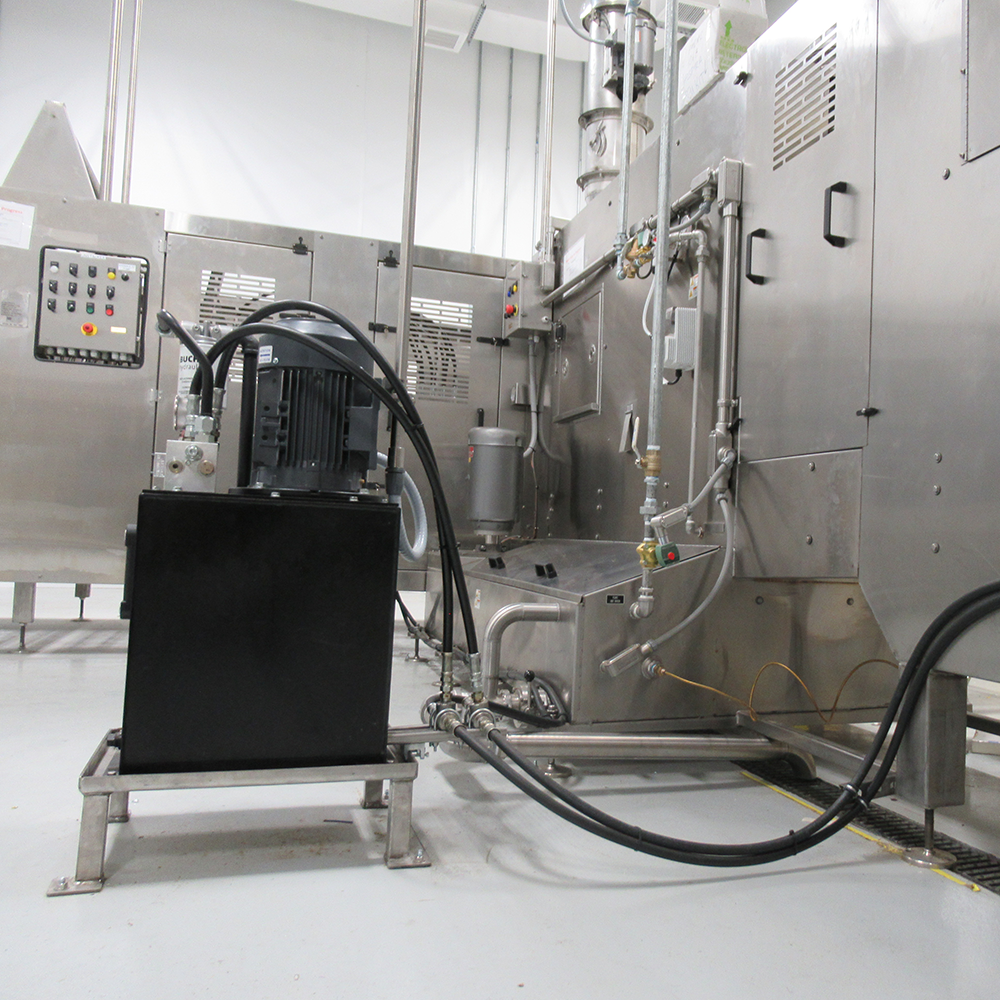

Hydraulic HPU

Stainless cylinders

Remote E-stop

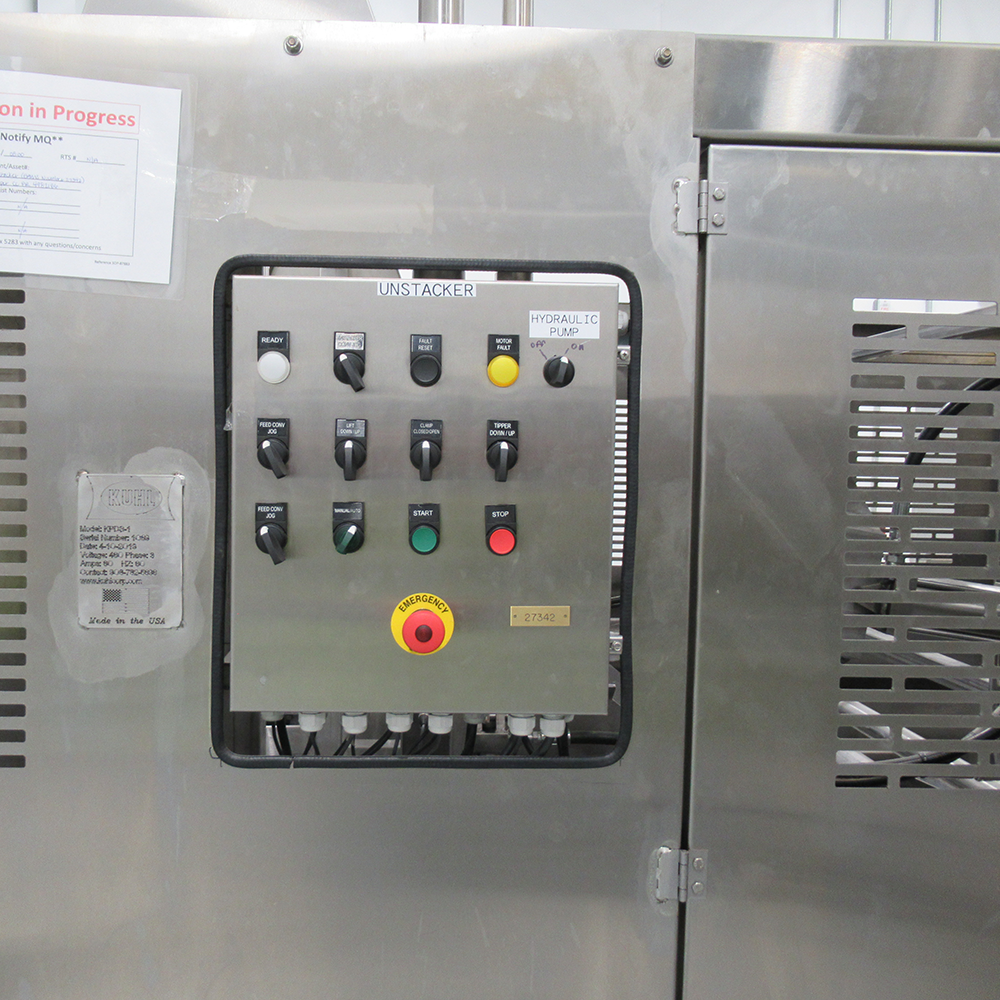

Safety and controls

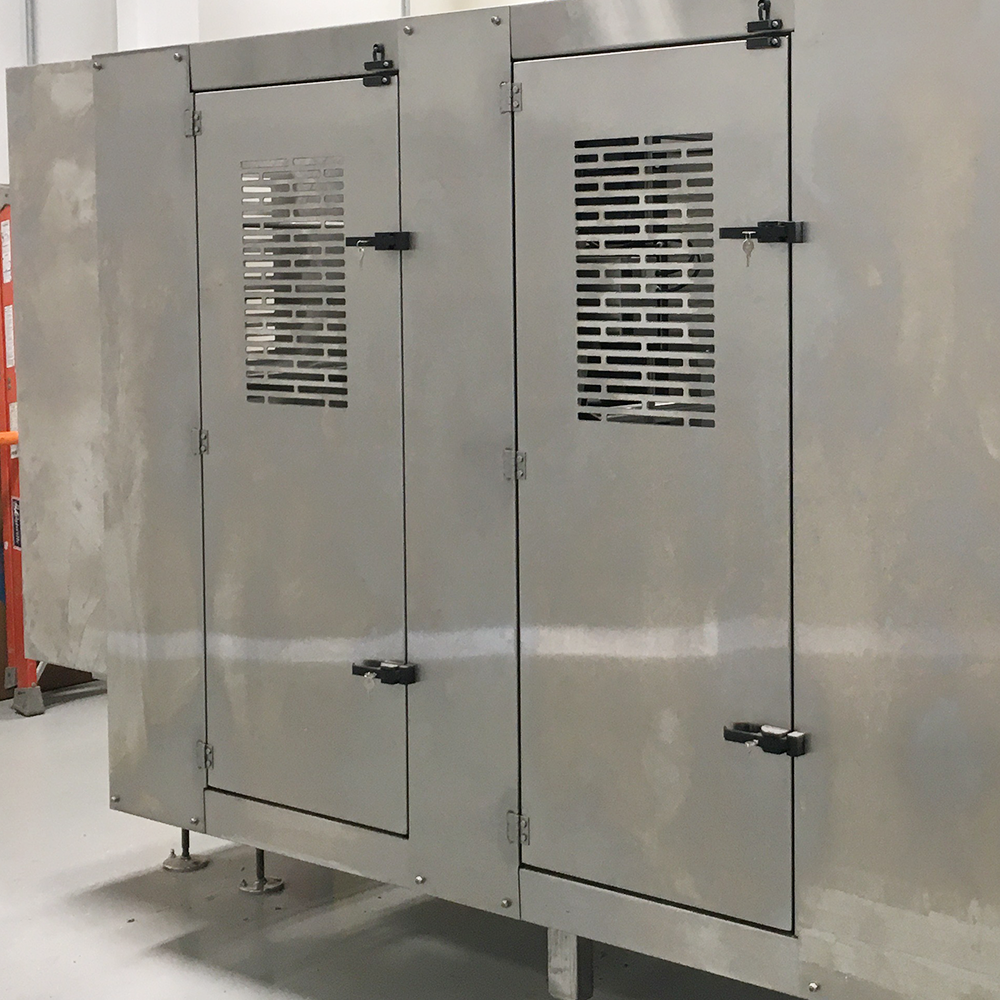

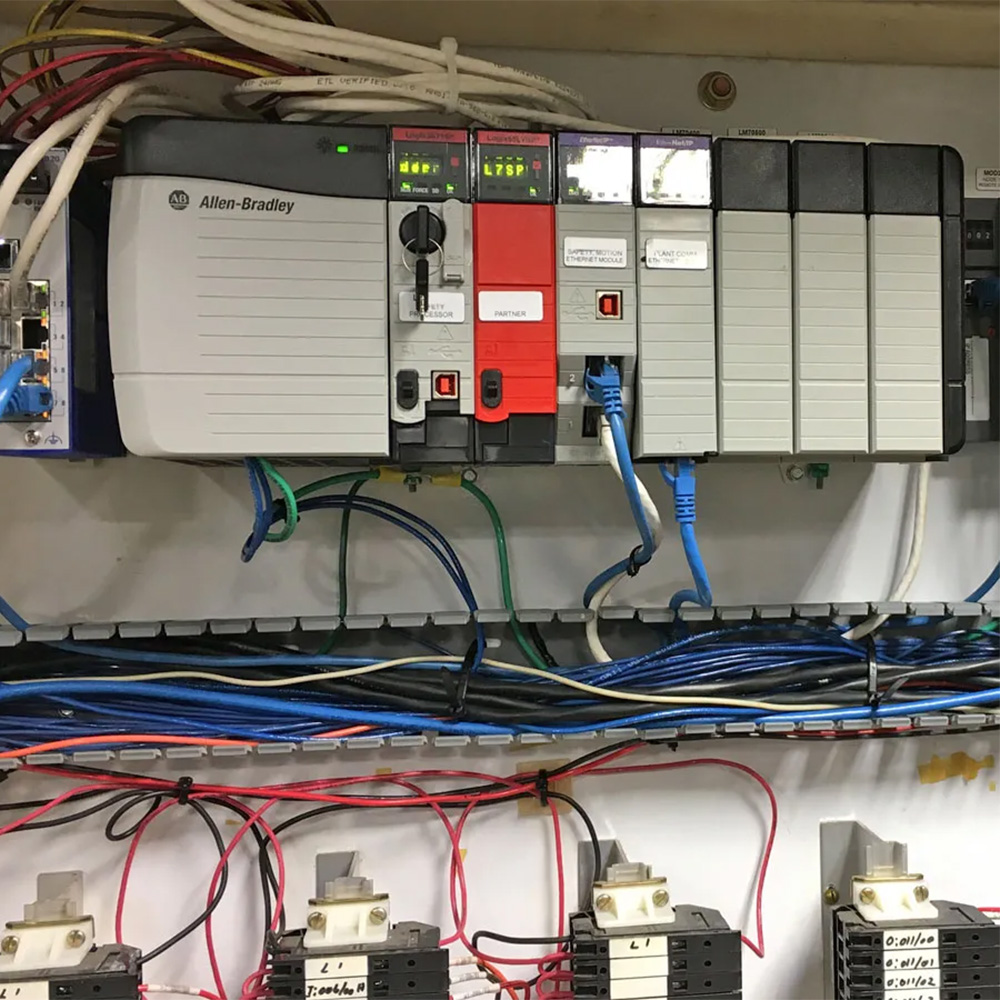

Equipped with keyed access doors, options include :non-contact safety door switches, and a safety controller, the system ensures safe operation at all times. An auto shutoff sensor triggers if pallets are missing or a jam occurs, minimizing risk and downtime.
