SC-96P Single Clamp Pallet Inverter


SC-96P

Free standing 180 degree inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert and transfer loads ranging from 48'' to 96''. Features include: UL508 Certified electrical panel, six button operator pendant, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. SPECIAL ORDER. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

SC-96-GRSC-96-HSG
SC-96P Single Clamp Pallet Inverter
SC-96P Single Clamp Pallet Inverter Image 1

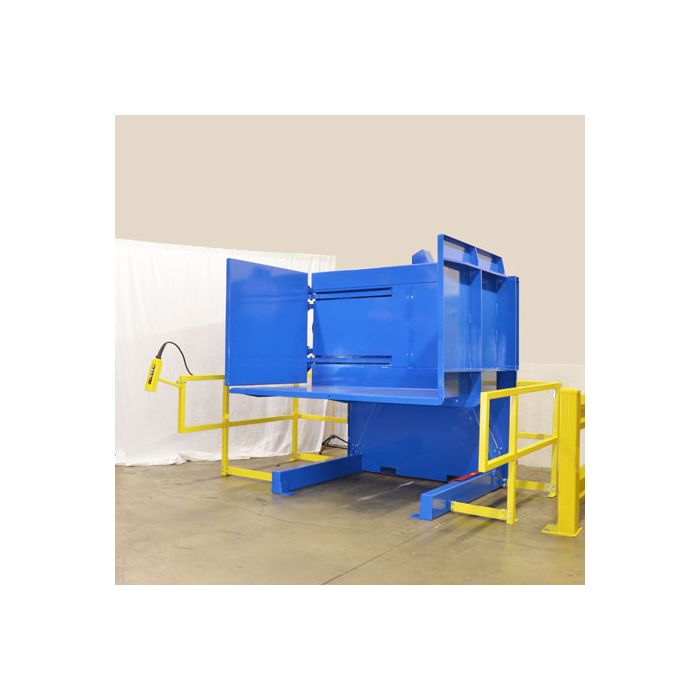

SC-96P Single Clamp Pallet Inverter Image 2

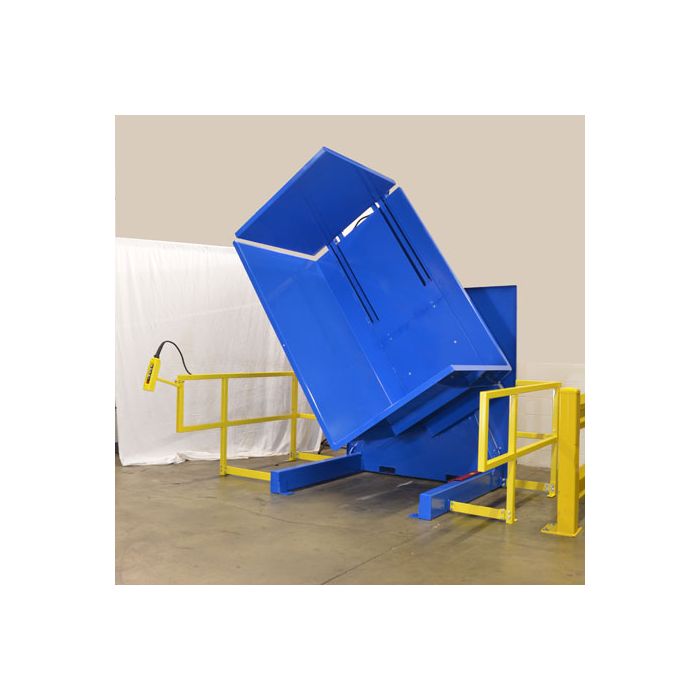

SC-96P Single Clamp Pallet Inverter Image 3
SC-96P Single Clamp Pallet Inverter Image 4

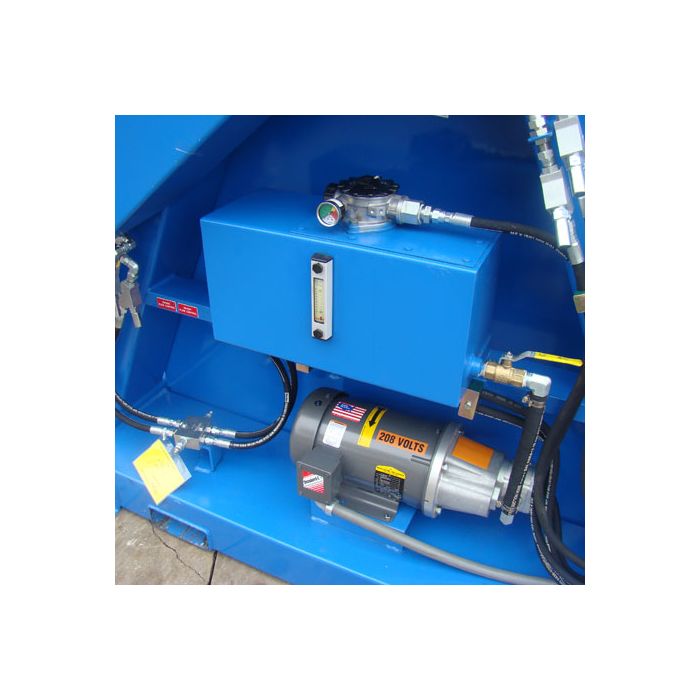

SC-96P Single Clamp Pallet Inverter Image 5

Product Information

Special Order - Built to suit. Commonly used by stevedores, fruit & vegetables importers, shredded cheese manufactures or any other company requiring an extended range from 48" up to 96". 6-button momentary contact pushbutton on a 30' cord. 6-functions include START, STOP, CLAMP UNCLAMP, ROTATE, INVERT. 24V primary voltage. Pendant can be hung from the ceiling or machine mounted with attached pendant holder.


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
SC-96P Push buttons 5/3.7 18 Invert/18 Rotate Standard
SC-96HSP Push buttons 5/6.6 10 Invert/8 Rotate Standard



Product Tour


Specifications


ModelSC-96P
ControlsSix Button Pendant
Loading Table Size50 x 50
Max. Jaw Opening96"
Min. Jaw Opening48"
FinishBlue Epoxy Paint
Capacity4,400 lbs
Adjustable Clamp Pressure400-2000 PSI
System Pressure2200 PSI
Maintenance Lock Outs4
Motor5 HP
Power Source208/230/460/575V
CertificationsUL 508a Certified Panel
Warranty3 year parts and 1 year labor. Extended service agreements available.
FOBRoselle, IL
Loading Height Upright19"
Operating Width115"
Operating Depth78.5"
Operating Height123-3/4"
Loading Height Inverted11-1/8"
Width With GuardsGR-134-3/4"/HSG-138"
Shipping weight*4,300 lbs
Shipping Dimensions96" L x 96" W x 96" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

Built standard with an energy saver pendant with press and maintain push buttons that illuminate when activated. The pendant can be magnetically held in placed on a post, column or on the side of the guarding, depending on your needs. A variety of control configuration options are available for the SC-96P including: an operator console, auto controls, RF radio remote, high speed motion controls or a downgrade to lever controls.

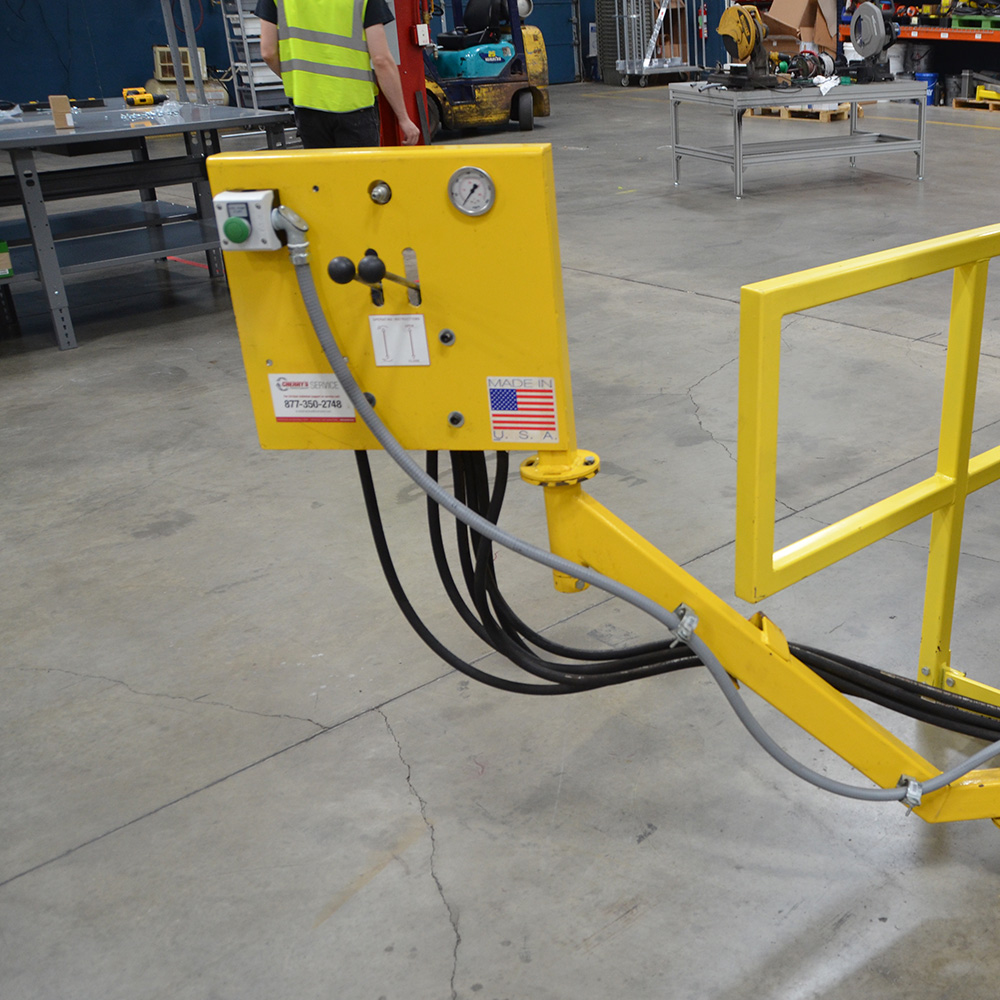

Lever ControlsLever Controls
Control ConsoleControl Console
Radio remote controlRadio remote control

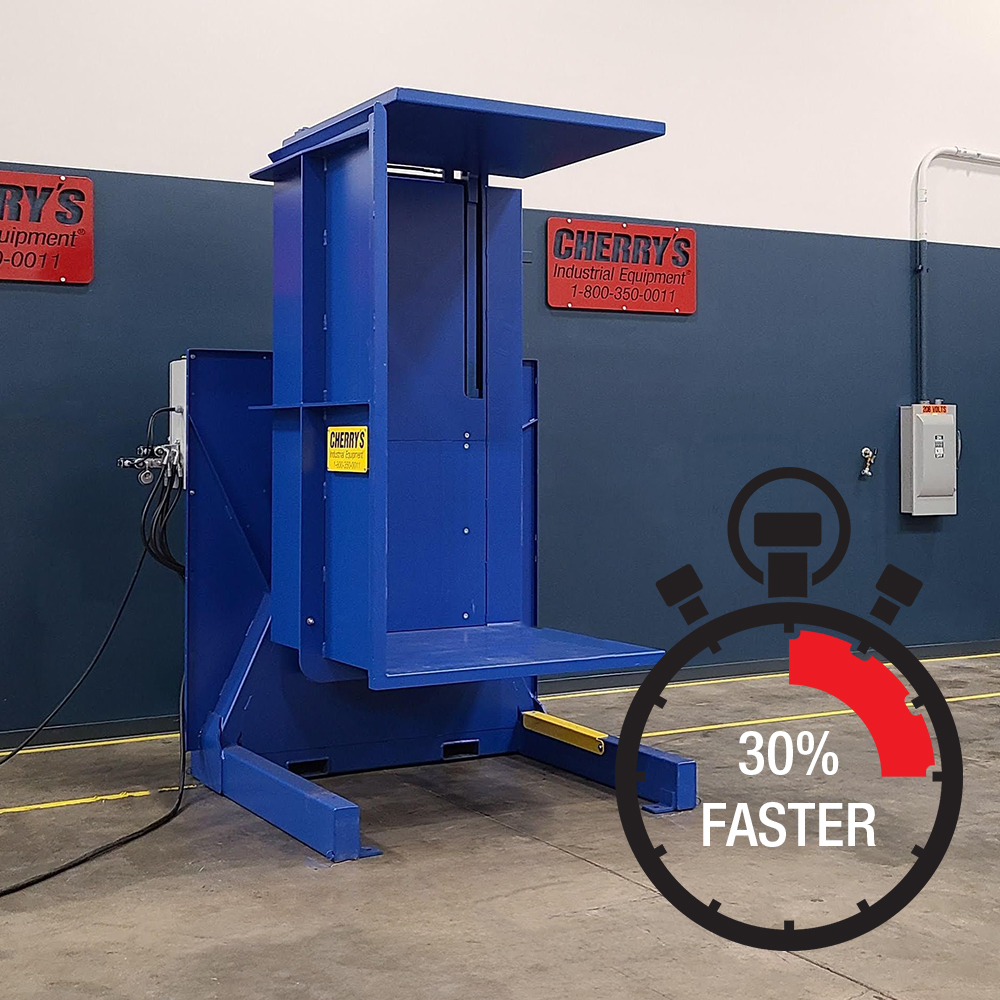

High speed motion controlsHigh speed motion controls

Guards

The standard SC-96P includes square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78” high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, light curtains and safety mats can be added to protect the area inside of the fence and around the machine.


Rail GuardsRail Guards

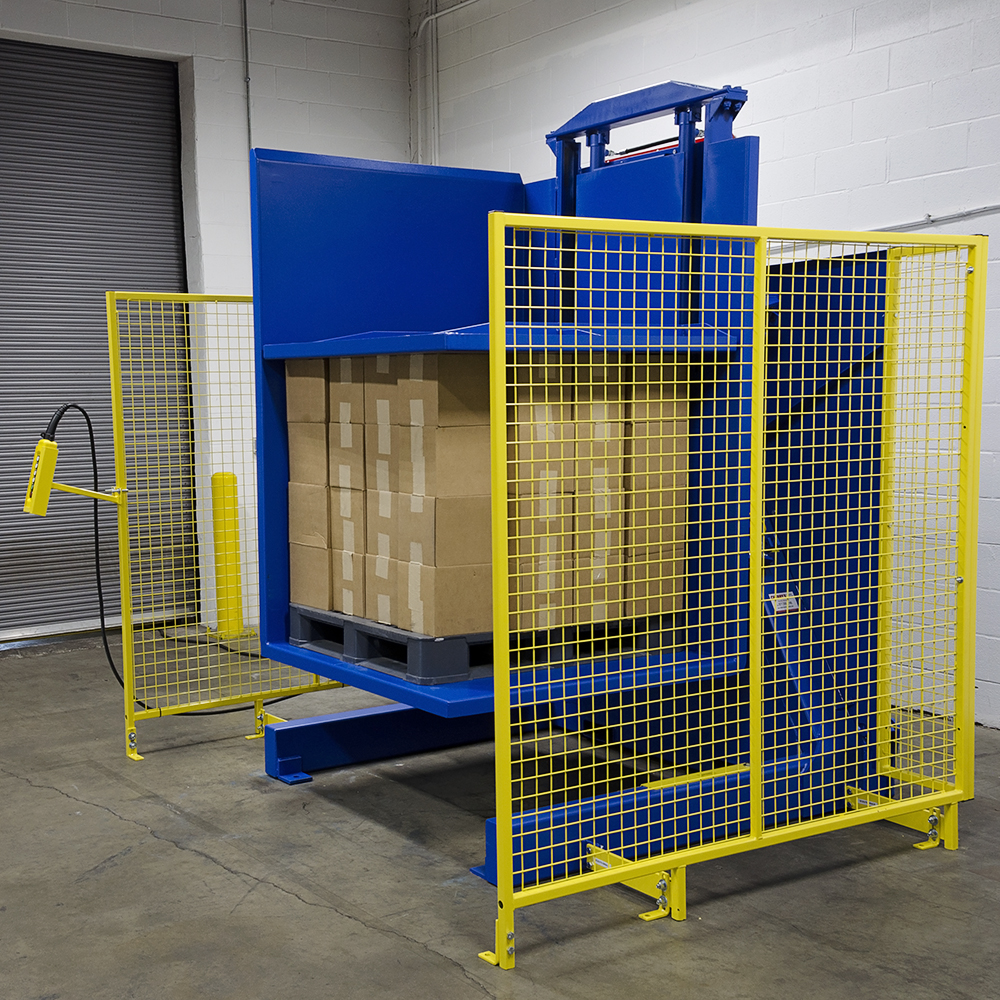

High Style GuardsHigh Style Guards

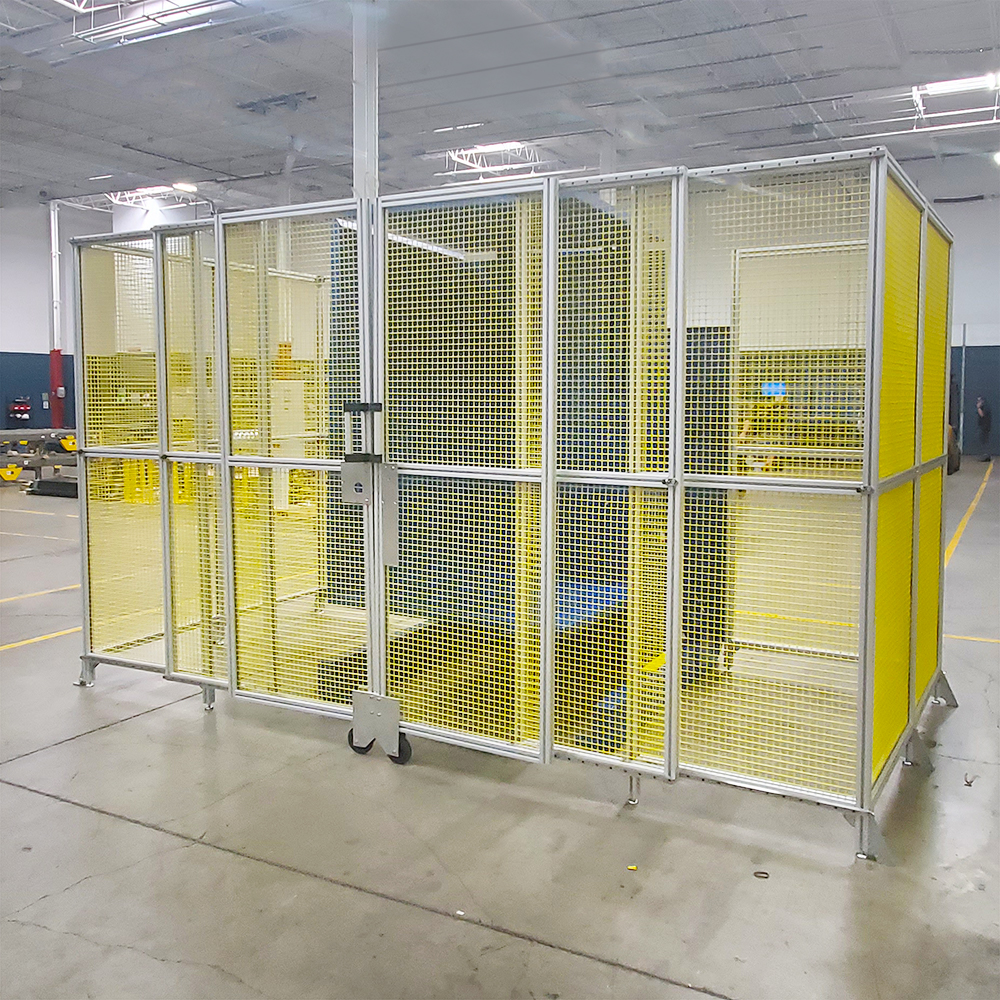

Bosch GuardingBosch Guarding

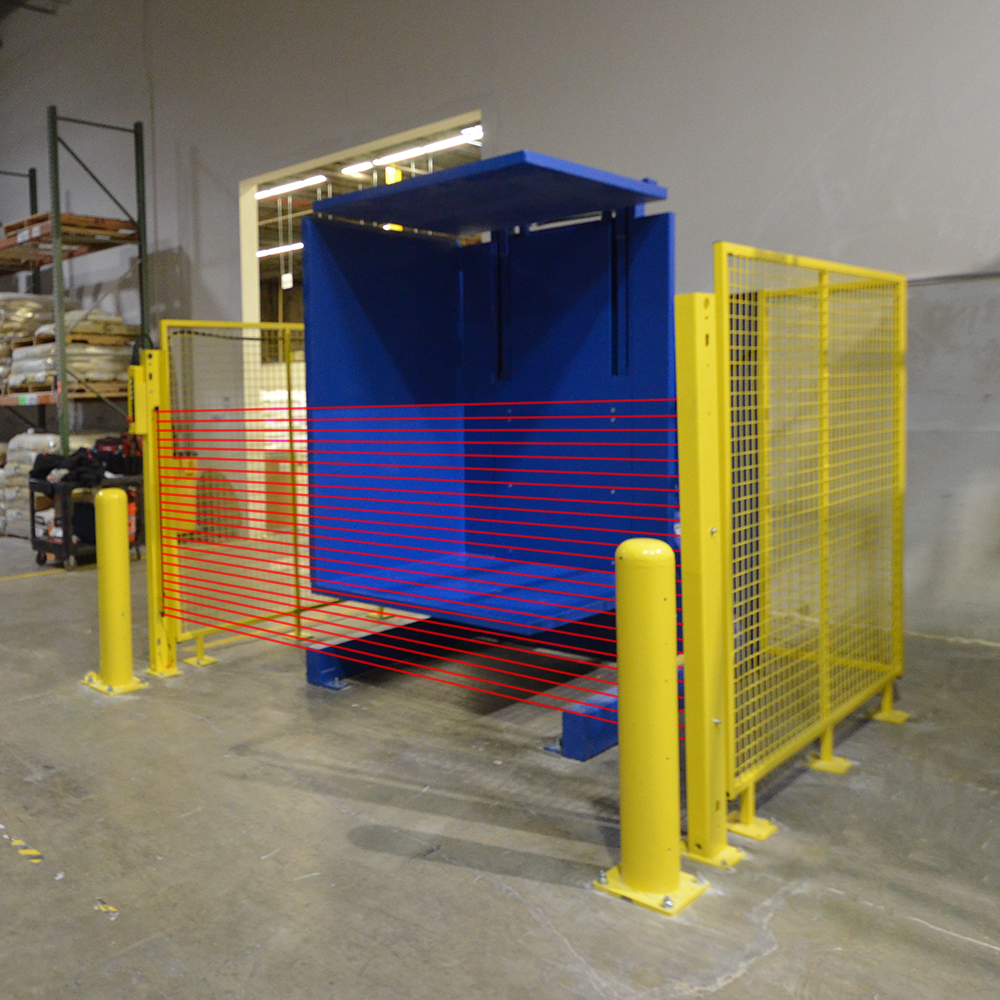

Cat 4 Light CurtainCat 4 Light Curtain

Options

The standard SC-96P Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: a profile plate to reduce the usable opening, a slip sheet profile and custom color/finishes and upgraded components to meet your application or corporate specification.

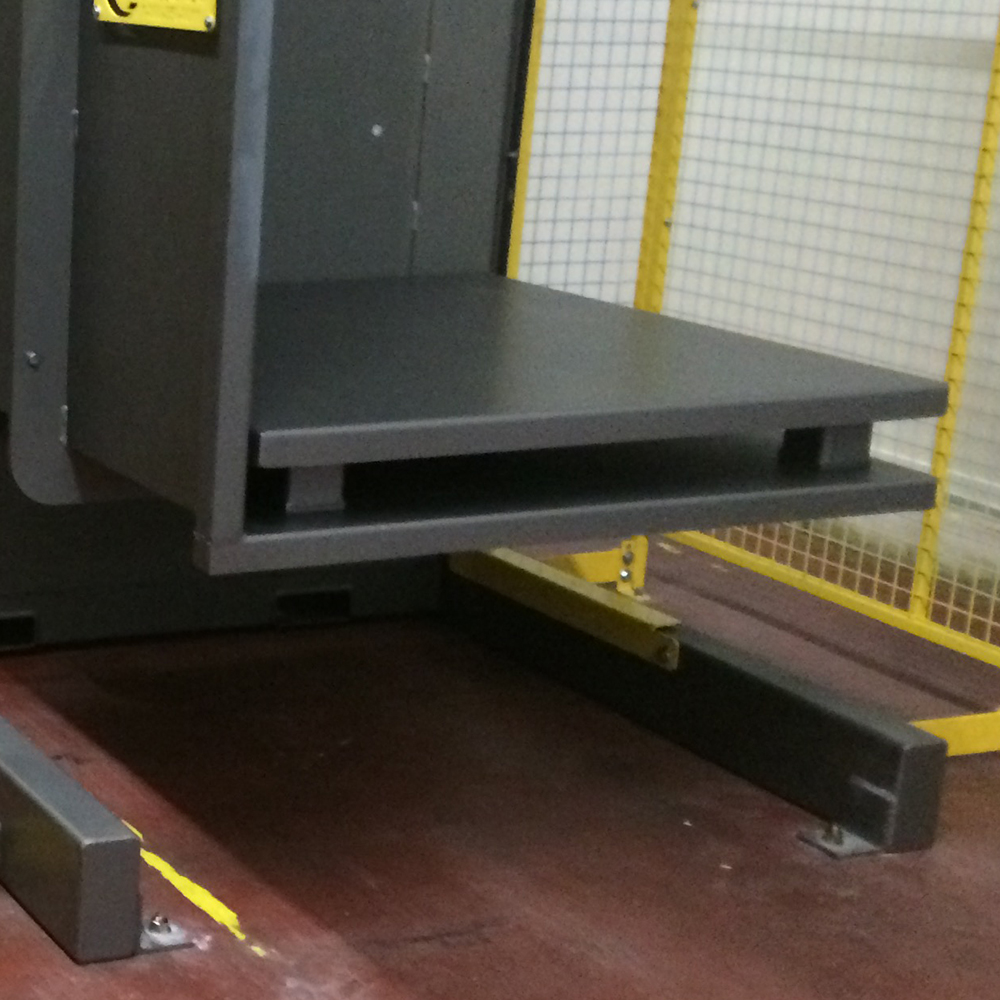

Profile plateProfile plate
Slip sheet profileSlip sheet profile

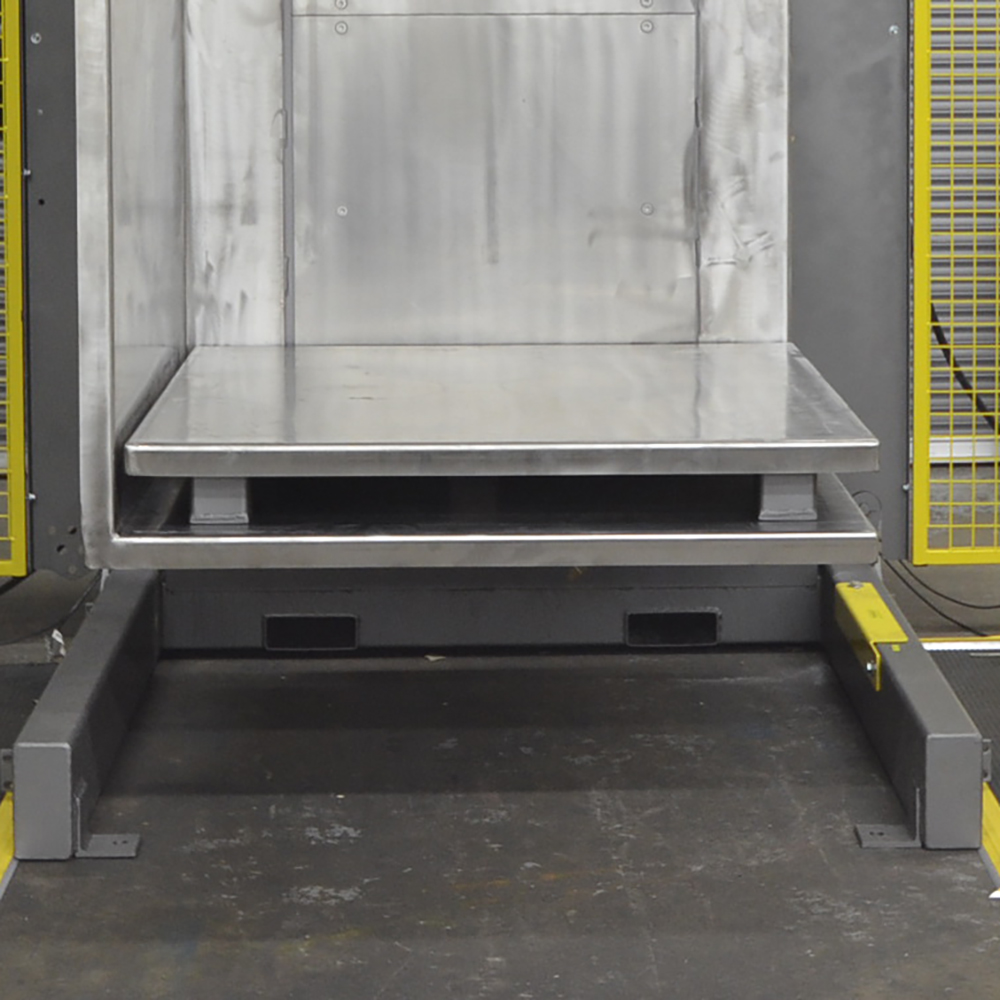

Stainless steelStainless steel
Paint color/finishPaint color/finish
