S-300 Semi-Automatic Overhead Wrapper


S-300

The Lantech S-300 Semi-Automatic Straddle Stretch Wrapping System is designed to efficiently and effectively secure pallet loads before transport. Drivers can stay on the forklift, saving up to two minutes per load. Units come with a three-year, unlimited cycle warranty.

Call 847-443-3861 to speak with our experts

Product Details
S-300 Semi-Automatic Overhead Wrapper

See it in the Wild

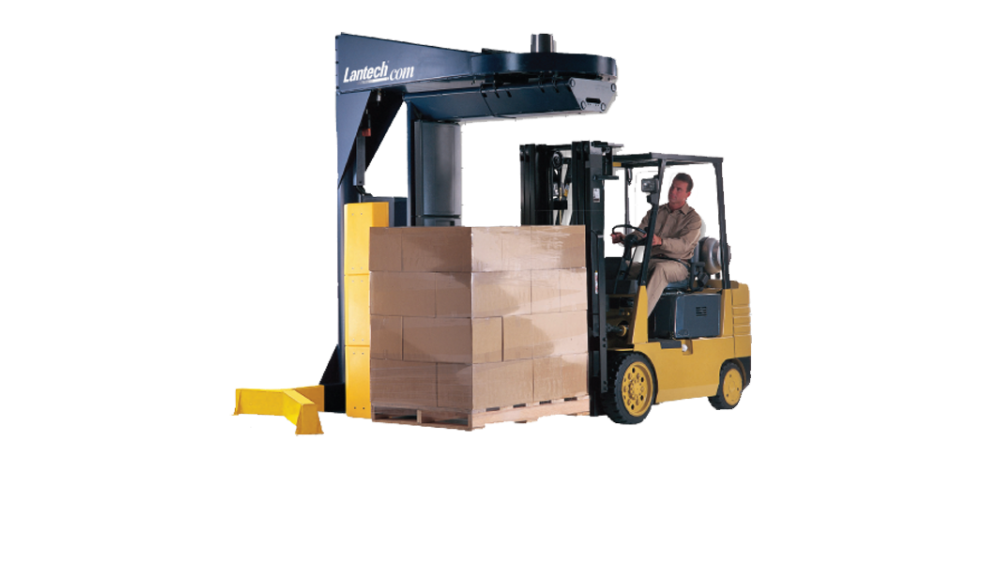

Fork Lift Driver Removes a Skid of Product after it is Shrink Wrapped Fork Lift Driver Removes a Skid of Product after it is Shrink Wrapped
×

Product Information

The Lantech S-300 Semi-Automatic Overhead Wrapper is an innovative material handling tool designed to help you work smarter, safer and more efficiently. These versatile stretch wrapping systems are an excellent choice for working with very light, heavy or unstable loads. Units feature a patented XT Cut and Clamp system that captures the film and cuts it automatically to complete the wrap cycle. The Lantech S-300 Stretch Wrapper is capable of shrink-wrapping pallet loads with a maximum 80-inch height and no weight limitations. You can speed up cycle times and reduce manual labor while auto wrapping up to 25 to 35 loads per hour. The Film Delivery System is electronically controlled and has a 10-inch diameter roll that is 20 inches wide, while the overall dimensions of the machine are 157 inches wide x 172 inches long x 121 inches high. Other benefits and advantages of these stretch wrapping systems include: Control system is intuitive and easy to learn Film delivery system is consistent and maintains prestretch over the long haul Customization options are available to work to your exact specifications. We call on over 35 years of industry expertise to deliver material handling solutions that completely solve your warehouse or production challenges. Whether you're in the market for a stretch wrapper or any of our other products, you can be sure you're getting quality equipment capable of improving ergonomics, worker safety and performance.

Product Tour


Specifications


Production Speed25-35 Loads/Hr.
Max Load WeightFloor Capacity
Max Load Height80
Warranty3 Years, Unlimited Cycles
BrandLantech
Pre-Stretch200%
Film Capacity10
Wrapping ForceVariable (Electric)
Film Delivery SystemPower Roller-Stretch
Pallet GripStandard
Max Load Diagonal76
Wrap Arm Drive3/4 HP TEFC
Wrap Arm Speed12 RPM
Standard Film Width20"
E-Z Thread Roll CarriageStandard
Wrap Arm Zone90"
FOBLouisville, KY
Shipping Weight*3,200 lbs
Voltage115 V, 20A
Wrap Arm Speed12 RPM
