SL Automatic Conveyorized Automation Overhead Stretch Wrapper


SL Automatic LeanWrap Stretch Wrapper

Conveyorized SL Automatic Rotary Arm Stretch Wrapper capable of wrapping 50 loads per hour.

Call 847-443-3861 to speak with our experts

Product Details
SL Automatic Conveyorized Automation Overhead Stretch Wrapper

See it in the Wild

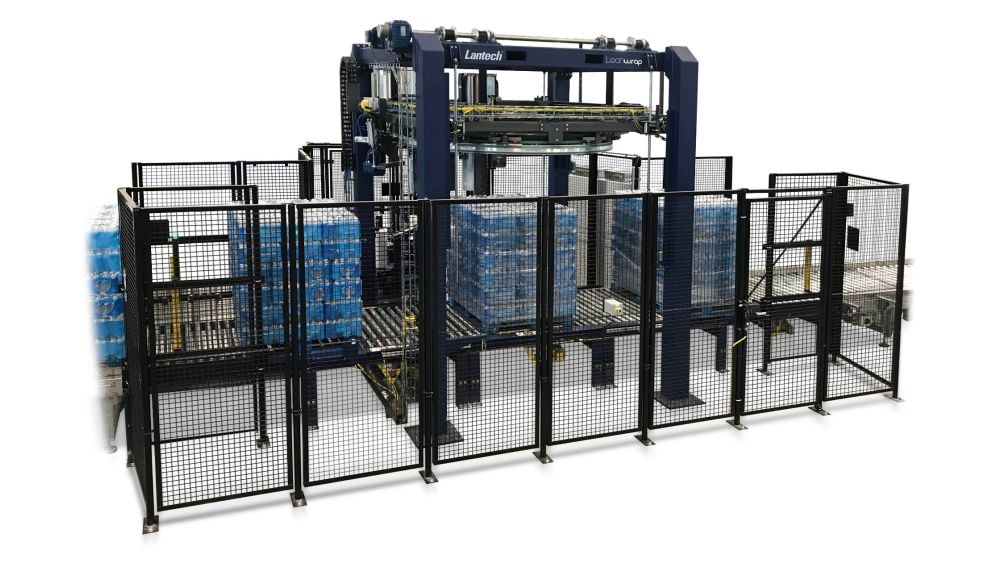

Inline Stretch Wrapper Shrink Wrapping Bottled Product Inline Stretch Wrapper Shrink Wrapping Bottled Product
×

Product Information

The SL Automatic is a fully automatic stretch wrap system that can either be loaded manually by a fork truck or can operate in-line with other automated equipment. Ideal wrapper for tall column stacked loads that are unstable or too heavy to rotate. The SL Automatic is equipped with Pallet-Grip®, the patented solution that locks your load to the pallet to reduce load shifting, product damage, and returned goods.

Product Tour


Specifications


BrandLantech
Film Capacity10"
HMI Touch ScreenAB PanelView Plus 7
ControlPLC with Ethernet Communications
Standard Film Width20''
Film Cut and ClampLoad Seeking Clamp 4.0
ControllerAB CompactLogix 5380 Series
Pallet GripStandard
Film Delivery SystemMetered Film Delivery
Pneumatic3-5 CFM @ 80PSI
Pre-Stretch225%
Wrapping ForceVariable
Warranty3 Years, Unlimited Cycles
Wrap Arm Zone90"
Voltage460V
Wrap Arm Speed1-15 RPM
Minimum Load Size36” L x 36” W x 27” H
Max Load WeightBased on Conveyor Capacity
Max Load Height75"
Production Speed1-50 Loads/Hr.
Minimum Load Size36” L x 36” W x 27” H
FOBLouisville, KY
Shipping weight*11,450 lbs
Load GuardianStandard
