Heavy Duty High Capacity Upender

UC-10000-HDT

Designed for 24/7 industrial use, Cherry’s Hydraulic Upenders rotate heavy, bulky loads such as coils, molds, dies, and paper rolls within a 90-degree radius. Built from heavy-duty steel and high-quality components, they offer reliable performance in demanding environments. Available in 5- to 10-ton capacities, each unit is custom-assembled to application requirements, operates on 230/460V 3-phase power, and offers optional paint color matching.

Request a Quote

Call 847-443-3861 to speak with our experts

Heavy Duty High Capacity Upender Image 1

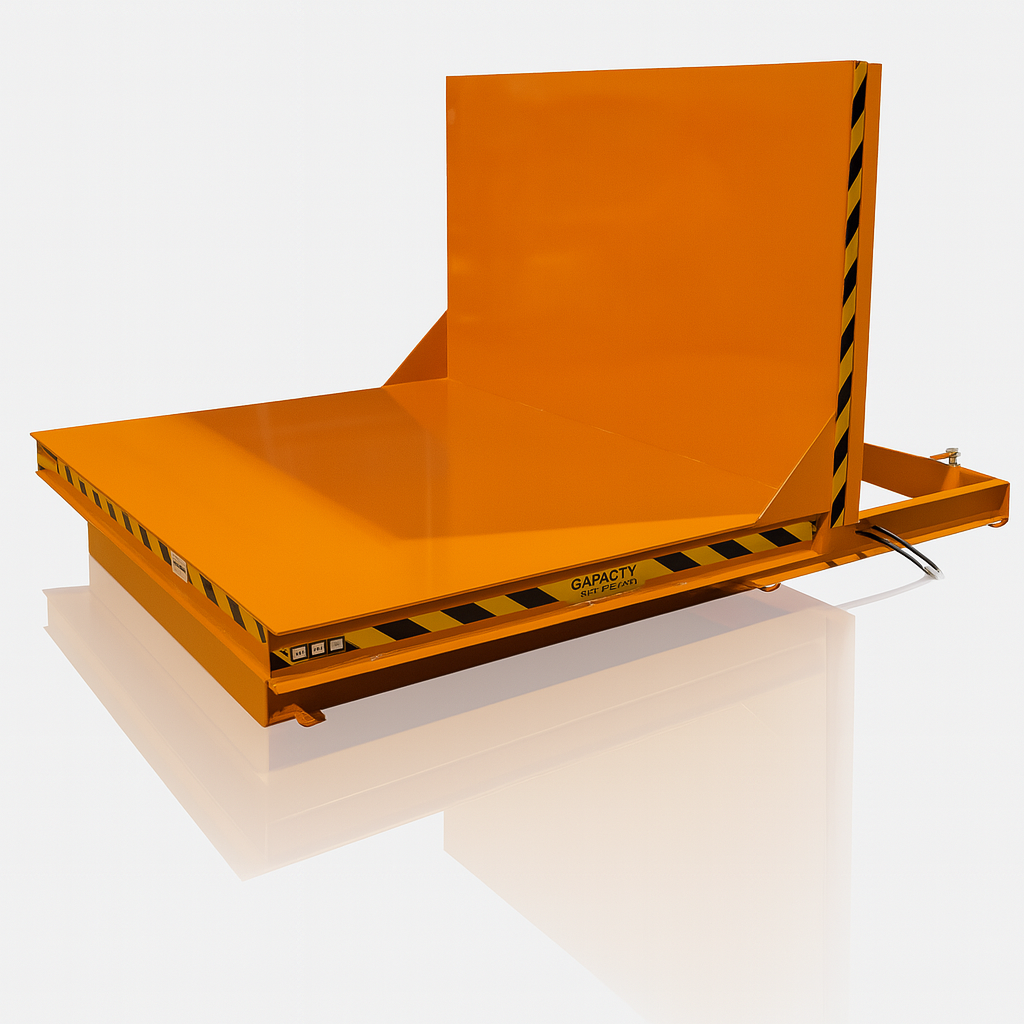

Heavy Duty High Capacity Upender Image 2

Product Information

Hydraulic Upender for Heavy-Duty Load Repositioning Cherry’s Hydraulic Upender offers a robust solution for rotating heavy, round, or irregularly shaped loads such as rolls, coils, molds, and dies. With a tilt range of up to 95 degree, it uses hydraulic power to deliver smooth, controlled motion, even in the toughest industrial settings. The unit can be equipped with V-shaped cradles or custom fixtures to stabilize and handle palletized items, crates, or cylindrical components. Engineered for durability and consistent performance, this upender simplifies load orientation tasks while improving safety and efficiency.

Specifications

Certifications	UL Listed Electrical Panel (Optional)
Brand	Cherry's Industrial
Usable Size W x L	Varies (per application)
Capacity	5 tons up to 10 tons. Other Capacities available upon request.

Loading/Unloading Height:	Starting at 12", Varies depending on capacity and travel
Power Source	208/230/460/575 3 phase
System Pressure	0-3000 PSI
Main Turnover Cylinders	Varies - depending on weight and application

Anchors	Varies
Controls	Handheld (3) button pendant
Brand	Cherry's Industrial Equipment Corp
