Q Automatic Conveyorized Automatic Turntable Wrapper


Q Automatic

Conveyorized automatic Q Automatic Truntable Stretch Wrapper capable of wrapping 45 loads per hour.

Call 847-443-3861 to speak with our experts

Product Details

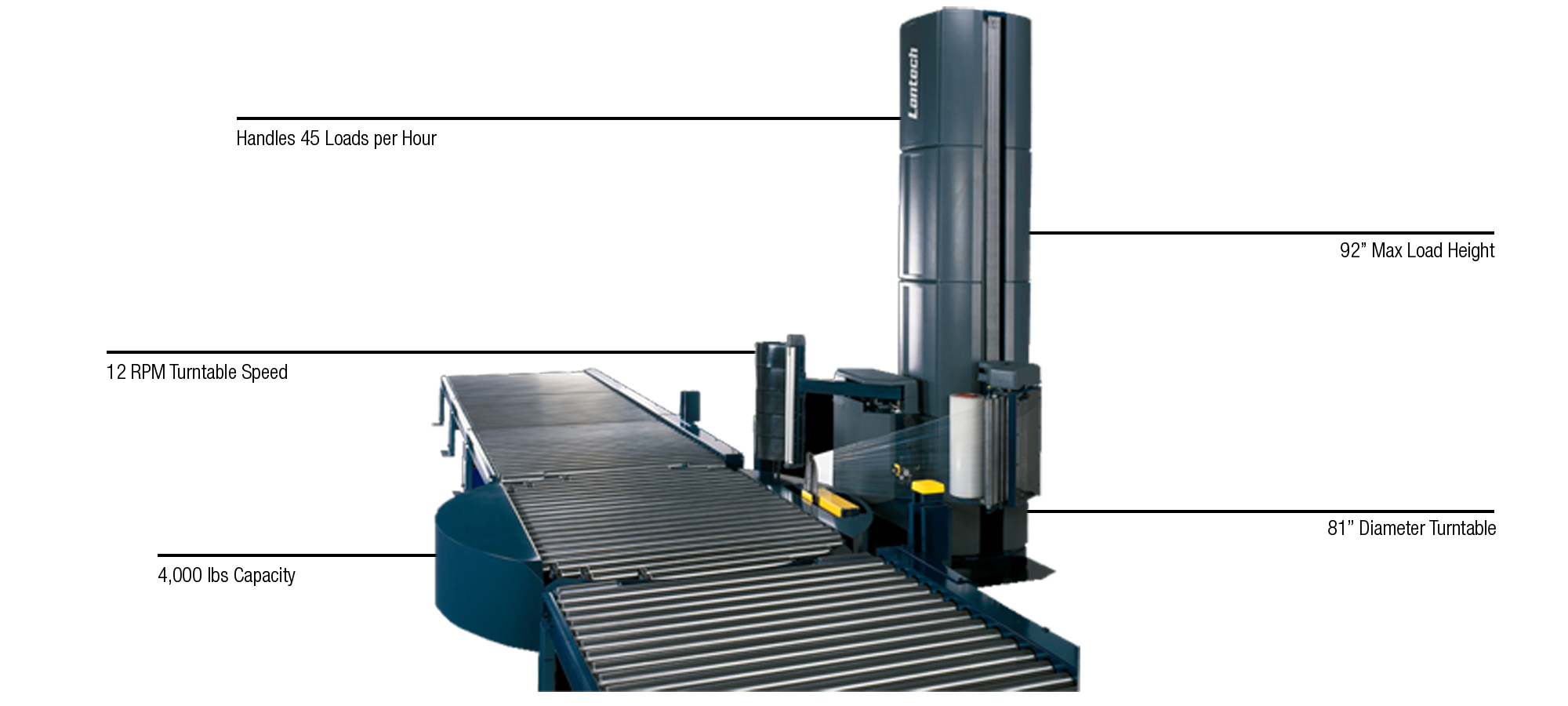

Q Automatic Conveyorized  Automatic Turntable Wrapper

See it in the Wild

×

Product Information

With over 65,000 placements worldwide, Lantech's application experience can provide the most efficient answer for your automated stretch wrapping needs. Customers wrapping 80-360 loads per day find the Q-Automatic to be the answer to improving their shipping operation. Fork truck "traffic jams" around semi-automatic machines are eliminated and operator involvement in the wrapping cycle is not required. This automatic conveyorized stretch wrapper can operate as a free-standing unit or be integrated into a high volume, conveyorized operation.

Product Tour


Specifications


BrandLantech
Film Capacity20” Web with 10” Diameter
Turntable Speed1-15 RPM

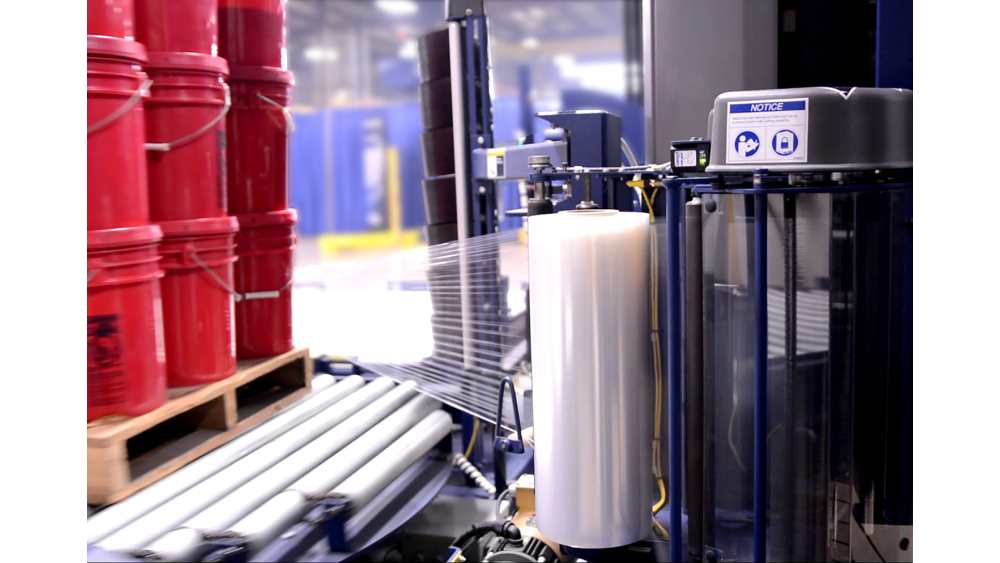

Film Delivery SystemPower Roller Stretch Plus
Film Width20"
Pneumatic3-5 cfm @ 80 PSI
Pre-Stretch225%
Film Cut and ClampJaw Clamp with Hot Wire
Warranty3 Years, Unlimited Cycles
Voltage460V
Max Load Size54” L x 48” W
Max Load Weight4,000 lbs
Turntable Size81'' Diameter
Max Load Height92"
Production Speed45 Loads/Hr.
FOBLouisville, KY
Shipping weight*6,450 lbs
Pallet GripStandard
