PT 9600 (40x48) Pallet Tunnel


PT9600

The Modular PT-9600 is used for straightening 40" x 48" GMA, Plastic, or CHEP pallets. Constructed with heavy duty welded steel and assists in loading, storing, and aligning 16-18 pallets at a time.
$6,183.00

Bulk Pricing is available on this product! (Pricing will be calculated in the cart.)
2-45+
$5906.00 / unit$5735.00 / unit

Call 847-443-3861 to speak with our experts

Layout Drawing
PT 9600 (40x48) Pallet Tunnel
PT 9600 (40x48) Pallet Tunnel Image 1

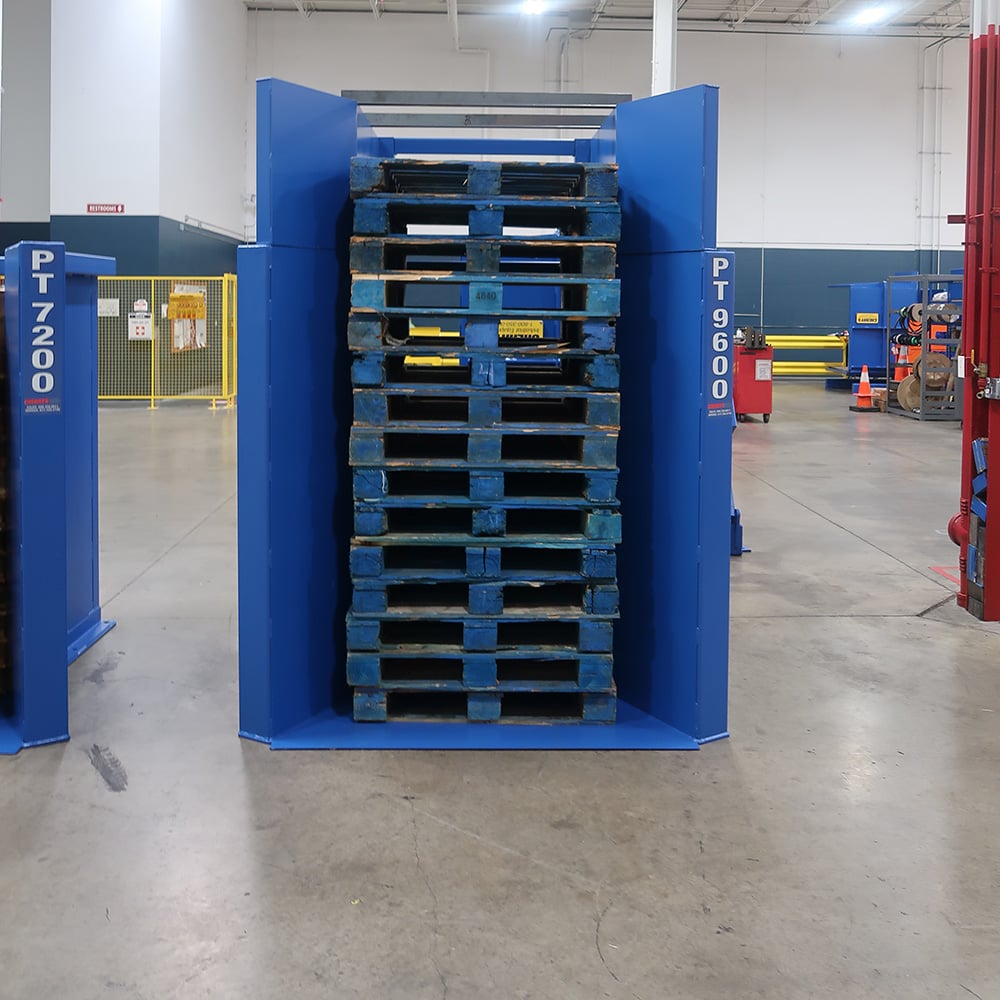

PT 9600 (40x48) Pallet Tunnel Image 2

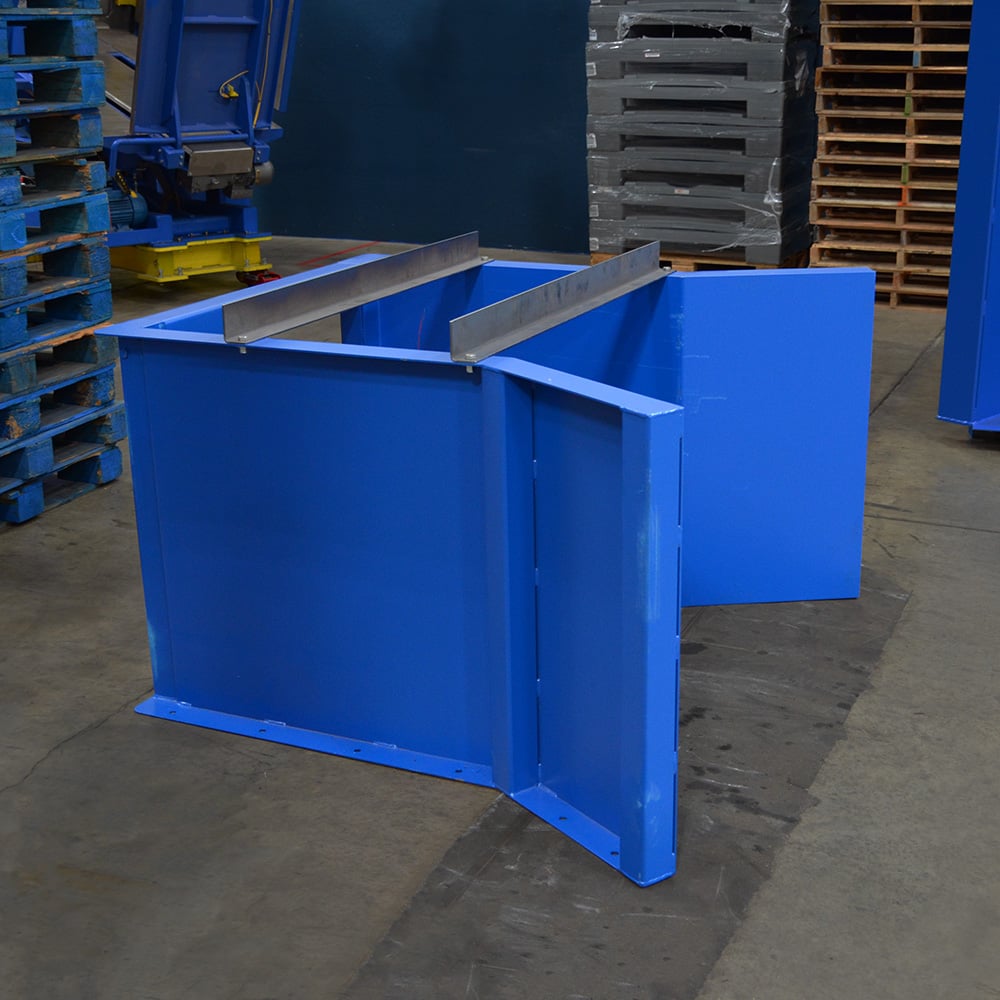

PT 9600 (40x48) Pallet Tunnel Image 3

Product Information

The Pallet Tunnel 9600 is used for straightening 40" x 48" GMA, Plastic, or CHEP pallets. The unit features a 72" base with an additional 24" bolt-on extension, providing added capacity and flexibility in pallet handling.Constructed with heavy duty welded steel and assists in loading and storing of pallets. Capable of aligning pallets side-to-side and front to back. This unit can be used indoors or outdoors and requires no electricity. Anchors to the floor at 11 points to help ensure safety. This model has a 96" H and is capable of straightening 16-18 pallets.

Specifications


ModelPT 9600
Overall Height96"
Floor Anchors11
Shipping weight*2000
Shipping Dimensions65" L x 81.5" W x 76" H
Shipping Class*100
FOBRoselle, IL
Pallet Size40" x 48" (loading and squaring on 40" side)
Usable opening41.5" (3/4" tolerance either side)
BrandCherry's Industrial Equipment Corp
