PSR-DL Direct Load Freezer Spacer Remover

PSR-DL

The PSR-DL-110, semi-automatic direct load freezer spacer removal system. Auto load indexing, heavy duty construction, CDLR conveyor for 90 degree discharge. Maximum product height with spacers is less than 88", weight up to 2500 lbs. Environment is 25 degrees F. Pallets must be in good condition and conveyable. Made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

PSR-DL Direct Load Freezer Spacer Remover

PSR-DL Direct Load Freezer Spacer Remover Image 1

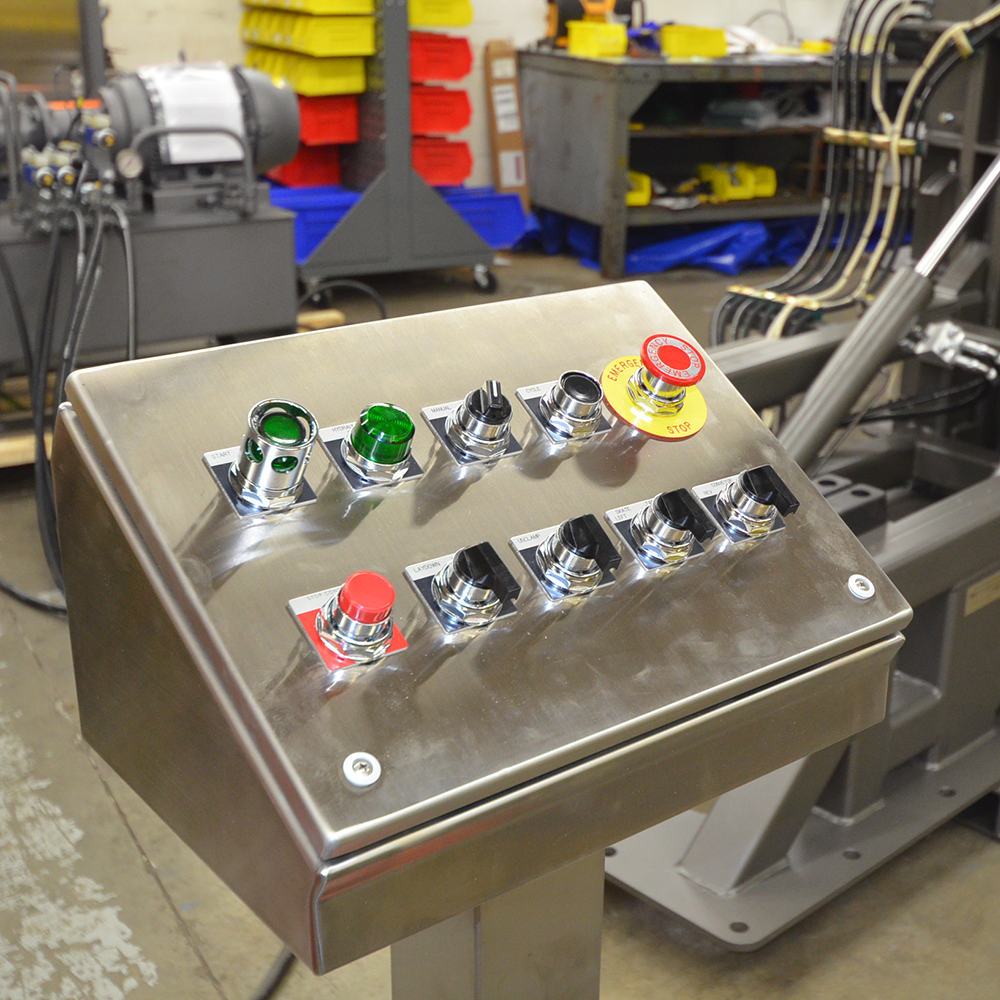

PSR-DL Direct Load Freezer Spacer Remover Image 2

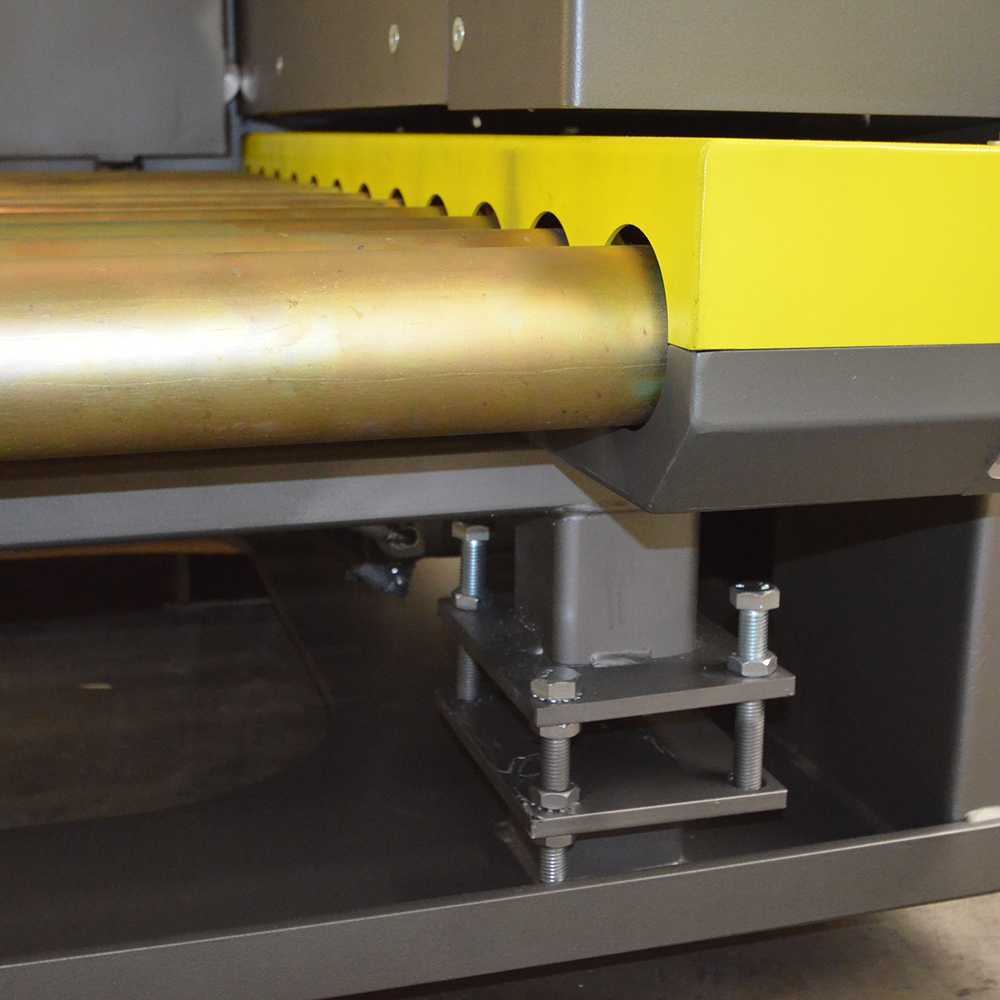

PSR-DL Direct Load Freezer Spacer Remover Image 3

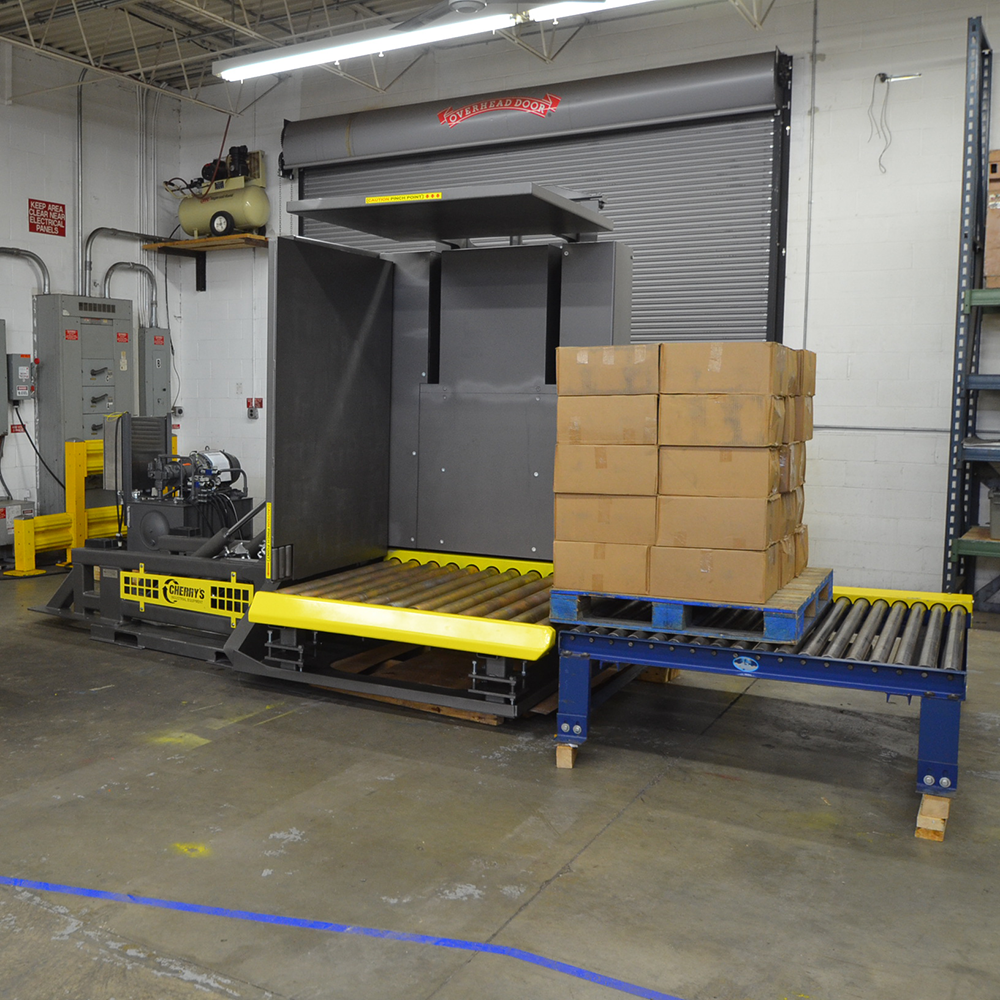

PSR-DL Direct Load Freezer Spacer Remover Image 4

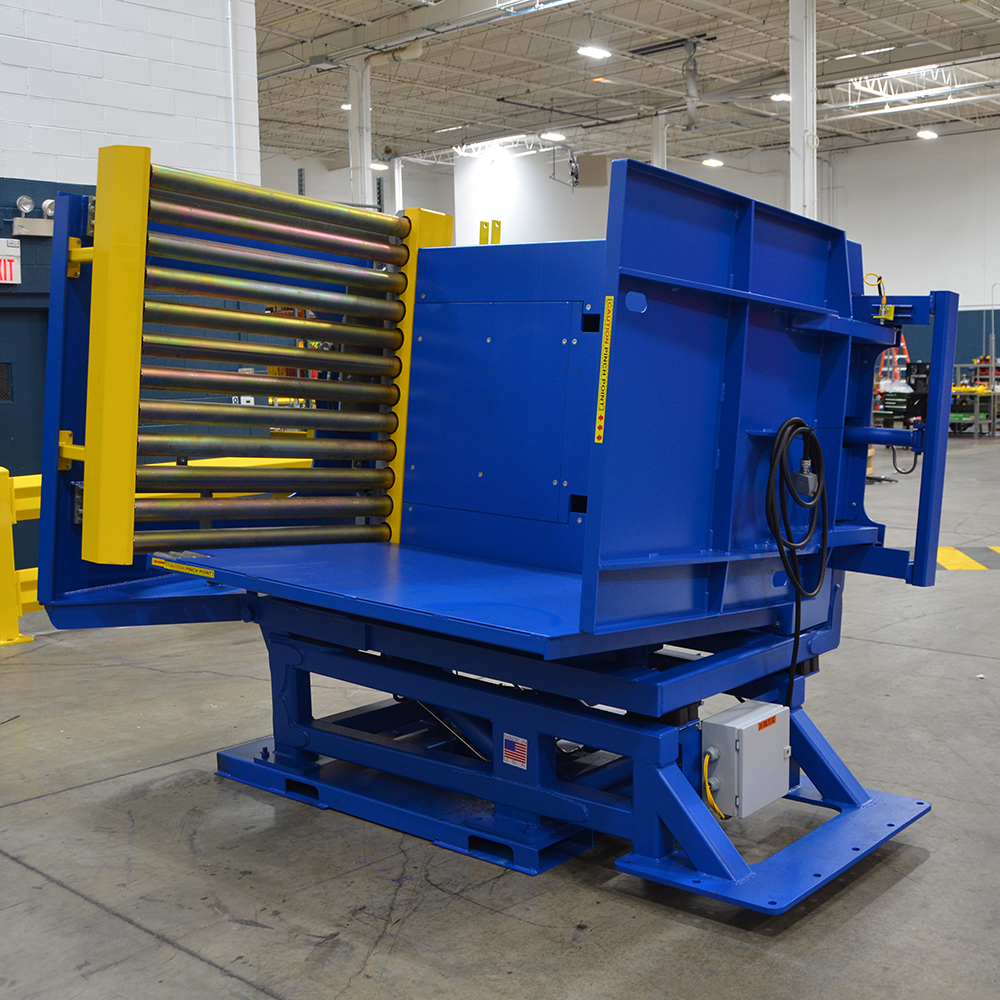

PSR-DL Direct Load Freezer Spacer Remover Image 5

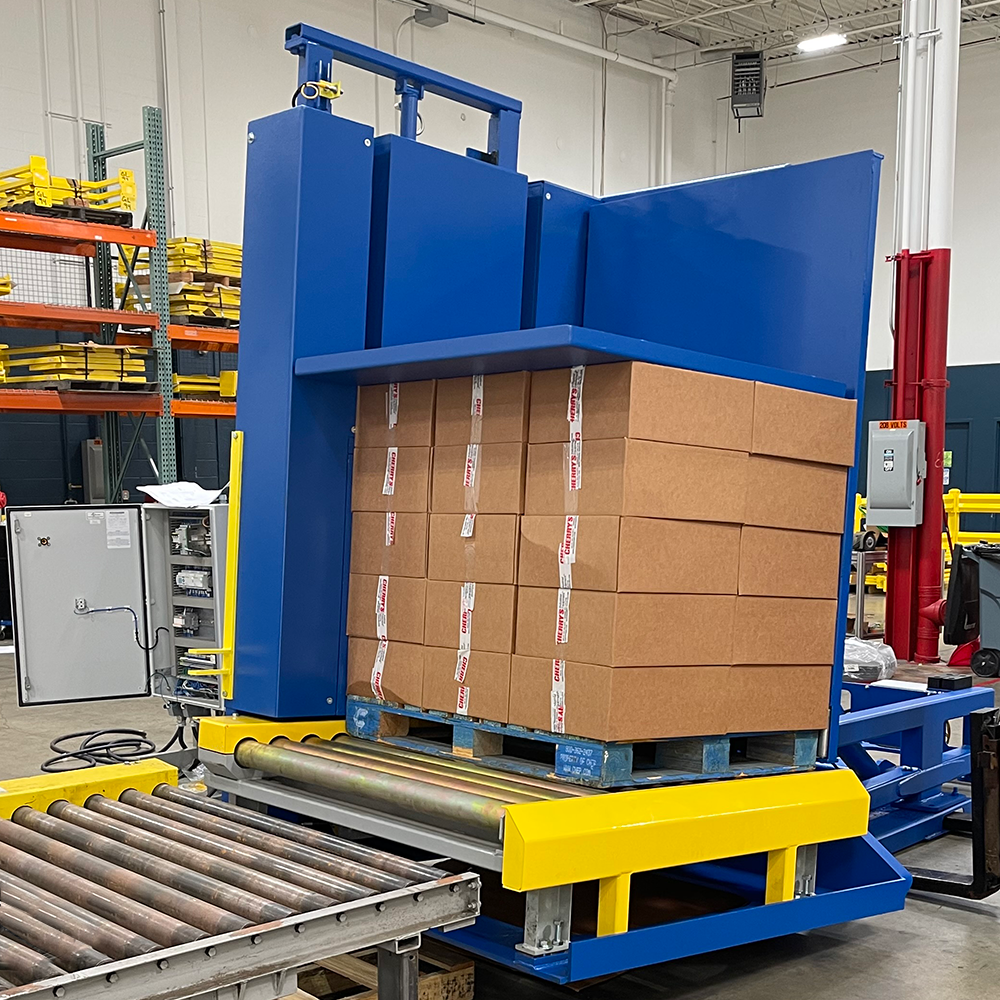

PSR-DL Direct Load Freezer Spacer Remover Image 6

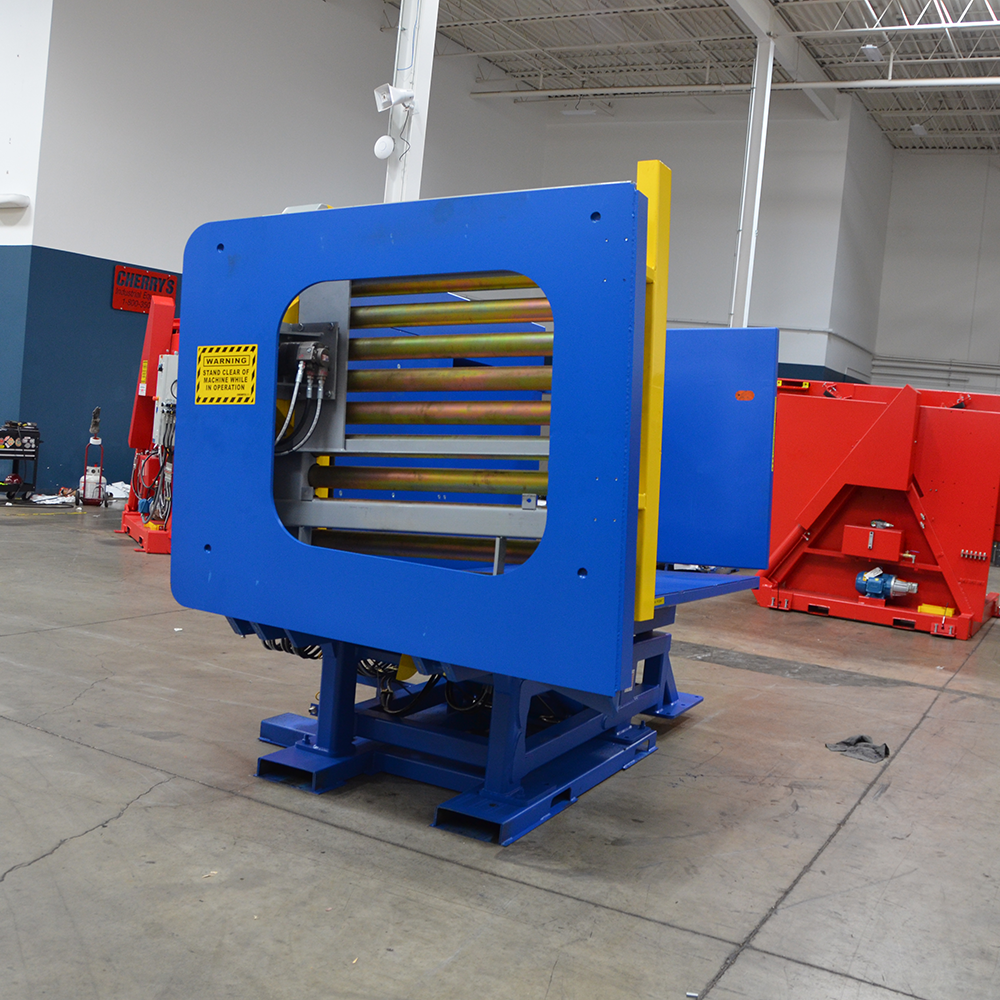

PSR-DL Direct Load Freezer Spacer Remover Image 7

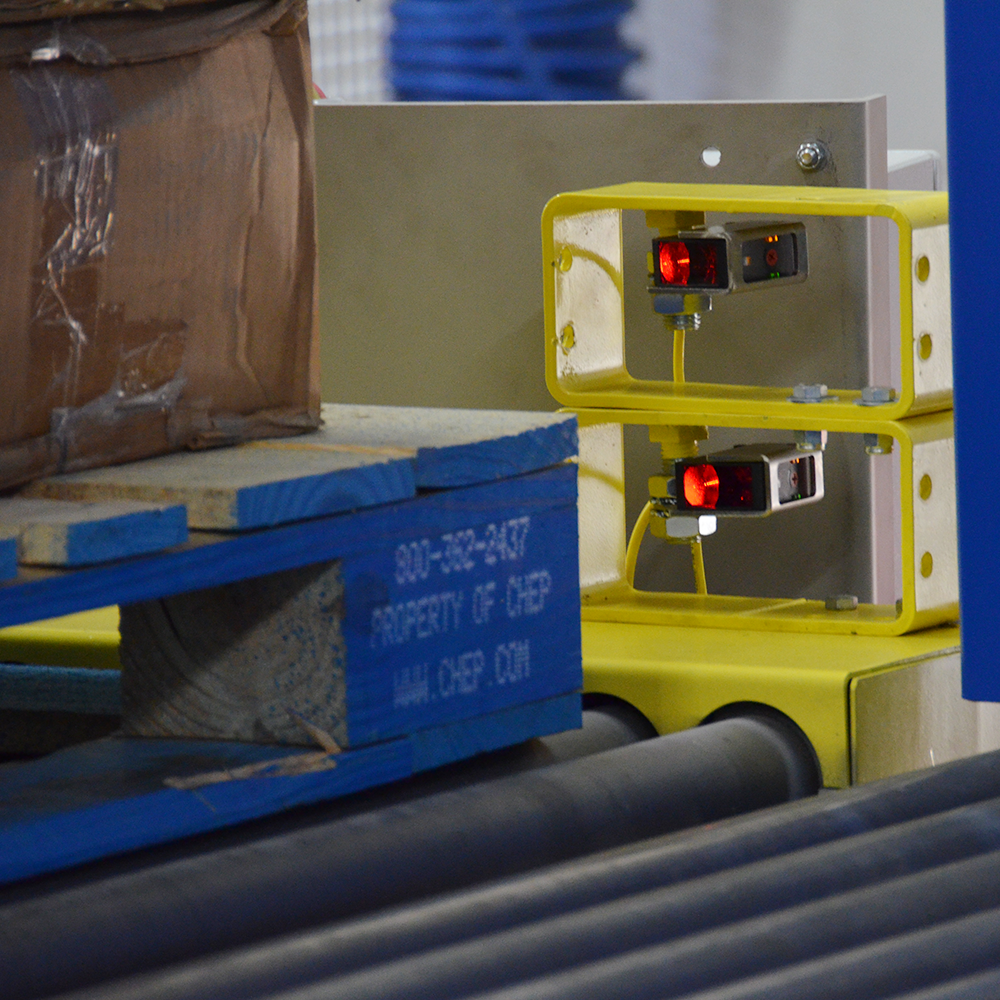

PSR-DL Direct Load Freezer Spacer Remover Image 8

Product Information

Beginning of line forklift loaded machine designed to remove freezer spacers then automatically discharge finished loads 90 degrees onto adjacent out feed staging conveyors for wrapping with a turntable or overhead style stretch wrapper. Semi-automatic operation. Less dwell time than stand alone units because the operator doesn't have to wait for the machine to be unloaded.

Specifications

Model	PSR-DL
Max. Jaw Opening	92''
Min. Jaw Opening	44"
Loading Height	18" TOR
Working Table Height	35"
Controls	Push Button Console
Capacity	4,400 lbs

Main Turnover Cylinders	2
System Pressure	2,000 PSI
Adjustable Clamp Pressure	1,000-2,000 PSI
Cycle Rate	30-40 pallets per hour
Certifications	UL508
Motor	5 HP
Power Source	208/230/460/575V

Anchors	12
Finish	Steel It Paint
Warranty	3 year parts and 1 year labor. Extended service agreements available.
Operating Height	178"
Operating Width	137"
Brand	Cherry's Industrial Equipment Corp
