PSR-CF Conveyor Fed Freezer Spacer Remover


PSR-CF

The PSR-CF-110, semi-automatic conveyor fed freezer spacer removal system. Auto load indexing, heavy duty construction, pop up chain conveyor for 90 degree discharge. Maximum product height with spacers is less than 88", weight up to 2500 lbs. Environment is 25 degrees F. Pallets must be in good condition and conveyable. Made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Details
PSR-CF Conveyor Fed Freezer Spacer Remover
PSR-CF Conveyor Fed Freezer Spacer Remover Image 1

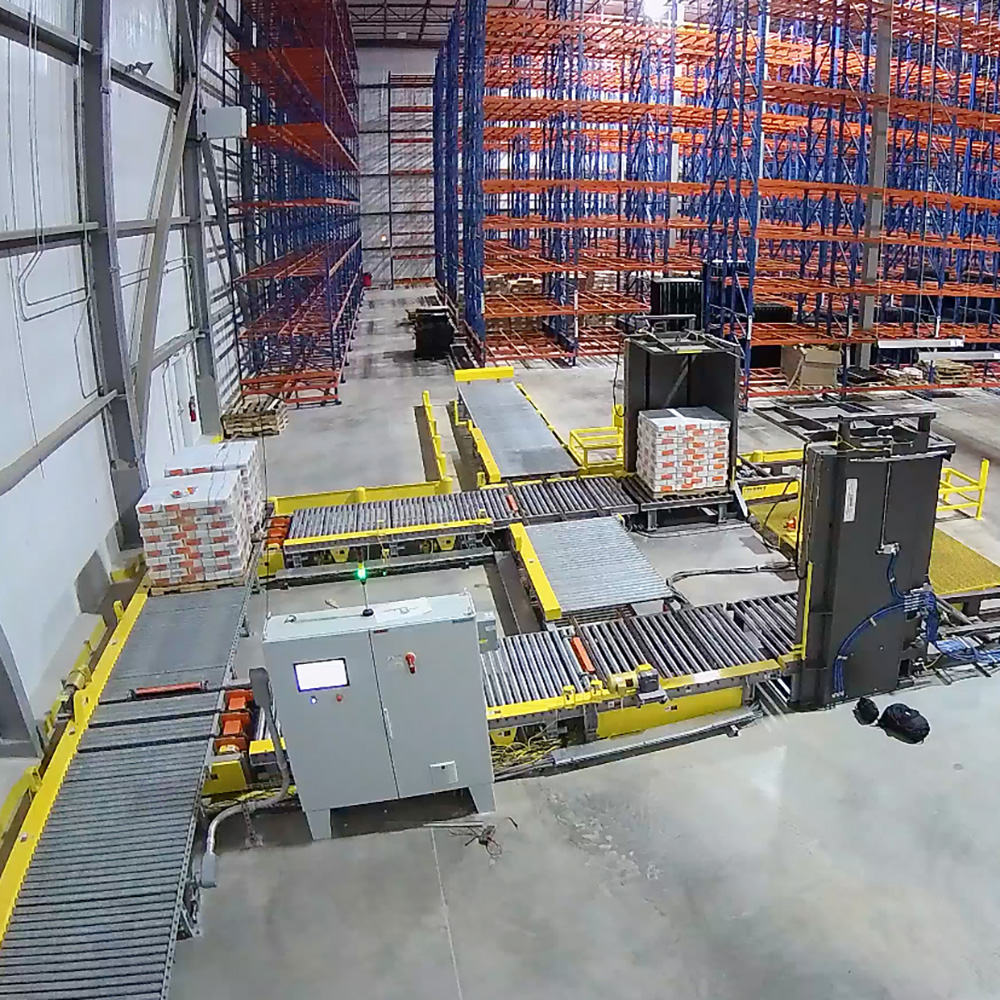

PSR-CF Conveyor Fed Freezer Spacer Remover Image 2

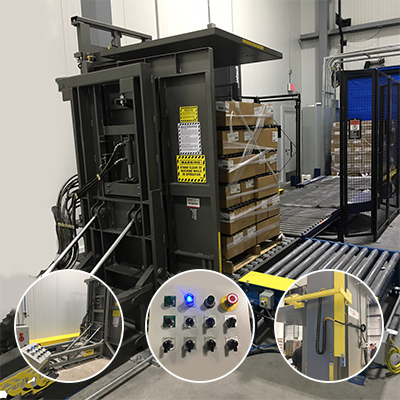

PSR-CF Conveyor Fed Freezer Spacer Remover Image 3

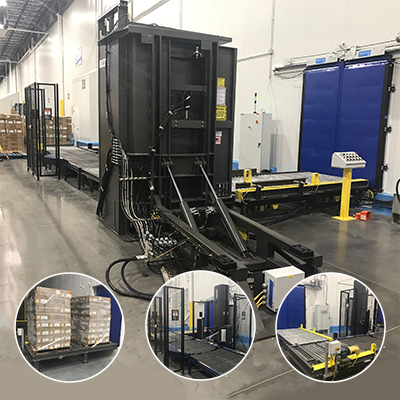

PSR-CF Conveyor Fed Freezer Spacer Remover Image 4

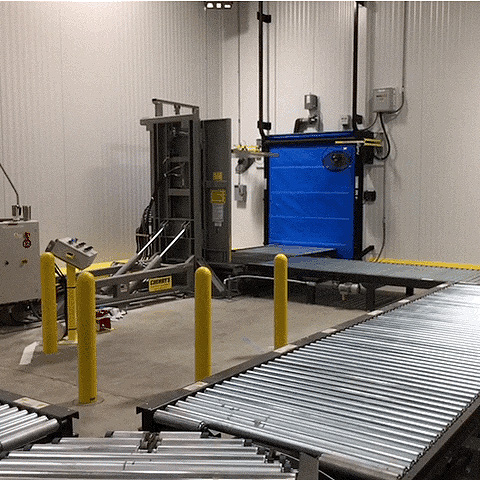

PSR-CF Conveyor Fed Freezer Spacer Remover Image 5

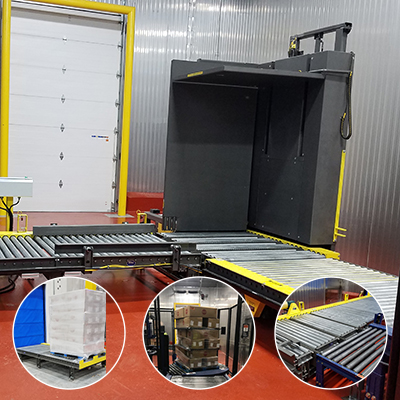

PSR-CF Conveyor Fed Freezer Spacer Remover Image 6
PSR-CF Conveyor Fed Freezer Spacer Remover Image 7

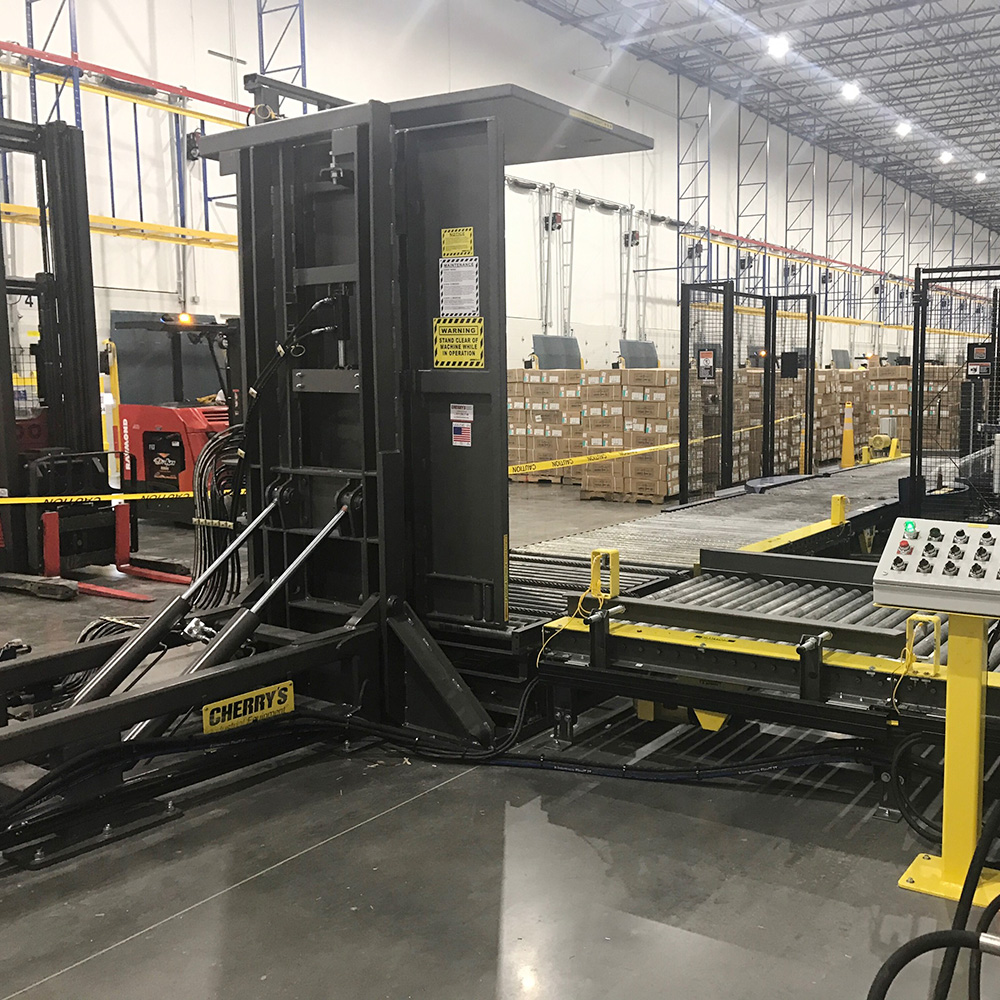

PSR-CF Conveyor Fed Freezer Spacer Remover Image 8

Product Information

Integrated system with optional in feed and out feed staging conveyor(s), Designed to move unstable loads from the freezer (Blast) through a high speed roll up or bump door onto a PSR-CF freezer spacer removal machine. Finished loads discharge 90 degrees onto adjacent out feed staging for stretch wrapping with a turntable or overhead style stretch wrapper. Rough overall dimensions: 25' x 31' excluding guards. Made in the USA.

Product Tour


Specifications


ModelPSR-CF
Max. Jaw Opening92''
Min. Jaw Opening44"
Loading Height18" TOR
Working Table Height35"
ControlsPush Button Console
Capacity4,400 lbs
Main Turnover Cylinders2
System Pressure2,000 PSI
Adjustable Clamp Pressure1,000-2,000 PSI
Cycle Rate30-40 pallets per hour
CertificationsUL508
Motor15 HP
Power Source208/230/460/575V
Anchors12
FinishSteel It Paint
Warranty3 year parts and 1 year labor. Extended service agreements available.
Operating Length178"
Operating Height137"
Operating Width88"
Shipping weight*4,900 lbs
BrandCherry's Industrial Equipment Corp
