High Speed PSR-90 Pallet Retriever

PSR-90HSP

The PSR-90HSP Pallet Retriever builds on the standard PSR design with an upgraded power unit, delivering greater horsepower and higher pump flow. Its speed control circuit ensures increased output while minimizing maintenance and downtime. With machine movements up to 30% faster, the PSR-90HSP helps eliminate excess labor and manpower requirements, reducing shifts needed to complete work throughout the week.

Request a Quote

Call 847-443-3861 to speak with our experts

High Speed PSR-90 Pallet Retriever Image 1

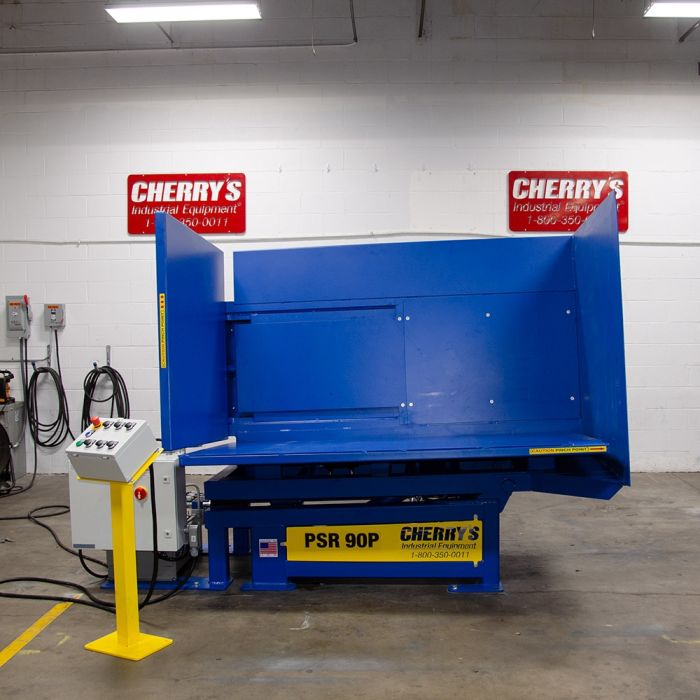

High Speed PSR-90 Pallet Retriever Image 2

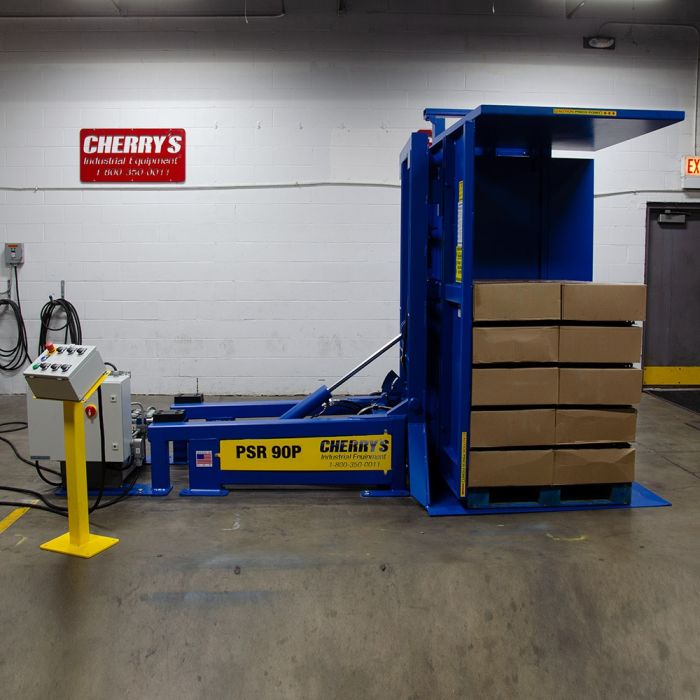

High Speed PSR-90 Pallet Retriever Image 3

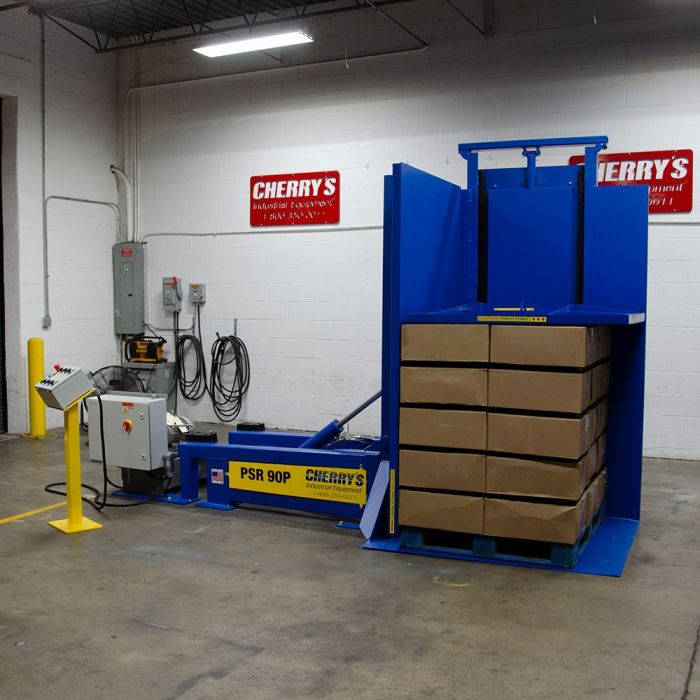

High Speed PSR-90 Pallet Retriever Image 4

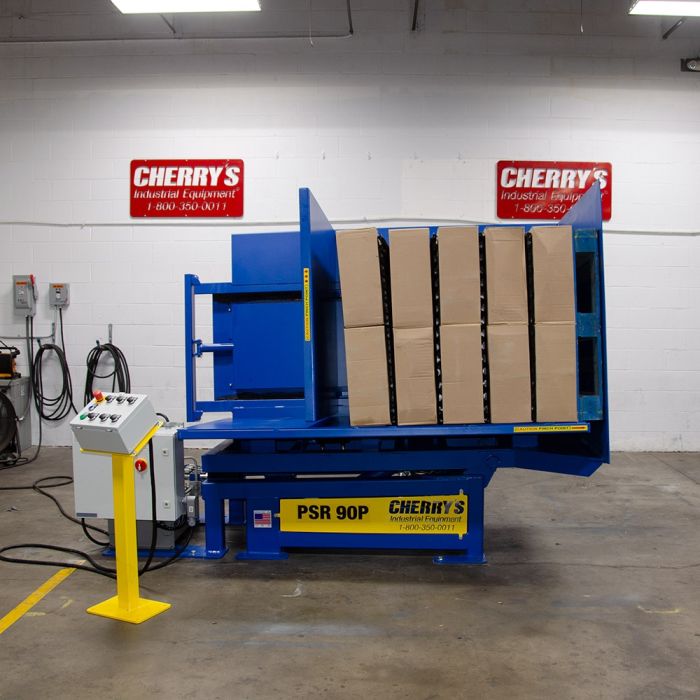

High Speed PSR-90 Pallet Retriever Image 5

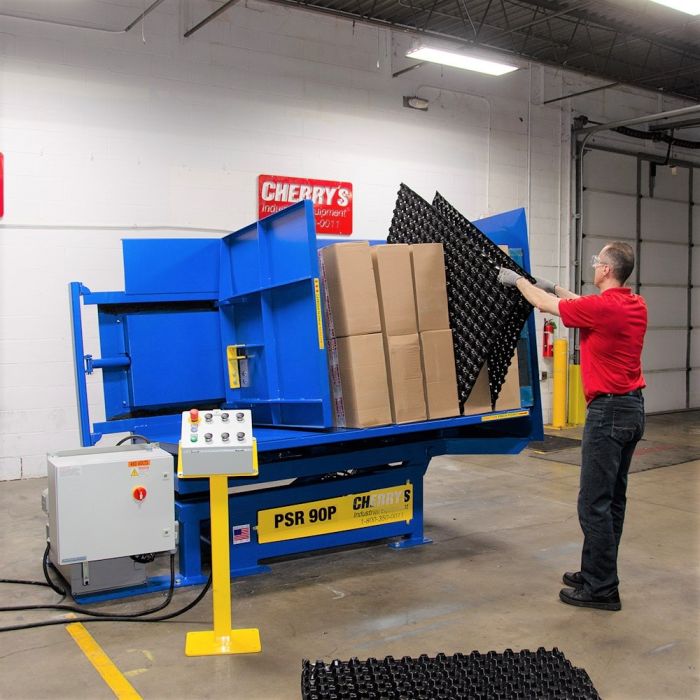

High Speed PSR-90 Pallet Retriever Image 6

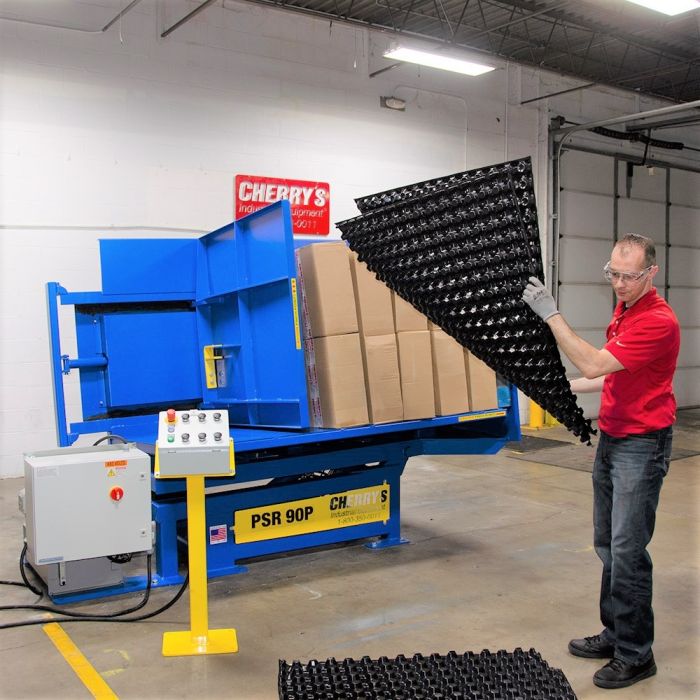

High Speed PSR-90 Pallet Retriever Image 7

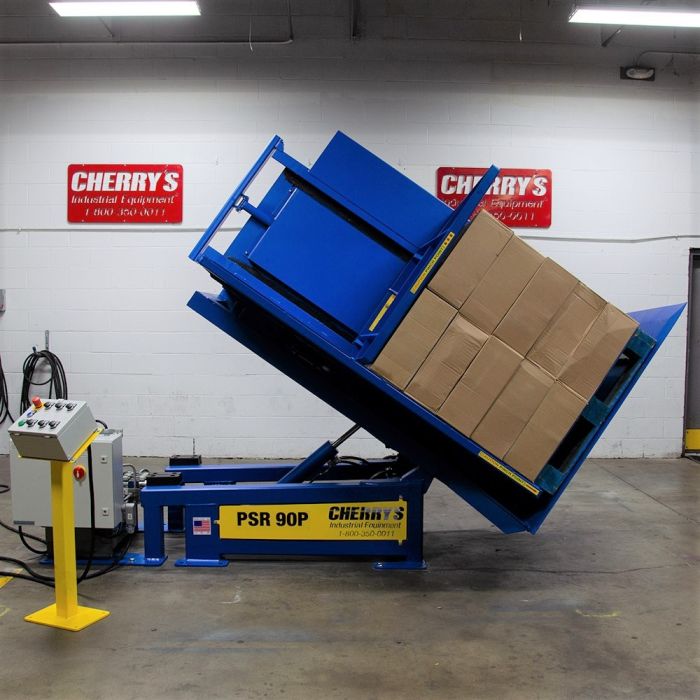

High Speed PSR-90 Pallet Retriever Image 8

Product Information

Our high-speed pallet retriever and freezer spacer removal machines are designed to reduce strenuous manual labor for improved worker safety and operational efficiency. The ground-level design, push-button console controls and 28-inch table working height provide for easy access via electric or manual pallet trucks and increased productivity. Designed, engineered and manufactured in the U.S.A. for superior quality and lasting performance.

Product Tour

Specifications

Model	PSR-90
Loading Table Size	50½ x 49¾''
Max. Jaw Opening	90''
Min. Jaw Opening	48''
Loading Height	Ground level
Working Table Height	30½''
Controls	Push Button Console
Capacity	3,000 lbs

Main Turnover Cylinders	1
System Pressure	1,800 PSI
Adjustable Clamp Pressure	1,000 PSI
Cycle Rate	40-50 pallets per hour
Certifications	UL Certified Panel
Motor	5 HP
Power Source	208/230/460/575V
Anchors	12

Warranty	3 year parts and labor. Extended service agreements available.
Operating Length	170½''
Operating Height	117½''
Operating Width	59"
Shipping weight*	5000 lbs
Shipping Dimensions	132" L X 84" W" X 96" H
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Options

The High Speed PSR-90 Pallet Retriever ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls, and power unit. More options are available including: custom paint finishes, stainless steel surfaces, cold temperature package, freezer rated package and upgraded components to meet your specific application.

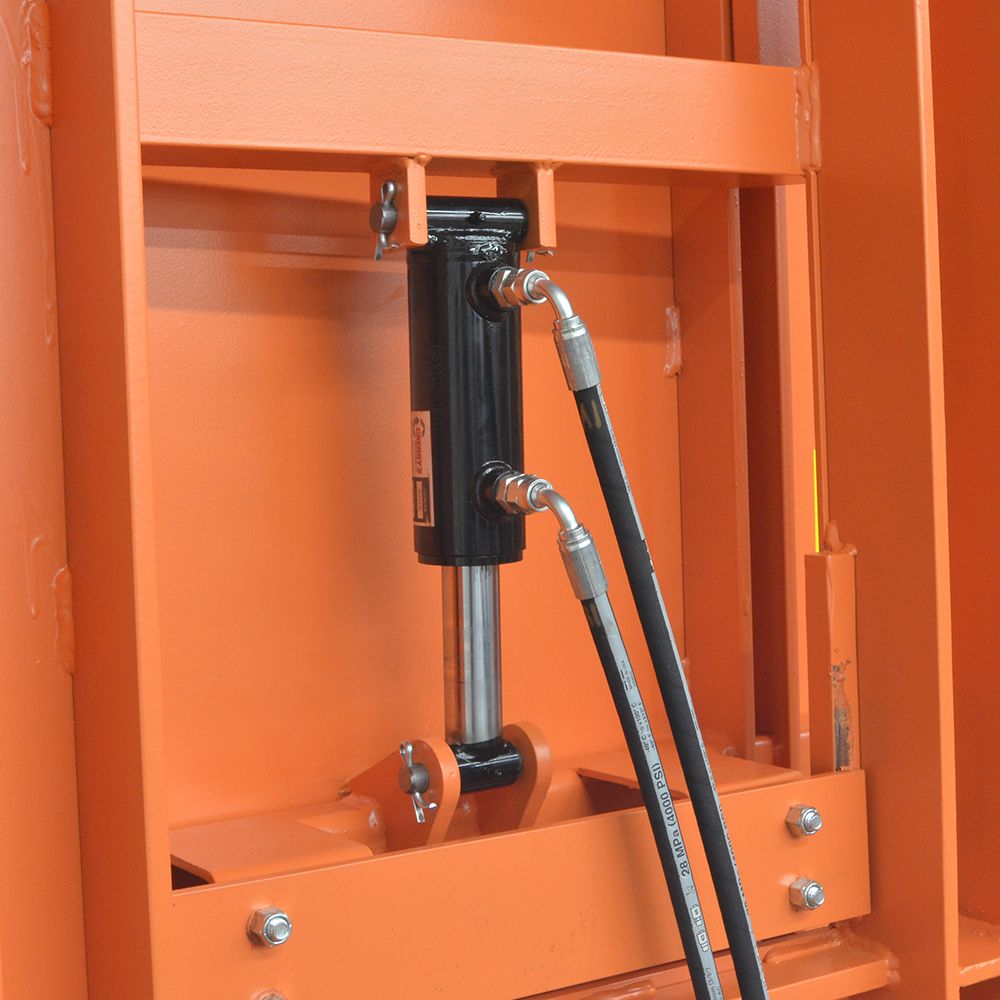

Powered Skate Table

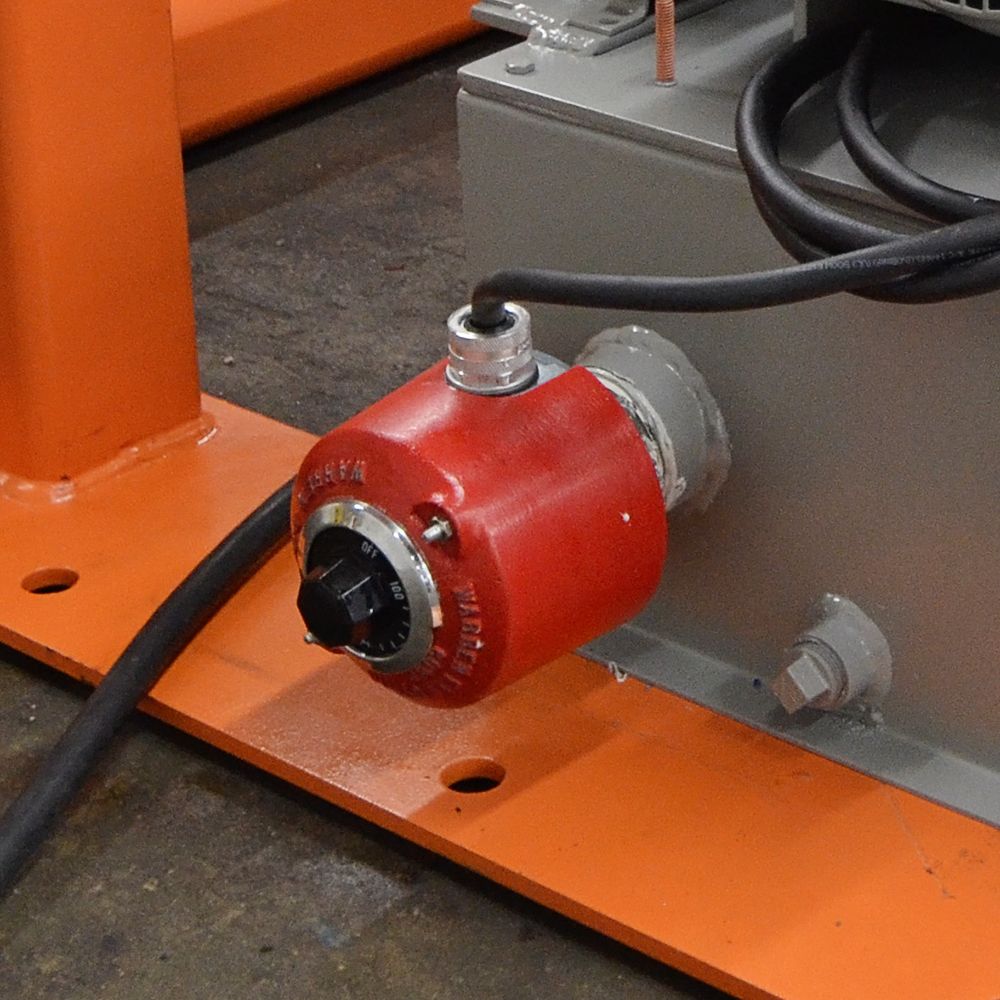

Tank Heater

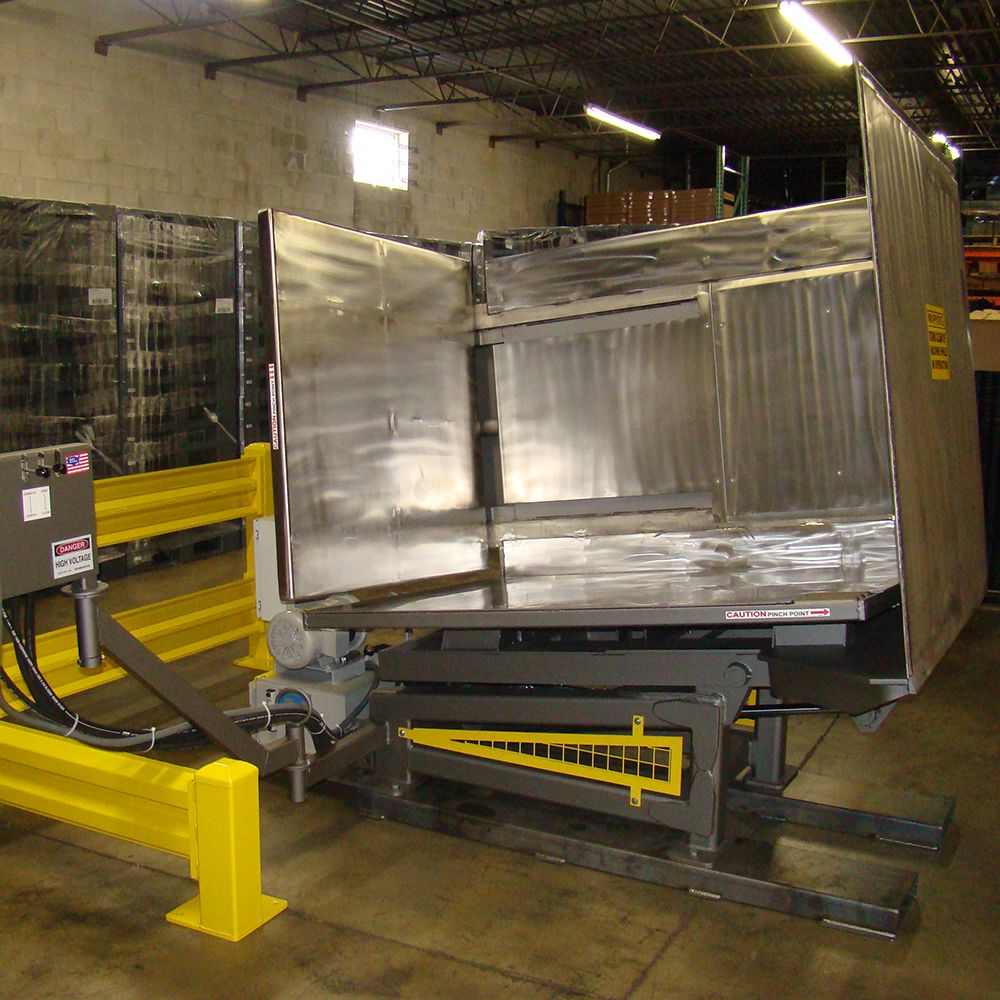

Stainless Steel

Controls

Cherrys offers many controls configuration options for the High Speed PSR-90 to meet the needs of your cold storage or warehouse operations. The standard controls are energy saver push button controls mounted on an angle top console. Add-on safety ready controls, freezer rated controls, high-speed motion controls or downgrade to lever controls.

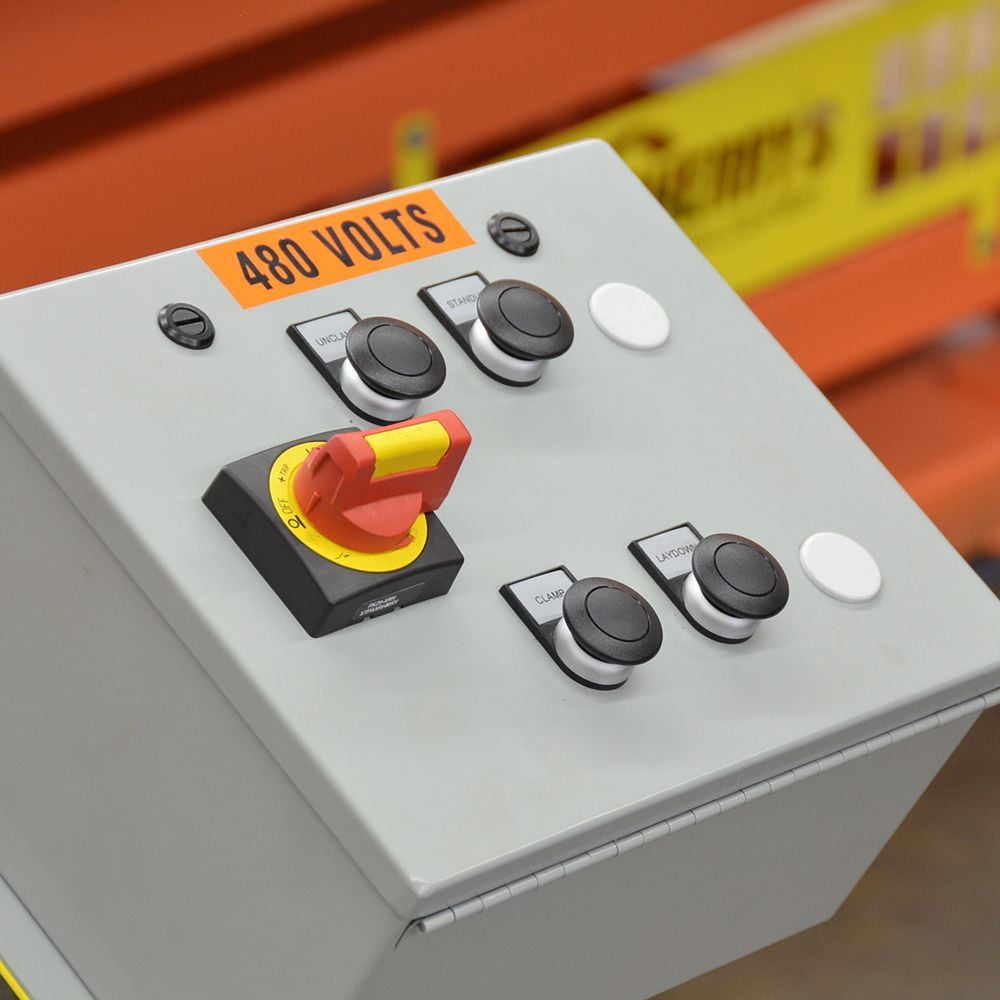

Basic Push Button (Energy Saver) Control with Power Switch

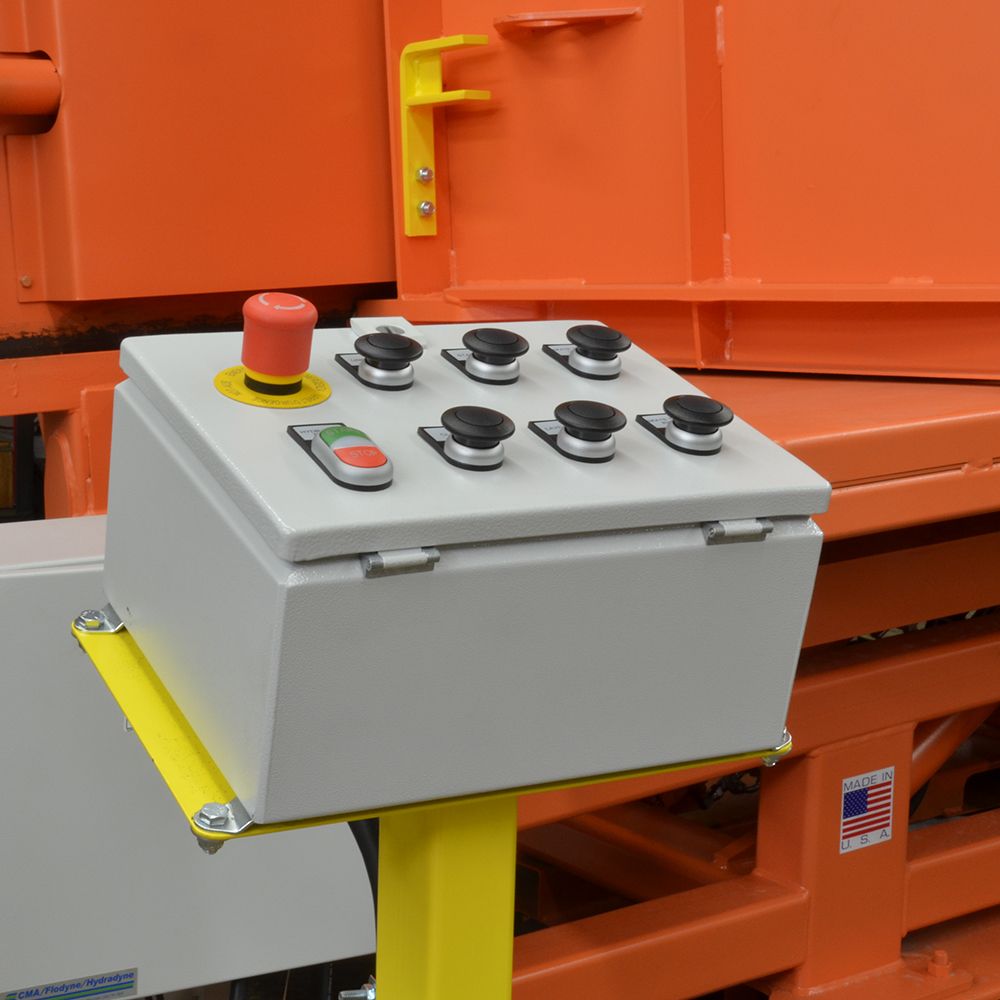

Energy Saver Push Button (Energy Saver) Control with Skate Table Option and E-Stop Button

Heavy-Duty-Push-Button-Console

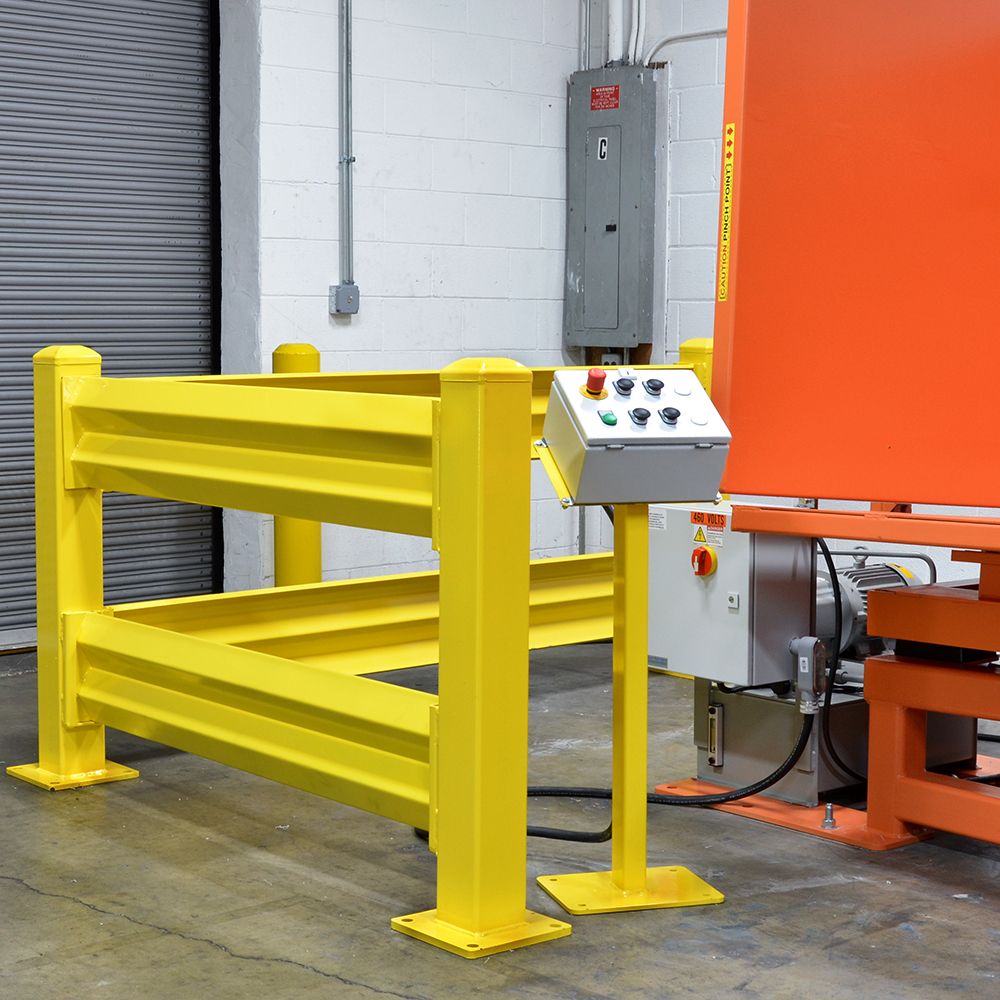

Guards

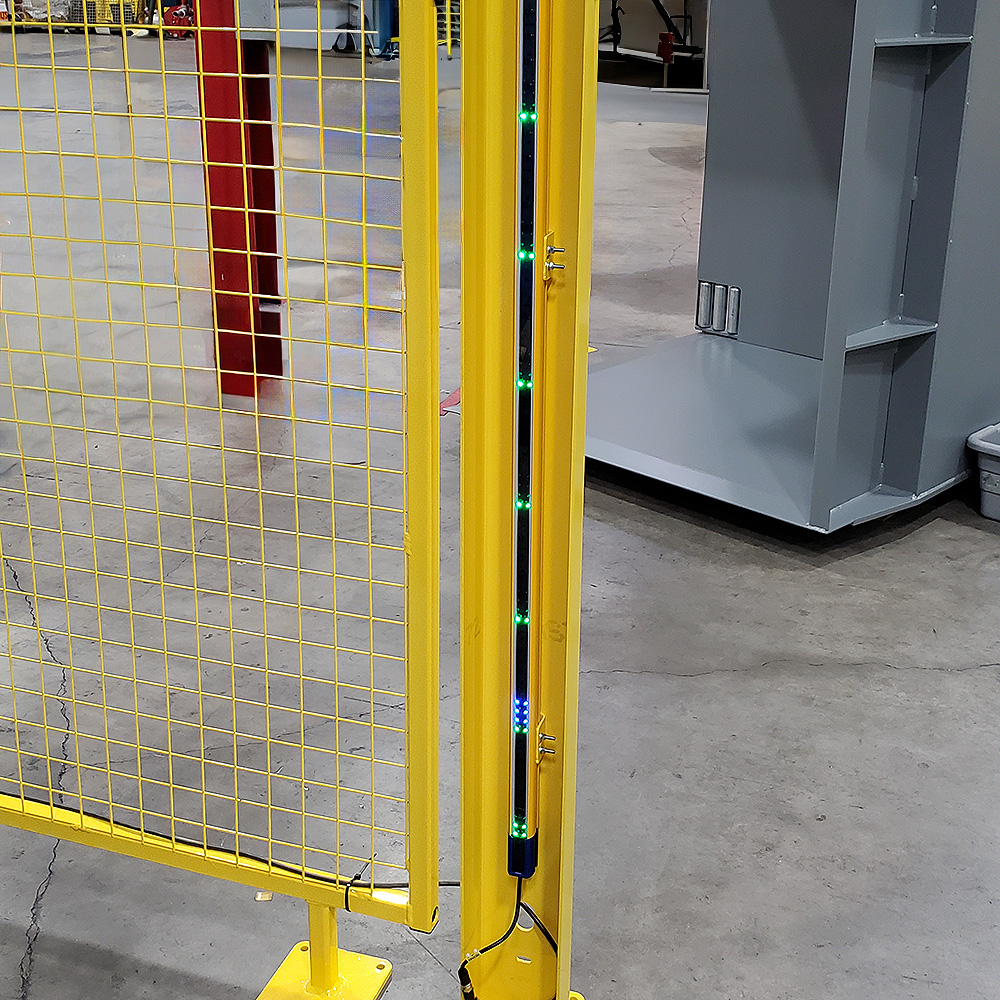

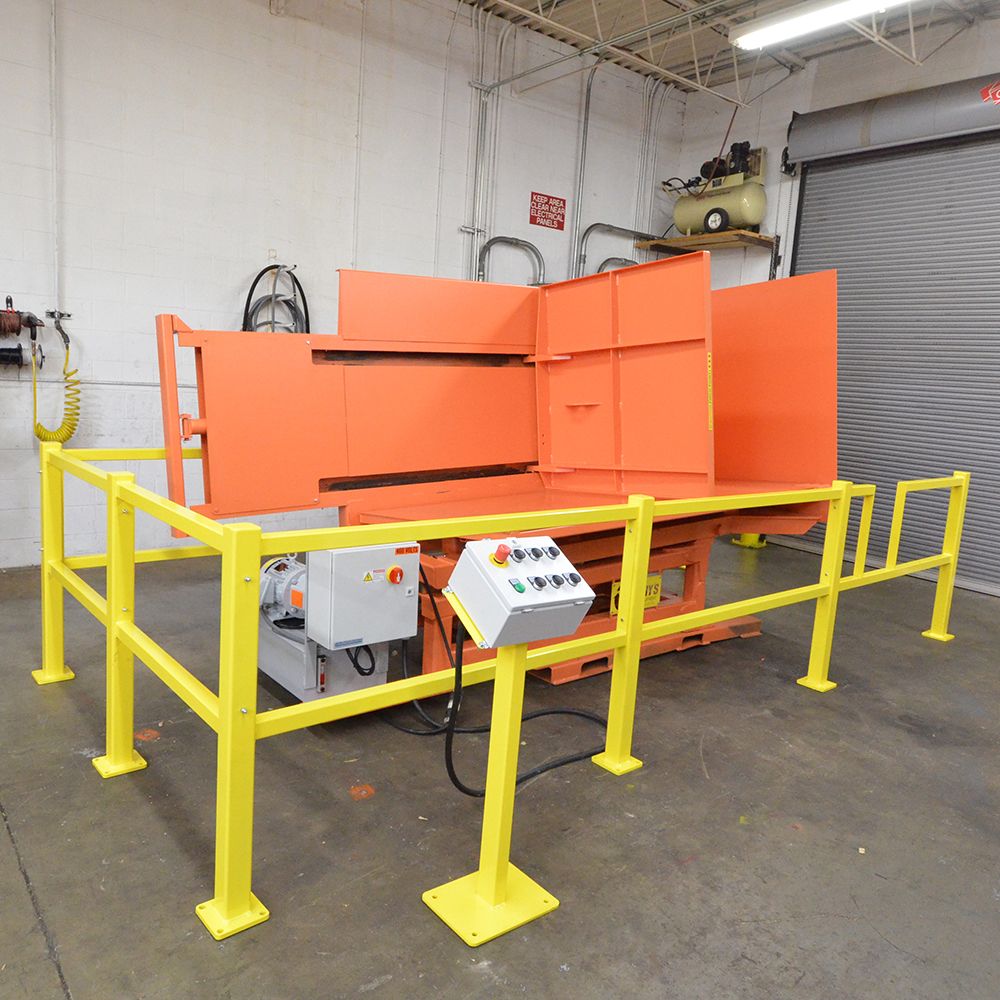

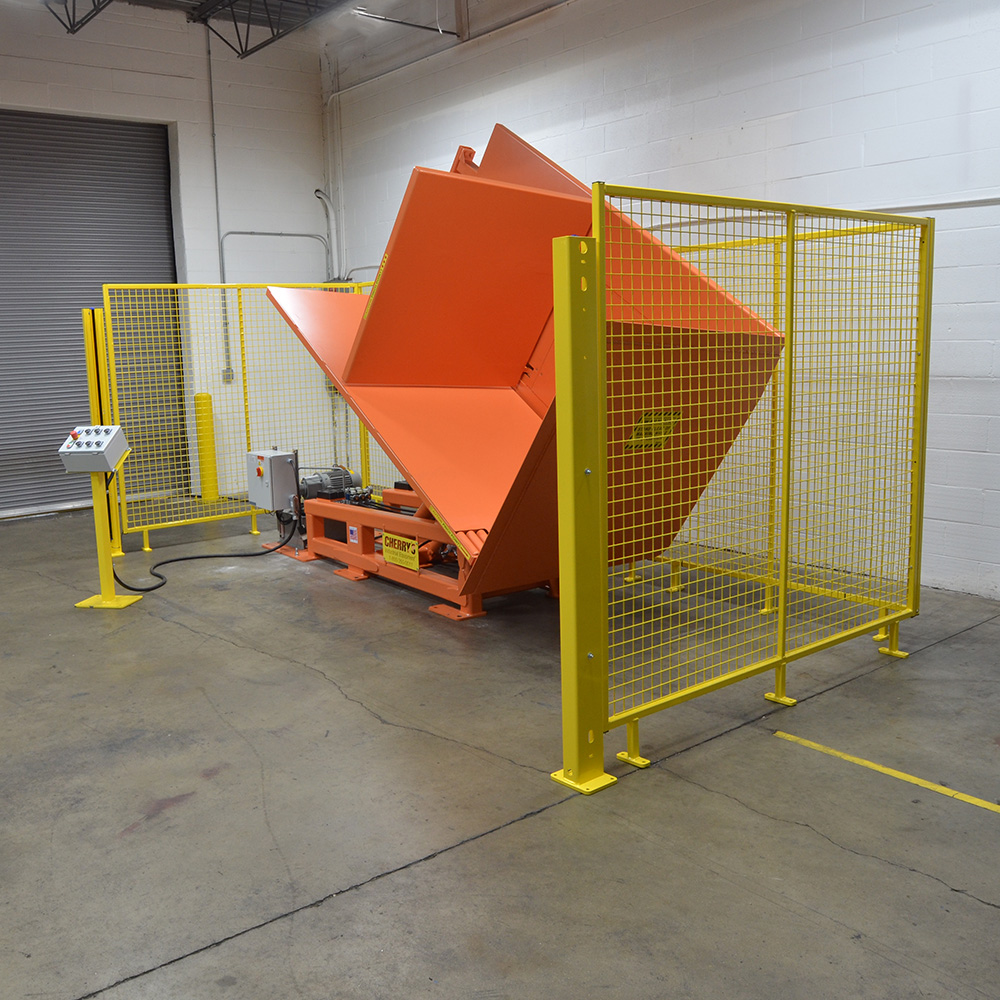

The High Speed PSR-90 can be outfitted with crash guarding or square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78 high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, purchase the light curtains package to protect the area inside of the fence and around the machine.
