PSR-73 Pallet Retriever


PSR-73

The PSR-73 Pallet Retriever, with a clamping range of 40" to 73", is engineered for freezer spacer removal and pallet exchange in cold storage and meat processing facilities. It completes these tasks up to 90% faster than manual handling, improving efficiency while reducing strain on workers. Proudly Made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Detail
PSR-73 Pallet Retriever

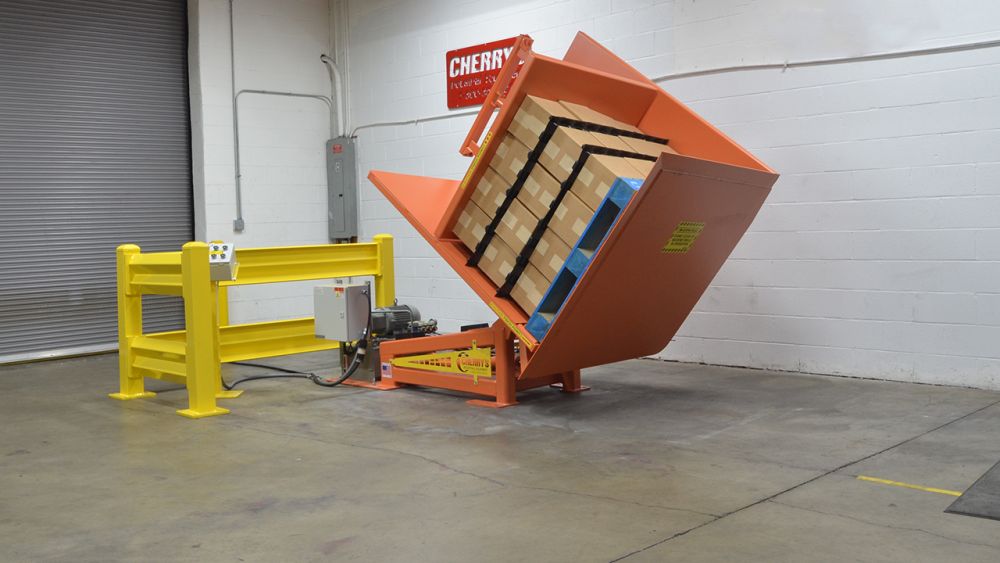

PSR-73 Pallet Retriever Image 1

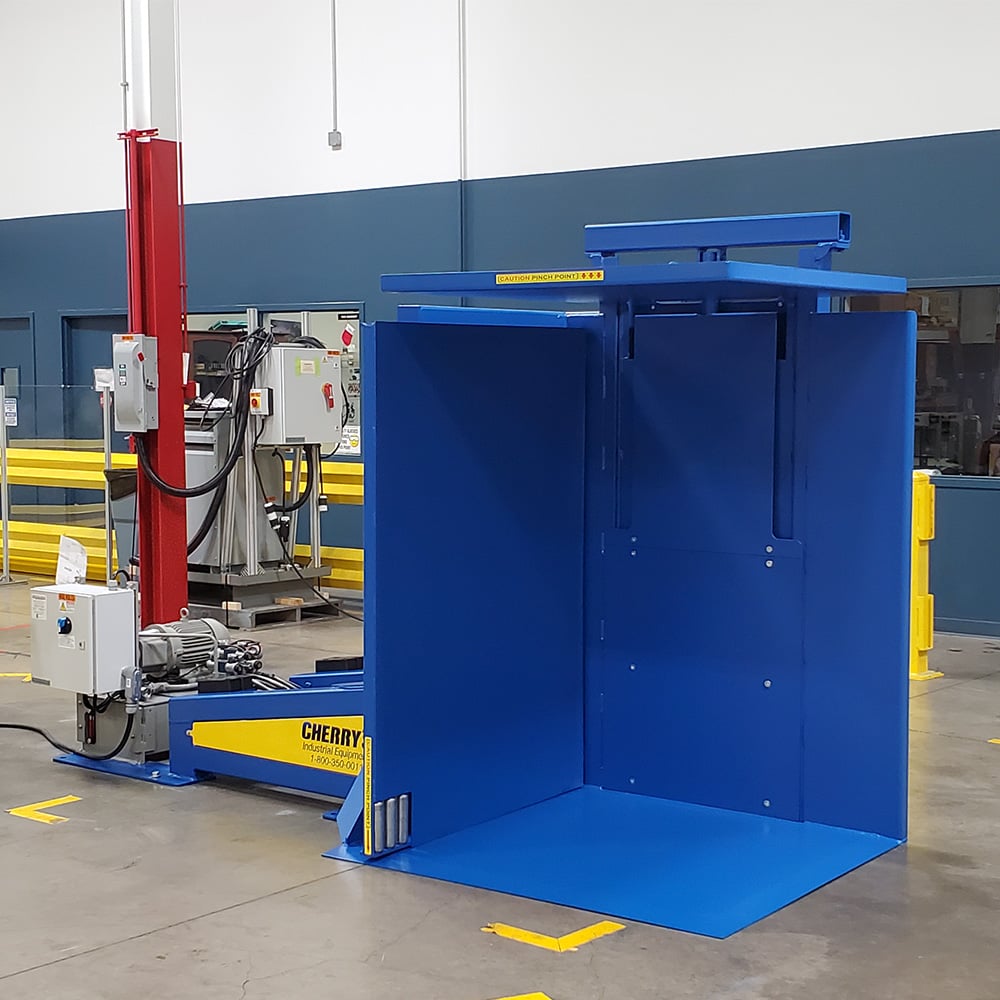

PSR-73 Pallet Retriever Image 2

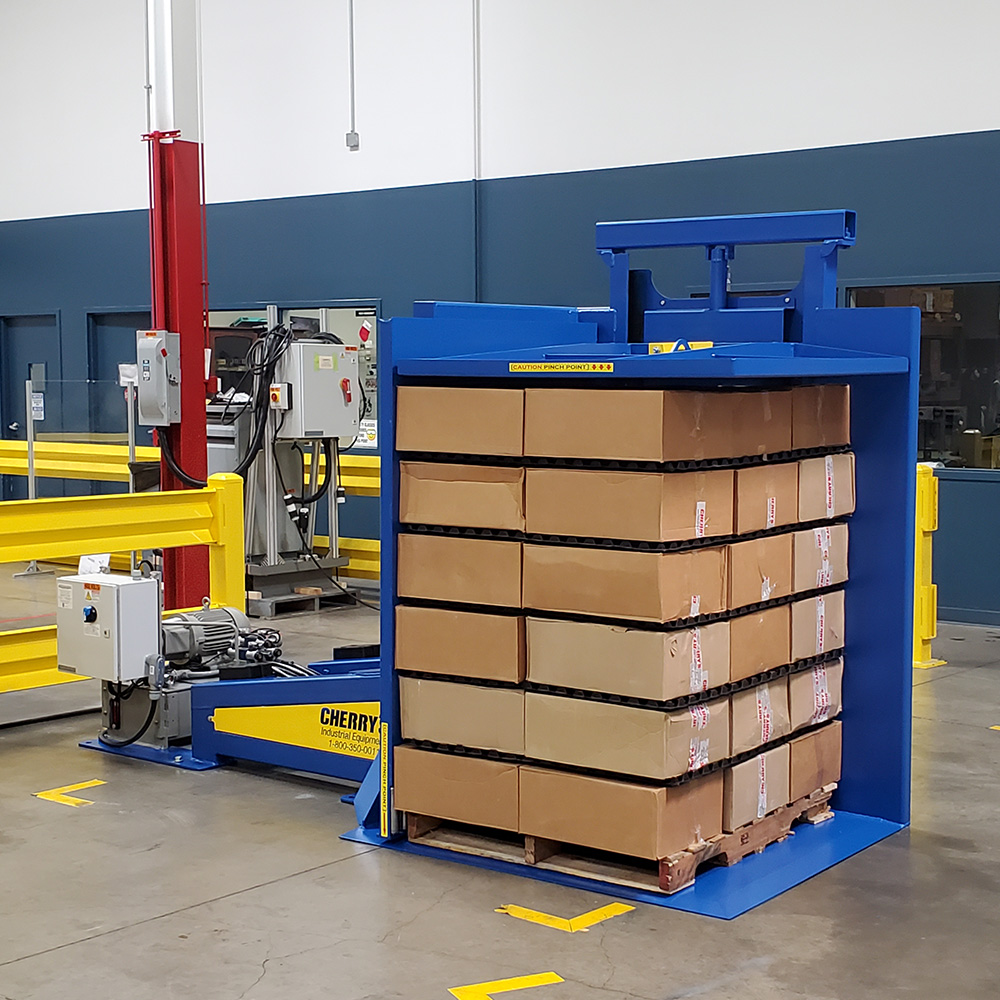

PSR-73 Pallet Retriever Image 3

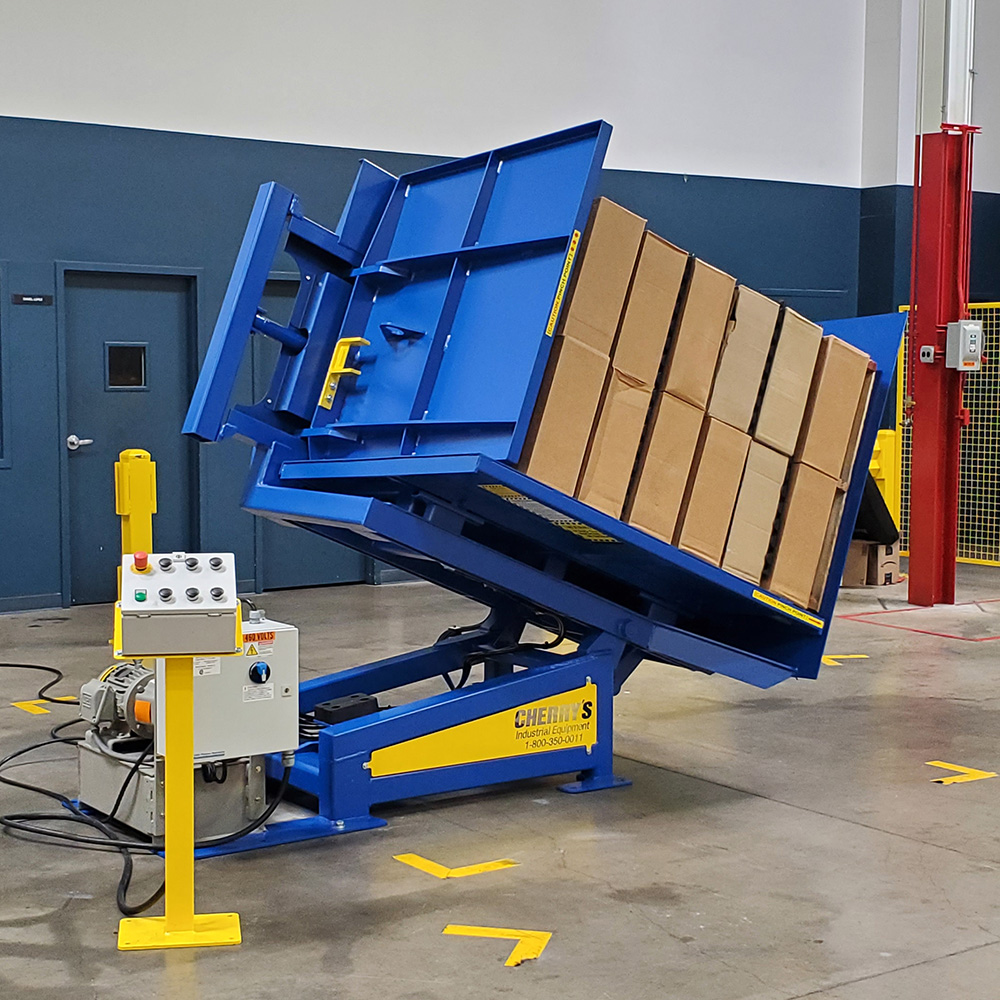

PSR-73 Pallet Retriever Image 4

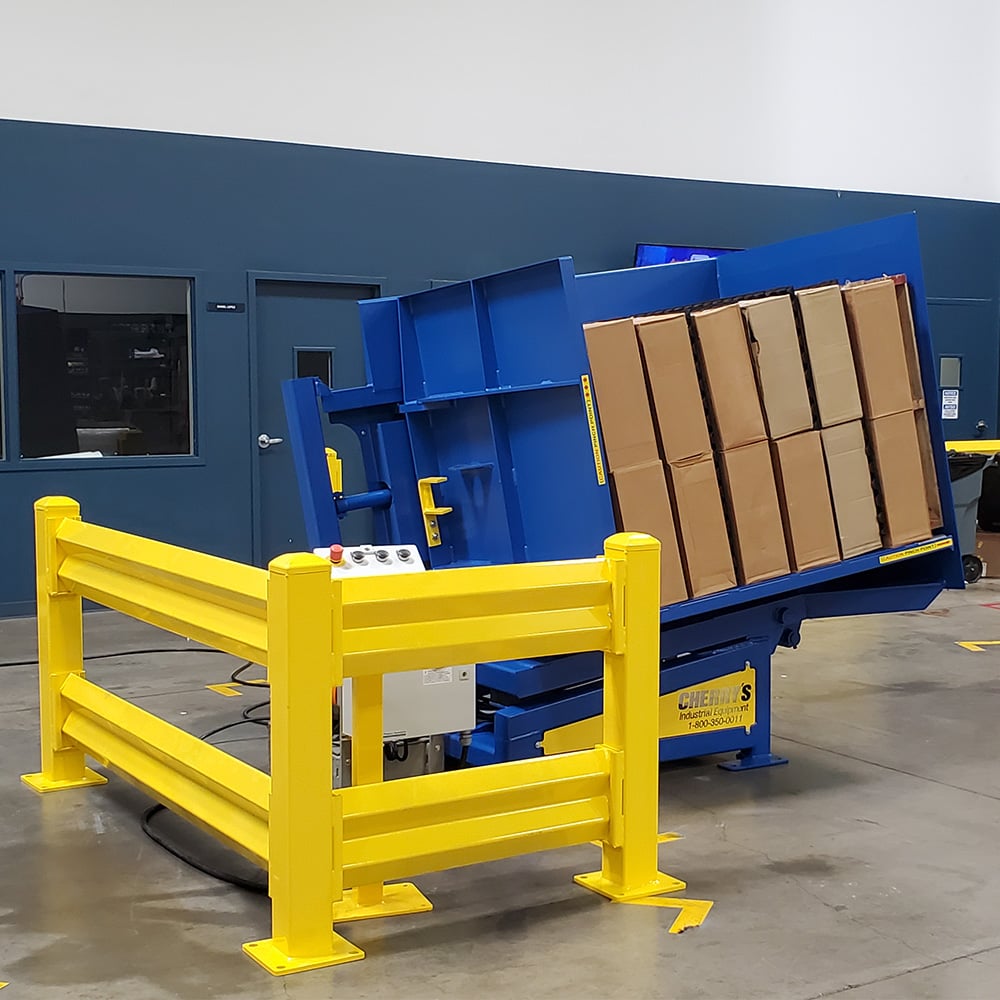

PSR-73 Pallet Retriever Image 5

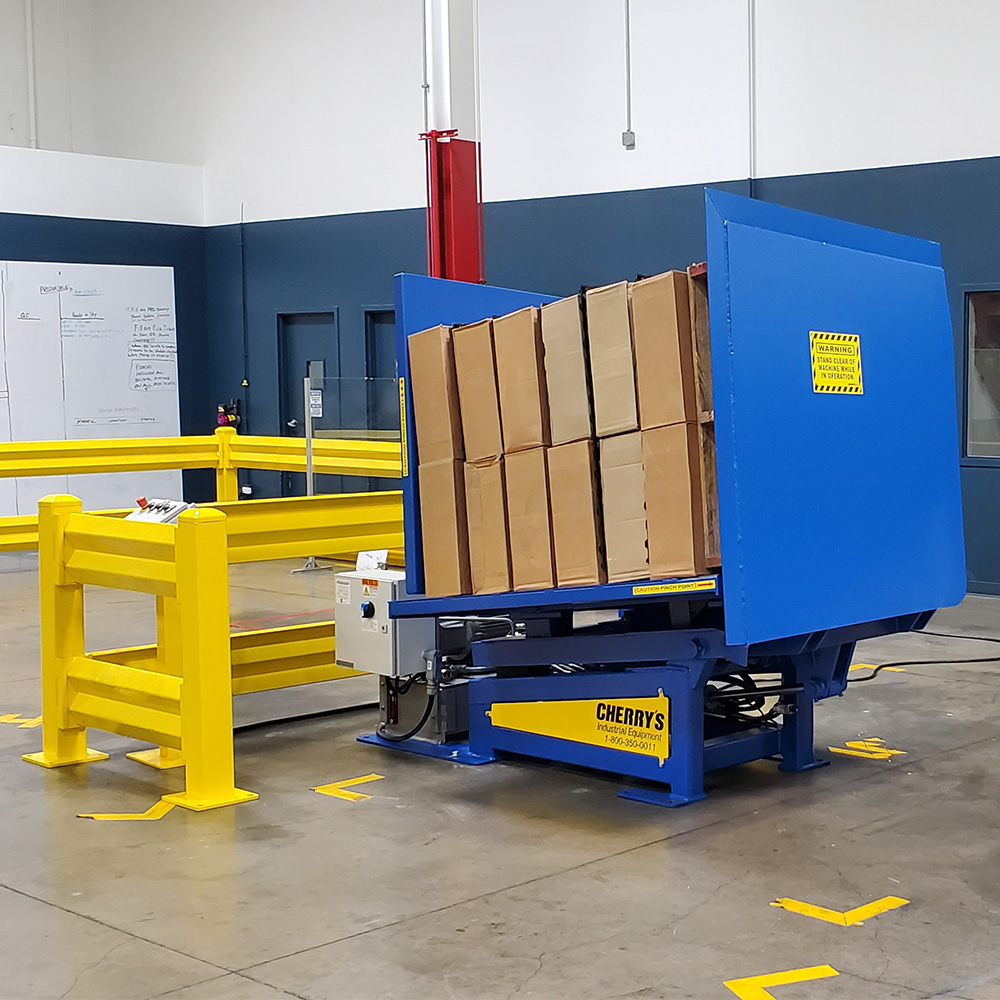

PSR-73 Pallet Retriever Image 6

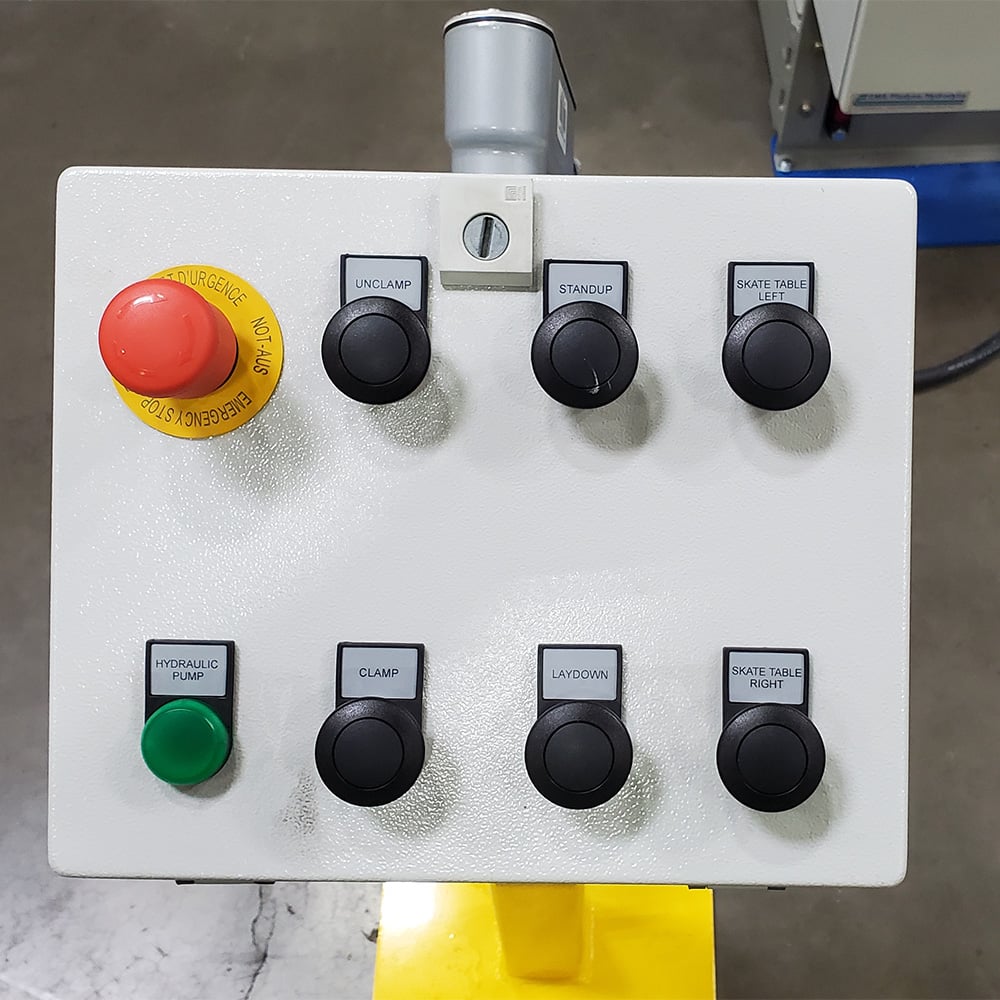

PSR-73 Pallet Retriever Image 7

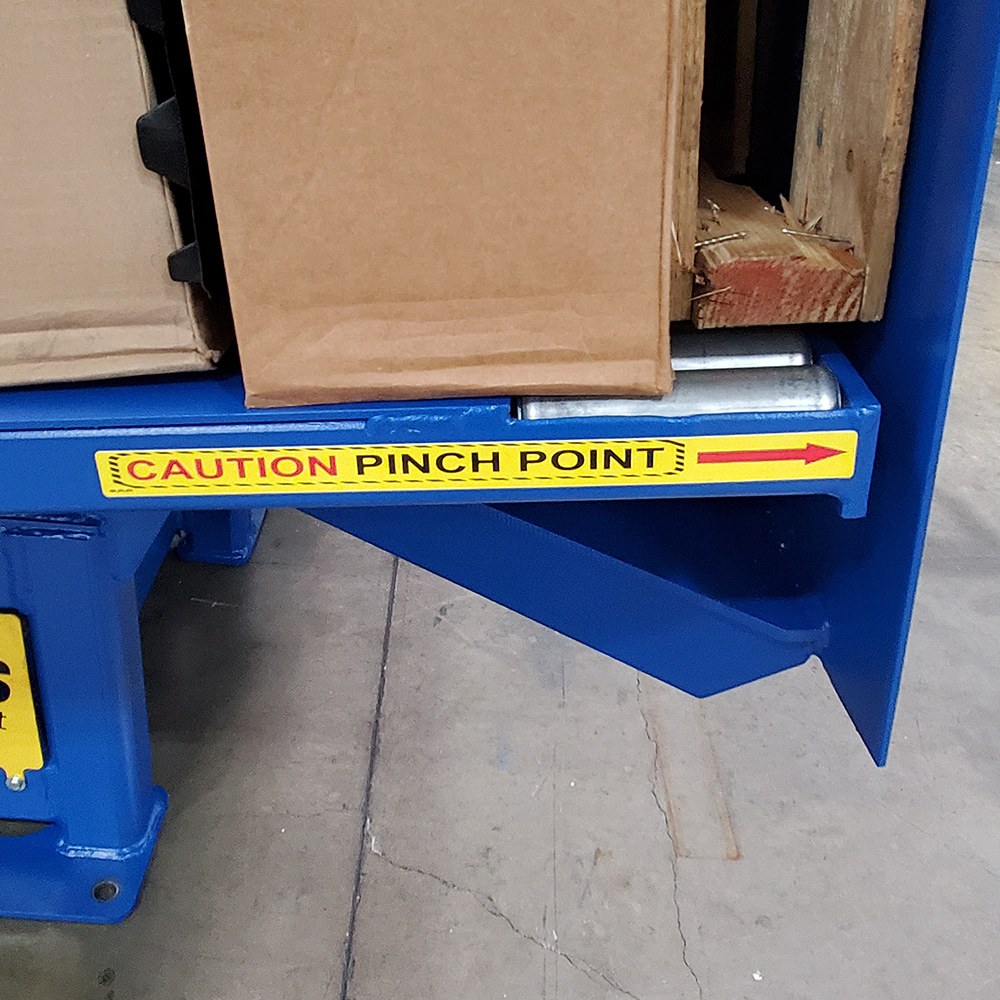

PSR-73 Pallet Retriever Image 8

See it in the Wild

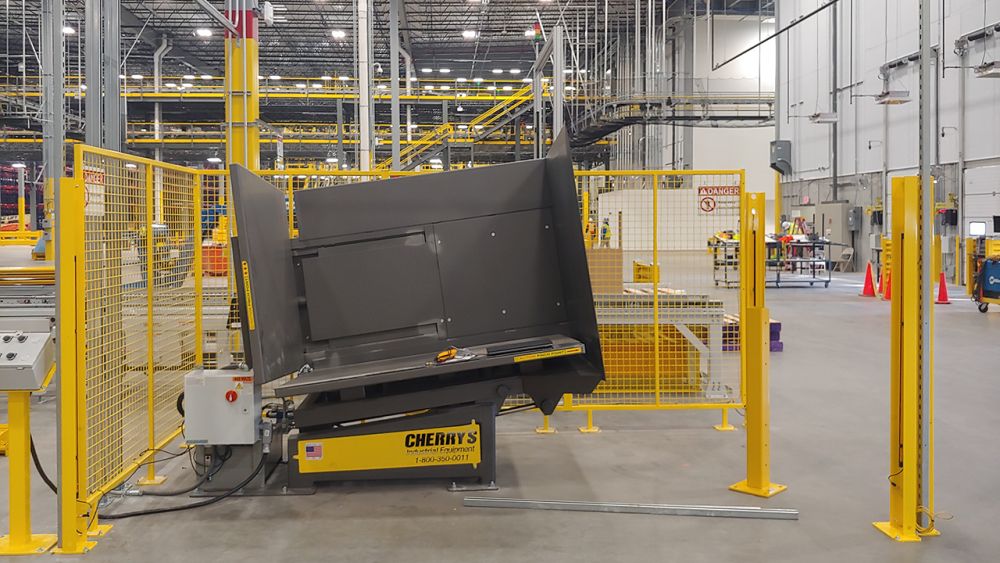

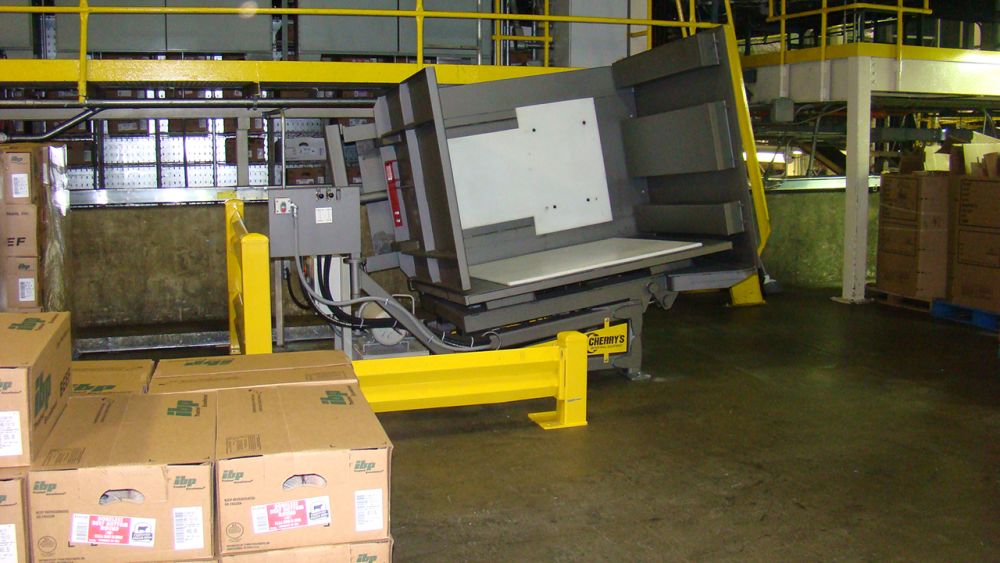

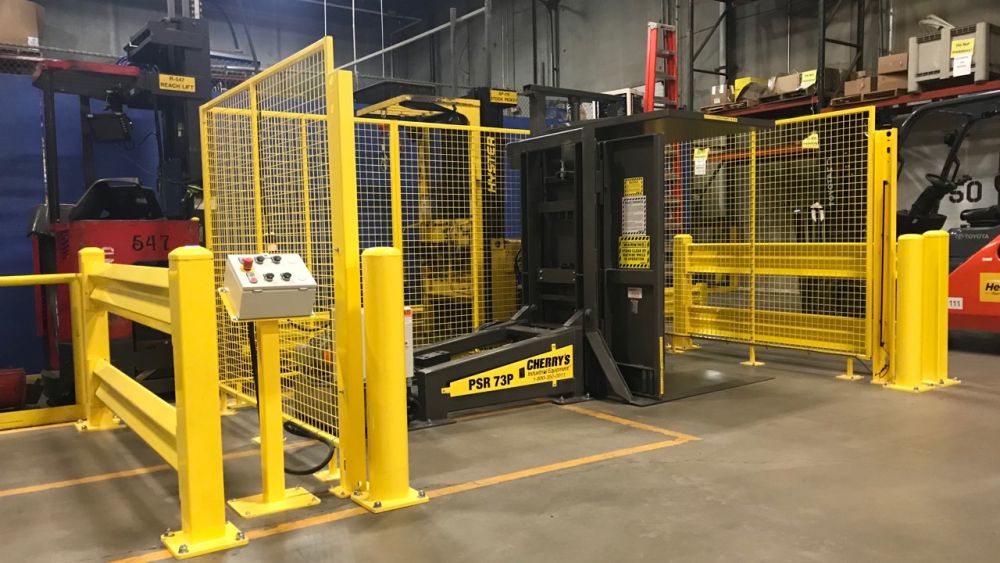

Pallet Spacer Removal Machune with prottective crash guards Pallet Spacer Removal Machune with prottective crash guards

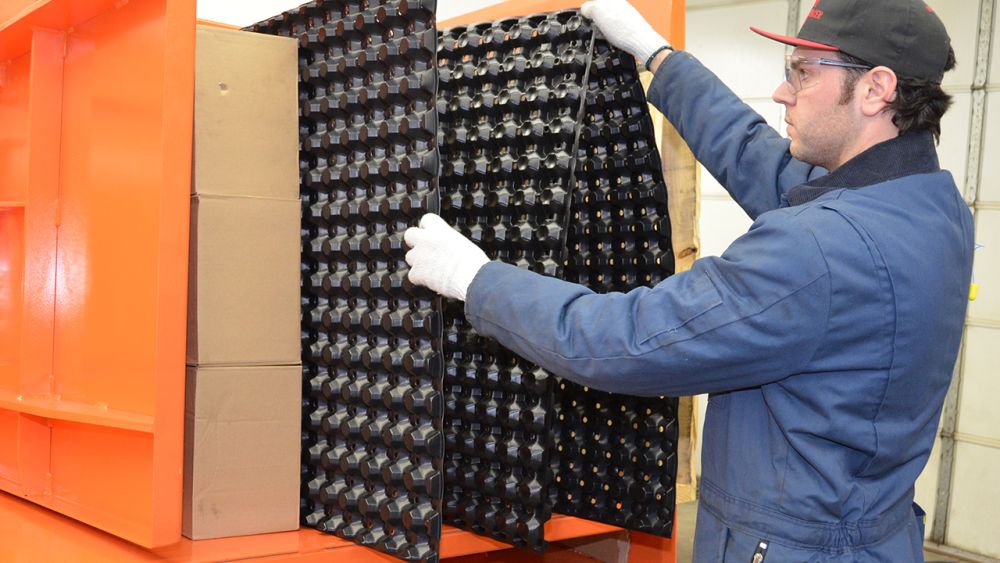

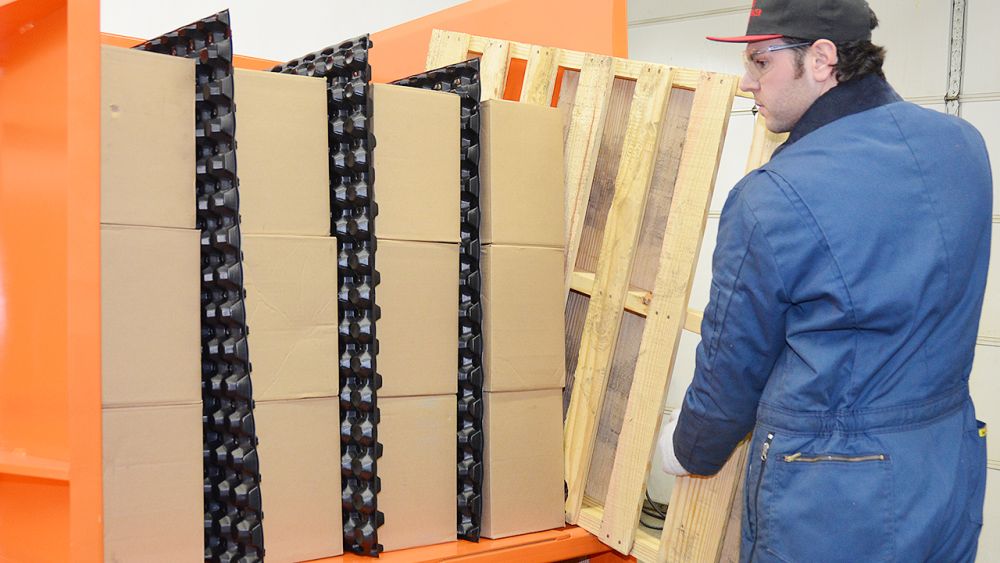

Operator removing plastic freezer spacers Operator removing plastic freezer spacers
×

Product Information

Compact footprint makes this unit perfect for small production plants, confined loading docks and product heights less than 72". Used in all industries but specifically built to handle the rugged demands of the frozen food & cold storage environments. Options can include high speed, wash down components, powered skate table, freezer rated controls, USDA approved paint and stainless steel finishes. Extended warranties, preventative and installation service agreements available.


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
PSR-73L Levers 5/3.7 15 standup/17 layback N/A
PSR-73PB Push buttons 5/3.7 15 standup/17 layback Optional
PSR-73HSP Push buttons 5/6.6 8 standup/10 layback Optional



Product Tour


Specifications


ModelPSR-73
Loading Table Size50 ½ x 49 ¾''
Max. Jaw Opening73''
Min. Jaw Opening40"
Loading HeightGround level
Working Table Height36-1/2"
ControlsPush Button Console
Capacity3,000 lbs
Main Turnover Cylinders1
System Pressure2,000 PSI
Adjustable Clamp Pressure1000-2000 PSI
Cycle Rate30-40 pallets per hour
CertificationsUL Certified Panel
Motor5 HP
Power Source208/230/460/575V
Anchors10
FinishBlue 2-part Epoxy Paint
Warranty3 year parts and 1 year labor. Extended warranty available.
Operating Length145-7/8"
Operating Height84-5/8"
Operating Width60-7/8"
Shipping weight*4,000 lbs
Shipping Dimensions96" L X 84" W X 96" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

The standard operator controls for the PSR-73 are press and maintain push buttons on an angle top console. Save energy as the motor turns on when each movement button is pressed and off when the button is released. For multiple shifts or in-freezer use, upgrade to oversized heavy-duty pushbuttons that are perfect for users wearing gloves. Finally, downgrade to a budget friendly 2 or 3 station hand lever control valve with motor starter.

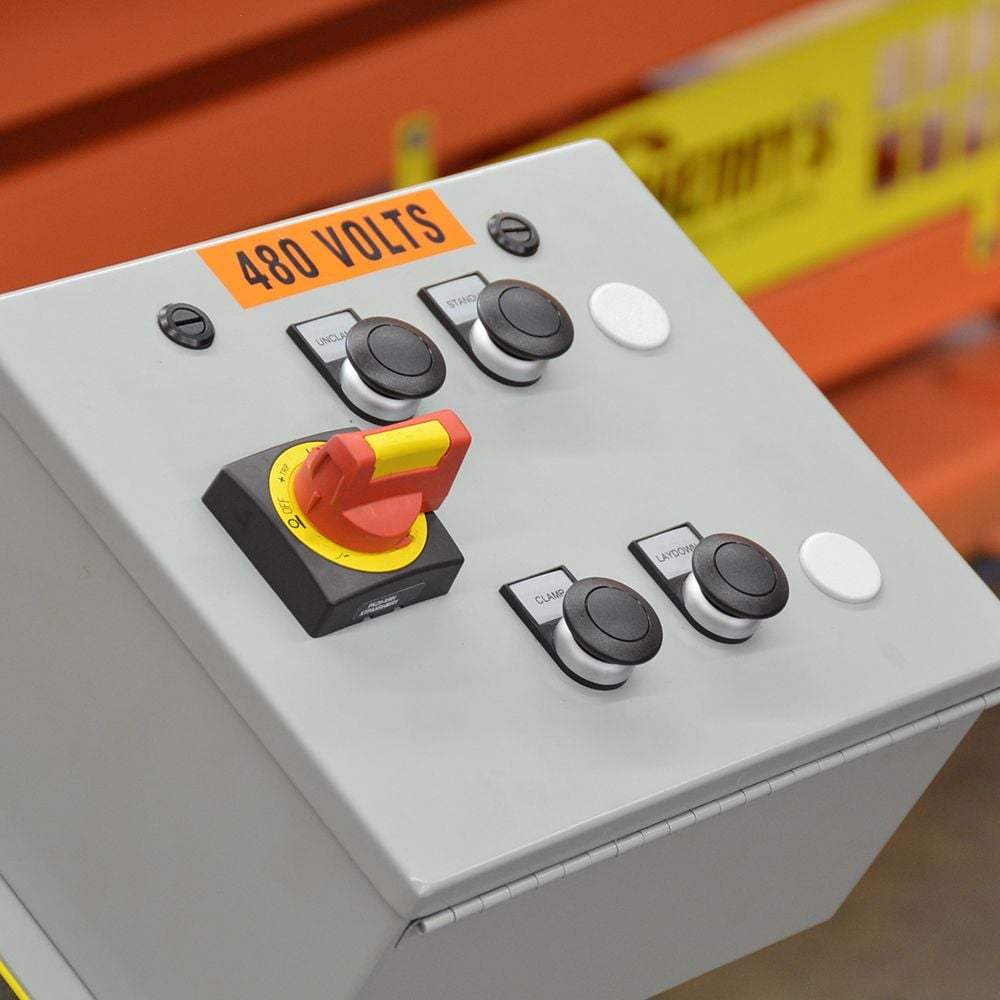

Basic Push Button (Energy Saver) Control with Power SwitchBasic Push Button (Energy Saver) Control with Power Switch

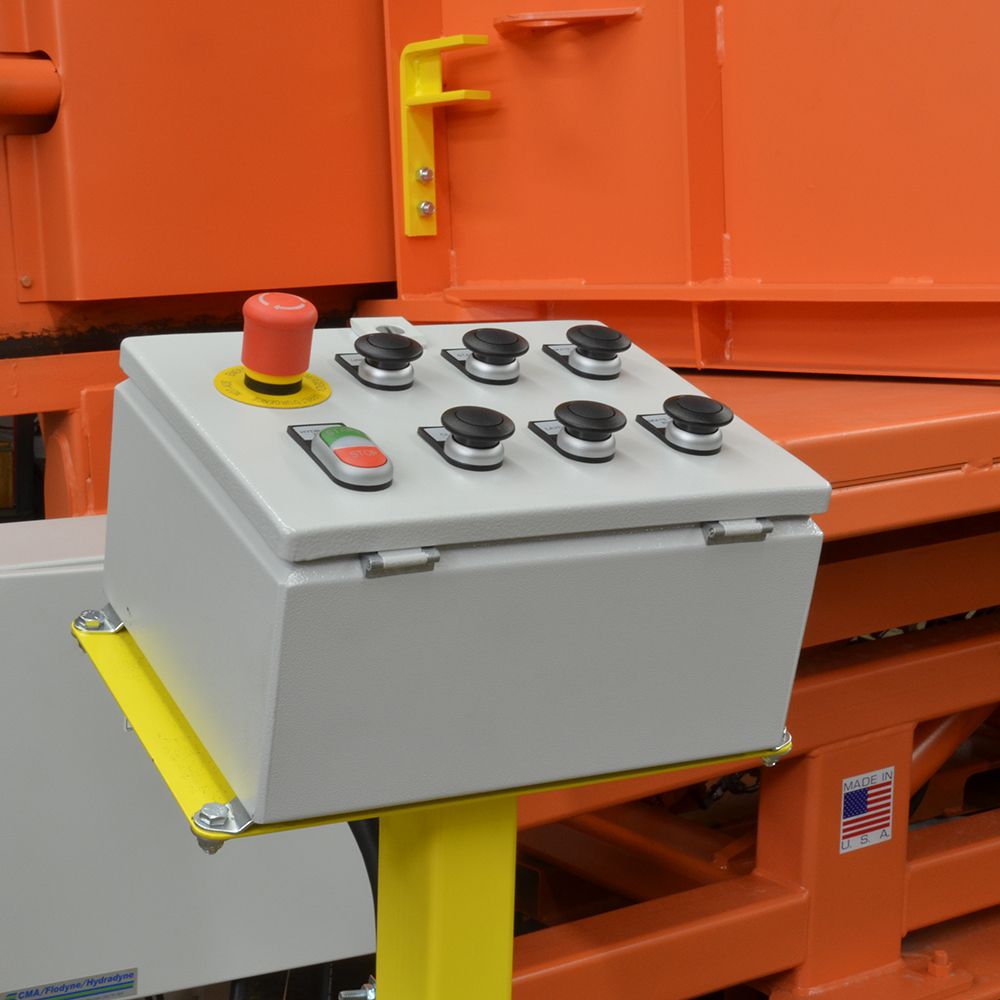

Push Button (Energy Saver) Control with Skate Table Option and E-Stop ButtonPush Button (Energy Saver) Control with Skate Table Option and E-Stop Button
Heavy-Duty-Push-Button-ConsoleHeavy-Duty-Push-Button-Console

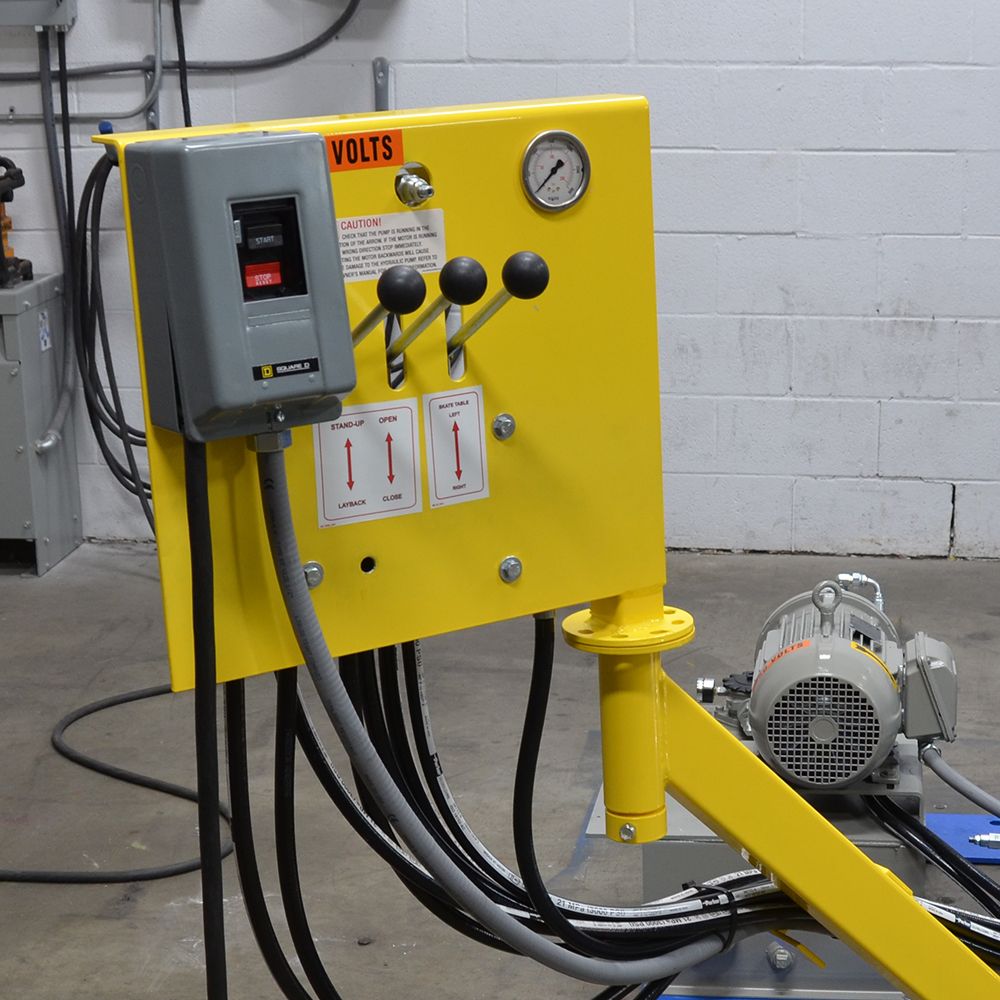

3 station lever controls3 station lever controls

Options

The PSR-73 is available with options to meet the specs for your environment and application. Use the powered skate table option to position the boxes for easier freezer spacer removal. Stainless steel and Steel It paint are great options in preventing rust especially if the machine is washed down regularly. For colder environments we recommend a tank heater and ATF fluid, then add freezer rated hoses if the temperatures are below zero. For higher volume choose the high speed option.

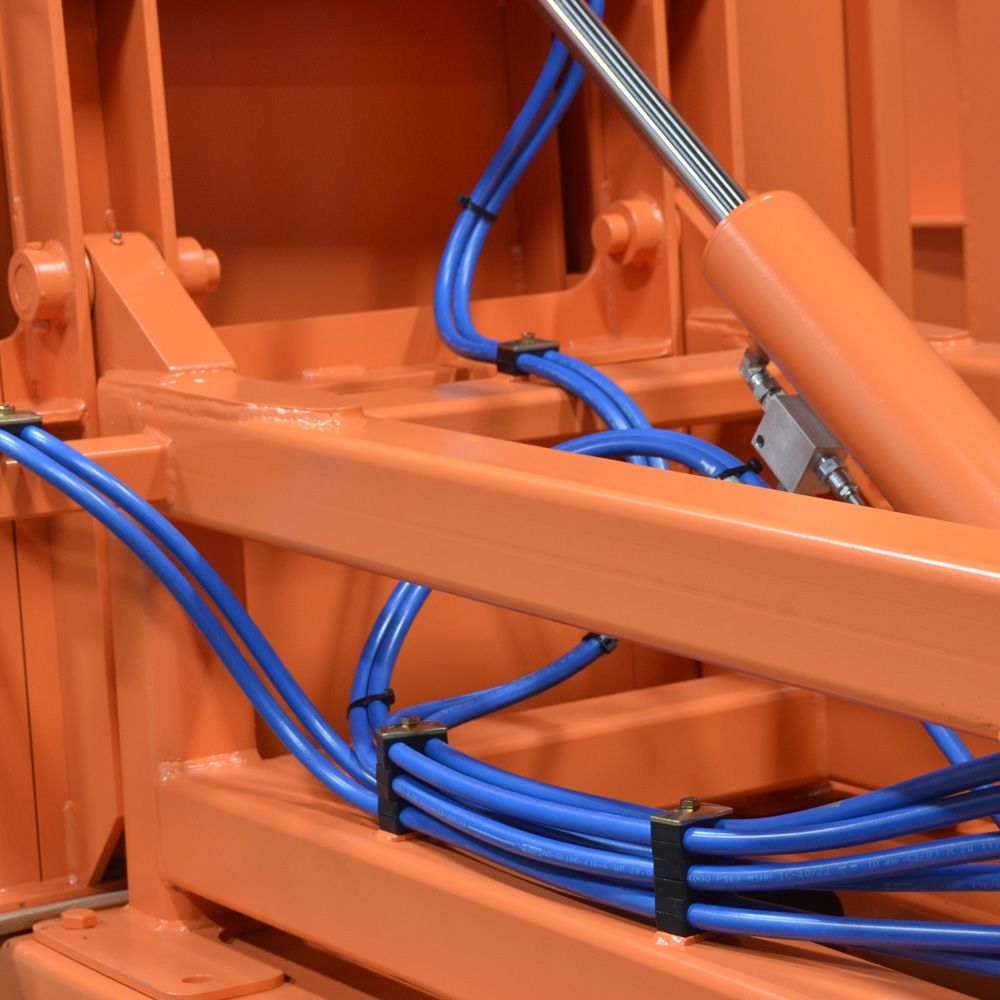

Freezer-Rated-HosesFreezer-Rated-Hoses

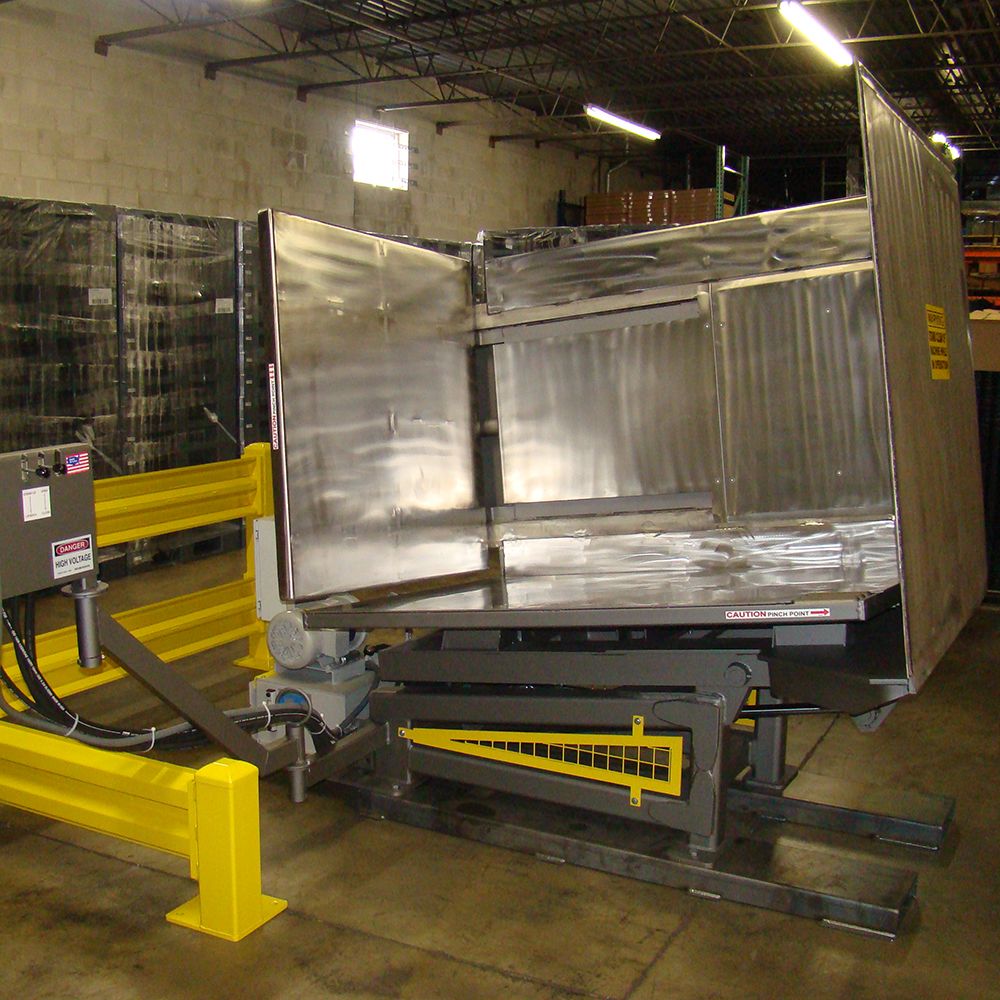

Stainless SteelStainless Steel

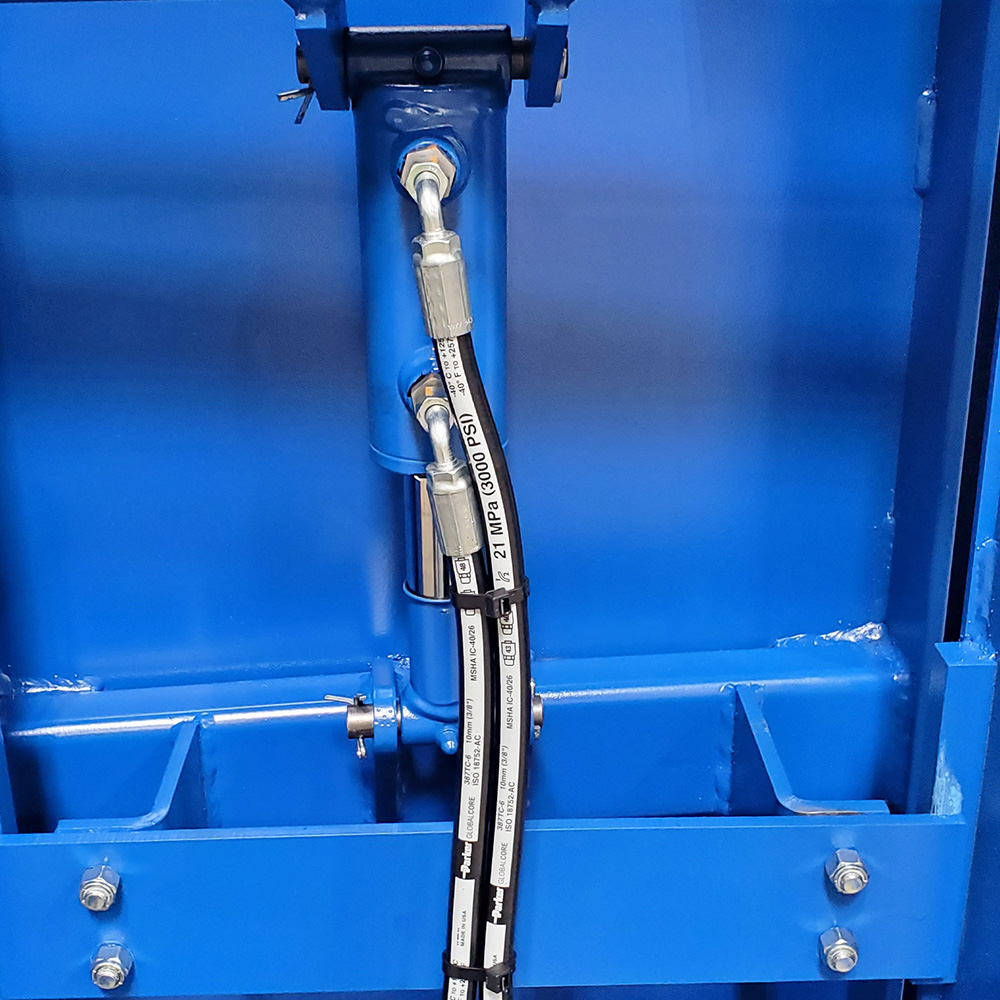

Powered Skate TablePowered Skate Table

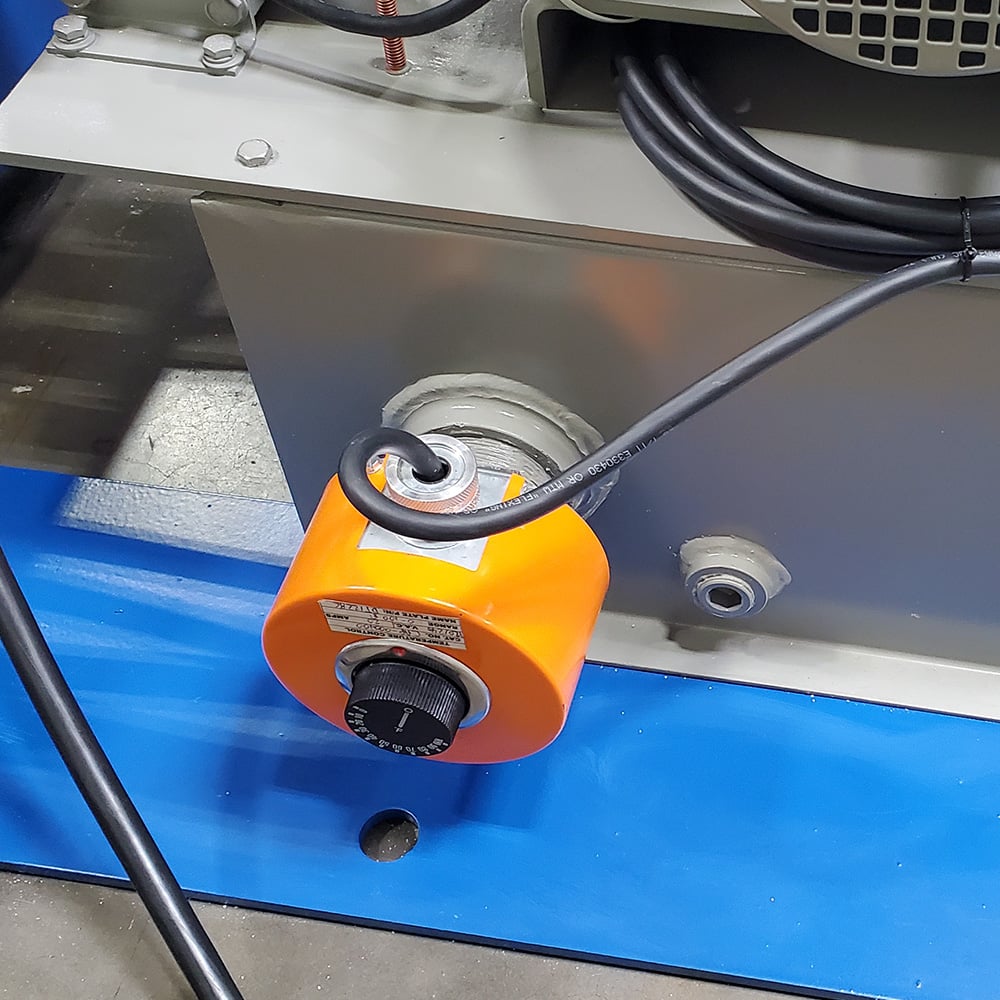

Tank HeaterTank Heater

Guarding

Protect your new asset and enhance the safety of the operator and maintenance personnel. Hard guarding options include crash guards, rail guards and 3-sided high style fencing. Add category 4 light curtains to protect the front area from unwanted entrance while the machine is in use.

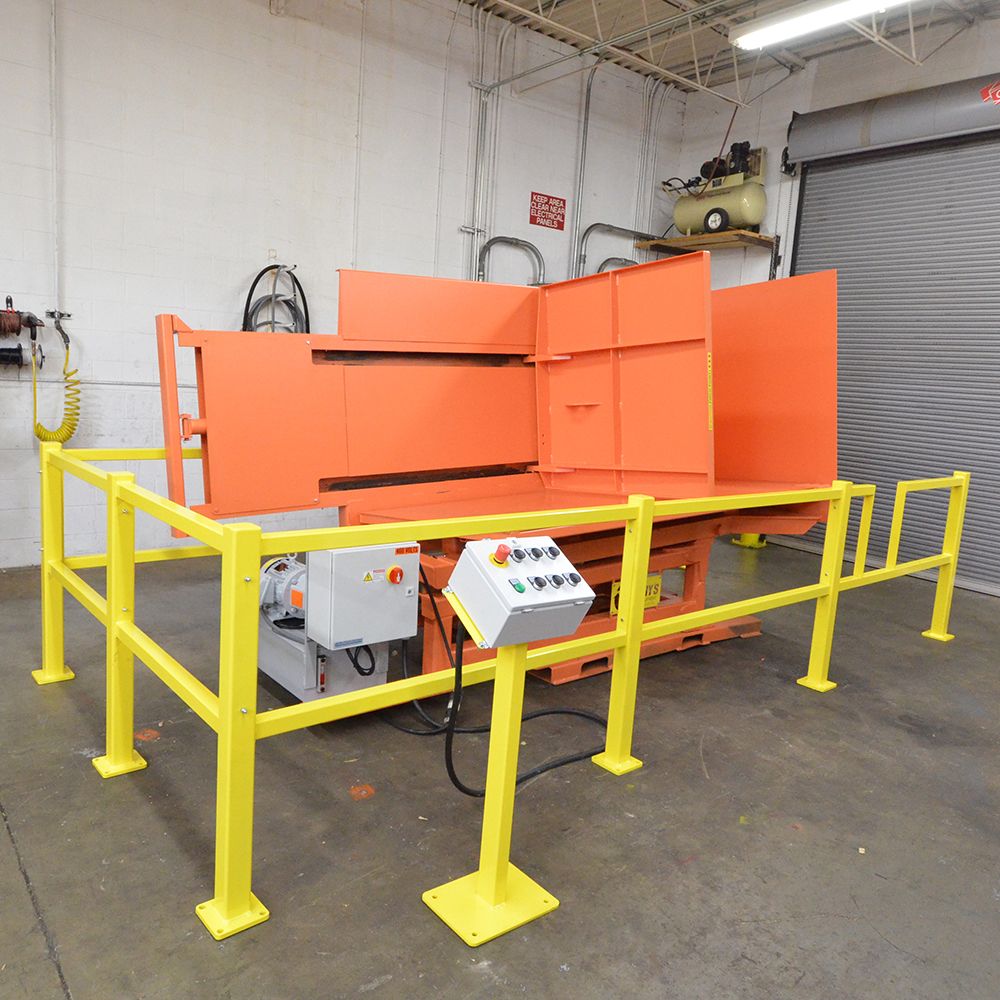

Rail GuardsRail Guards

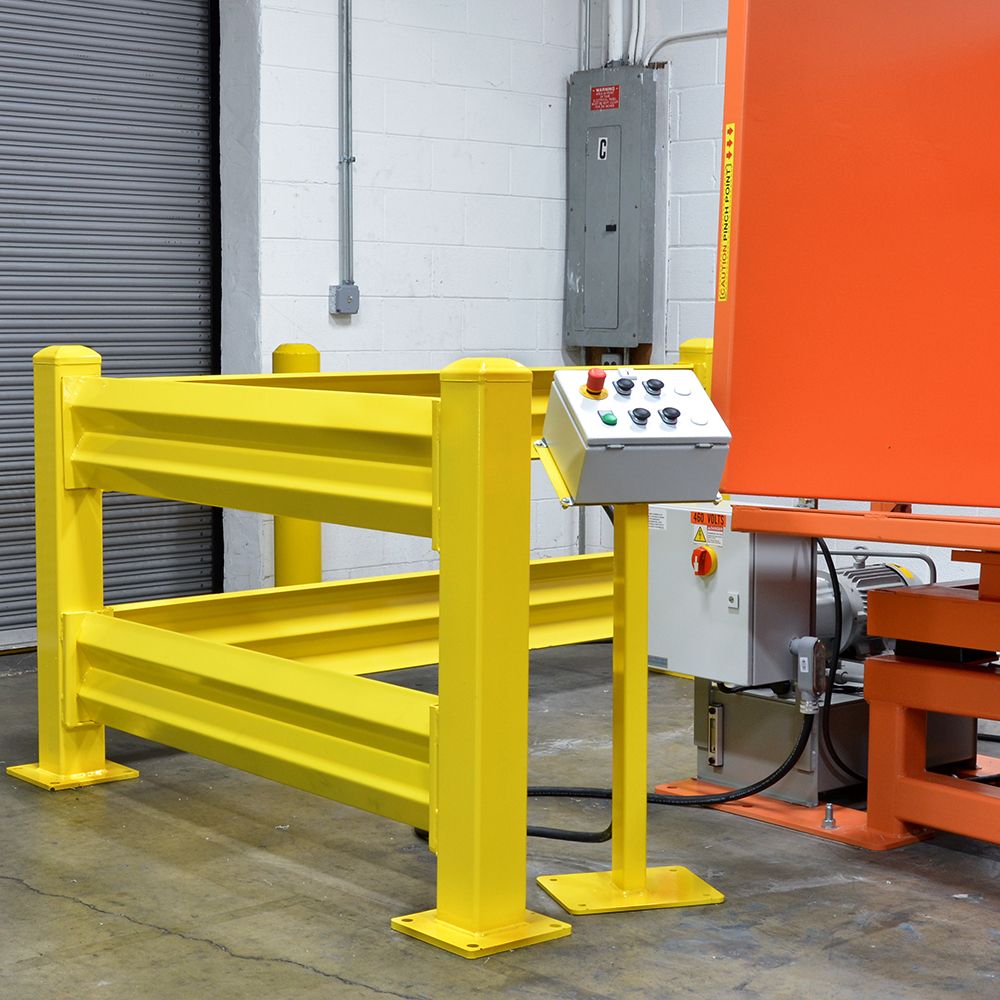

Crash GuardsCrash Guards

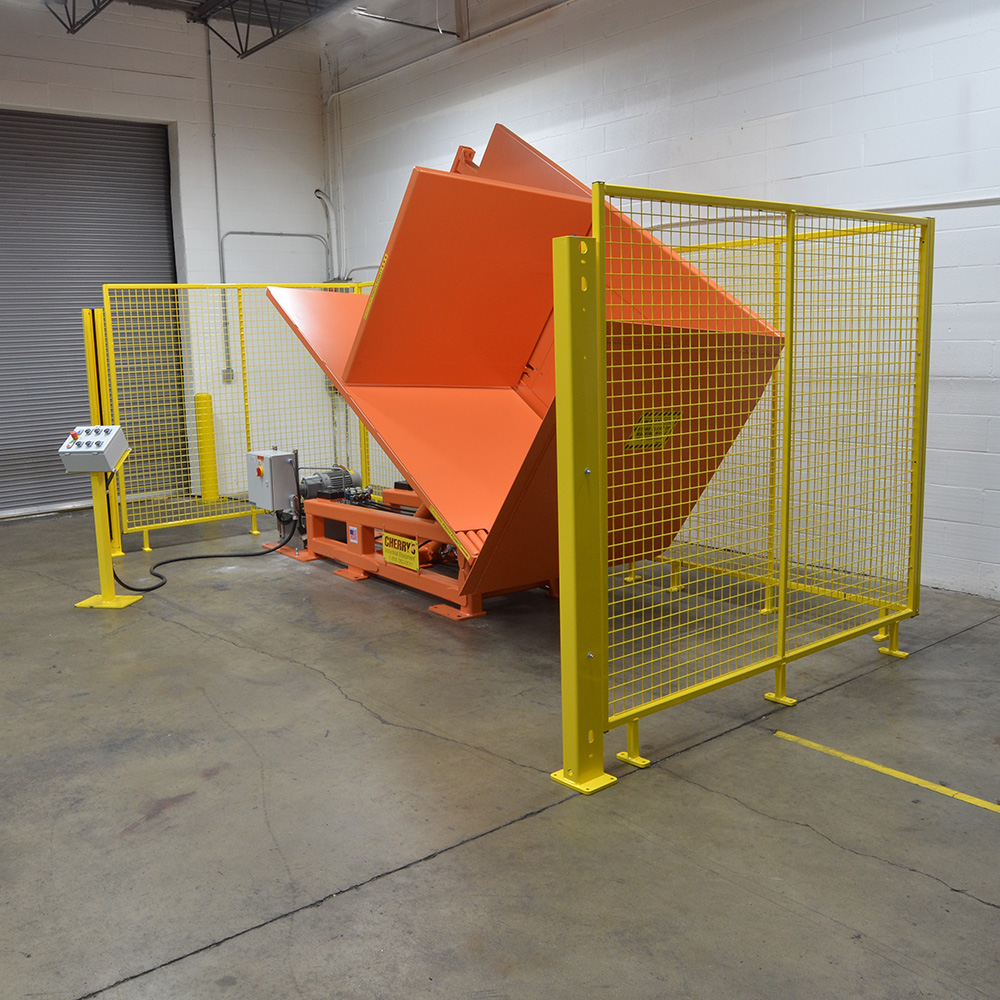

High Style GuardsHigh Style Guards

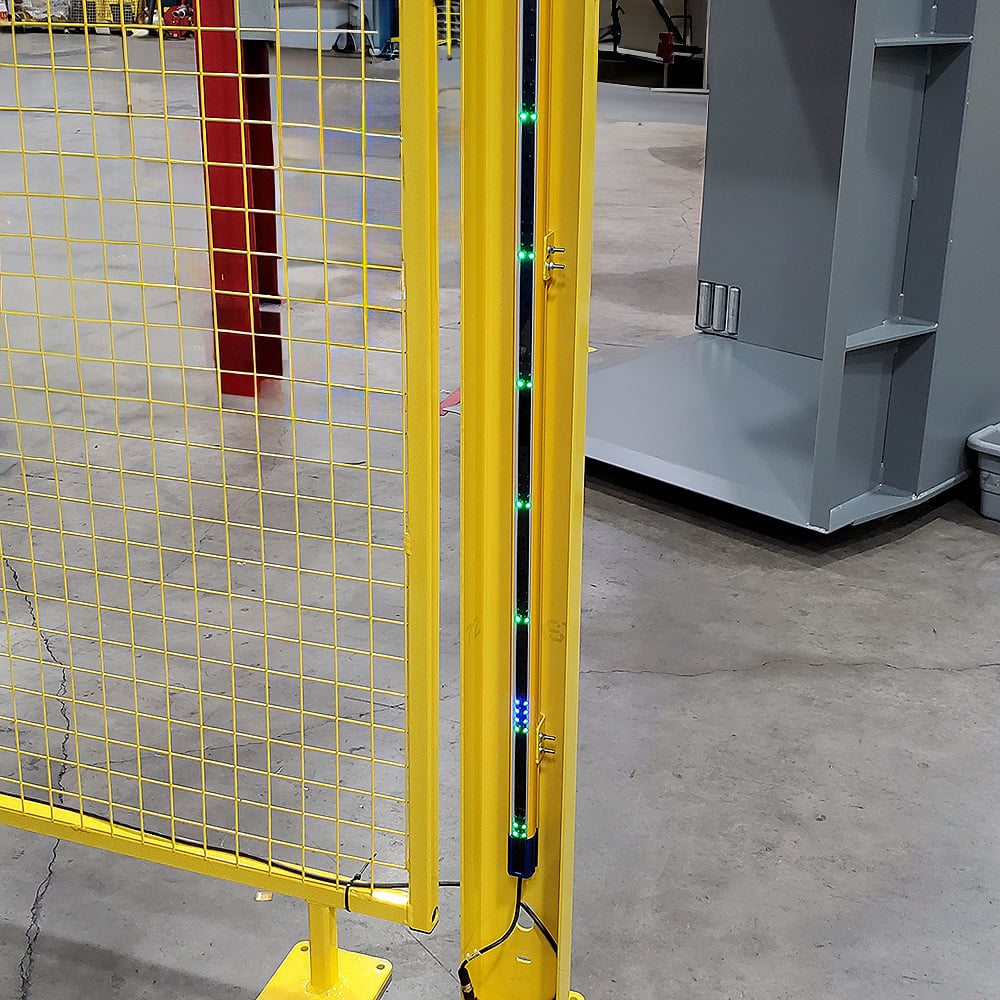

Light CurtainsLight Curtains
