PSR-118 Pallet Retriever


PSR-118

The PSR-118 pallet retriever offers a clamping range from 118" max. to 70" min. and is built for freezer spacer removal and pallet exchange in cold storage operations. Designed for efficiency, it completes tasks up to 90% faster than manual handling, helping reallocate labor to more critical functions. Proudly made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Detail
PSR-118 Pallet Retriever
PSR-118 Pallet Retriever Image 1

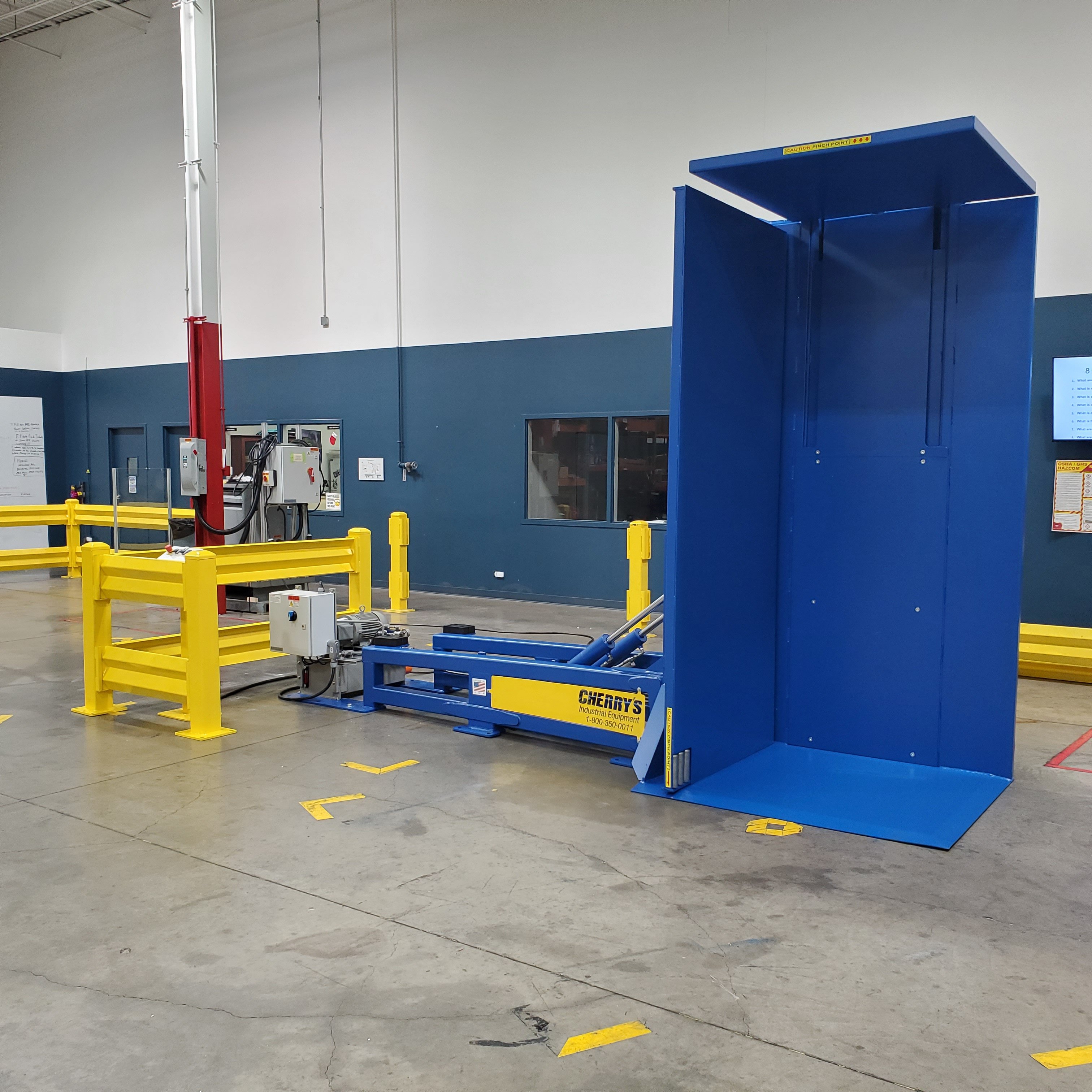

PSR-118 Pallet Retriever Image 2

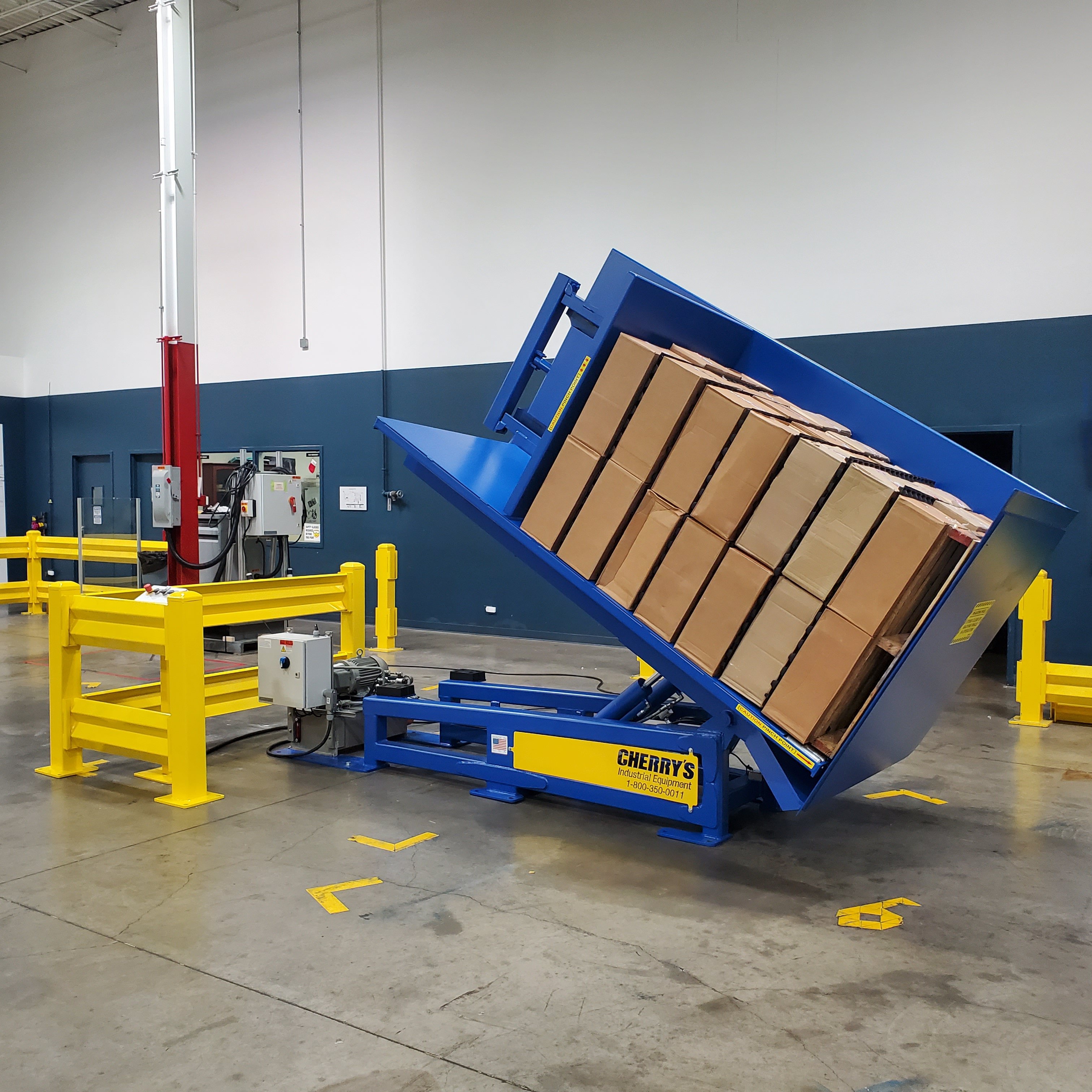

PSR-118 Pallet Retriever Image 3

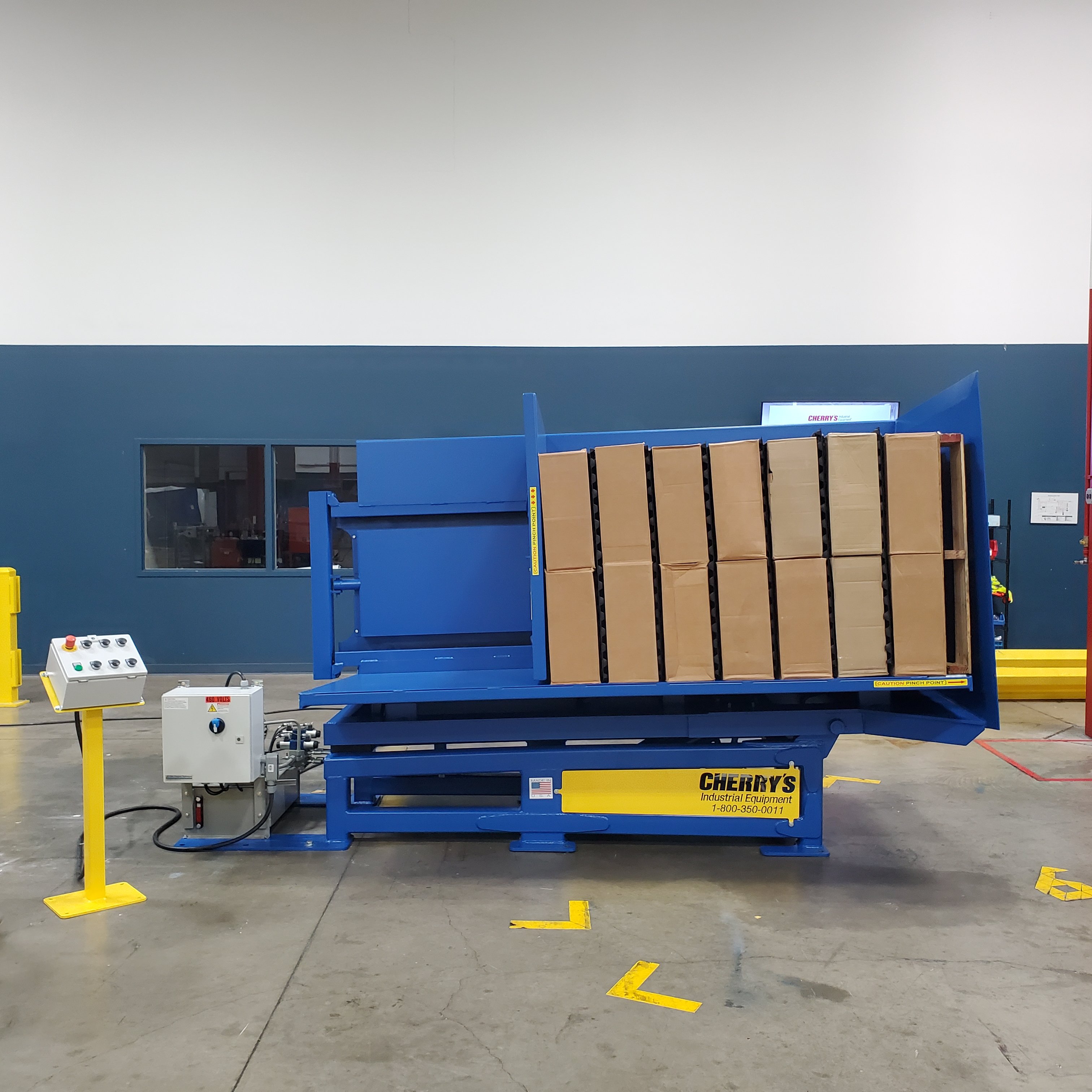

PSR-118 Pallet Retriever Image 4

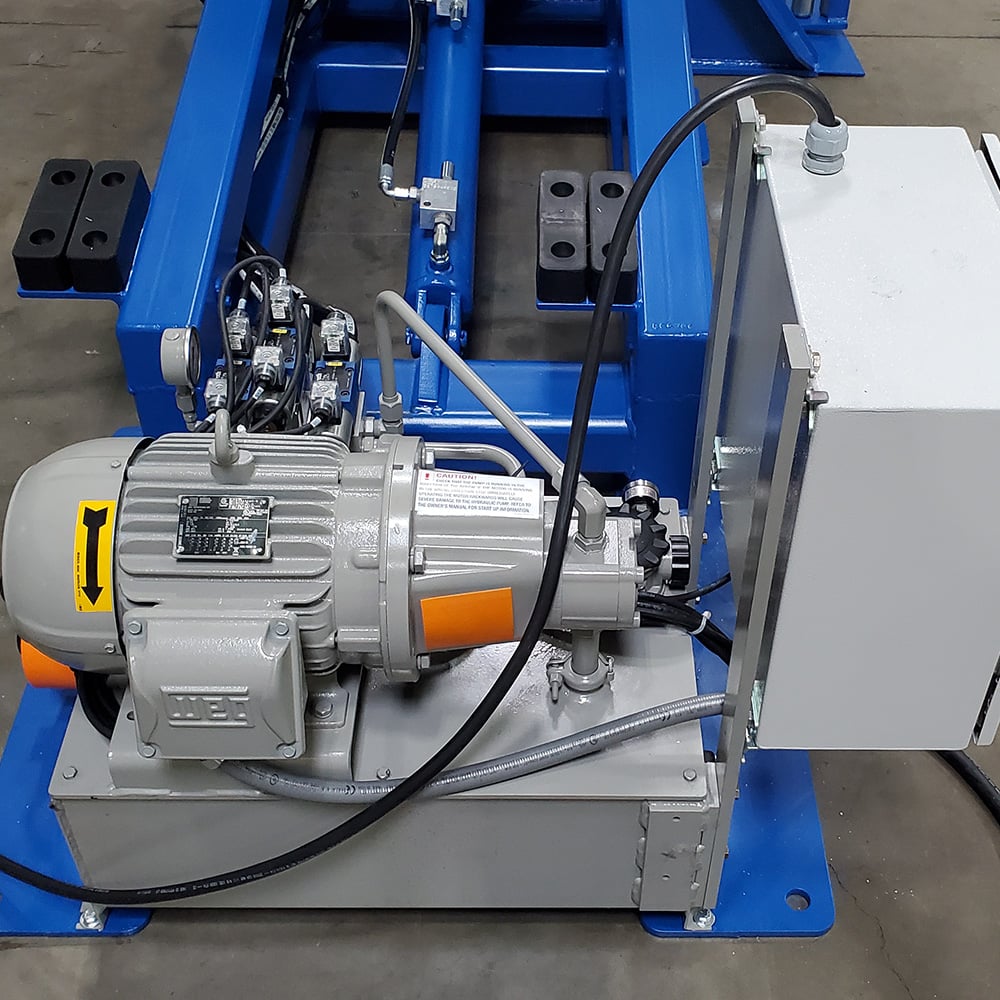

PSR-118 Pallet Retriever Image 5

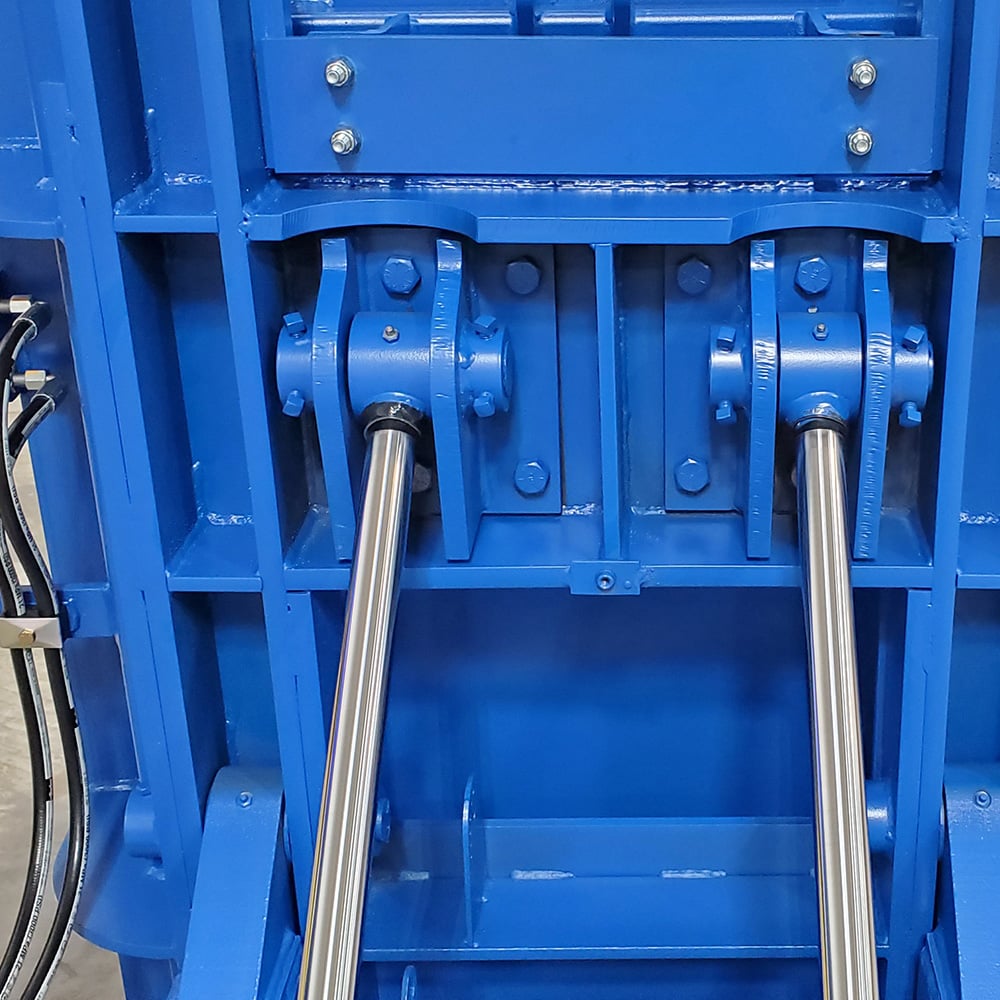

PSR-118 Pallet Retriever Image 6
PSR-118 Pallet Retriever Image 7

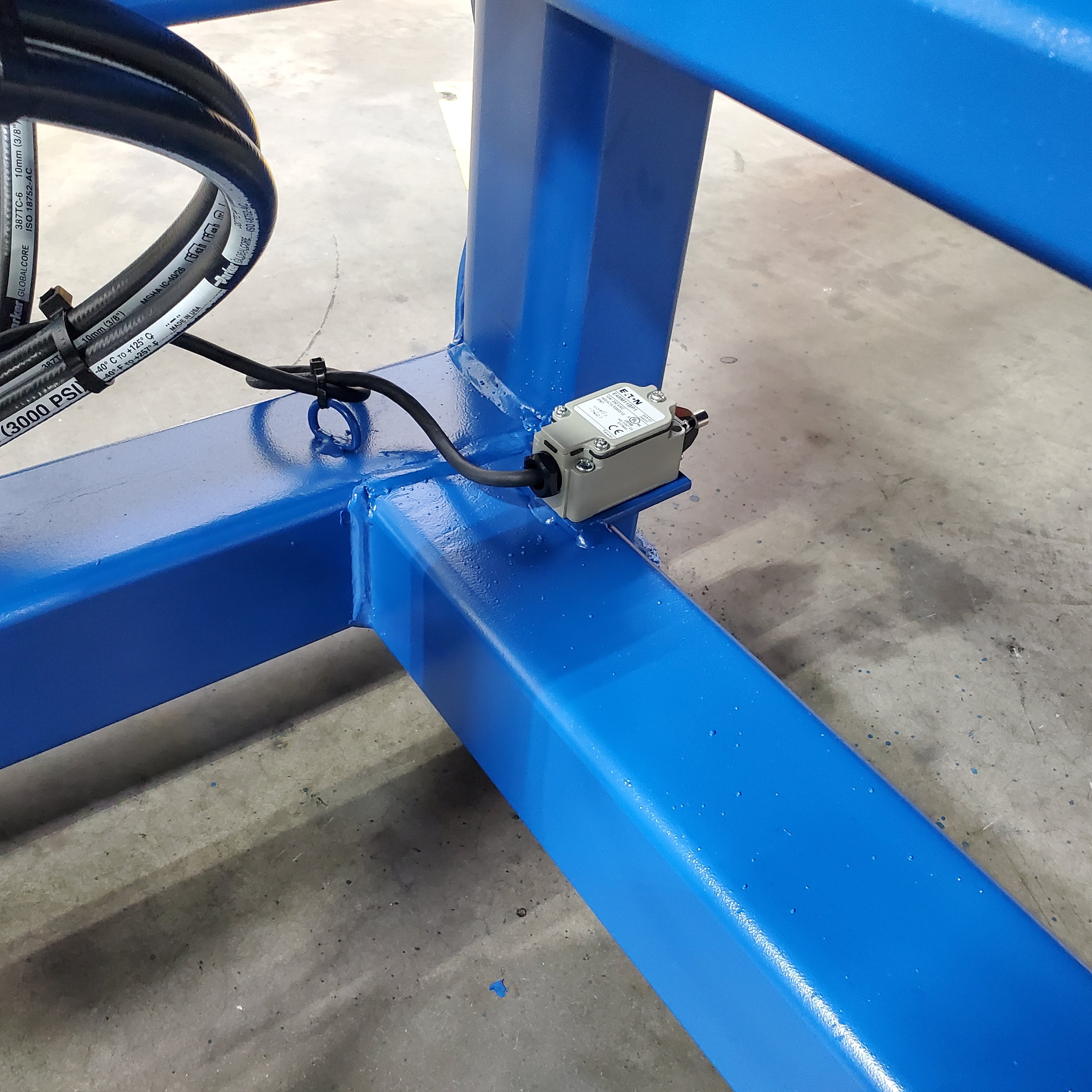

PSR-118 Pallet Retriever Image 8

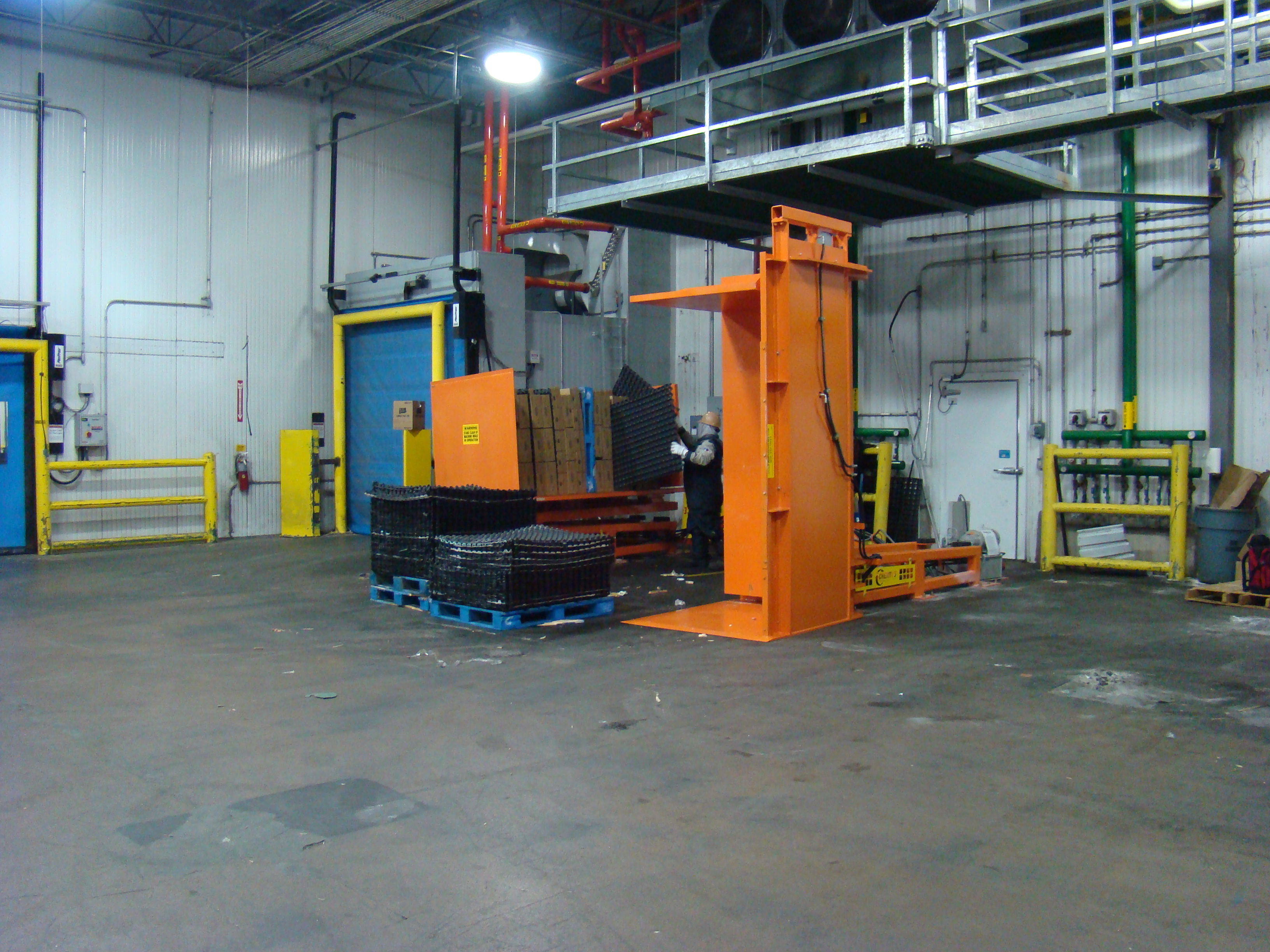

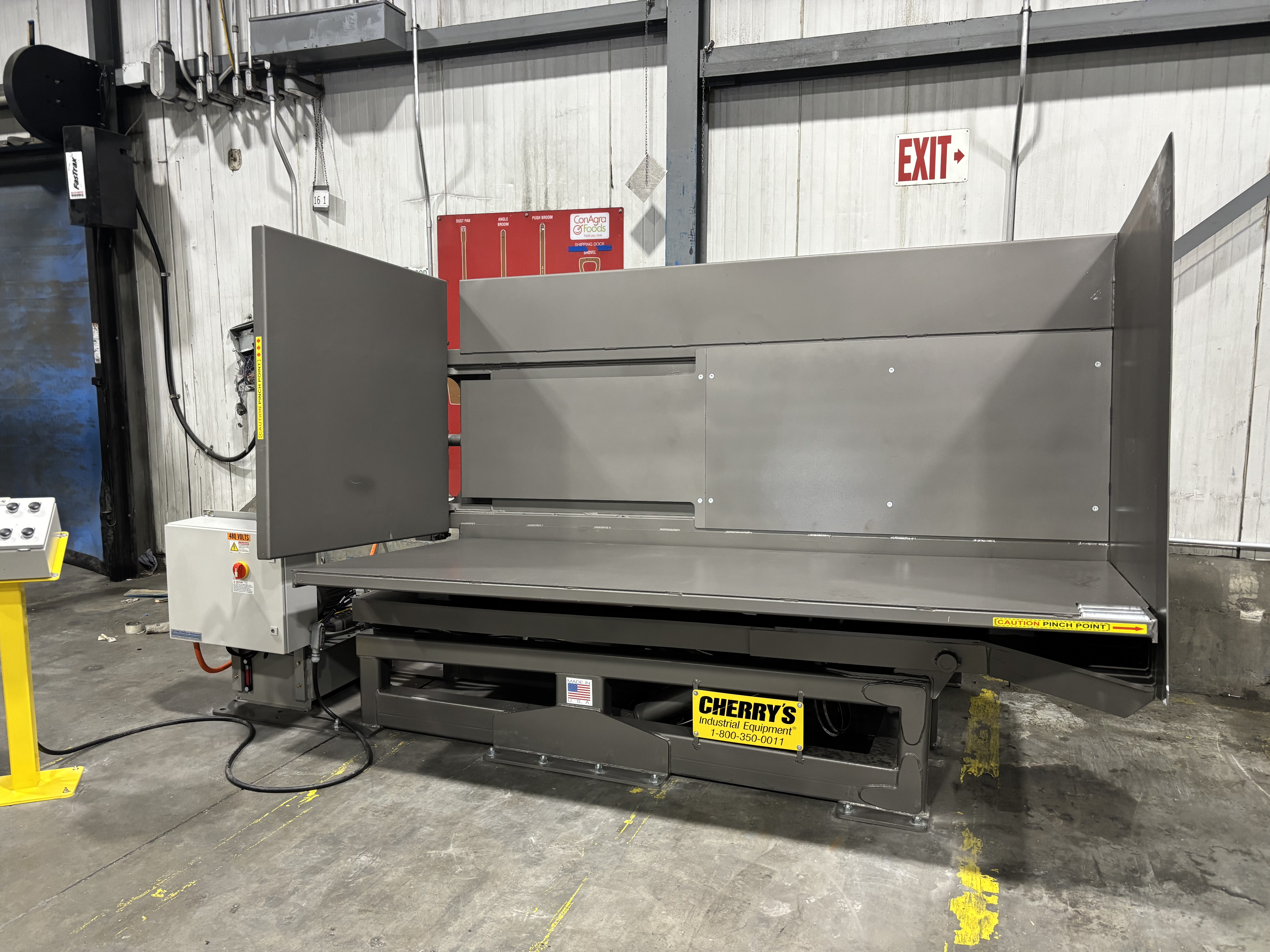

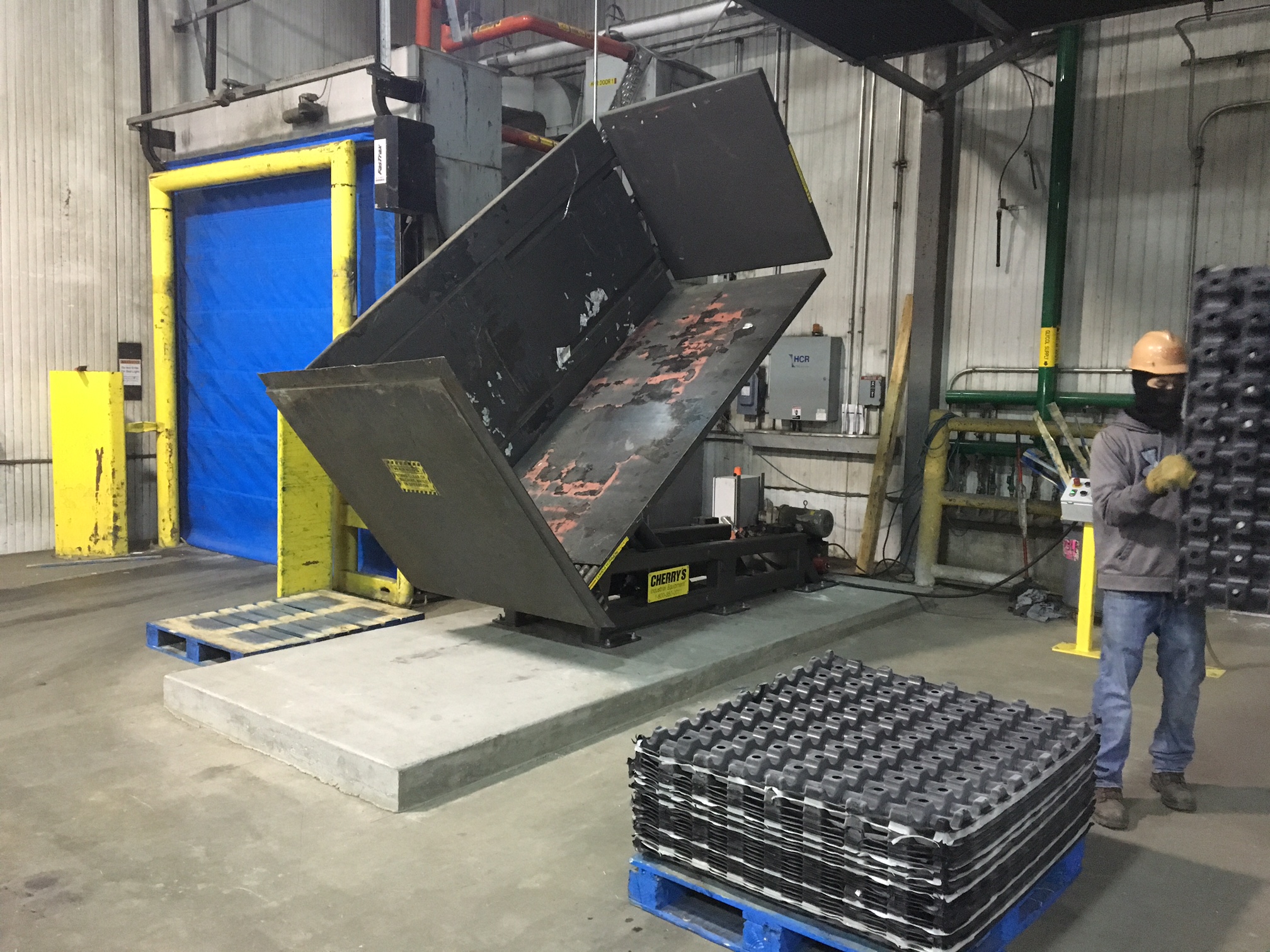

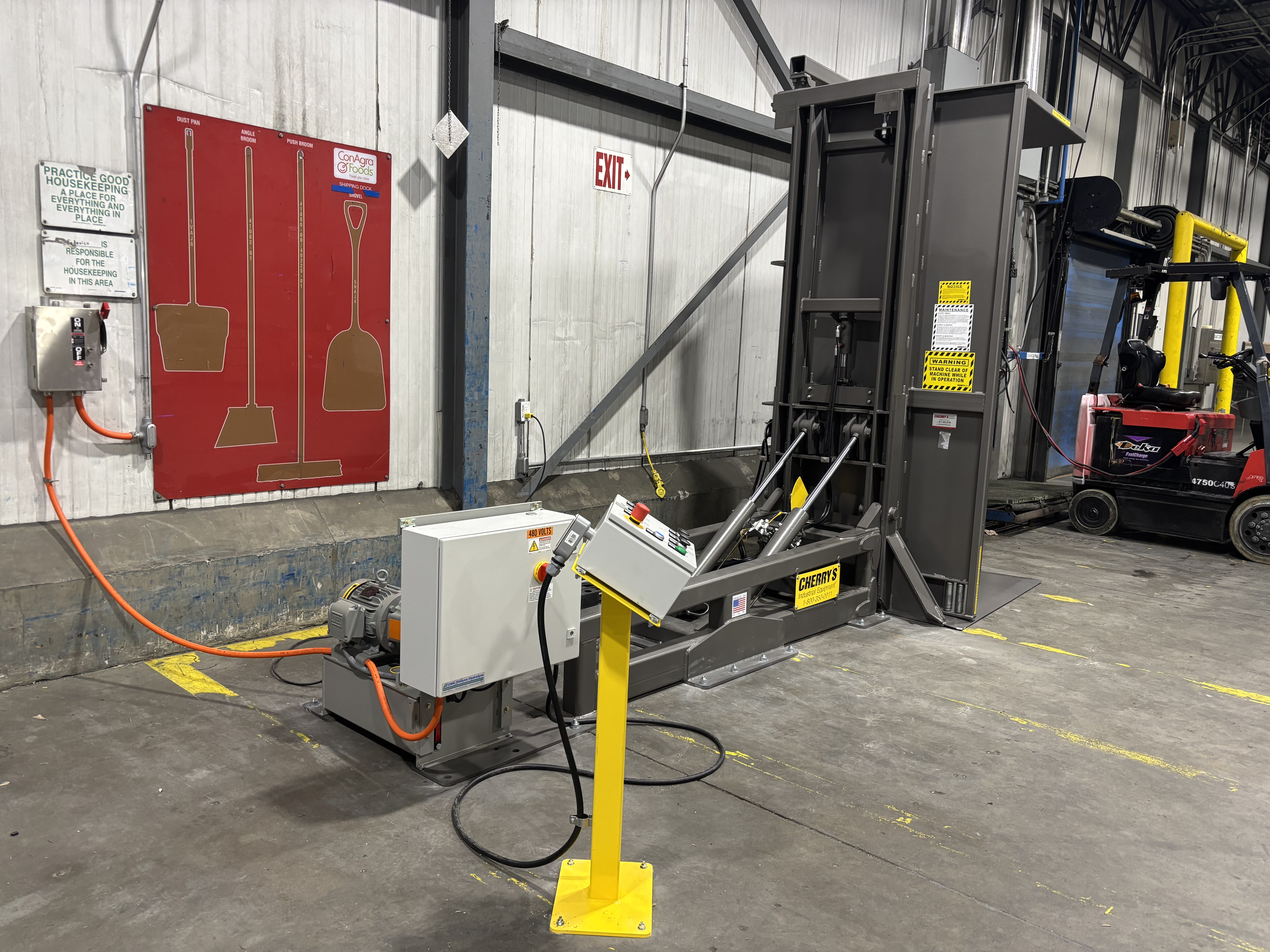

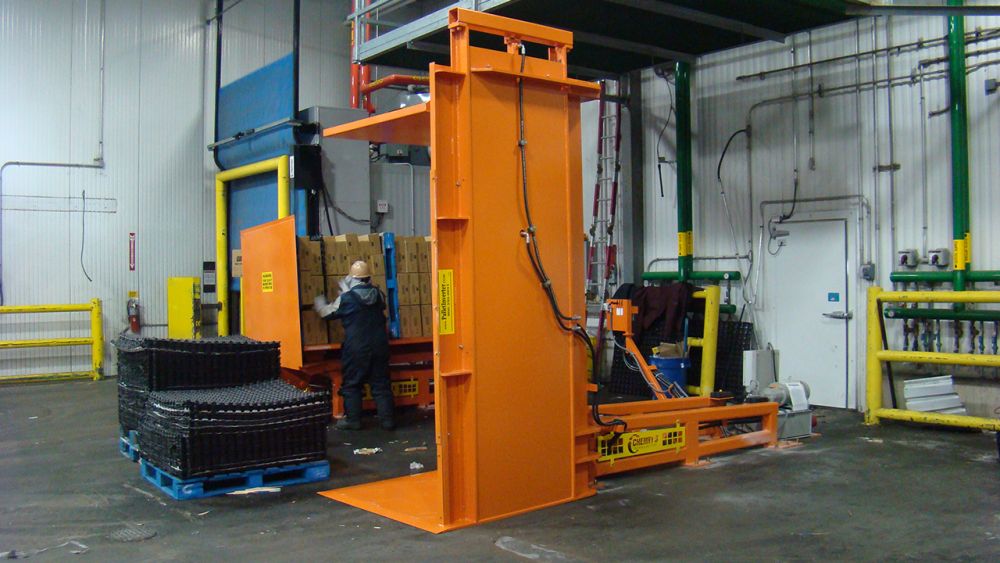

See it in the Wild

×

Product Information

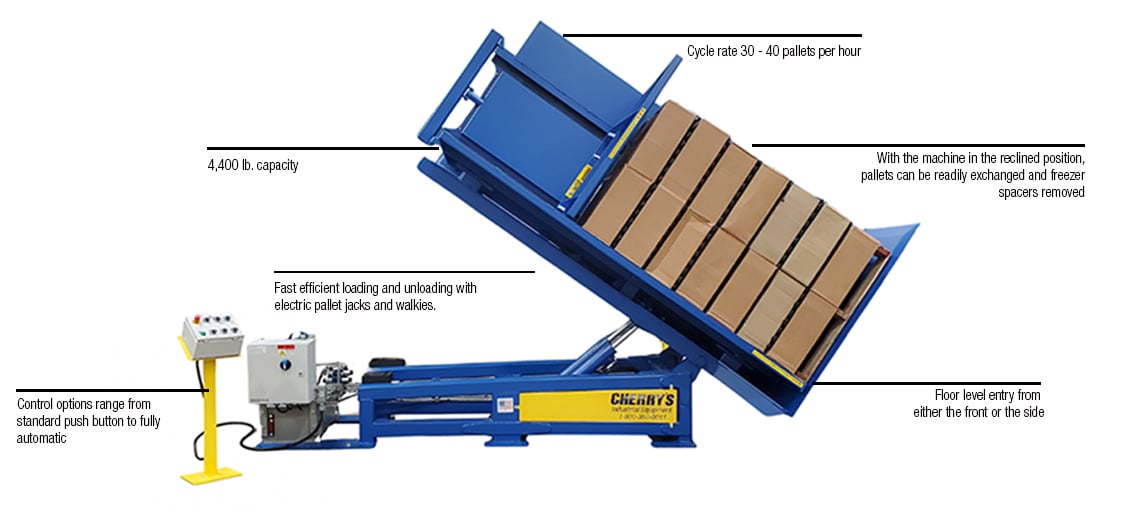

Ground-Level 105 degree Pallet Transfer & Freezer Spacer Removal Machine Engineered for demanding applications, this machine provides a 105 degree ground-level load transfer solution designed specifically for freezer spacer removal, pallet changeovers, and high-capacity load handling. With an expanded clamping plate range accommodating loads from 70" to 118", and built with severe-duty components, it delivers reliable performance even under the most rugged conditions. Perfect for freezer spacer removal on double-stacked loads, center pallet extraction, load combining, or maximizing trailer/container cube-out, this versatile system streamlines material handling while protecting product integrity. Available with extended warranties, preventative maintenance, and installation service agreements, the unit ensures long-term reliability and uptime. For operations requiring even greater efficiency, a high-speed option is also available.

Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
PSR-118L Levers 5/5.2 22 standup/22 layback N/A
PSR-118PB Push buttons 5/5.2 22 standup/22 layback Optional
PSR-118HSP Push buttons 5/6.6 20 standup/16 layback Optional



Product Tour


Specifications


ModelPSR-118
Loading Table Size50½ x 49¾''
Max. Jaw Opening118"
Min. Jaw Opening70"
Loading HeightGround level
Working Table Height34-5/8"
ControlsPush Button Console
Capacity4,400 lbs
Main Turnover Cylinders2
System Pressure2,000 PSI
Adjustable Clamp Pressure1,000-2,000 PSI
Cycle Rate40-50 pallets per hour
CertificationsUL Certified Panel
Motor5 HP
Power Source208/230/460/575V
Anchors18
Warranty3 year parts and 1 year labor. Extended warranty available.
Operating Length183-7/8"
Operating Height127"
Operating Width61-1/4"
Shipping weight*5,250 lbs
Shipping Dimensions144" L X 84" W X 96" H
FinishBlue 2-part Epoxy Paint
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The PSR-118HD is available with options to meet the specs for your environment and application. Use the powered skate table option to position the boxes for easier freezer spacer removal. Stainless steel and Steel It paint are great options in preventing rust especially if the machine is washed down regularly. For colder environments we recommend a tank heater and ATF fluid, then add freezer rated hoses if the temperatures are below zero. High Speed option available.

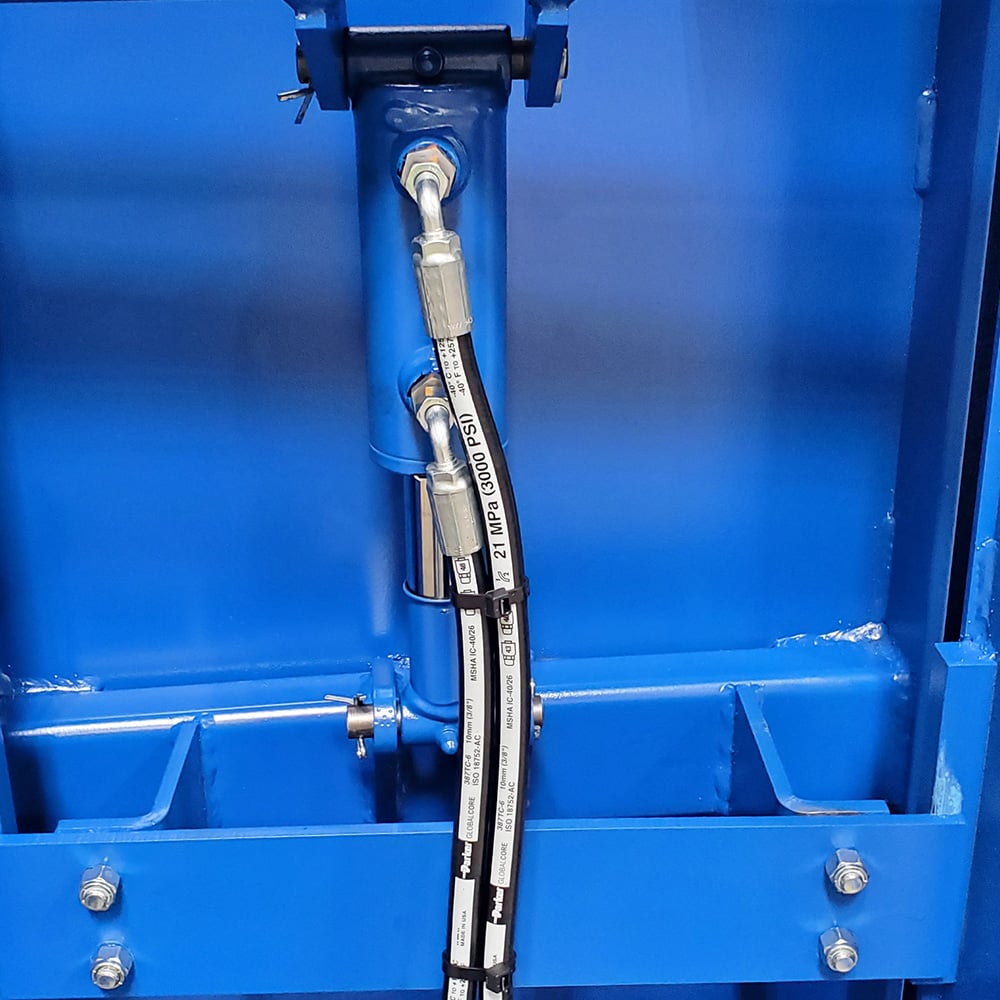

Powered Skate TablePowered Skate Table

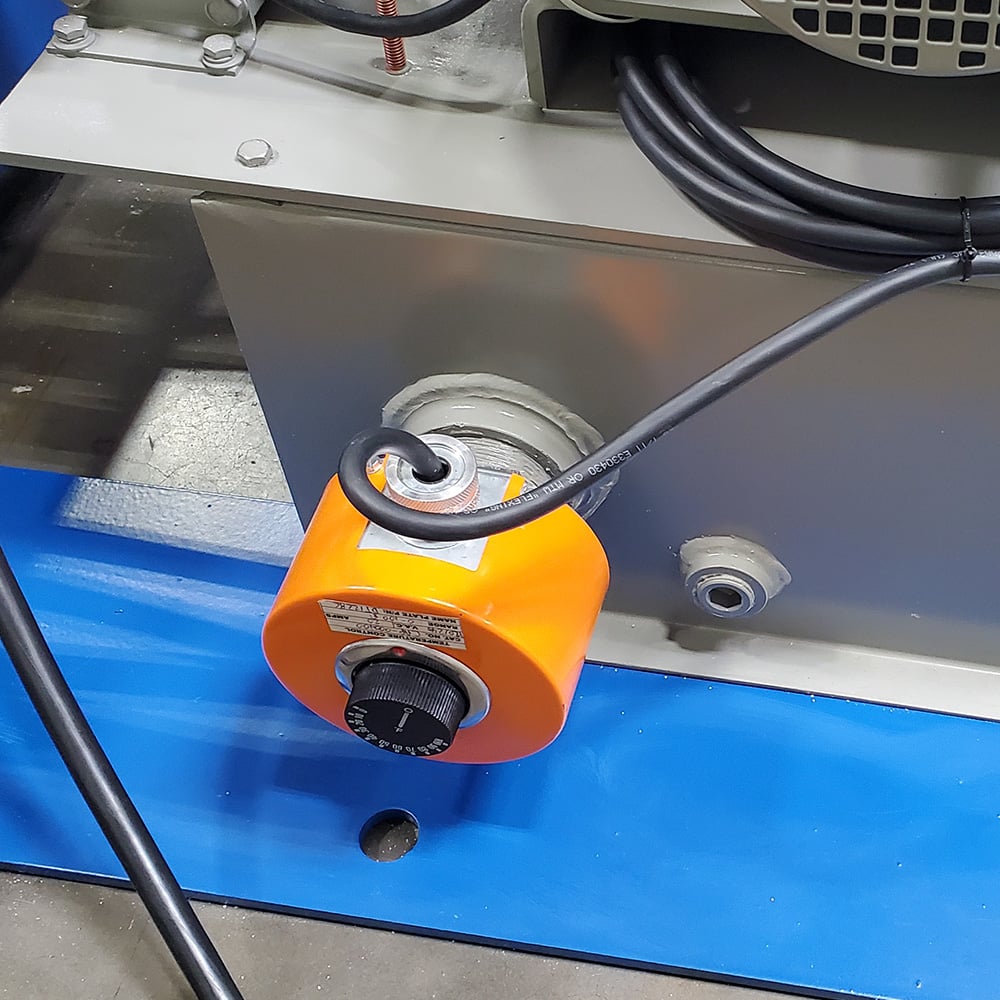

Tank HeaterTank Heater

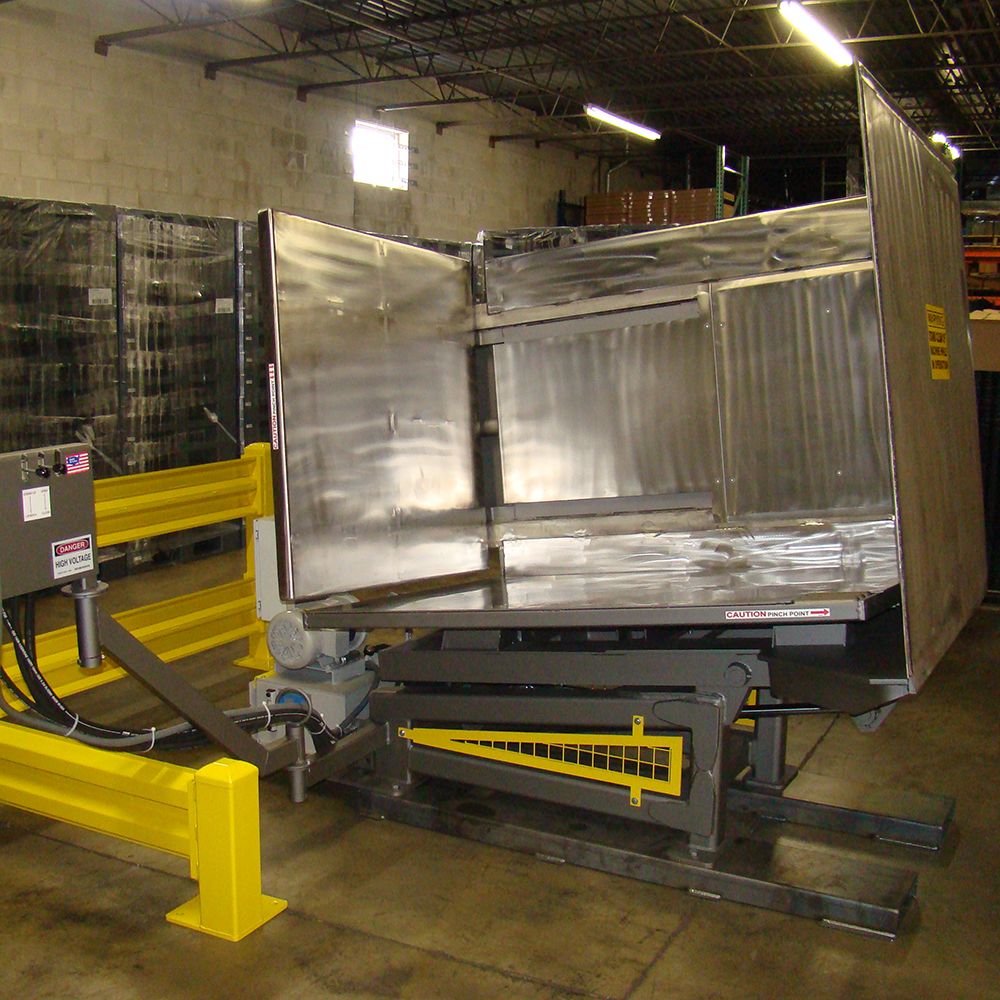

Stainless SteelStainless Steel

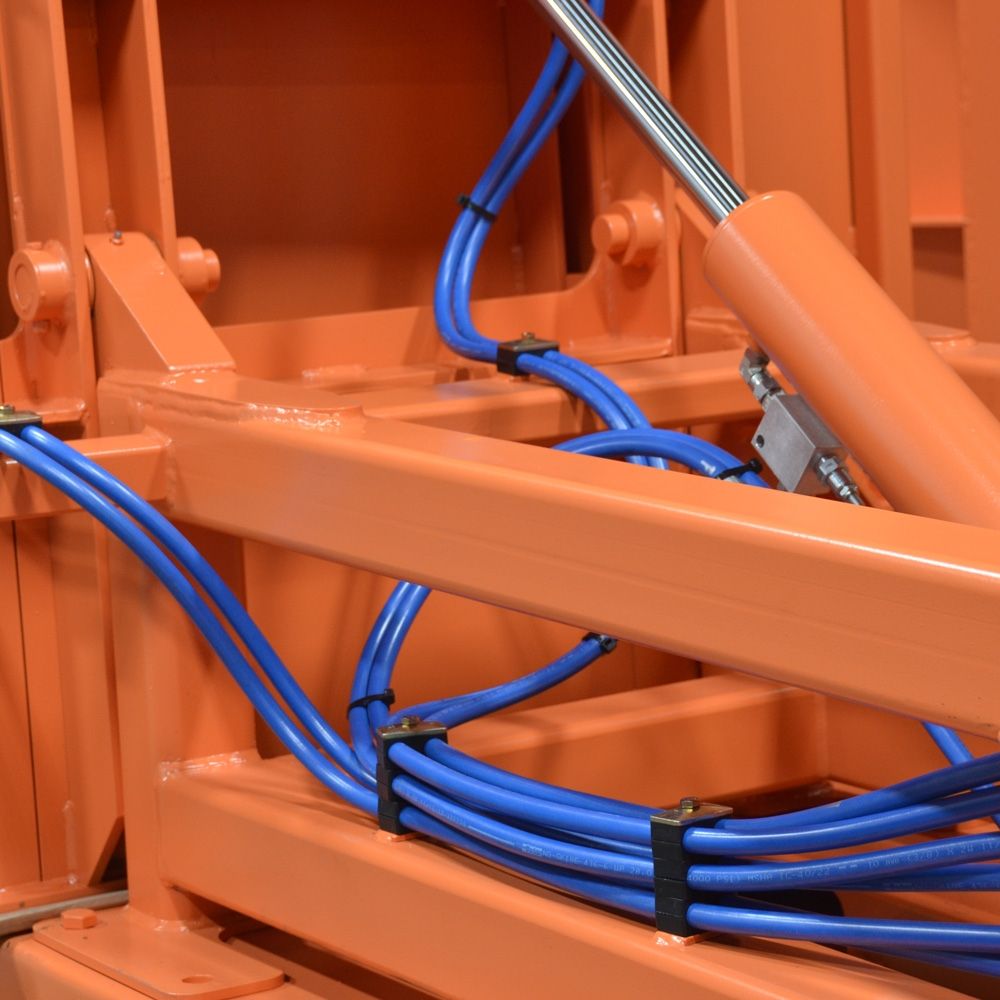

Freezer-Rated-HosesFreezer-Rated-Hoses

Guards

Protect your new asset and enhance the safety of the operator and maintenance personnel. Hard guarding options include crash guards, rail guards and 3-sided high style fencing. Add category 4 light curtains to protect the front area from unwanted entrance while the machine is in use.

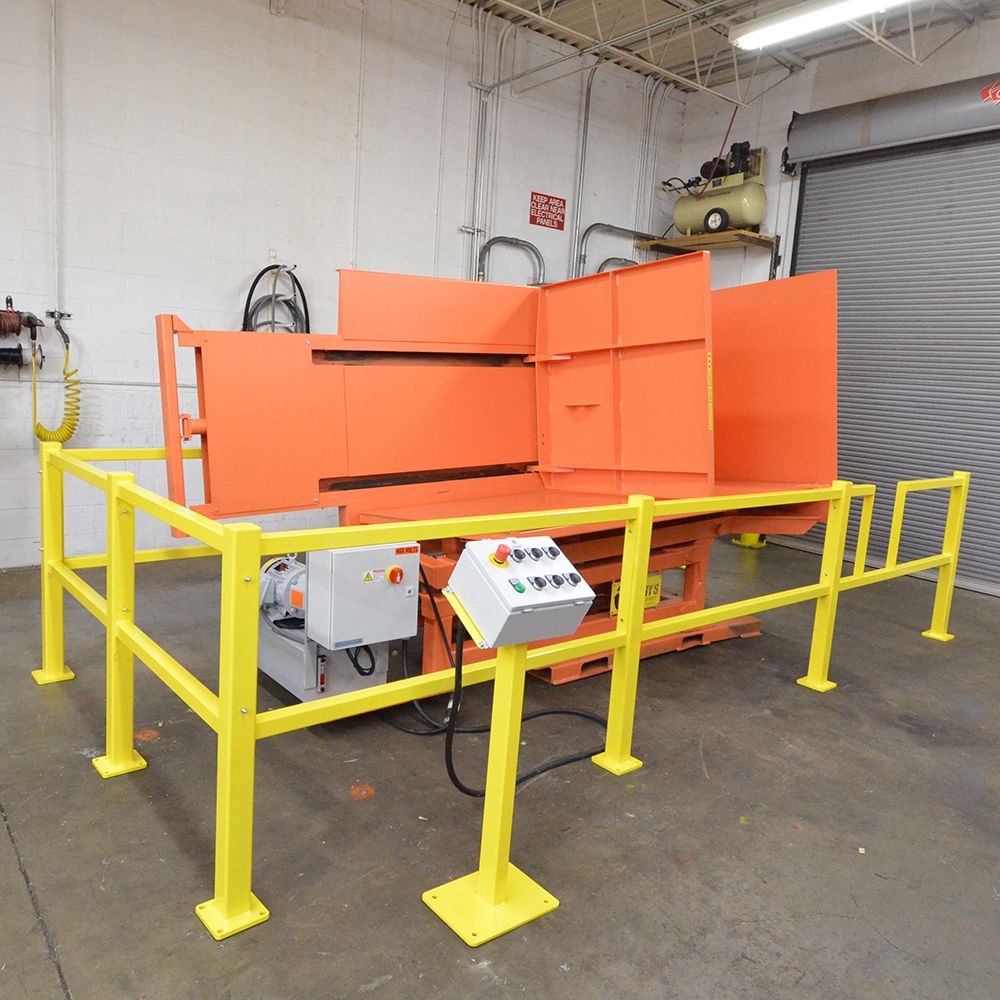

Rail GuardsRail Guards

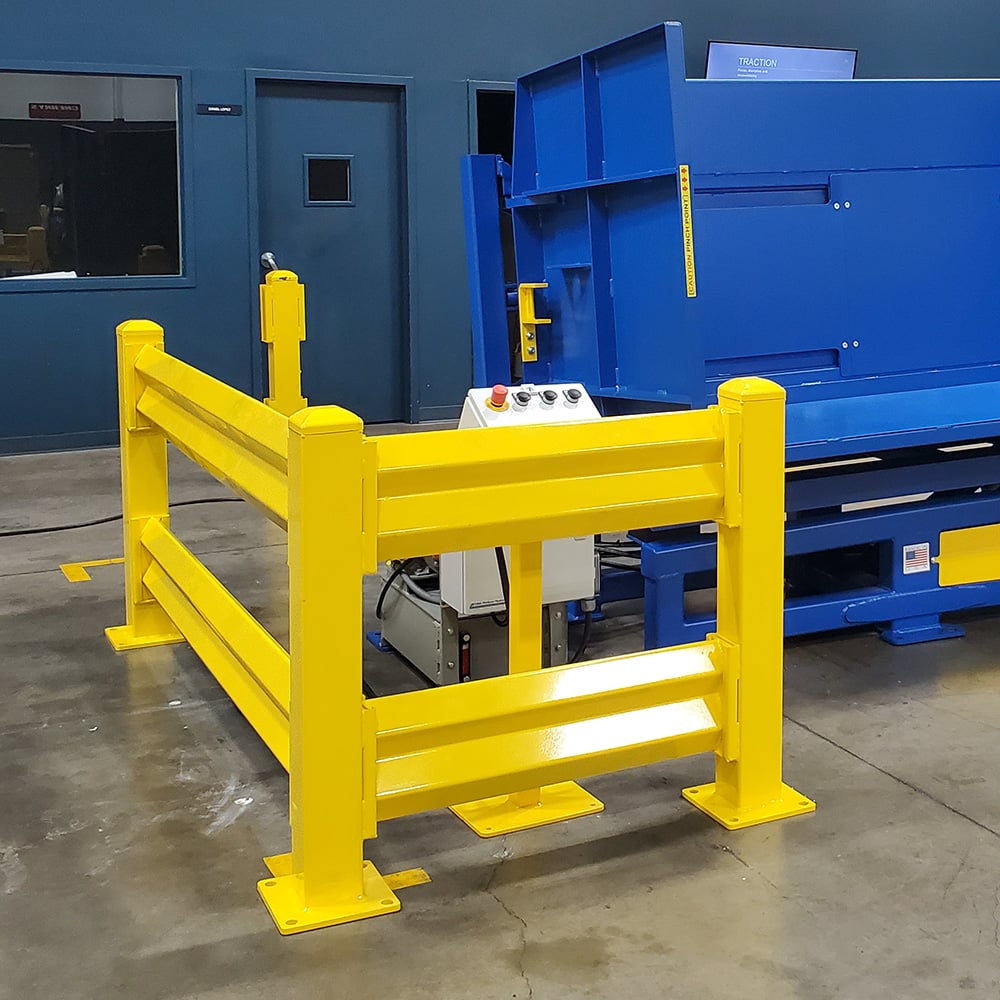

Crash GuardsCrash Guards

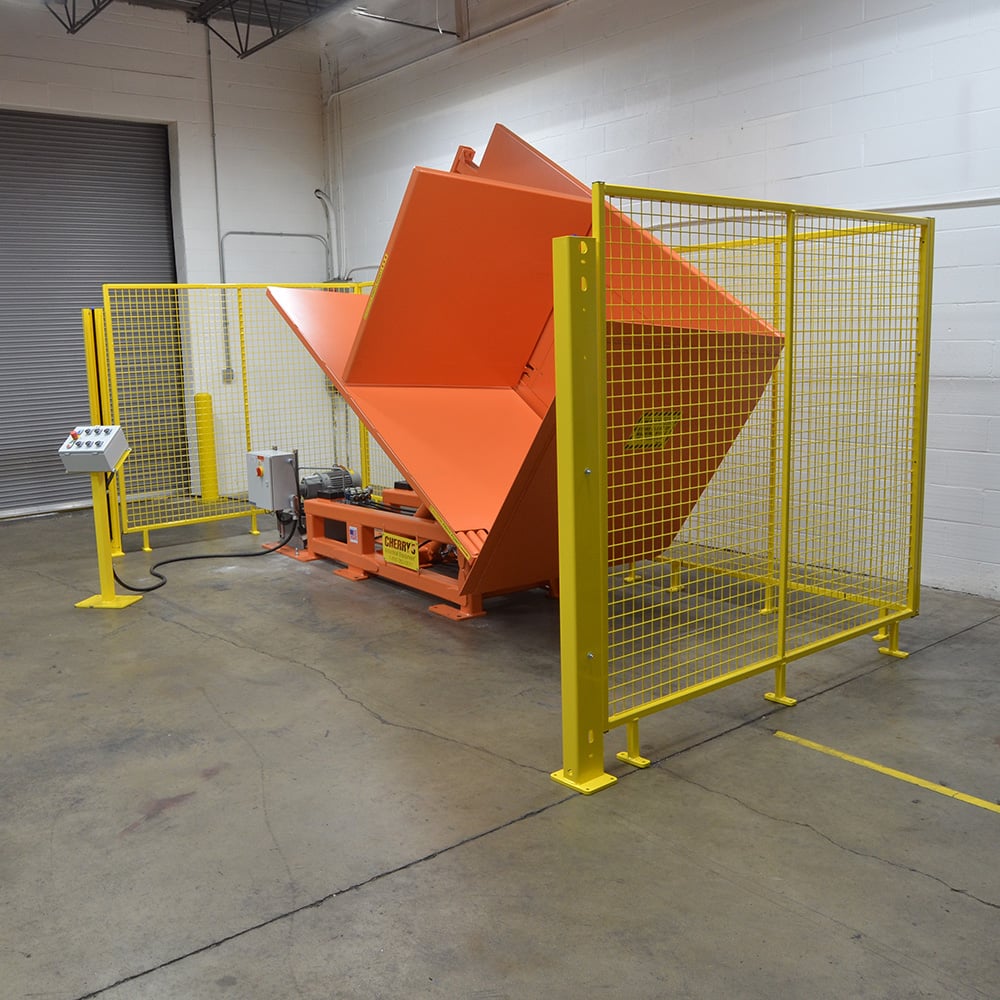

High Style GuardsHigh Style Guards

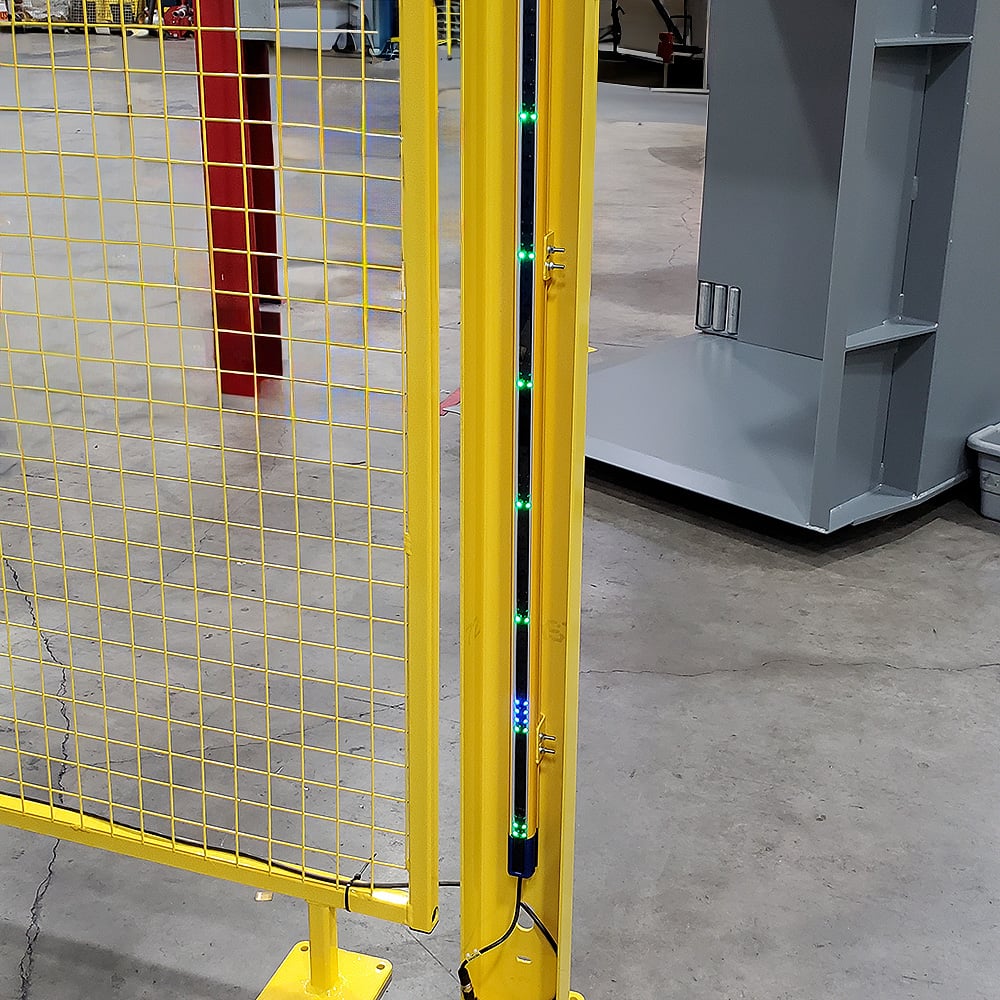

Light CurtainsLight Curtains

Controls

The standard operator controls for the PSR-118HDare press and maintain push buttons on an angle top console. Save energy as the motor turns on when each movement button is pressed and off when the button is released. For multiple shifts or in-freezer use, upgrade to oversized heavy-duty pushbuttons that are perfect for users wearing gloves. Finally, downgrade to a budget friendly 2 or 3 station hand lever control valve with motor starter.

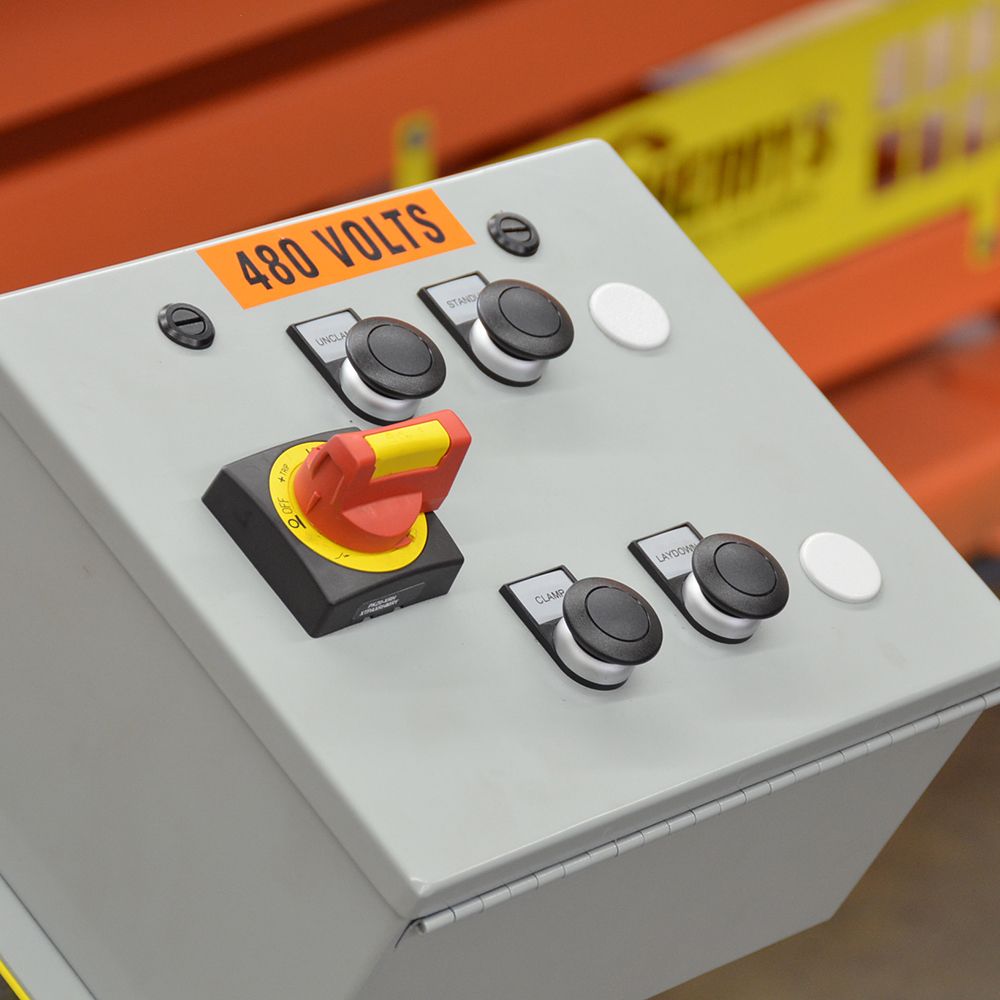

Basic Push Button (Energy Saver) Control with Power SwitchBasic Push Button (Energy Saver) Control with Power Switch

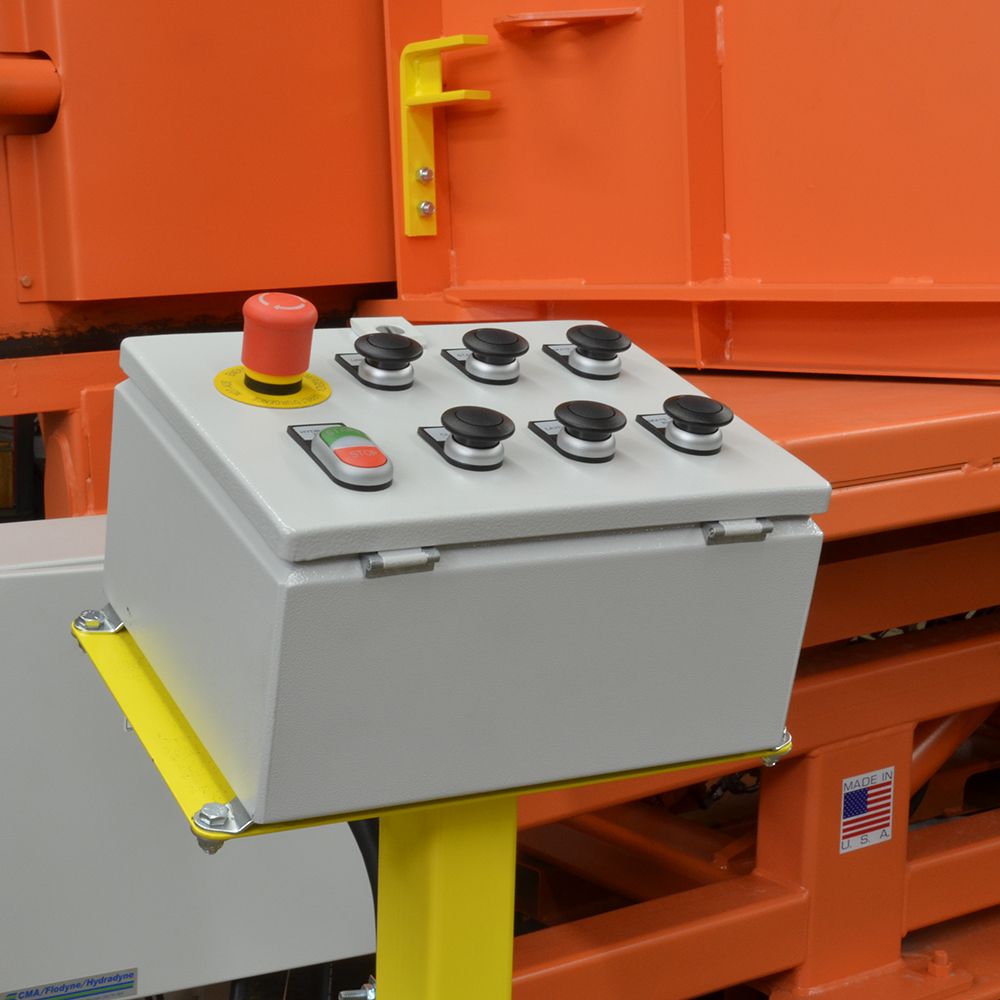

Push Button (Energy Saver) Control with Skate Table Option and E-Stop ButtonPush Button (Energy Saver) Control with Skate Table Option and E-Stop Button

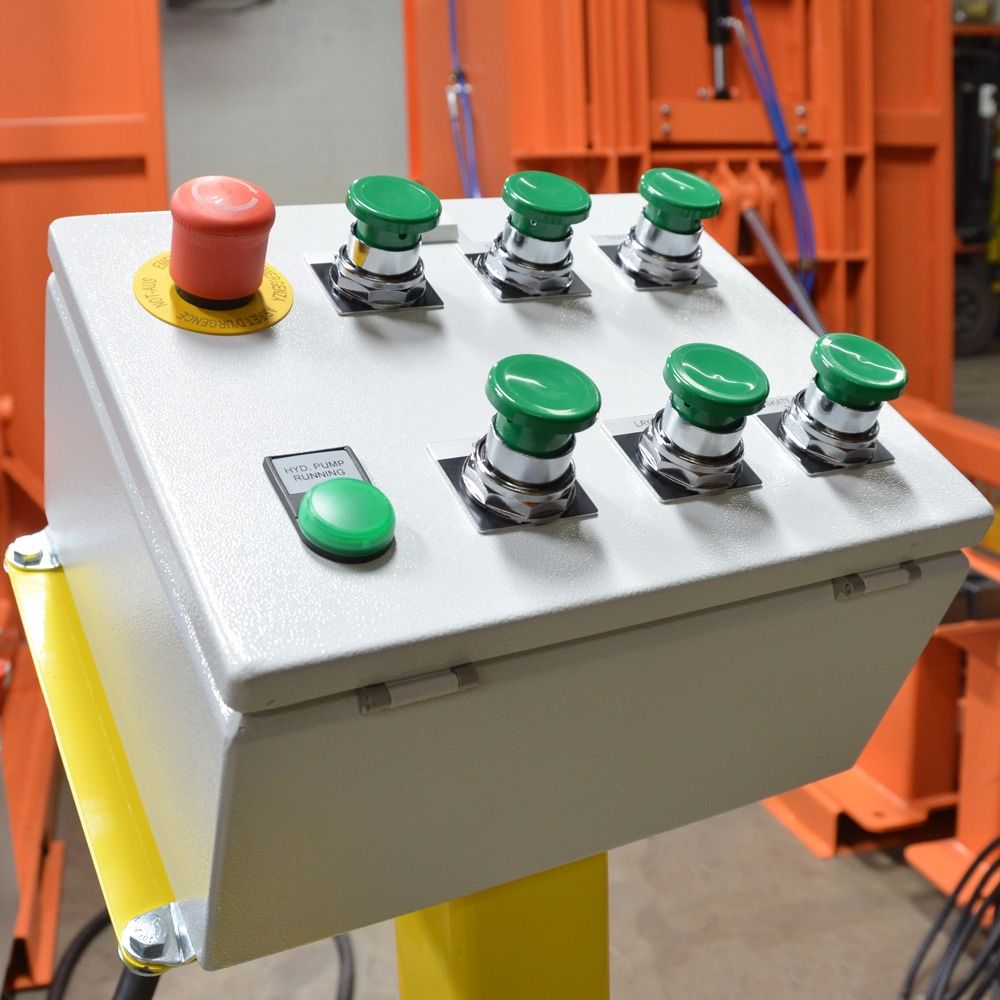

Heavy-Duty-Push-Button-ConsoleHeavy-Duty-Push-Button-Console

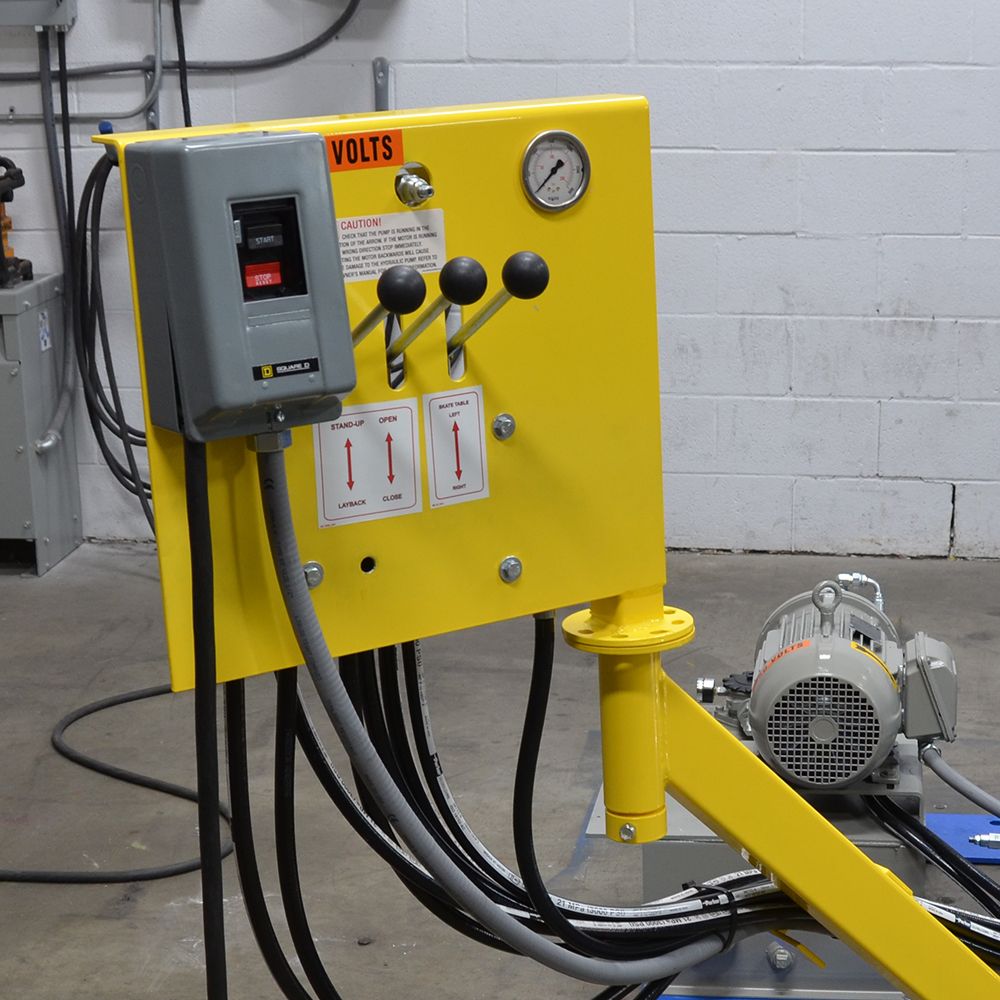

Heavy duty lever controls with a manual starterHeavy duty lever controls with a manual starter
