PSR-110 Pallet Retriever


PSR-110

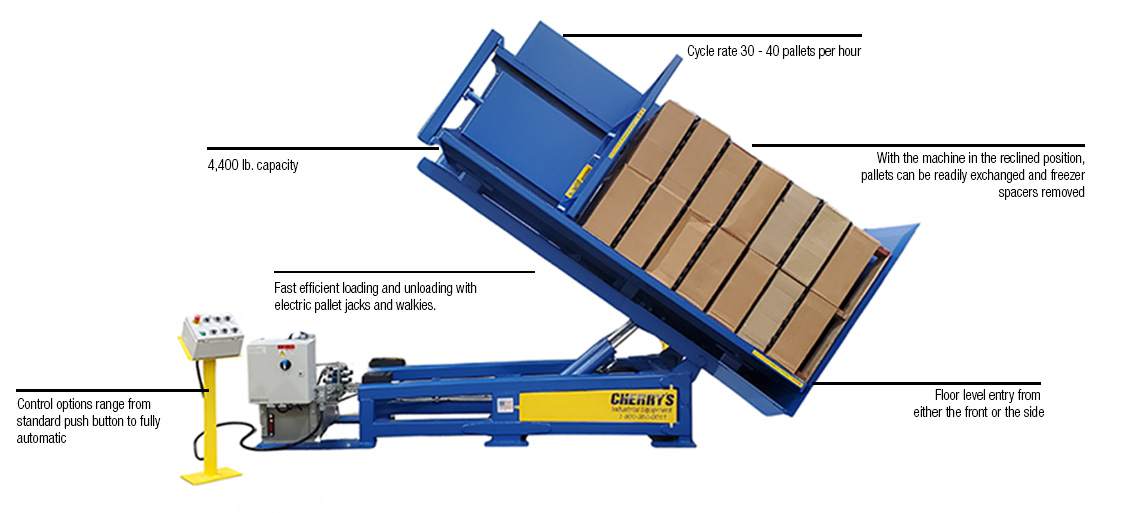

The PSR-110 Pallet Retriever, with a clamping range of 62" to 110", is engineered for freezer spacer removal and pallet exchange in cold storage and meat processing facilities. It completes these tasks up to 90% faster than manual handling, improving efficiency while reducing strain on workers. Proudly Made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Detail
PSR-110 Pallet Retriever
PSR-110 Pallet Retriever Image 1

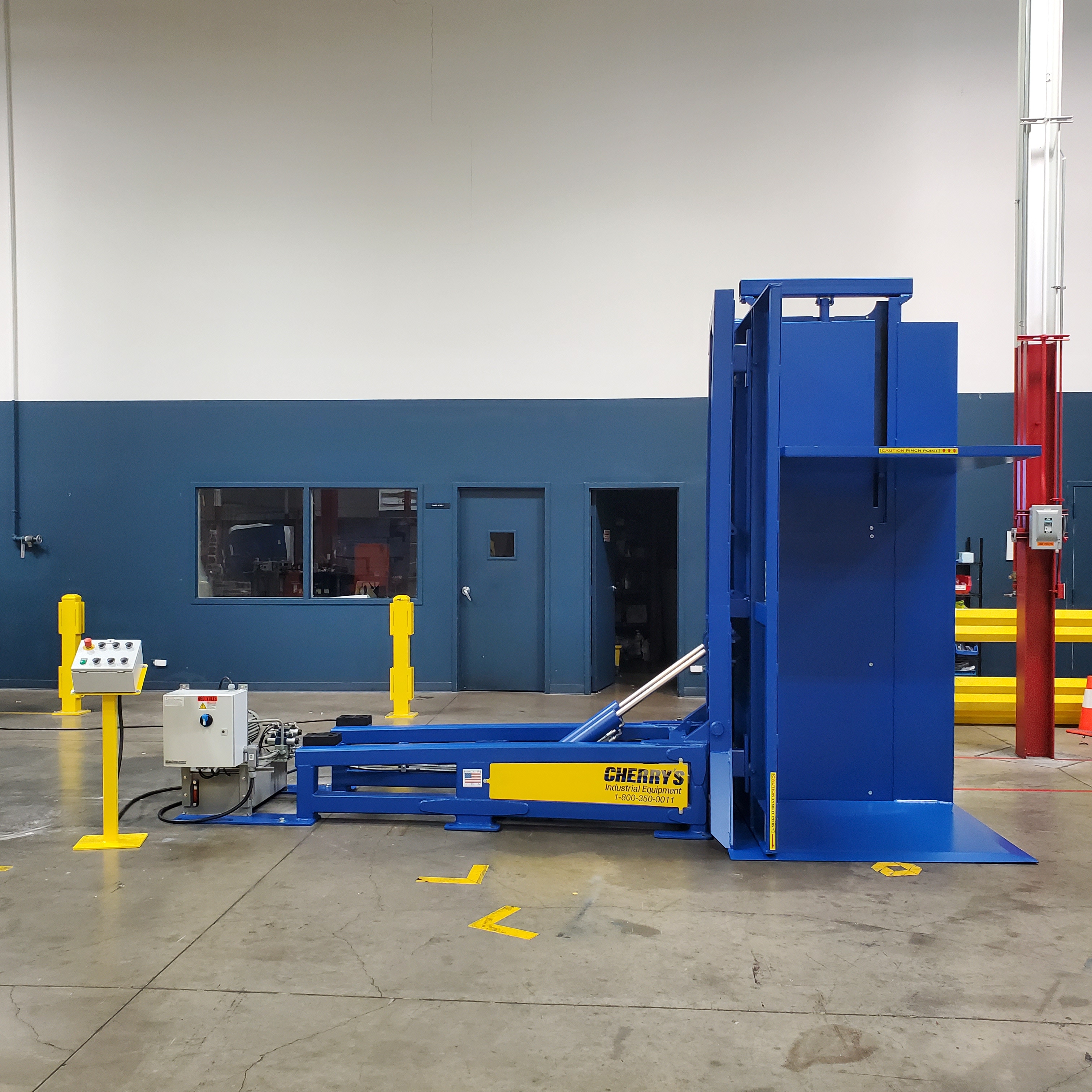

PSR-110 Pallet Retriever Image 2

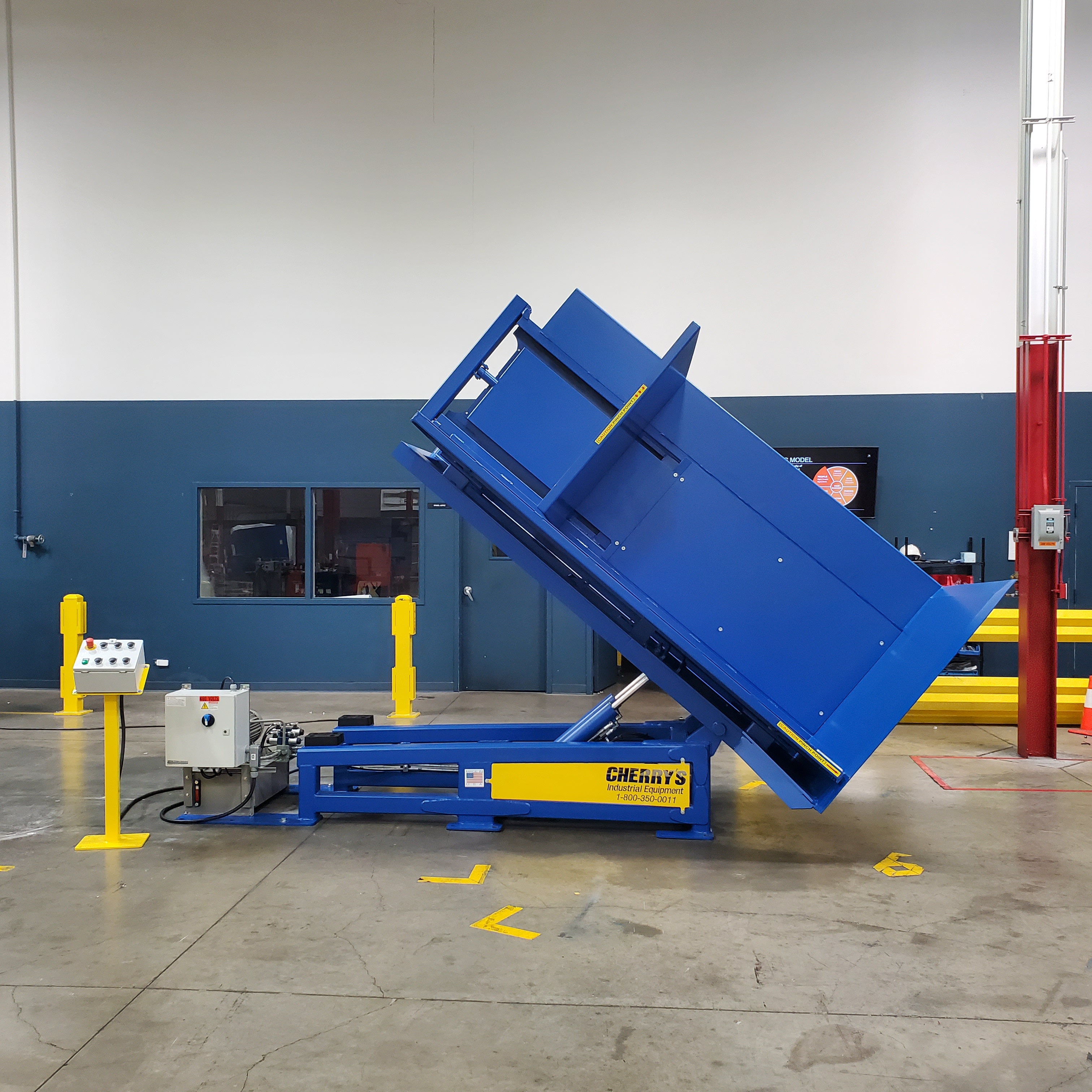

PSR-110 Pallet Retriever Image 3

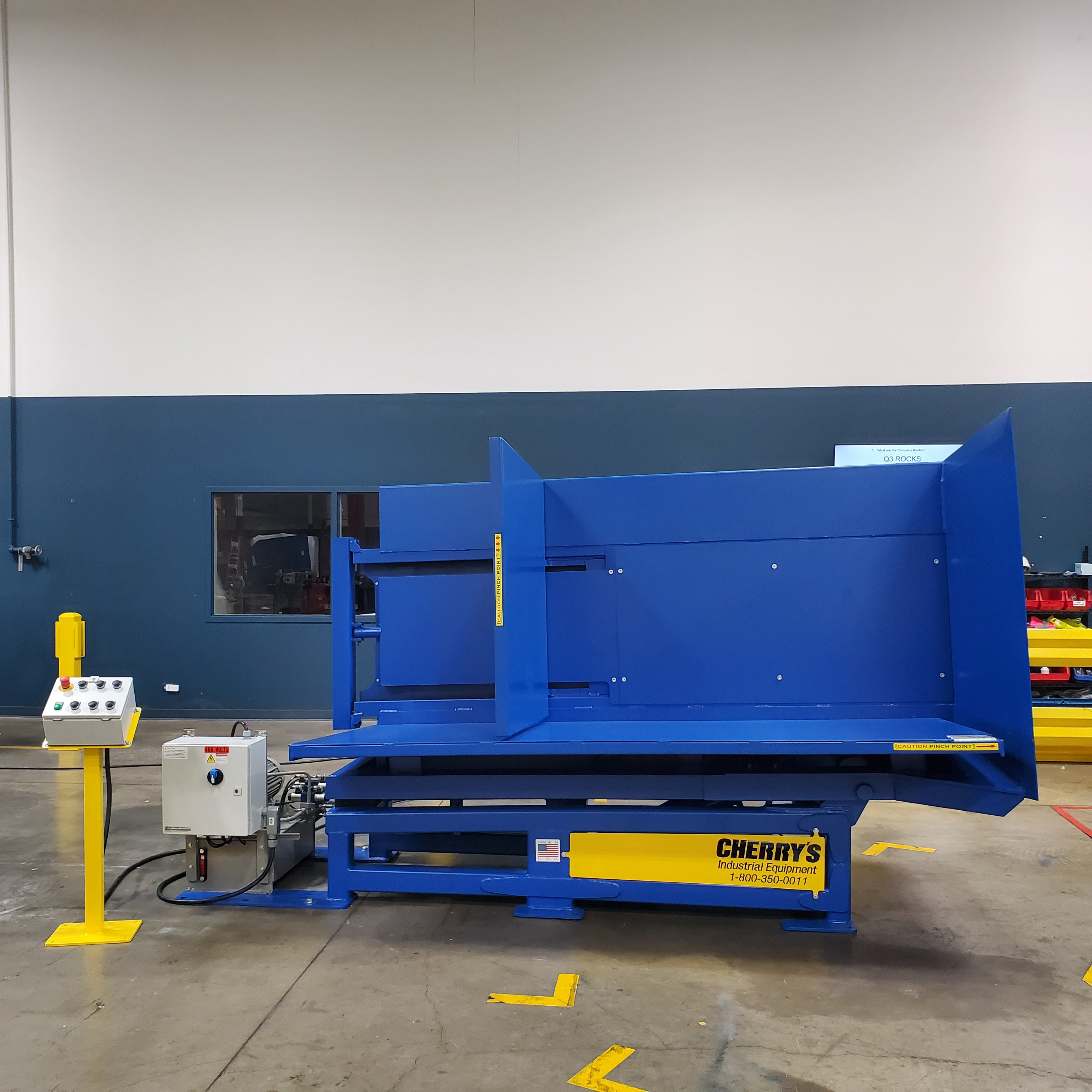

PSR-110 Pallet Retriever Image 4

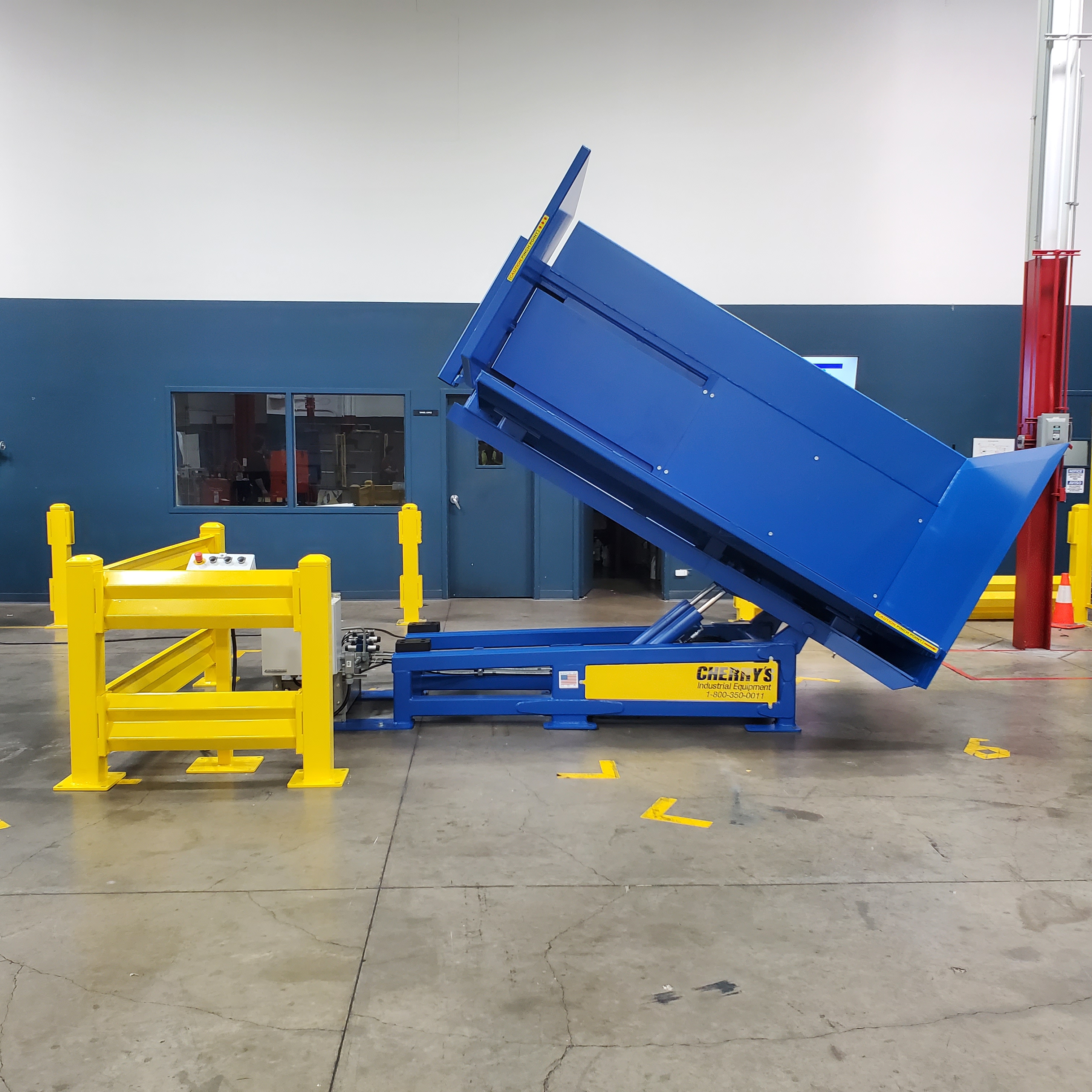

PSR-110 Pallet Retriever Image 5
PSR-110 Pallet Retriever Image 6
PSR-110 Pallet Retriever Image 7

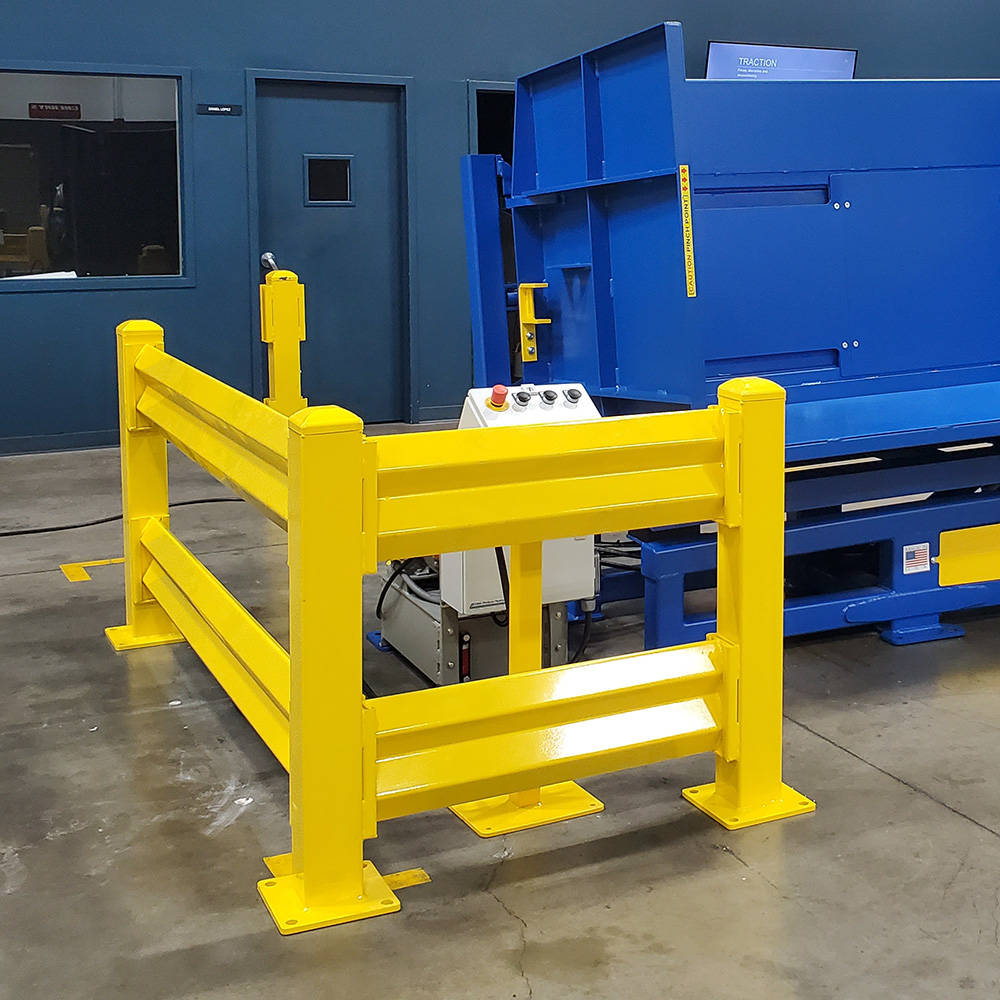

PSR-110 Pallet Retriever Image 8

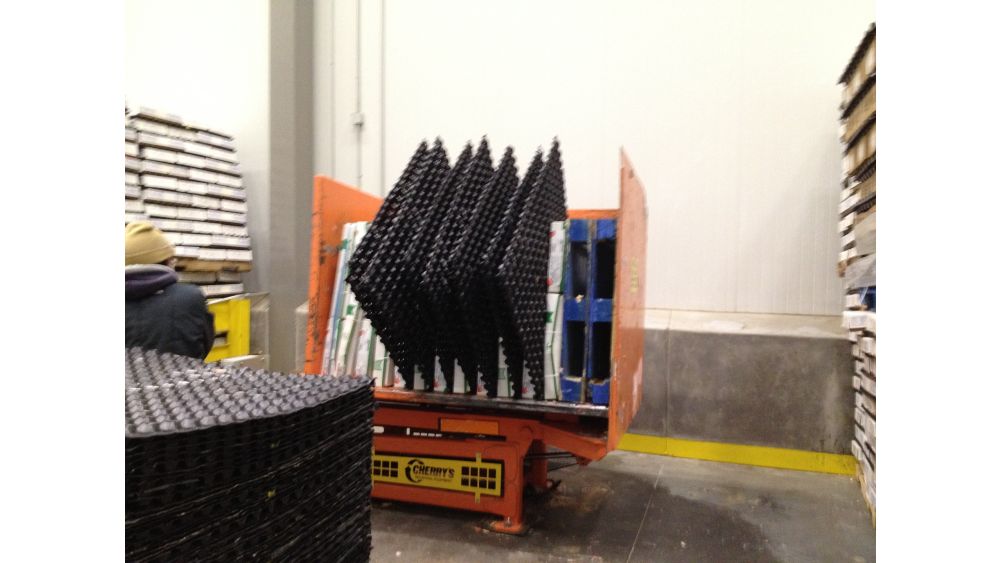

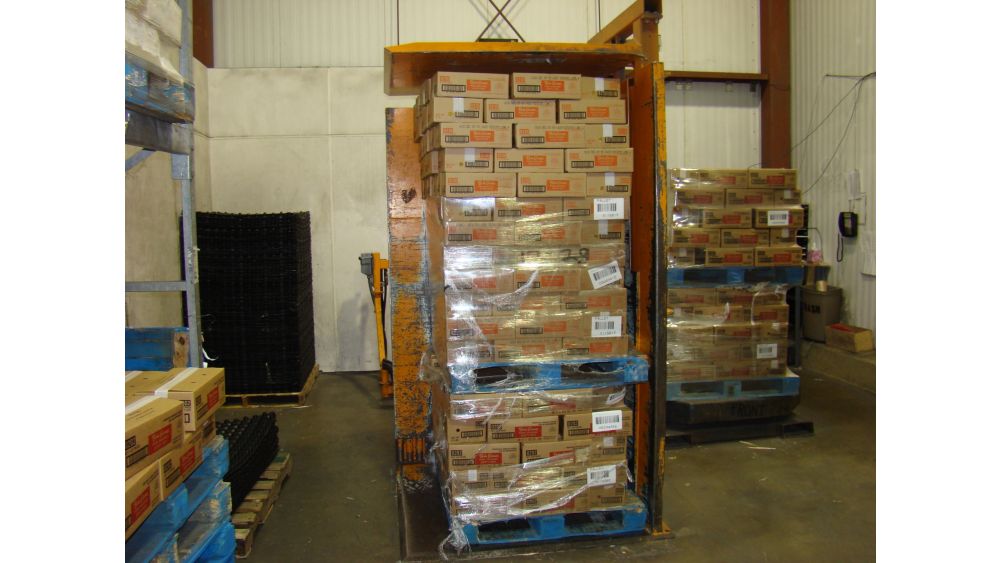

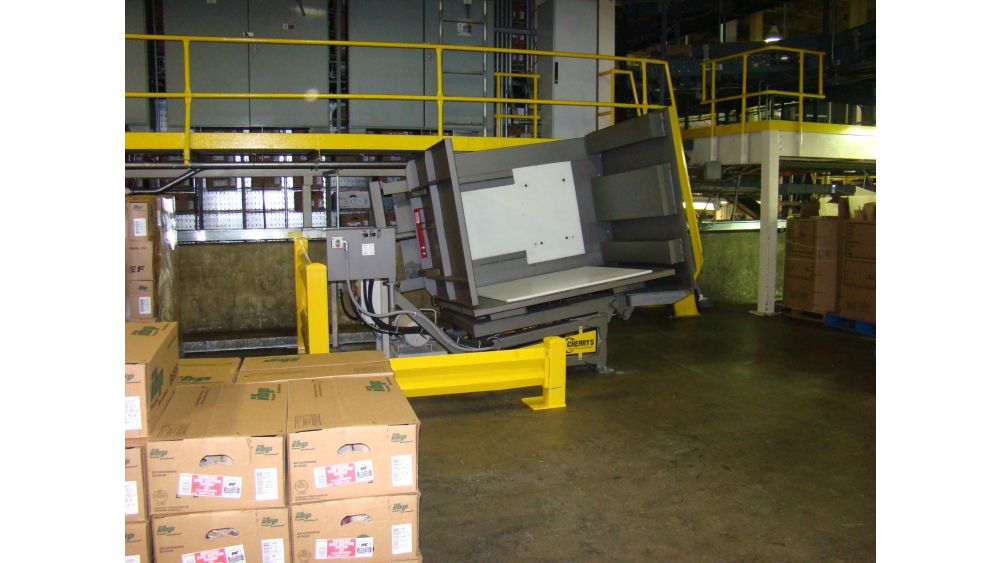

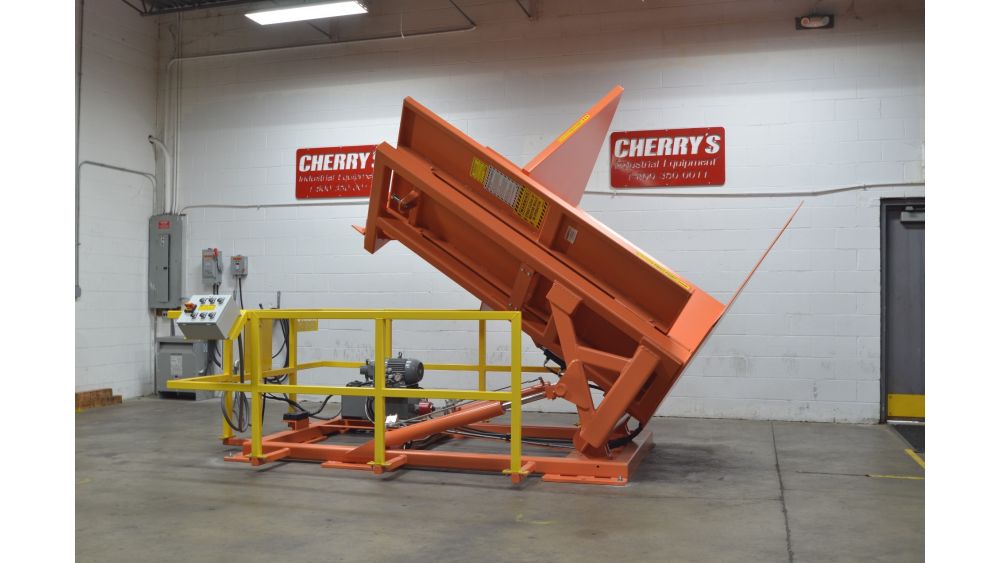

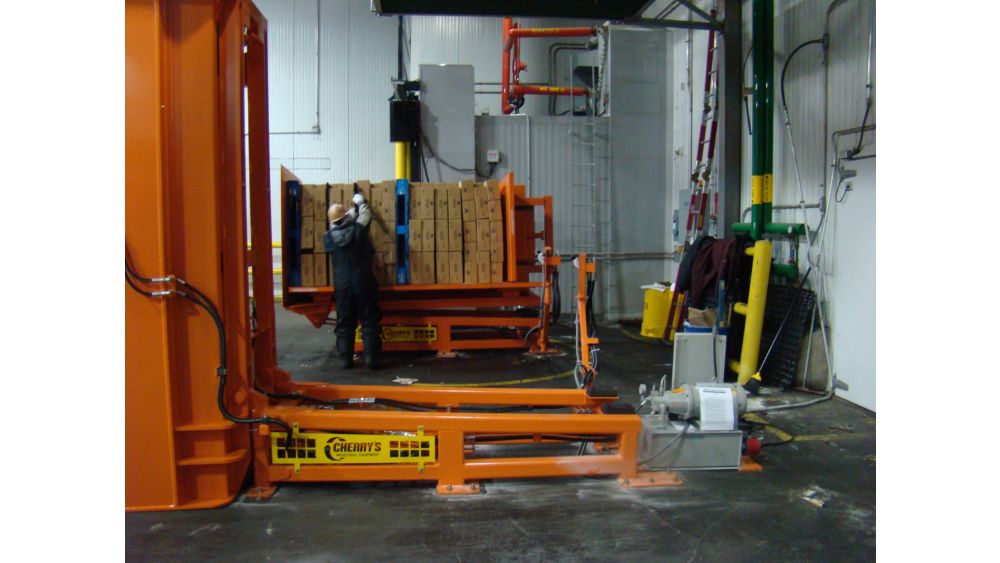

See it in the Wild

×

Product Information

Ideal for freezer spacer removal on double stacked loads, removal of center pallet, combining (2) pallet loads or cubing out trailer/container. Increased capacity, severe duty components & extended clamping plate range, capable of handling loads from 62" up to 110" tall. Extended warranties, preventative and installation service agreements available. High Speed option available. Three year parts and 1 year labor warranty.


Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
PSR-110L Levers 5/5.2 22 standup/22 layback N/A
PSR-110PB Push buttons 5/5.2 22 standup/22 layback Optional
PSR-110HSP Push buttons 5/6.6 20 standup/16 layback Optional



Product Tour


Specifications


ModelPSR-110
Loading Table Size50½ x 49¾''
Max. Jaw Opening110"
Min. Jaw Opening62"
Loading HeightGround level
Working Table Height34-5/8"
ControlsPush Button Console
Capacity4,400 lbs

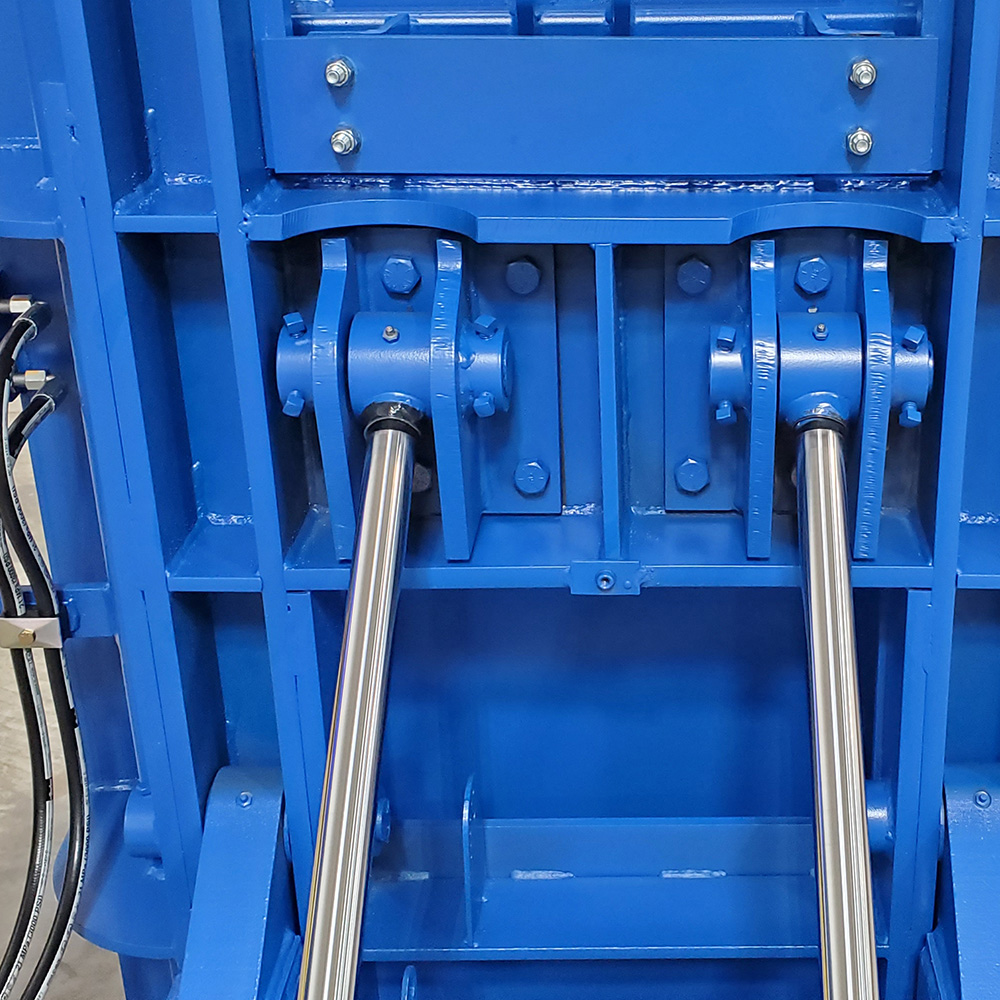

Main Turnover Cylinders2
System Pressure2,000 PSI
Adjustable Clamp Pressure1,000-2,000 PSI
CertificationsUL Certified Panel
Motor5 HP
Power Source208/230/460/575V
Anchors18
Warranty3 year parts and 1 year labor. Extended service agreements available.
Operating Height119"
Operating Width61-1/4"
Shipping weight*5,500 lbs
Shipping Dimensions132" L X 84" W X 96" H
Operating Length175-7/8"
FinishBlue 2-part Epoxy Paint
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The standard PSR-110 Pallet Retriever ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls, and power unit. More options are available including: custom paint finishes, stainless steel surfaces, cold temperature package, freezer rated package and upgraded components to meet your specific application. High Speed option available.

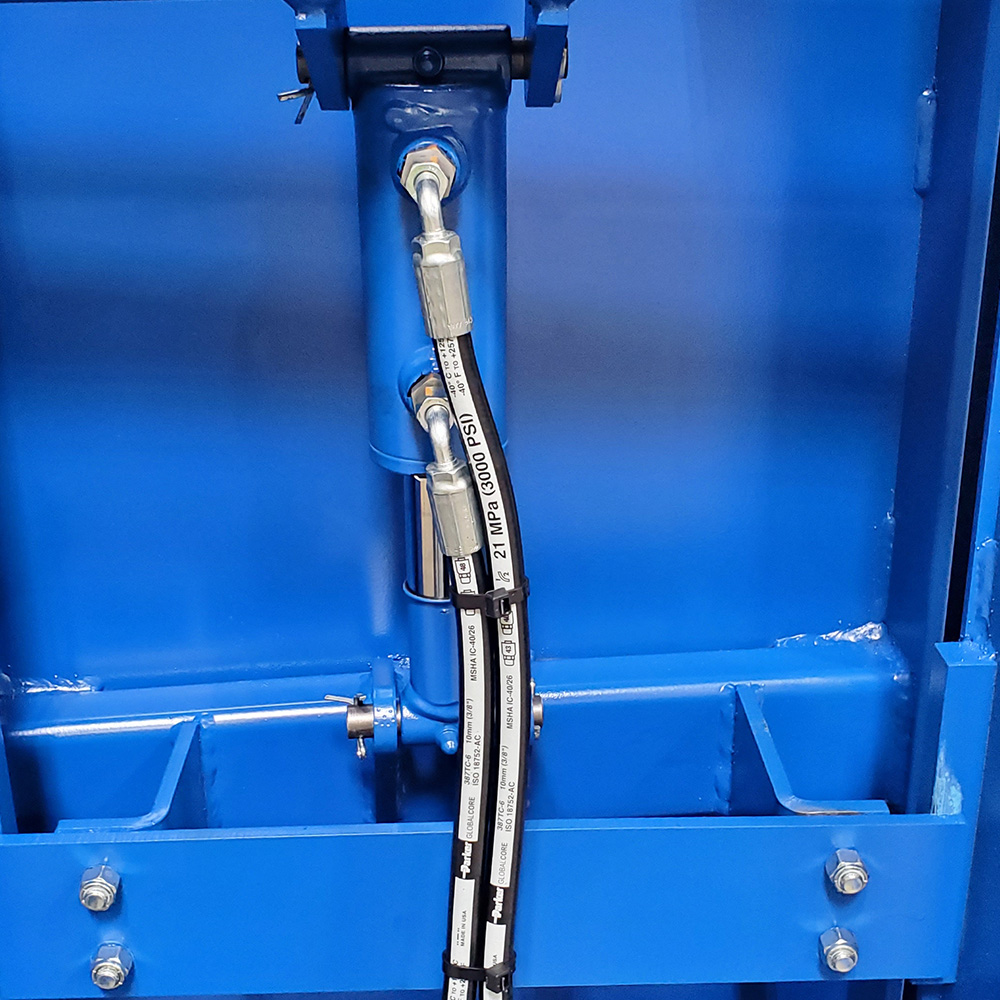

Powered Skate TablePowered Skate Table

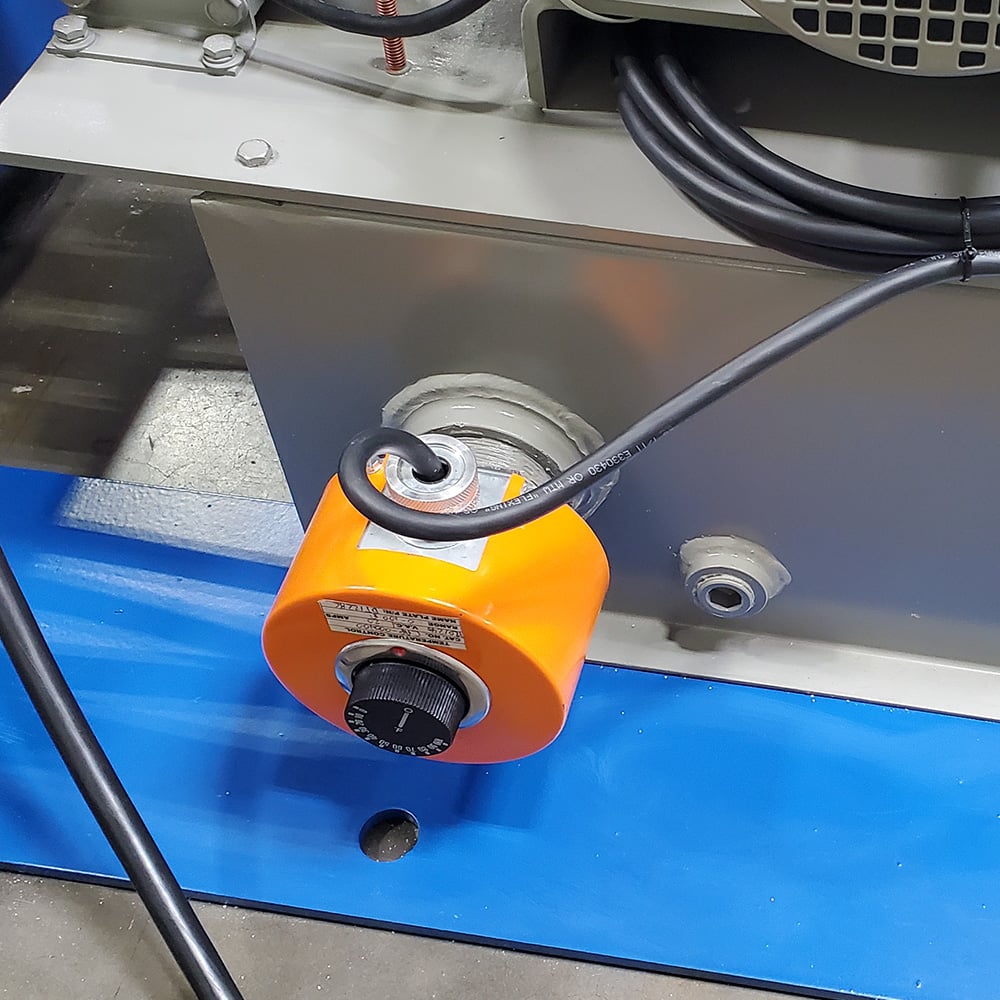

Tank HeaterTank Heater

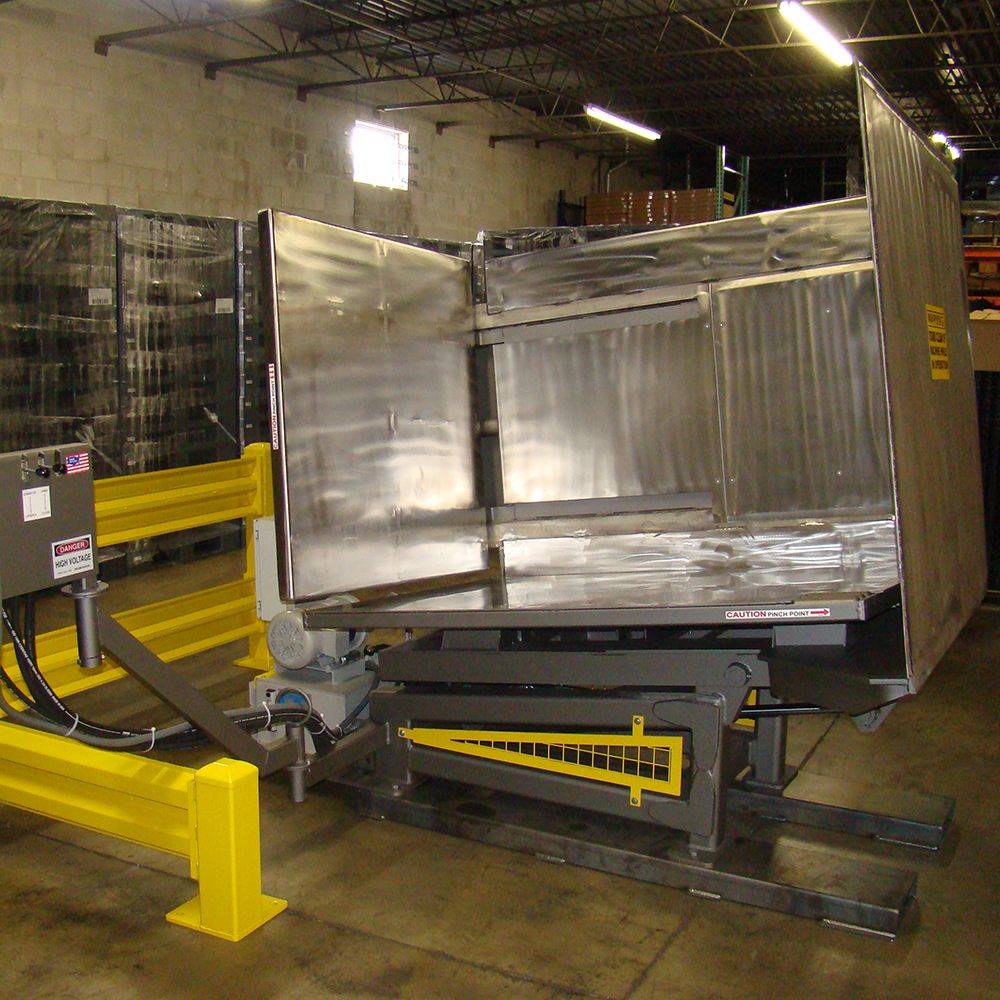

Stainless SteelStainless Steel

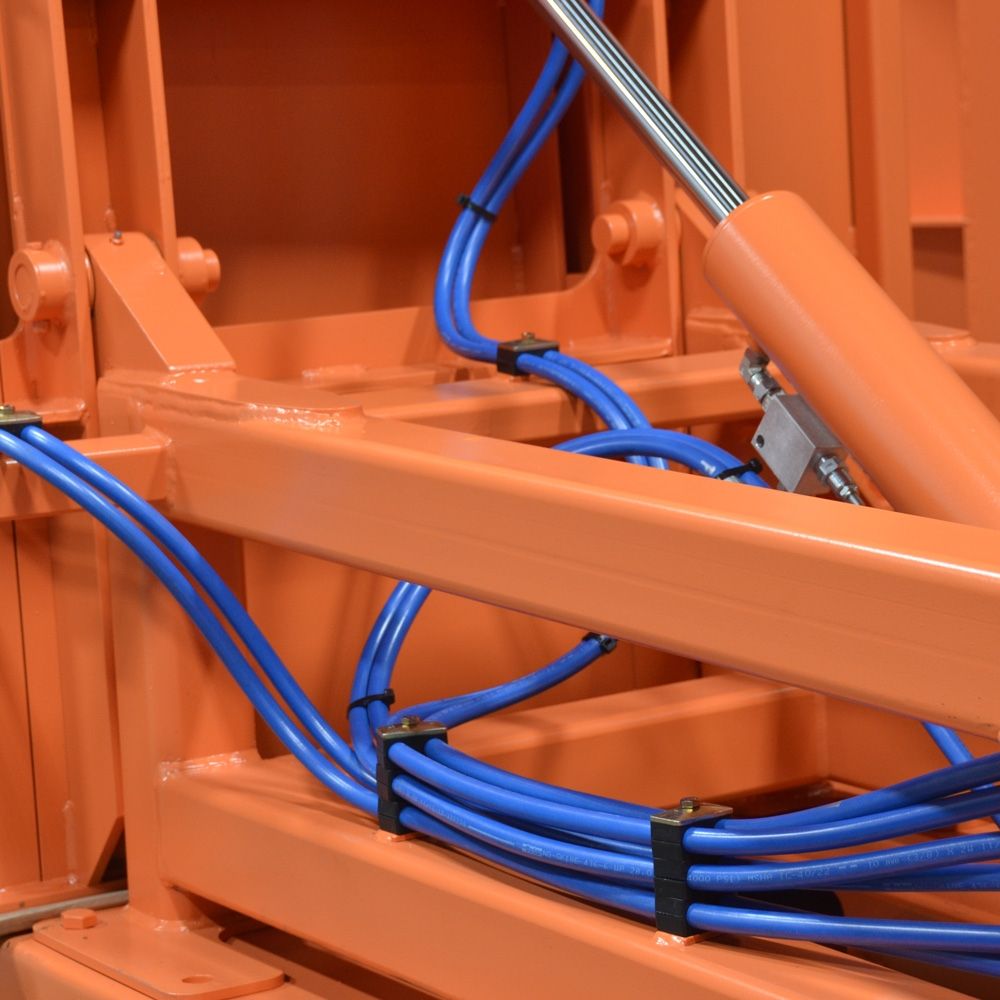

Freezer-Rated-HosesFreezer-Rated-Hoses

Guards

The standard PSR-110HD can be outfitted with crash guarding or square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78 high style perimeter guards or Bosch guarding with removable maintenance sections. For added safety, purchase the light curtains package to protect the area inside of the fence and around the machine.

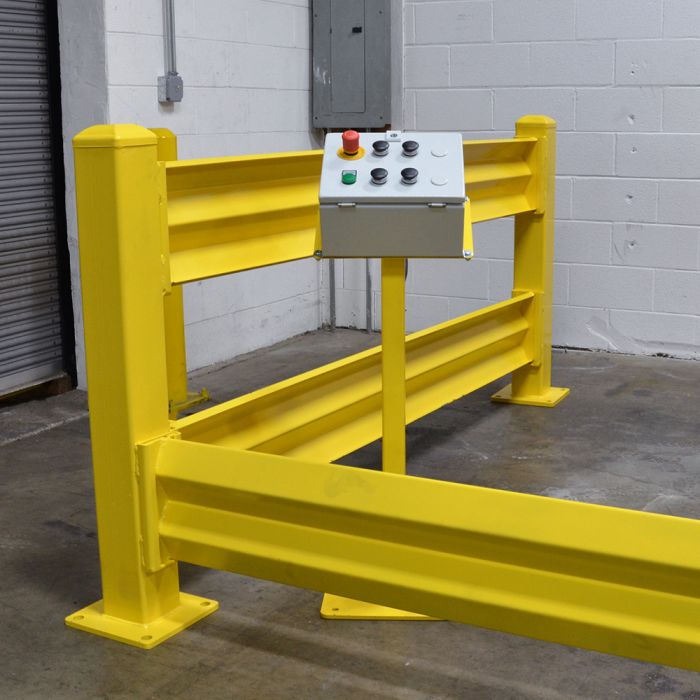

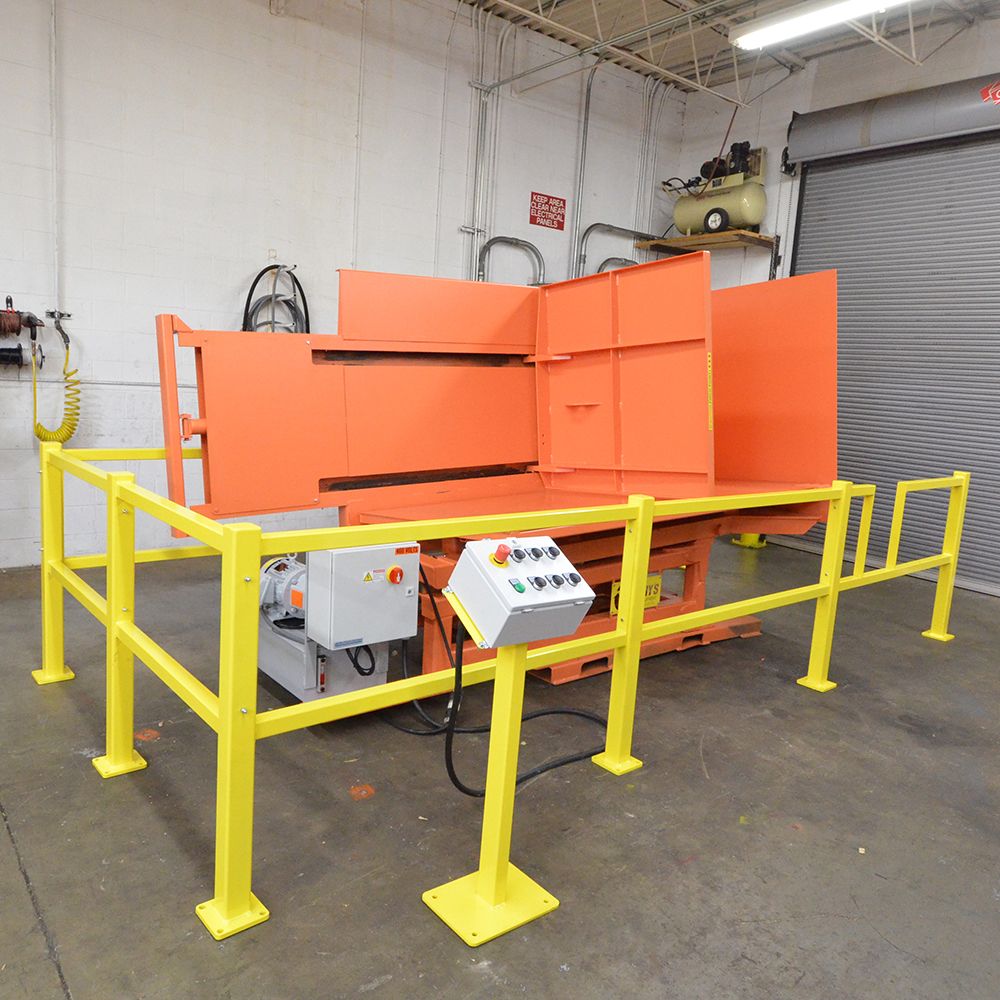

Rail GuardsRail Guards

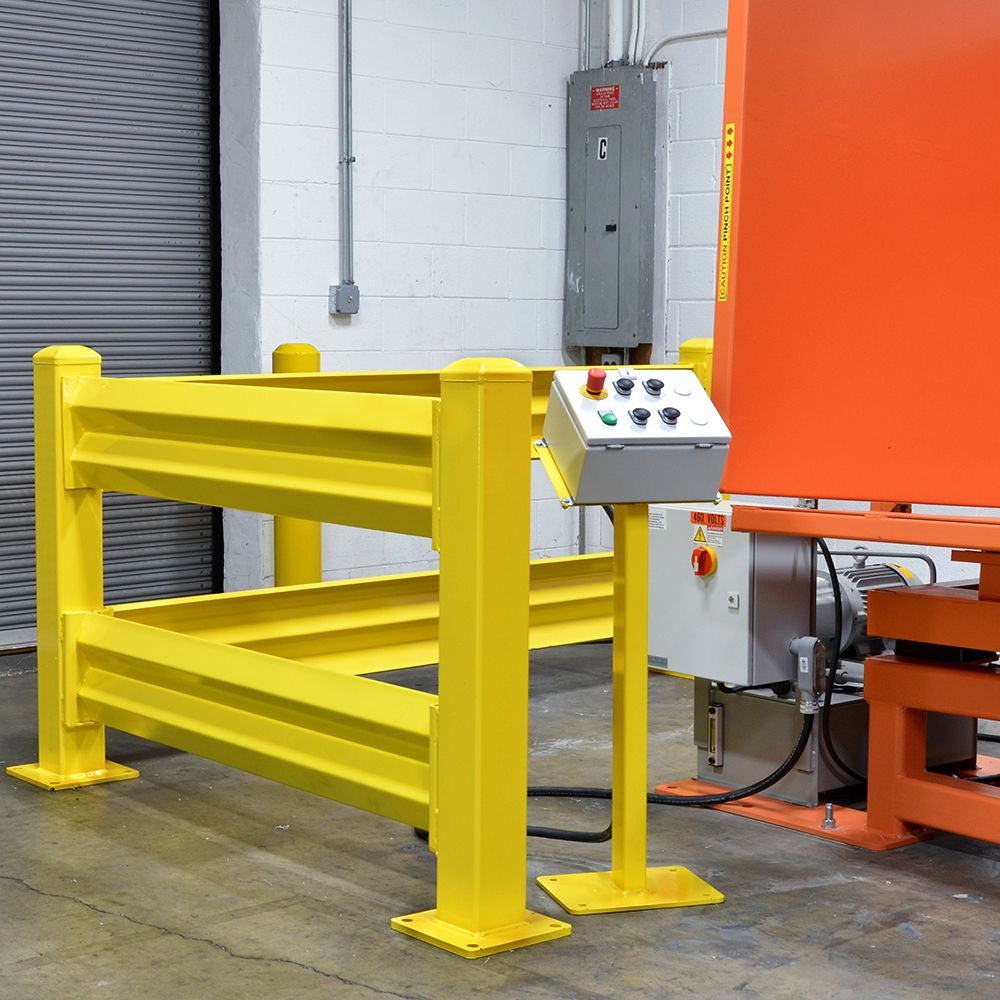

Crash GuardsCrash Guards

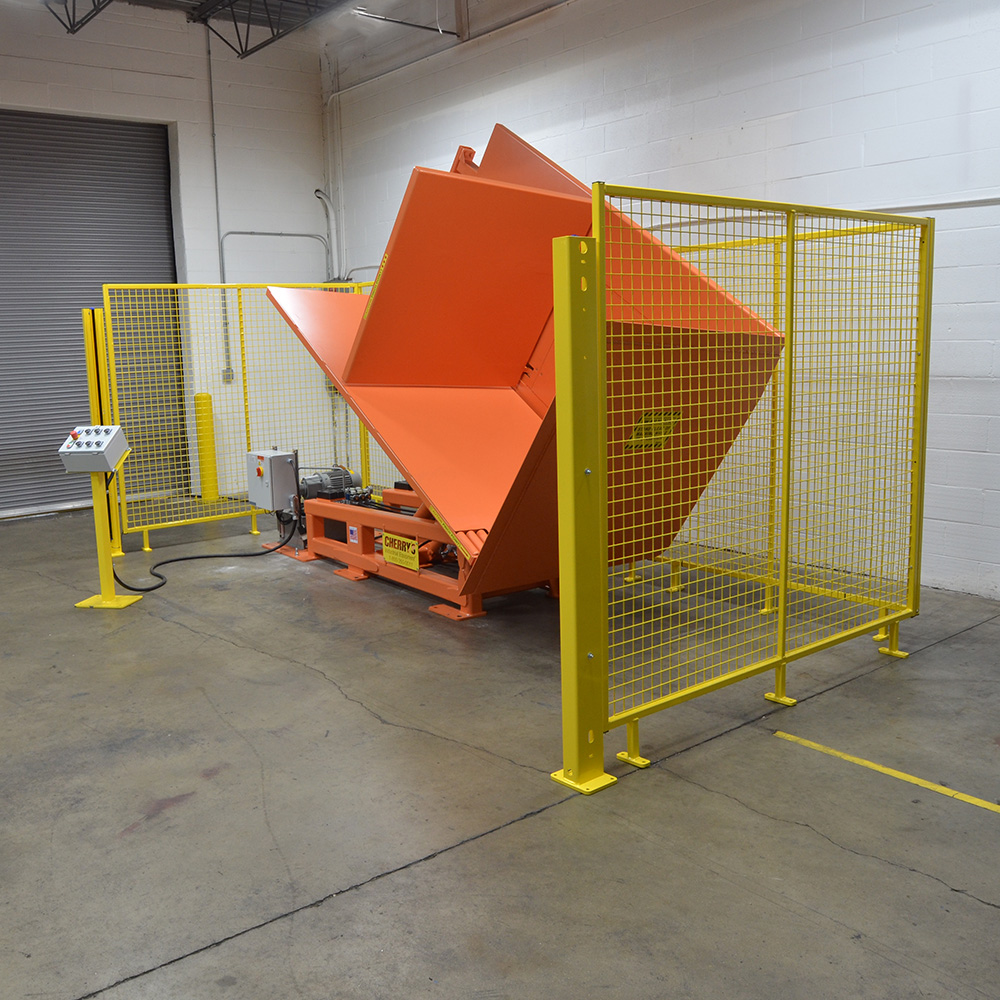

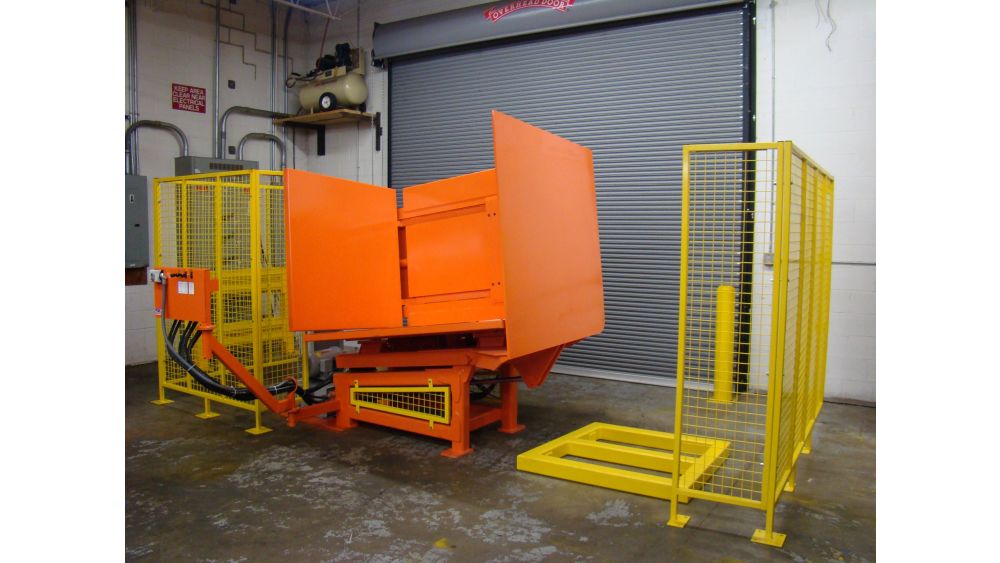

High StyleHigh Style

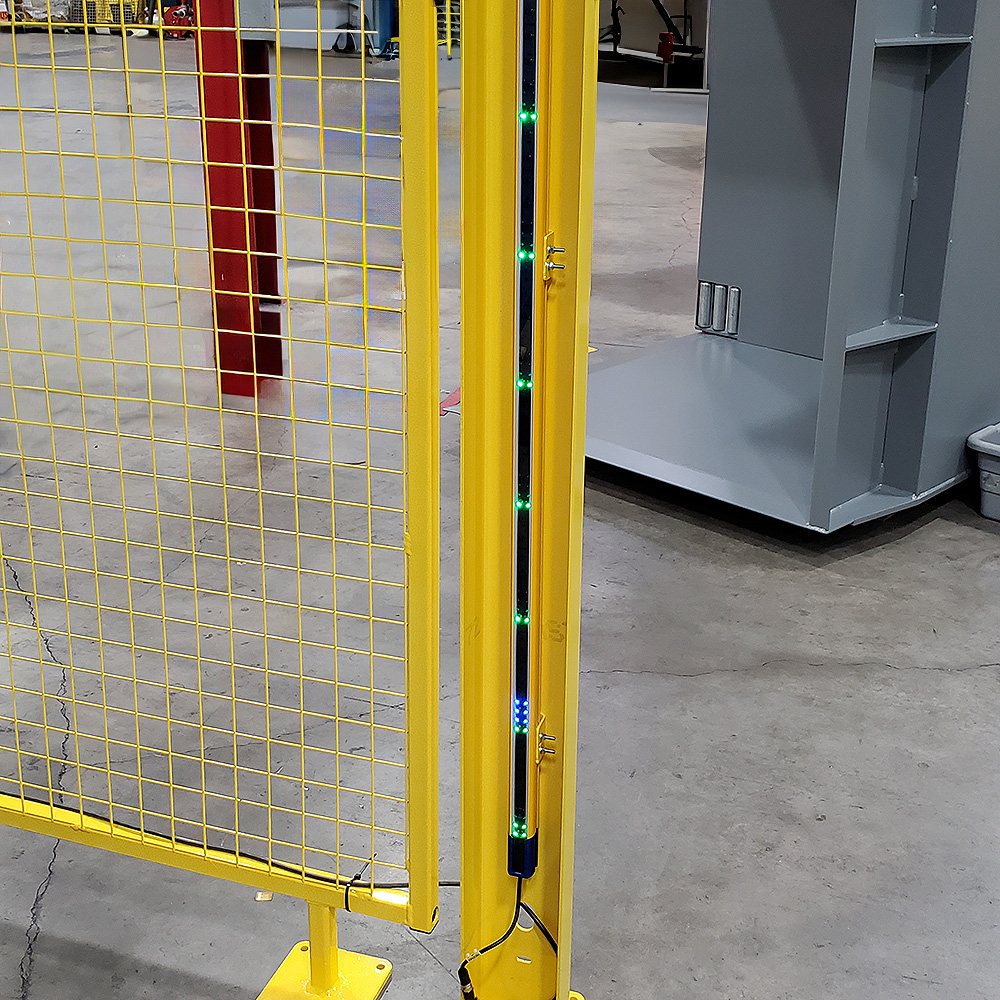

Light CurtainsLight Curtains

Controls

Cherrys offers many controls configuration options for the PSR-110HDto meet the needs of your cold storage or warehouse operations. The standard controls are energy saver push button controls mounted on an angle top console. Add-on safety ready controls, freezer rated controls, high-speed motion controls or downgrade to lever controls.

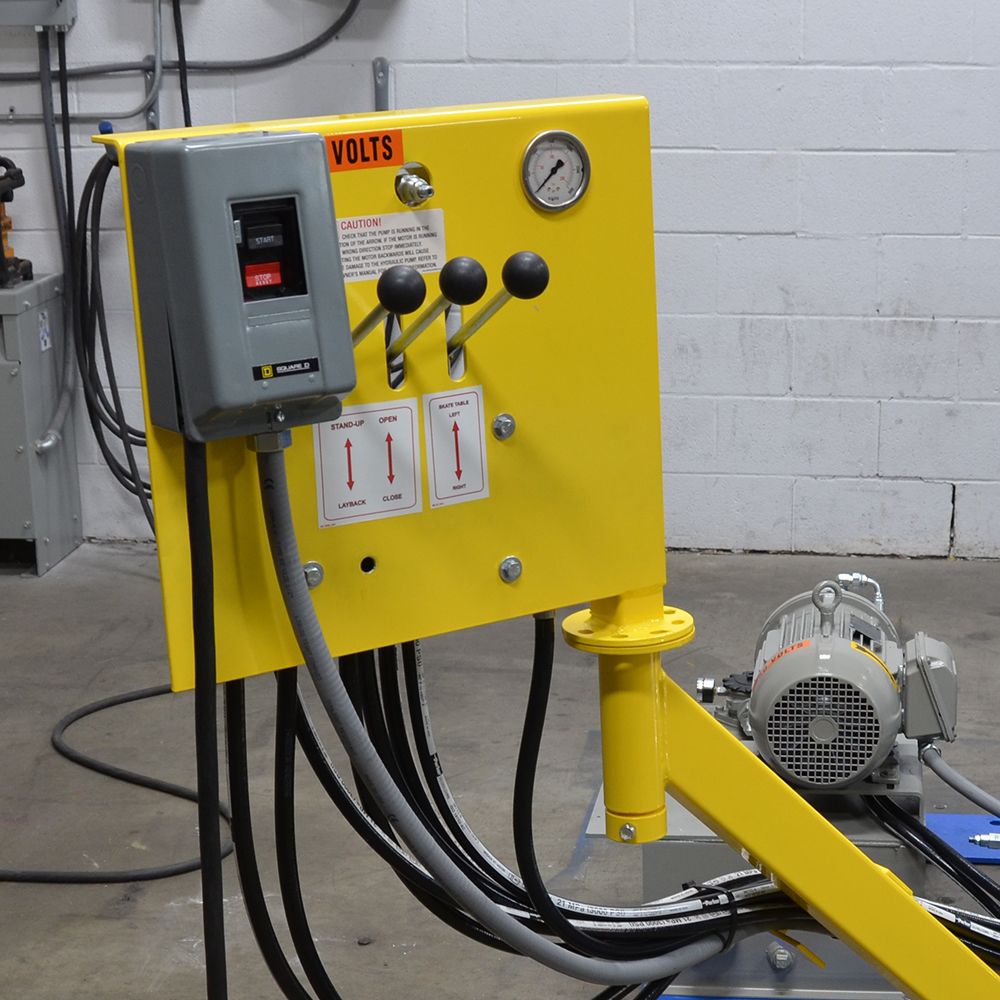

Heavy duty levers controls with manual starterHeavy duty levers controls with manual starter

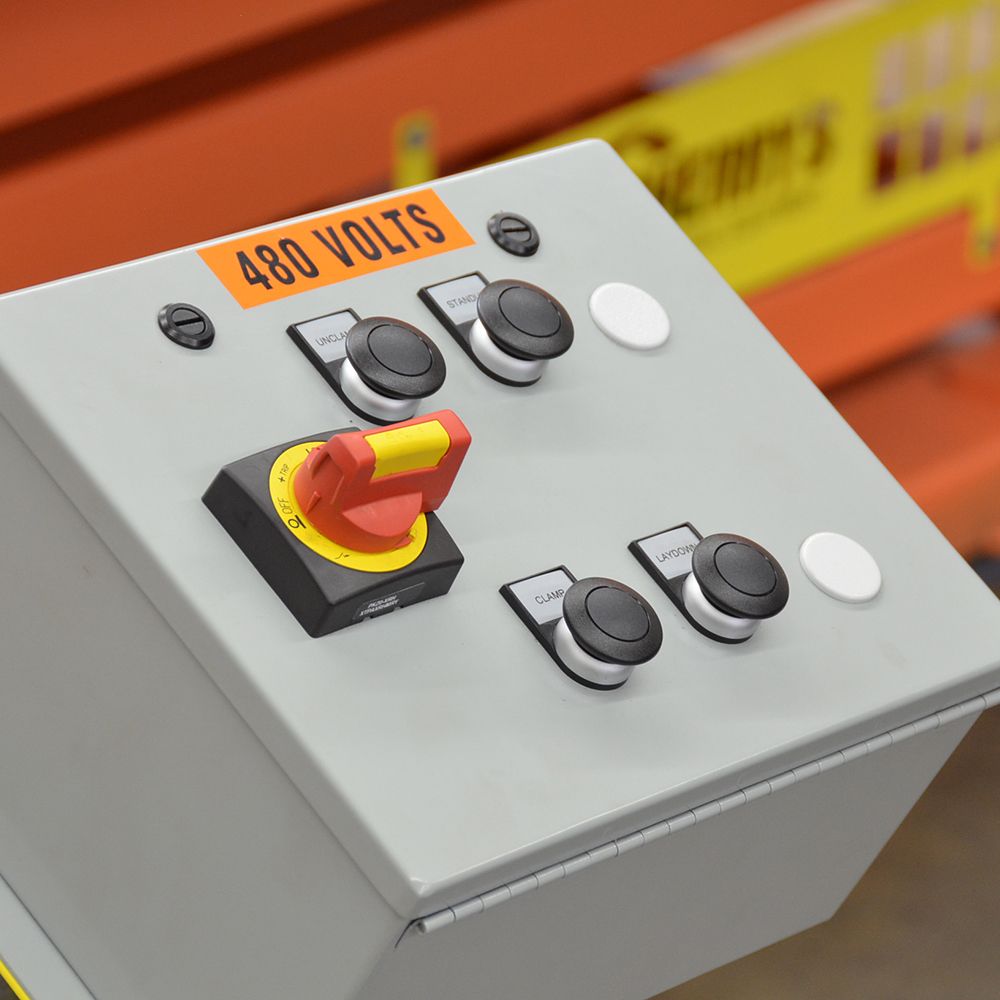

Basic Push Button (Energy Saver) Control with Power SwitchBasic Push Button (Energy Saver) Control with Power Switch

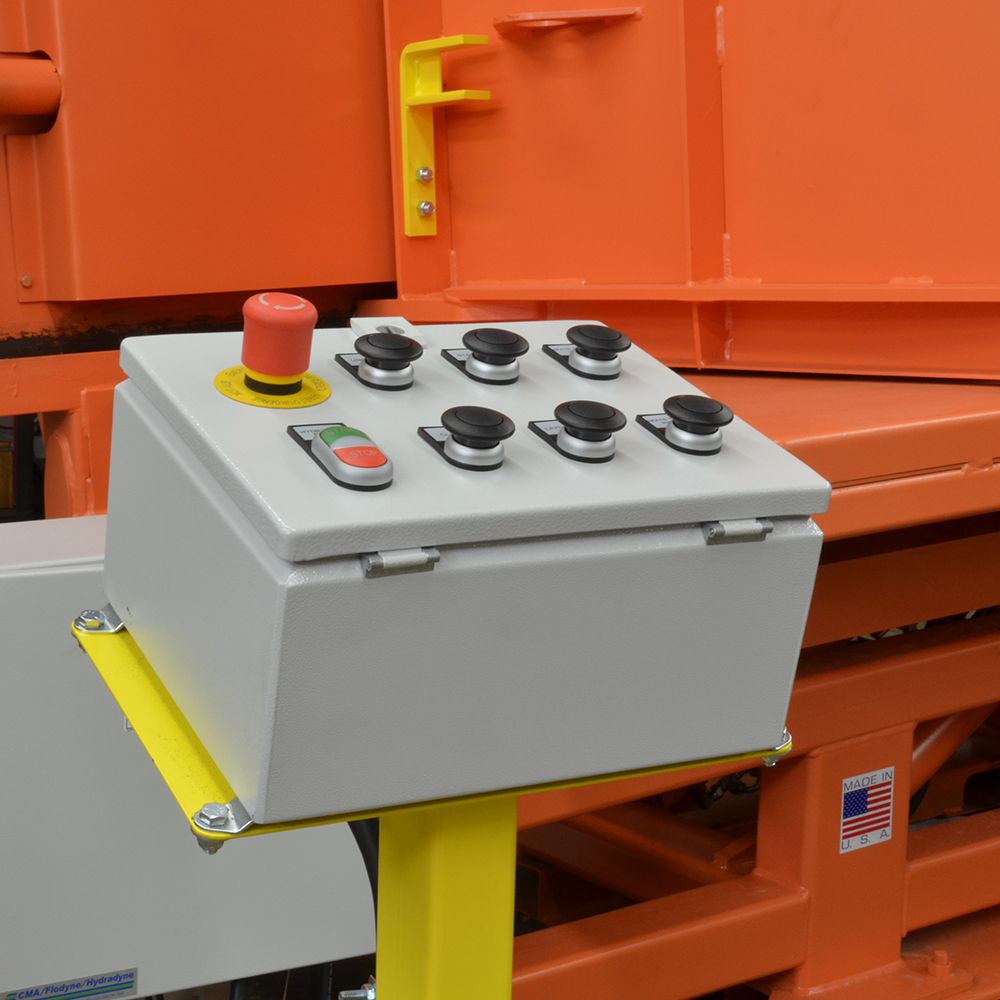

Push Button (Energy Saver) Control with Skate Table Option and E-Stop ButtonPush Button (Energy Saver) Control with Skate Table Option and E-Stop Button

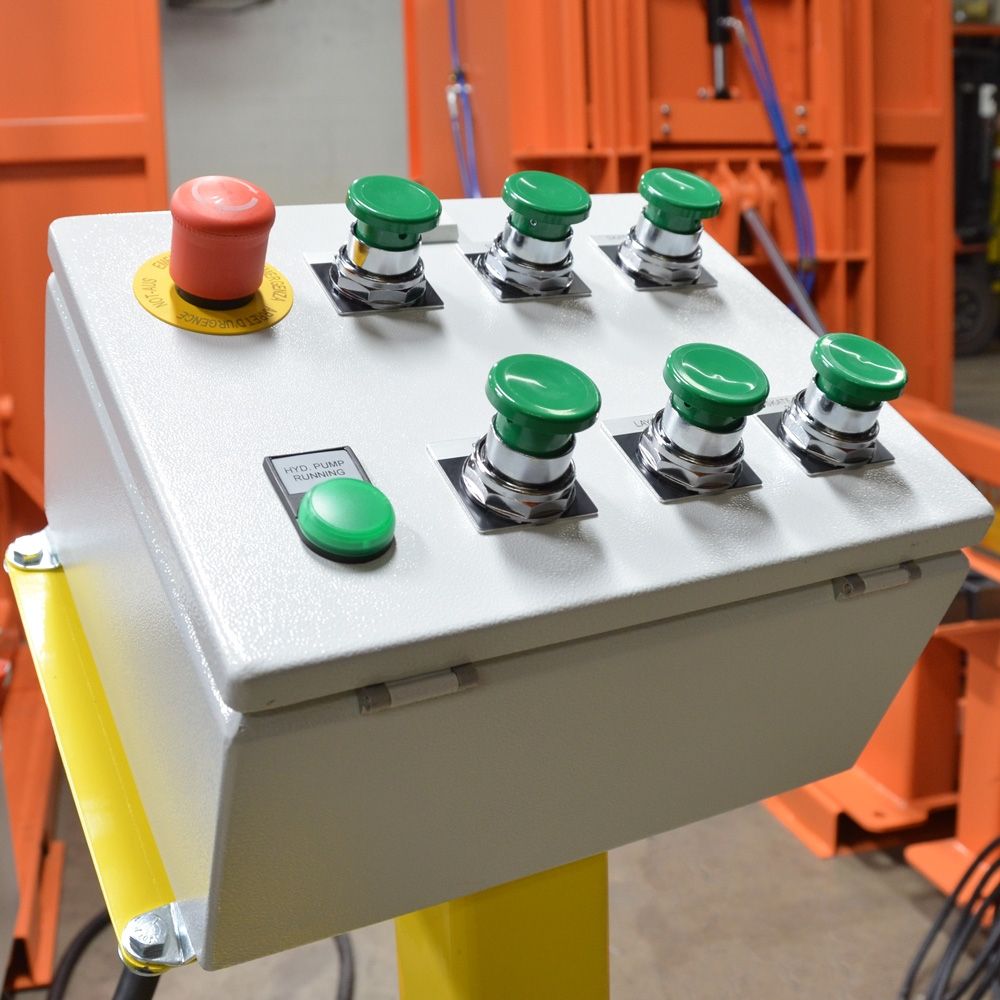

Heavy-Duty-Push-Button-ConsoleHeavy-Duty-Push-Button-Console
