PSR-104 Pallet Retriever


PSR-104

This 56"-104"- capacity pallet retriever is perfectly suited for freezer spacer removal and pallet exchanging processes in various types of cold storage facilities. You'll be able to perform these tasks up to 90 percent faster than by hand, which will free your workers for other essential jobs functions. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

Product Detail
PSR-104 Pallet Retriever
PSR-104 Pallet Retriever Image 1

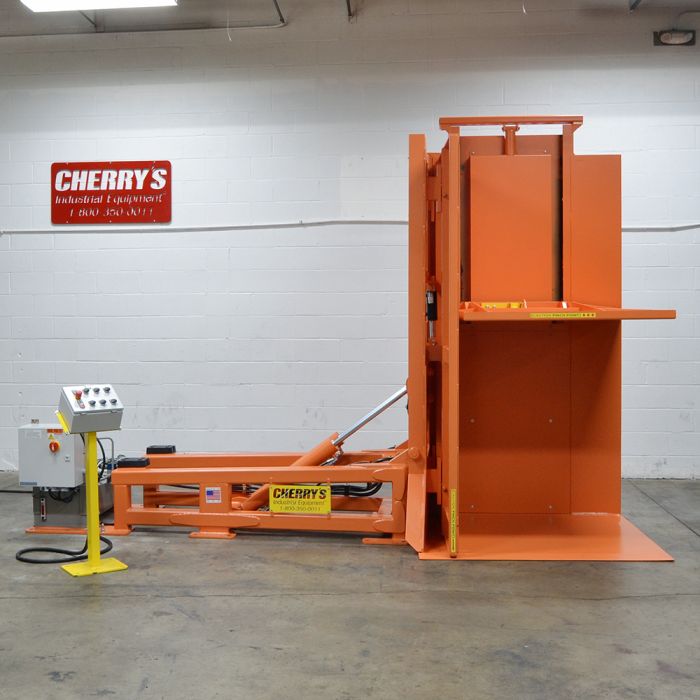

PSR-104 Pallet Retriever Image 2

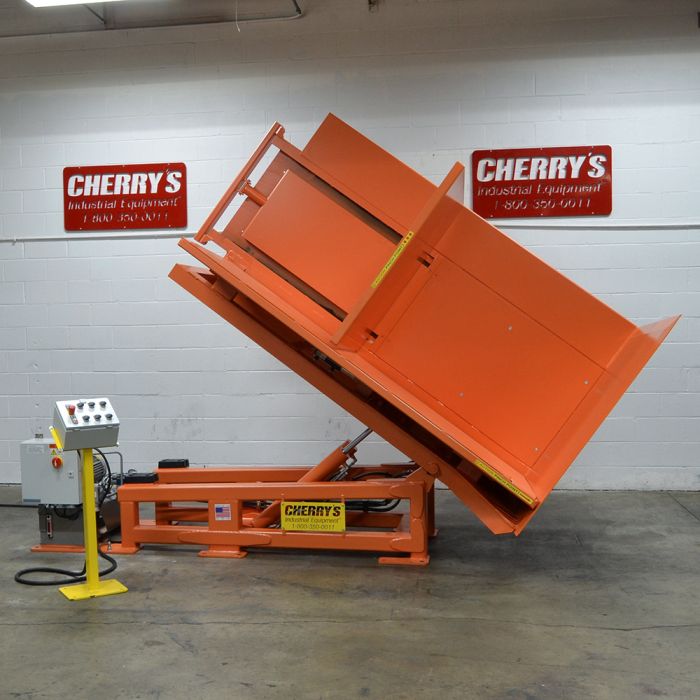

PSR-104 Pallet Retriever Image 3

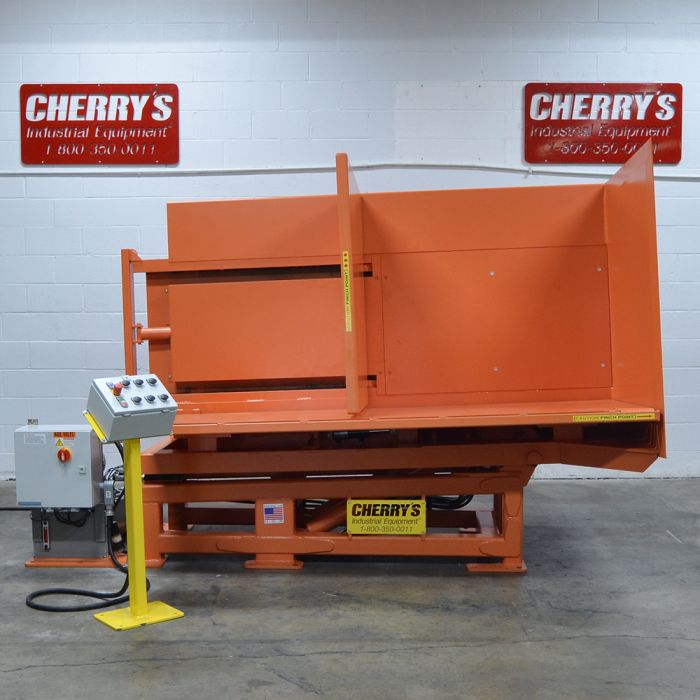

PSR-104 Pallet Retriever Image 4

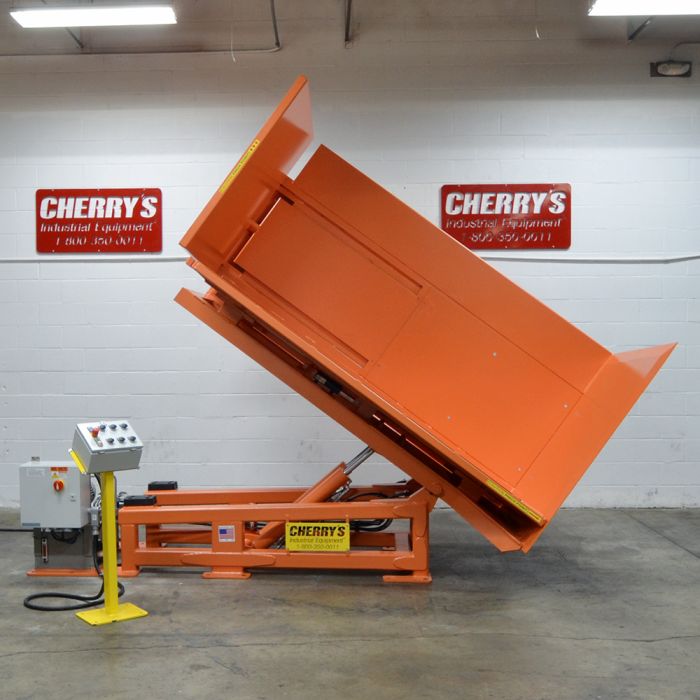

PSR-104 Pallet Retriever Image 5

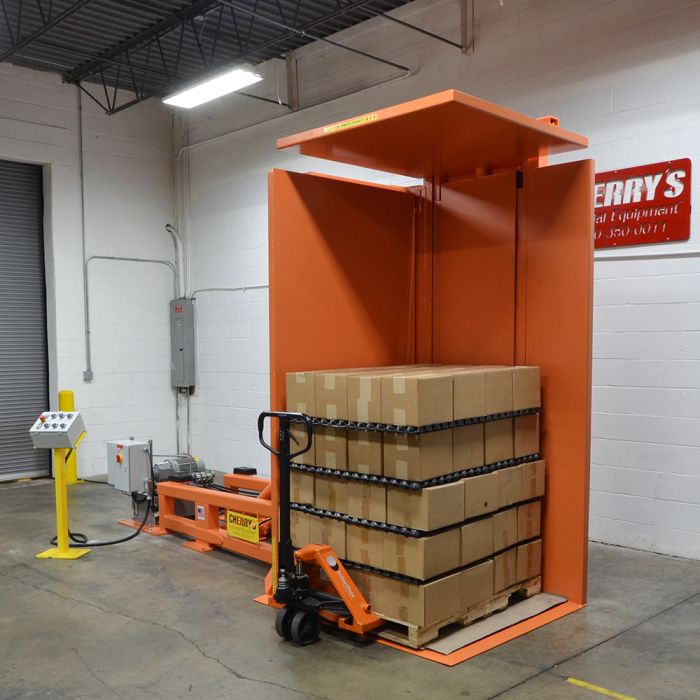

PSR-104 Pallet Retriever Image 6

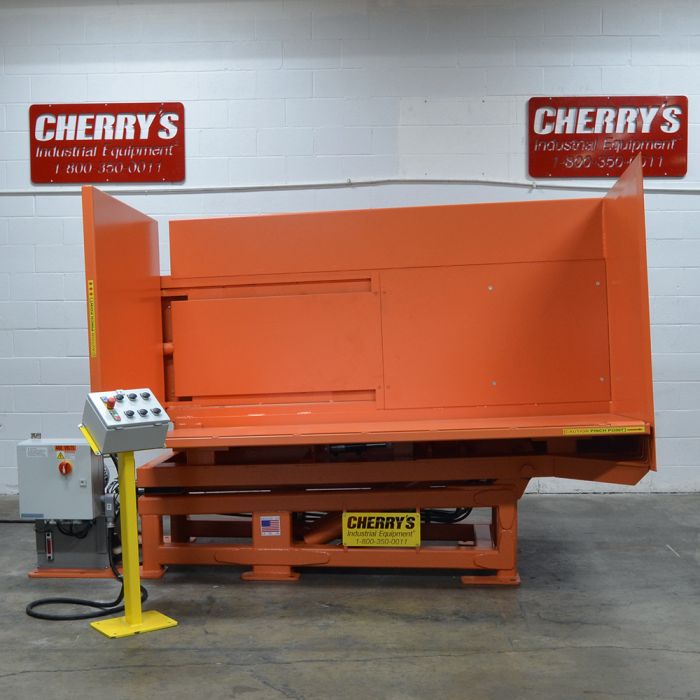

PSR-104 Pallet Retriever Image 7

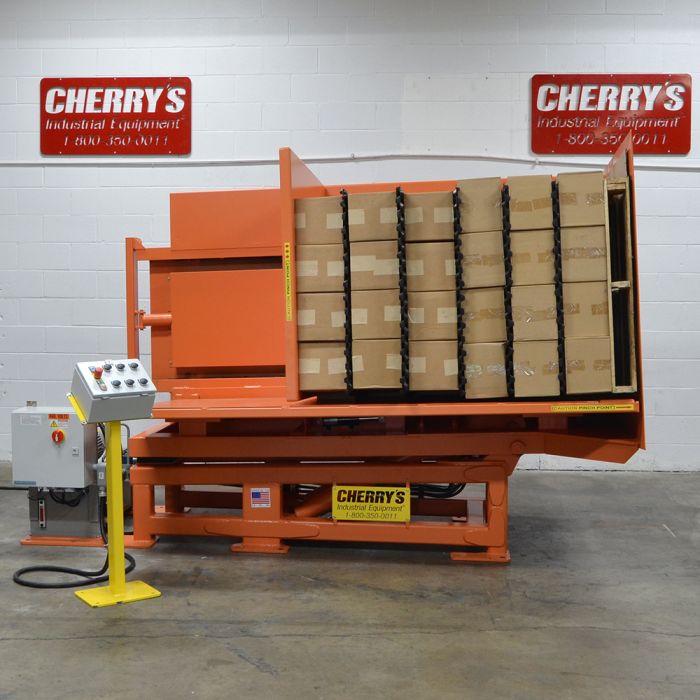

PSR-104 Pallet Retriever Image 8

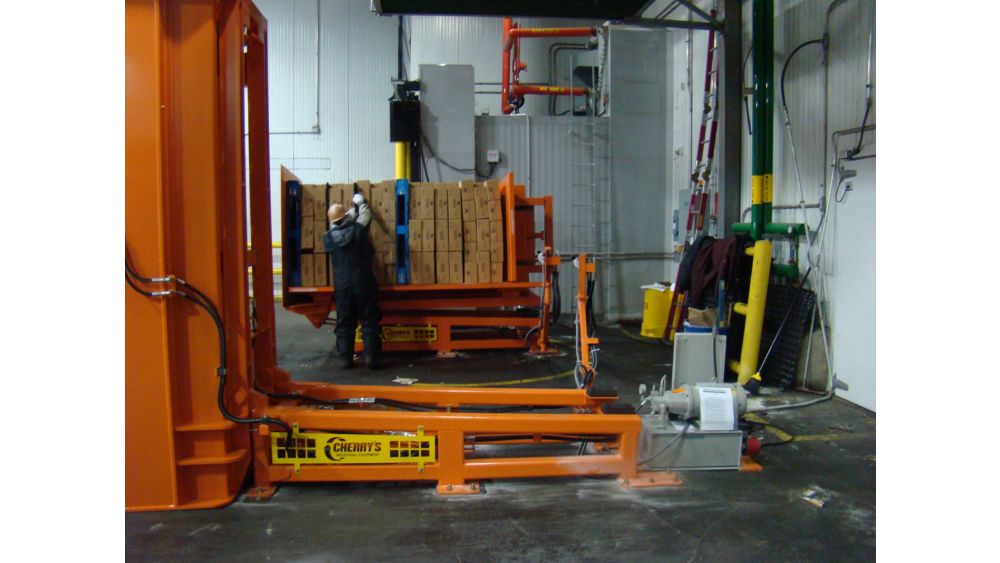

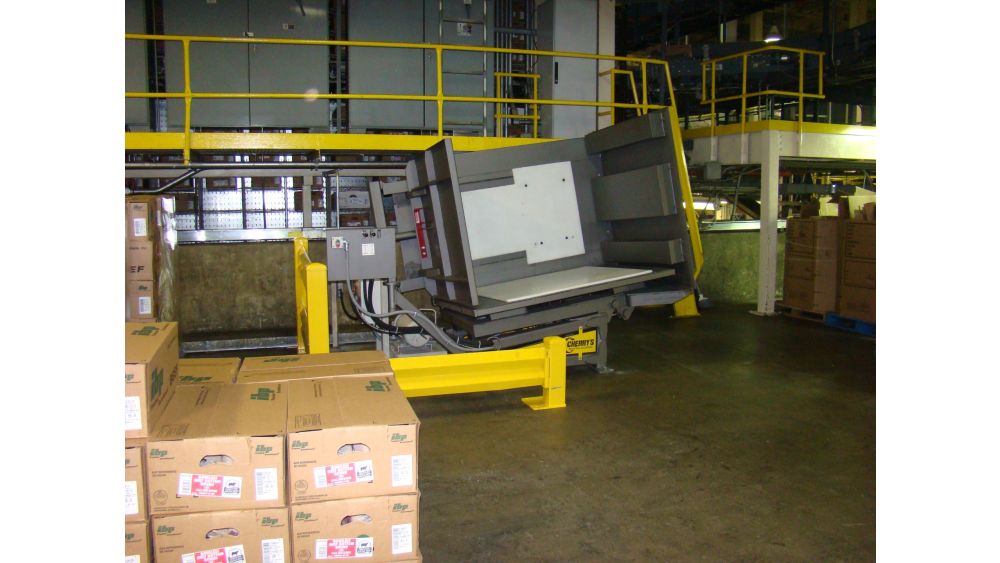

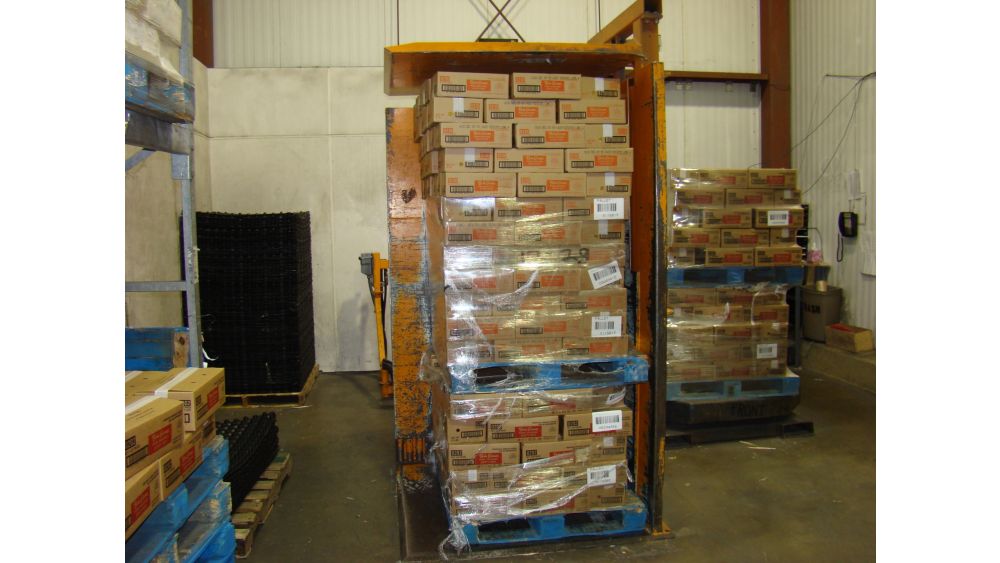

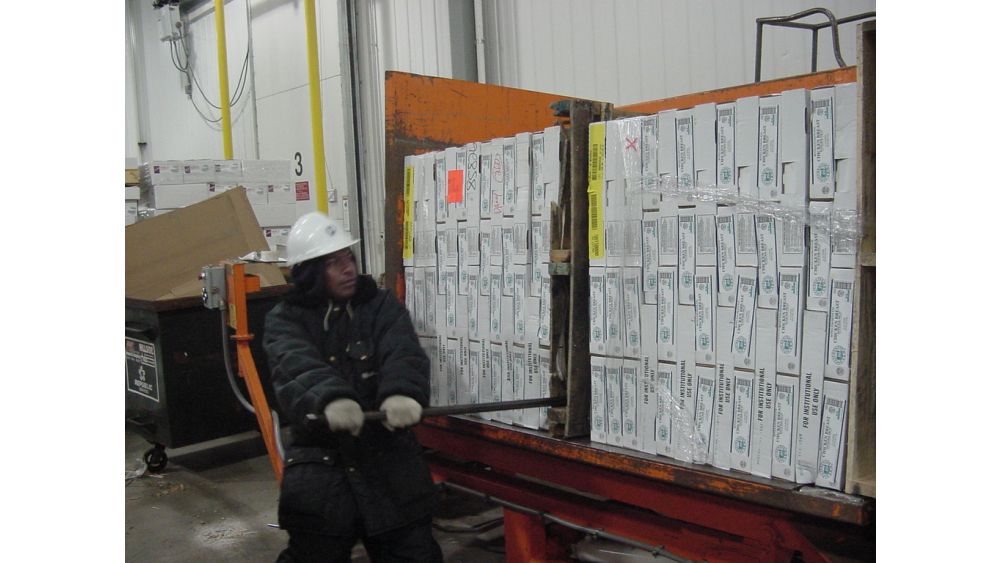

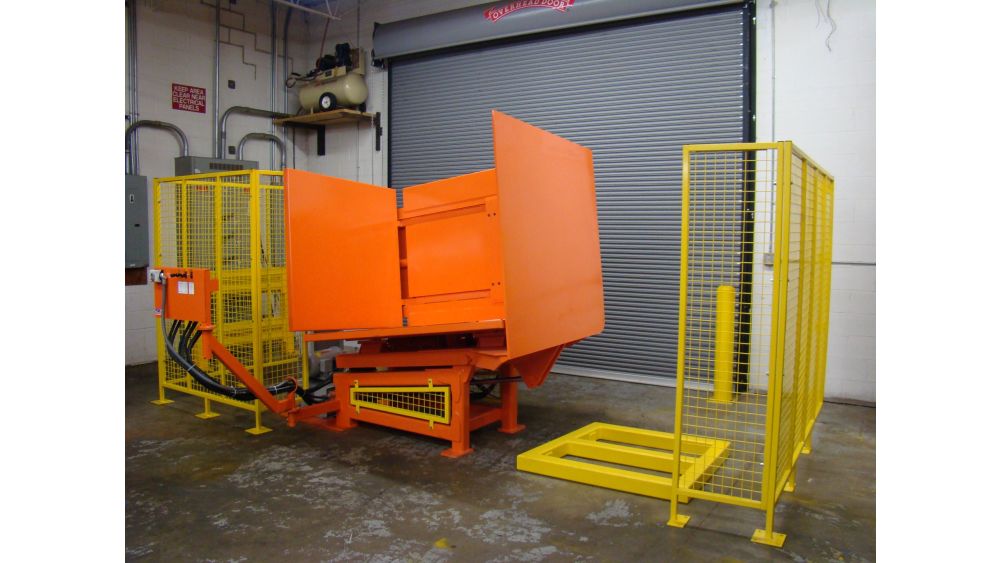

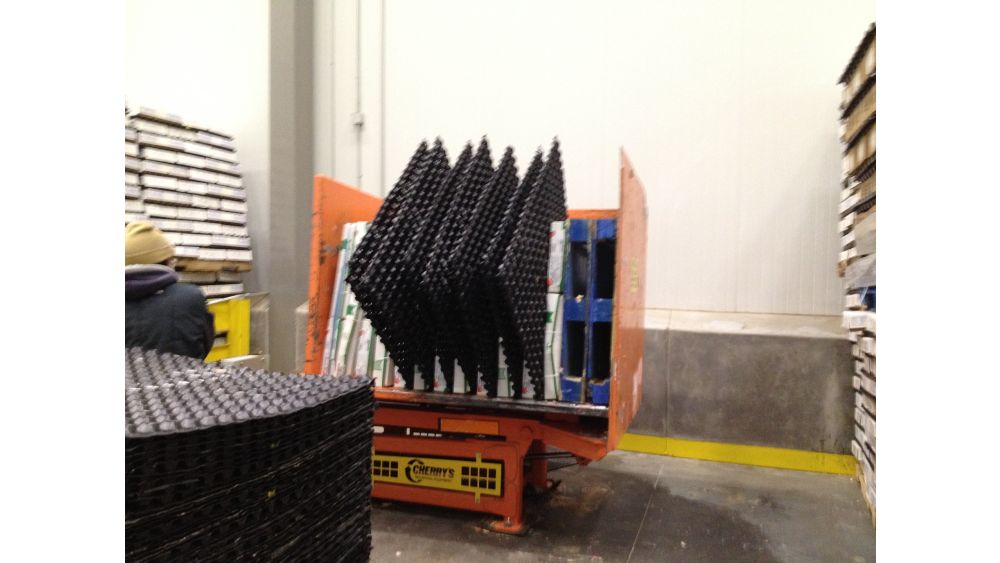

See it in the Wild

×

Product Information

A popular item at many refrigerated mixing centers and distribution centers, used on the receiving dock to replace bad pallets. NEW Extended clamping plate range, handling loads from 56" up to 104". Extended warranties, preventative and installation service agreements available. High Speed option available.

Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
PSR-104L Levers 5/5.2 22 standup/22 layback N/A
PSR-104PB Push buttons 5/5.2 22 standup/22 layback Optional
PSR-104HSP Push buttons 5/6.6 20 standup/16 layback Optional



Product Tour


Specifications


Loading Table Size50½ x 49¾''
Max. Jaw Opening104''
Min. Jaw Opening56''
Loading HeightGround level
Working Table Height34-5/8"
ControlsPush Button Console
Capacity4,400 lbs
Main Turnover Cylinders2
System Pressure2,000 PSI
Adjustable Clamp Pressure1,000-2,000 PSI
CertificationsUL Certified Panel
Motor5 HP
Power Source208/230/460/575V
Anchors18
Warranty3 year parts and 1 year labor. Extended service agreements available.
Operating Height114-7/8"
Shipping weight*5,100 lbs
Shipping Dimensions132" L X 84" W X 96" H
ModelPSR-104
Operating Length169-7/8"
Operating Width61"
FinishBlue 2-part Epoxy Paint
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The PSR-104HD is available with options to meet the specs for your environment and application. Use the powered skate table option to position the boxes for easier freezer spacer removal. Stainless steel and Steel It paint are great options in preventing rust especially if the machine is washed down regularly. For colder environments we recommend a tank heater and ATF fluid, then add freezer rated hoses if the temperatures are below zero. High Speed option available.

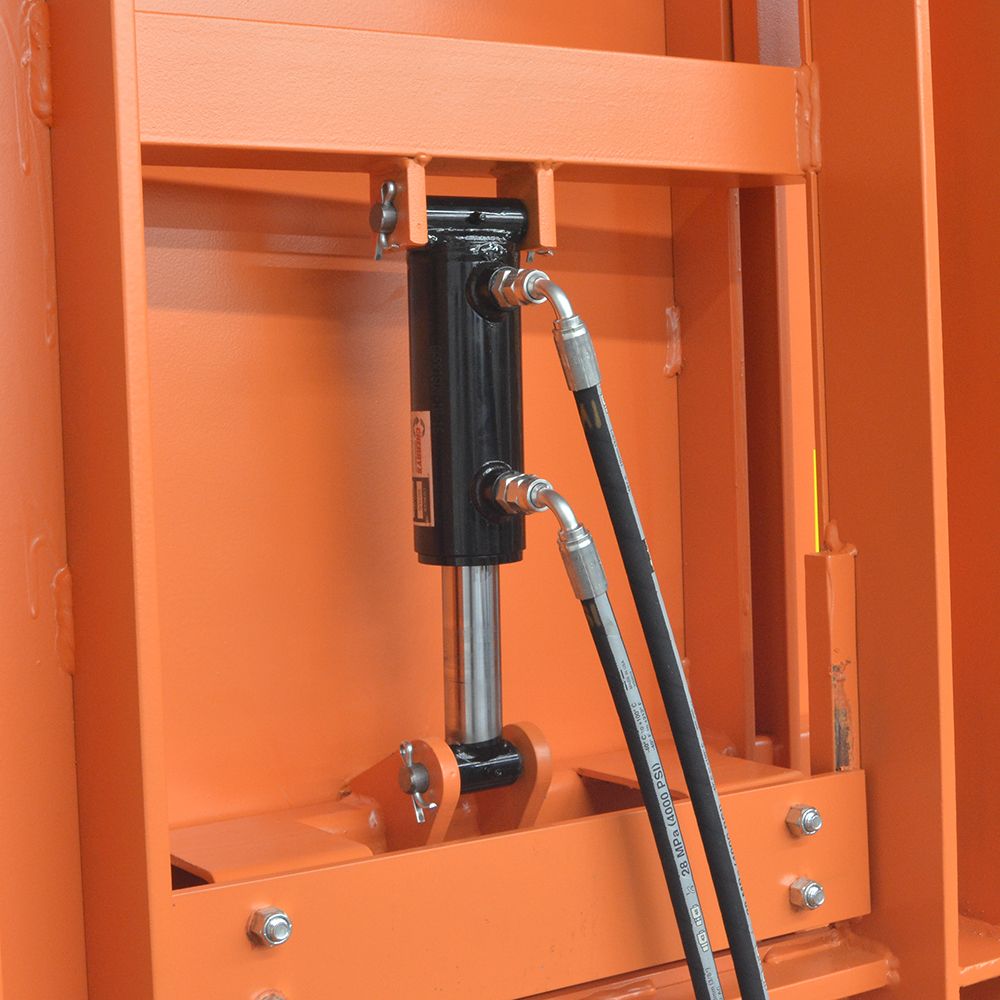

Powered Skate TablePowered Skate Table

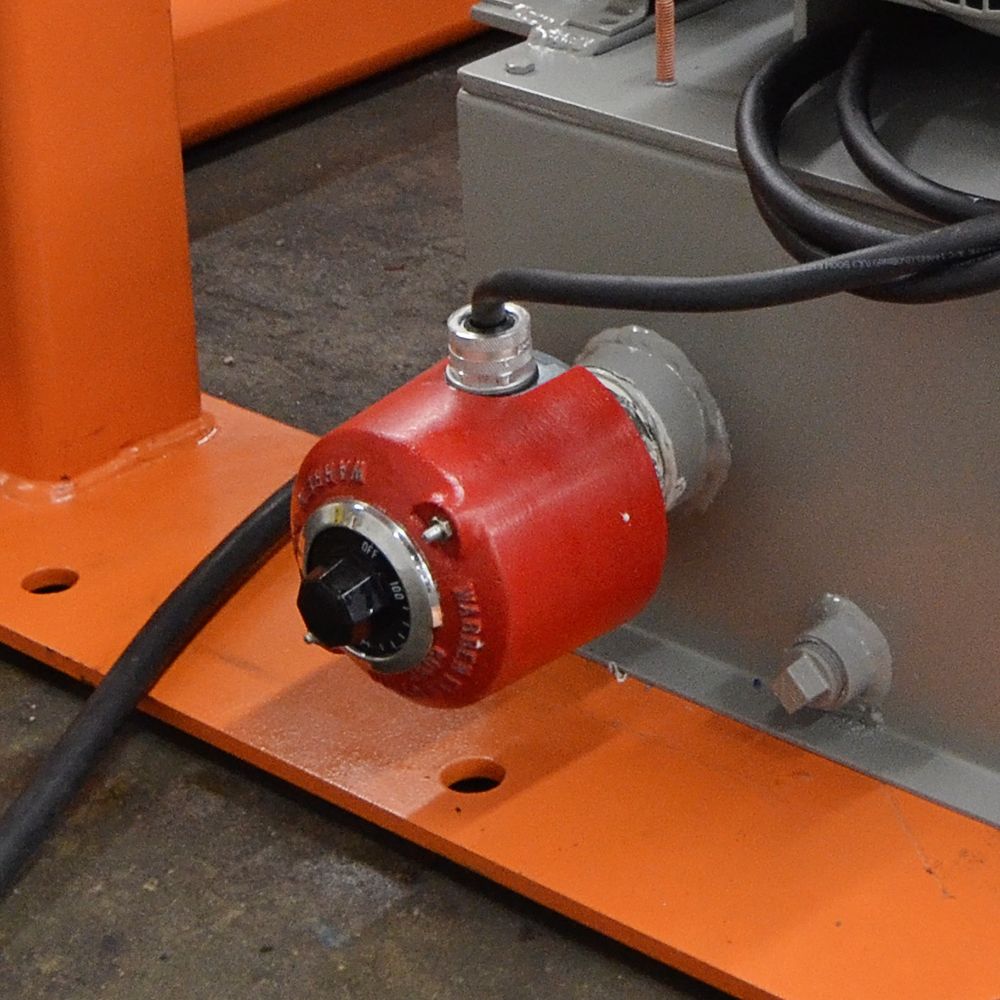

Tank HeaterTank Heater

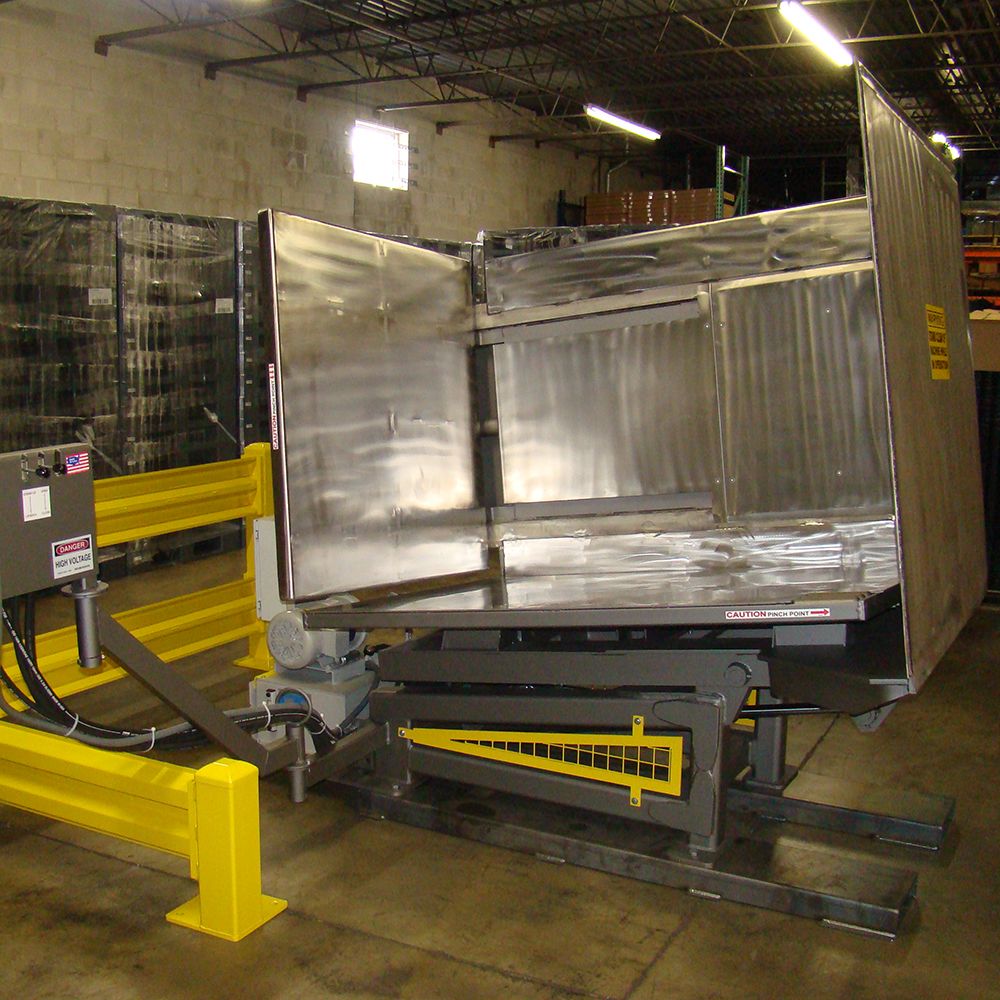

Stainless SteelStainless Steel

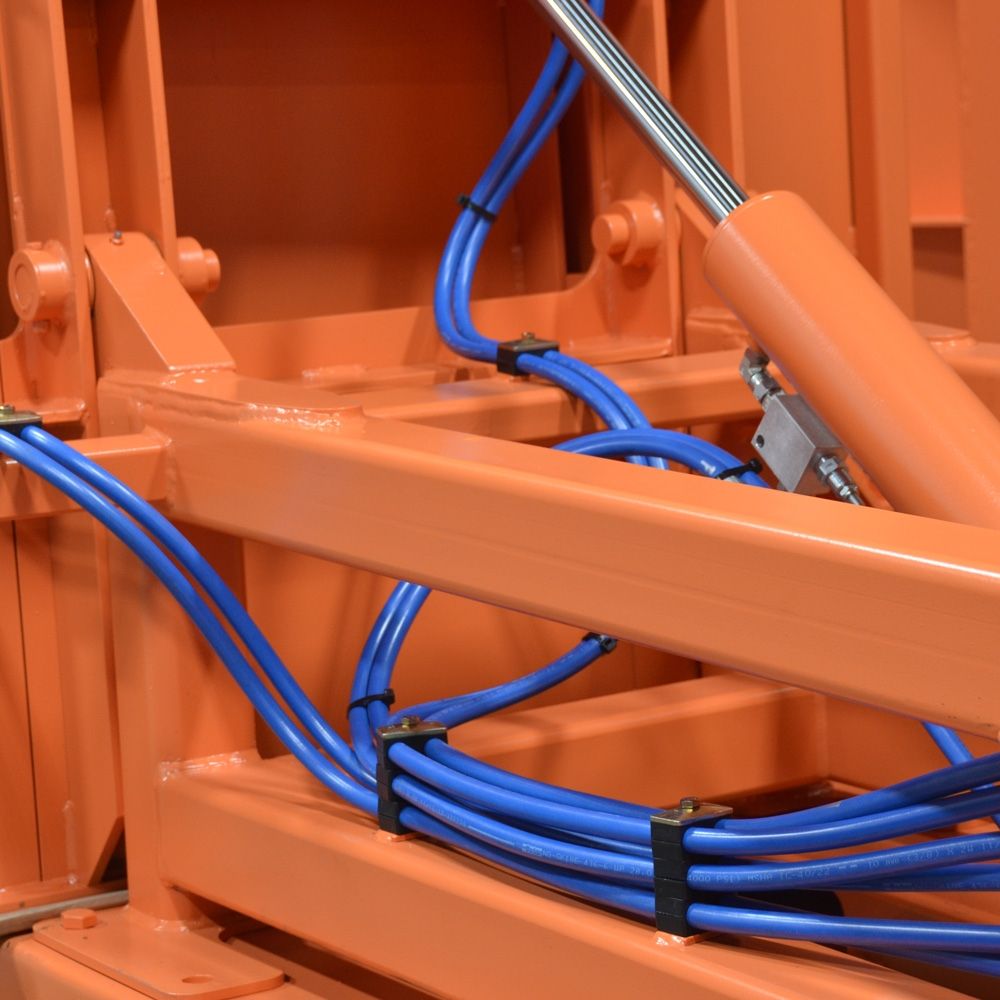

Freezer-Rated-HosesFreezer-Rated-Hoses

Guards

Protect your new asset and enhance the safety of the operator and maintenance personnel. Hard guarding options include crash guards, rail guards and 3-sided high style fencing. Add category 4 light curtains to protect the front area from unwanted entrance while the machine is in use.

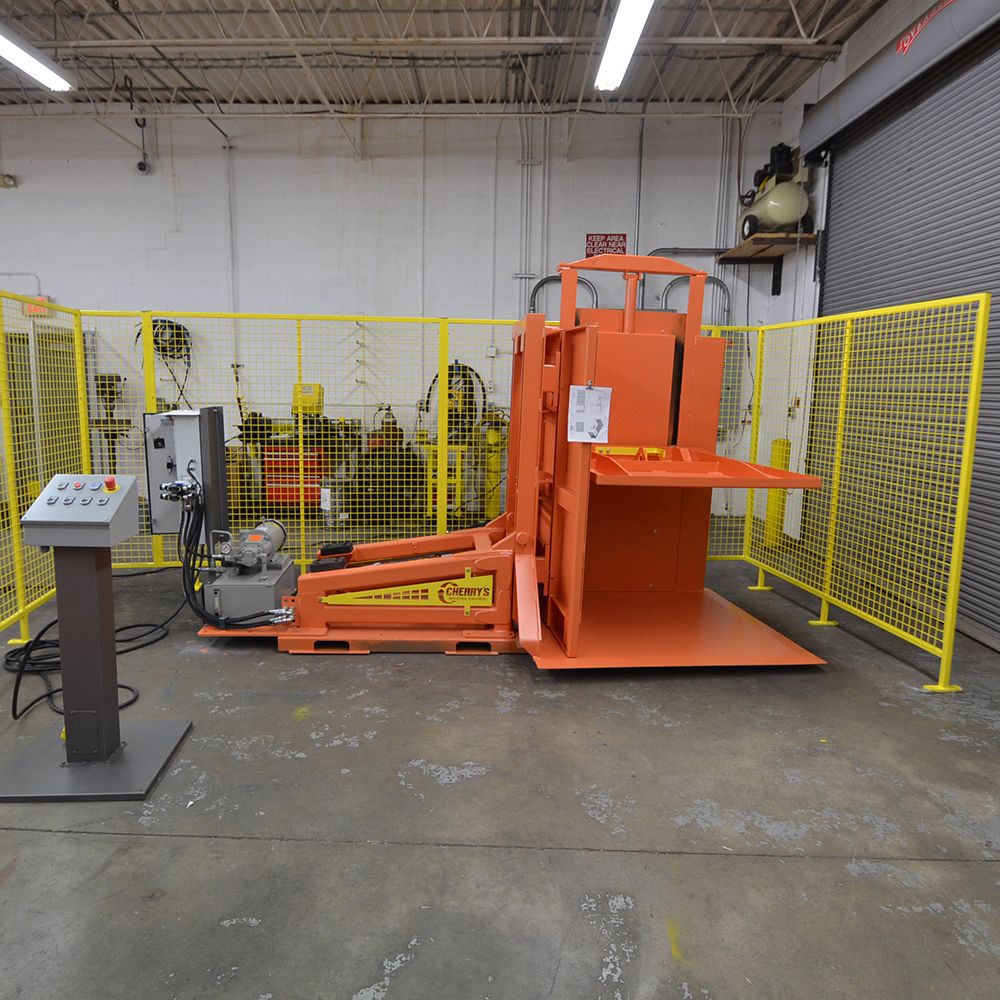

High Style GuardHigh Style Guard

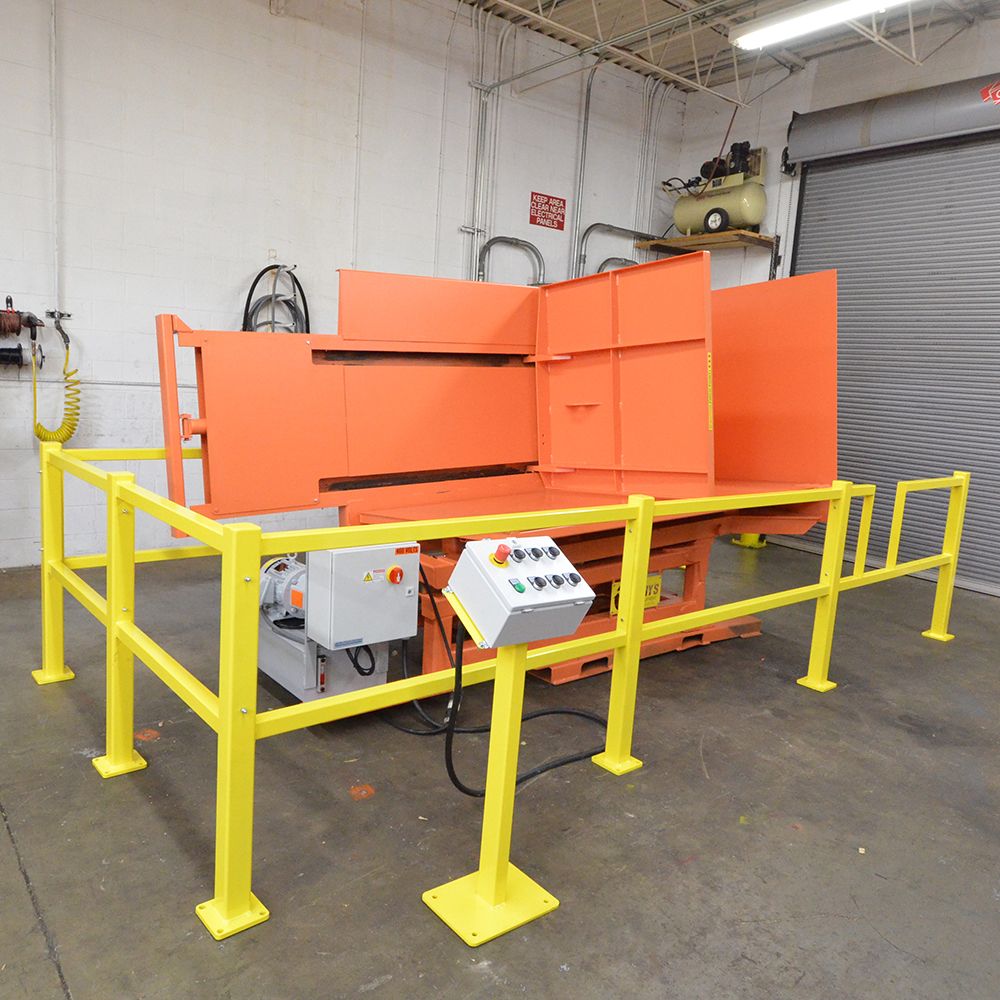

Rail GuardRail Guard

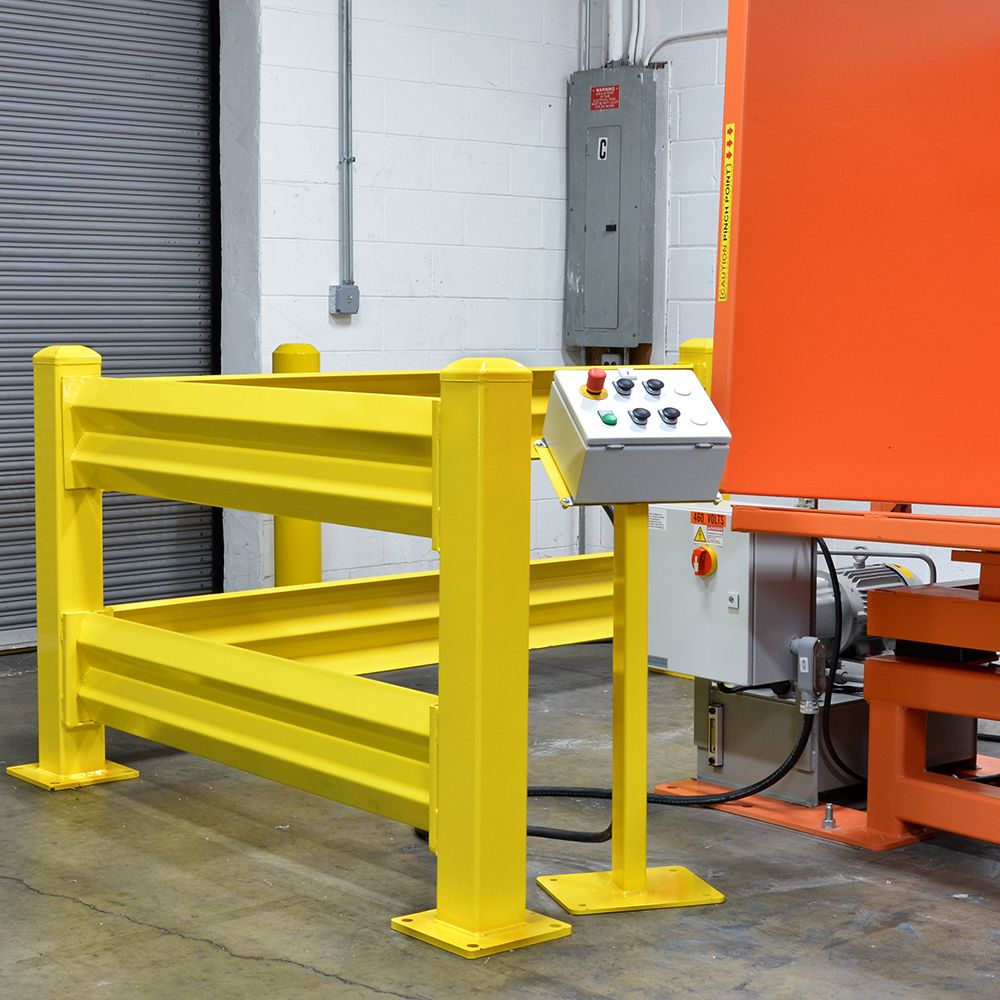

Crash GuardsCrash Guards

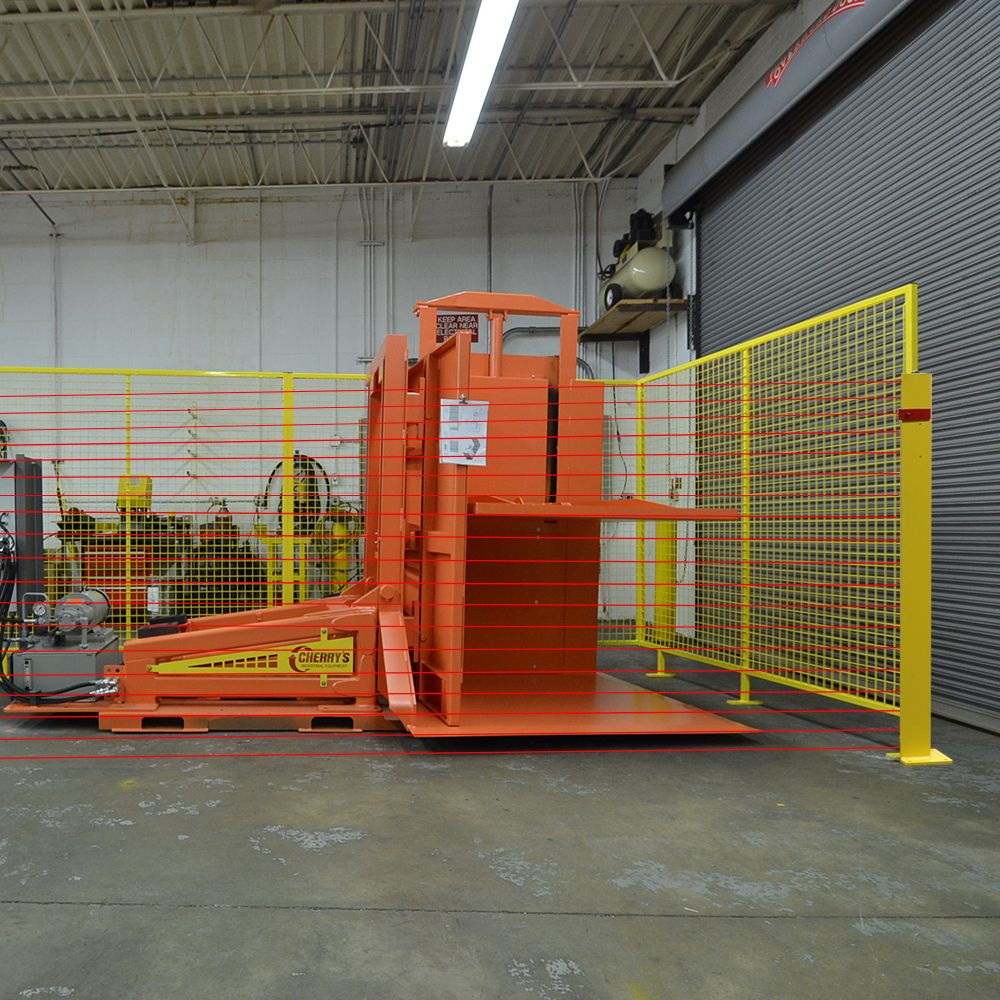

Light CurtainsLight Curtains

Controls

The standard operator controls for the PSR-104HDare press and maintain push buttons on an angle top console. Save energy as the motor turns on when each movement button is pressed and off when the button is released. For multiple shifts or in-freezer use, upgrade to oversized heavy-duty pushbuttons that are perfect for users wearing gloves. Finally, downgrade to a budget friendly 2 or 3 station hand lever control valve with motor starter.

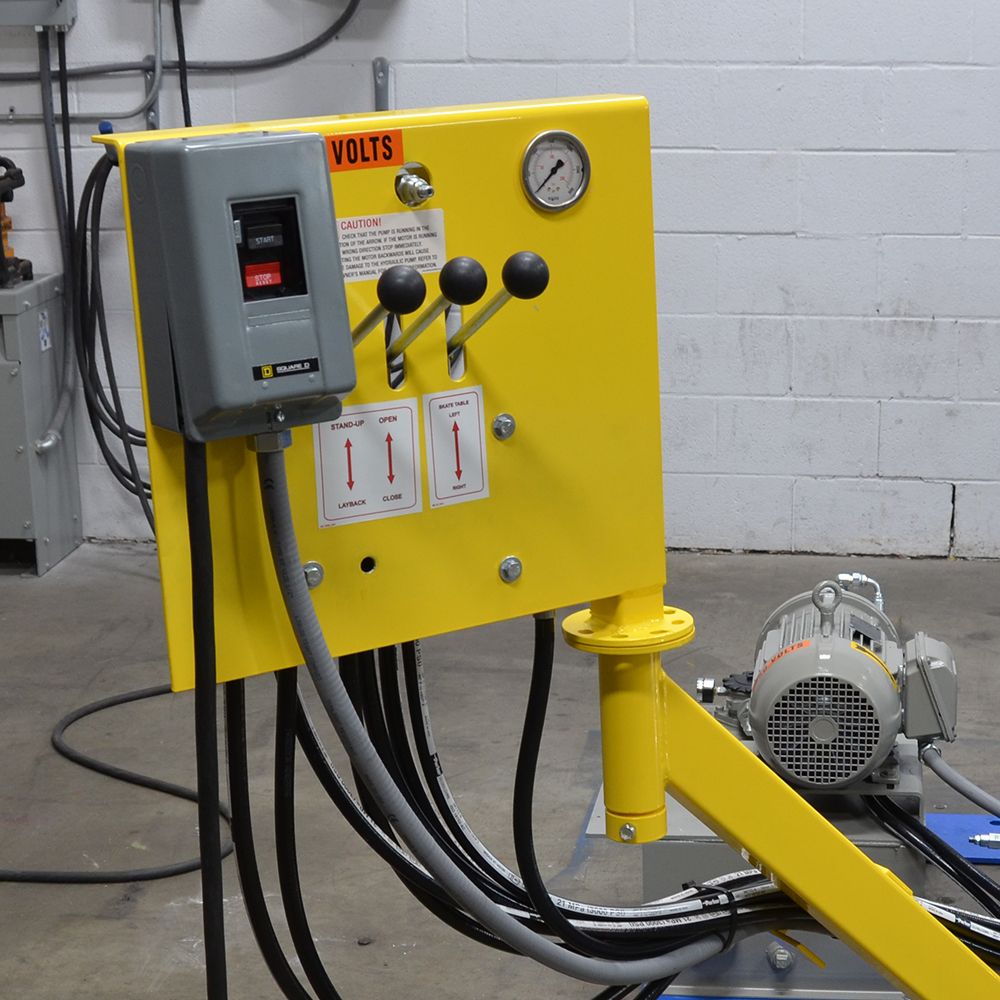

Heavy duty lever controls with manual starterHeavy duty lever controls with manual starter

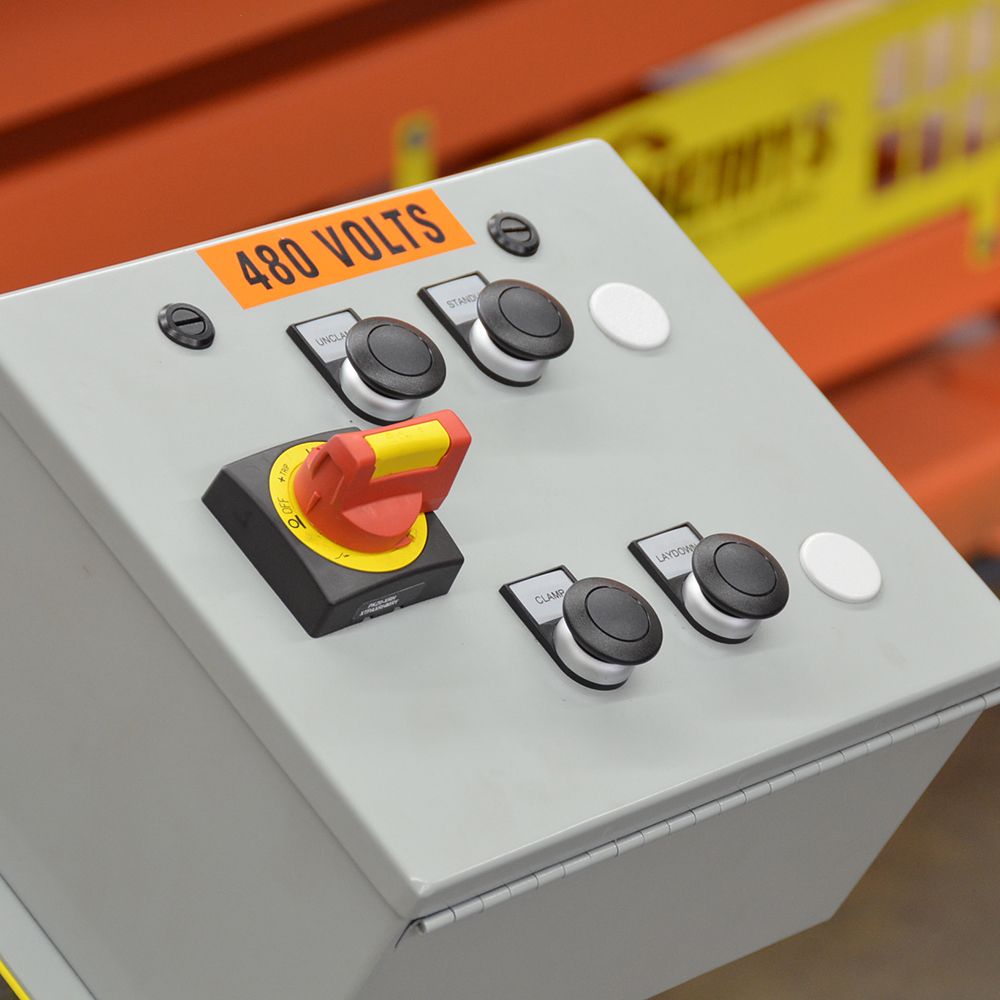

Basic Push Button (Energy Saver) Control with Power SwitchBasic Push Button (Energy Saver) Control with Power Switch

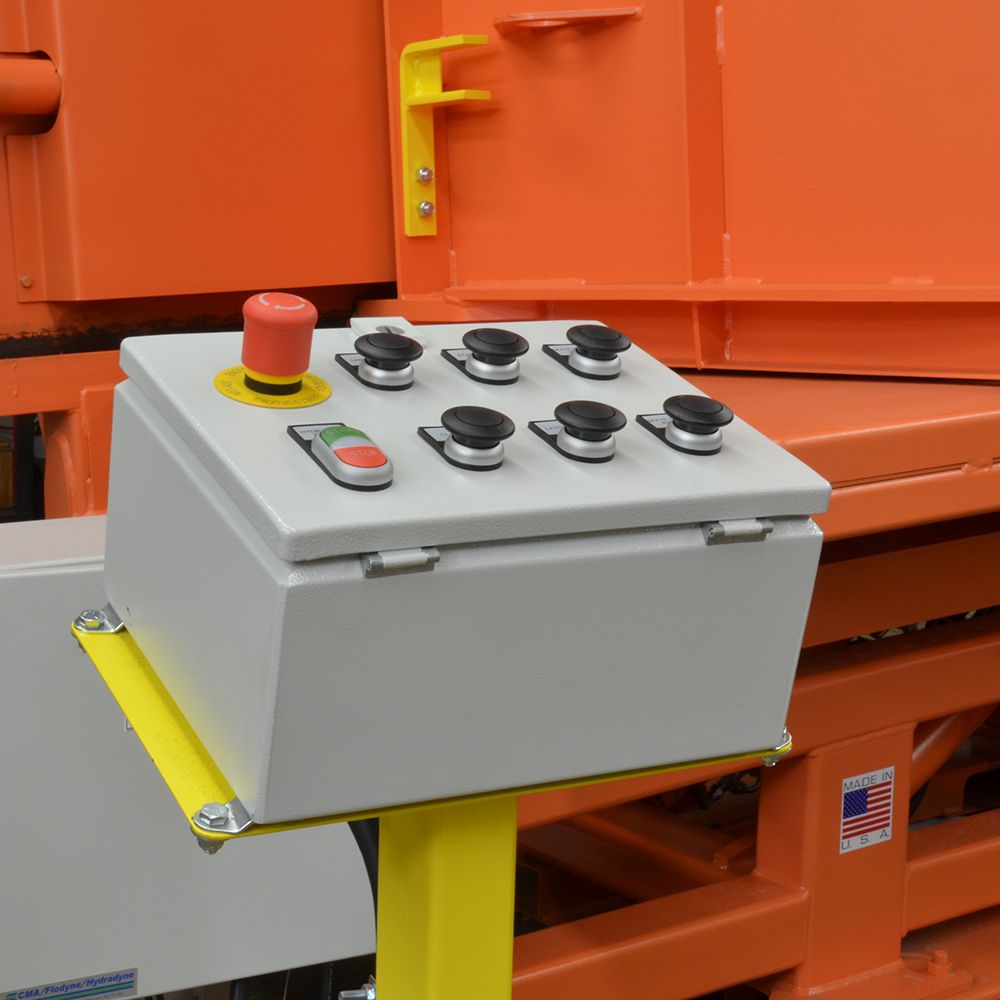

Push Button (Energy Saver) Control with Skate Table Option and E-Stop ButtonPush Button (Energy Saver) Control with Skate Table Option and E-Stop Button

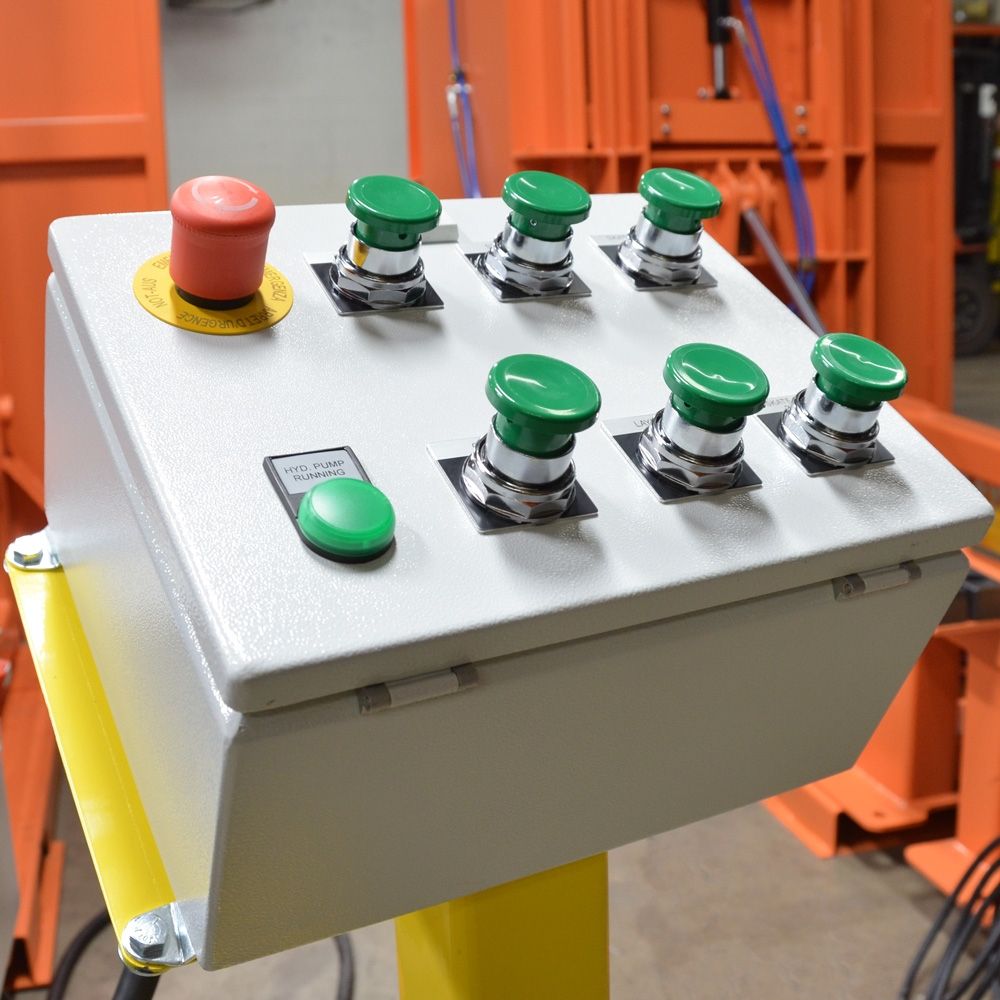

Heavy-Duty-Push-Button-ConsoleHeavy-Duty-Push-Button-Console
