PSR-100 Pallet Retriever


PSR-100

This 58"-100"- capacity pallet retriever is perfectly suited for freezer spacer removal and pallet exchanging processes in various types of cold storage facilities. You'll be able to perform these tasks up to 90 percent faster than by hand, which will free your workers for other essential jobs functions. Made in the USA

Request a Quote

Call 847-443-3861 to speak with our experts

Product Detail
PSR-100 Pallet Retriever
PSR-100 Pallet Retriever Image 1

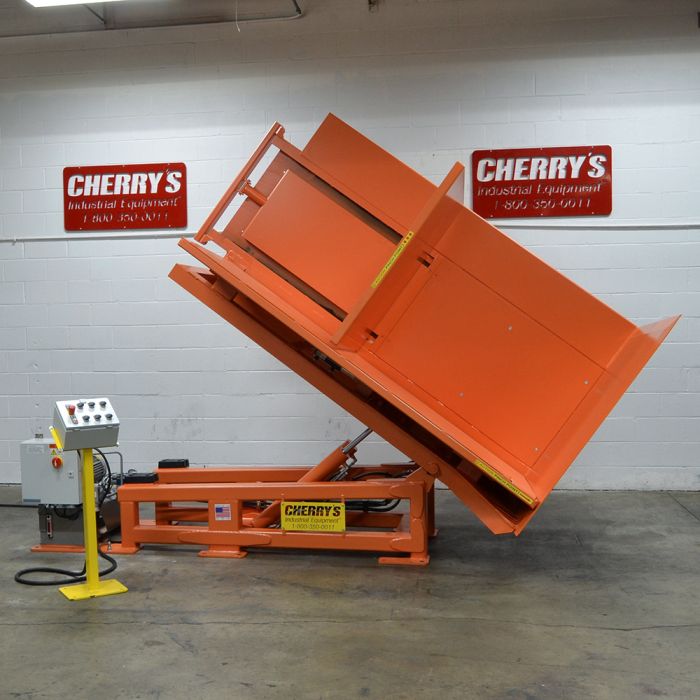

PSR-100 Pallet Retriever Image 2

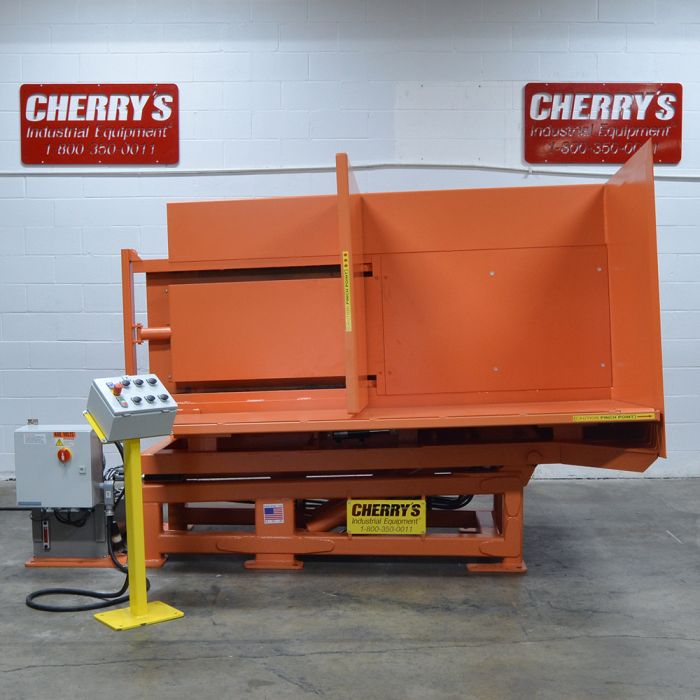

PSR-100 Pallet Retriever Image 3

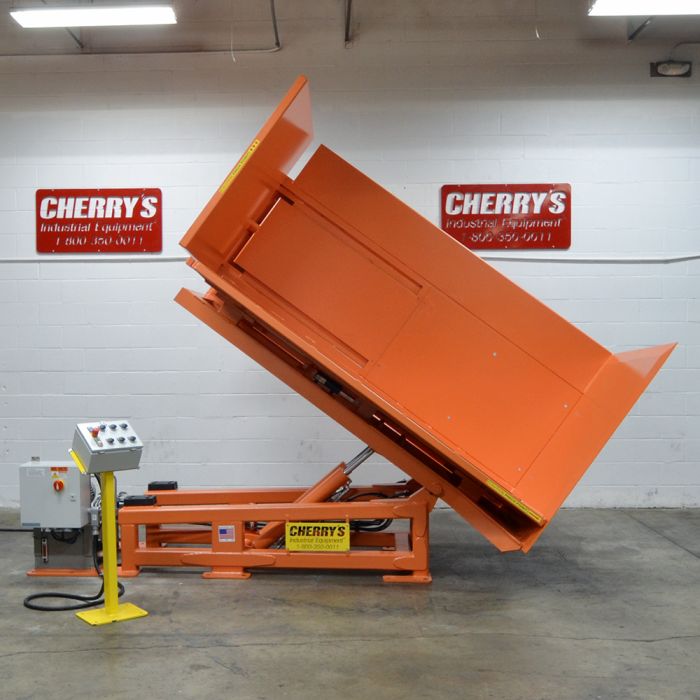

PSR-100 Pallet Retriever Image 4

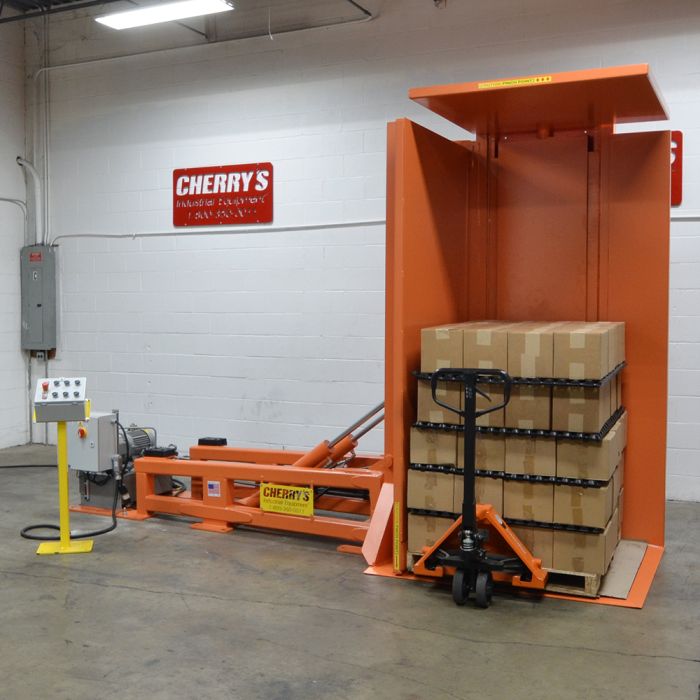

PSR-100 Pallet Retriever Image 5

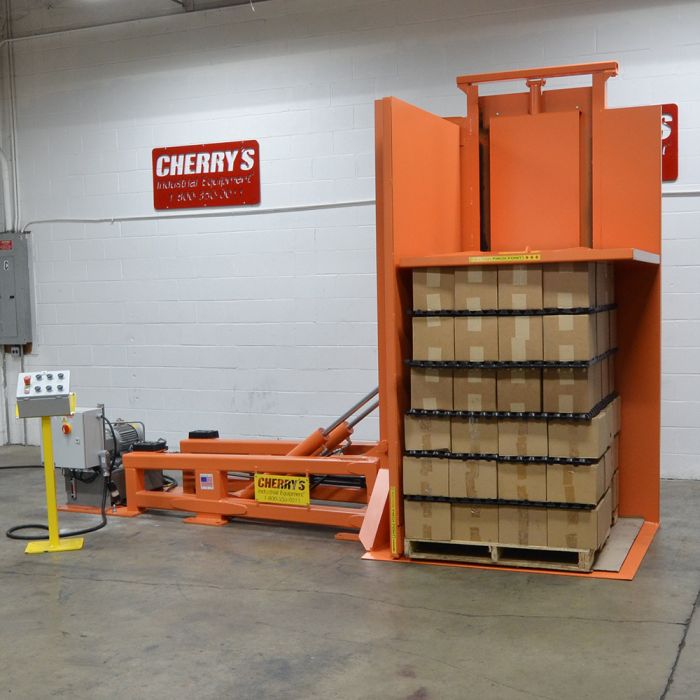

PSR-100 Pallet Retriever Image 6

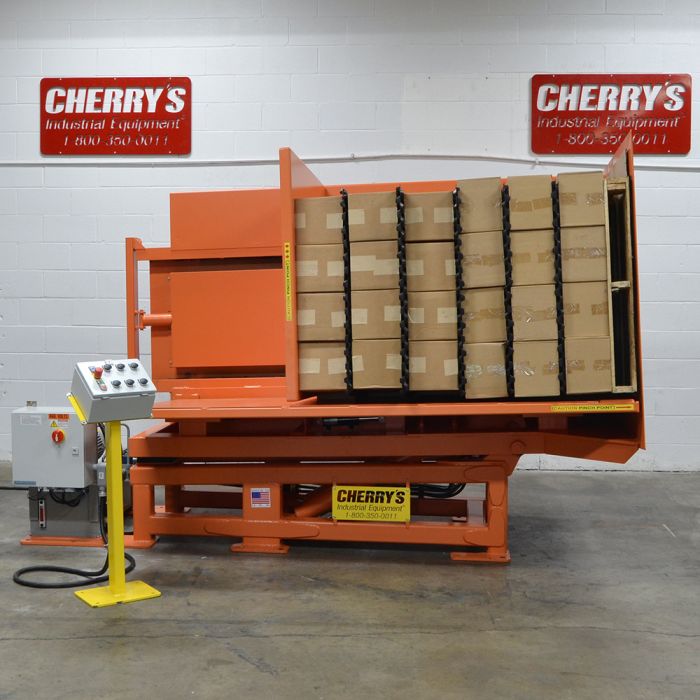

PSR-100 Pallet Retriever Image 7

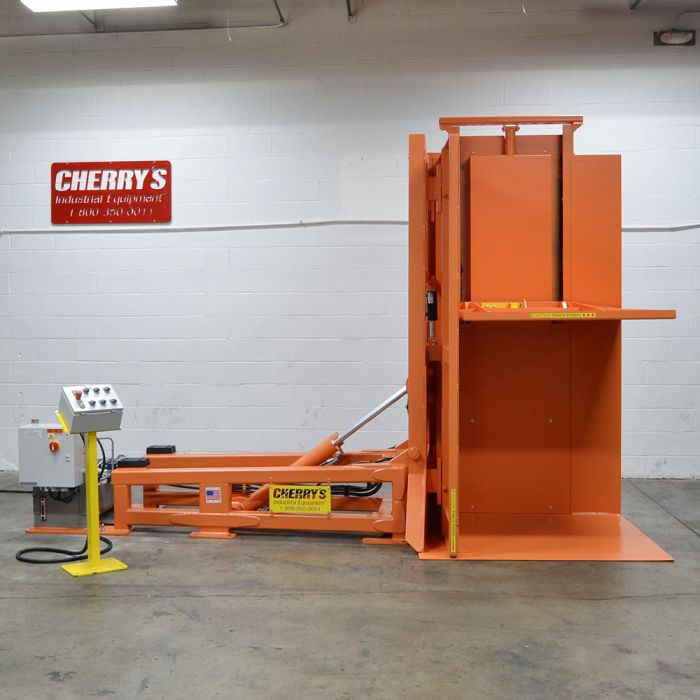

PSR-100 Pallet Retriever Image 8

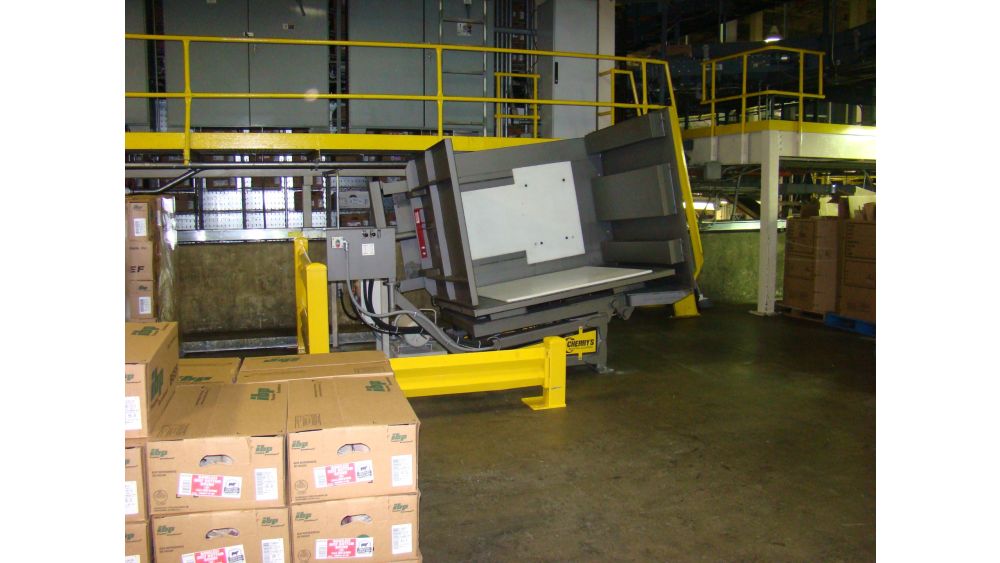

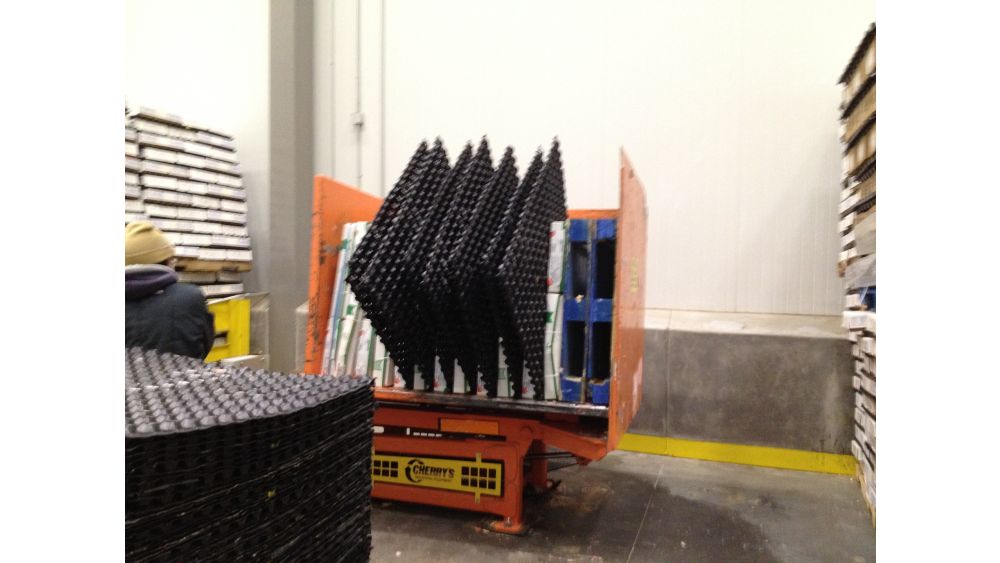

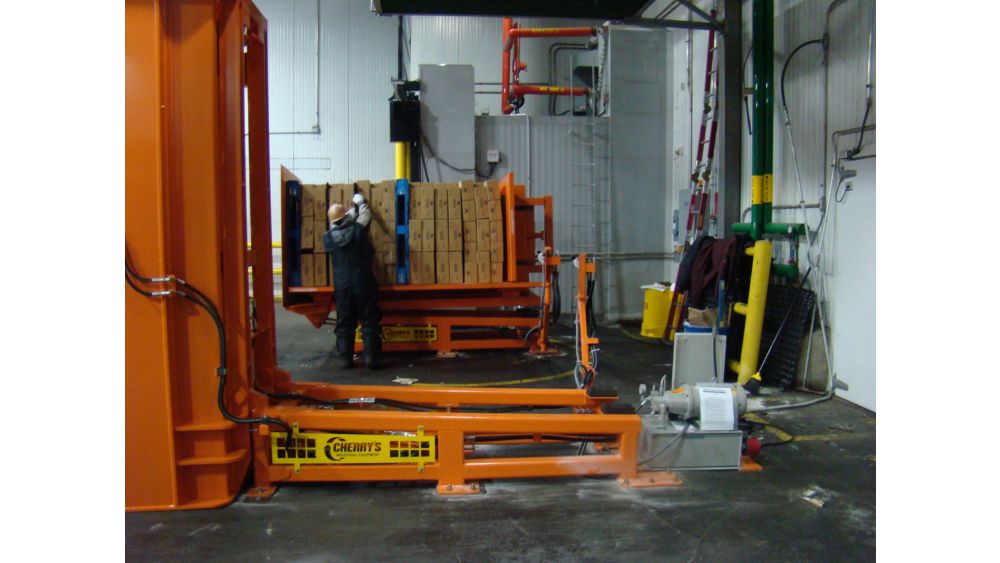

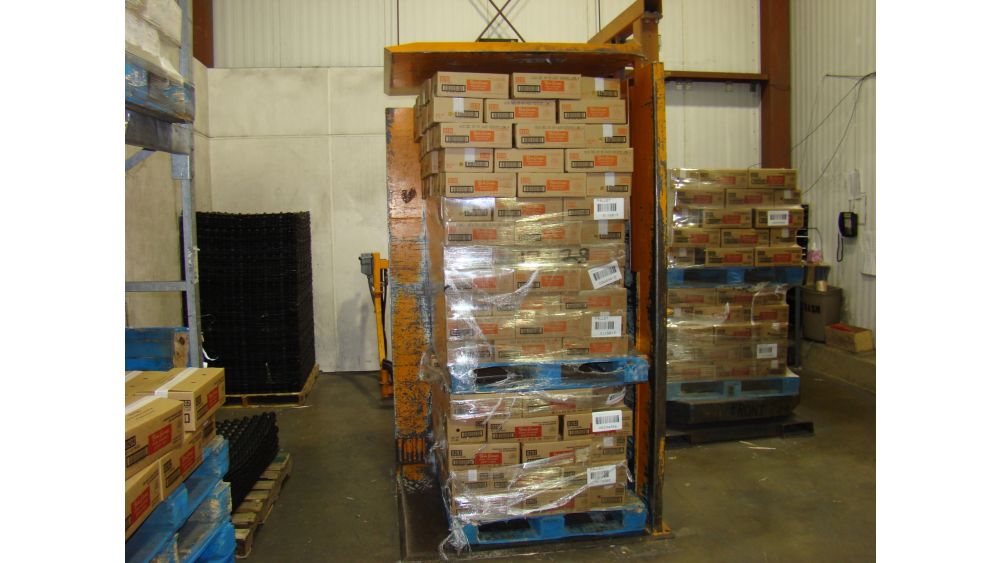

See it in the Wild

×

Product Information

The PSR-100 features, benefits and specifications including: 4,400-lb. capacity pallet for heavy loads, energy saver push button controls on an angle top console, UL certified electrical panels, wash down components, powered skate table, freezer rated controls, USDA approved paint and stainless steel finishes. High Speed option available.

Product Variations

SKU Controls Motor HP/Pump displacement Cycle Time (seconds) Safety Circuit
PSR-100L Levers 5/5.2 22 standup/22 layback N/A
PSR-100HDP Push buttons 5/5.2 22 standup/22 layback Optional
PSR-100HSP Push buttons 5/6.6 20 standup/16 layback Optional



Product Tour


Specifications


ModelPSR-100
Loading Table Size50 ½ x 49 ¾''
Max. Jaw Opening100''
Min. Jaw Opening58''
Loading HeightGround level
Working Table Height34-5/8"
ControlsPush Button Console
Capacity4,400 lbs
Main Turnover Cylinders2
System Pressure2,000 PSI
Adjustable Clamp Pressure1,000-2,000 PSI
Cycle Rate30-40 pallets per hour
CertificationsUL Certified Panel
Motor5 HP
Power Source208/230/460/575V
Anchors18
FinishBlue 2-part Epoxy Paint
Warranty3 year parts and 1 year labor. Extended warranty available.
Operating Length165-7/8"
Operating Height109"
Operating Width61-1/4"
Shipping weight*5050 lbs
Shipping Dimensions132" L X 84" W X 96" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Options

The PSR-100 is available with options to meet the specs for your environment and application. Use the powered skate table option to position the boxes for easier freezer spacer removal. Stainless steel and Steel It paint are great options in preventing rust especially if the machine is washed down regularly. For colder environments we recommend a tank heater and ATF fluid, then add freezer rated hoses if the temperatures are below zero. High Speed Option Available.

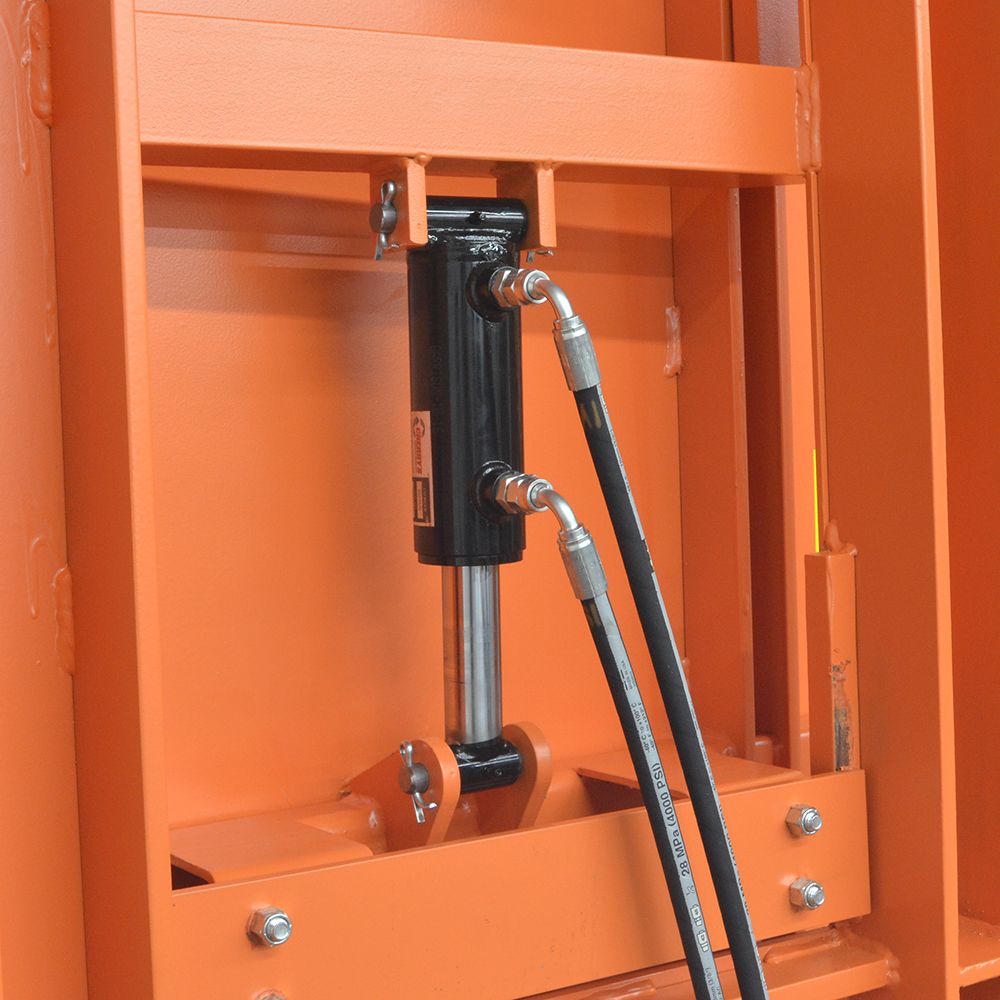

Powered Skate TablePowered Skate Table

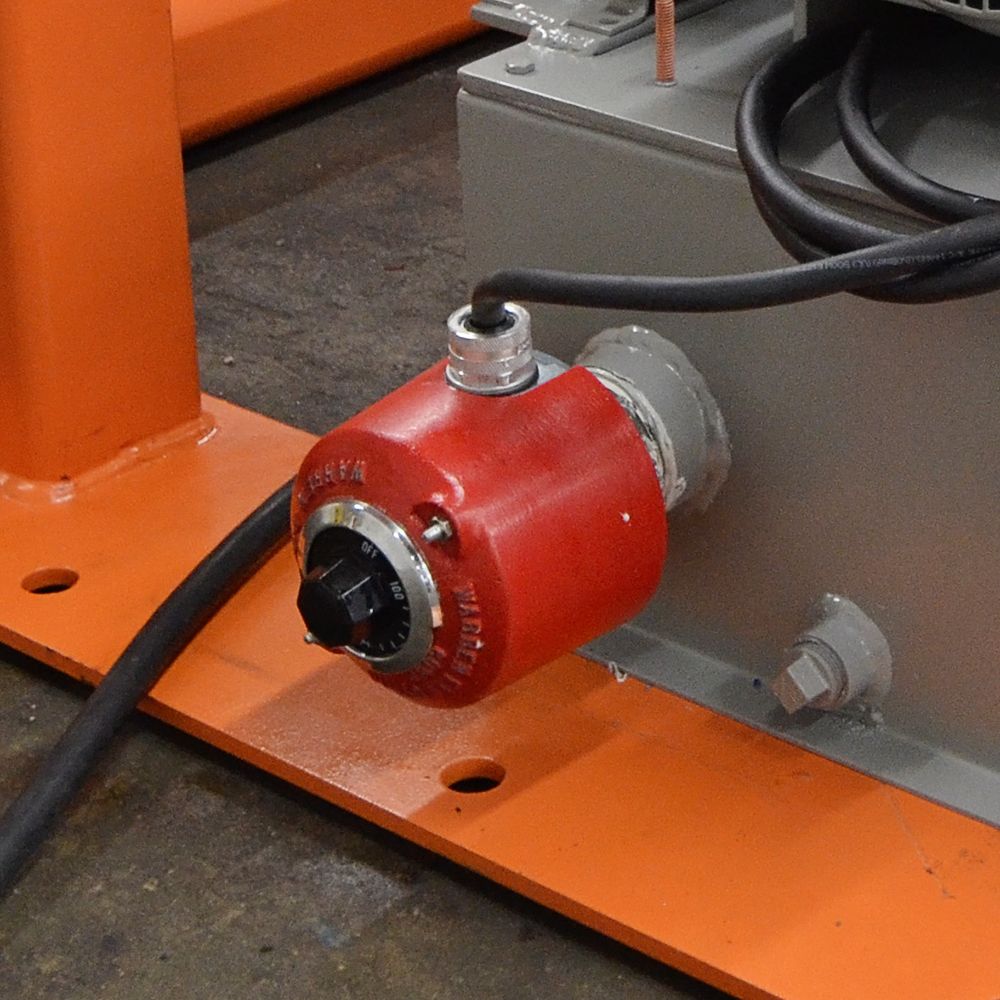

Tank HeaterTank Heater

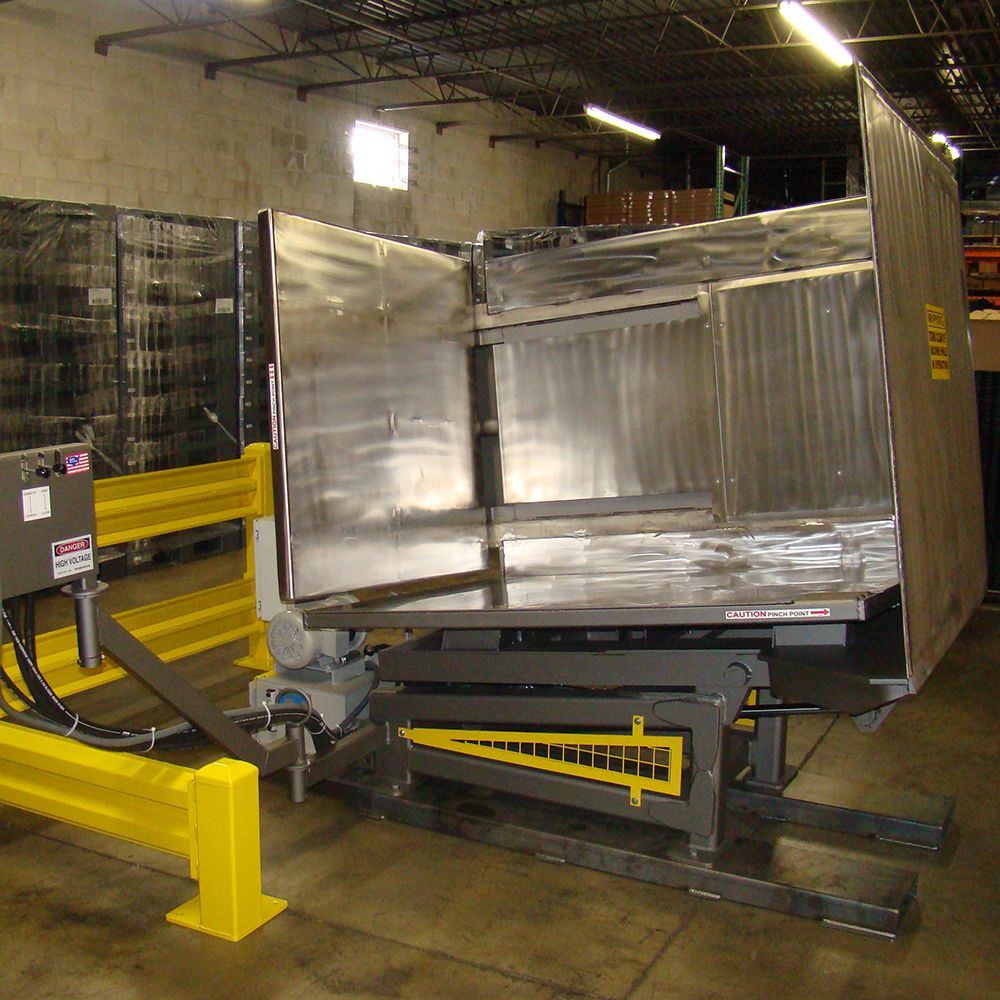

Stainless SteelStainless Steel

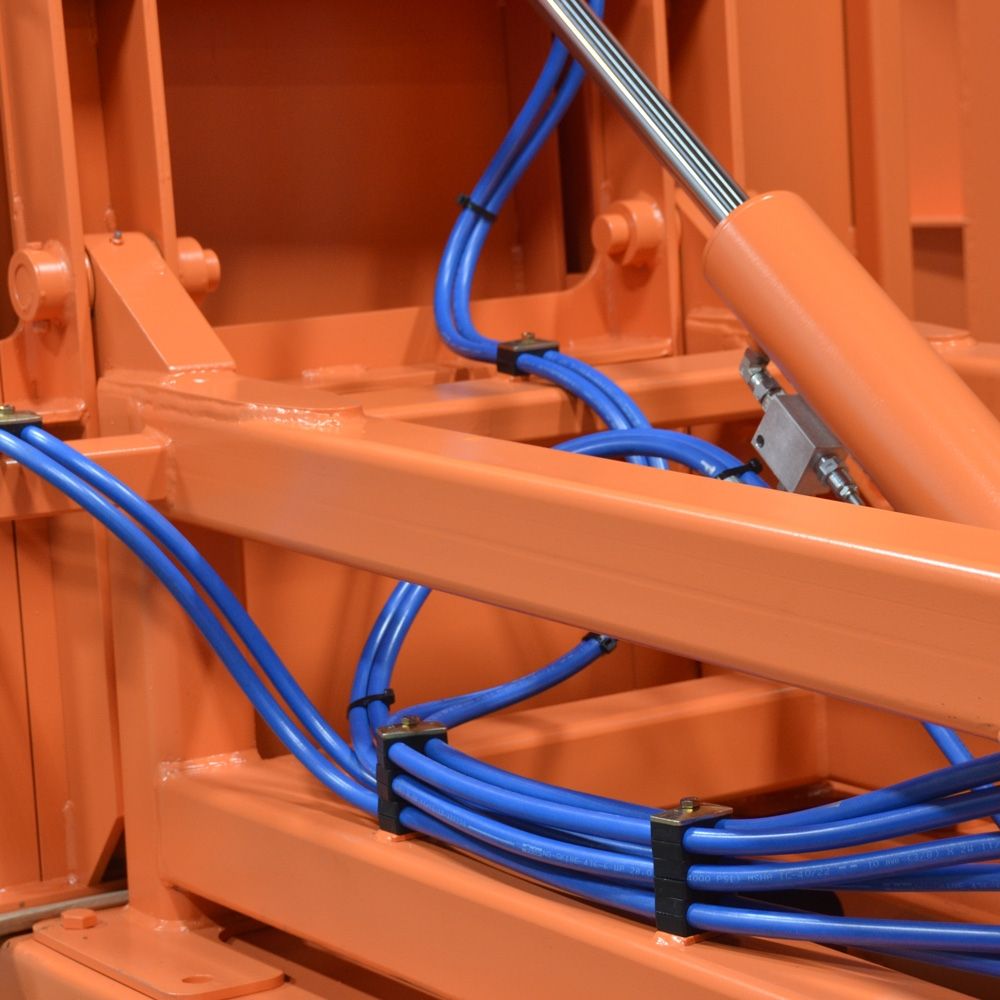

Freezer-Rated-HosesFreezer-Rated-Hoses

Guards

The standard PSR-100 can be outfitted with crash guarding or square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78' high style perimeter guards. For added safety, purchase the light curtains package to protect the area inside of the fence and around the machine. High Speed option available.

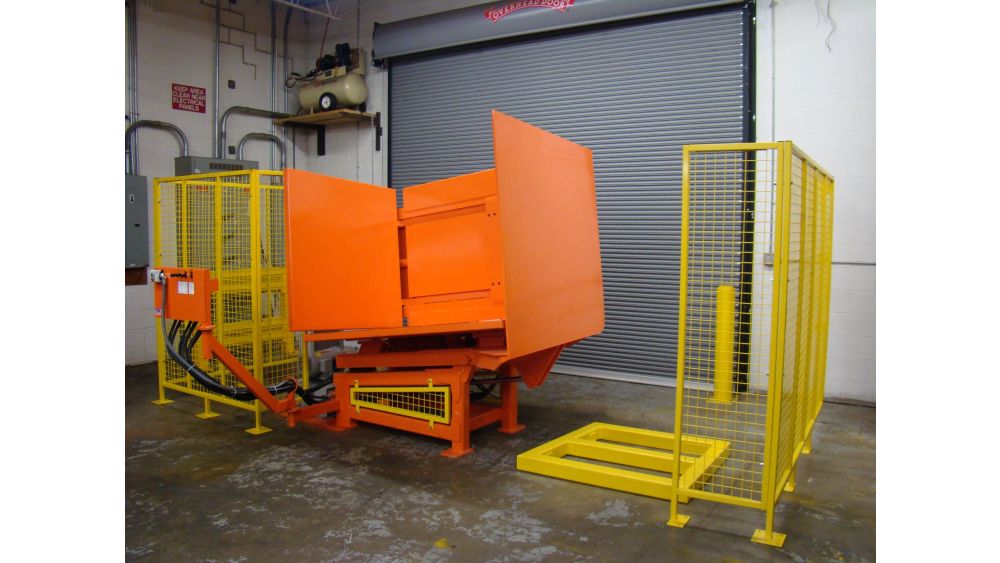

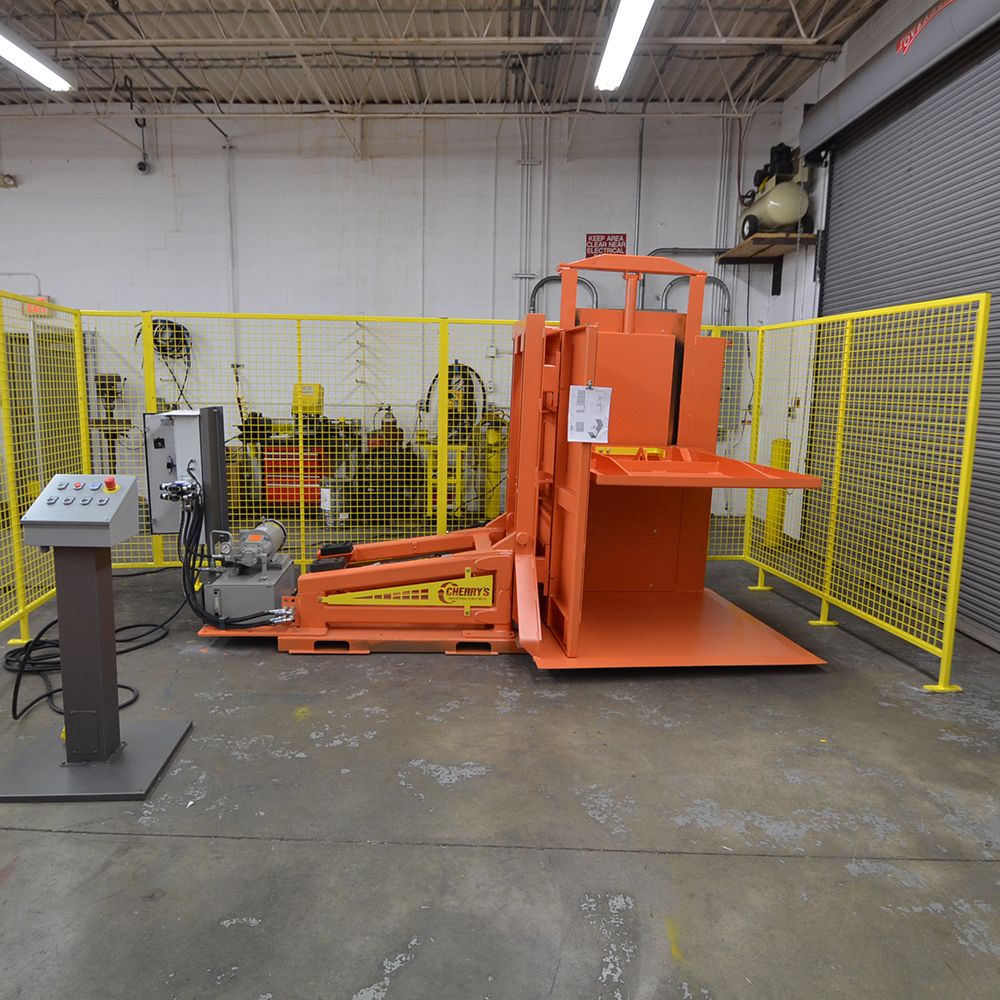

High Style GuardsHigh Style Guards

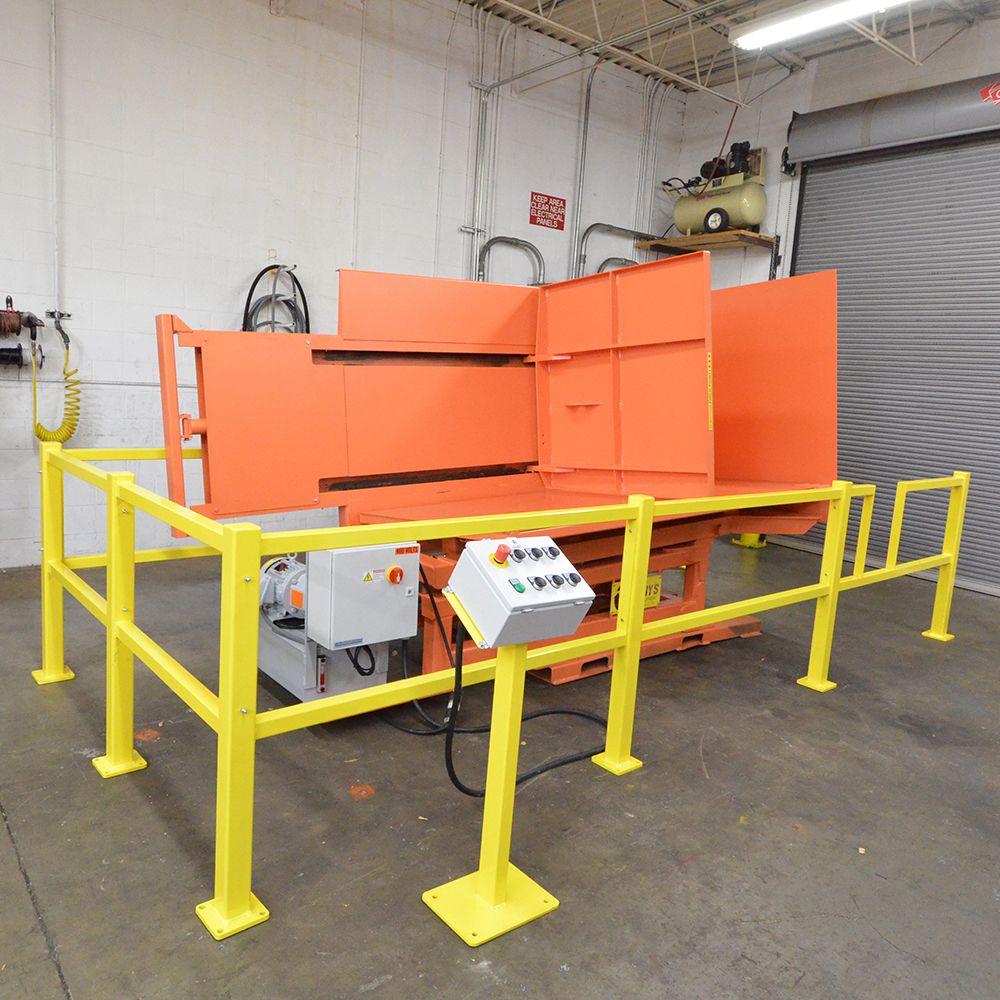

Rail GuardsRail Guards

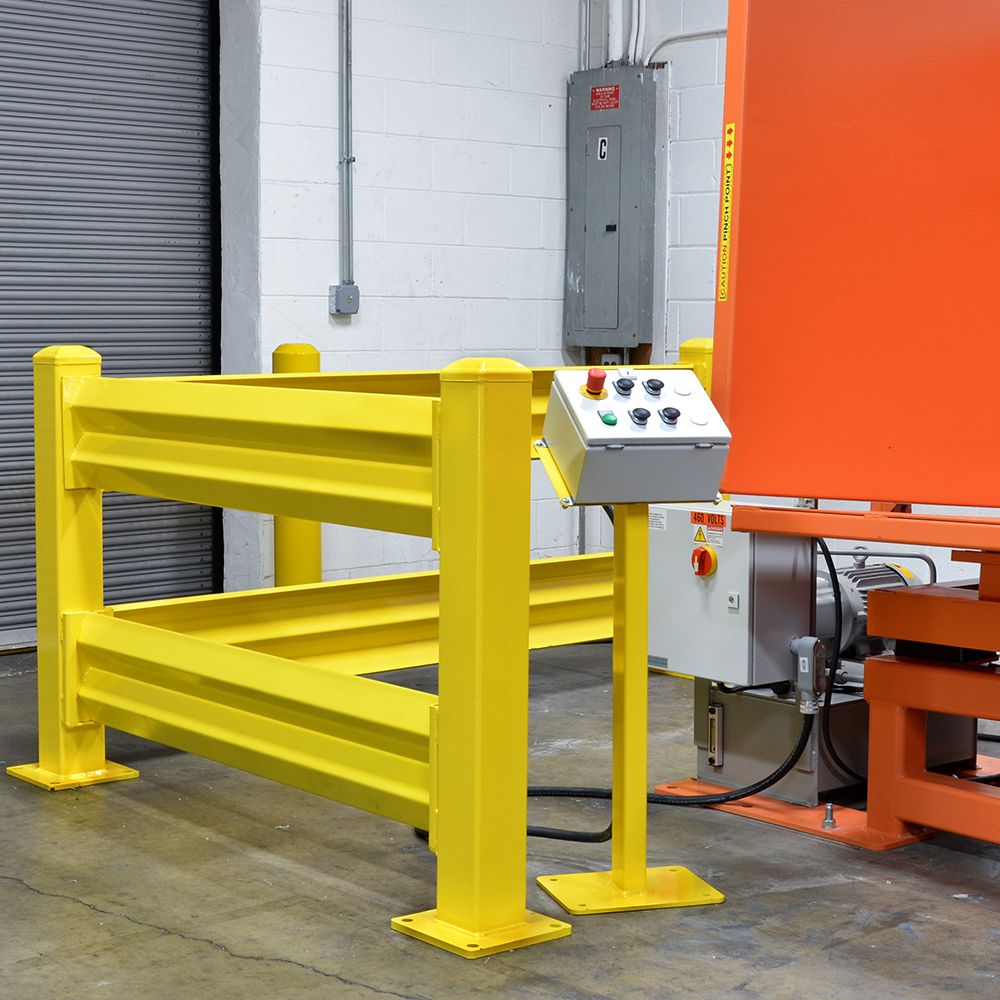

Crash GuardsCrash Guards

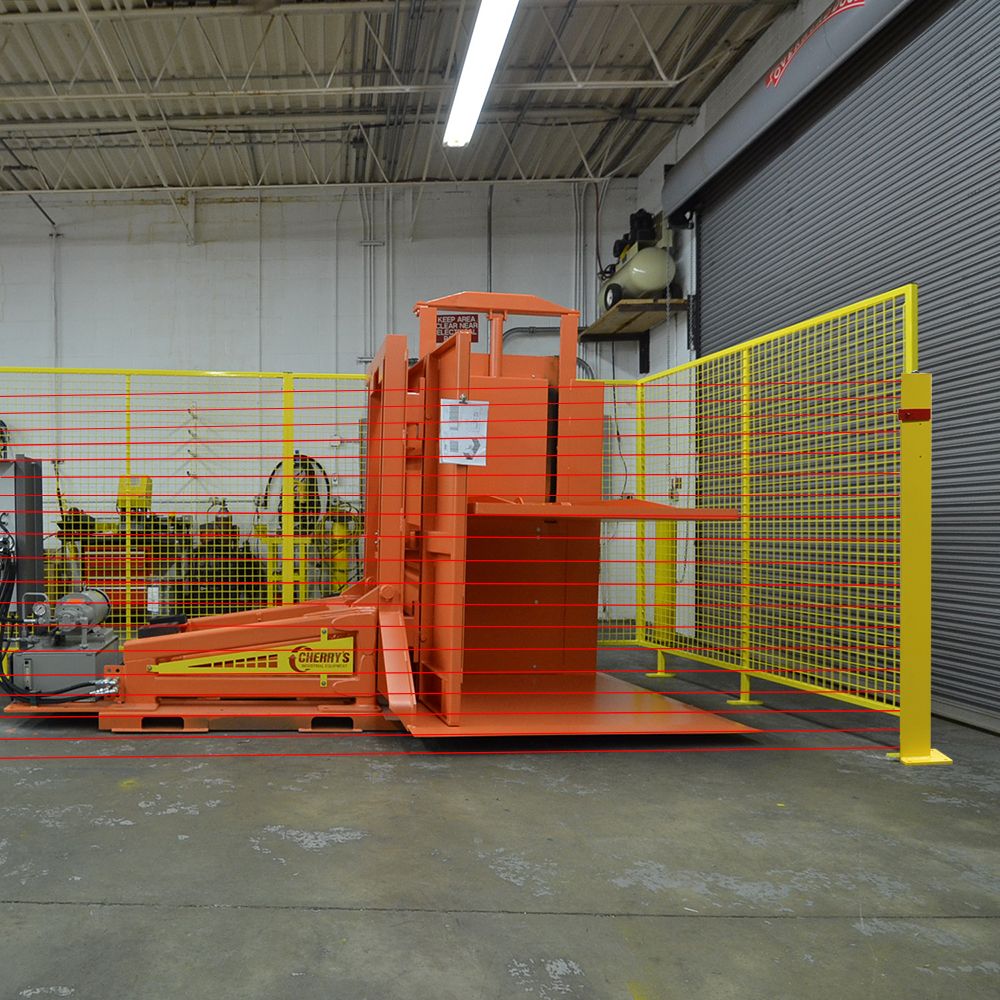

Light CurtainsLight Curtains

Controls

Cherry's offers many controls configuration options for the PSR-100 to meet the needs of your cold storage or warehouse operations. The standard controls are energy saver push button controls mounted on an angle top console. Add-on safety ready controls, freezer rated controls, high-speed motion controls or downgrade to lever controls.

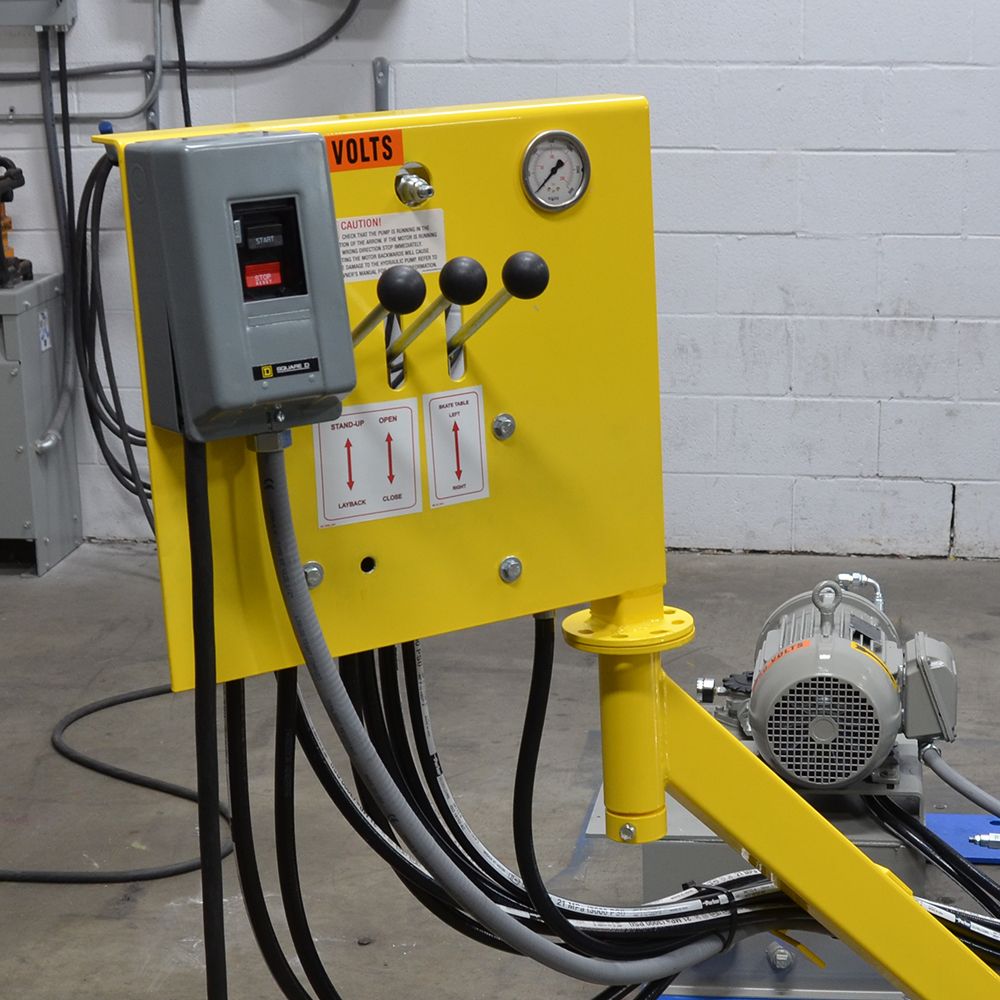

Heavy duty lever controls with manual starterHeavy duty lever controls with manual starter

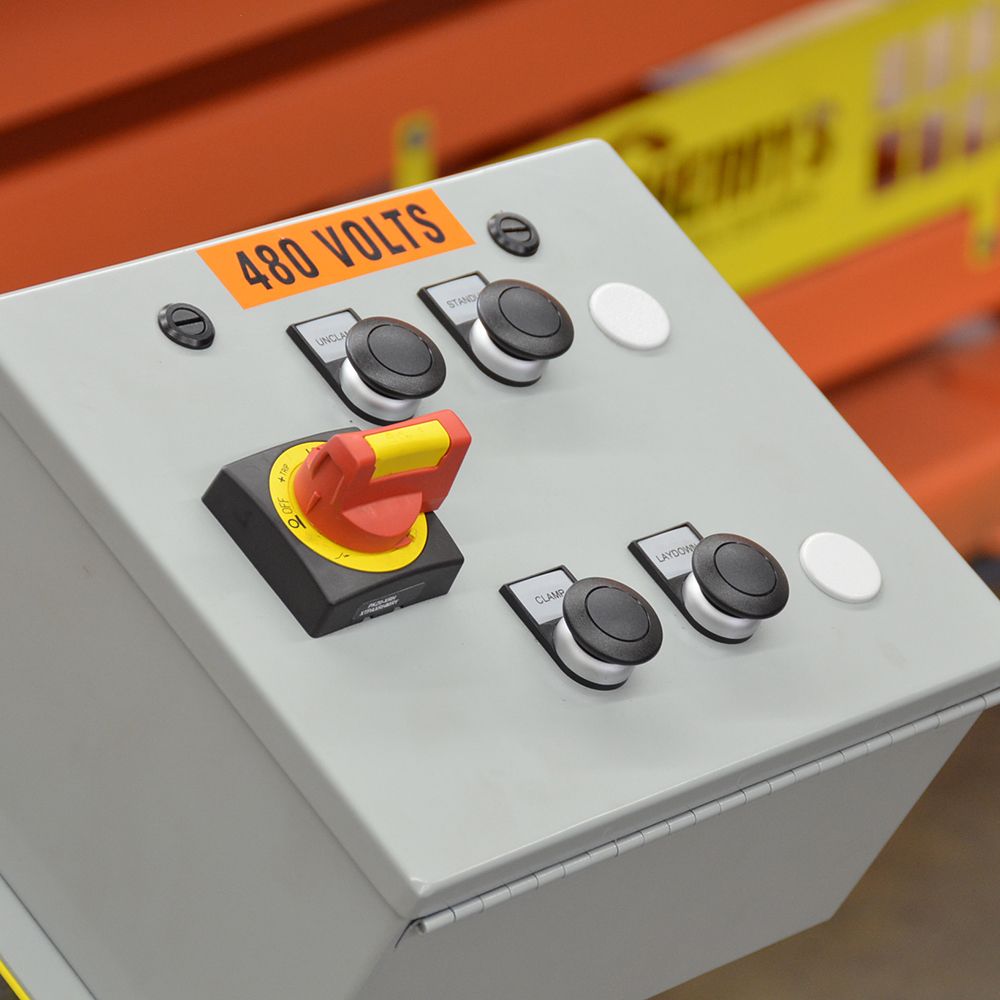

Basic Push Button (Energy Saver) Control with Power SwitchBasic Push Button (Energy Saver) Control with Power Switch

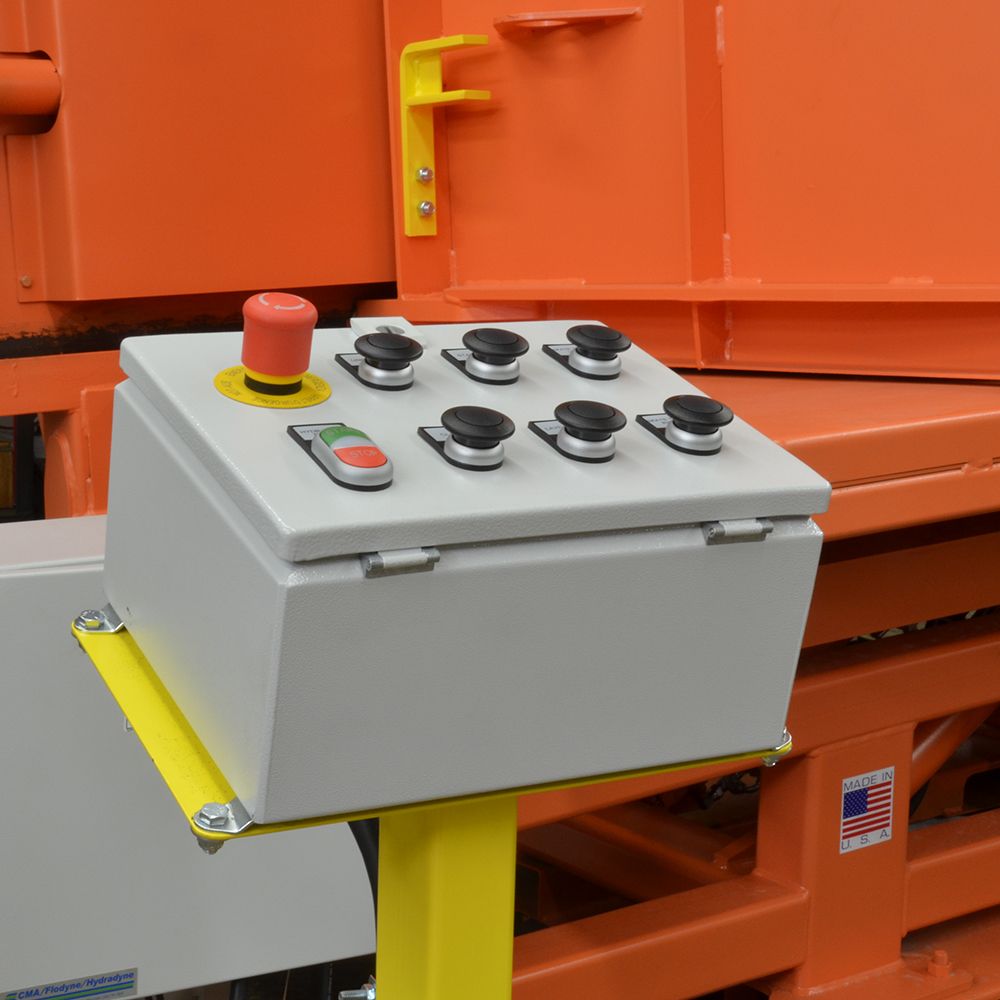

Push Button (Energy Saver) Control with Skate Table Option and E-Stop ButtonPush Button (Energy Saver) Control with Skate Table Option and E-Stop Button

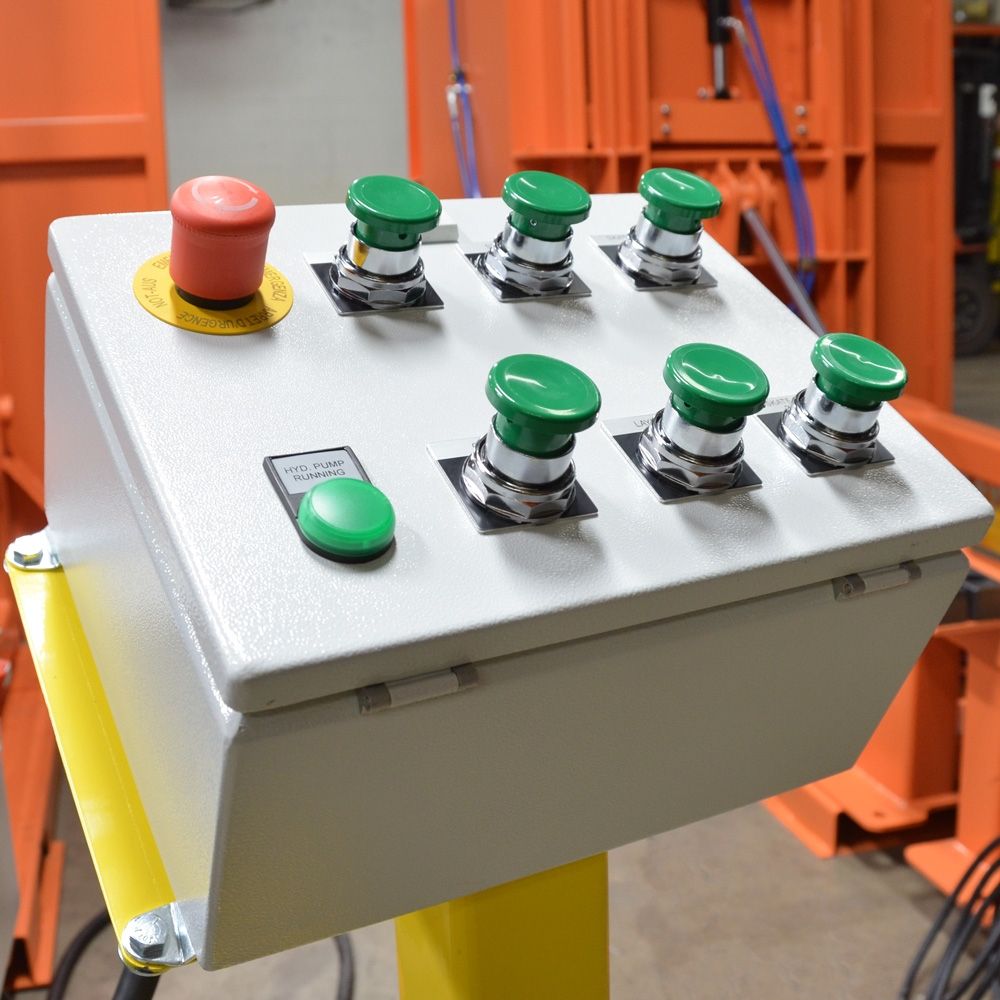

Heavy-Duty-Push-Button-ConsoleHeavy-Duty-Push-Button-Console
