PD 9000 Double Deep Pallet Dispenser


PD-9000

The PD-9000 ground level double deep pallet dispenser can reduce the burden on your order selectors. Designed to work with double-deep electric or ride-on pallet trucks, this fully automatic unit can store up to 90 pallets at a time. The handler dispenses two skids to the floor with no manual handling required.

Call 847-443-3861 to speak with our experts

Layout drawingLayout Drawing

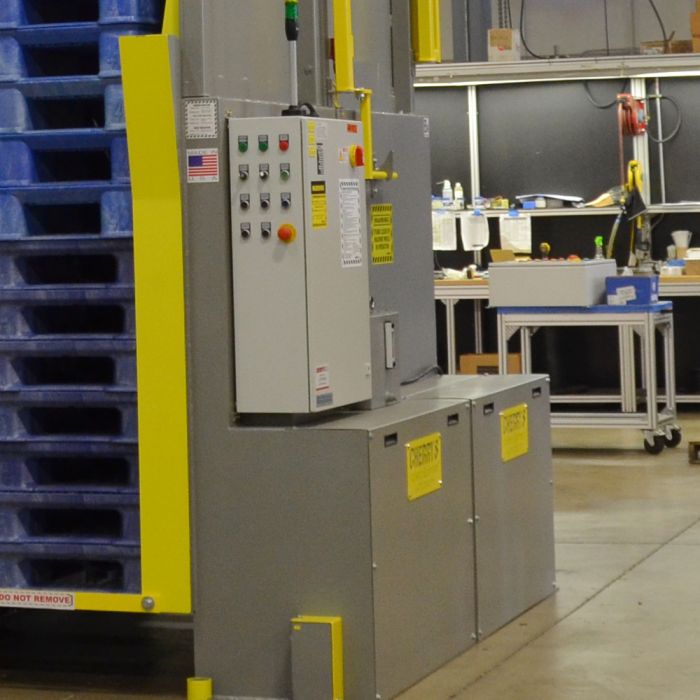

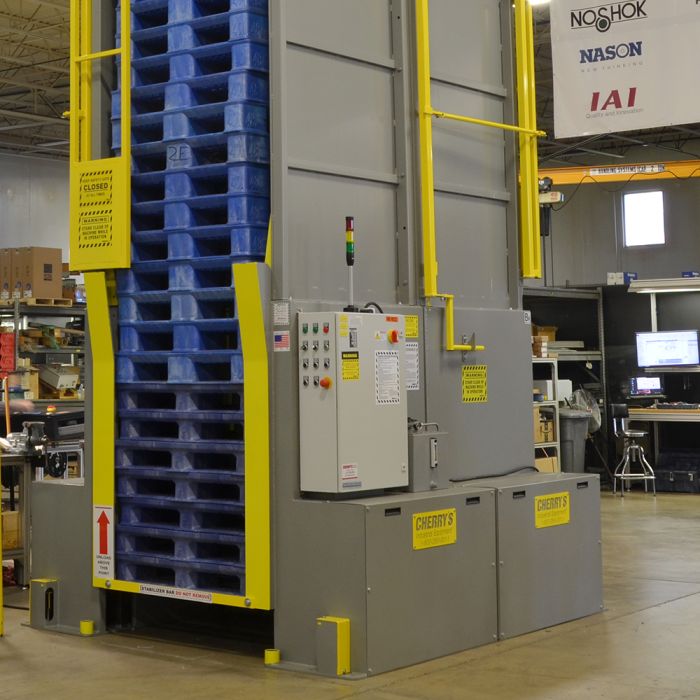

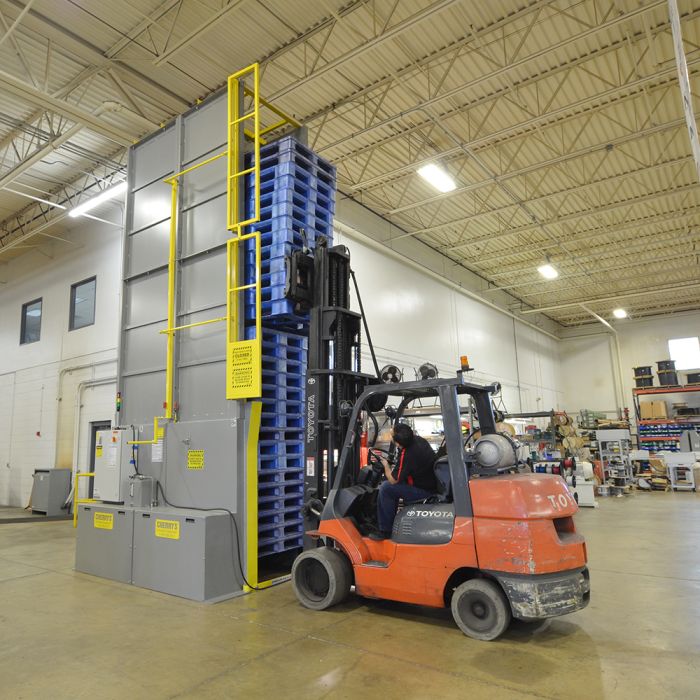

PD 9000 Double Deep Pallet Dispenser

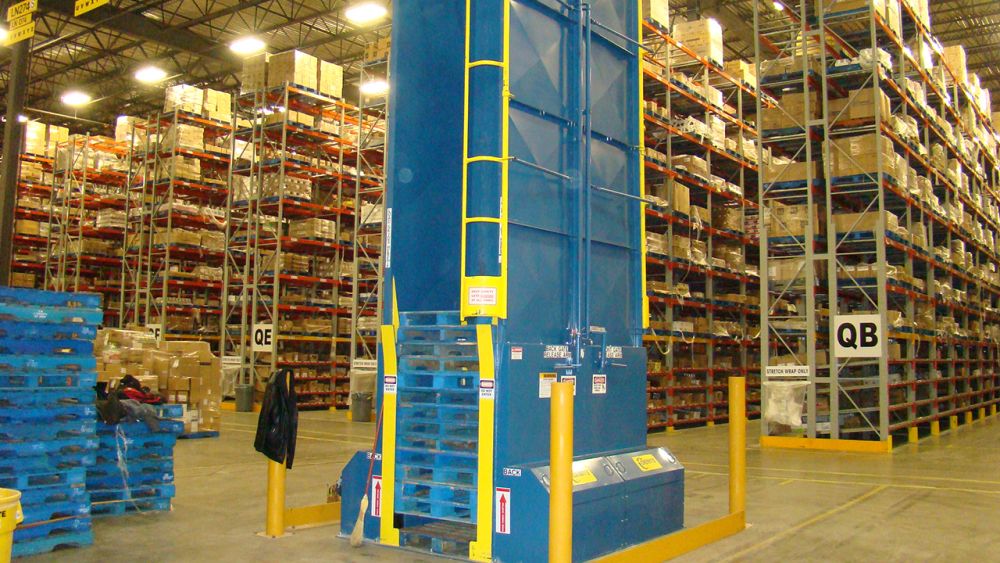

See it in the Wild

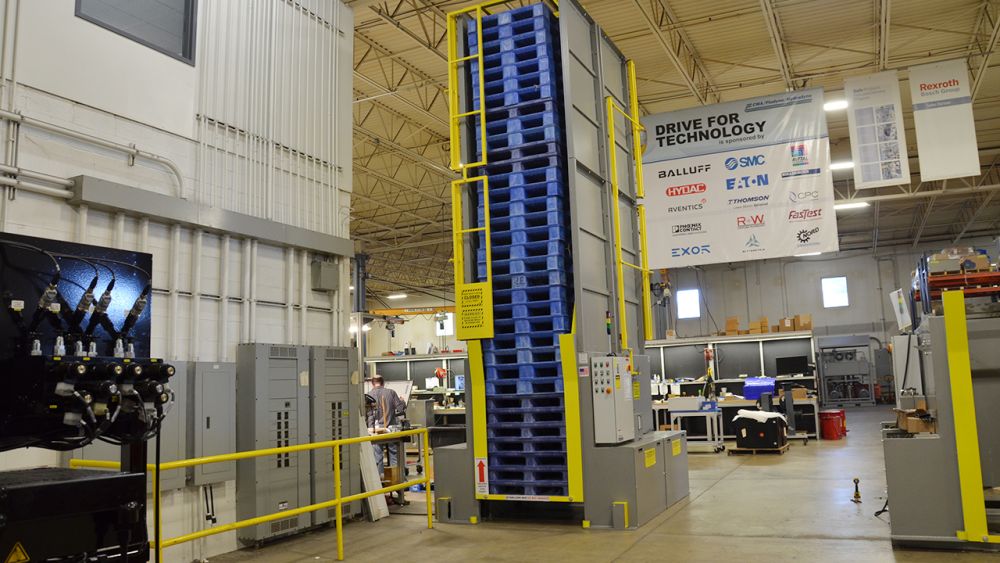

Double Deep Pallet Dispenser with in-house plastic pallets Double Deep Pallet Dispenser with in-house plastic pallets

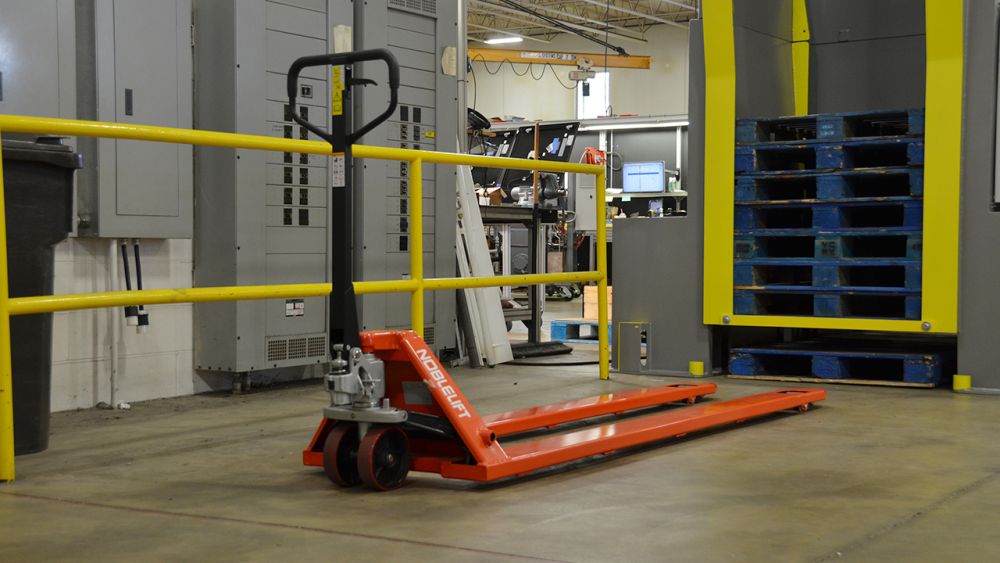

Double Deep Pallet Dispenser with pallet jack Double Deep Pallet Dispenser with pallet jack

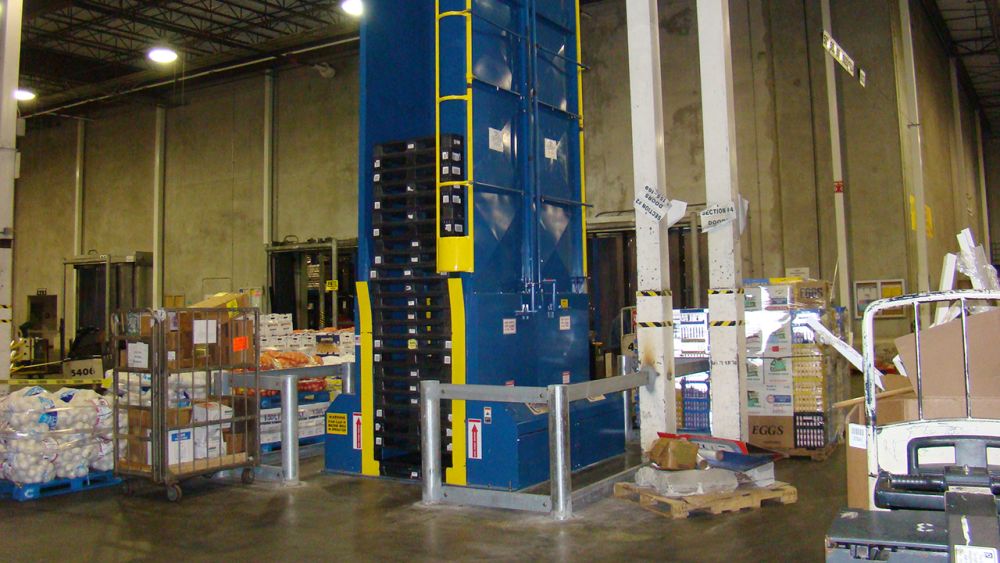

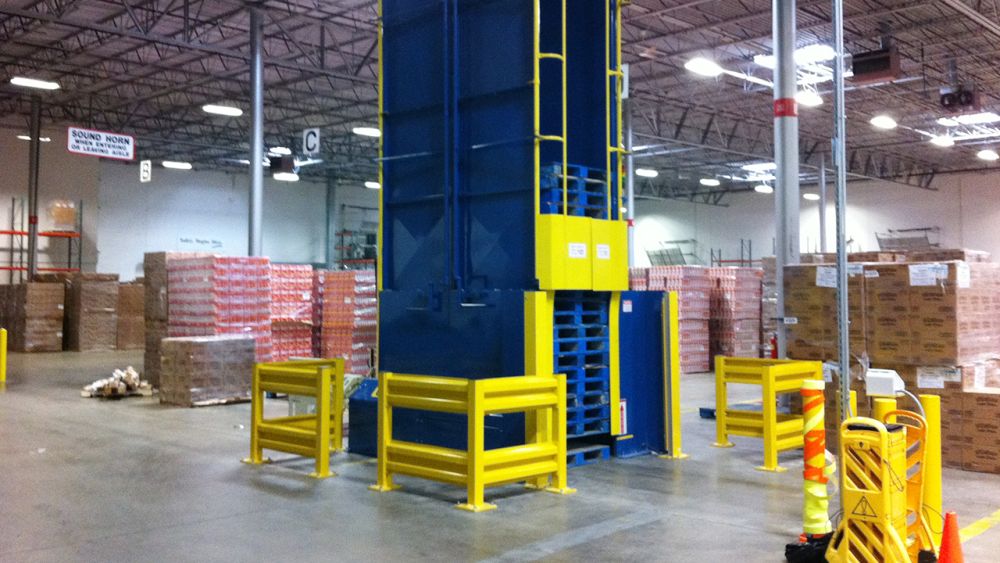

Double Deep Pallet Dispenser with protective crash guards Double Deep Pallet Dispenser with protective crash guards

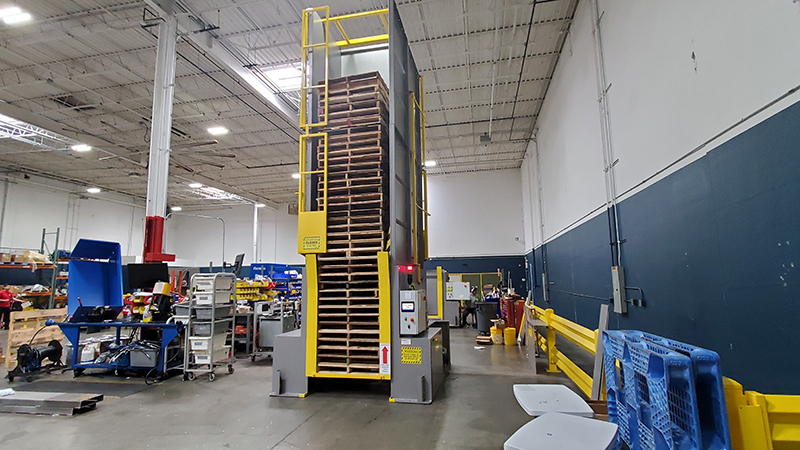

Double Deep Pallet Dispenser with stringer pallets Double Deep Pallet Dispenser with stringer pallets
×

Product Information

The PD-9000 automatic double-deep pallet dispenser consists of two attached, but independently operating, units. By sharing electrical and magazine components, the high speed dispenser reduces costs and provides enhanced functionality. The PD-9000 double-deep pallet dispenser features a weight capacity of 3,000 lbs. and a rapid cycle time of 12-14 pallets per minute. Other valuable features and benefits include: Specially designed front and rear gates prevent pallet tipping, heavy-duty construction ensures many years of safe, reliable warehouse/distribution center use, easy pallet replenishment from the front and back of the unit, high-precision hydraulics increase efficiency and reduces the need for preventive maintenance, integrated pallet aligners reduce trip-offs, One-year warranty for added buyer protection When you purchase a PD-9000 automatic double pallet dispensing system from Cherry's Industrial, you're assured of getting a competitive price that will fit your budget. Our product specialists are available to assist you whenever you need them. To learn more about the PD-9000 automatic double deep pallet dispenser, just give us a call at 224-268-8947 or contact us online today.

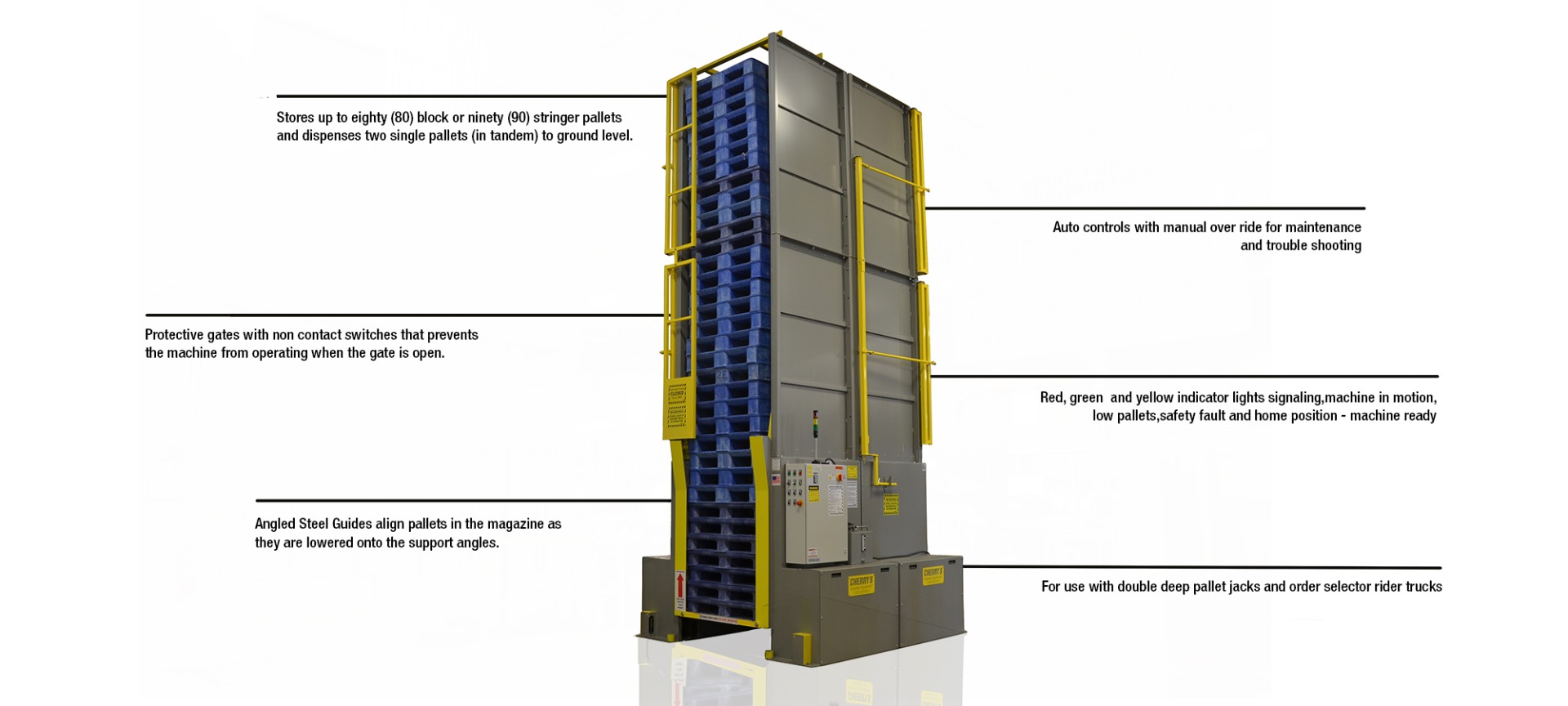

Product Tour


Specifications


ModelPD-9000
Operating Height20'
ControllerEXOR eSMART HMI/PLC
Cycle Time10 seconds
ControlsHMI Touchscreen Autocycle with manual overide
Capacity90 Pallets max
Operating Depth9"
Operating Width7'9"
Type Of PalletCHEP Block, GMA & Stringer
Power Source208/230/460/575V 3 phase 60 Hz
# of Pallets80-90 (stringer/block)
CertificationsUL508a UL Certified
Motor(2) 2HP WEG
System Pressure2000 psi
Load in Height80" (To clear front pallet aligners)
Discharge HeightGround Level
Warranty1 year
Shipping weight*8,000 lbs
Shipping Dimensions96" L X 60" W X 84" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

The PD-9000 offers an HMI Color touchscreen for diagnostics and automatic operation with a manual override for maintenance. Includes a RM node to monitor critical machine data, mantenance alerts and notifications wirelessly.

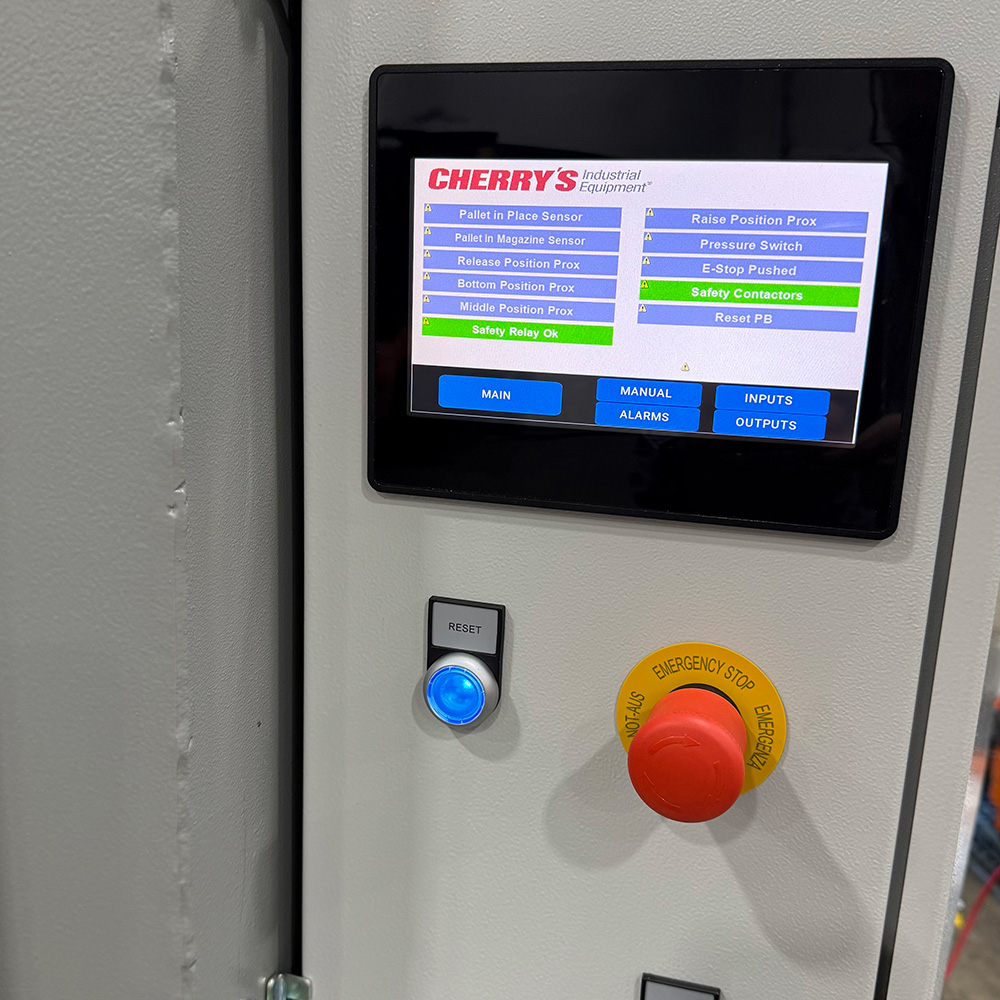

HMI TouchscreenHMI Touchscreen

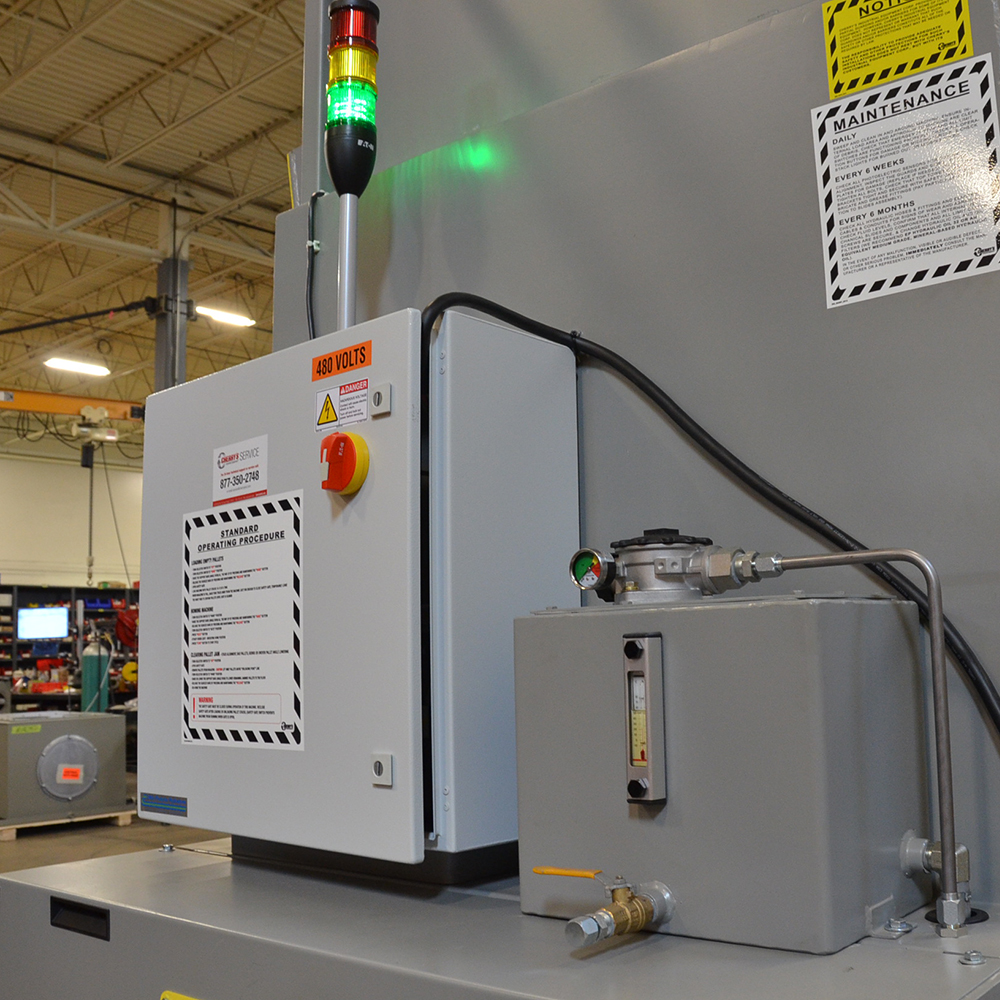

Stack lightStack light

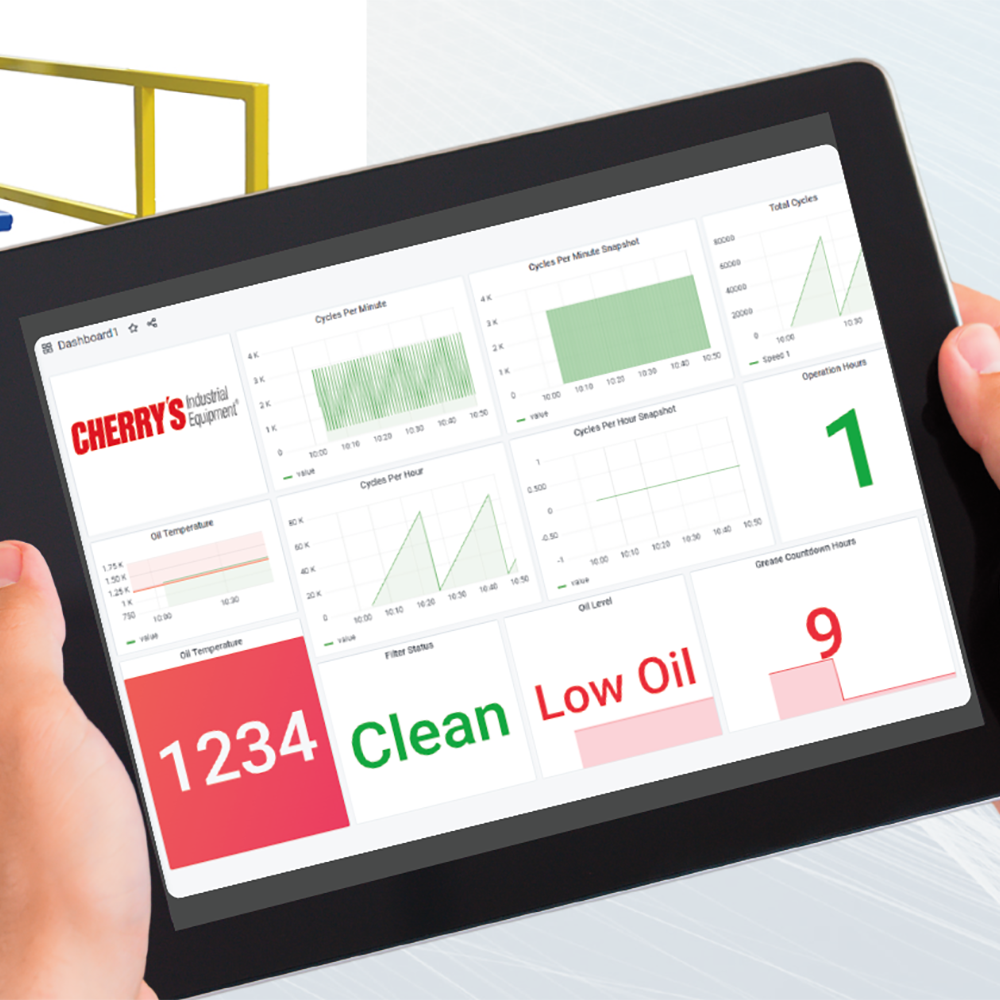

Remote monitoring nodeRemote monitoring node

Guards

The PD-9000 Pallet Dispenser includes a foot obstruction sensor that protects against pinch points at the machine entrance. Optional guarding features protective crash guarding, safety rated foot switch, and pallet gate with safety rated switch that deactivates the machine when open.

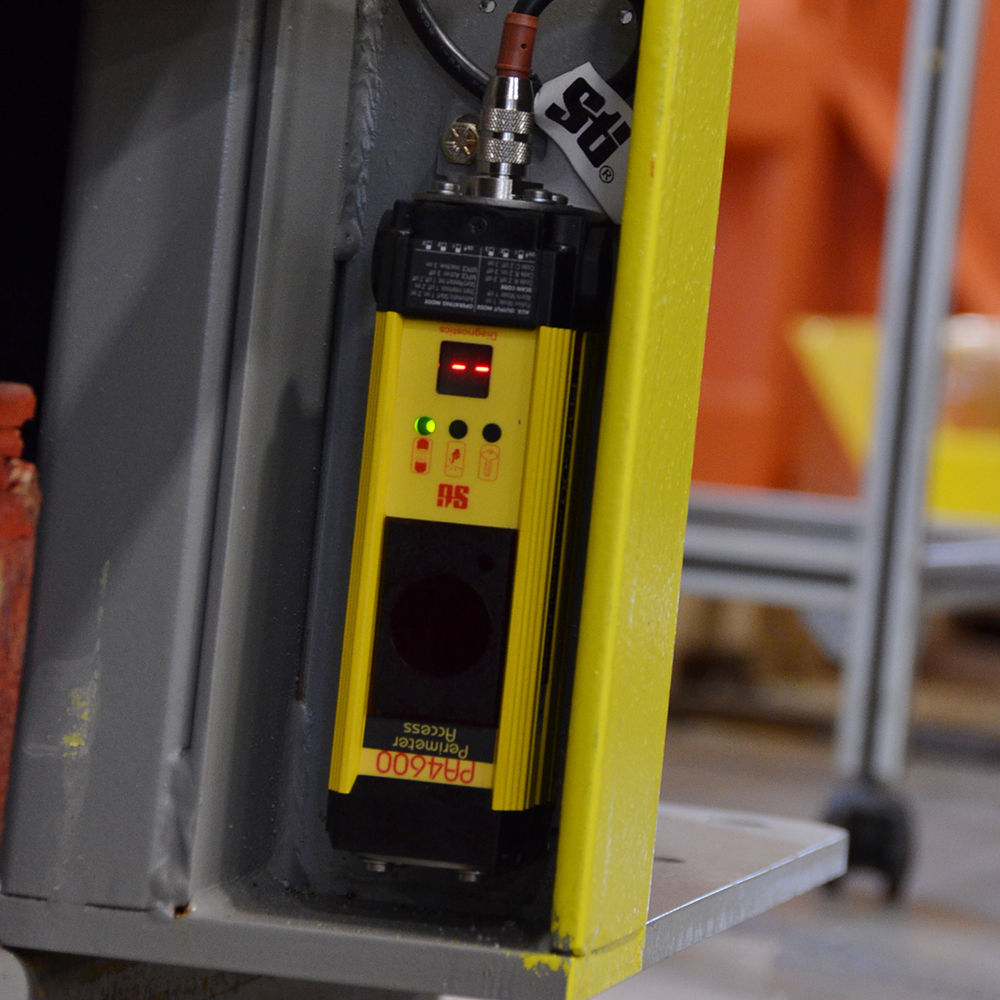

Safety rated foot switchSafety rated foot switch

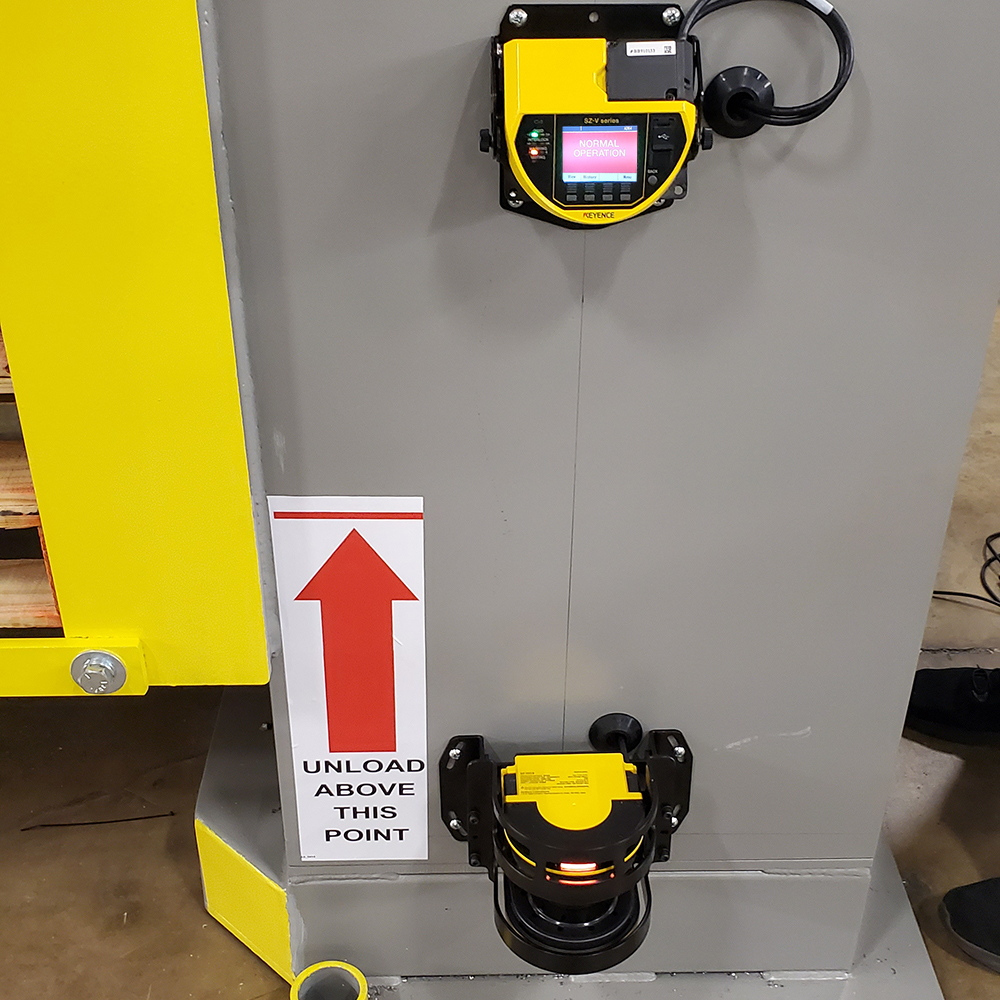

Safety scanner with stop and safe zonesSafety scanner with stop and safe zones

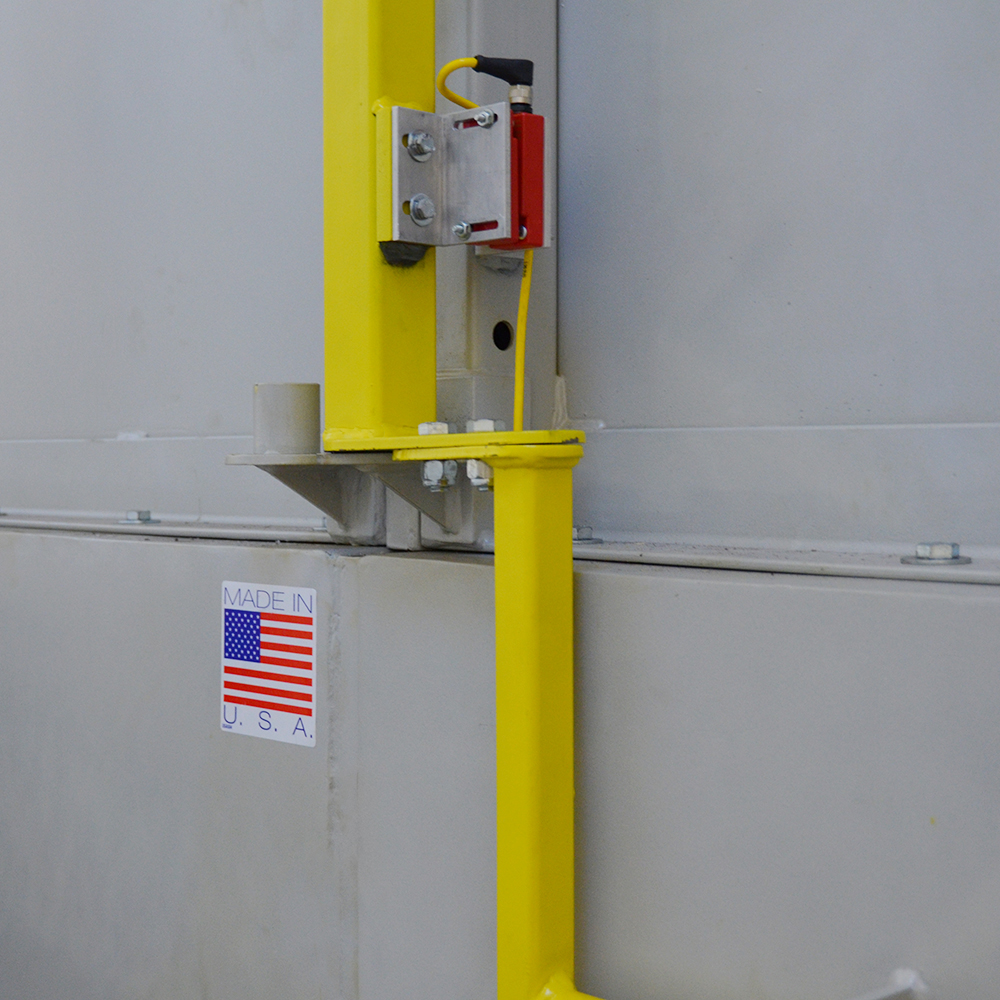

Safety rated gate switchSafety rated gate switch

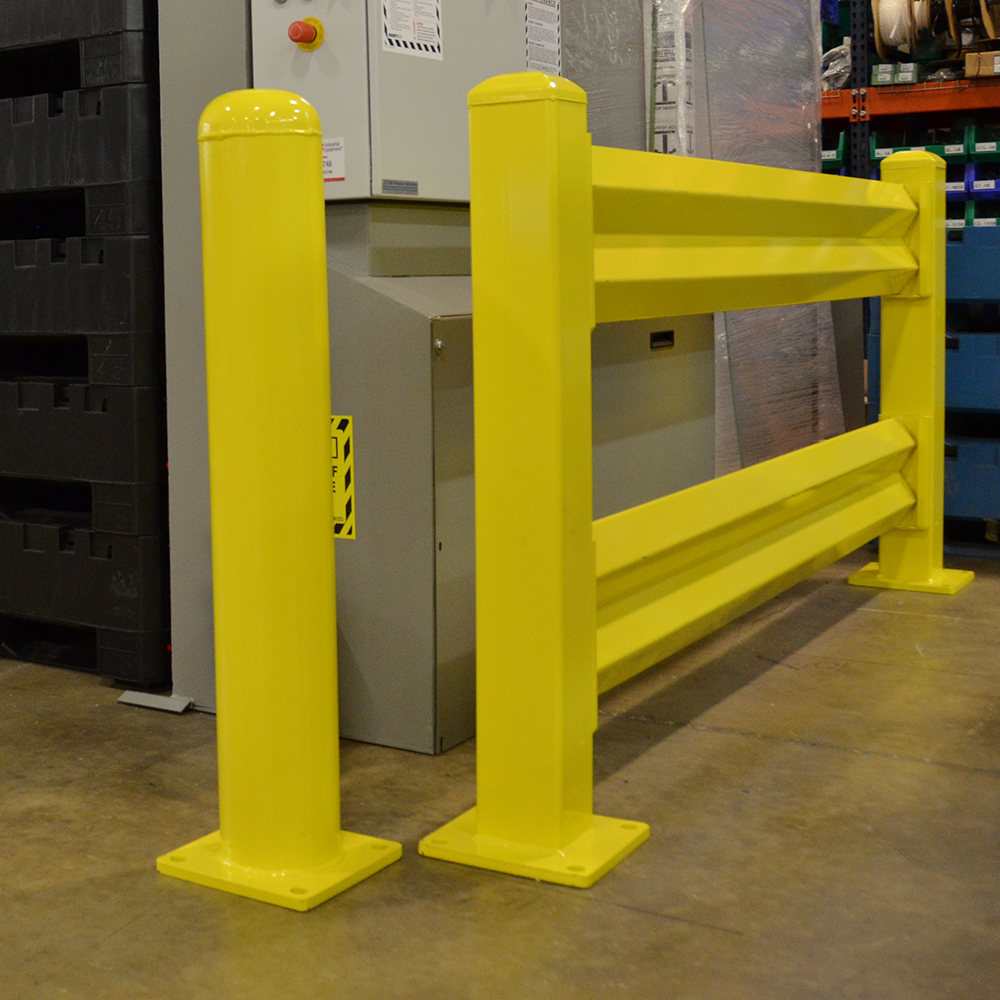

Protective crash guardsProtective crash guards

Options

The PD-9000 Double Deep Pallet Dispenser ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: powered safety gate, pivoting arm with pull cord and upgraded components to meet your application or corporate specification.

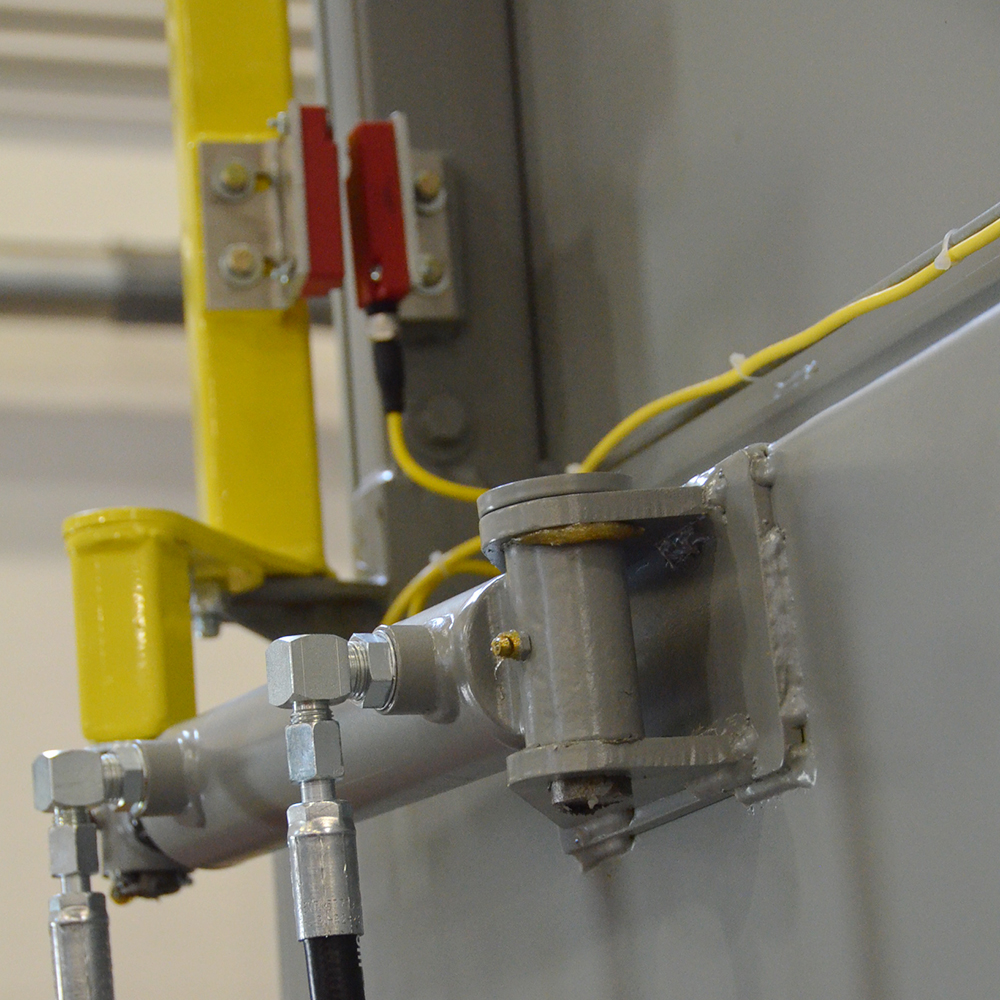

Powered gatePowered gate

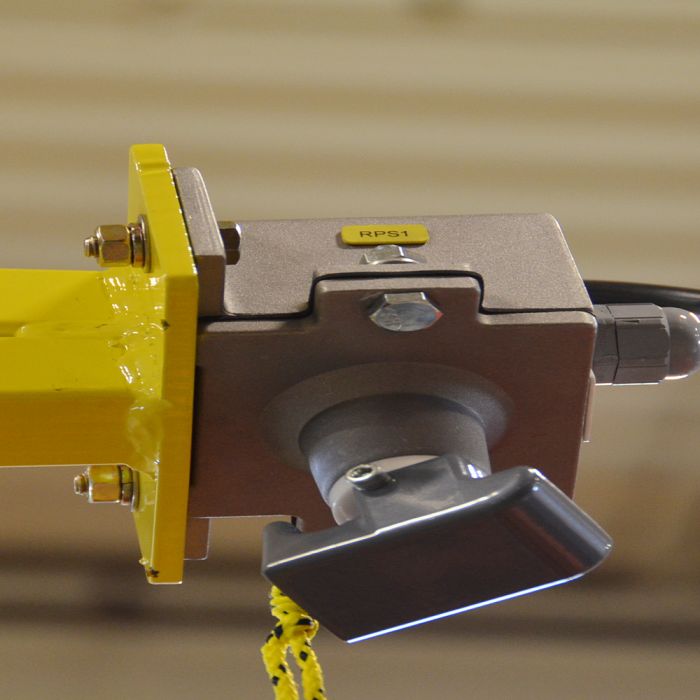

Pivoting boom with lanyardPivoting boom with lanyard
Voltage seperationVoltage seperation
Paint colors/finishesPaint colors/finishes
