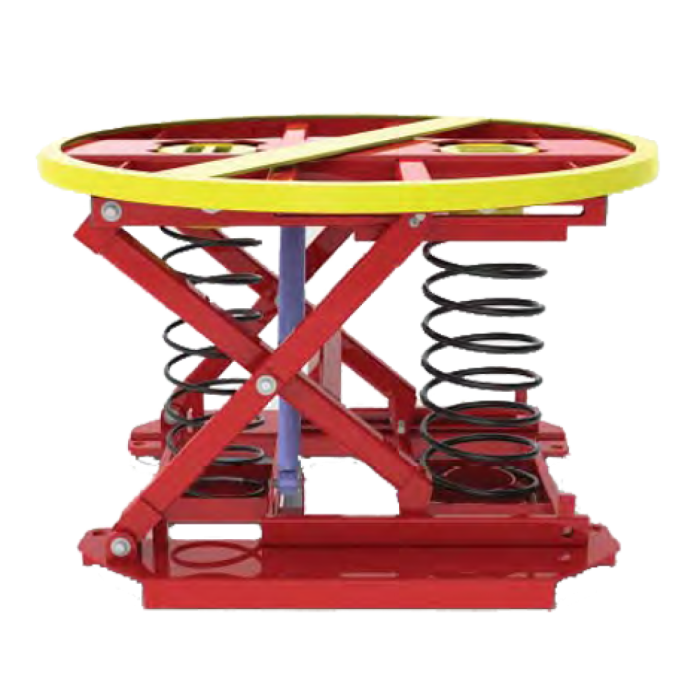

PalletPal 360 Spring Table Lift


Pallet-Pal-360

The PalletPal 360 Spring Table Lift has a maximum capacity of 4,500 pounds and 9.5 inches to 28 inches lowered to raised height range. Units have a durable steel frame and a convenient rotating turntable. The spring pallet leveler design eliminates reach-over zones for safer operation.

Call 847-443-3861 to speak with our experts

PalletPal Spring
PalletPal 360 Spring Table Lift

See it in the Wild

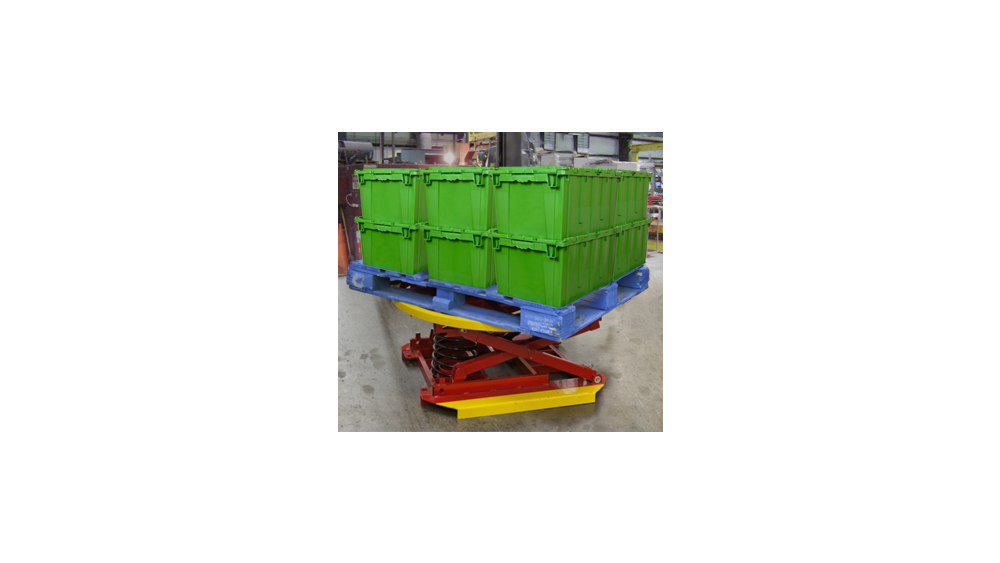

PalletPal 360 With Tote Containers PalletPal 360 With Tote Containers
×

Product Information

Designed to ergonomically assist workers to eliminate the stress of repetitive bending, lifting, twisting and stretching, the Southworth PalletPal 360 Spring Table reduces job site injuries and provides a variety of other advantages. The turntable top allows for nearside loading and unloading with 360-degree access to the table lift from all sides of a pallet. Adjust the table height using the rotating platform to maintain the optimal working height as pallets get loaded and unloaded for improved efficiency. The PalletPal 360 lift tables are entirely mechanical, so you do not need air or a power supply. The tables feature an automatic load leveler with spring and shock absorbers for smooth and balanced raising and lowering of loads. Units are automatic, self-leveling for faster, safer and simpler pallet loading. You benefit from a table lift that's built with a rugged tubular steel frame and robust springs that will maintain functionality despite heavy-duty daily usage. The innovative linkage design helps keep pallets level during loading and the spring dampener allows for consistent, gradual raising and lowering. Each freestanding unit comes with fork pockets for relocation using a fork truck. Contact Cherry's Industrial Equipment for Southworth Lift Tables and Other Material Handling Solutions Since 1983, Cherry's Industrial has been providing top-quality warehouse and production-related equipment to a broad range of businesses and industries. We offer premium products and custom solutions, along with excellent customer service and support. Find out more about the PalletPal 360 Spring Table Life by calling us at 847-610-6361 or contact us online today.

Product Tour


Specifications


ModelPallet Pal 360
Capacity400 - 4,500 lbs
Raised Height28"
Lowered Height9.5"
Vertical Travel18.5"
Base Frame Size36" x 36"
Turntable Diameter43?"
FinishPowder Coat - Steel
BrandSouthworth
Estimated Product AvailabilityShips in 1-3 business days
Shipping weight*465
Shipping Class*70
FOBLeachville, AR
