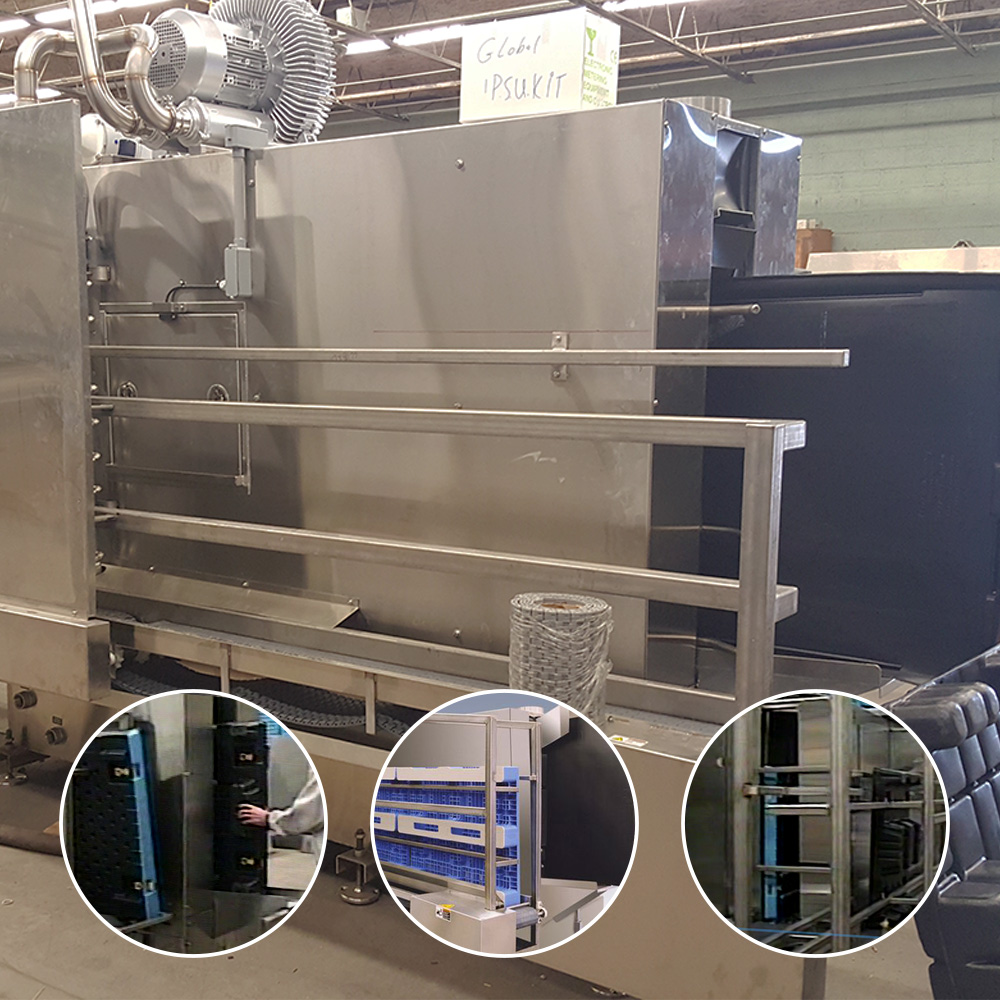

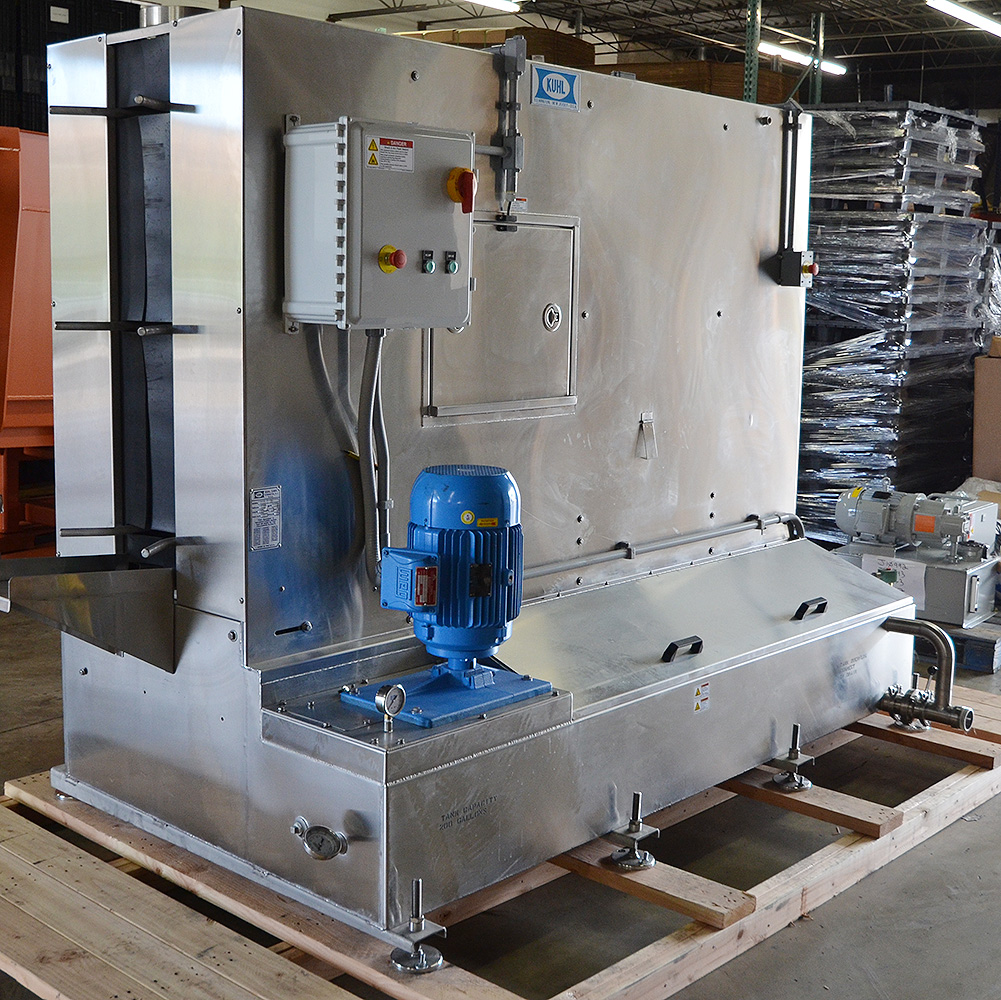

KPW1MC-8-15-POR Pallet Washer with push over return


KPW1MC-8-15-POR

The Vertical Pallet Washer is designed to clean, rinse, and sanitize individual vertical pallets in a continuous flow. Pallets are conveyed one at a time into the wash chamber at the feed end and exit individually at the discharge end after completing the cleaning cycle. The system utilizes a filtered and recirculated wash process to maximize efficiency and conserve resources. Both the wash and rinse water are returned to the main wash tank through an integrated recovery system. A replenishment process ensures that any water loss due to evaporation, overspray, or carry-off is automatically compensated, maintaining optimal water levels and cleaning performance throughout operation. This washer is ideal for high-volume applications where consistent sanitation, water conservation, and efficient pallet handling are critical.

Call 847-443-3861 to speak with our experts

KPW1MC-8-15-POR Pallet Washer with push over return

See it in the Wild

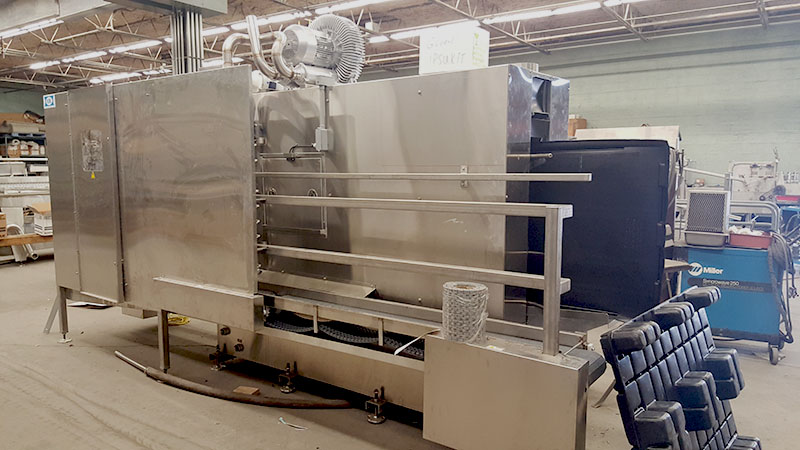

Pallet Washer with Dryer Pallet Washer with Dryer

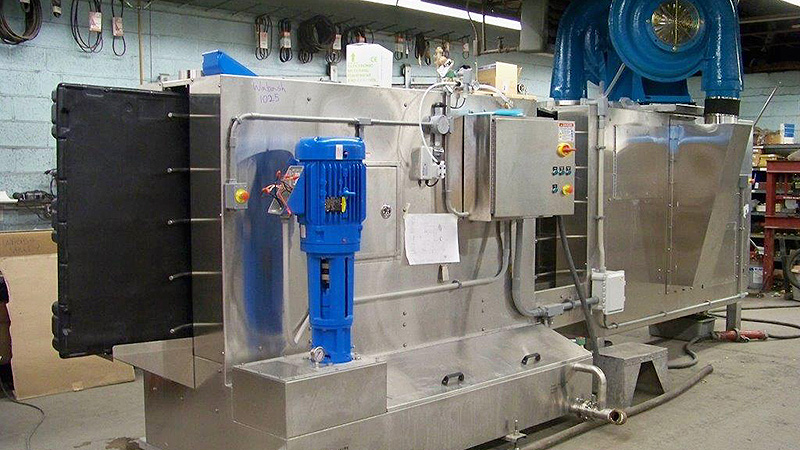

Pallet Washer near side loading/unloading Pallet Washer near side loading/unloading

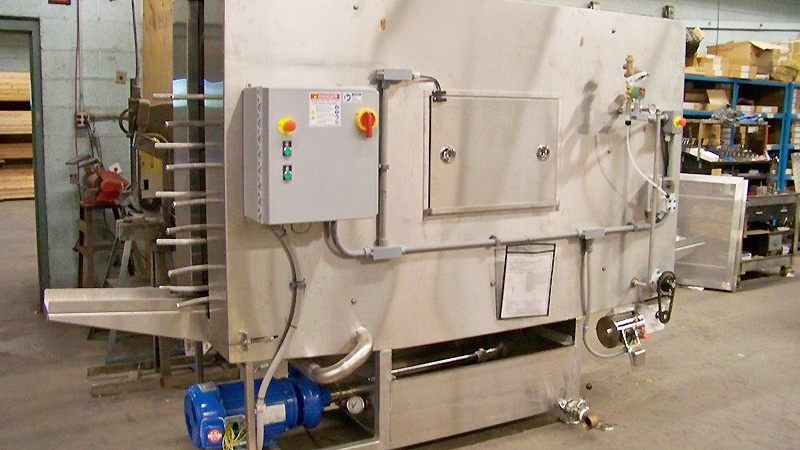

Pallet Washer Module for push over return system Pallet Washer Module for push over return system
×

Product Information

The KPW1MC-8-15-POR is a high-performance modular plastic pallet washer designed for efficient, same-side loading and unloading, featuring a push-over return conveyor belt that supports continuous operation. Engineered with custom high-impact nozzles, the system delivers powerful surface cleaning at a throughput rate of 60 to 100 pallets per hour. A 200-gallon tank recirculates and reuses hot water to conserve resources, while integrated vertical screen filters effectively remove debris, ensuring consistent cleaning performance. The unit's durable modular construction makes it well-suited for demanding industrial environments. Optional features include a low-pressure rinse stage for enhanced cleaning, a Positive Sanitizing Unit (PSU) for chemical sanitation, and top-mounted ventilation exhaust fans for improved air quality and moisture control. The system can also be equipped with a blow-off dryer for faster drying times. To maintain consistent wash quality, the unit supports multiple heating methods - including steam, electric, or remote boiler systems - to keep wash and rinse water at a controlled temperature of 130 degreeF.

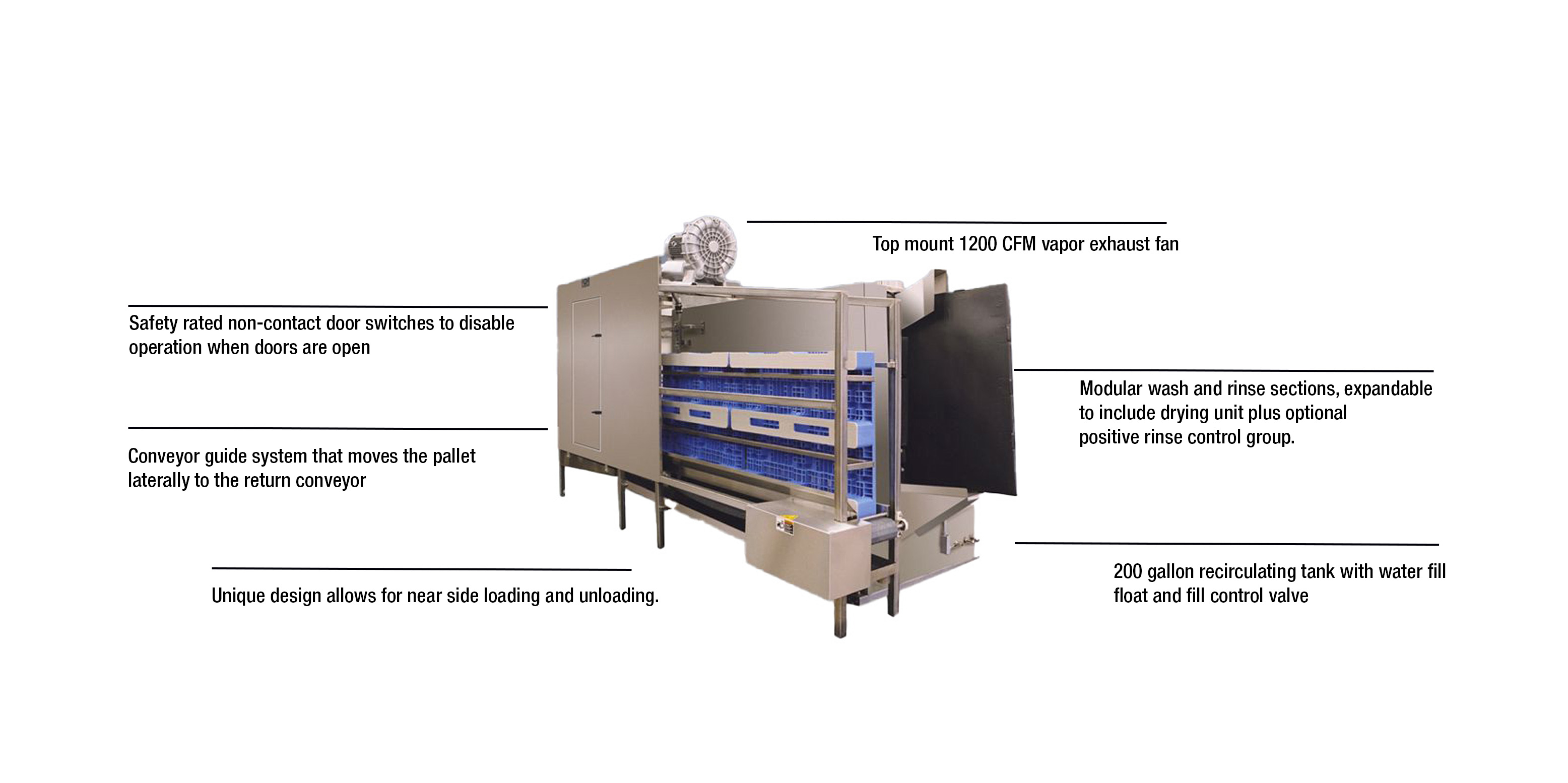

Product Tour


Specifications


ModelKPW1MC-8-15-POR
Capacity60-100 pallets per hour

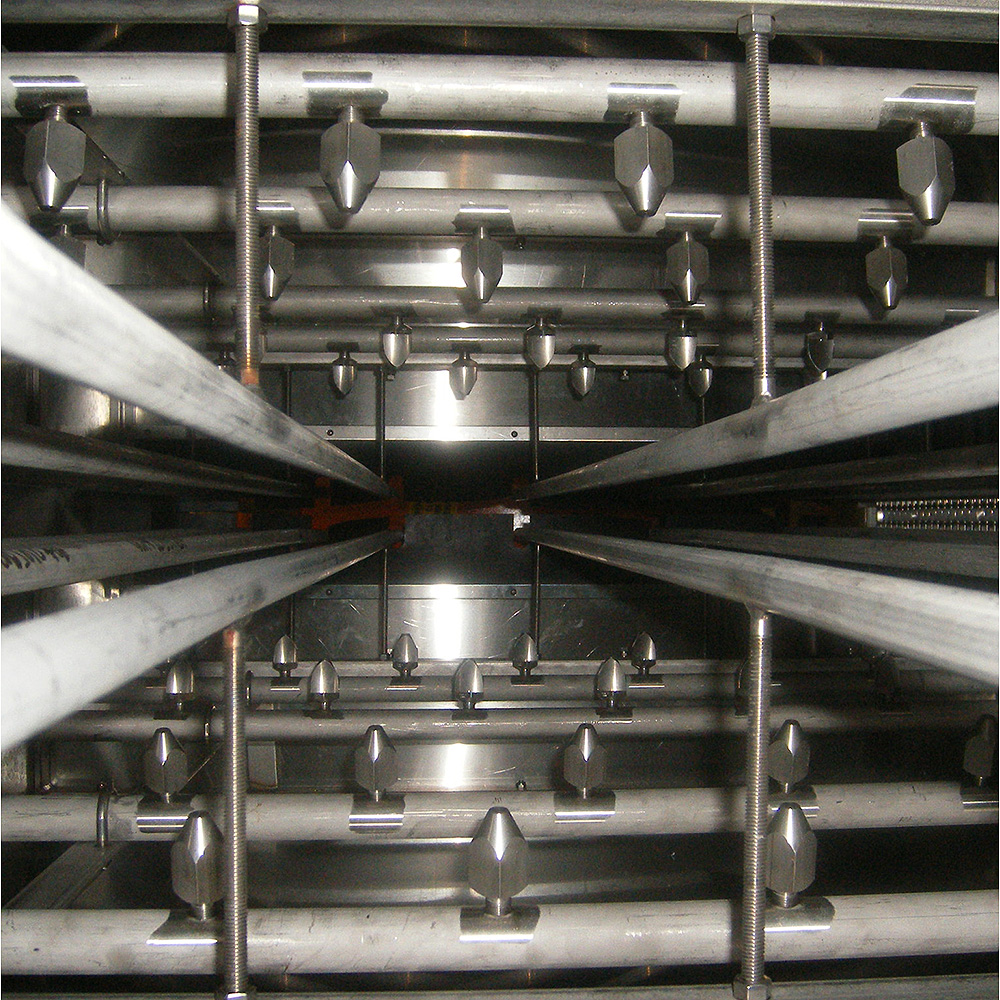

Nozzle typeCustom angle tip high impact
Recirculating tank200 gallon with fill float

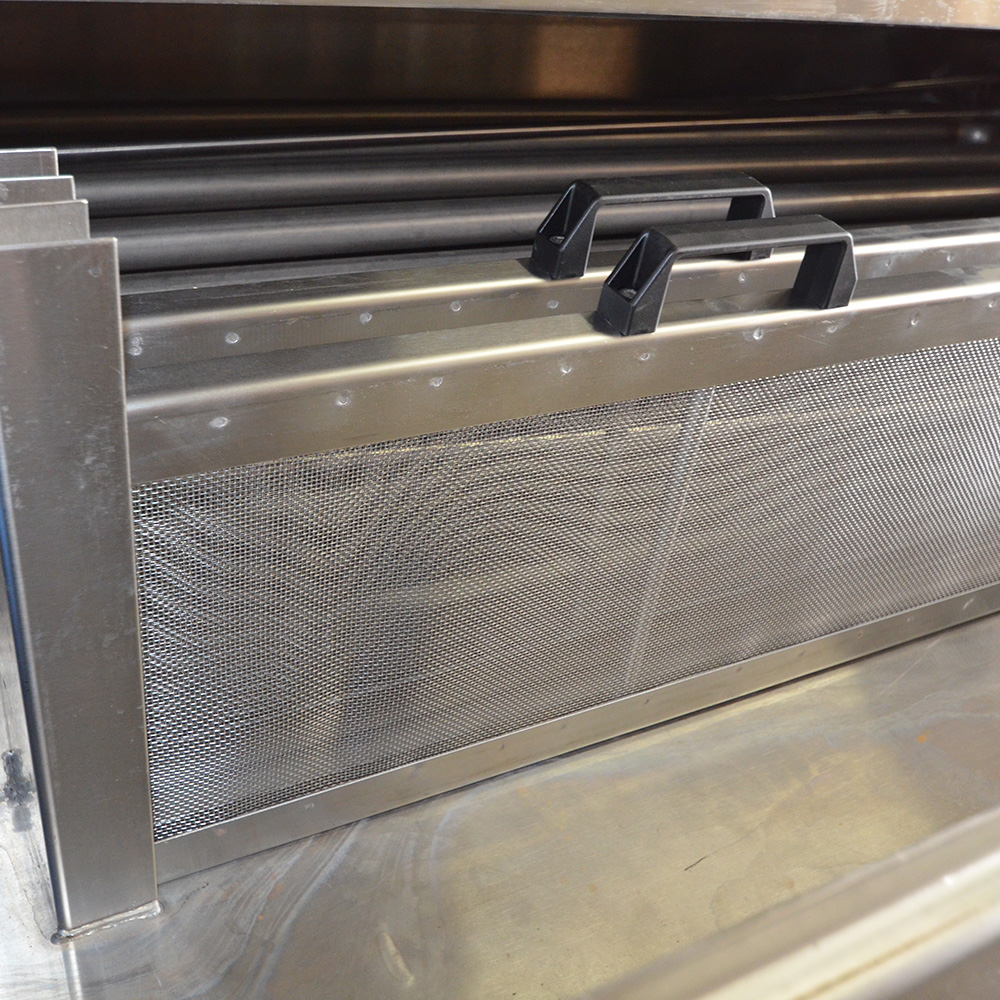

Filter systemVertical and horizontal screens

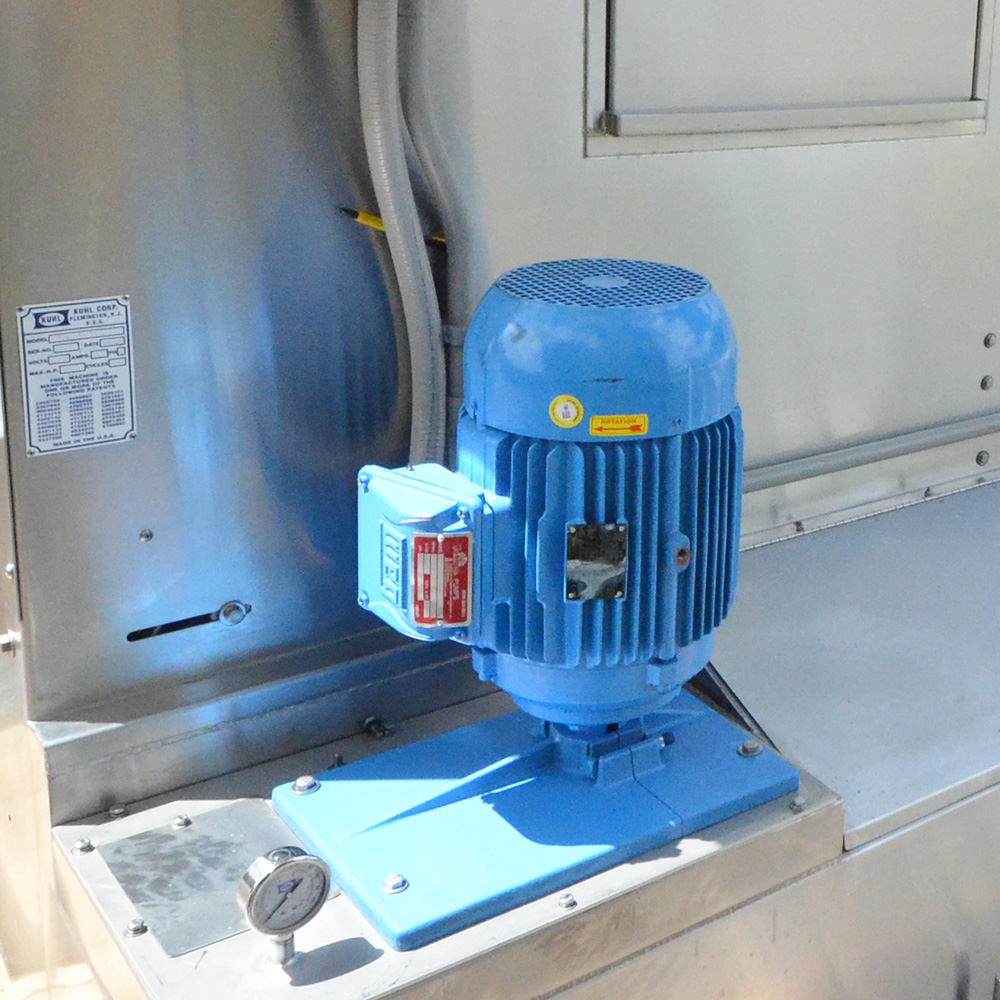

Pump Drive15 HP motor with 180GPM pump
Wash temperature130-150 degrees
Construction304 stainless with #3 polish
Load/unload height24"
Power source230/460V 3 phase
Conveyor typeStainless steel flat wire belt 1" x 1"
Conveyor speedAdjustable via VFD
Push devicePneumatic cylinder
Return conveyorStainless steel flat wire belt 1" x1"
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Water Heating Options

Our water heating systems offer multiple configurations to maintain optimal wash and rinse temperatures. Options include a steam heat condenser, shell-and-tube heat exchanger with integrated controls, rinse water booster, immersion-style electric heating elements, or an external gas-fired boiler. All designed to deliver temperature control based on your facility’s requirements.

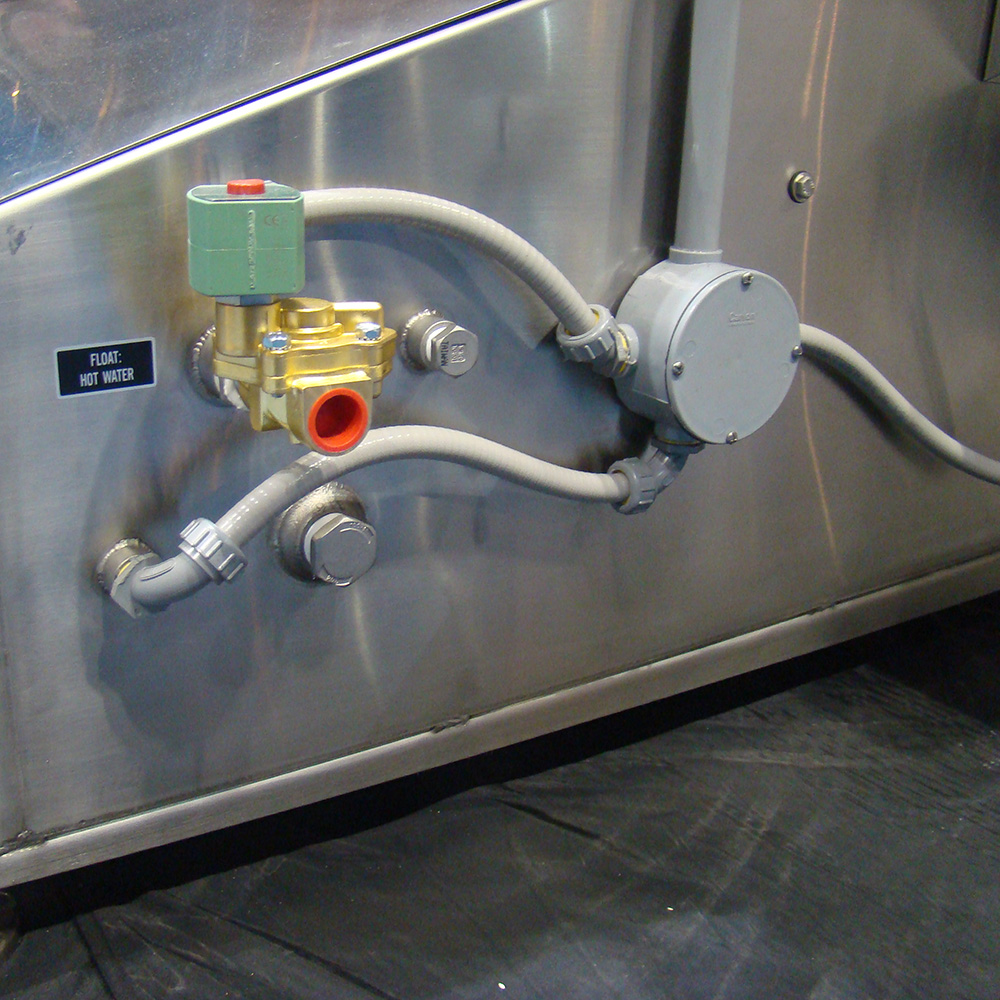

Steam controlSteam control

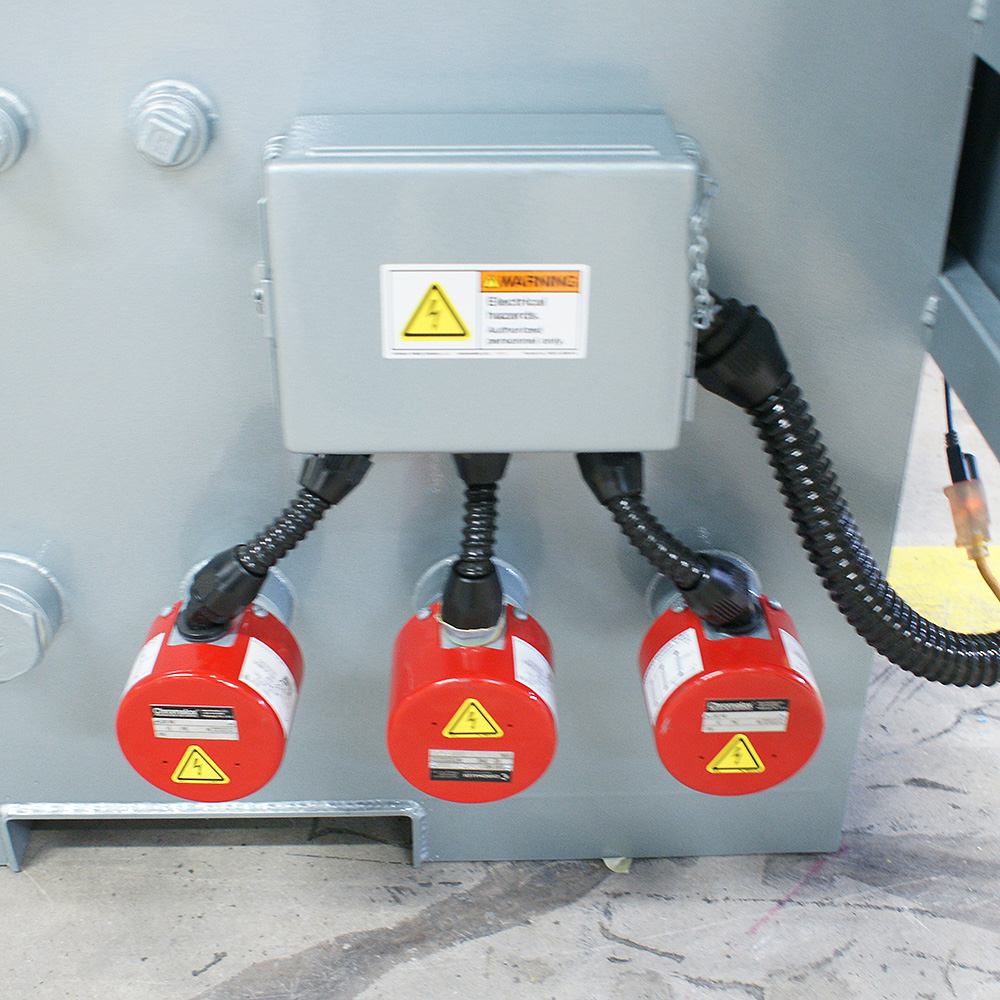

Electric immersion heatersElectric immersion heaters

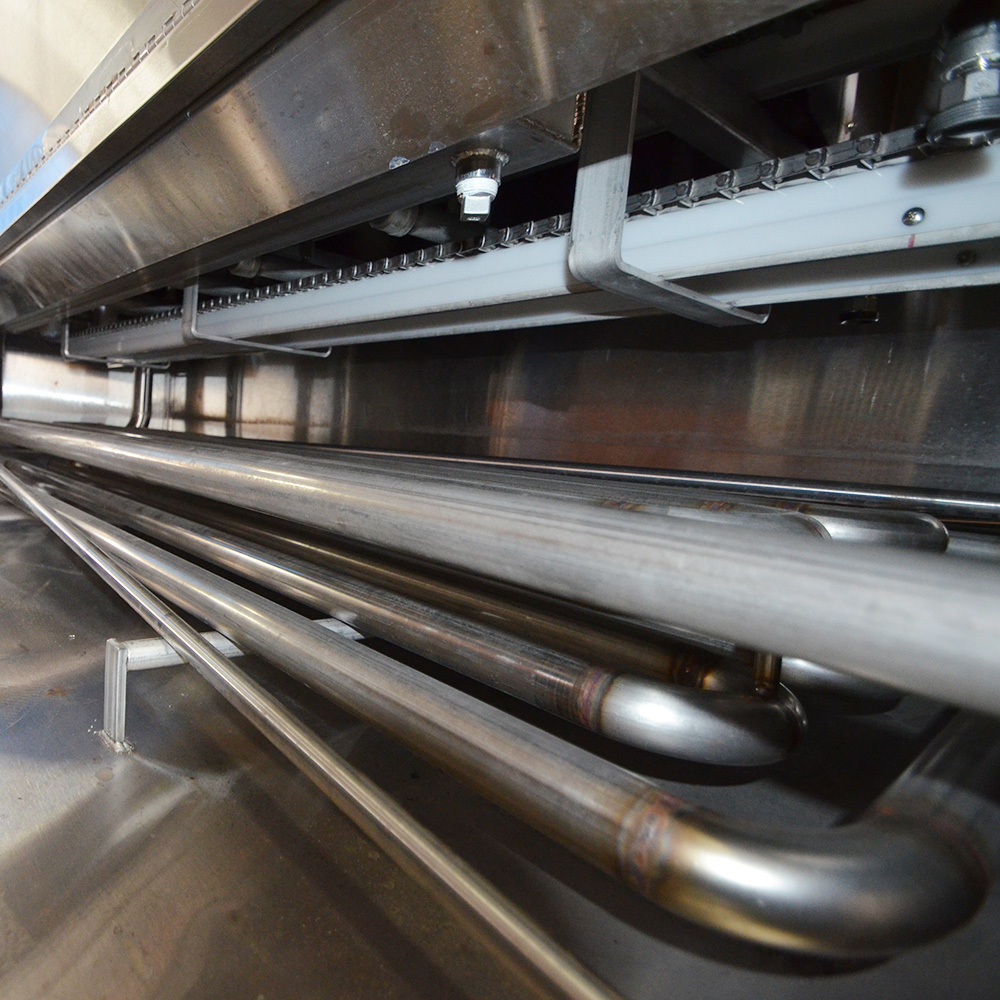

Rinse stage heat boosterRinse stage heat booster
External boilerExternal boiler

Rinse and Sanitizing Options

Enhance hygiene with an optional final fresh water rinse stage featuring an integrated rinse module controlled directly from the system interface. For added sanitation, a positive sanitizer final rinse includes a siphon valve and metering pump to ensure accurate dosing and consistent coverage.

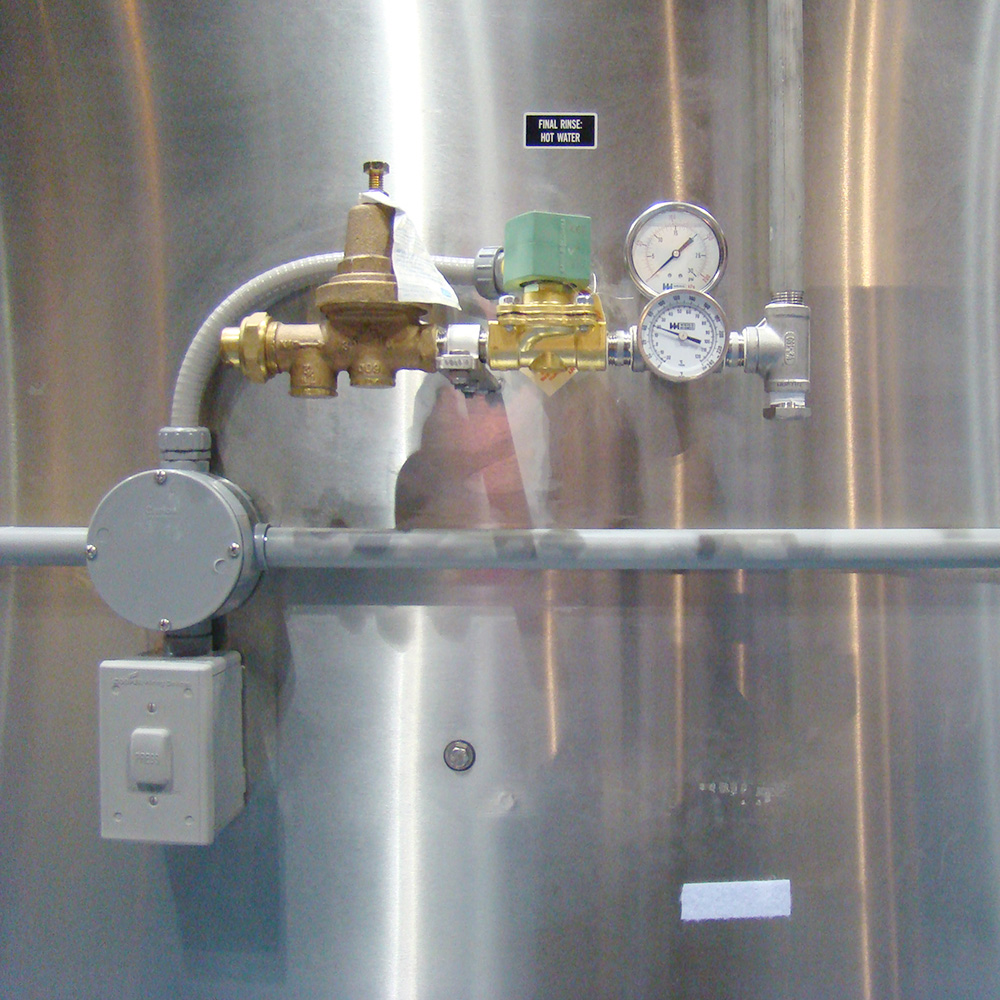

Rinse control groupRinse control group
Positive SanitizerPositive Sanitizer

Ventilation Options

Enhance air quality and manage humidity with our top-mounted Vapor Exhaust Fan, offering up to 1,200 CFM of airflow. Designed for effective vapor and steam removal in wash and rinse environments, this flange-mounted tubaxial blower is constructed from mild steel with a durable painted finish. An optional Variable Frequency Drive (VFD) allows for adjustable fan speed to meet varying ventilation needs.

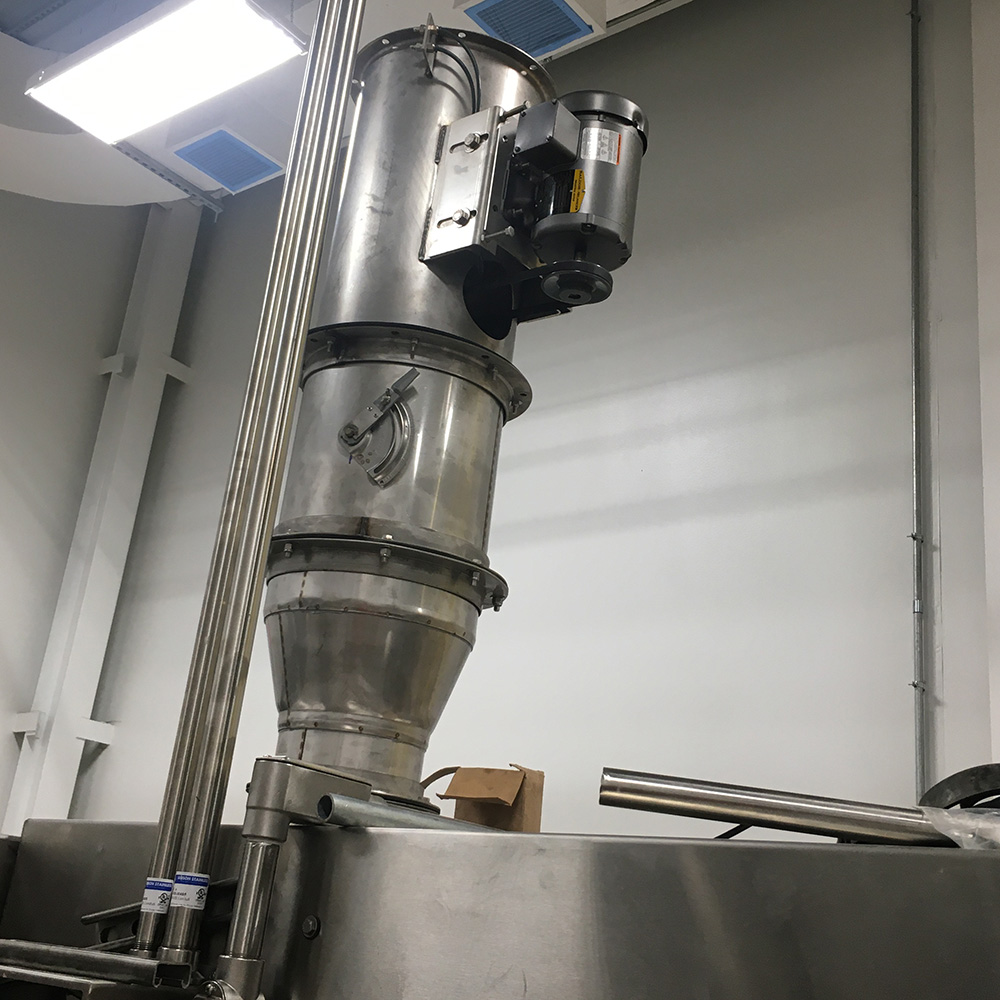

VES-10 Exhaust fanVES-10 Exhaust fan

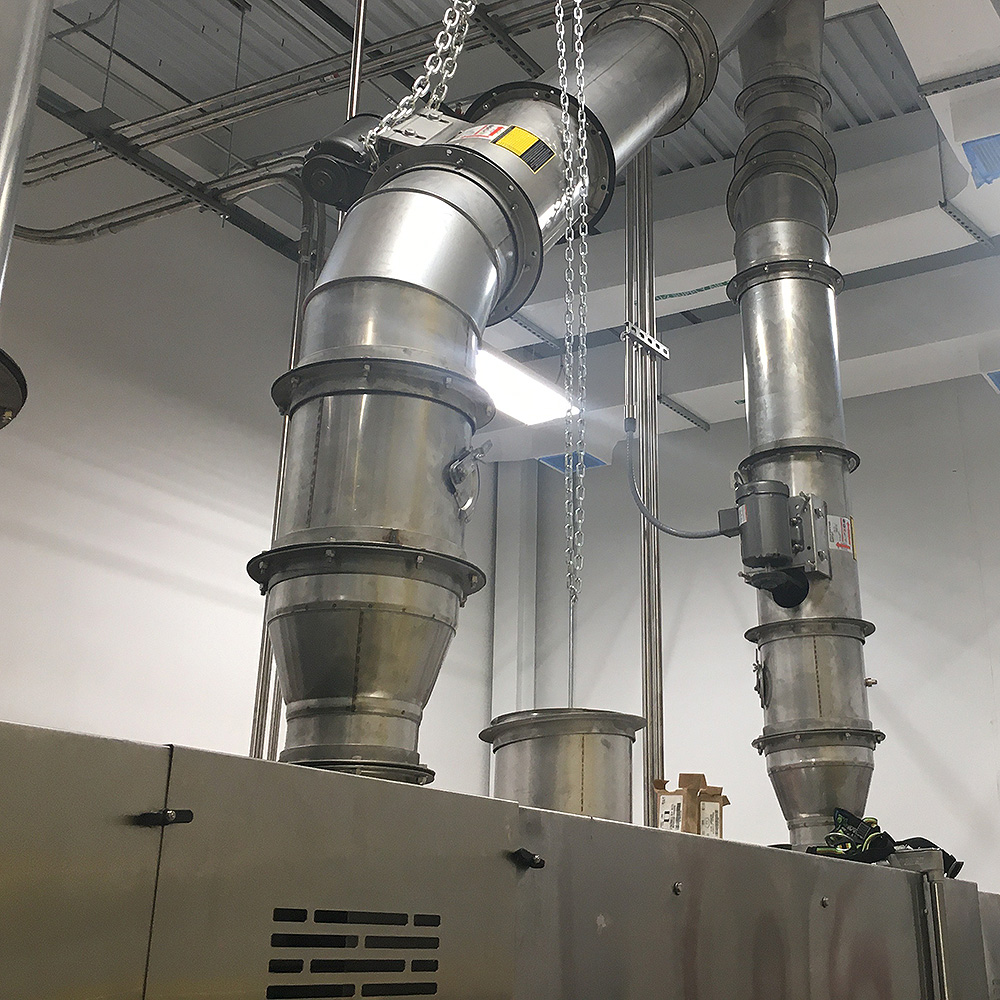

VES-12 Exhaust fanVES-12 Exhaust fan
