Overhead Gantry Pallet Dispenser

RM-995

The RM-995 Gantry Style Pallet Dispenser handles wood, aluminum, metal or plastic pallets. Vertical pallet clamp travel: 42", Pallet Discharge Heights: variable, 28" - 68" above the floor. Cycle time: 1-2 pallets per minute Weight capacity: 1500 lbs.

Request a Quote

Call 847-443-3861 to speak with our experts

Overhead Gantry Pallet Dispenser Image 1

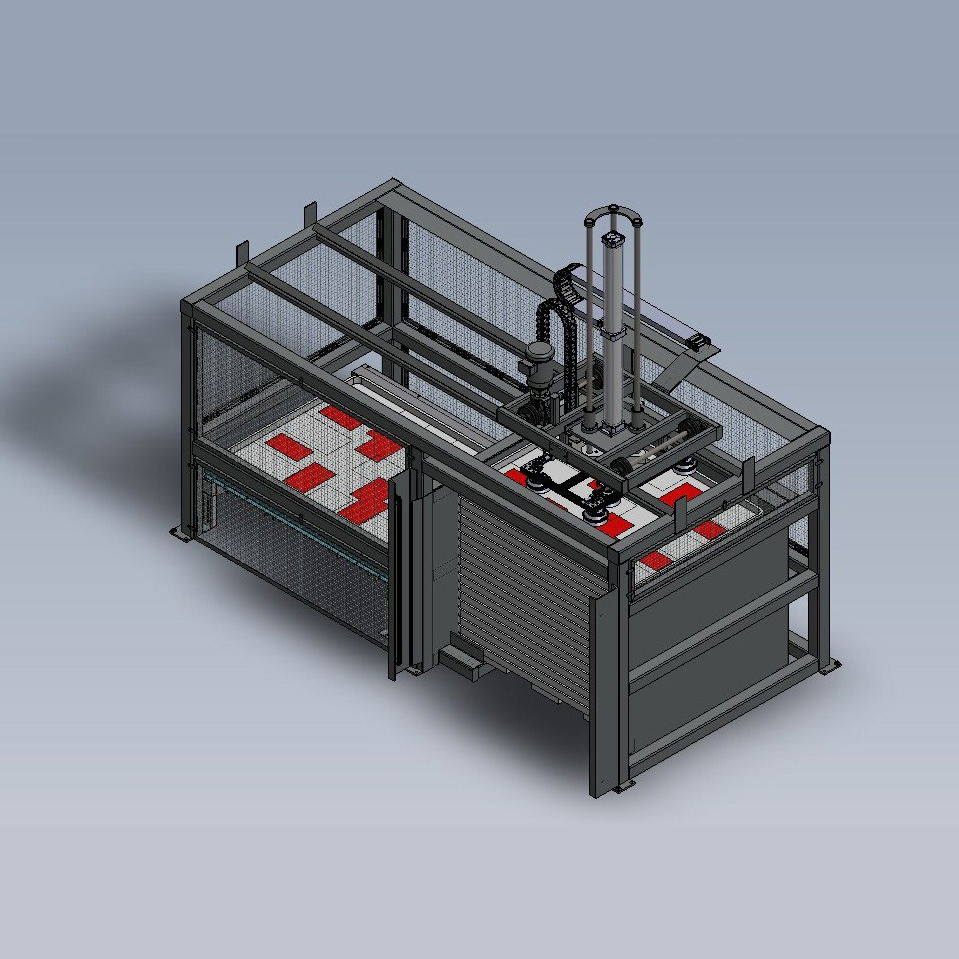

Overhead Gantry Pallet Dispenser Image 2

Product Information

The RM-995 pallet dispenser is used to stack or remove pallets from the top of the load. Four (4) each pneumatic actuators with jaws clamp edges of pallet to hold in place. A variable speed motor driven carriage assembly handles horizontal movement above conveyor lines while a guided air cylinder handles vertical travel. Pallet magazines hold up to 15 pallets and are replenished with a forklift. Heavy duty construction, UL Certified electrics and precision hydraulics offers low maintenance and increased uptime.

Specifications

Model	RM-995
Operating Height	121"
Controller	Allen Bradley
Cycle Time	60 seconds
Controls	Auto Cycle
Capacity	1,500 lbs

Operating Depth	70"
Operating Length	120"
Type Of Pallet	Any
Power Source	460V 3 phase
# of Pallets	15
Certifications	UL approved

Motor	1 HP
System Pressure	60 psi
Discharge Height	Variable
Shipping weight*	3,500 lbs
Brand	Cherry's Industrial Equipment Corp
