Mobile Drum Dumper

MDD-1000-SS/CS

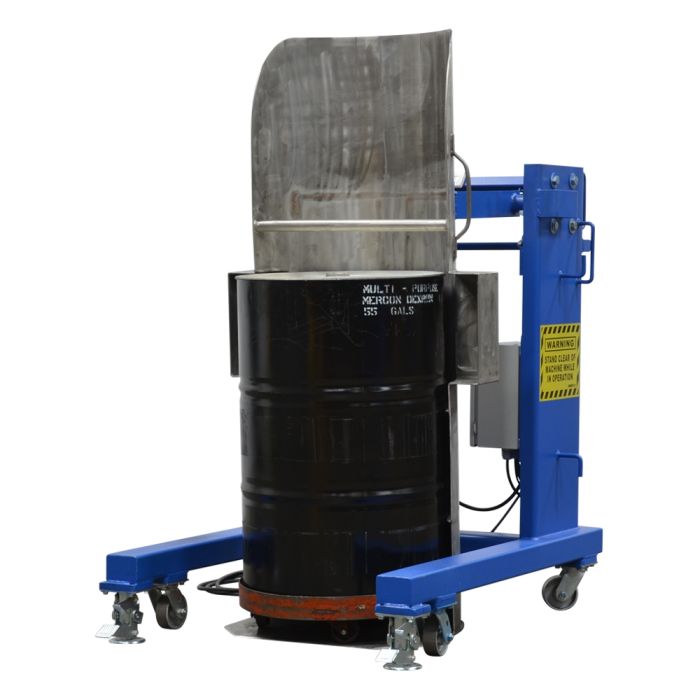

MDD-1000-SS/CS Mobile Drum Dumper has a 1,000 lbs. capacity and comes with a loading chute that measures approximately 24 1/2" Deep x 24 1/2" High. Tilt time going up is about 16 seconds and going down is about 8 seconds. Includes a NEMA 4X hand held 2-button press and maintain pushbutton pendant control.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Information

The MDD-1000-SS/CS Mobile Drum Dumper will dump metal drums and plastic bins of confectionary material into mixers. Ground level loading allows for bins to be rolled and onto and off the loading platform. The basket of the unit is constructed of 316 stainless steel while all other components are constructed of carbon steel and painted. The mobile dumper includes 2 heavy duty floor locks mounted to the straddle legs in front of the casters. Includes Intermittent duty, self-contained 0.9 GPM pump and 120V single phase motor along with a 2 gallon reservoir tank.

Product Tour

Specifications

Model	MDD-1000-SS/CS
Controls	NEMA 4X hand held 2-button pendant
Energy Saver Function	Yes
Loading Table Size	Approximately 24 ½"D x 24 ½" H
Finish	Mild steel painted
Capacity	1,000 lbs. UDL
Cycle Time	16 seconds up and 9 seconds down

System Pressure	1000 PSI
Speed Control	Flow control valve
Load Holding	Counterbalance valve
Maintenance Lock Outs	4
Motor	120 volt single phase 2 HP electrical motor
Power Source	120V
Certifications	UL508A

Warranty	1 year parts & labor
FOB	Roselle, IL
Loading Height	Ground Level
Dump angle	135 degrees
Brand	Cherry's Industrial
Brand	Cherry's Industrial Equipment Corp
