LSH12-60 High-Rise Lift Table


LSH12-60

The LSH12-60 high-rise lift table is capable of handling loads up to 12,000 lbs. and has a maximum platform size of 60" x 84".

Call 847-443-3861 to speak with our experts

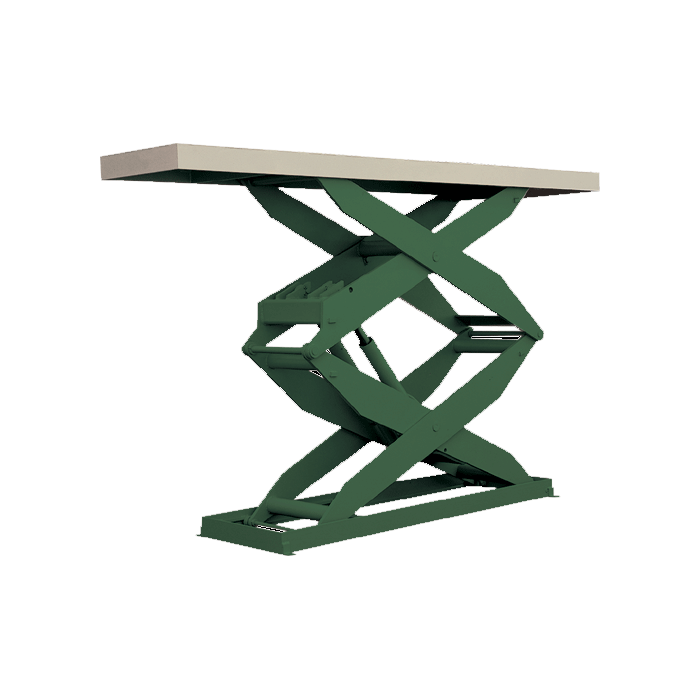

LSH12-60 High-Rise Lift Table

See it in the Wild

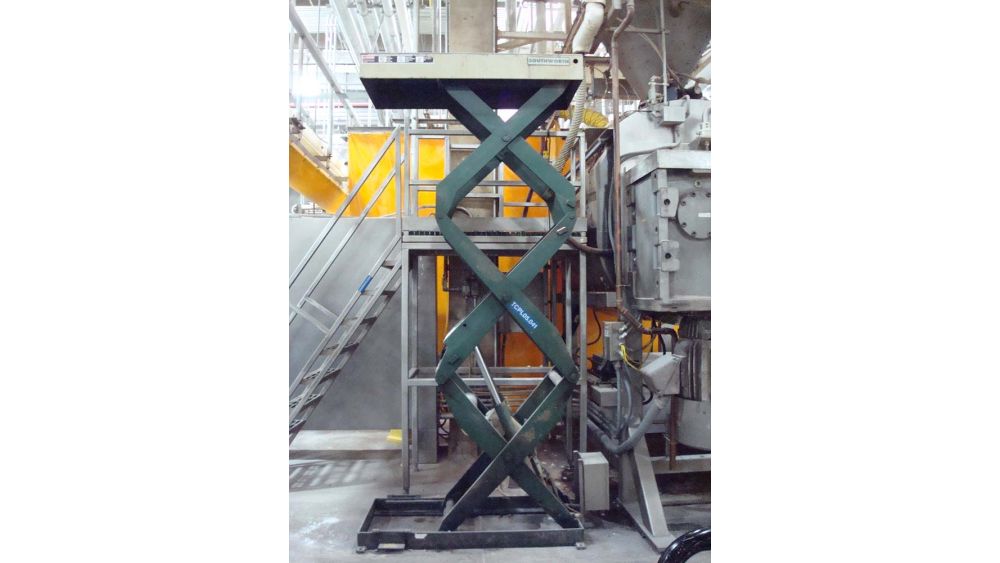

Lift Tables are used in Facilities to make ingredients accessible for dumping into hoppers. Lift Tables are used in Facilities to make ingredients accessible for dumping into hoppers.
×

Product Information

Southworth's LSH12-60 Spacesaver lift table is designed to provide an exceptional lift height, proportionately large platform options, and a relatively small footprint without compromising superior strength and stability. Applications can range from lifting and positioning loads to bring them to convenient working heights or to transporting cargo and/or personnel from one floor to another. The maximum lift height for this particular unit is 78".

Product Tour


Specifications


ModelLSH12-60
Capacity12,000 lbs
Standard Platform36" x 67"
Max. Platform60" x 84"
Raised Height78"
Max. Platform Size60" x 84"
Vertical Travel60"
BrandSouthworth
Elevating Time95 sec
Voltage460/3/60
Motor3.2 HP
Estimated Product AvailabilityShips in 8 - 10 Weeks
Shipping weight*3,200
Shipping Class*70
FOBLeachville, AR
