LS-108 Pallet Straightener

LS-108

Stand Alone Pallet Straightener designed to square up 18 pallets on all 4 sides. Works with stringer and block style pallets. Ideal pallet sizes include 40x48, 42x48, 45x48, 48x48 and 44x56.

Request a Quote

Call 847-443-3861 to speak with our experts

Layout Drawing

See it in the Wild

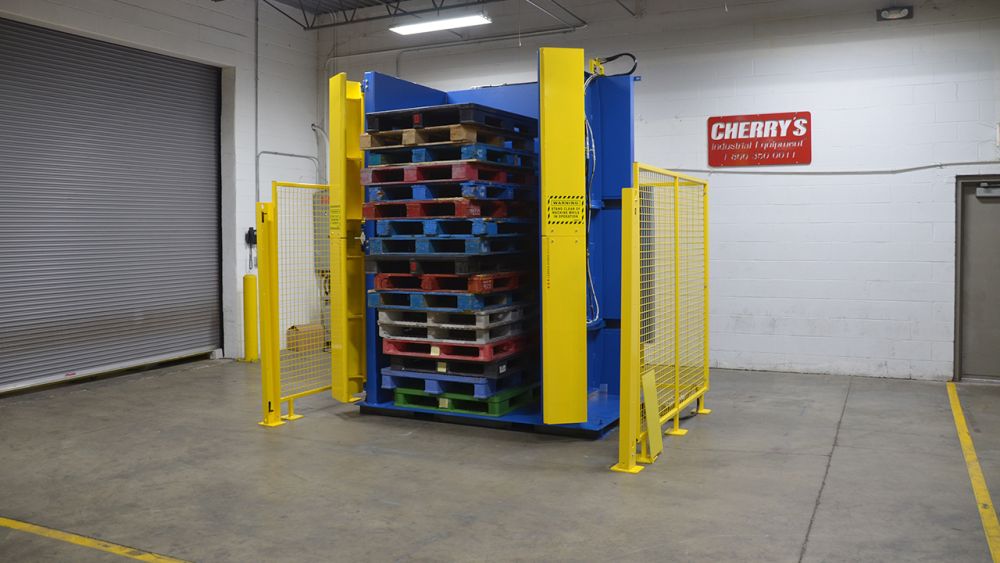

Four way pallet straightener - CHEP Pallets

Two way pallet straightener - CHEP pallets

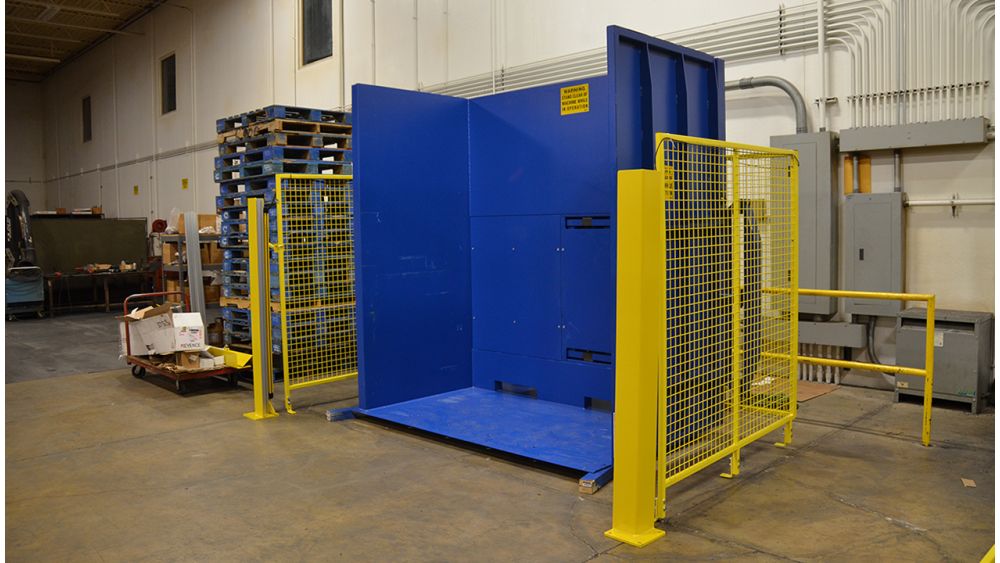

Two way pallet straightener

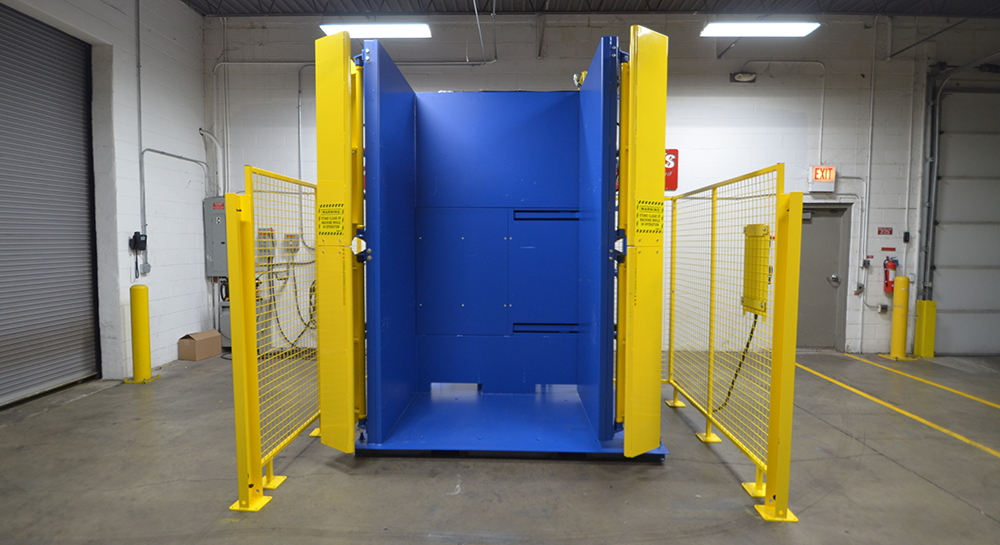

Pallet straightener - load position

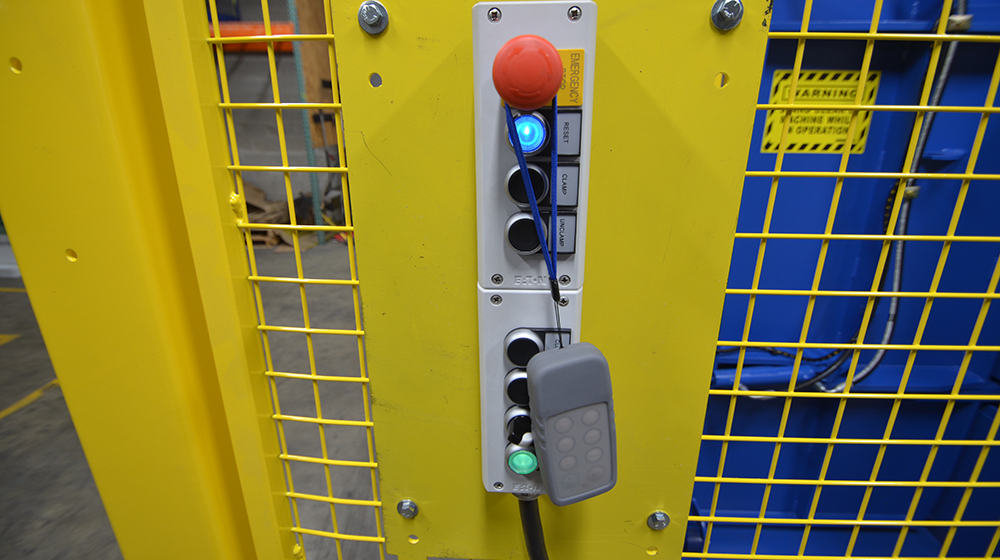

Pallet Straightener auto controls

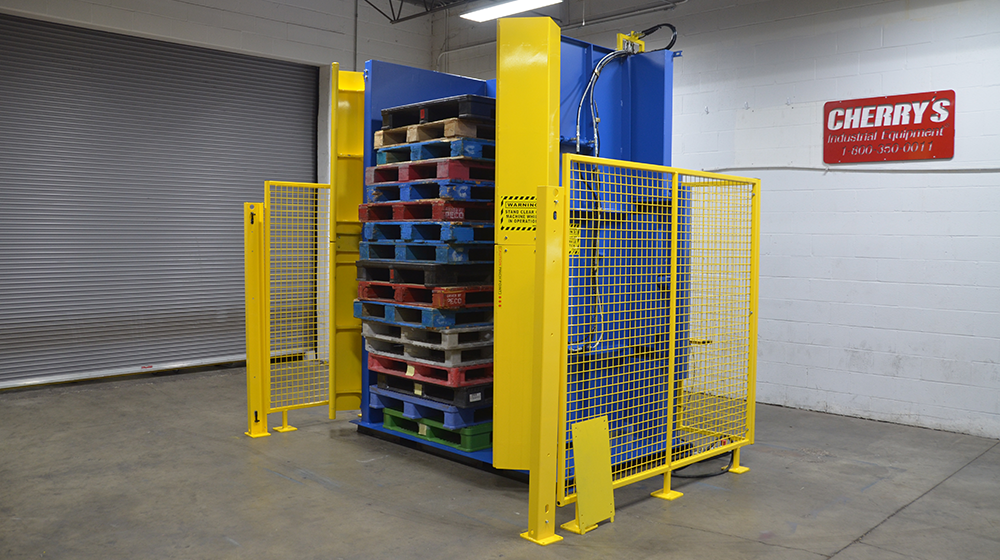

Pallet straightener with light curtains

Product Information

The LS-108 Pallet Straightener squares stacks that will be used in high speed palletizers, ASRS systems or robotic work cells. This unit perfectly aligns the edges of pallet which is often a cause of trip offs in line automation. The hydralic unit is loaded and unloaded with a forklift or pallet jack and the operator controls can be manual or fully automatic with a lanyard or radio remote control.

Product Variations

SKU	Max. Stack Height	Pallet Type	Front aligner range	Side wall range	Approvals
LS-72	72"	Block/Stringer	54" max to 38" min	60" max to 38"min	UL508a UL Certified
LS-90	90"	Block/Stringer	54" max to 38" min	60" max to 38"min	UL508a UL Certified
LS-108	108"	Block/Stringer	54" max to 38" min	62" max to 38" min	UL508a UL Certified

Product Tour

Specifications

Model	LS-108
Type of Pallet	Stringer & Block style
Overall Height	110"
Square Plates	108" tall x 50" D
Controls	Push button pendant with E-stop and reset
Front Aligner Range	54" max to 38" min

Motor	2HP
Voltage	208V/230V/460V/575V
System Pressure	1000
Adjustable Clamp Pressure	600
Floor Anchors	16
Warranty	1 year parts and labor

Sidewall Range	62" max to 38" min
Max. Stack Height	108"
Finish	Blue 2 Part epoxy finish
Pallet Squaring	Front and side (4 way)
Certifications	UL 508a Certified Panel
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Guards

The LS-108 Pallet Straightener can be optioned with crash guards and bollard to protect the equipment against forklift damage. Optional personnel guarding includes a 3-sided high style perimeter guard. For added safety, light curtains or a safety laser scanner can be added to protect the area inside of the fence and the entrance into the machine.

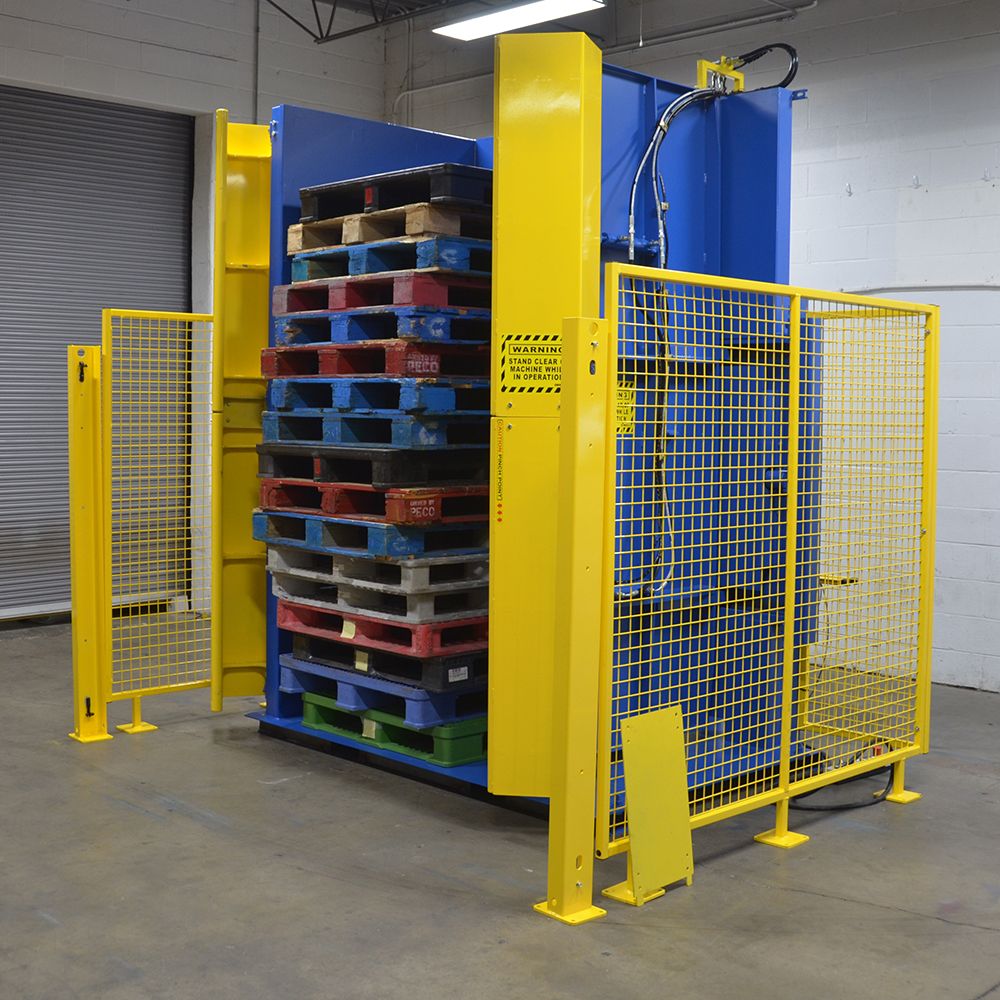

3 sided high style perimeter guards

Category 4 light curtains

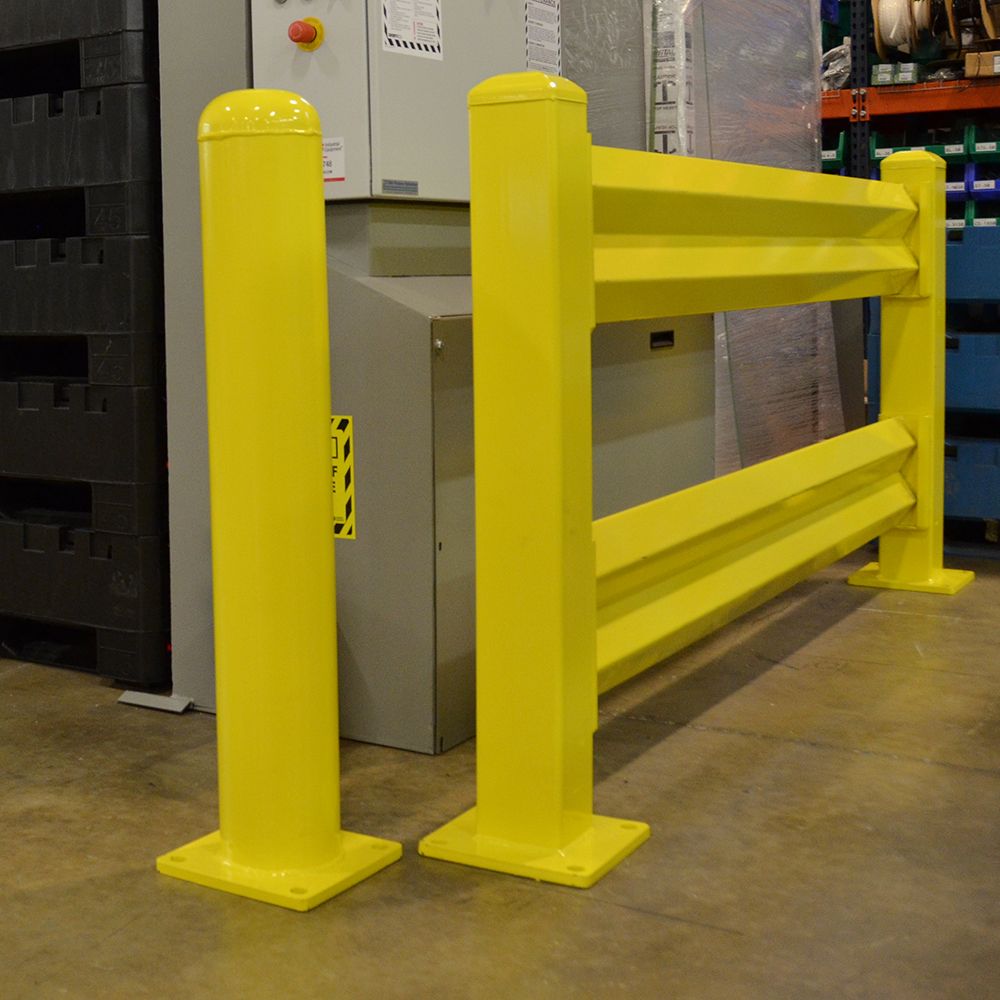

Crash guards & bollards

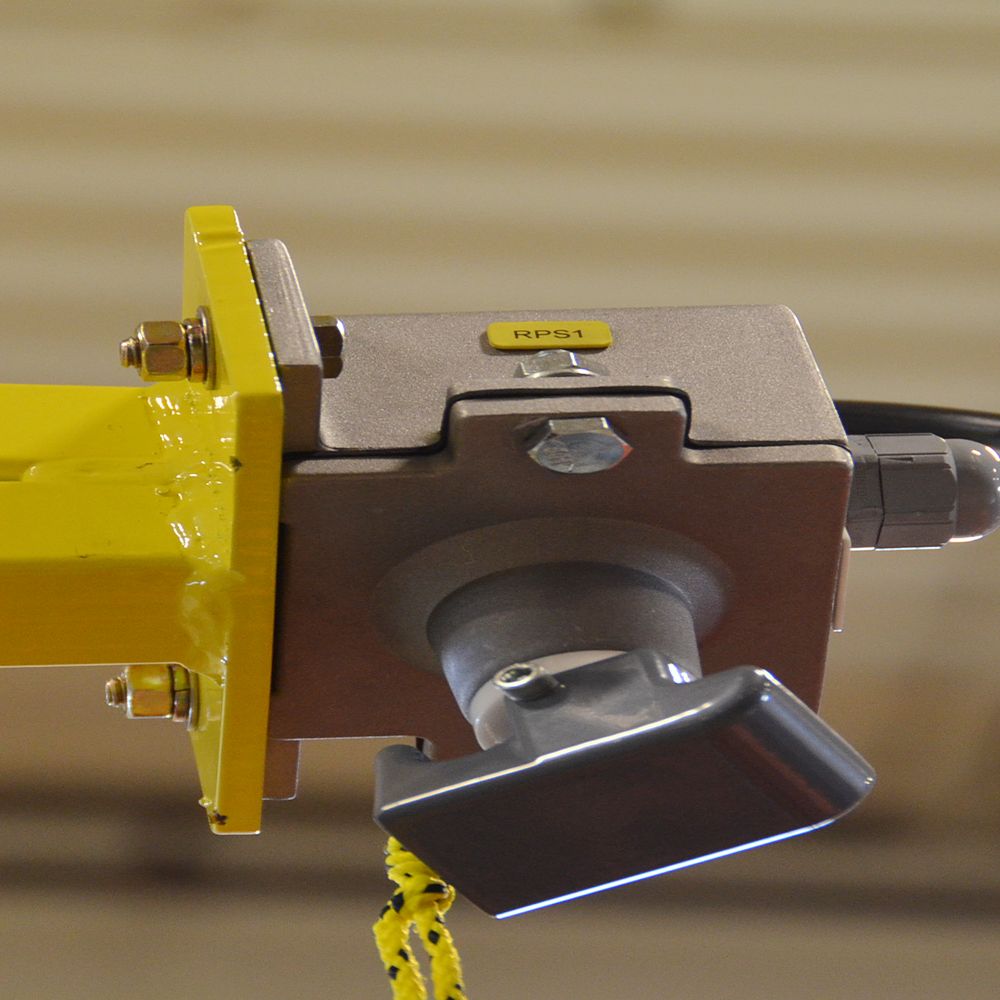

Safety E-stop lanyard

Options

The standard LS-108 Pallet Straightener ships complete with everything needed to get you started; floor anchors, hydraulic oil and an all-in-one power unit for intermittent use. More Options are available including: continuous duty power pack for multiple shift use, custom color and finishes and various components to meet your application or corporate specification.

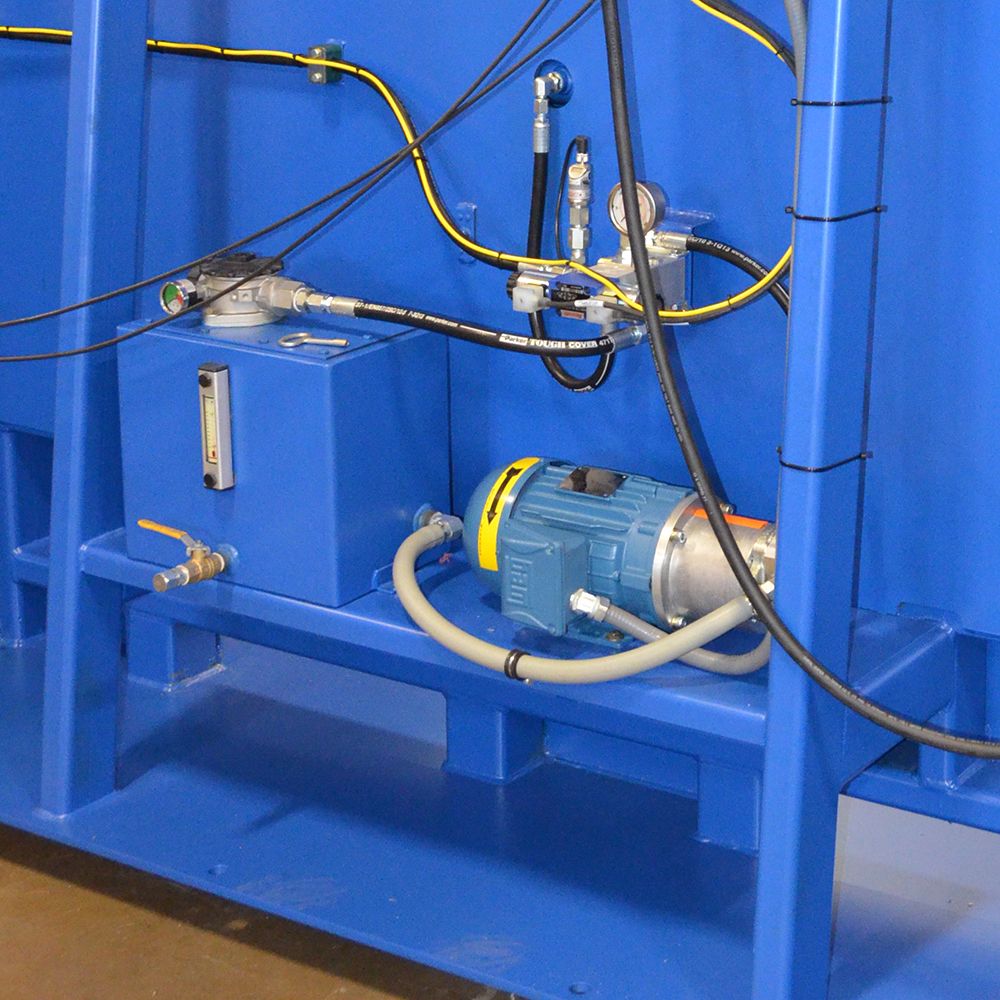

Continuous duty 3 phase power pack

Paint colors

Controls

The LS-108 offers a variety of control configuration options to fit the needs of your warehouse operations. A push button pendant with energy saver functionality can be attached to the side of the guarding, hung from the ceiling or placed on a metal surface or post. Other add-ons include: a safety ready auto pendant, an operator console, or radio remote controls.

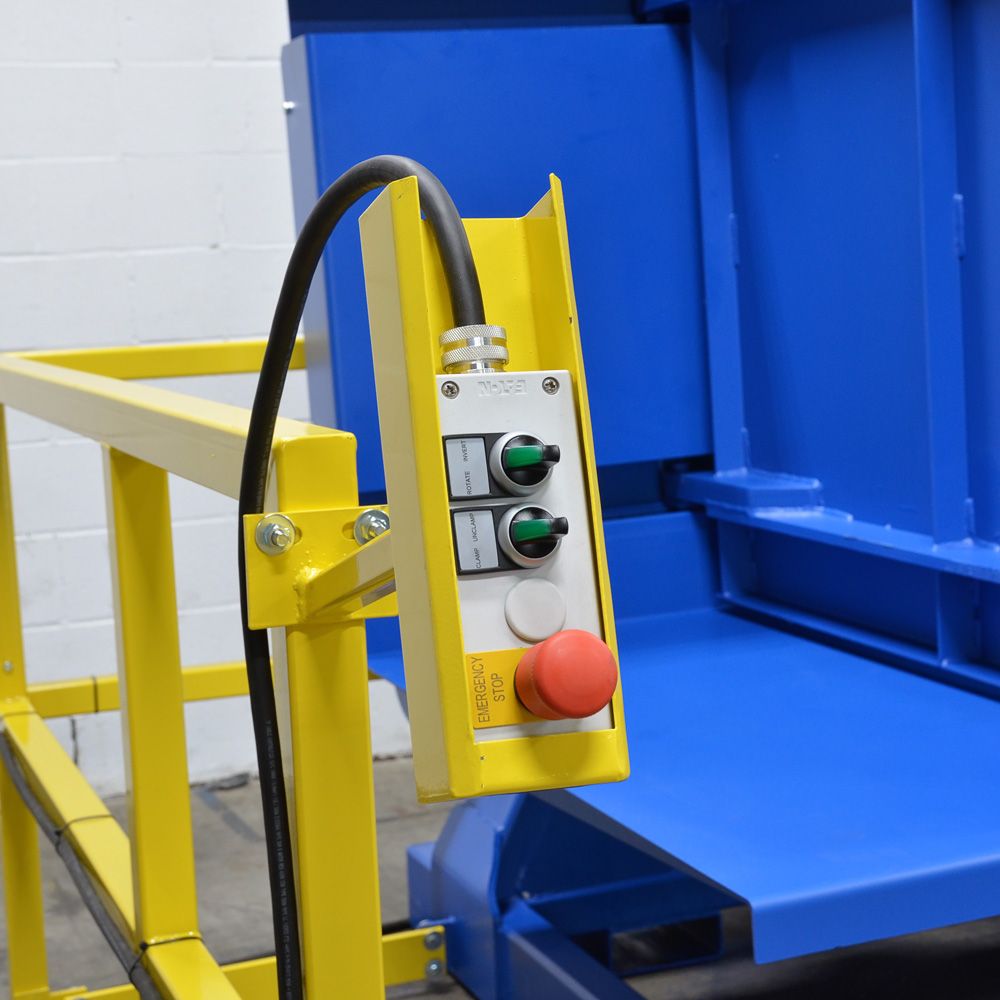

Manual pendant with turn and maintain switches

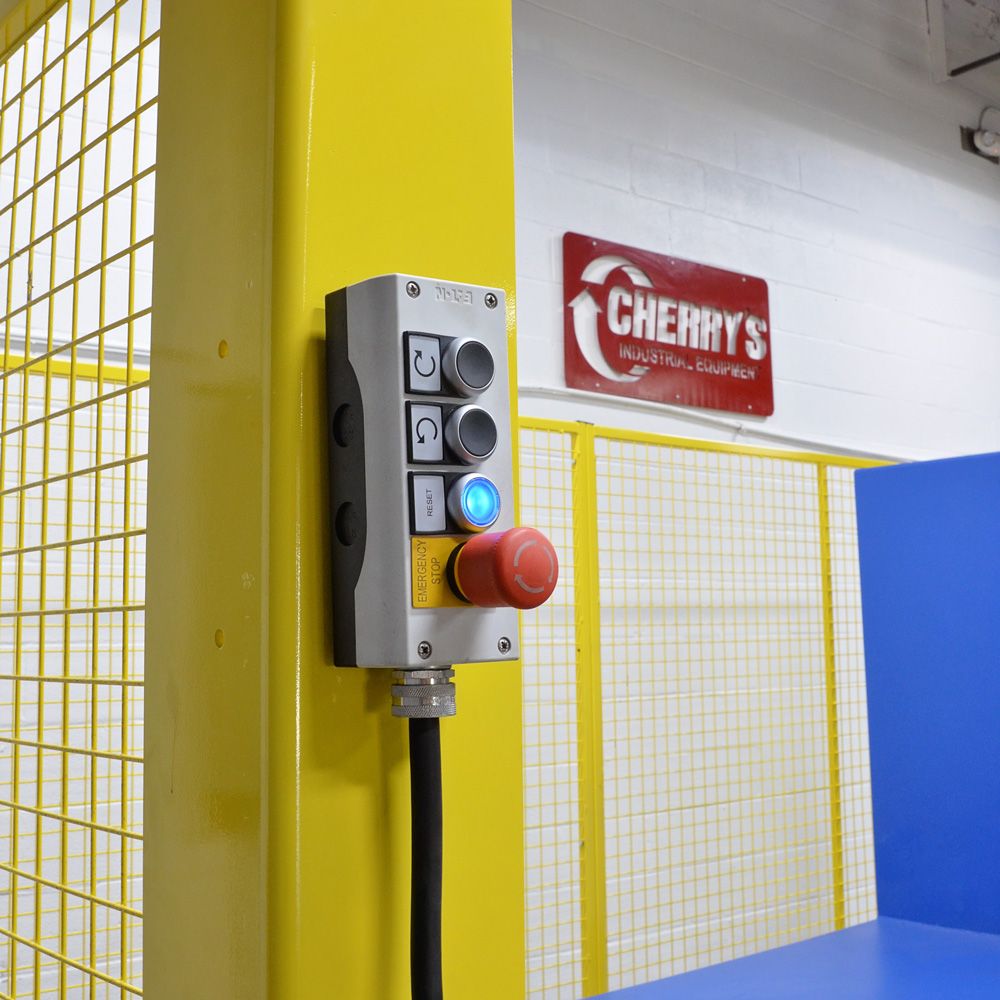

Manual pendant with E-stop and reset

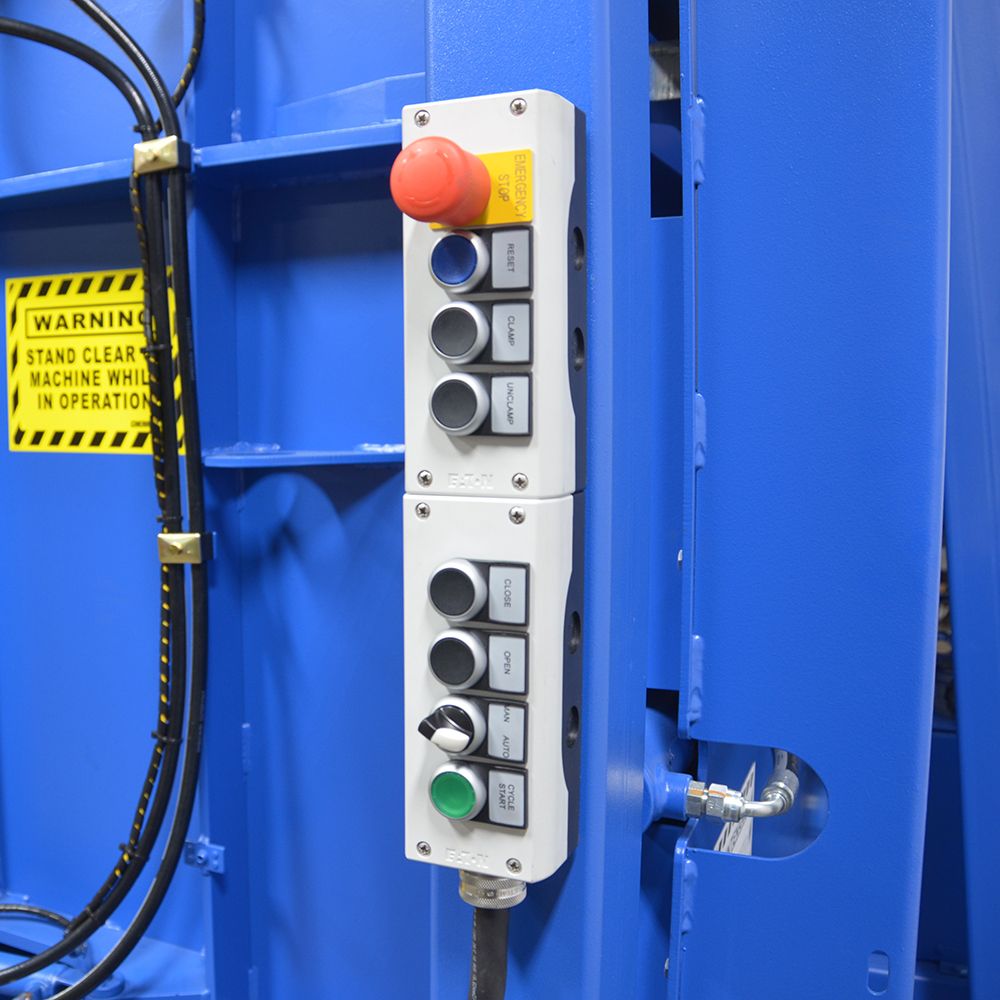

Auto pendant with cycle start and manual override

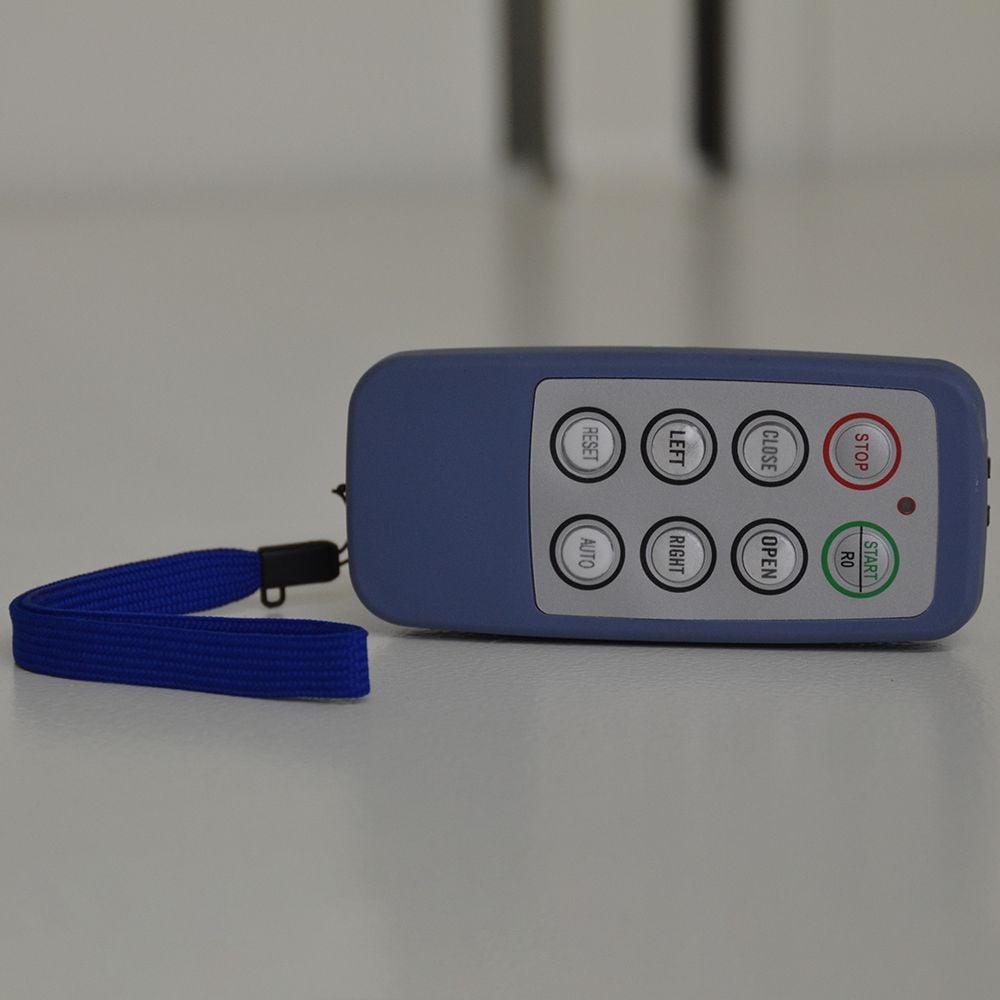

Radio remote control
