Low Duty Container Dispenser

LDCD-STK-1500-10

Cherry's Low Duty Container Dispenser is designed to make collapsible containers easy to retrieve. Instead of waiting for that fork lift driver to bring down a container from the top of the stack you can now obtain a container from the bottom of the stack utilizing a simple manual or electric pallet truck.

Request a Quote

Call 847-443-3861 to speak with our experts

See it in the Wild

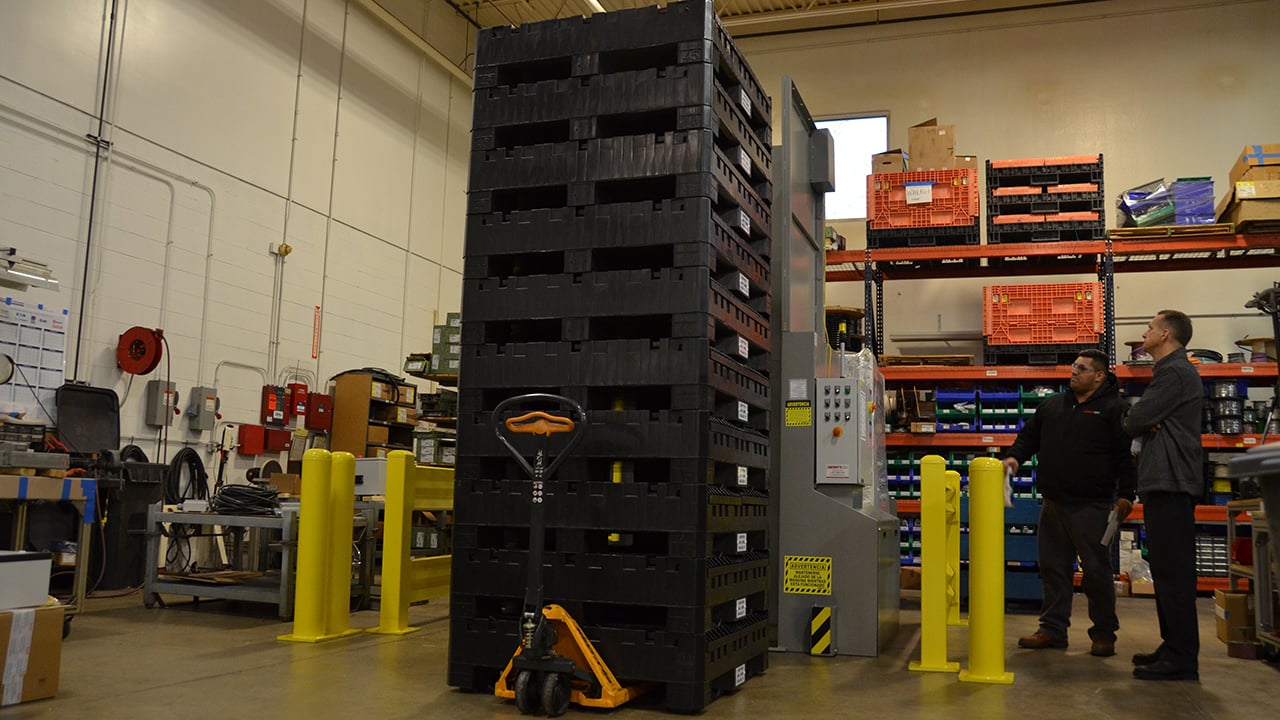

Stack of collapsed containers

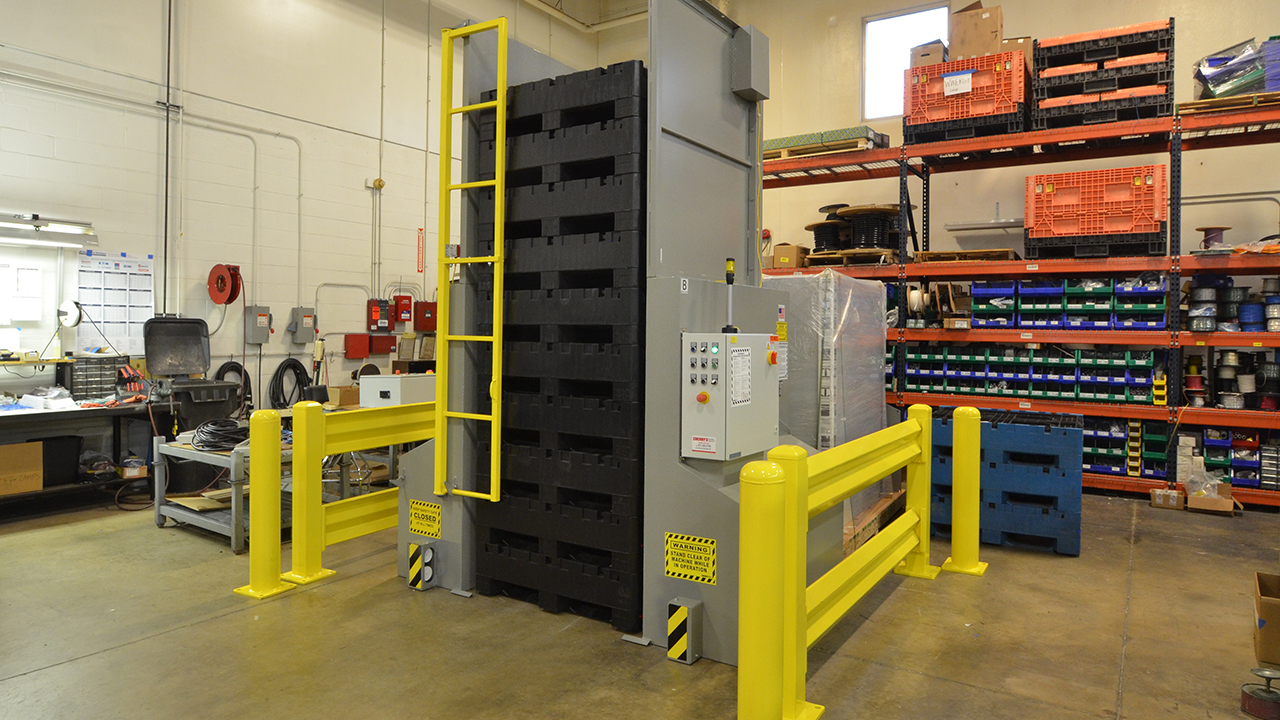

Optional protective crash guarding

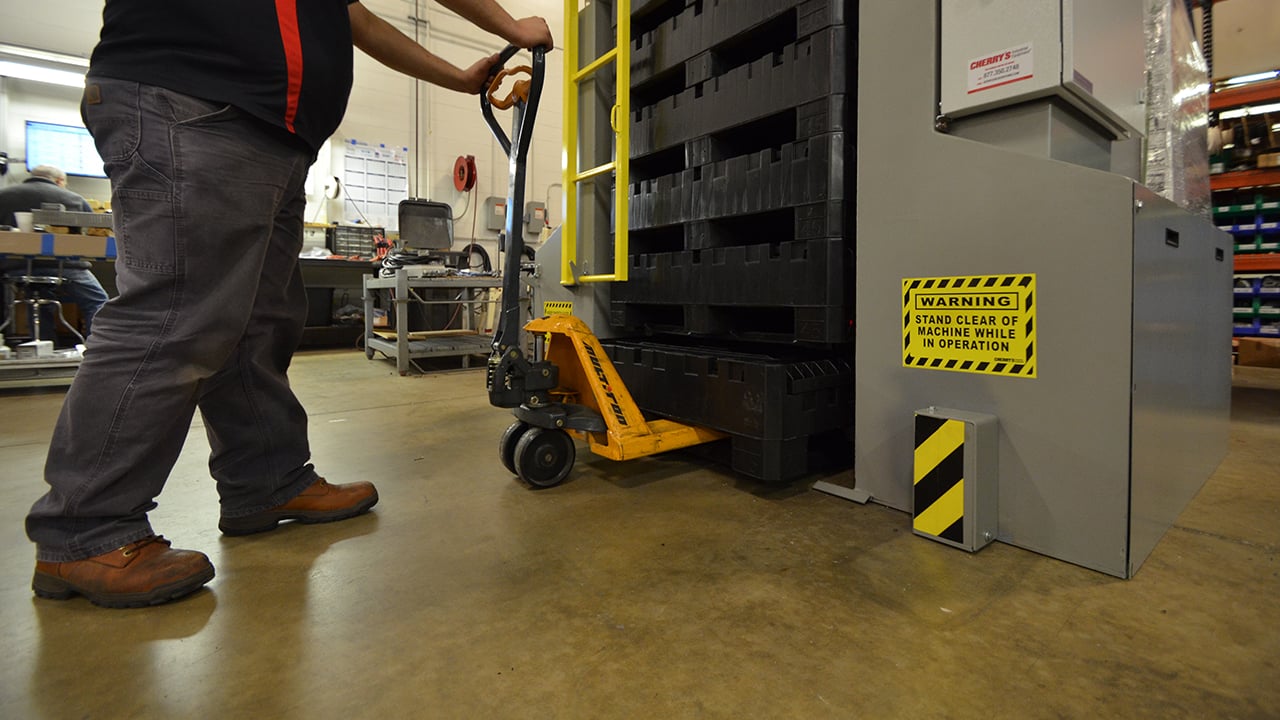

Grab and go at ground level

Stack of collapsed containers

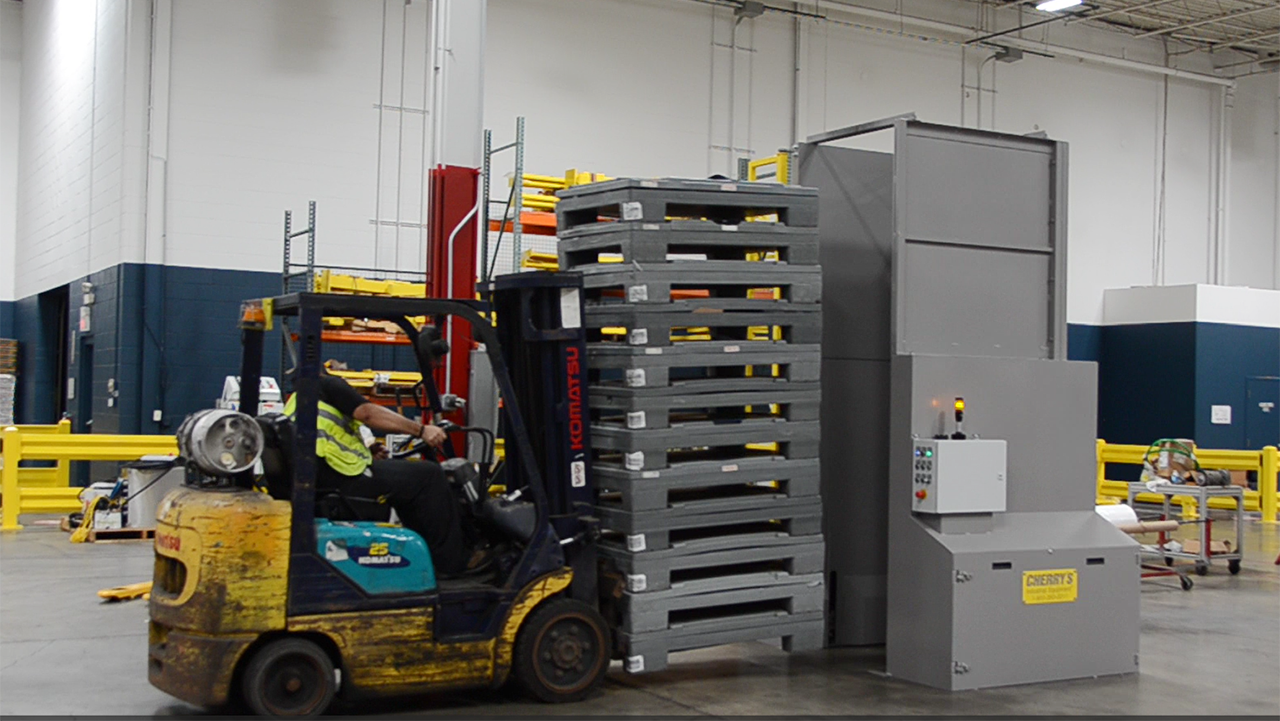

Loading with a forklift

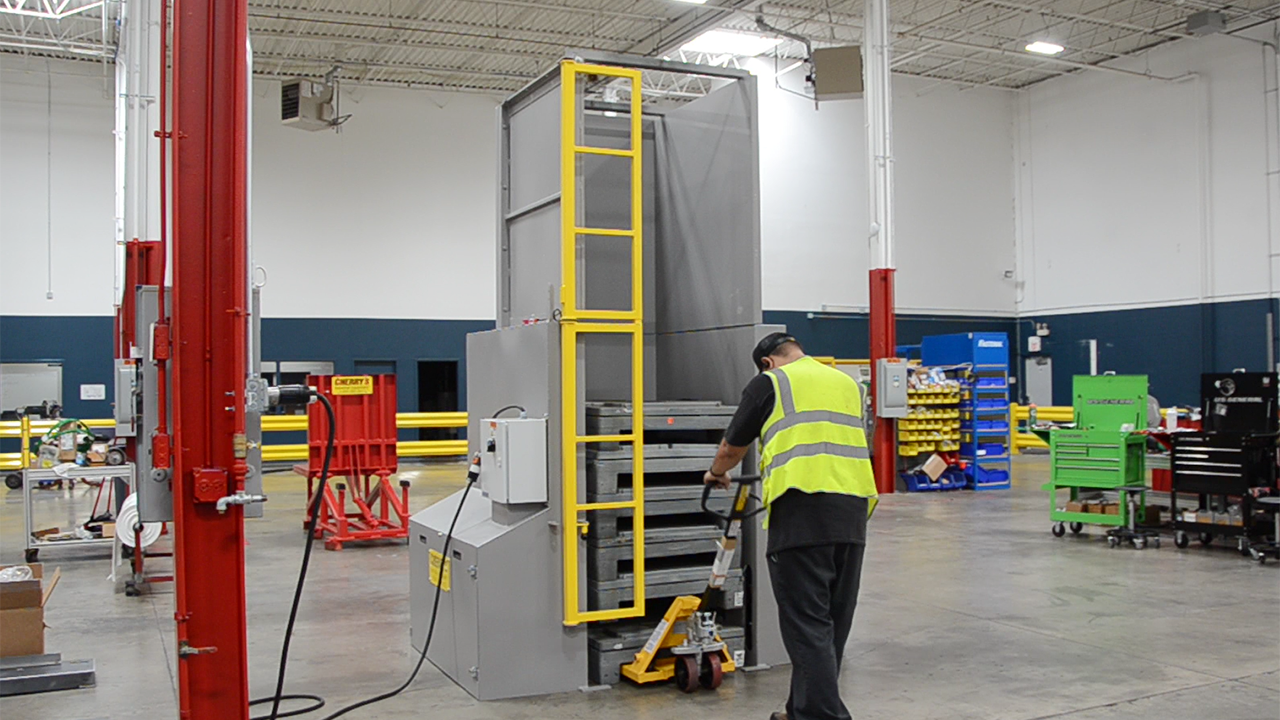

Removing a single container with a pallet jack

Product Information

The Cherry's Container Dispenser will store, stack and dispense up to ten (10) collapsed containers. Single containers are dispensed from a stack to the floor for removal with an electric or manual pallet truck. Switch to the stack mode to accumulate empty containers back into the stack at end of shift. The unit will be equipped with Auto cycle function for "hands free" operation plus push-button controls for manual override.

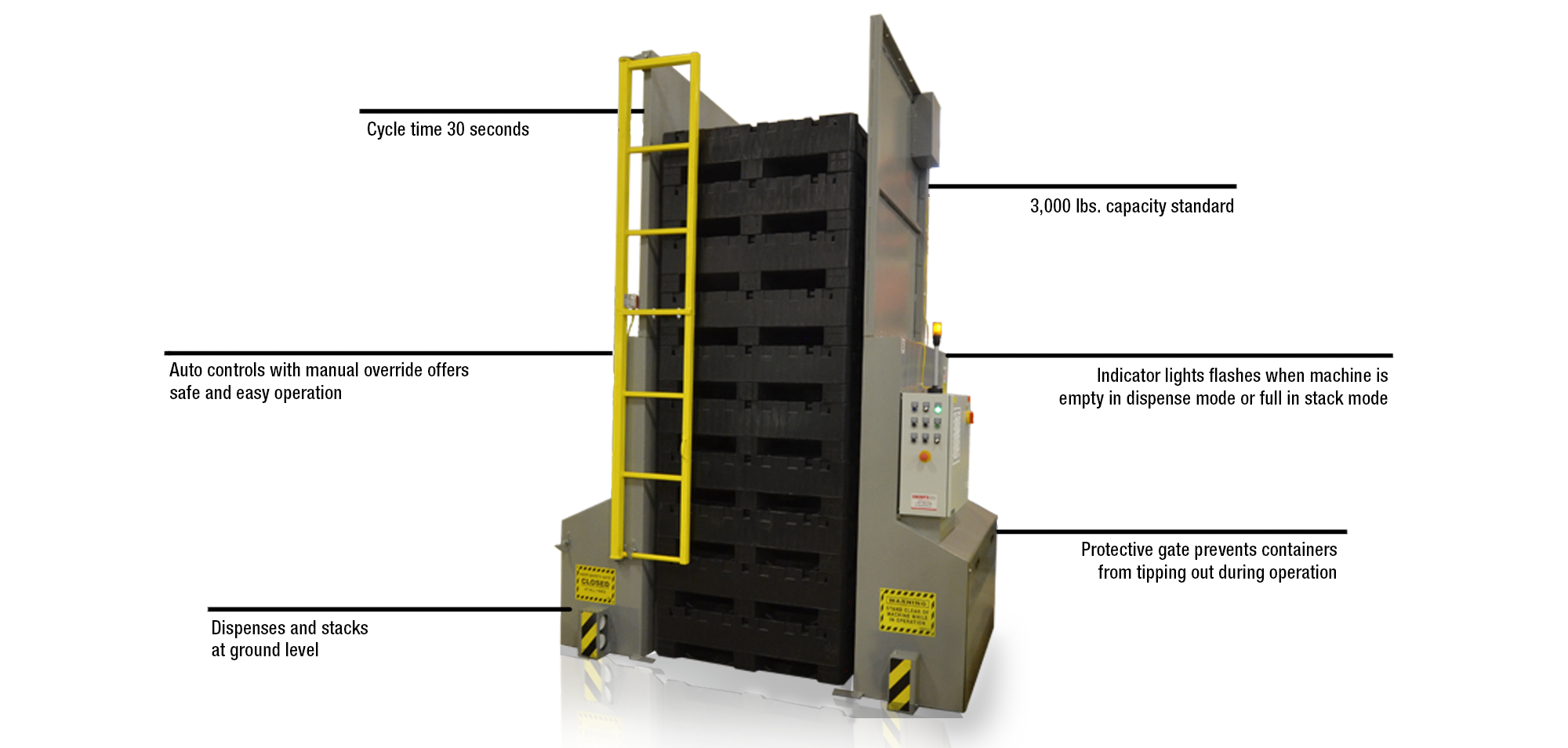

Product Tour

Specifications

Model	LDCD-STK-1500-10
Lifting Pins	Two (2) sets
Storage Capacity	10 Collapsed Containers for Dispensing/Stacking
Cycle Rate	30 Seconds
Operating Height	Floor/Ground level

Finish	Machinery Gray - Sherwin Williams 2-Part Epoxy
Brand	Cherry's Industrial
Controls	Auto w/Manual Override
Operating Depth	76"
Operating Length	134"

Power Source	208/230/460/575V 3-Phase
Certifications	UL Standard, CSA Available
Motor	2 HP
Brand	Cherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options

Controls

The LDCD Container Dispenser offers standard an automatic operator control panel with a manual override for maintenance. Upgrade to the EXOR TFT Color touchscreen for diagnostics, and user input. Add the RM node to monitor critical machine data, mantenance alerts and notifications wirelessly.

Push buttons with manual override

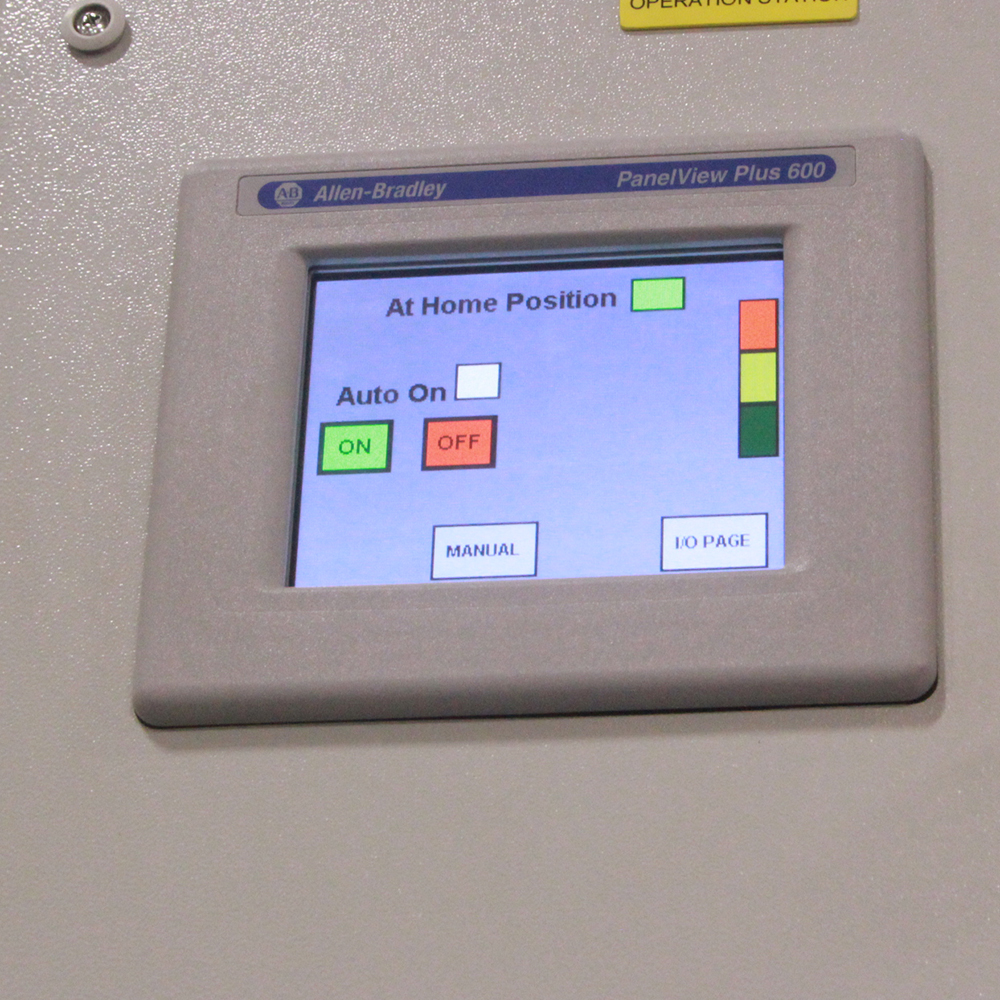

AB Color TFT HMI

Exor HMI with RM node

Remote Monitoring

Guarding

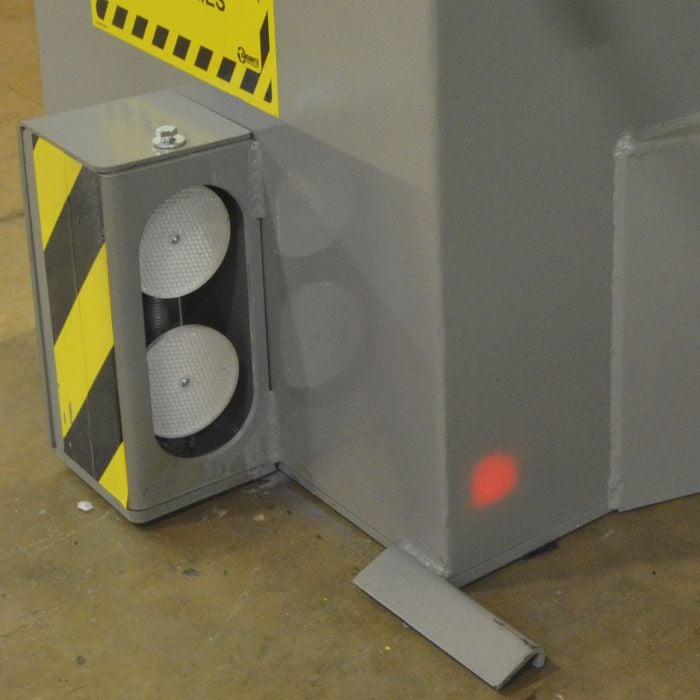

The LDCD Container Dispenser includes a foot obstruction sensor that protects against pinch points at the machine entrance. Optional guarding features protective crash guarding, pallet gate with safety rated switch that deactivates the machine when open.

Safety rated gate switch

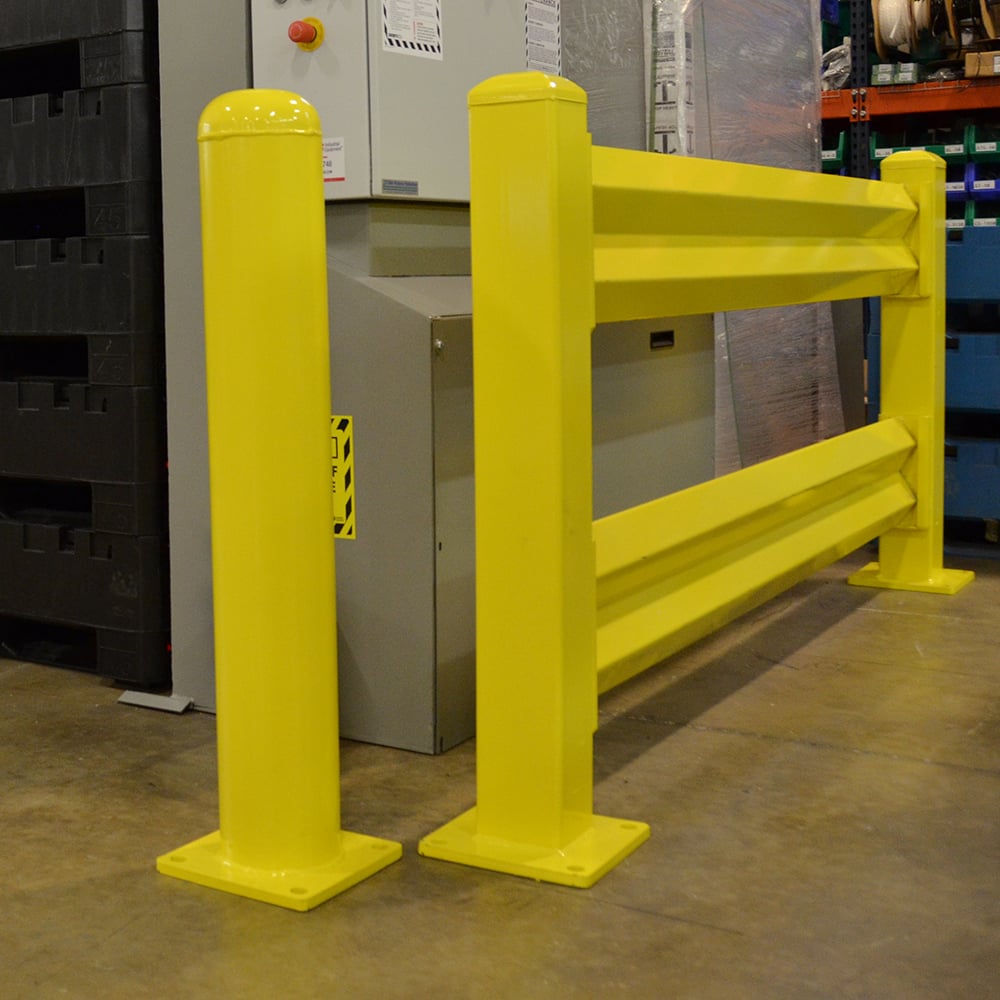

Protective crash guards

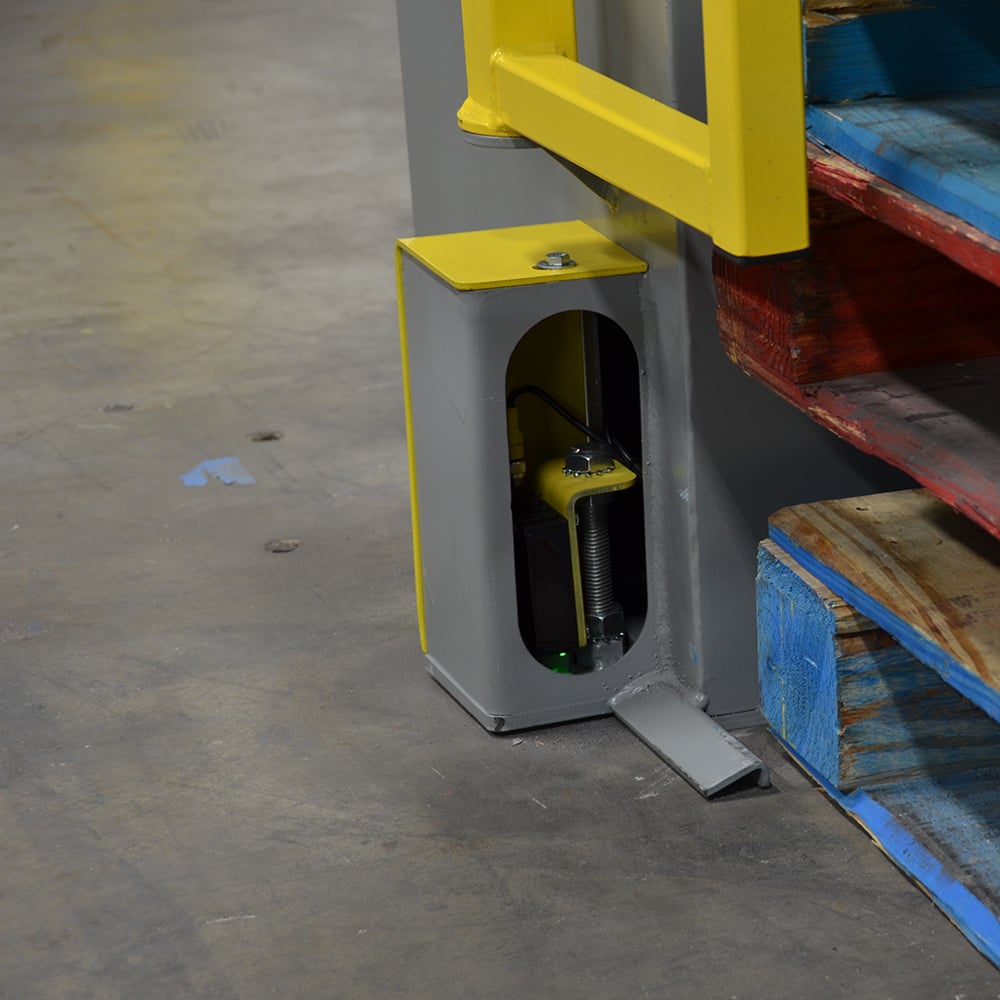

Safety rated foot obstruction sensor

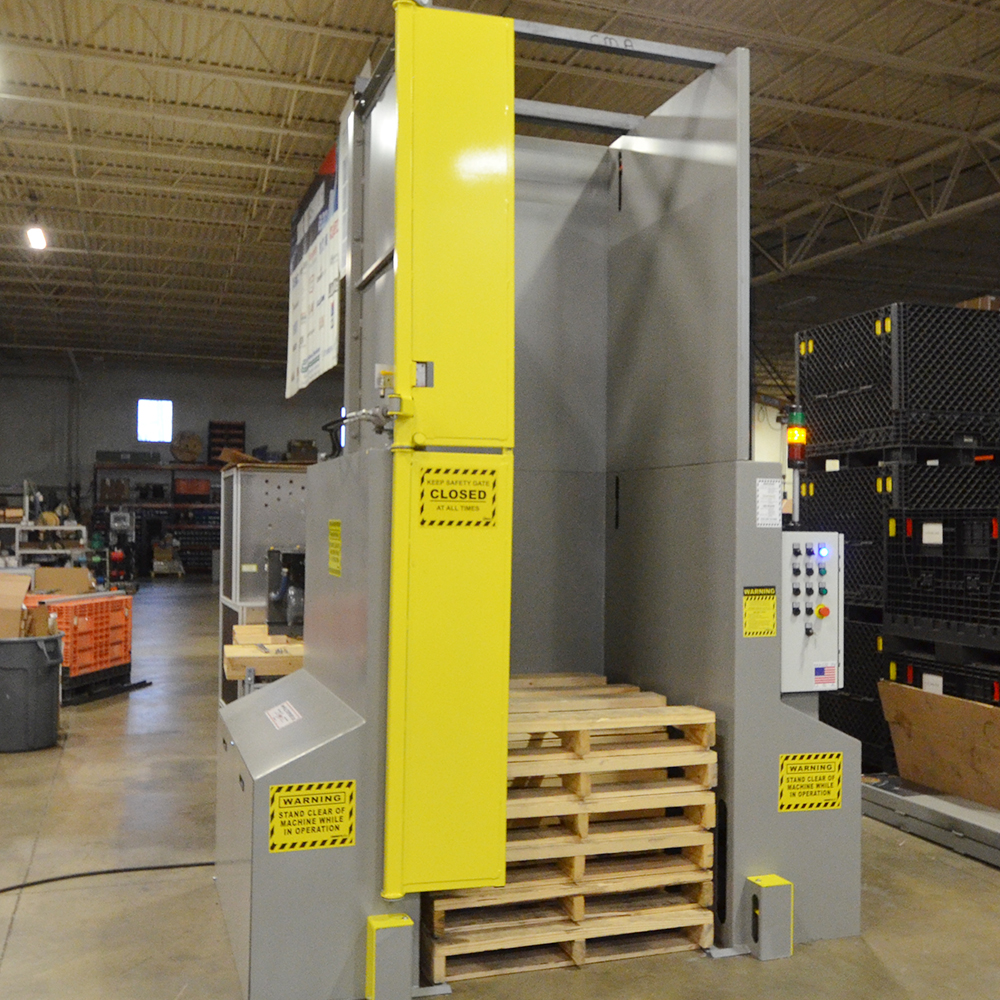

Full panel protective gate

Options

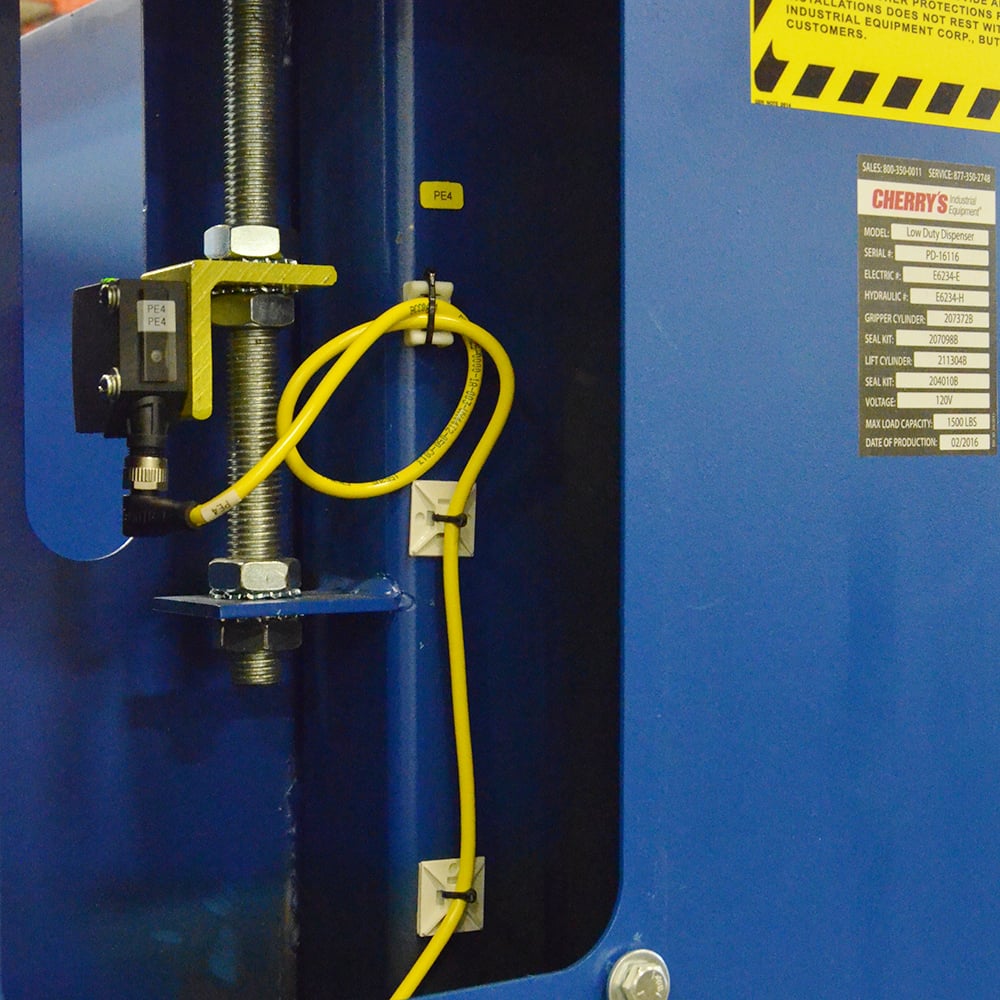

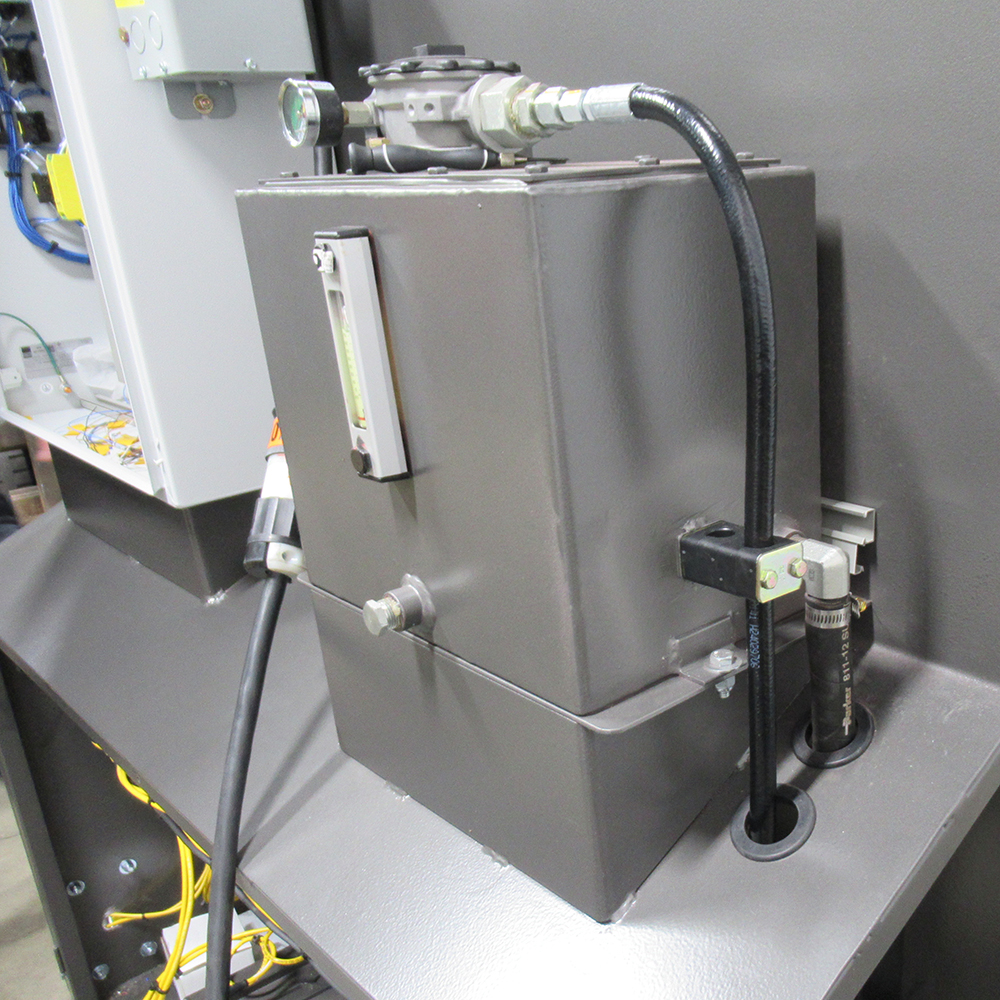

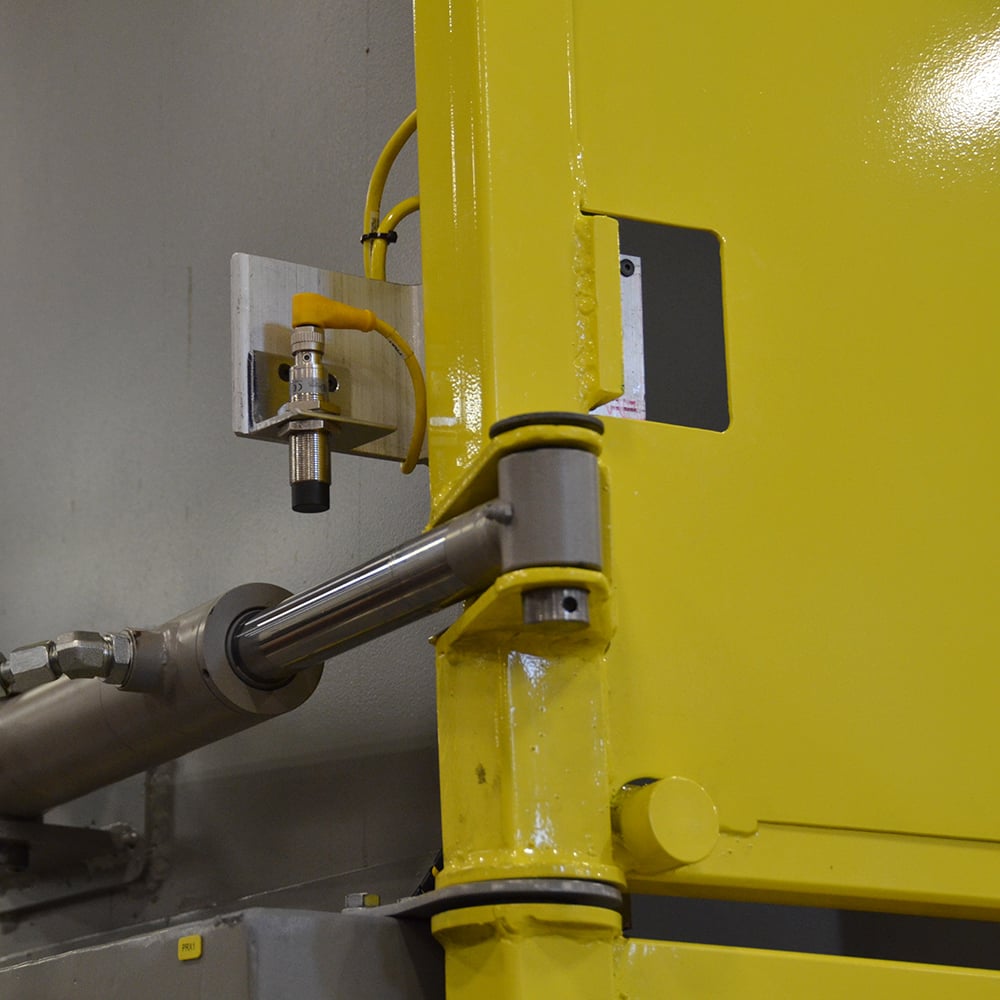

The LDCD Container Dispenser ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: continuous duty power unit, a dispenser full photo for stacking containers, powered safety gate and upgraded components to meet your application or corporate specification.
