LDT-4000-T4 Pallet Tipper


LDT-4000-T4

The LDT-4000 T4 end-to-end tipper facilitates ground-level pallet loading and unloading with your motorized walkies or manually operated pallet trucks. Use it to tip loads on their side for easy removal or changing their position from horizontal to vertical. No matter how you use the LDT-4000 T4 90 degree tipper, you'll experience improved production efficiency and a safer work environment.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Details
LDT-4000-T4 Pallet Tipper
LDT-4000-T4 Pallet Tipper Image 1

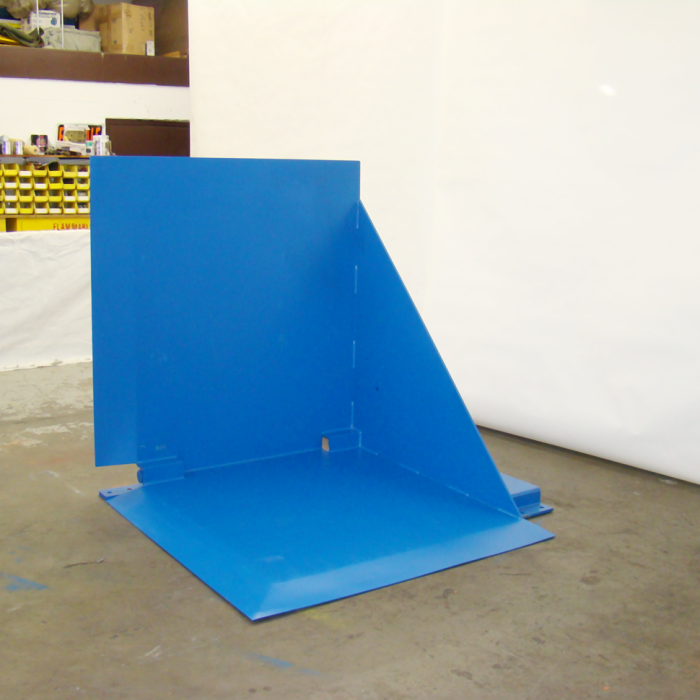

LDT-4000-T4 Pallet Tipper Image 2

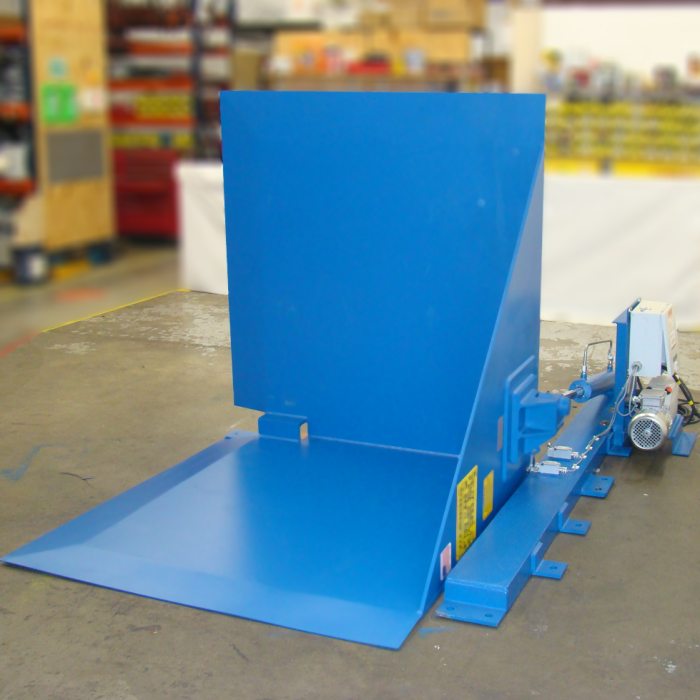

LDT-4000-T4 Pallet Tipper Image 3
LDT-4000-T4 Pallet Tipper Image 4

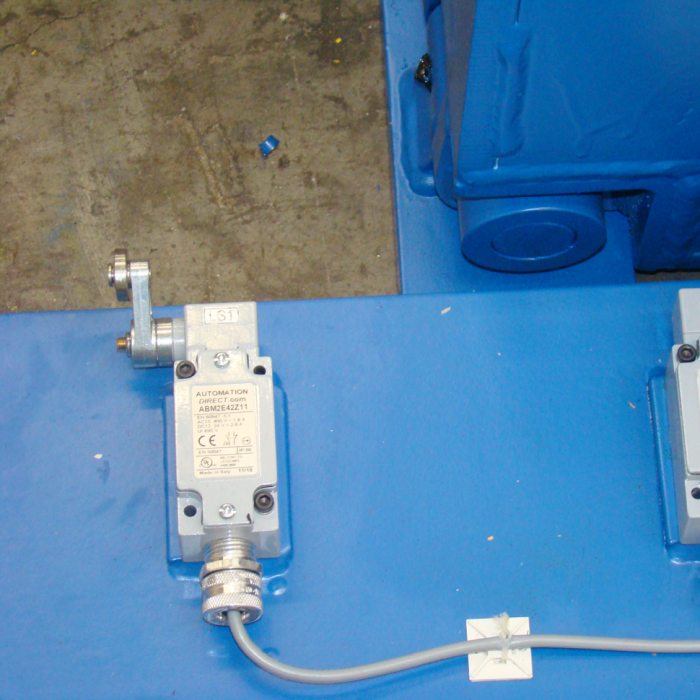

LDT-4000-T4 Pallet Tipper Image 5
LDT-4000-T4 Pallet Tipper Image 6

See it in the Wild

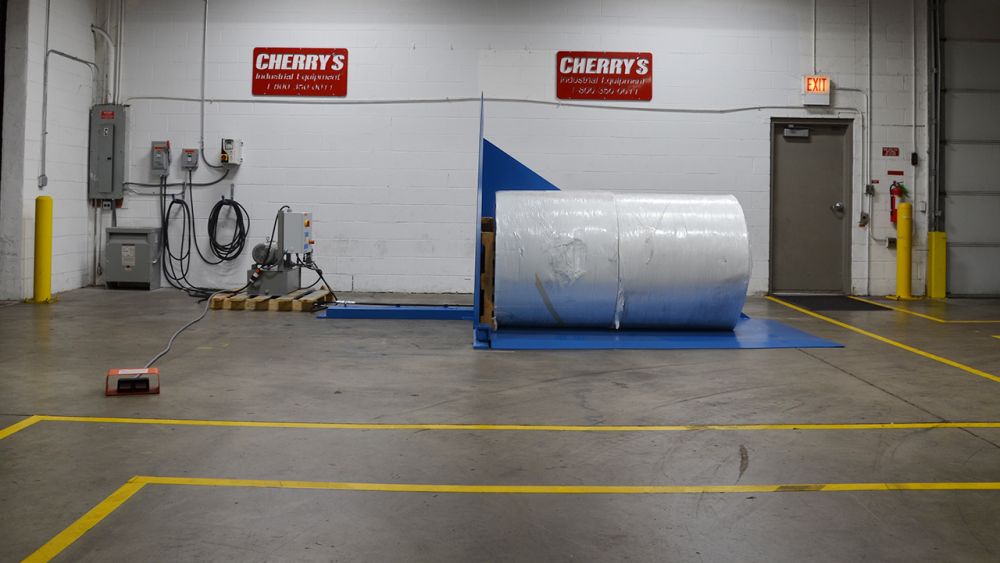

Ground level loaded tipper upending multiple rolls Ground level loaded tipper upending multiple rolls

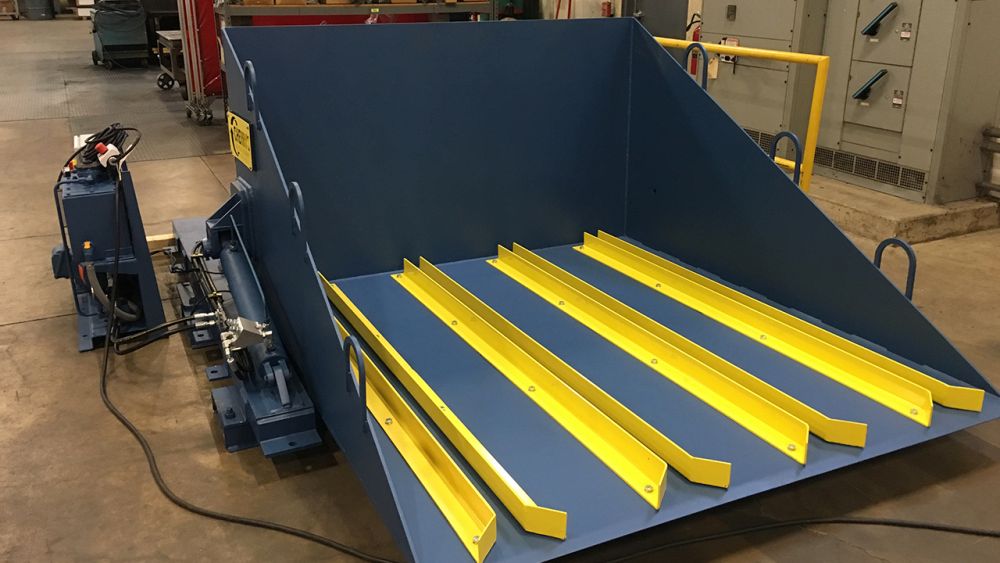

Guide rails for cart positioning Guide rails for cart positioning

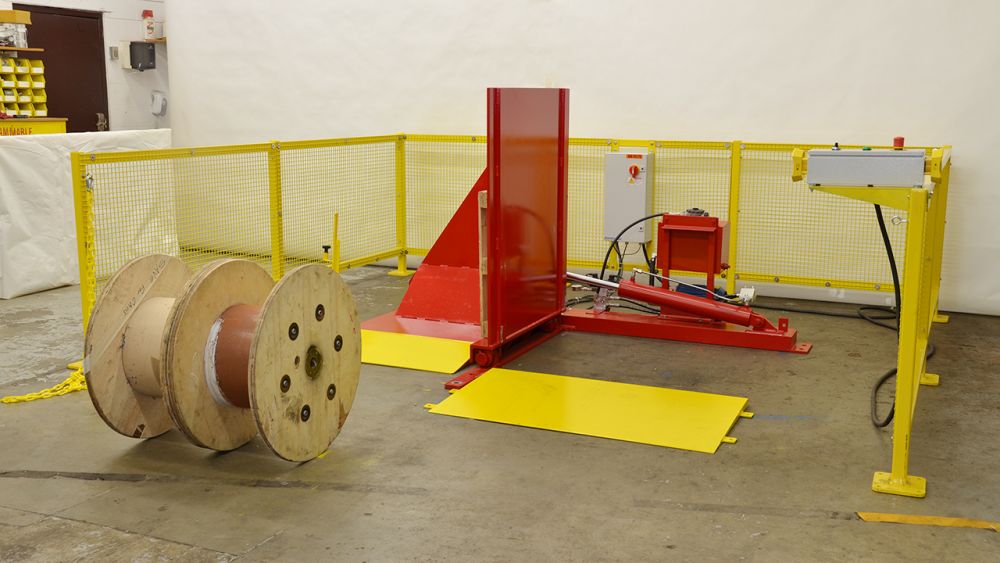

Ramp loaded coil tipper with safety controls Ramp loaded coil tipper with safety controls
Near ground loaded to ground level discharge pallet tipper Near ground loaded to ground level discharge pallet tipper

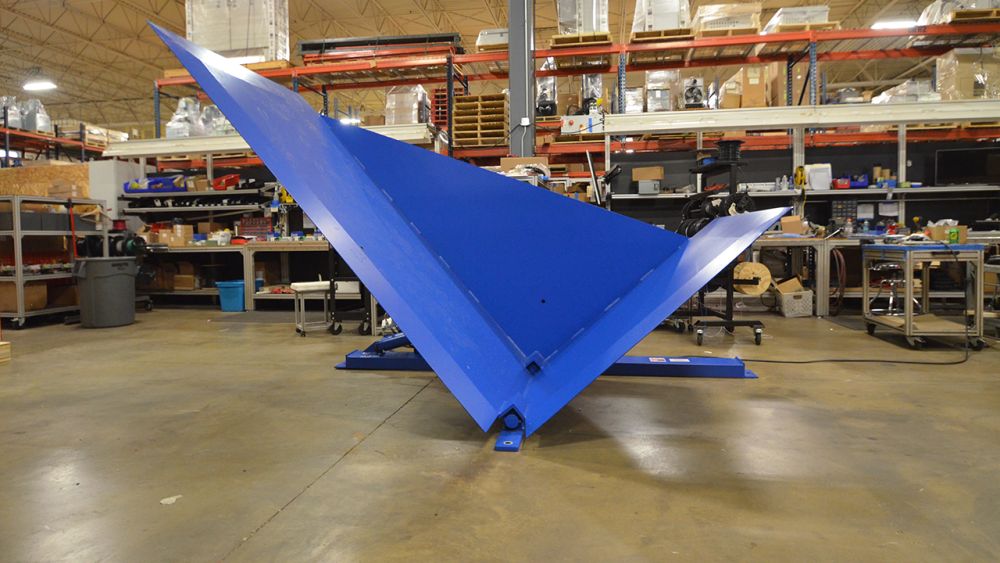

Ground to ground 90 degree tipper Ground to ground 90 degree tipper
LDT-4000 type 4 tipper with paper rolls LDT-4000 type 4 tipper with paper rolls

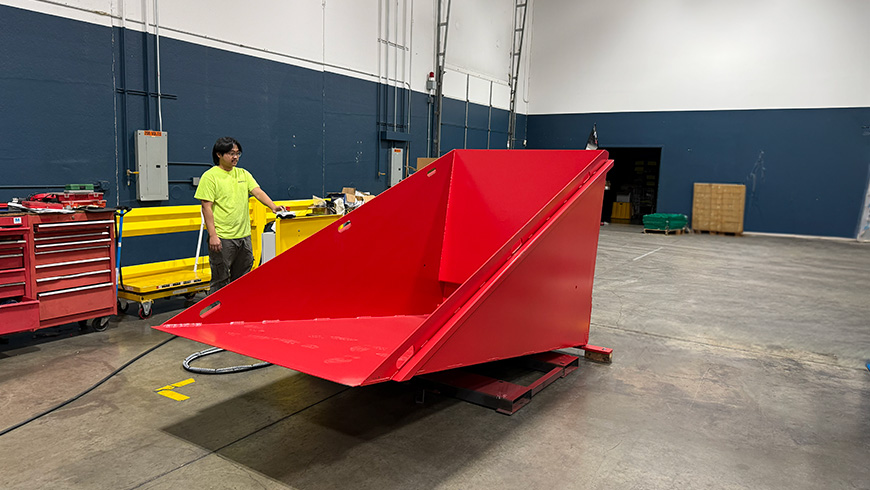

Ground loading tipper with support walls Ground loading tipper with support walls

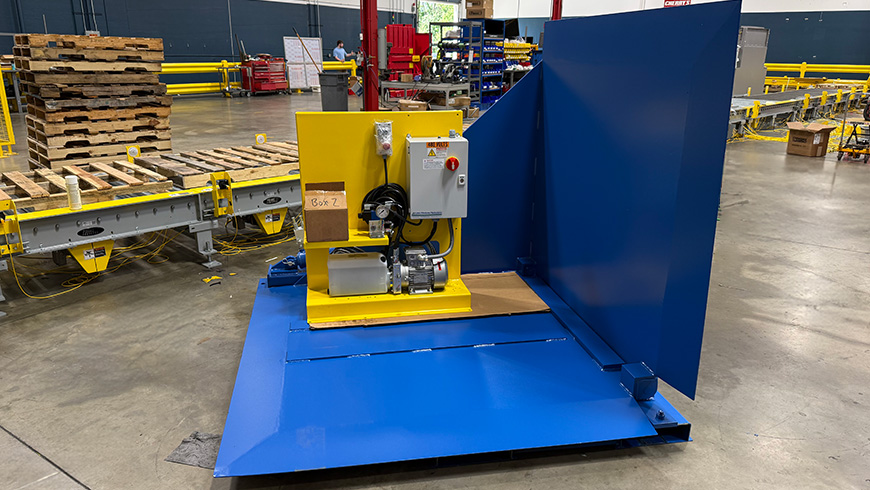

Ground loading and unloading tipper with power unit Ground loading and unloading tipper with power unit

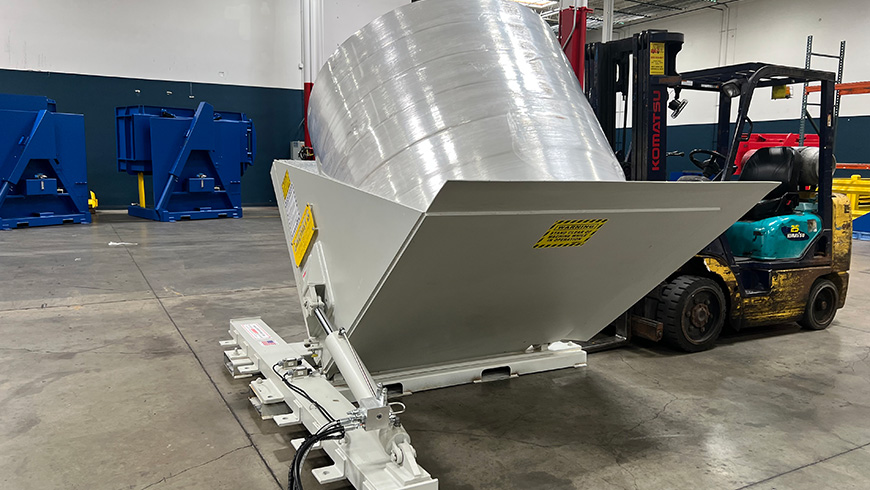

Ground loading tipper with plastic film rolls Ground loading tipper with plastic film rolls
×

Product Information

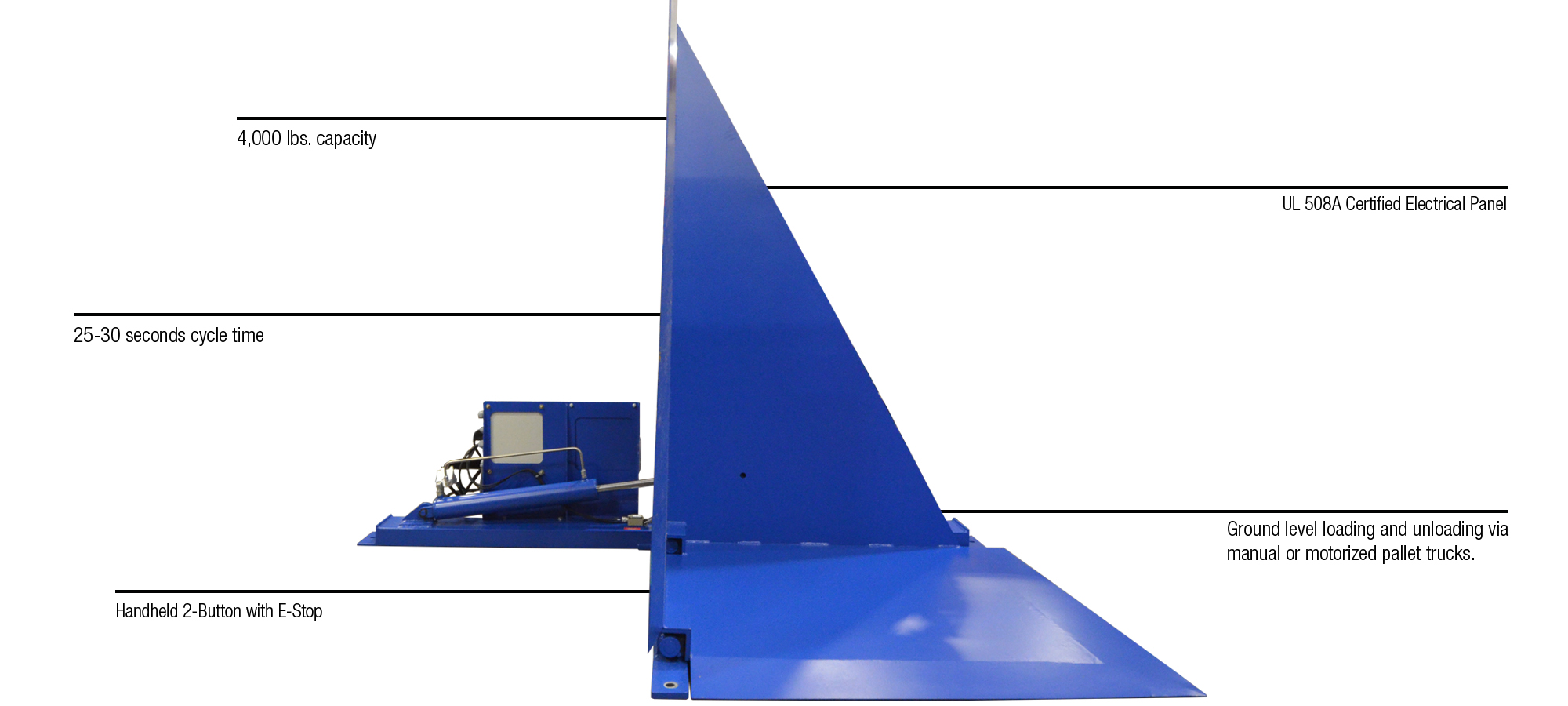

The LDT-4000 T4 4,000-lb.-capacity pallet tipper is equipped with an intermittent-duty hydraulic power pack that provides smooth, trouble-free operation during low-voltage usage. The hand-held two-button pendant simplifies pallet tipper operation. LDT-4000-T4 tipper features, benefits and specifications including: power-on-demand functionality conserves electricity, ground-level entry eliminates the need for partial ramps, rapid 25-30 second cycle time helps you maintain your tight production schedules, UL 508A-certified electrical panel promotes safe operation, multiple anchor points to hold the tipper securely in place during use.

Product Tour


Specifications


ModelLDT-4000-T4
Capacity4,000 lbs
Load/Unload HeightGround Level/Ground Level
Power Source230 or 460V *
Cycle TimeUp: 75 seconds Down: 60 seconds
ControlsHandheld (3) button pendant
Loading Table SizeConfigurable
Horizontal TableConfigurable
System Pressure0-3000 PSI
Main Turnover Cylinders1
Motor2 HP
CertificationsUL Certified Panel ***
Anchors12
Shipping weight*Varies
BrandCherry's Industrial Equipment Corp
