LDT-4000-T2 Pallet Tipper


LDT-4000-T2

4000 lb. capacity 90 degree tipper loaded and discharged at raised height. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Details
LDT-4000-T2 Pallet Tipper
LDT-4000-T2 Pallet Tipper Image 1
LDT-4000-T2 Pallet Tipper Image 2

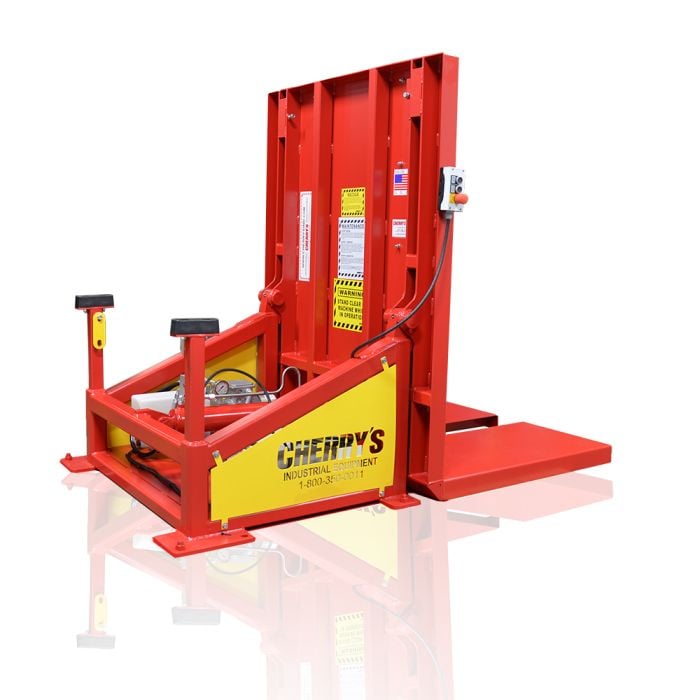

LDT-4000-T2 Pallet Tipper Image 3
LDT-4000-T2 Pallet Tipper Image 4

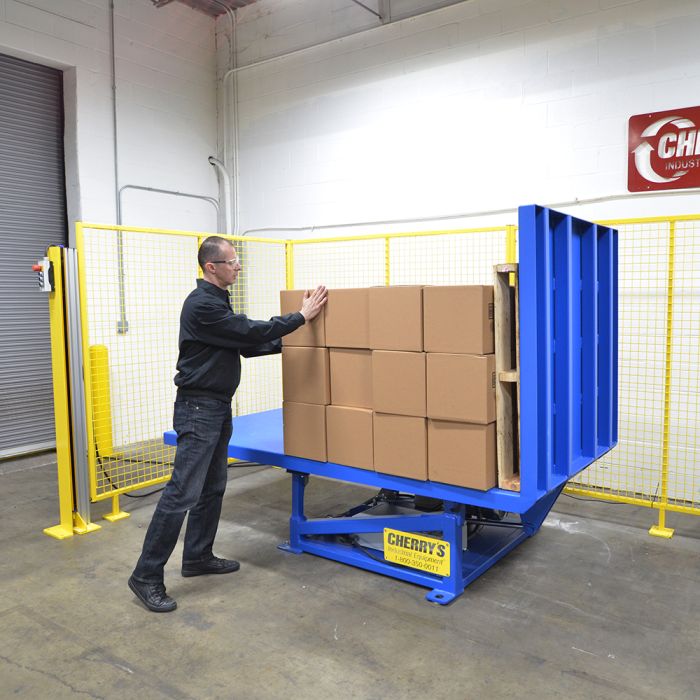

LDT-4000-T2 Pallet Tipper Image 5

See it in the Wild

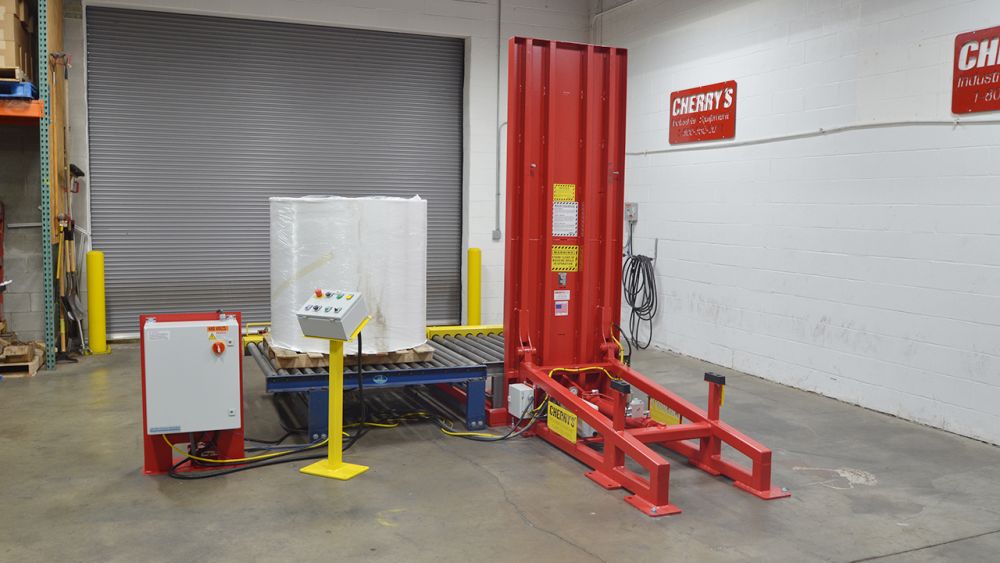

LDT-4000-T2 tipper with integrated conveyor & infeed conveyor LDT-4000-T2 tipper with integrated conveyor & infeed conveyor
LDT-4000-T2 tipper with notch for coil removal with overhead hook LDT-4000-T2 tipper with notch for coil removal with overhead hook
LDT-4000-T2 tipper with 3-phase all in one intermittent use power pack LDT-4000-T2 tipper with 3-phase all in one intermittent use power pack

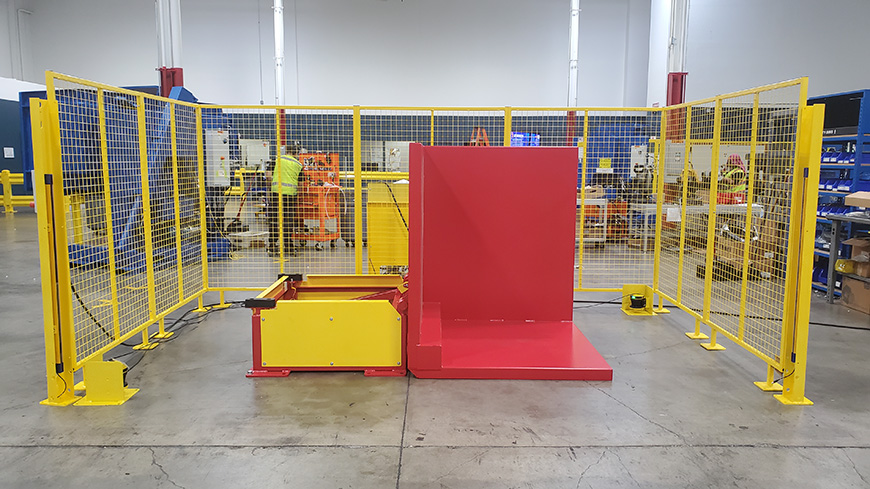

LDT-4000-T2 pallet tipper with heavy duty 3-sided guarding LDT-4000-T2 pallet tipper with heavy duty 3-sided guarding
LDT-4000-T2 tipper with shallow v-cradle upending paper rolls LDT-4000-T2 tipper with shallow v-cradle upending paper rolls

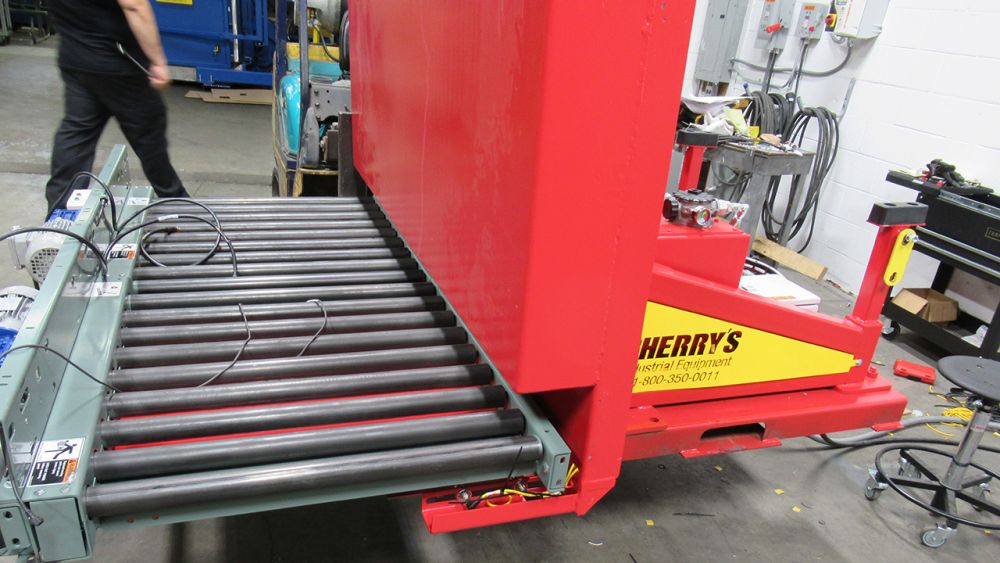

LDT-4000-T2 tipper with Hytrol conveyor LDT-4000-T2 tipper with Hytrol conveyor

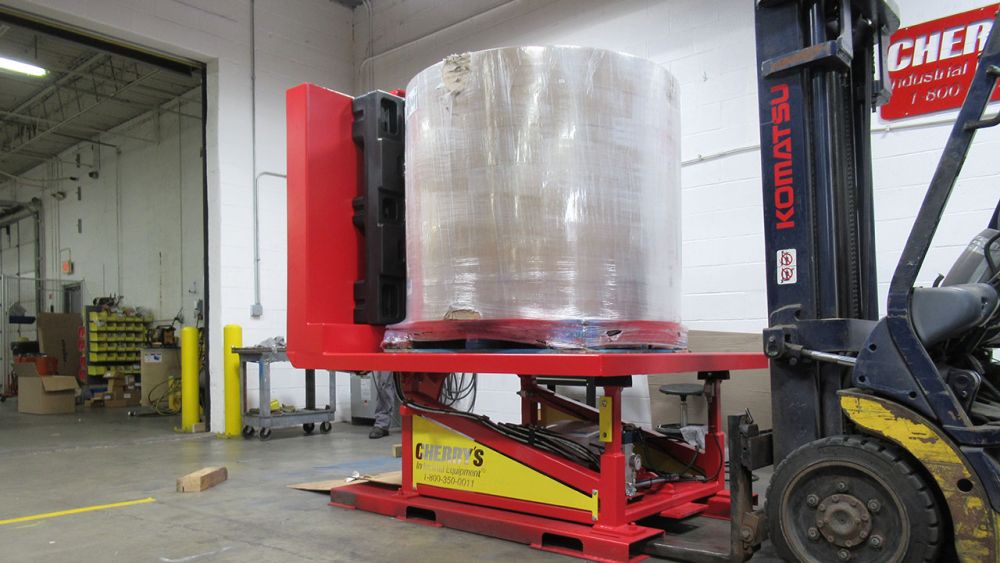

LDT-4000-T2 roll tipper with pallet holder LDT-4000-T2 roll tipper with pallet holder

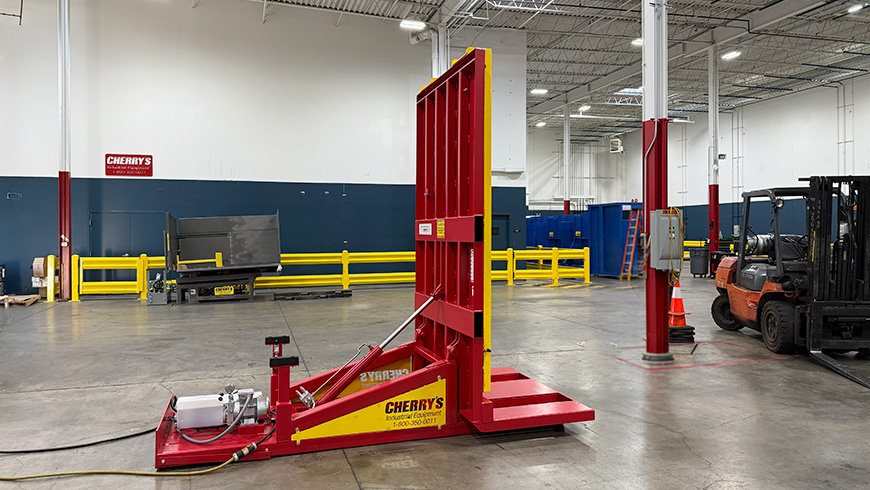

LDT-4000-T2 tipper with notches for roll placement LDT-4000-T2 tipper with notches for roll placement
LDT-4000-T2 tipper with outrigger to stabilize oversized loads LDT-4000-T2 tipper with outrigger to stabilize oversized loads
LDT-4000-T2 tipper with top securing plate LDT-4000-T2 tipper with top securing plate

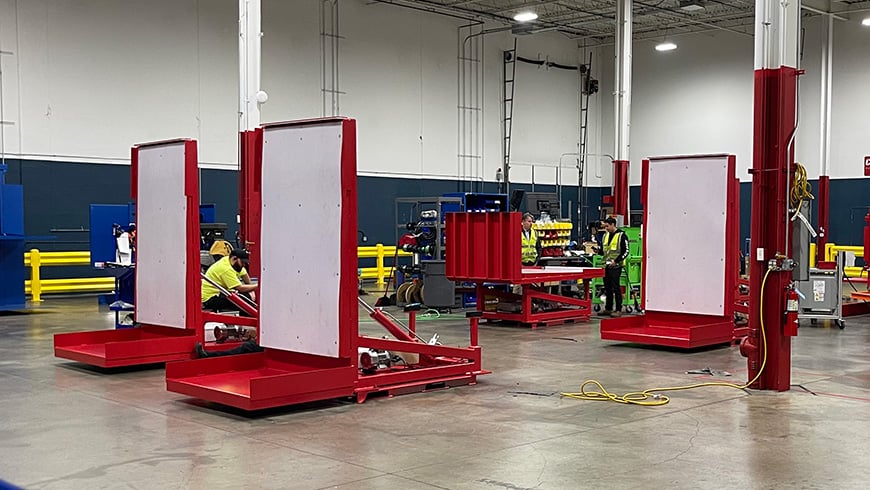

LDT-4000-T2 tipper with UHMW platform LDT-4000-T2 tipper with UHMW platform
×

Product Information

The LDT-4000-T2 Raised height to near ground level 90 degree tipper is ideal for turning paper rolls and steel coils from core horizontal to core vertical or tipping it boxes, logs or blanks onto the side for easy palletizing or to change the orientation. Hand held three button pendant and intermittent duty power pack with power-on-demand provide simple and effective operation. Structural gussets underneath provide additional support and allow 3 sided entry/operation. Made in the USA.

Product Tour


Specifications


ModelLDT-4000-T2
Capacity4,000 lbs
Load/Unload HeightRaised/Near Ground Level
Power Source230 or 460V *
Cycle TimeUp: 60 seconds Down: 45 seconds
ControlsHandheld (3) button pendant
Loading Table SizeConfigurable
Horizontal TableConfigurable
System Pressure0-3000 PSI
Main Turnover Cylinders1
Motor2 HP
CertificationsUL Certified Panel ***
Anchors6
Shipping weight*Varies
BrandCherry's Industrial Equipment Corp
