LDT-4000-T1 Pallet Tipper

LDT-4000-T1

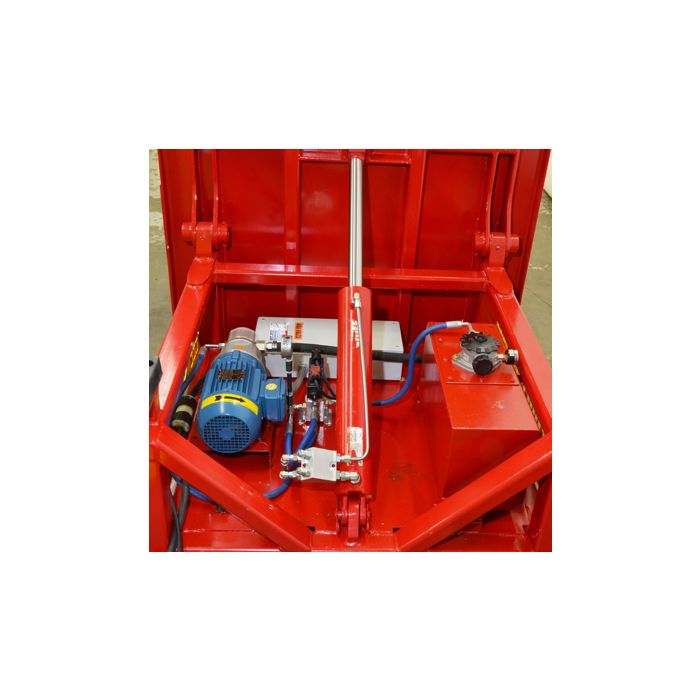

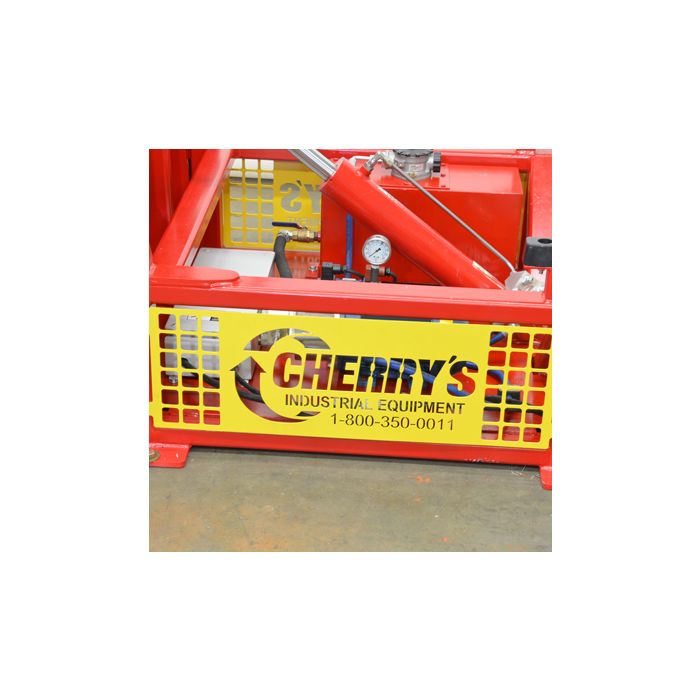

4000 lb. Capacity, 90 degree Tipper/Upender which can be loaded at ground level, unloaded at raised height by forklift truck. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

Request a Quote

Call 847-443-3861 to speak with our experts

See it in the Wild

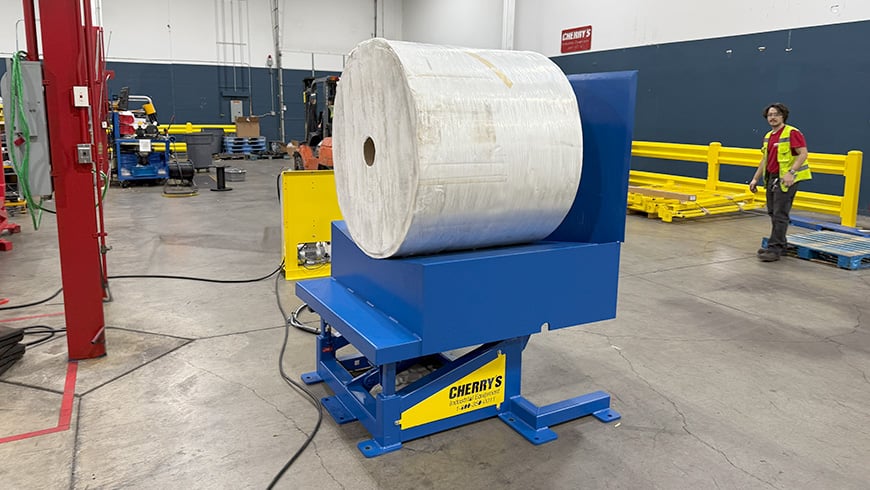

Type 1 tipper with V cradle and outrigger legs

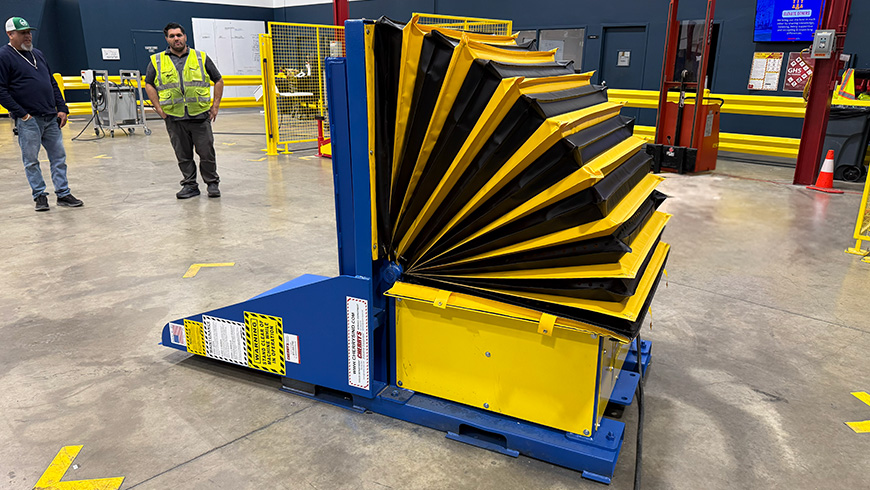

Type 1 tipper with safety accordion skirting

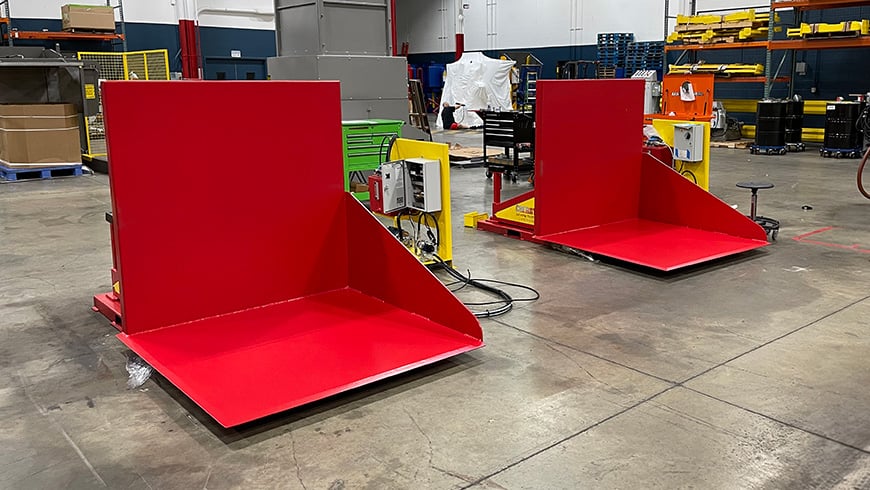

Type 1 tippers side by side

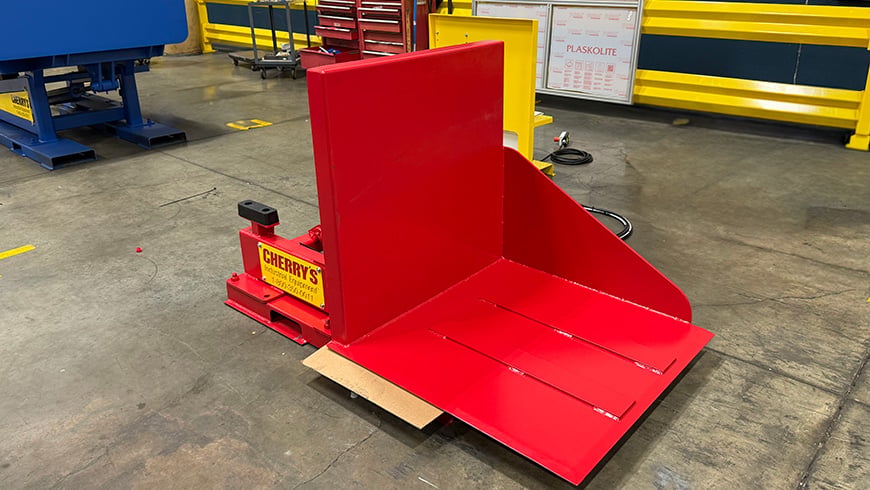

Type 1 tipper with compact size

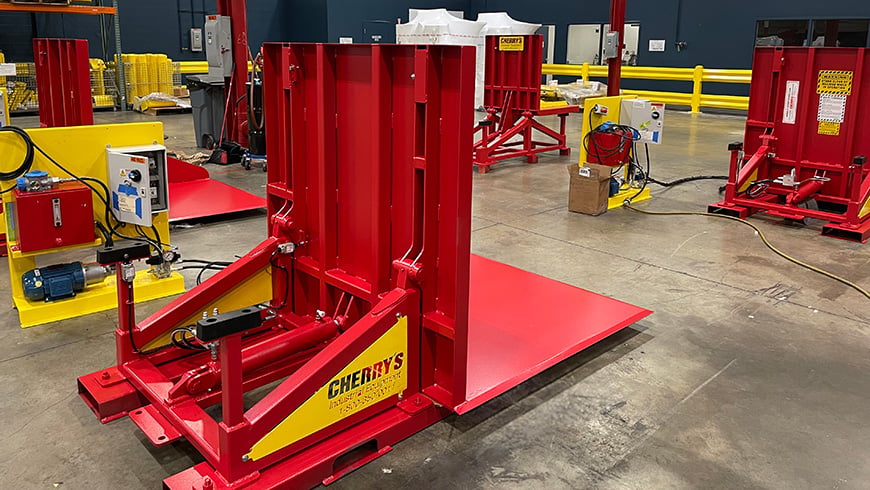

Load at ground level and remove rolls at a raised height (vice versa)

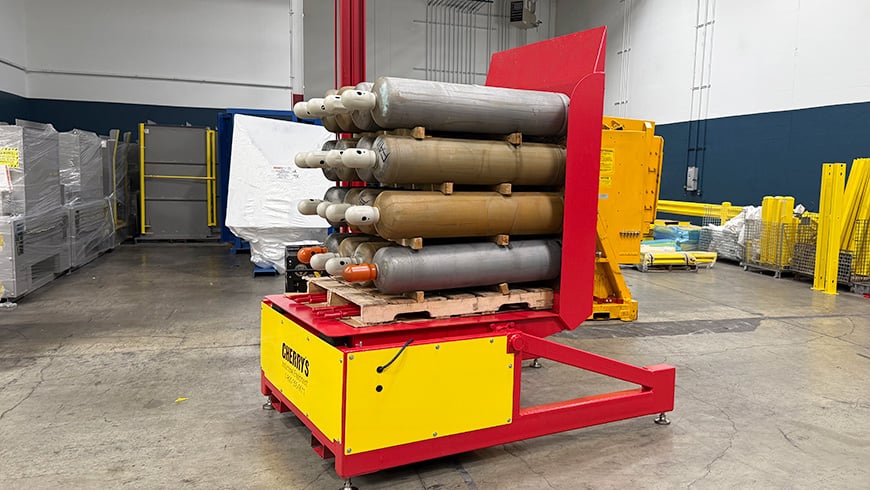

Type 1 tipper handling propane tanks

Product Information

The LDT-4000-T1 Raised height to ground level 90 degree tipper is ideal for turning paper rolls and steel coils from core horizontal to core vertical or tipping it boxes, logs or blanks onto the side for easy palletizing or to change the orientation. Hand held three button pendant and intermittent duty power pack with power-on-demand provide simple and effective operation. Best suited for low volume usage but engineered and constructed from the highest quality materials for trouble free operation. Made in the USA.

Specifications

Model	LDT-4000-T1
Capacity	4,000 lbs
Load/Unload Height	Ground Level/Raised
Power Source	230 or 460V *
Cycle Time	Up: 100 seconds Down: 80 seconds

Controls	Handheld (3) button pendant
Loading Table Size	Configurable
Horizontal Table	Configurable
System Pressure	0-3000 PSI
Main Turnover Cylinders	1

Motor	2 HP
Certifications	UL Certified Panel ***
Anchors	6
Shipping weight*	Varies
