LDI-SC78 Low Duty Pallet Inverter


LDI-SC78

The LDI-SC78 "Cadet" Low-Duty Pallet Inverter is designed for the small to medium-sized companies that need to invert between 15-20 loads per day. This inverter was designed and built with economy in mind for the quick and safe transfer to export pallets, plastic pallet, slip sheets or rental pallets. Manufactured in the U.S., this ergonomic solution will deliver both safety and enhanced productivity to your warehouse. Call today for pricing and see how the "Cadet" can save your company money and increase workplace efficiency.

Request a Quote

Call 847-443-3861 to speak with our experts

LDI-SC78 Low Duty Pallet Inverter
LDI-SC78 Low Duty Pallet Inverter Image 1

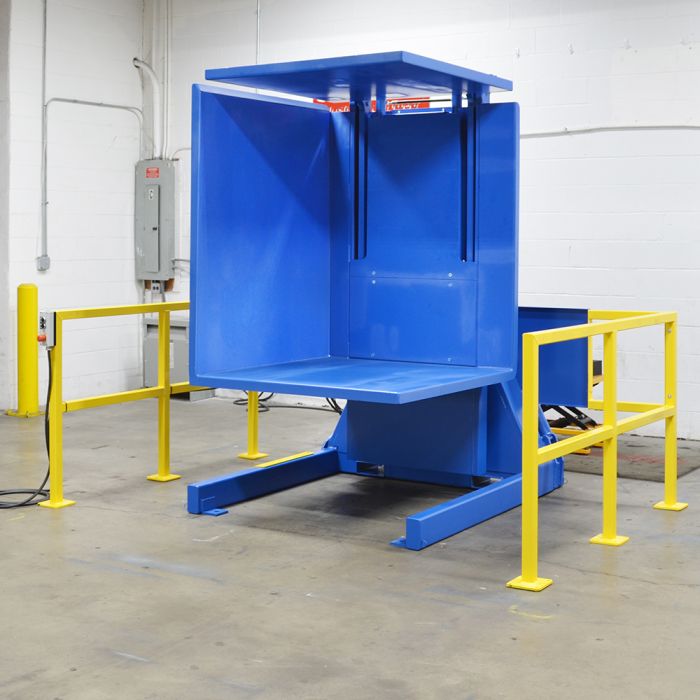

LDI-SC78 Low Duty Pallet Inverter Image 2
LDI-SC78 Low Duty Pallet Inverter Image 3
LDI-SC78 Low Duty Pallet Inverter Image 4

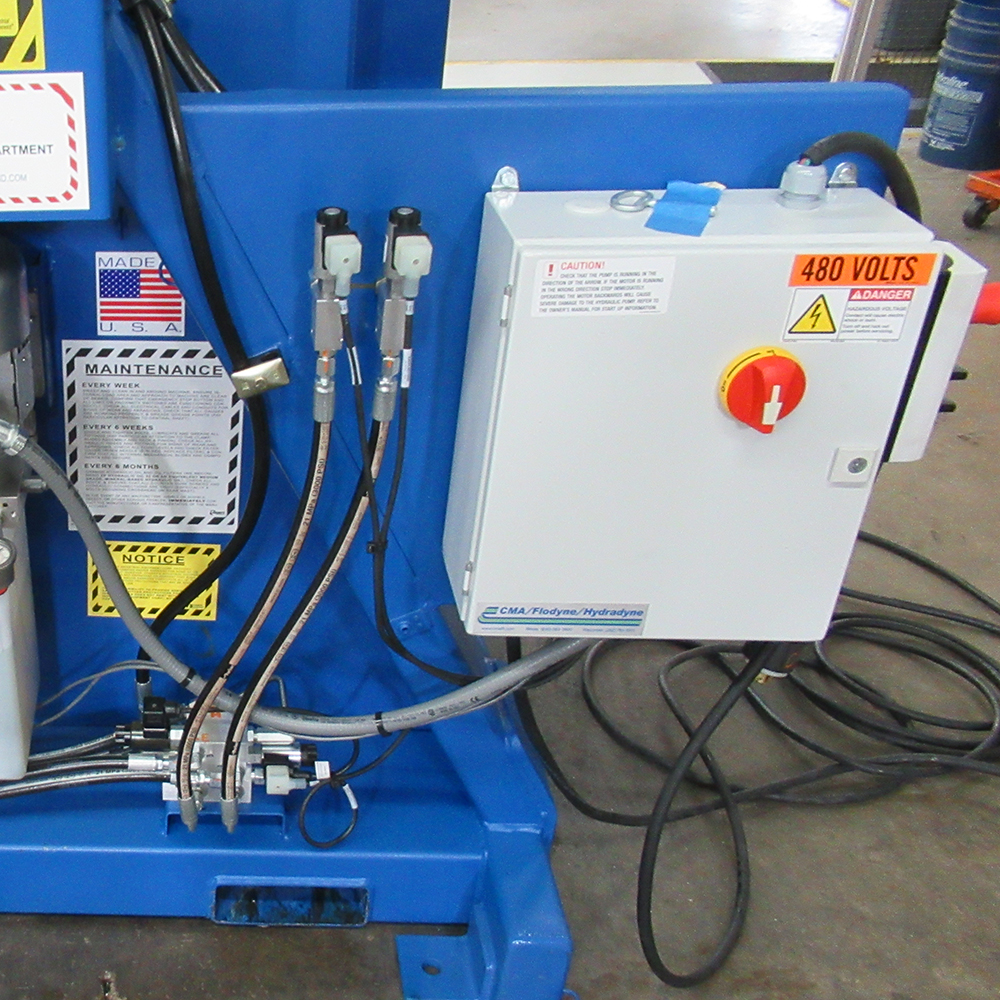

LDI-SC78 Low Duty Pallet Inverter Image 5

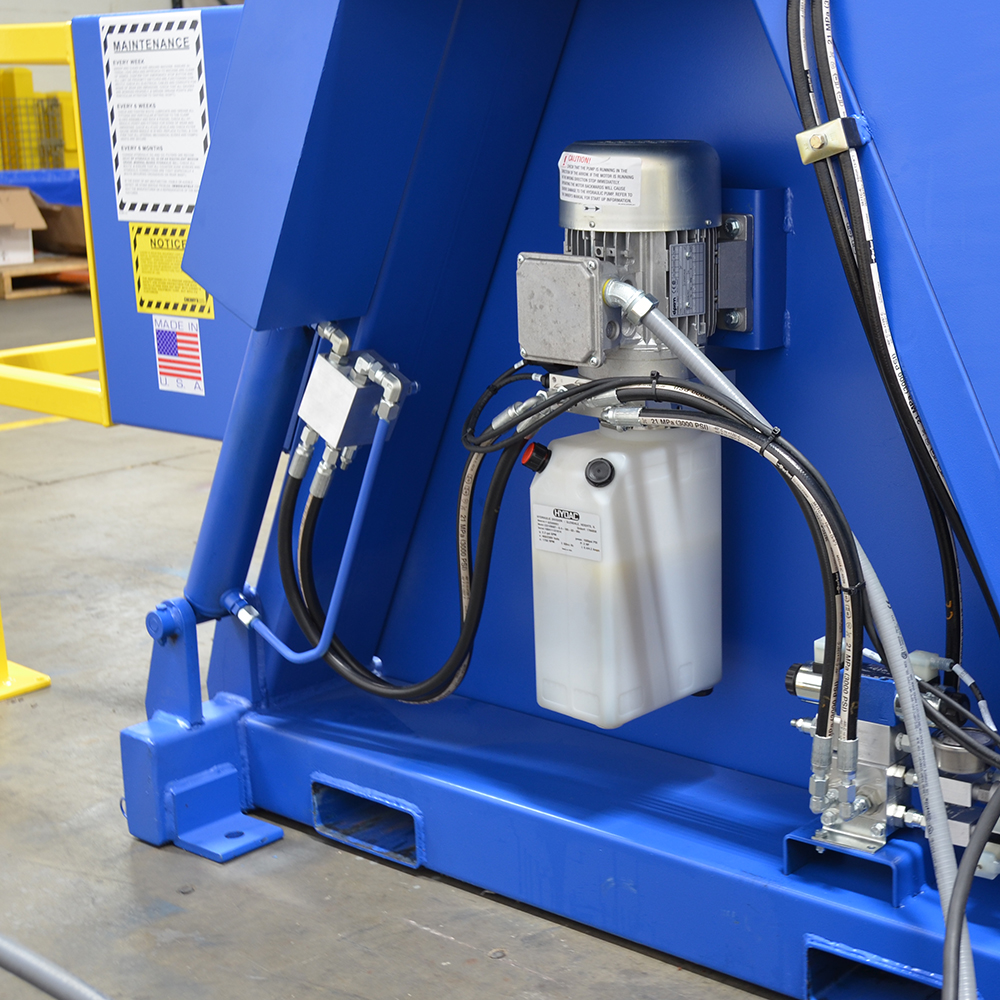

LDI-SC78 Low Duty Pallet Inverter Image 6

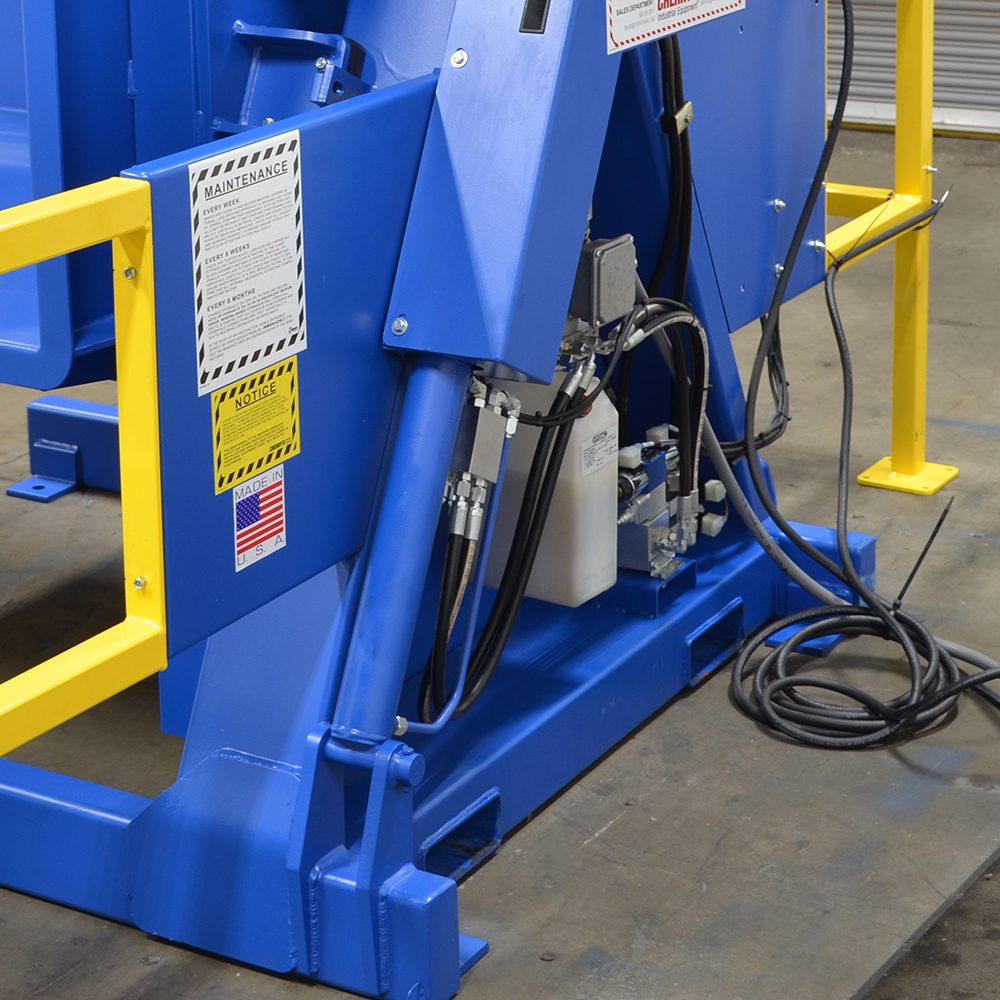

LDI-SC78 Low Duty Pallet Inverter Image 7

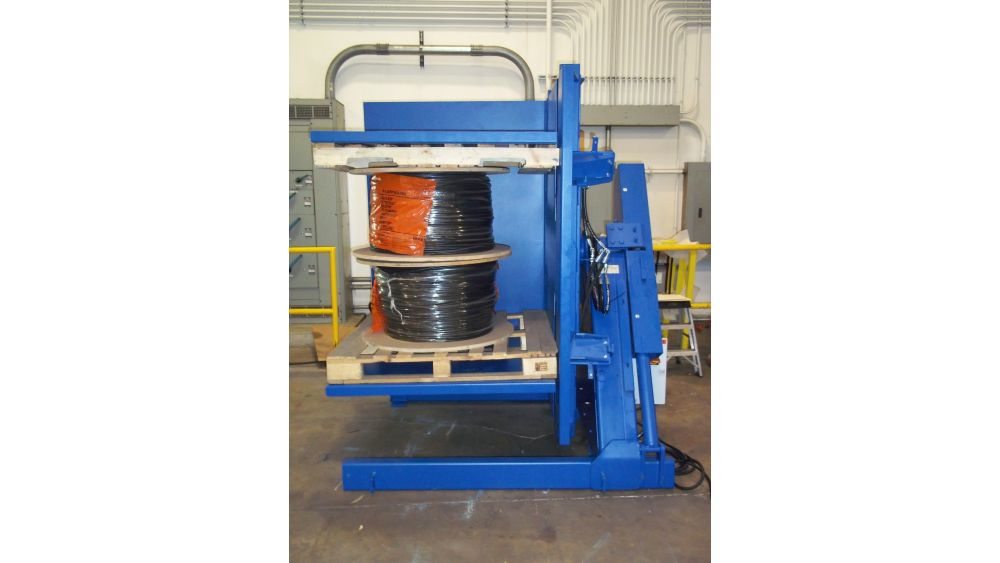

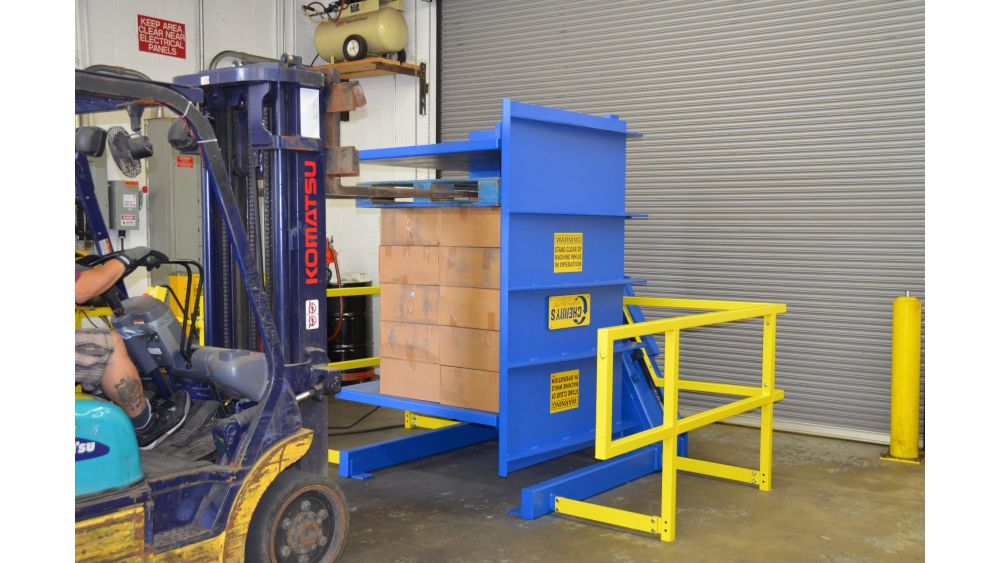

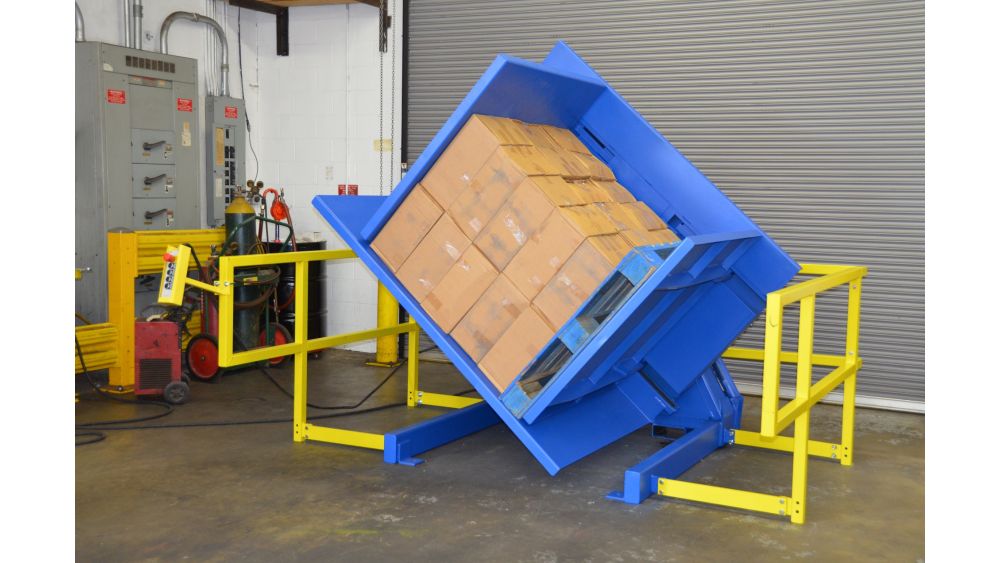

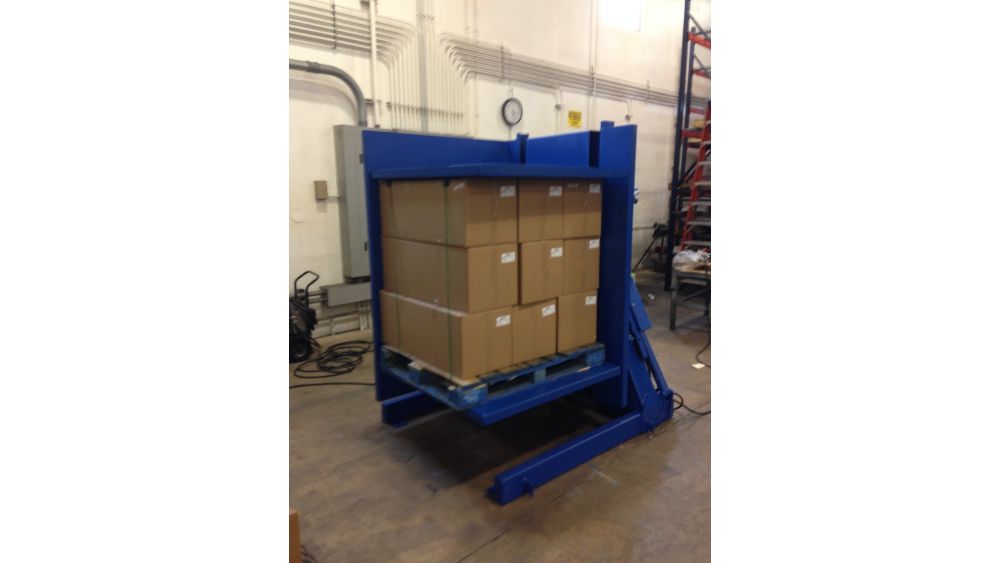

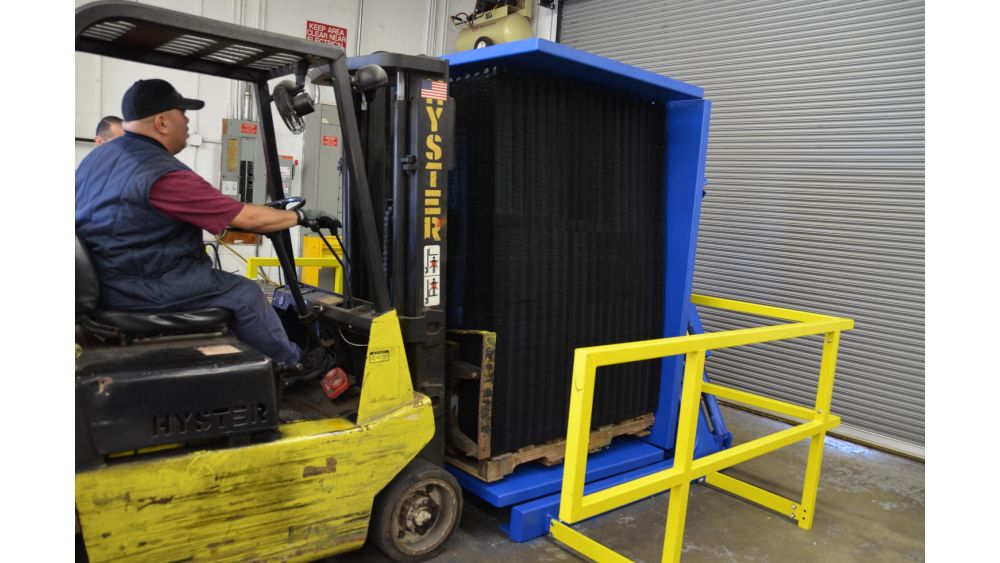

See it in the Wild

×

Product Information

The "Cadet" Low Duty Pallet Inverter addresses various material handling applications. Here are just a few: Exchanging one pallet for another such as an in-house pallet for an export pallet; Inverting printed sheets of material for the purpose of printing on the otherside, or turning over a pallet of stacked product to locate and remove any damaged product resting proximate to the pallet. The "Cadet" has a 2,500 lb capacity and comes with a handheld 4 button pendant controller with an emergency stop button. The power on-demand hydraulic unit (an Energy Savings Feature) enables the "Cadet" to function only upon depression of any of the individual pendant control buttons. This amazing low duty inverter comes with a 1 Year Labor and Parts Warranty. Made in the USA.

Product Tour


Specifications


ModelLDI-SC78
ControlsHandheld 4 Button Pendant with E-Stop
Energy Saver FunctionYes
Loading Table Size50" X 50"
Max. Jaw Opening78"
Min. Jaw Opening42"
FinishTwo part epoxy paint - Traffic blue
Capacity2,500 lbs
Adjustable Clamp Pressure1500 PSI
System Pressure1500 PSI
Speed ControlFlow controls with load holding CB valves
Maintenance Lock Outs4
Motor2 HP
Power Source230 or 460V 3 Phase Motor
CertificationsUL Certified Panel
WarrantyOne Year Parts and Labor
FOBRoselle, IL
Loading Height20.25
Operating Width106"
Operating Height107"
Loading Height Inverted9"
Width With Guards116.5"
Shipping weight*3,100 lbs fully assembled
Shipping Dimensions90" H X 54" W X 80" D
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

The LDI-SC78 offers 2 fundamental control configuration options to fit the needs of your warehouse operations. The standard energy saver pendant with E-Stop and illuminated switches can be magnetically held on the side of the guarding. An additional light curtain reset is available for the same style control pendant for use with light curtain guarding. To further minimize risk, the safety-ready electrical panel is available with safety relay.

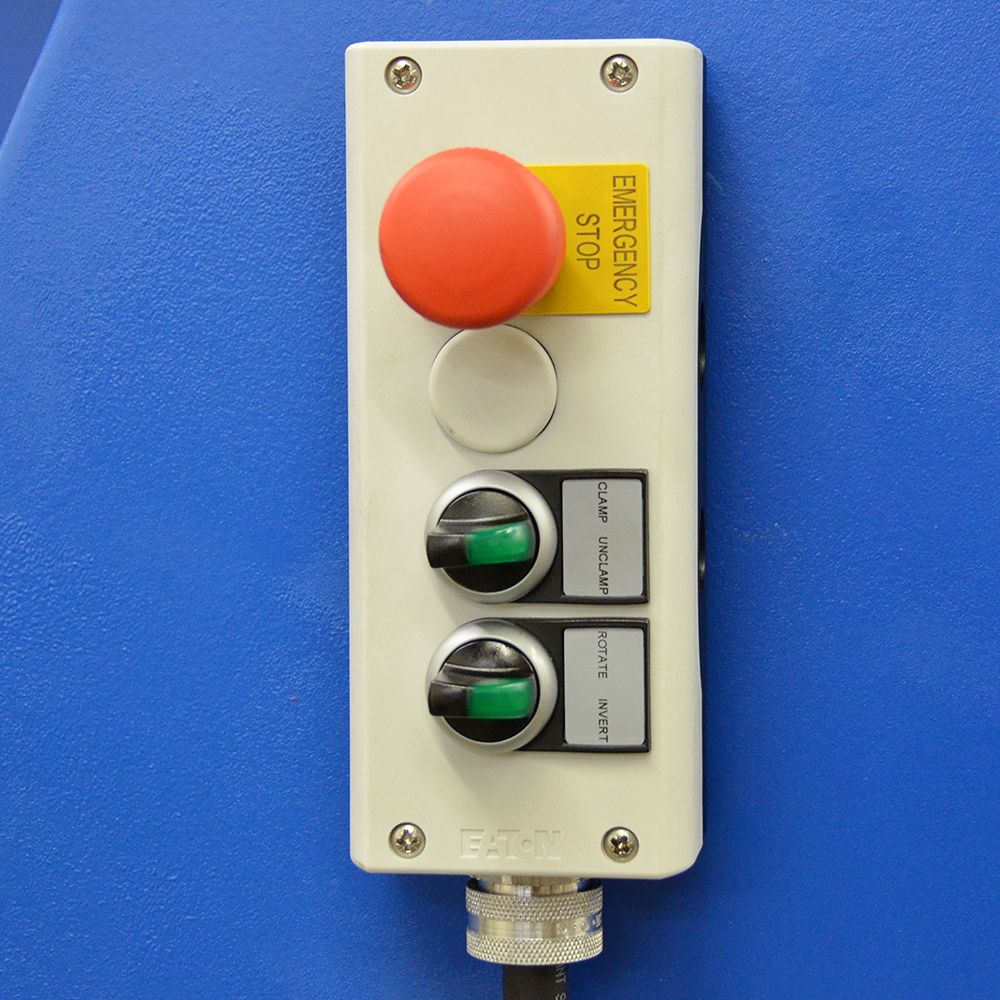

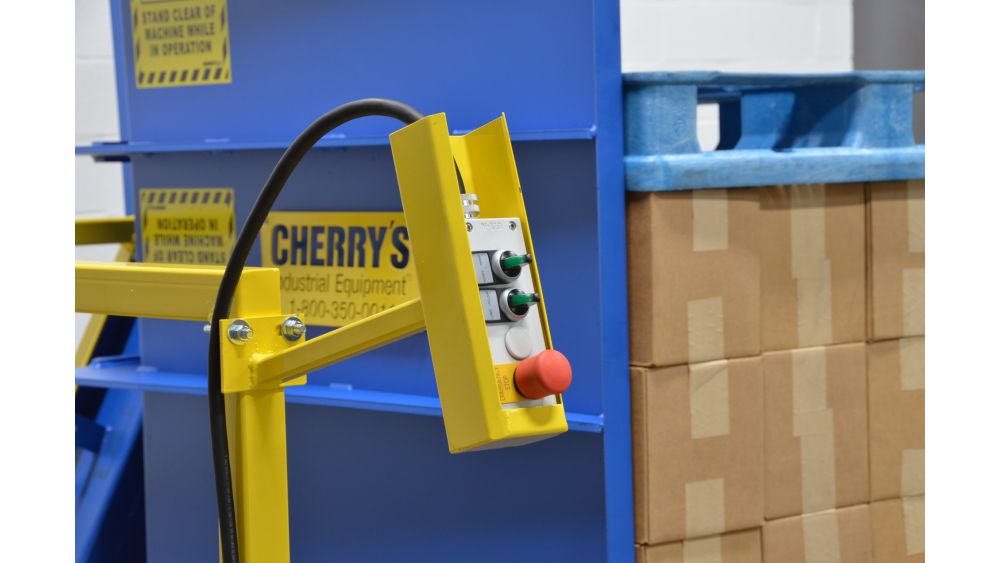

3-Position Switch Pendant Controller with E-Stop3-Position Switch Pendant Controller with E-Stop

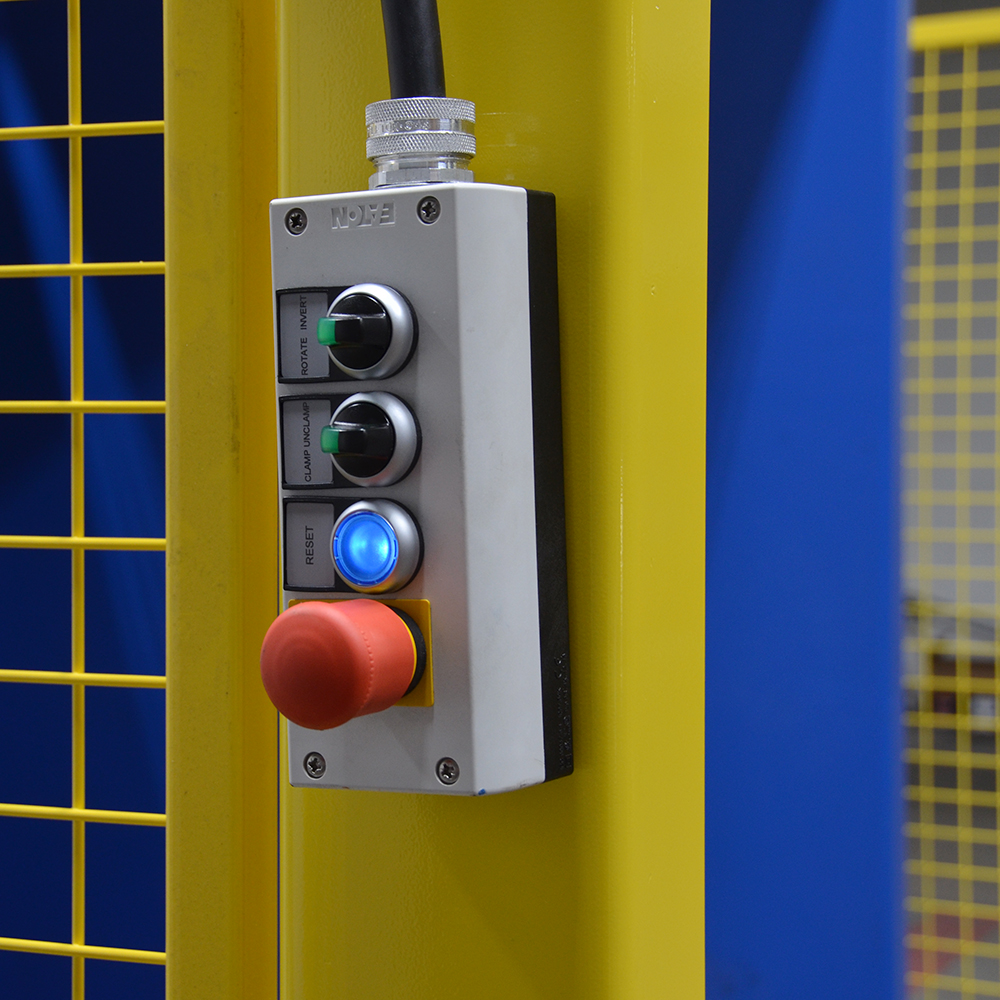

Pendant control with E-stop and light curtain resetPendant control with E-stop and light curtain reset
Safety rated electrical panel with disconnectSafety rated electrical panel with disconnect

Options

The standard LDI-SC78 Pallet Inverter ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls, rail guarding and power unit. More Options are available including: custom color/finishes, a slip sheet profile plate, and 110V single phase electrical system to meet your application or corporate specification.


Paint color/finishPaint color/finish

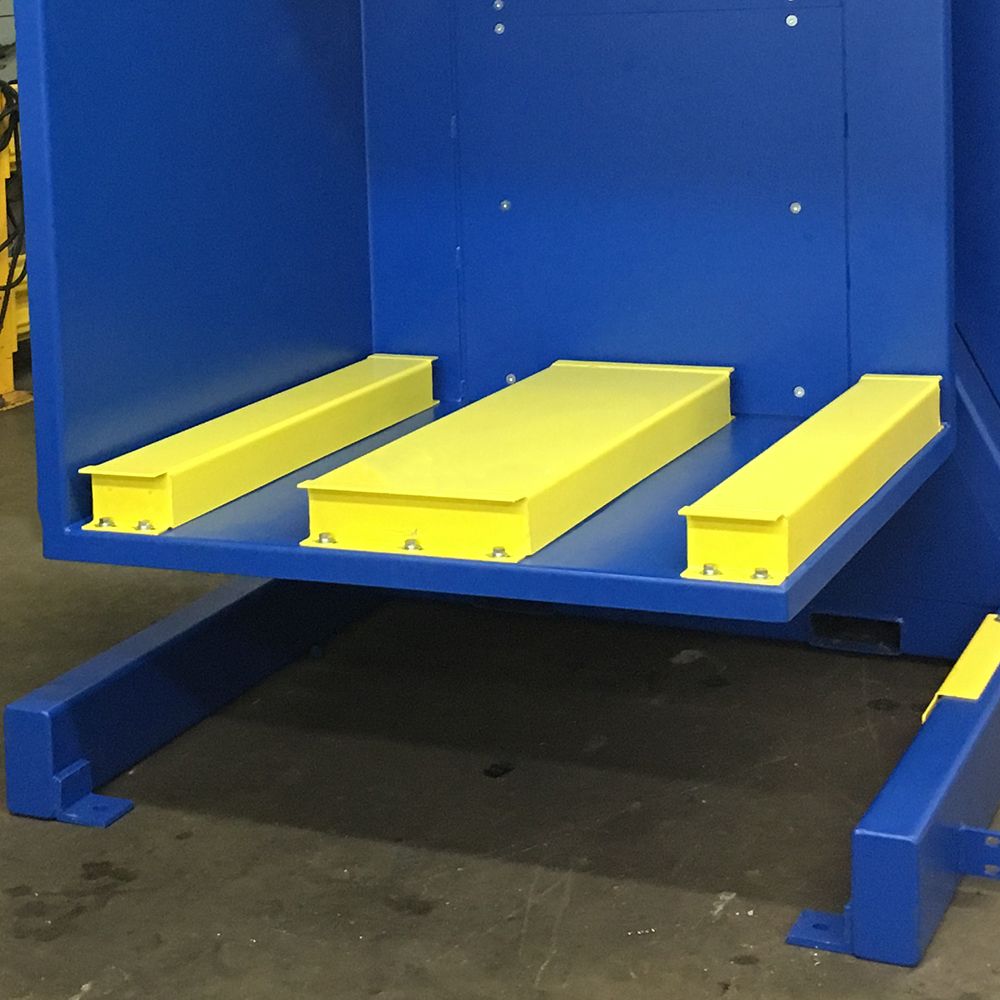

Slip Sheet ProfileSlip Sheet Profile
110V Single phase electrics110V Single phase electrics

Guards

To enhance safety in your operations the standard LDI-SC78 includes square tube rail guarding that protects the equipment against forklift damage. Optional personnel guarding features a 3-sided 78 high style perimeter guards. For added safety, light curtains can be added to protect the area inside of the fence and around the machine.

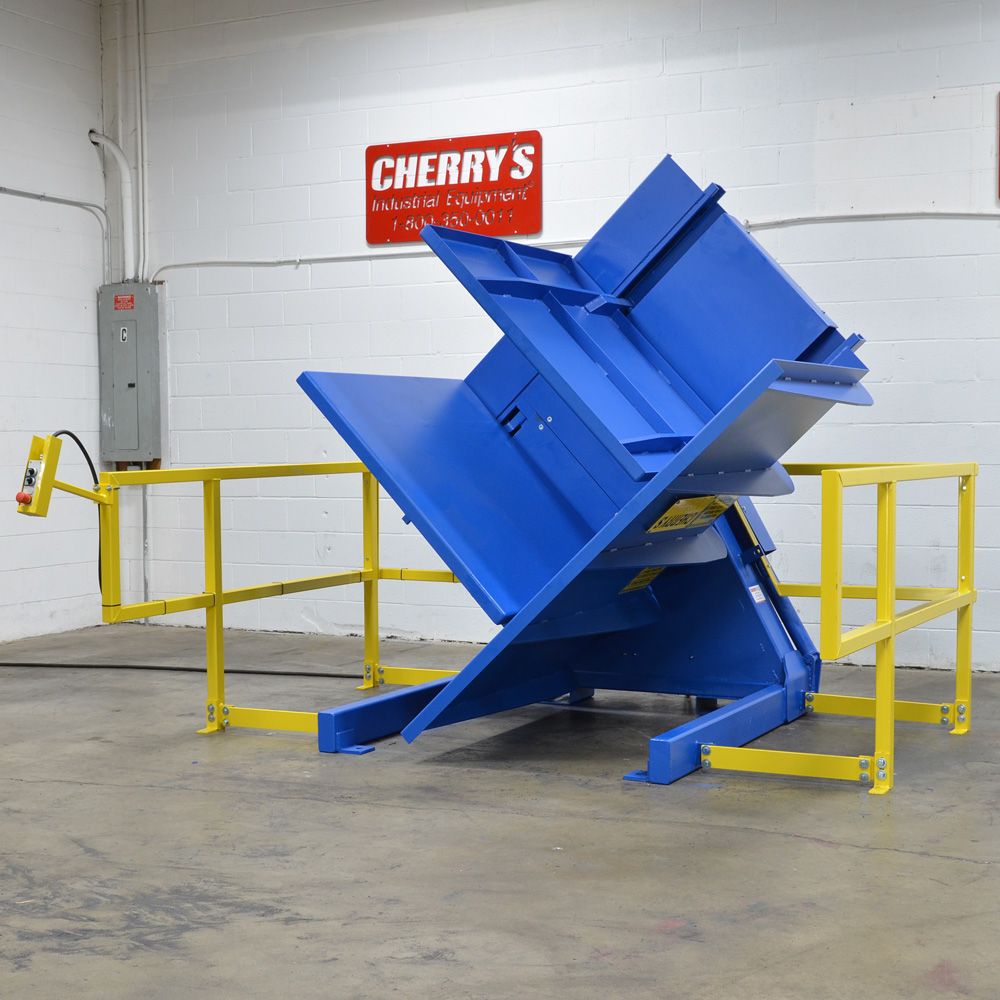

Protective rail guardsProtective rail guards

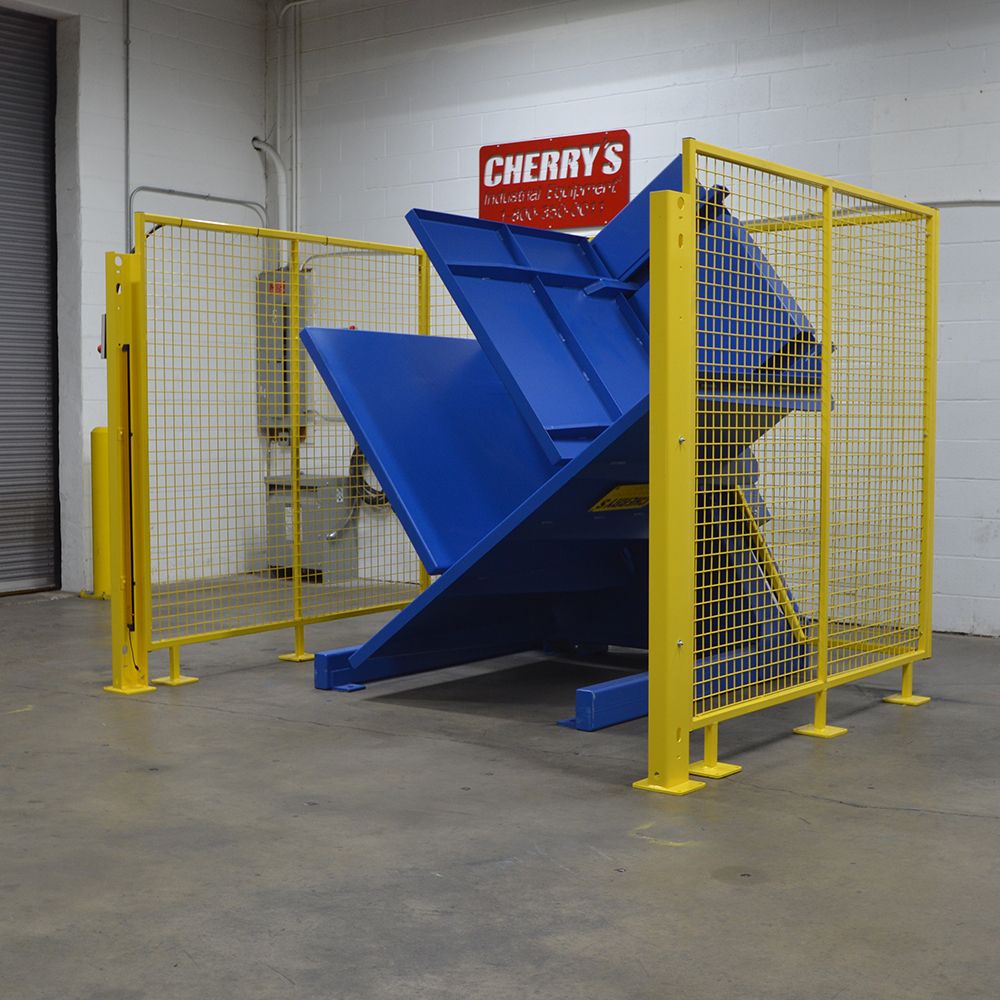

3-sided perimeter guards3-sided perimeter guards

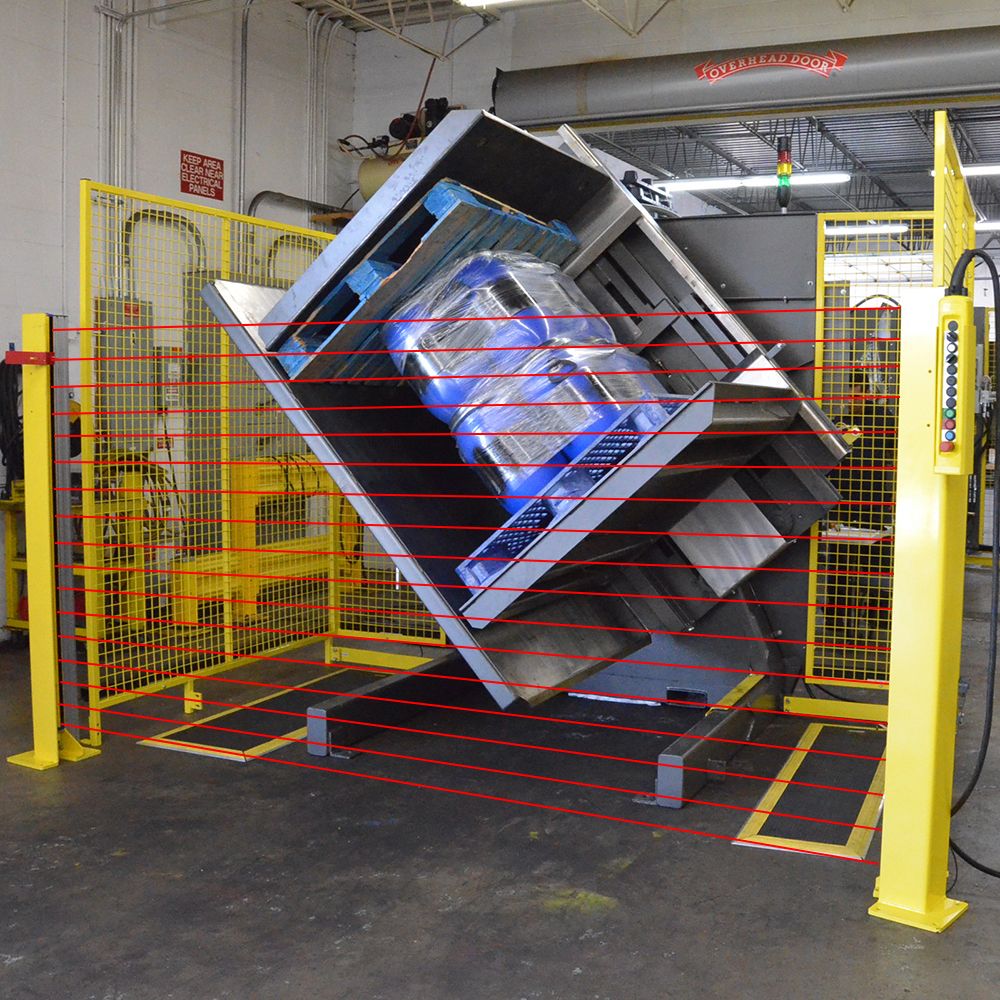

Light CurtainsLight Curtains
