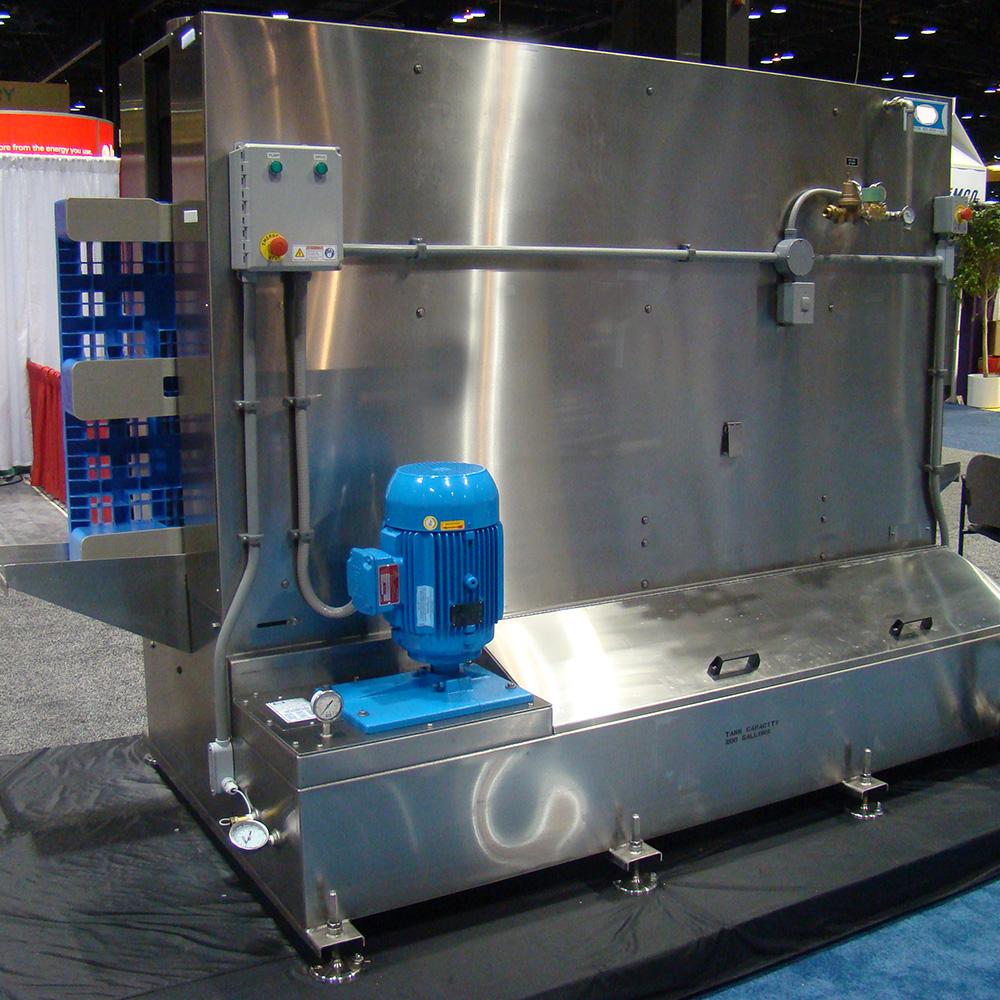

KPWIMC-8-15 Compact Pallet Washer


KPWIMC-8-15

The Vertical Pallet Washer processes 60 to 100 pallets per hour using a 180 GPM pump that delivers up to 60 PSI at each high-impact spray nozzle for powerful cleaning. A durable slat conveyor, controlled by a variable frequency drive (VFD), adjusts speed to match wash requirements. Optional features include a pallet rinse stage, siphon sanitizer, exhaust ventilation fans, water heater, and integrated dryer for a complete, customizable cleaning solution.

Call 847-443-3861 to speak with our experts

KPWIMC-8-15 Compact Pallet Washer

See it in the Wild

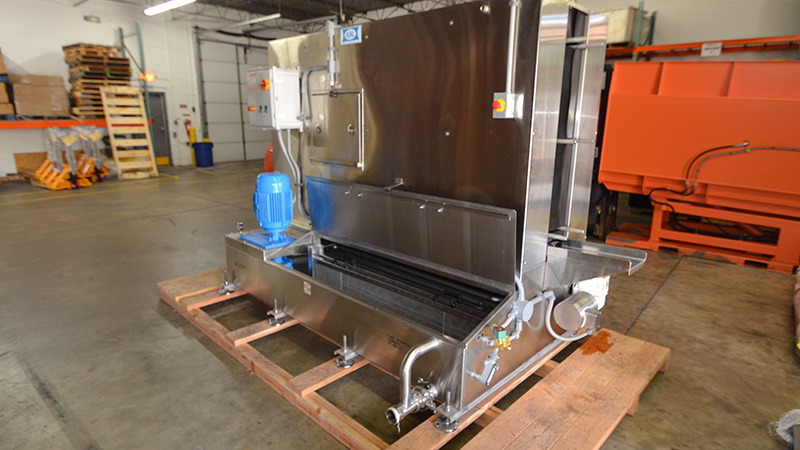

Stainless steel compact pallet washer Stainless steel compact pallet washer

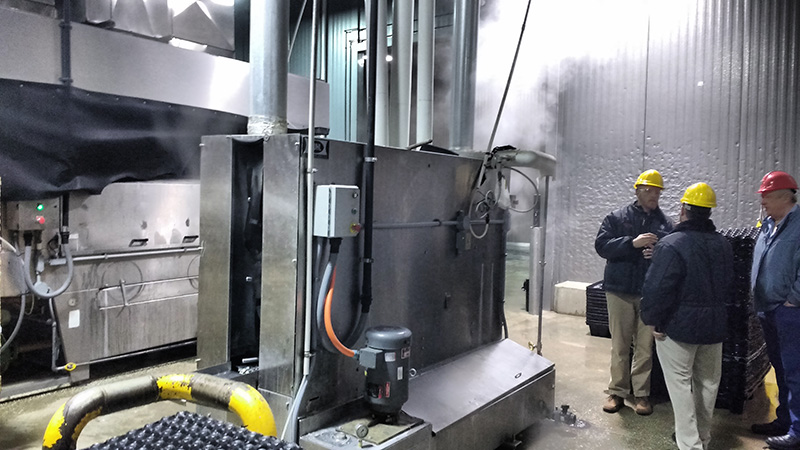

Pallet and freezer spacer washer in cold environment Pallet and freezer spacer washer in cold environment

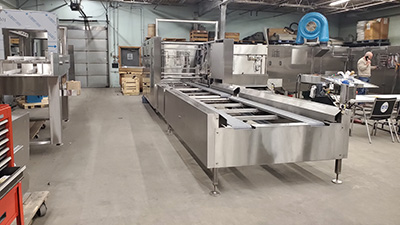

Modular and expandable pallet washer system Modular and expandable pallet washer system
×

Product Information

Efficient, Consistent, and Built for High-Volume Sanitation - The Compact Pallet Washer is engineered for high-throughput environments that demand reliable cleaning, rinsing, and sanitizing of individual vertical plastic pallets. Designed for continuous flow, plastic pallets are conveyed one at a time into the wash chamber and exit at the discharge end - thoroughly cleaned and ready for reuse. To conserve resources and reduce operating costs, the system features a **filtered, recirculated wash and rinse process**. An integrated recovery system returns water to the main tank, while an automated **replenishment system** maintains optimal water levels - compensating for any loss due to evaporation, overspray, or carry-off. Ideal for operations where sanitation, efficiency, and sustainability are critical, the Vertical Pallet Washer delivers consistent performance with minimal manual intervention.

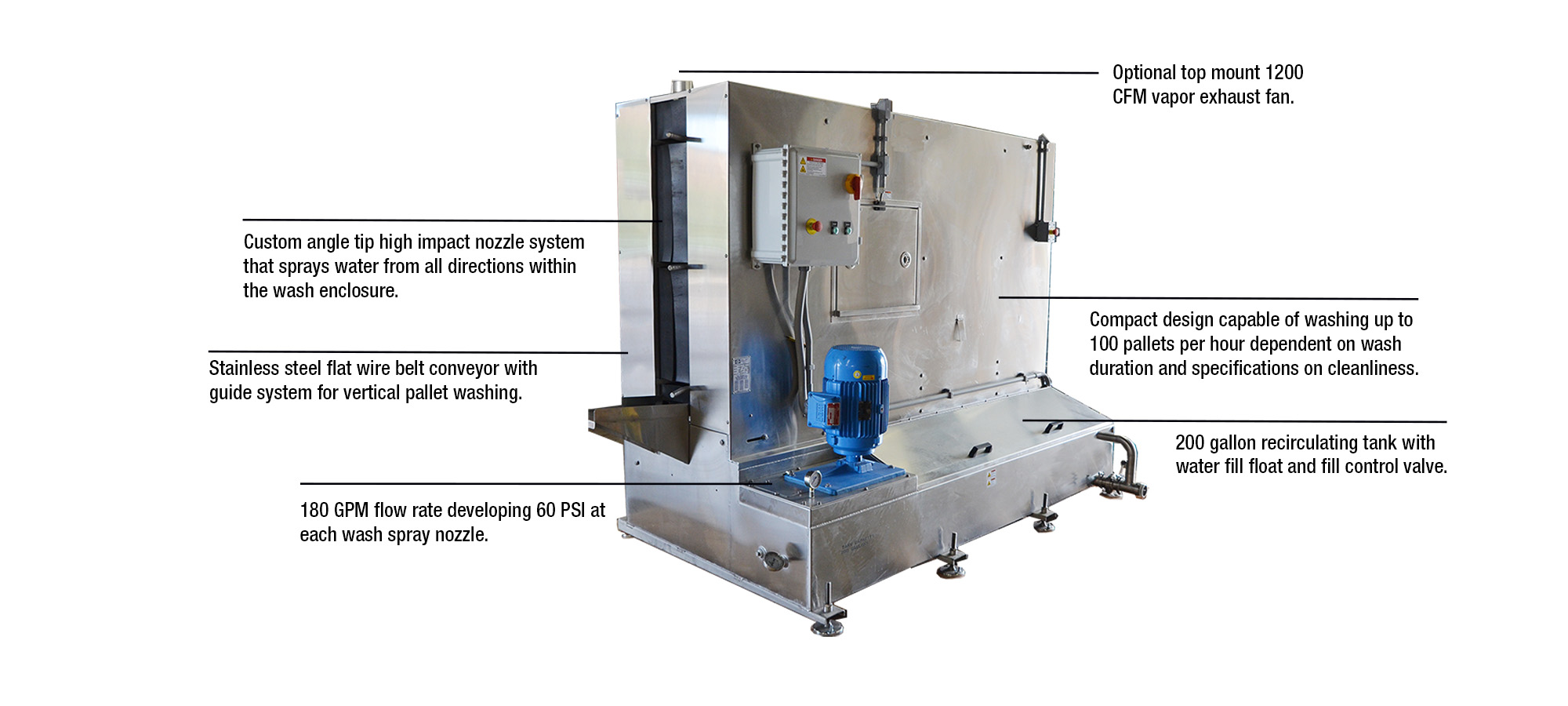

Product Tour


Specifications


ModelKPWiMC-8-15
Capacity60-100 pallets per hour

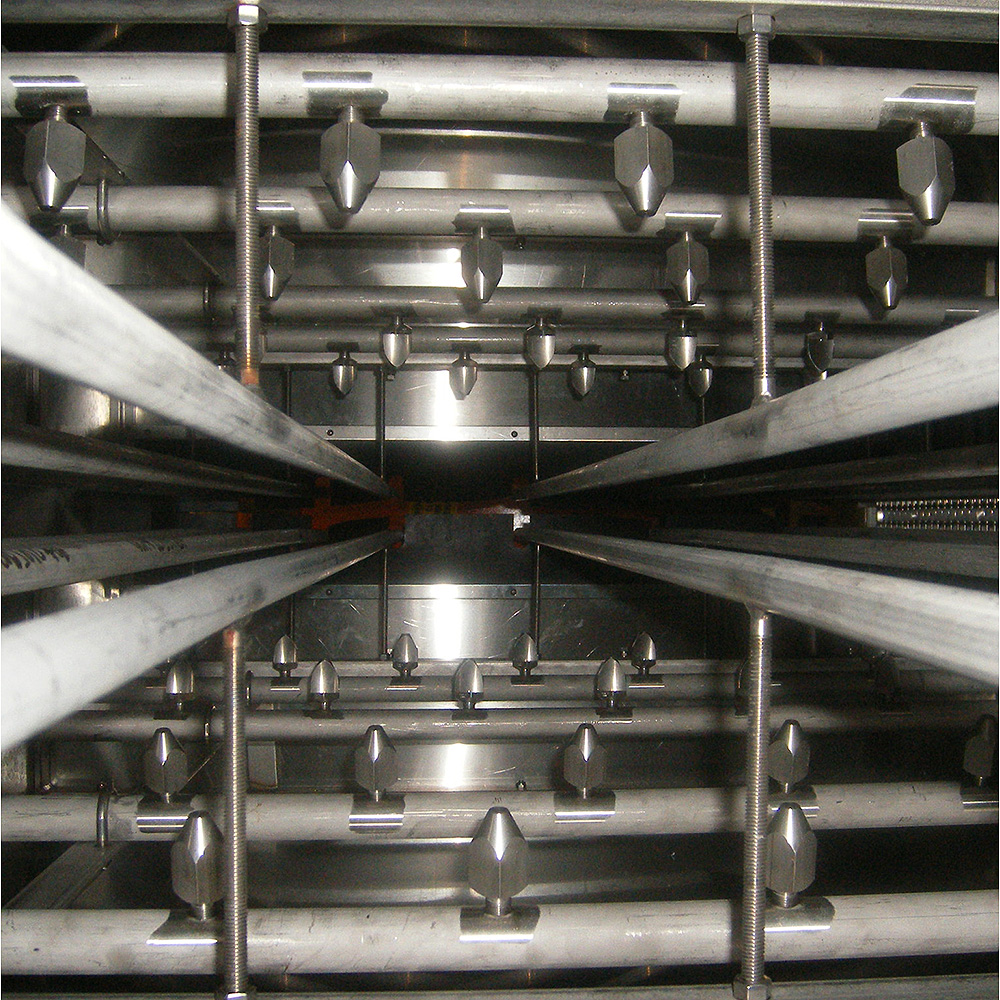

Nozzle TypeCustom angle tip high impact
Recrculating tank200 gallon with fill float

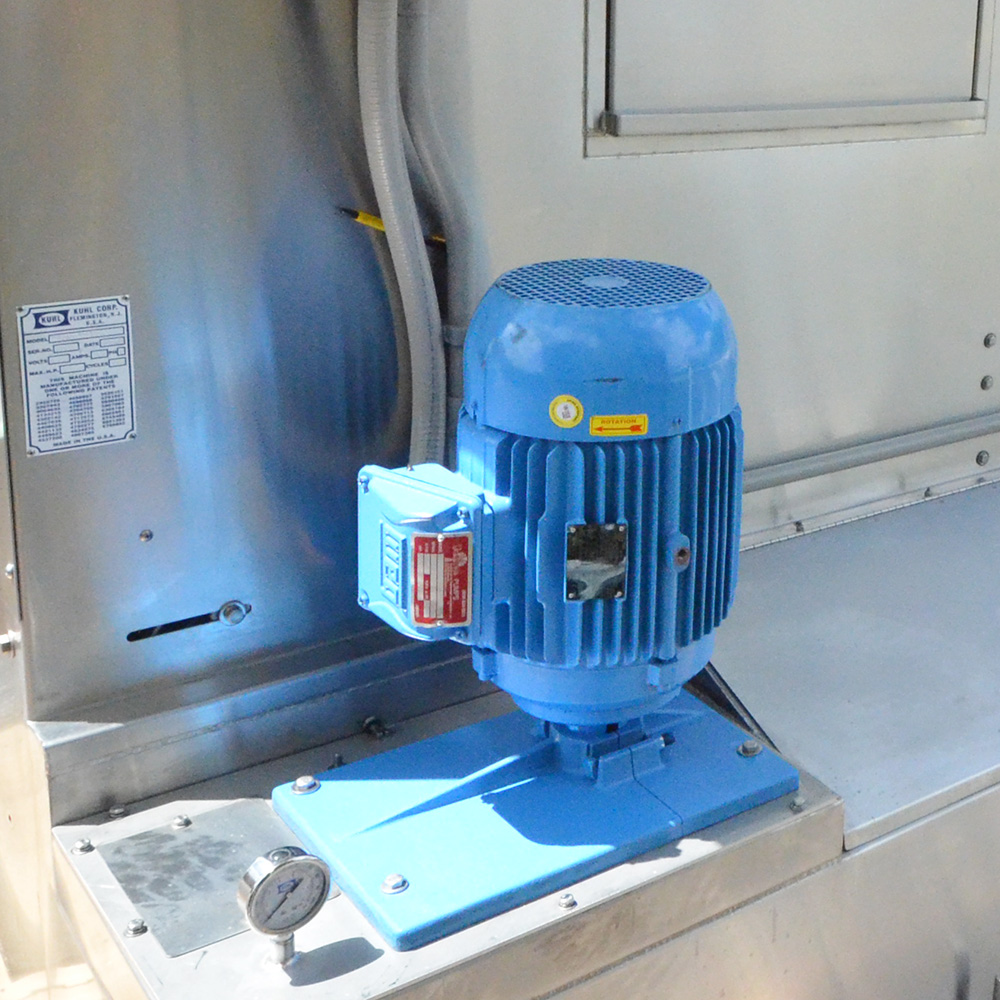

Pump Drive15 HP motor with 180GPM pump
Wash temperature130-150 degrees
Construction304 stainless with #3 polish
Construction304 stainless with #3 polish
Load/Unload height24"
Power Source230/460V 3 phase

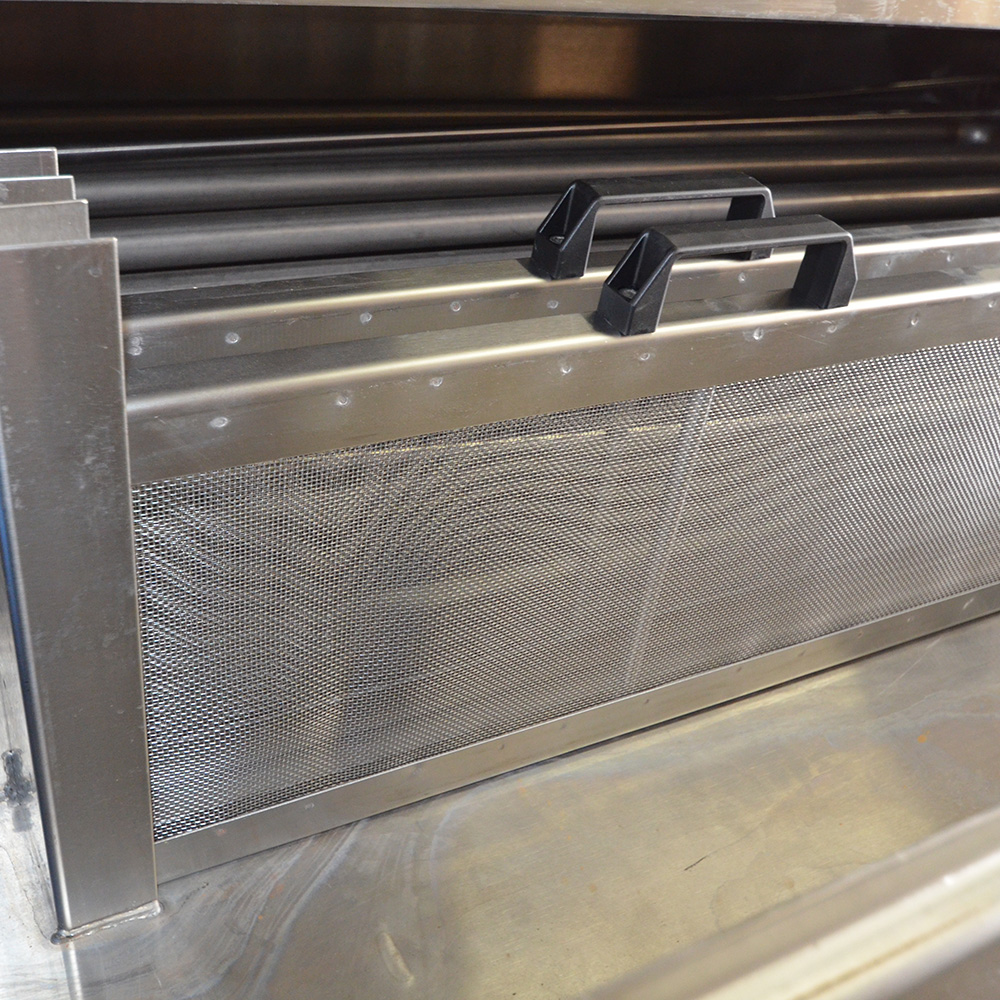

Filter SystemVertical and horizontal screens

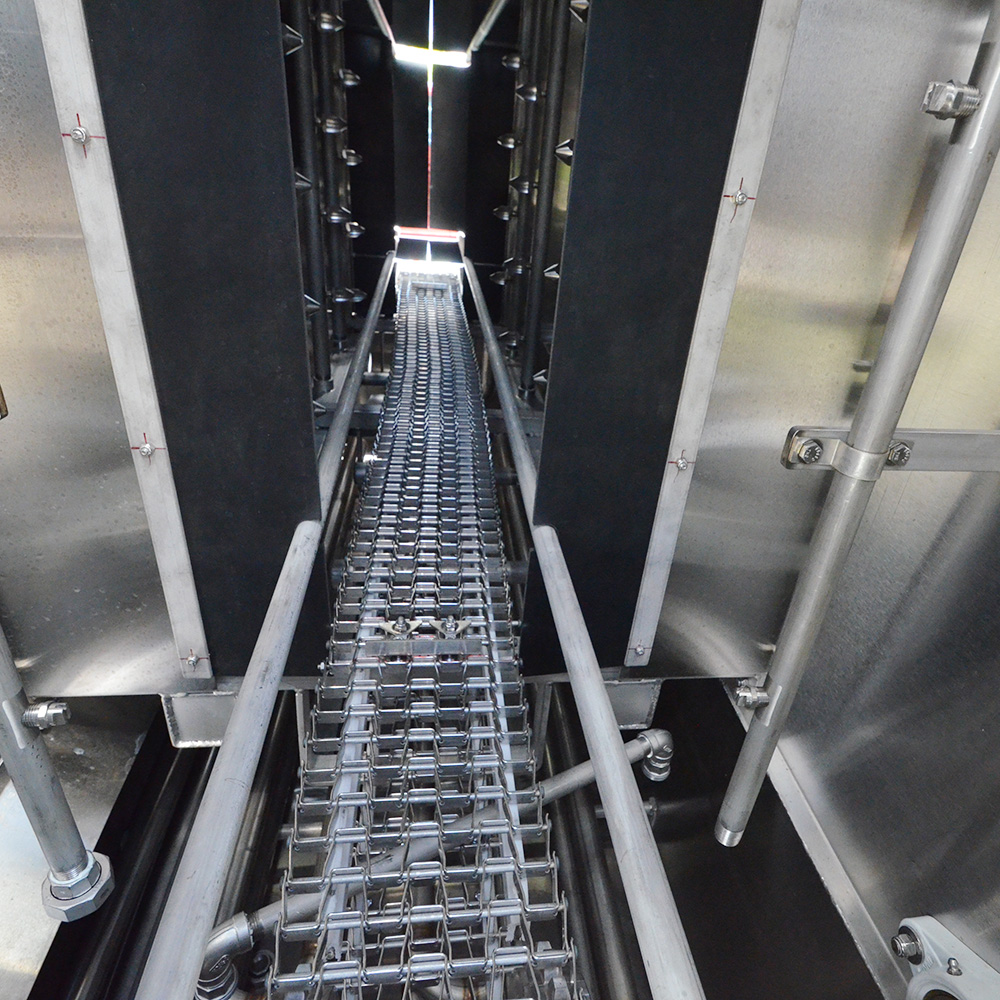

Conveyor typeStainless steel flat wire belt 1" x 1"
Conveyor speedAdjustable via VFD
Water pump180 GPM flow rate
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Rinse and Sanitizing Options

Enhance hygiene with an optional final fresh water rinse stage featuring an integrated rinse module controlled directly from the system interface. For added sanitation, a positive sanitizer final rinse includes a siphon valve and metering pump to ensure accurate dosing and consistent coverage.

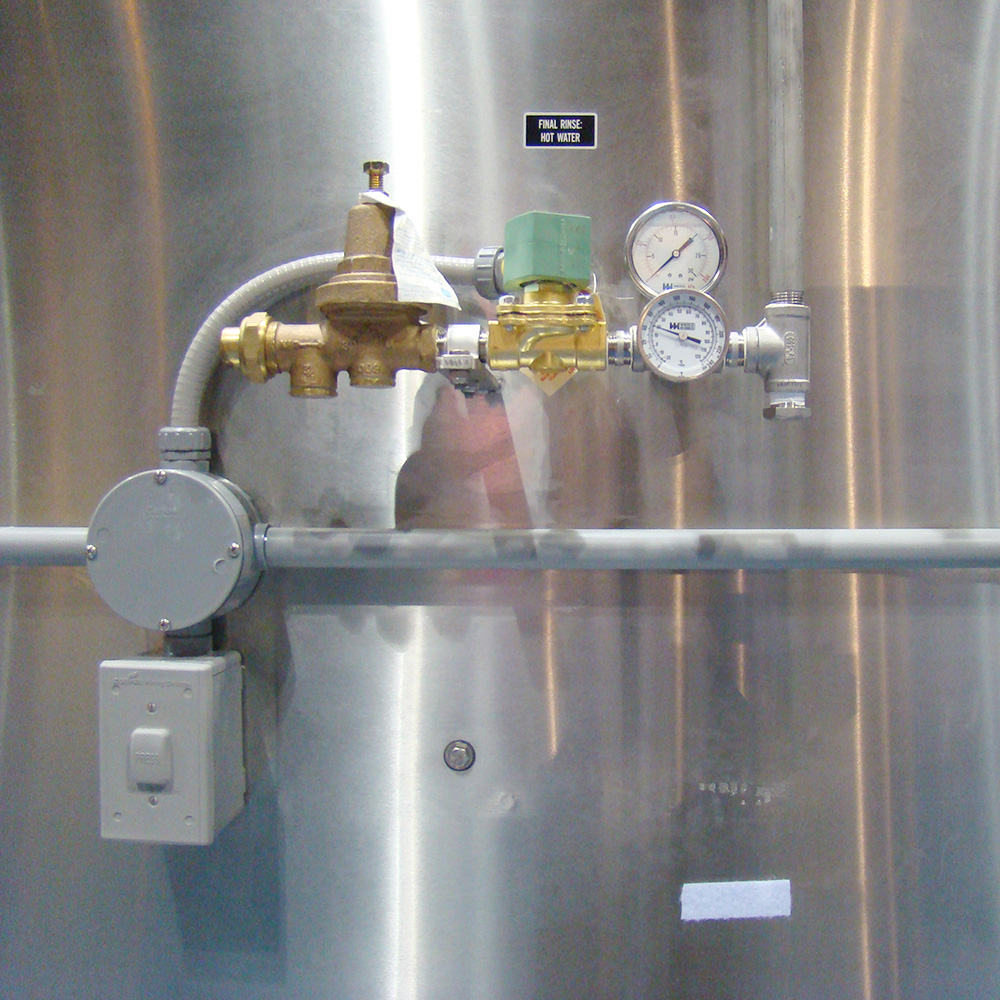

Rinse control groupRinse control group
Positive sanitizerPositive sanitizer

Water Heating Options

Our water heating systems offer multiple configurations to maintain optimal wash and rinse temperatures. Options include a steam heat condenser, shell-and-tube heat exchanger with integrated controls, rinse water booster, immersion-style electric heating elements, or an external gas-fired boiler. All designed to deliver temperature control based on your facility’s requirements.

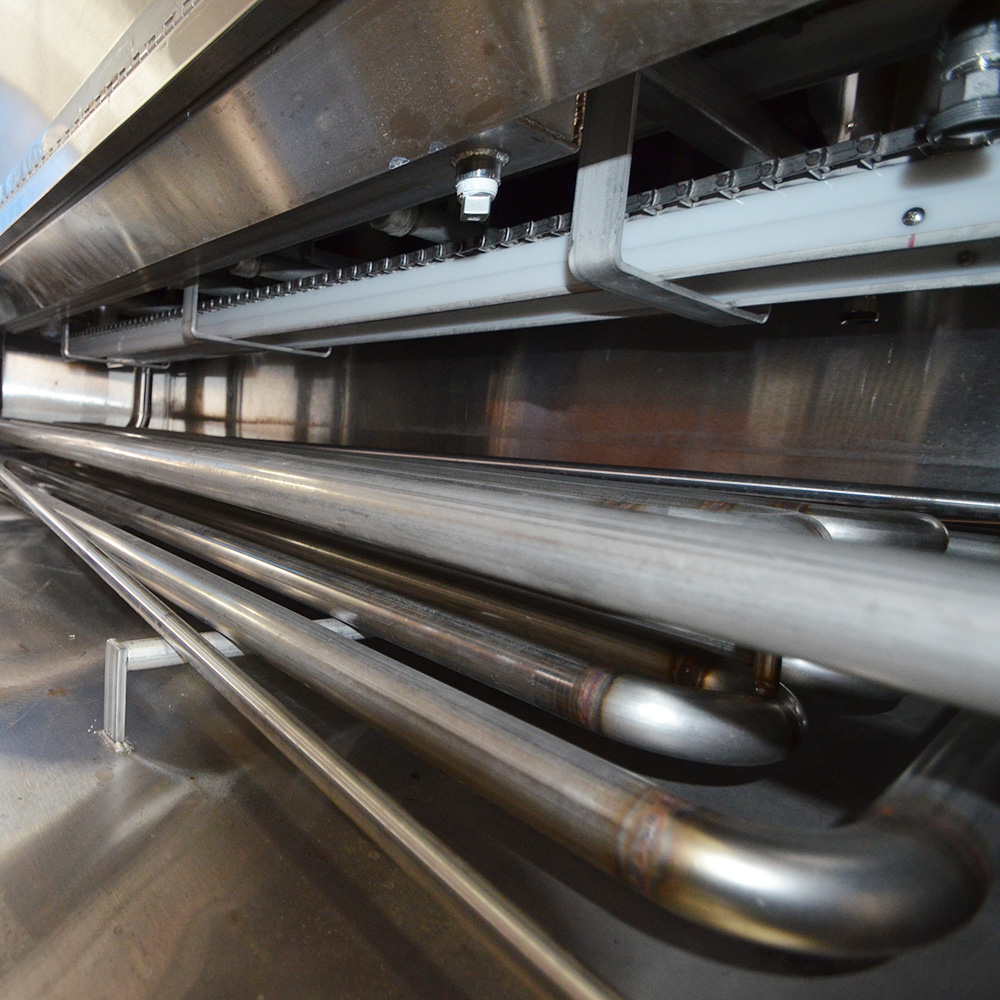

Steam heatSteam heat
Electric immersion heatersElectric immersion heaters
Rinse stage heat boosterRinse stage heat booster
External boilerExternal boiler

Ventilation Options

Enhance air quality and manage humidity with our top-mounted Vapor Exhaust Fan, offering up to 1,200 CFM of airflow. Designed for effective vapor and steam removal in wash and rinse environments, this flange-mounted tubaxial blower is constructed from mild steel with a durable painted finish. An optional Variable Frequency Drive (VFD) allows for adjustable fan speed to meet varying ventilation needs.

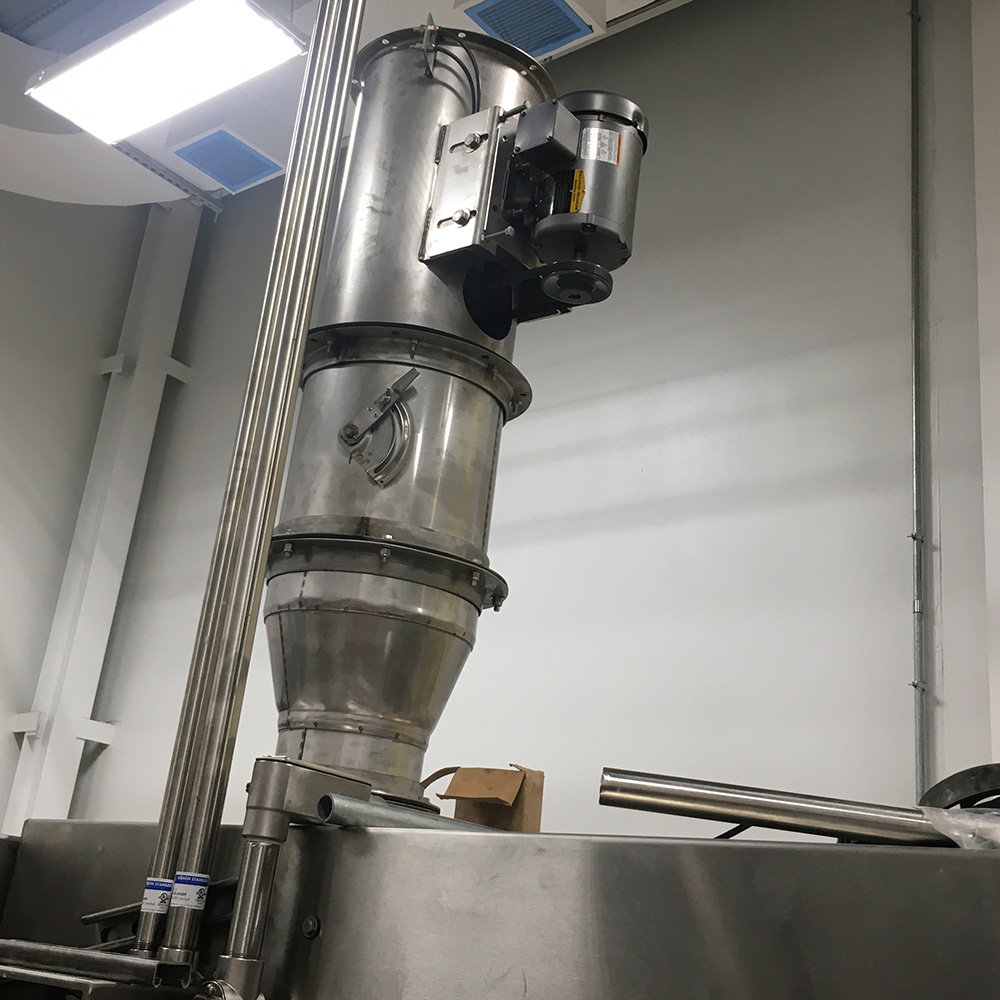

VES-10 Exhaust fanVES-10 Exhaust fan

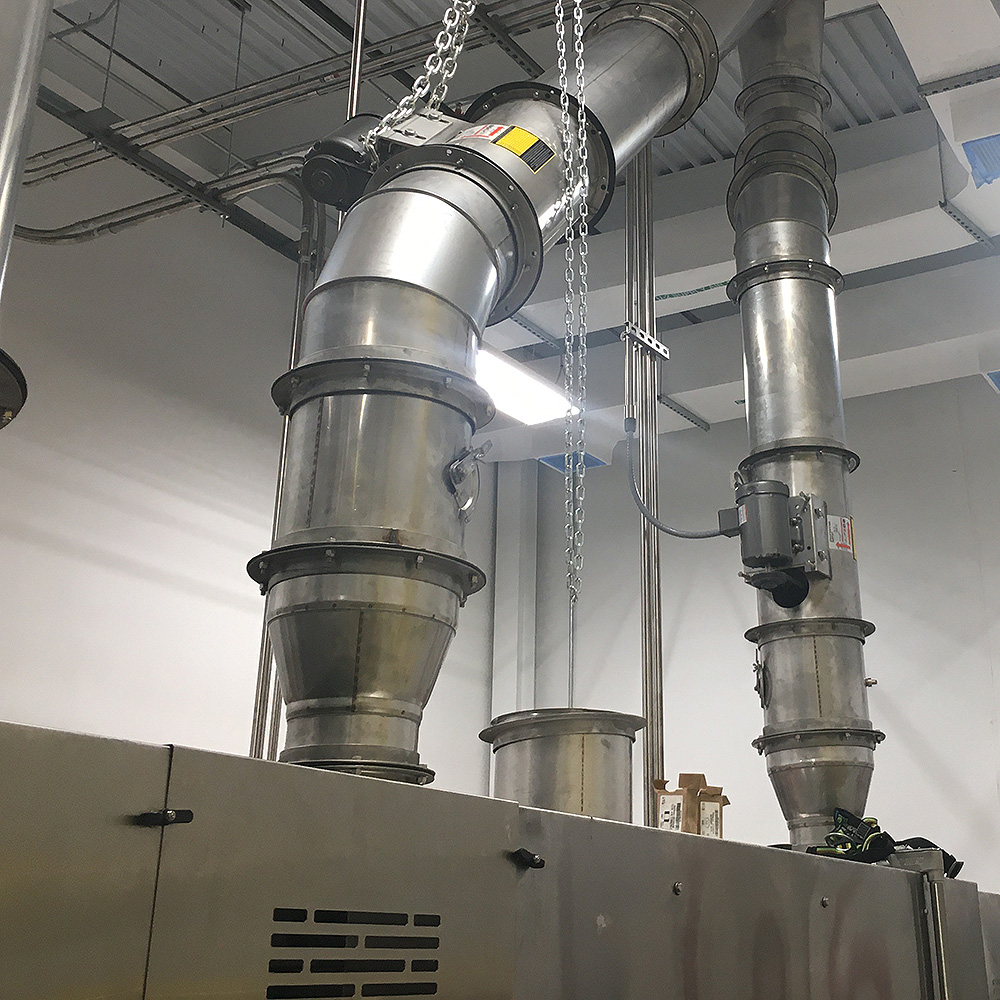

VES-12 Exhaust fanVES-12 Exhaust fan
