Hydraulic Box Dumper


BXD-45-4500

The Hydraulic Box Dumper comes with a loading table that is approximately 50x50 inches and capacity up to 4,500 pounds of evenly distributed weight. Containers are secured in place with an adjustable hold down bar. Includes intermittent duty power unit, UL Certified electrical panel an operator pendant.,

Request a Quote

Call 847-443-3861 to speak with our experts

Product Details
Hydraulic Box Dumper
Hydraulic Box Dumper Image 1
Hydraulic Box Dumper Image 2
Hydraulic Box Dumper Image 3

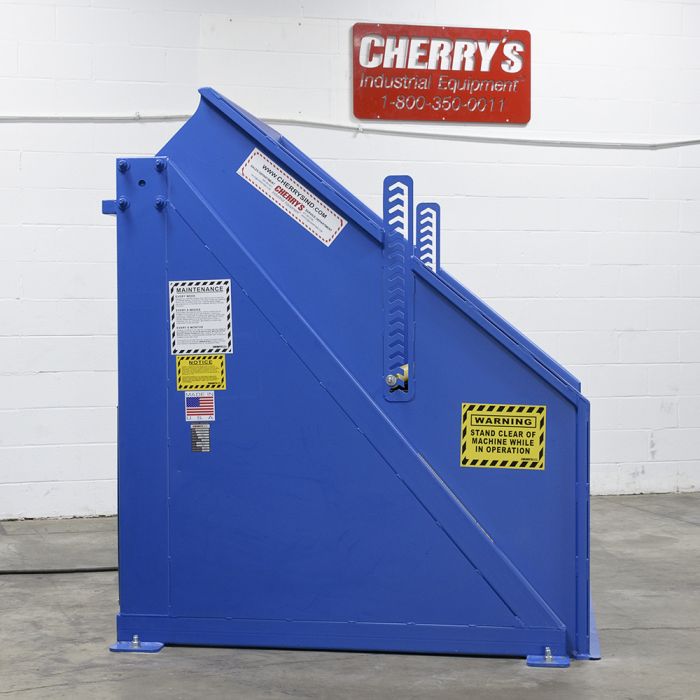

Hydraulic Box Dumper Image 4
Hydraulic Box Dumper Image 5
Hydraulic Box Dumper Image 6
Hydraulic Box Dumper Image 7
Hydraulic Box Dumper Image 8

See it in the Wild

Box dumper with contact surfaces lined with stainless steel Box dumper with contact surfaces lined with stainless steel
Box dumper feeding small parts onto conveyor line Box dumper feeding small parts onto conveyor line

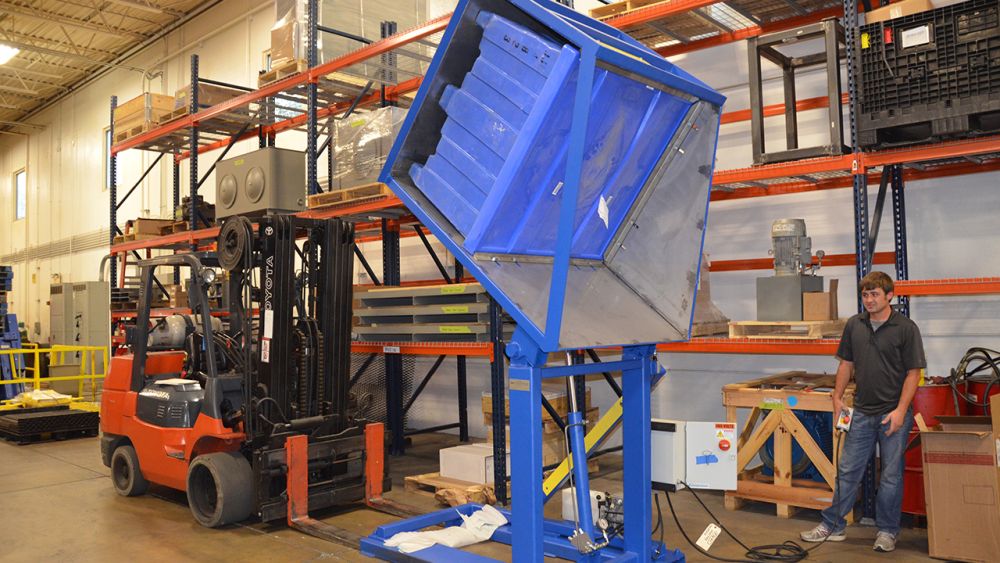

Customer side loaded box dumper with hold down bar Customer side loaded box dumper with hold down bar
Box dumper with external power pack and electrical panel Box dumper with external power pack and electrical panel
Box dumper with plastic container in operation Box dumper with plastic container in operation
Box dumper tipping small parts into containers Box dumper tipping small parts into containers

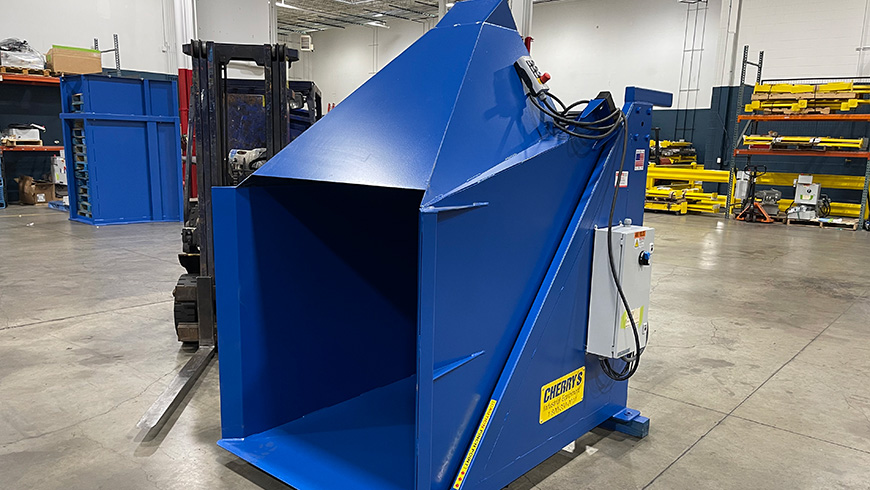

Box dumper with chute Box dumper with chute

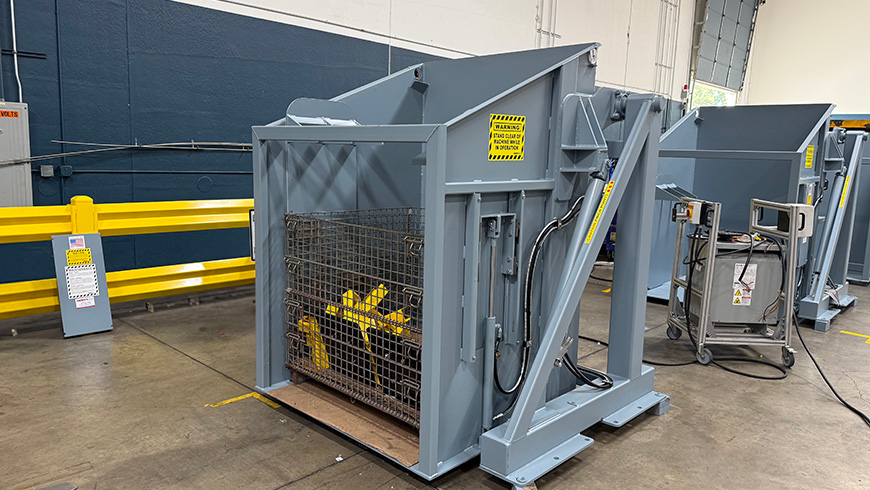

Box dumper with powered hold down bar Box dumper with powered hold down bar

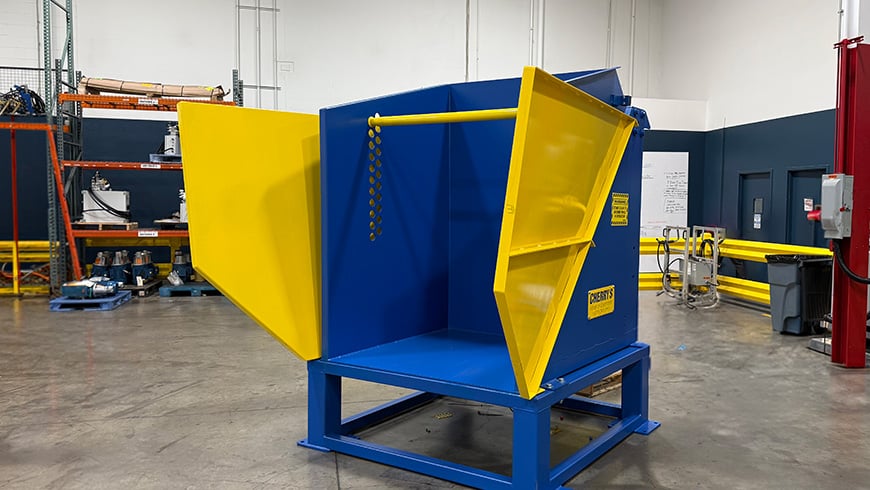

Box Dumper with riser platform Box Dumper with riser platform

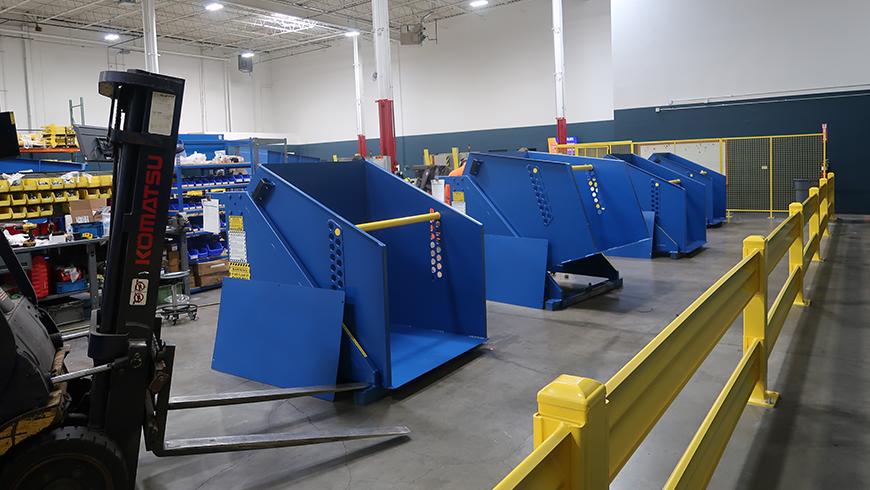

Box dumpers being assembled Box dumpers being assembled
×

Product Information

The BXD-45-4500 Hydraulic Box Dumper from Cherry's Industrial Equipment is designed to enhance productivity and efficiency in applications involving lifting and dumping heavy loads. The ground level loading design is ideal for loading and unloading pallet trucks in warehouses, production environments, shipping and receiving and many other settings. These box dumper models offer a tilt time of 40 seconds going up and 30 seconds going down and can handle up to 4,500 pounds of evenly distributed weight.


Product Variations

SKU Capacity Dump Height Main Turnover Cylinders Hold Down Bar
BXD45-2500-36 2,500 lbs 36" (2) 2-3/4" x 24" Adjustable
BXD45-2500-48 2,500 lbs 48" (2) 2-3/4" x 30" Adjustable
BXD45-2500-60 2,500 lbs 60" (2) 2-3/4" x 36" Adjustable
BXD45-4000-36 4,000 lbs 36" (2) 3-1/2" x 24" Adjustable
BXD45-4000-48 4,000 lbs 48" (2) 3-1/2" x 30" Adjustable
BXD45-4000-60 4,000 lbs 60" (2) 3-1/2" x 36" Adjustable
BXD-Custom Varies Varies Varies Varies



Product Tour


Specifications


ModelBXD-45-4500
Main Turnover Cylinders(2) 3½ bore x 30 Hydraulic Cylinders
Anchors(4) 1" Diameter Holes for 3/4" Anchors
MotorIntermittent duty 1.9 GPM Pump/Motor
ControlsHand Held 3-Button Pendant with E-Stop
System Pressure0-1500 PSI
Max. Tilt135 Degrees
Dump heightVaries: 36" 48" 60"
CertificationsUL 508a electrical panel
Power Source230 or 460 volt 3-Phase 60 Hz electrical
CapacityUp to 4,500 lbs Evenly Distributed
Loading Table SizeApproximately 50" X 50"
BrandCherry's Industrial
FOBRoselle, IL
Warranty1 year parts and labor
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

Multiple control configurations to meet the specific needs. The standard energy-saving pendant includes an emergency stop and illuminated switches, magnetically held to the guarding. Optional upgrades include an automatic control operation, or a radio remote. For enhanced protection a safety-rated electrical panel with integrated safety relay is also available.

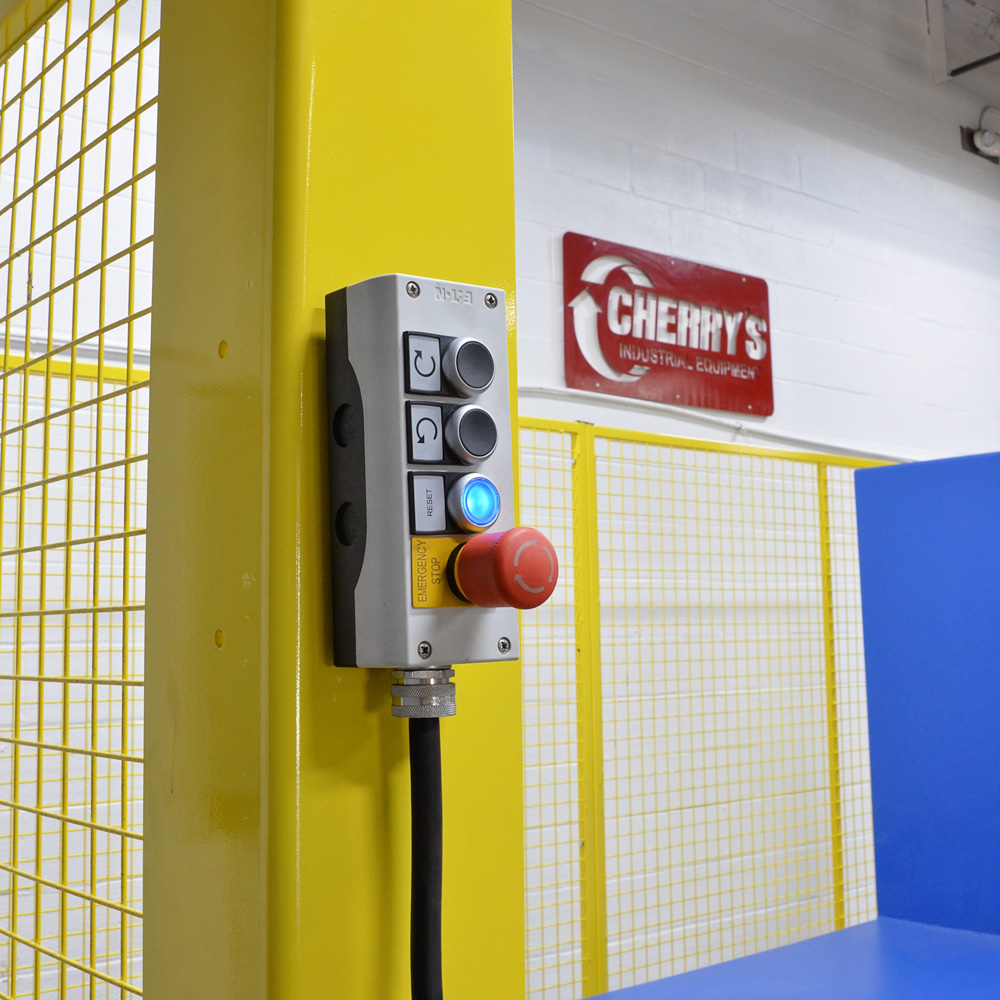

Hand Held PendantHand Held Pendant

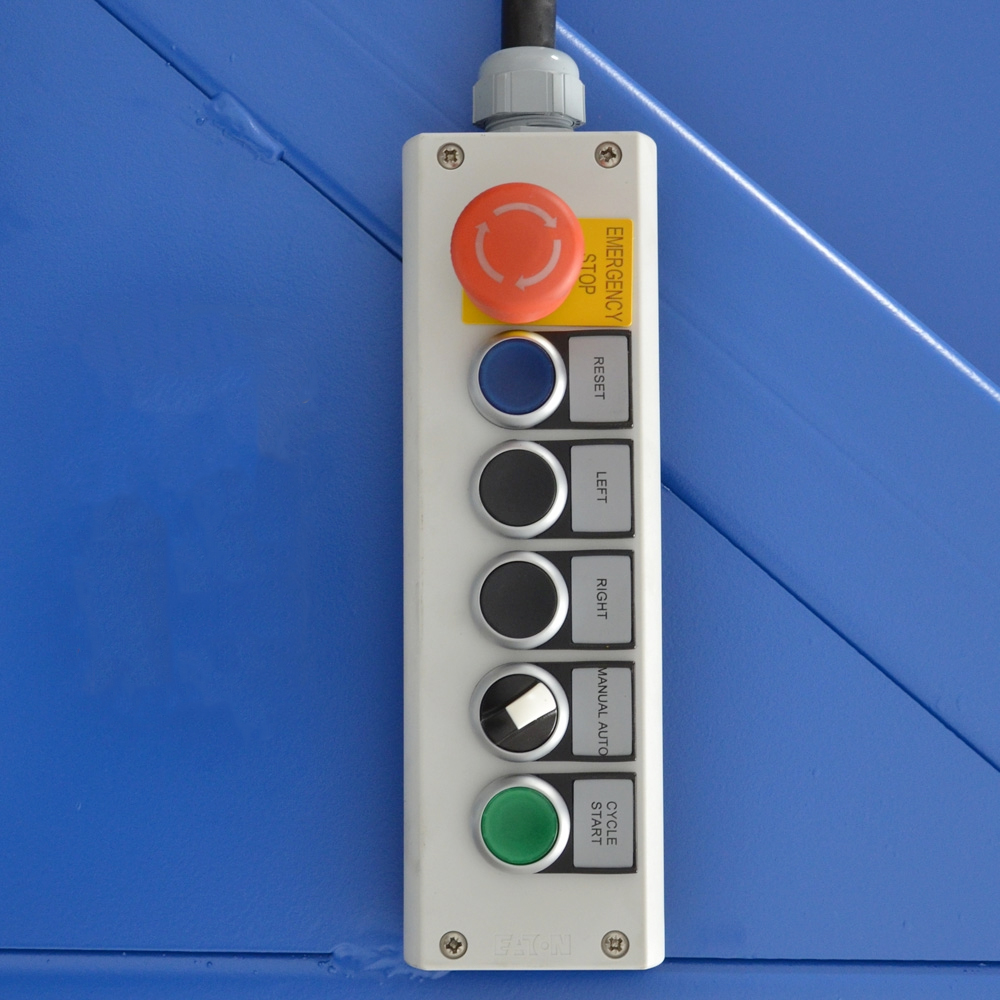

Auto ComtrolsAuto Comtrols

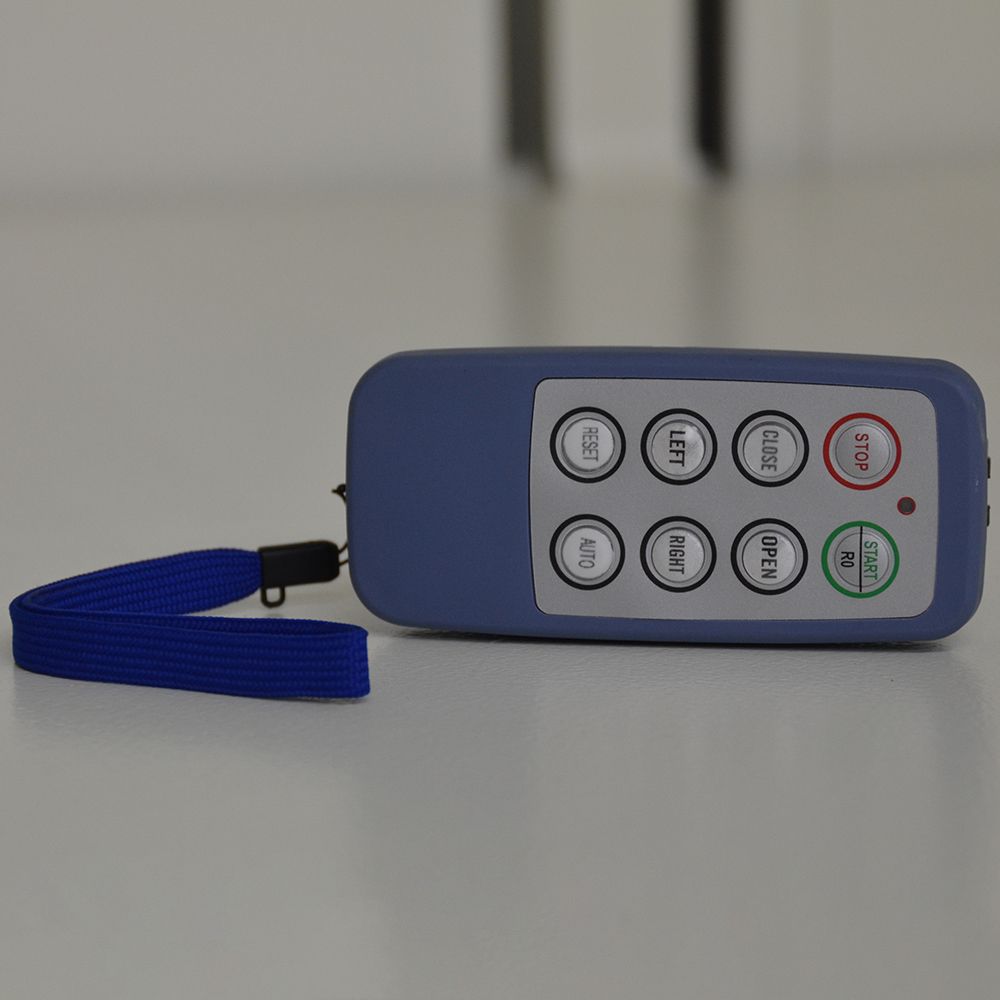

Radio RemoteRadio Remote

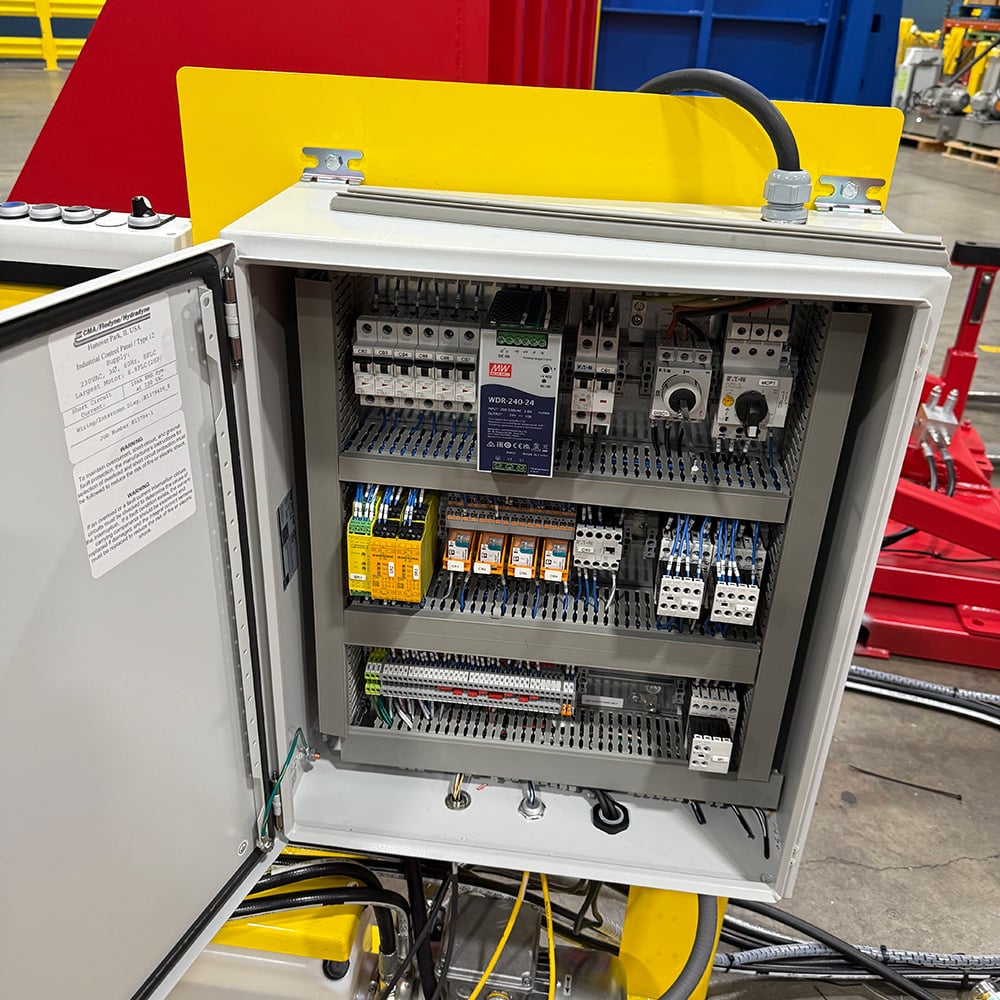

Safety CircuitSafety Circuit

Guards

Guarding options are available to meet your facility’s safety and compliance requirements. Choose from fixed perimeter guards anchored to the floor, machine-mounted guarding panels for compact footprints, or advanced electronic safeguarding such as light curtains and safety scanners to protect operators while maintaining efficient workflow.

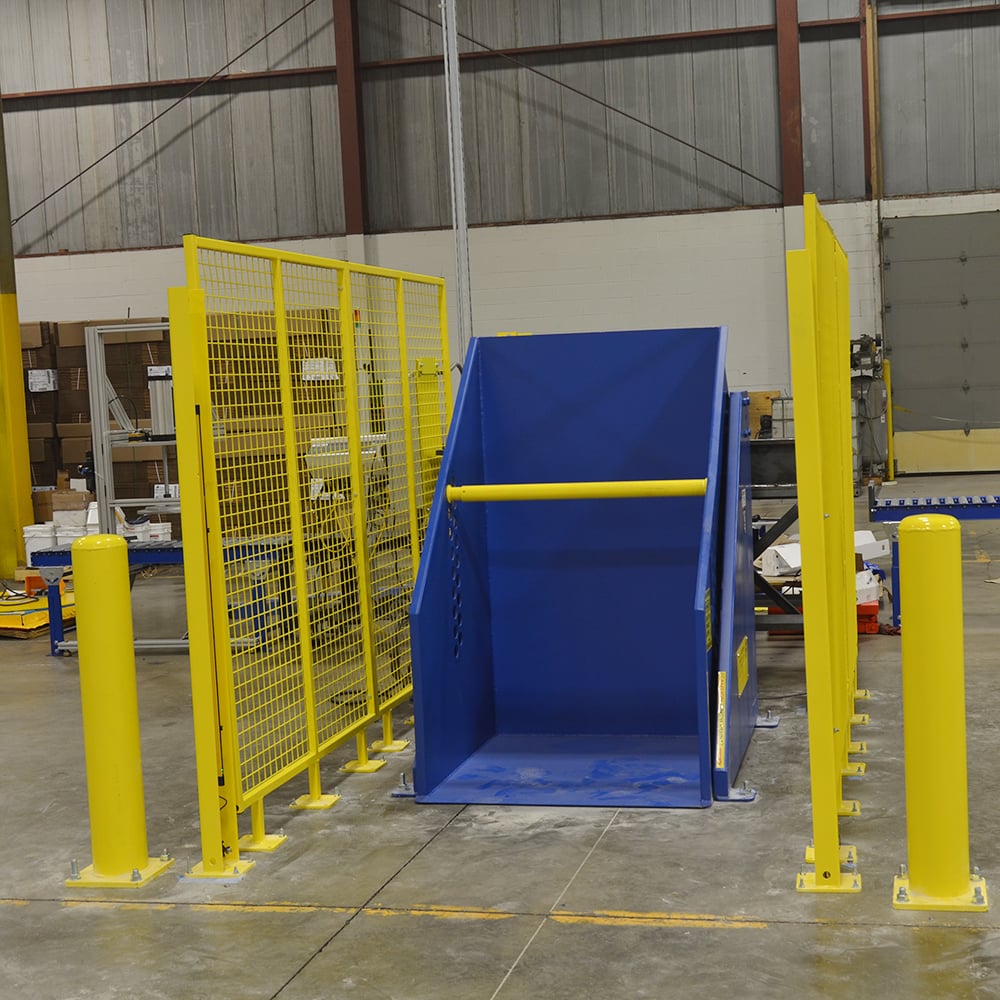

Perimeter GuardsPerimeter Guards

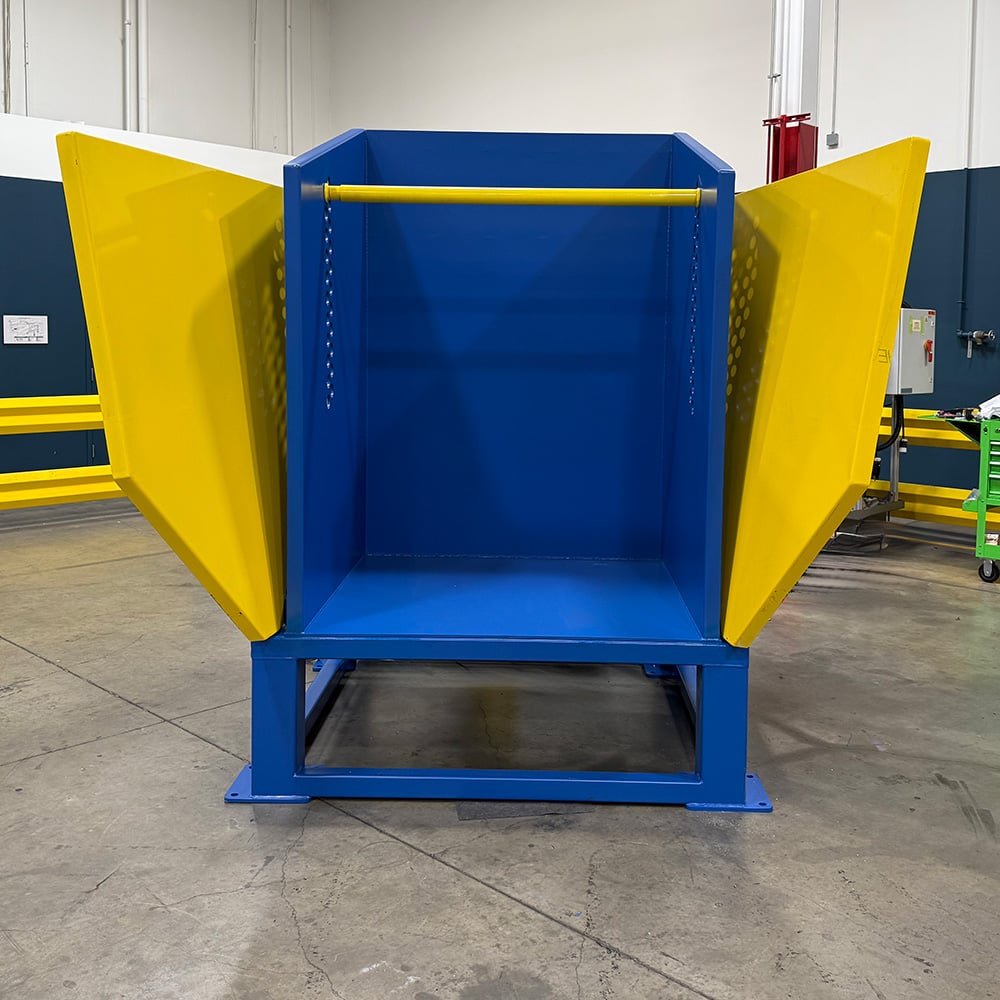

FIxed GuardsFIxed Guards

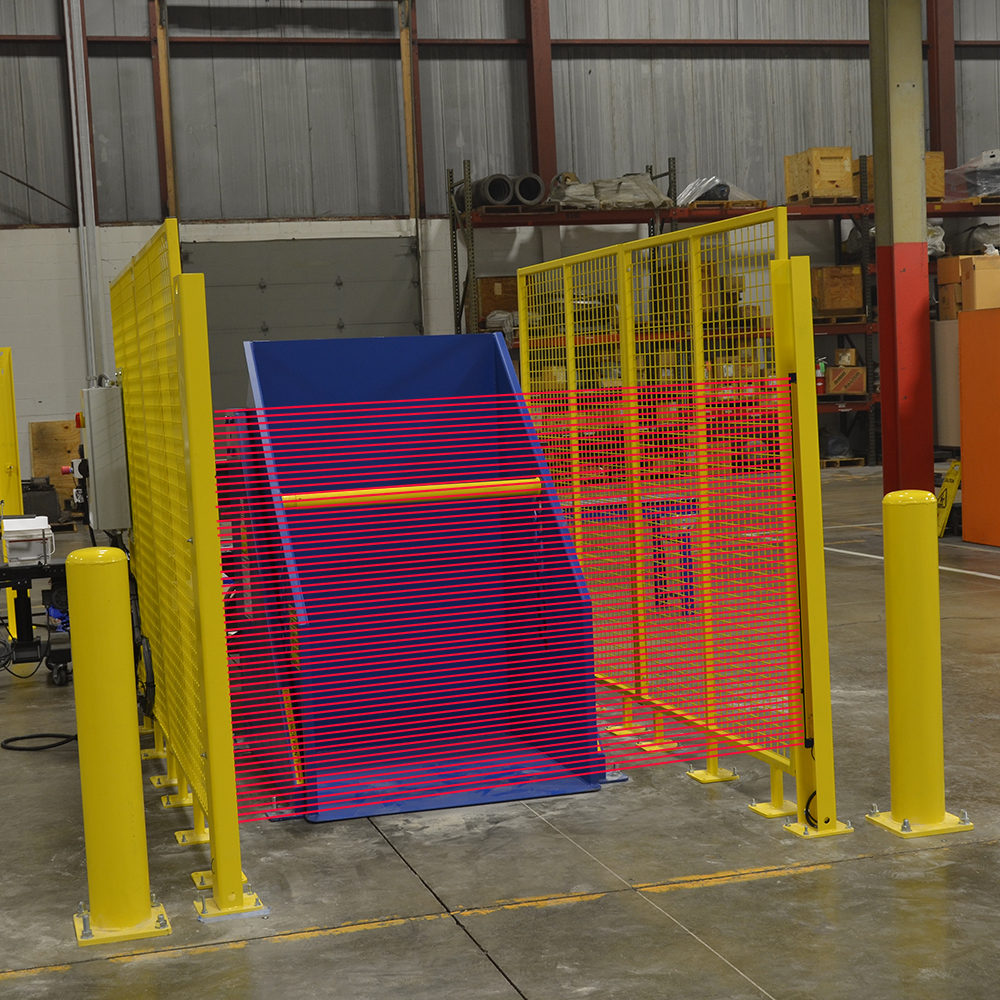

Light CurtainsLight Curtains

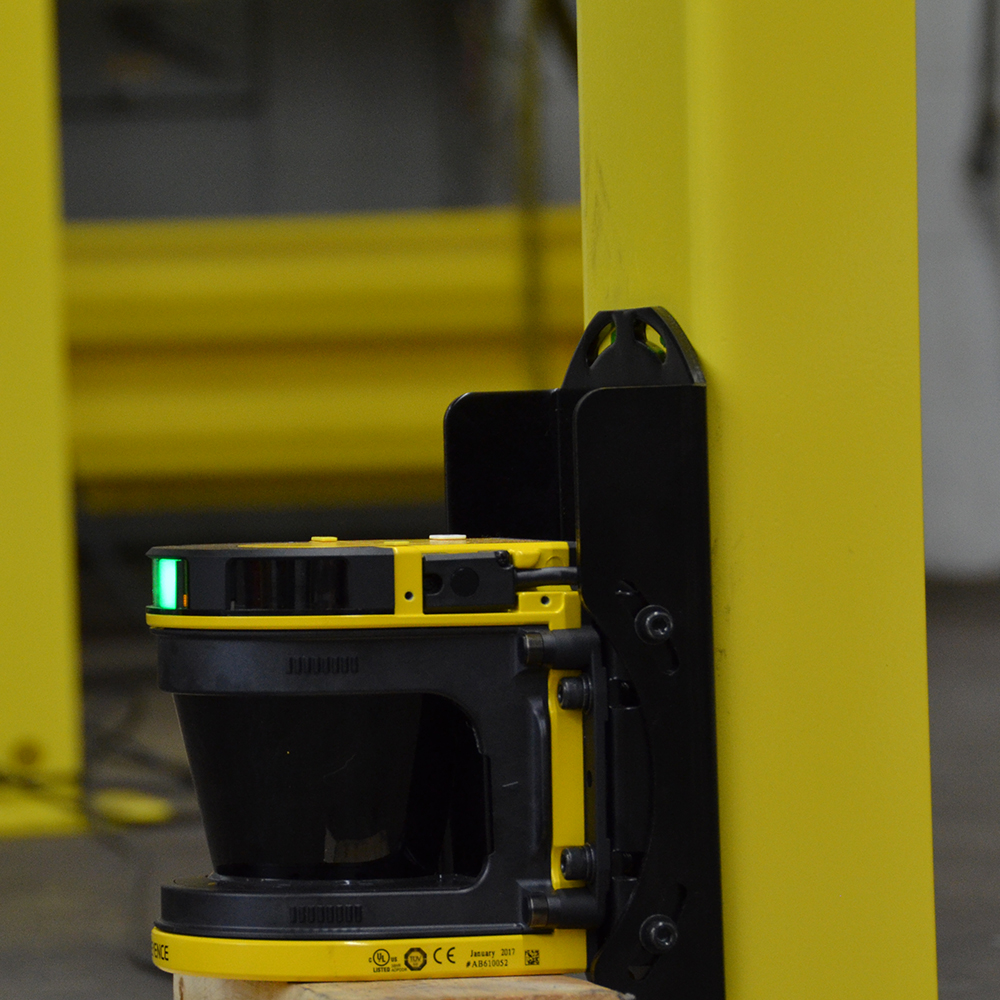

Safety ScannersSafety Scanners

Options

The BXD-45 Series Box Dumper ships complete with everything needed to get you started, floor anchors, hold down bar, hydraulic oil, controls, and power unit. More Options are available including: custom color/finishes, a powered container gripper, chute and a 110V single phase electrical system to meet your application or corporate specification.

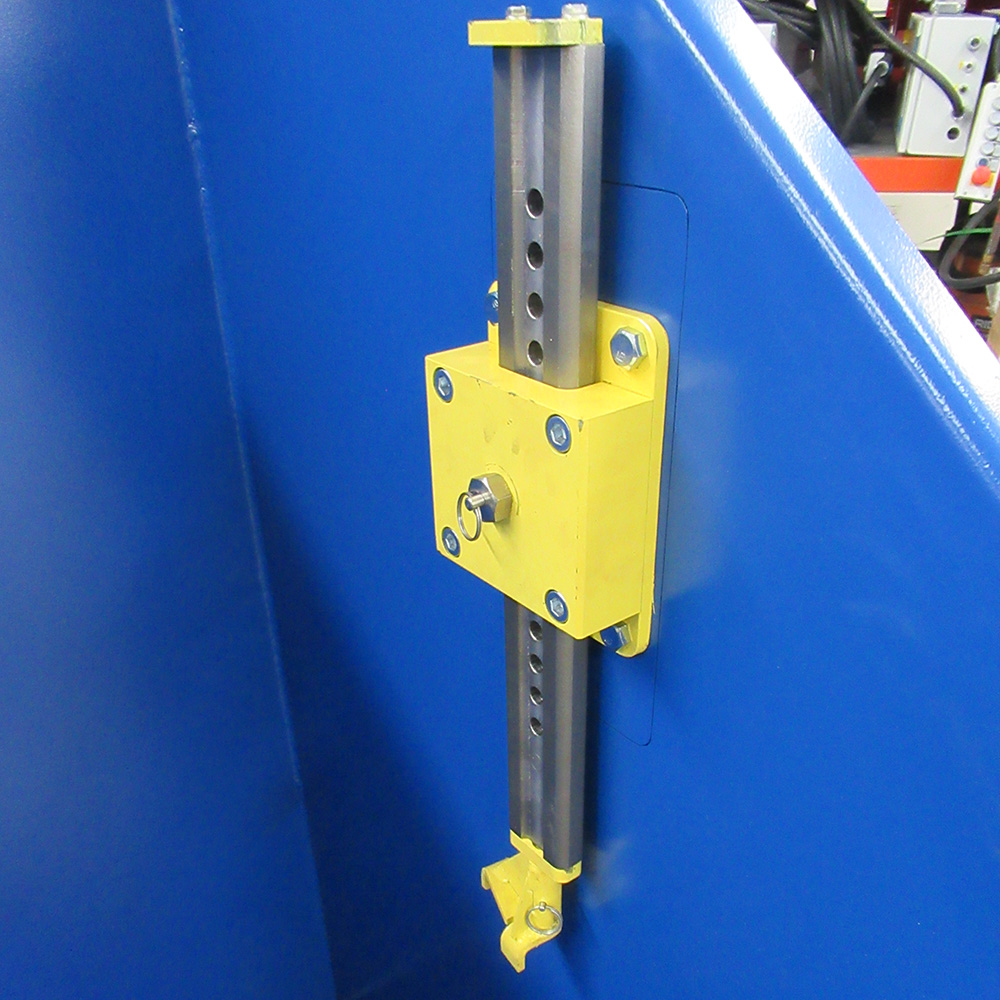

Hold Down BarHold Down Bar
Chute AttachmentChute Attachment
Custom ColorsCustom Colors

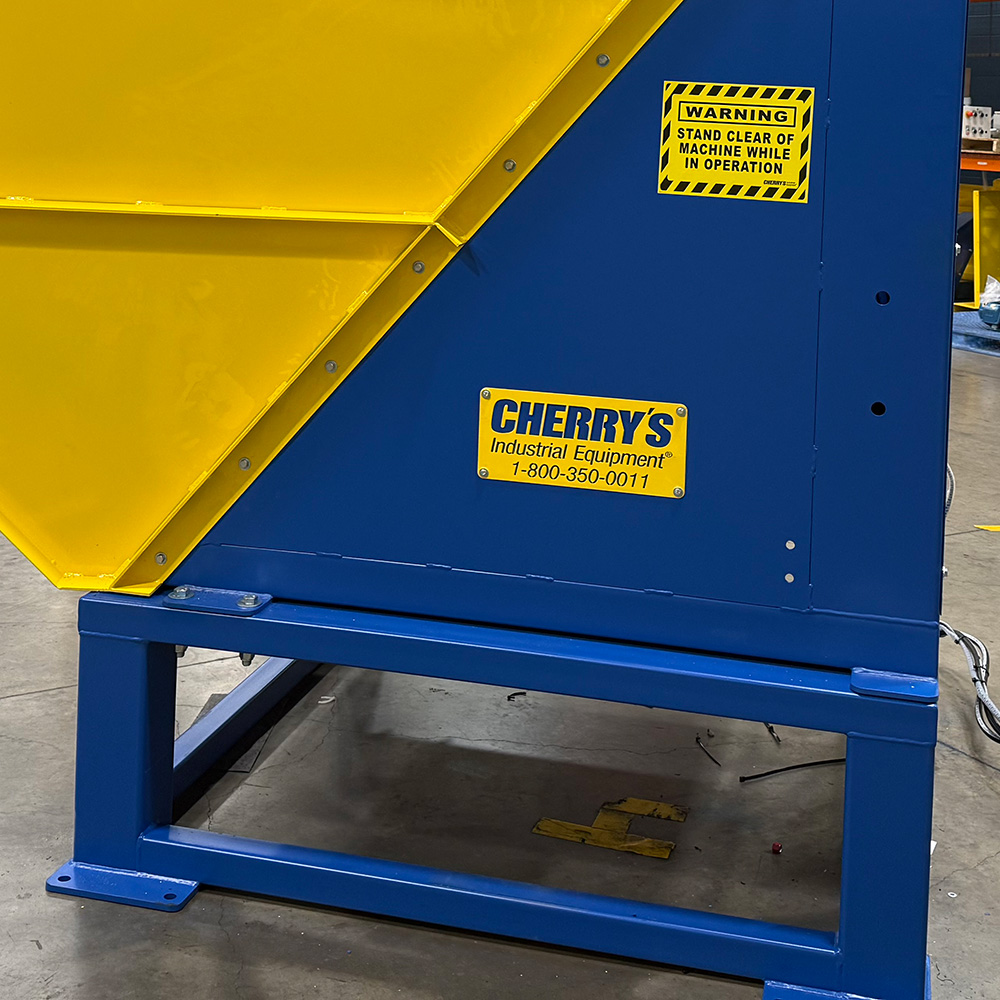

Riser PlatformRiser Platform
