High Cycle Tipper Upender

HCT-6000-T2

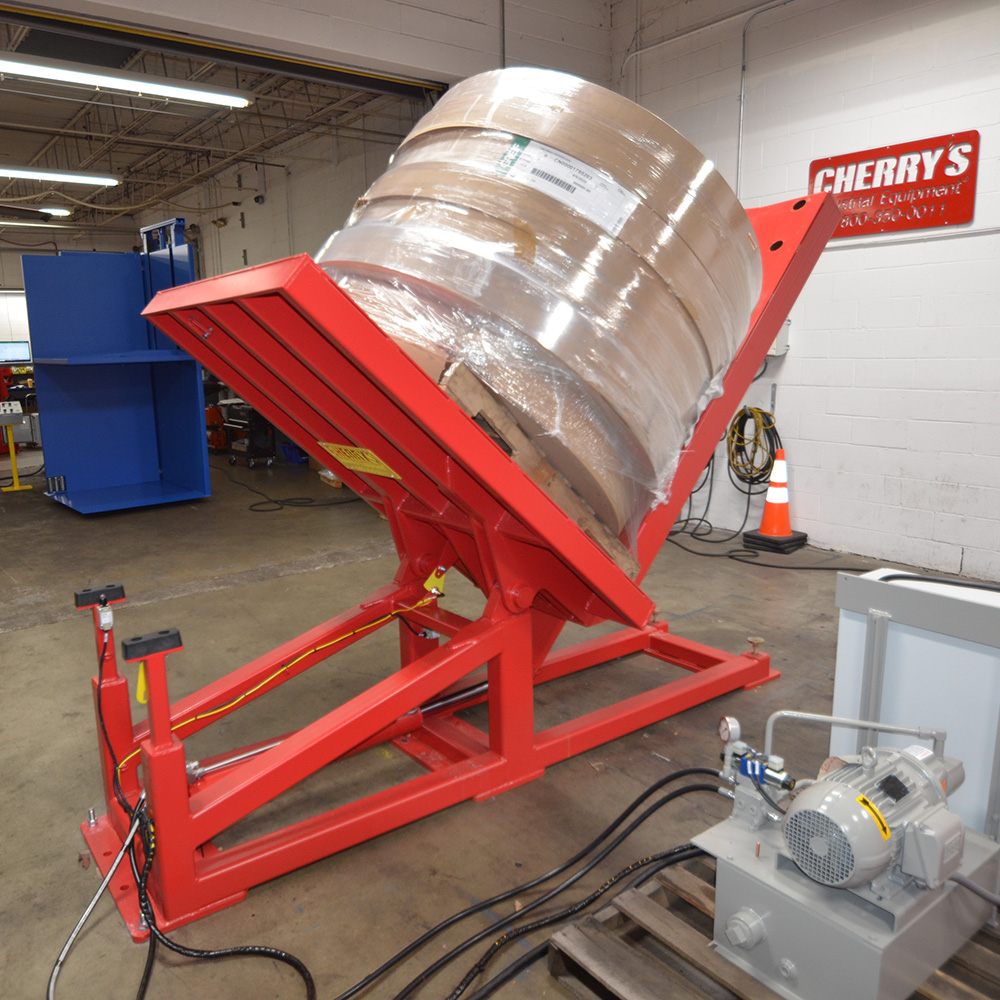

This high-cycle 90-degree tipper upender is engineered for demanding applications requiring frequent, efficient load rotation. With capacities ranging from 6,000 to 10,000 lbs, it loads materials near ground level and discharges them at a raised height for seamless integration into production workflows.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Information

Custom-built to your specifications, each unit features a high-speed hydraulic power pack, 230V or 460V 3-phase motor, and precision motor controls for reliable performance. A shipping frame is included for transport, and on-site assembly is required. For safe operation, the unit must be securely anchored to the ground. Ideal for high-throughput environments that require consistent, heavy-duty performance.

Specifications

Model	HCT-8000-T2
Capacity	6,000 to 10,000 lbs.
Load/Unload Height	Raised/Near Ground Level
Power Source	230/460V 3 phase 60Hz
Cycle Time	Extend: 20 seconds Retract: 15 seconds

Controls	Handheld (3) button pendant (Optional Auto cycle)
Loading Table Size	Varies per application
Horizontal Table	Varies per application
System Pressure	0-3000 PSI
Main Turnover Cylinders	Varies per application

Motor	5 - 7.5 HP
Certifications	UL Certified Panel ***
Power Unit	10 gallon reservoir, filter, site guage, 6.6 GPM pump, manifold and directional valves
Anchors	Varies
Brand	Cherry's Industrial Equipment Corp
