GL-75 Ground Loaded Pallet Inverter


GL-75

Free standing 180° GL Series Pallet Inverter with twin moving tables, loaded and unloaded at ground level with a manual or electric pallet jack. Chain balanced tables accommodate a wider range of load heights from 26'' up to 75''. (MTO) - Made to Order. Made in the USA.

Request a Quote

Call 847-443-3861 to speak with our experts

GL-75-GRGL-75-HSG
GL-75 Ground Loaded Pallet Inverter
GL-75 Ground Loaded Pallet Inverter Image 1
GL-75 Ground Loaded Pallet Inverter Image 2

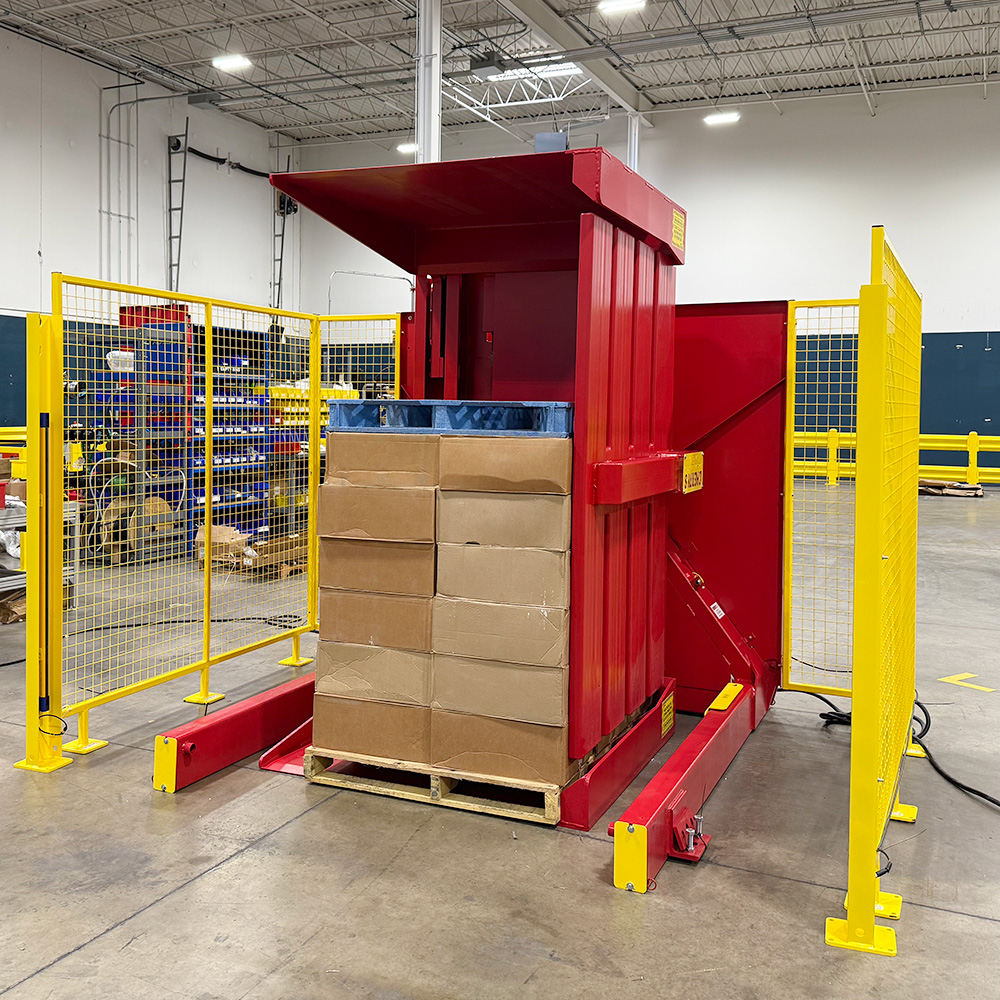

GL-75 Ground Loaded Pallet Inverter Image 3

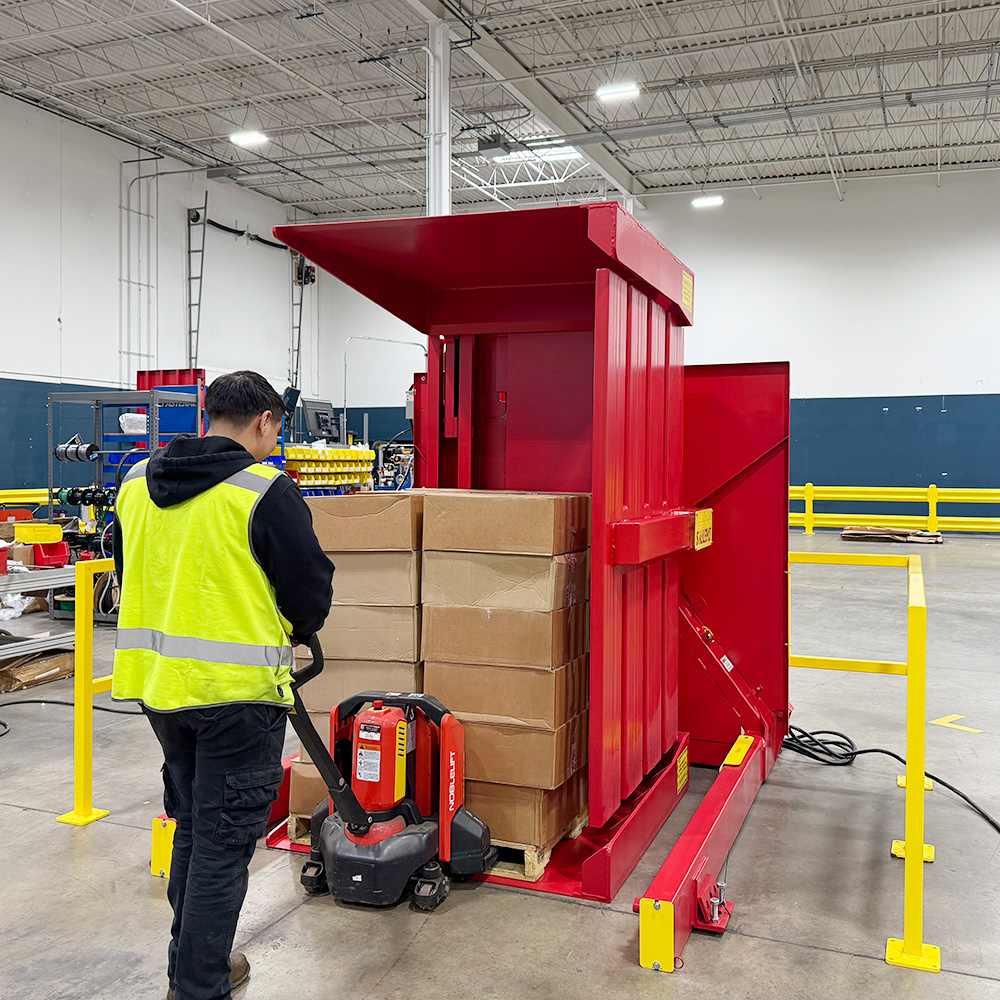

GL-75 Ground Loaded Pallet Inverter Image 4

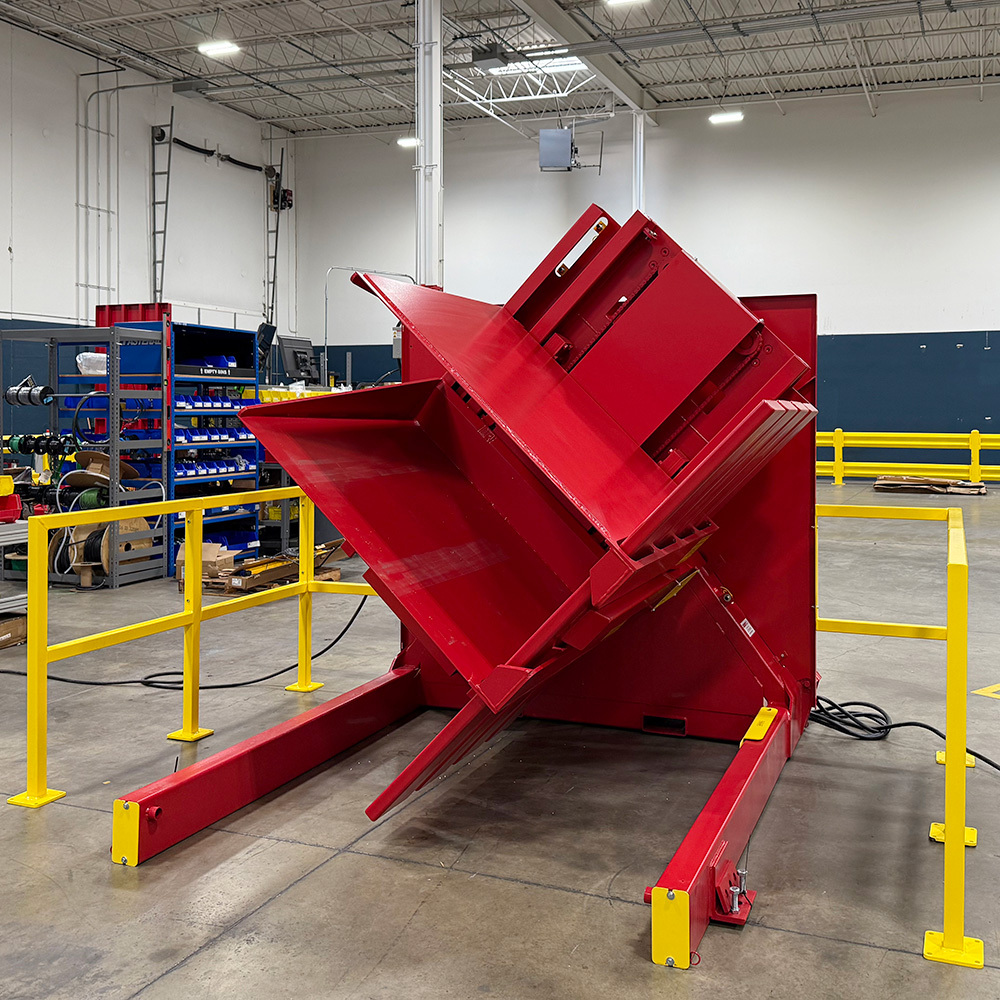

GL-75 Ground Loaded Pallet Inverter Image 5

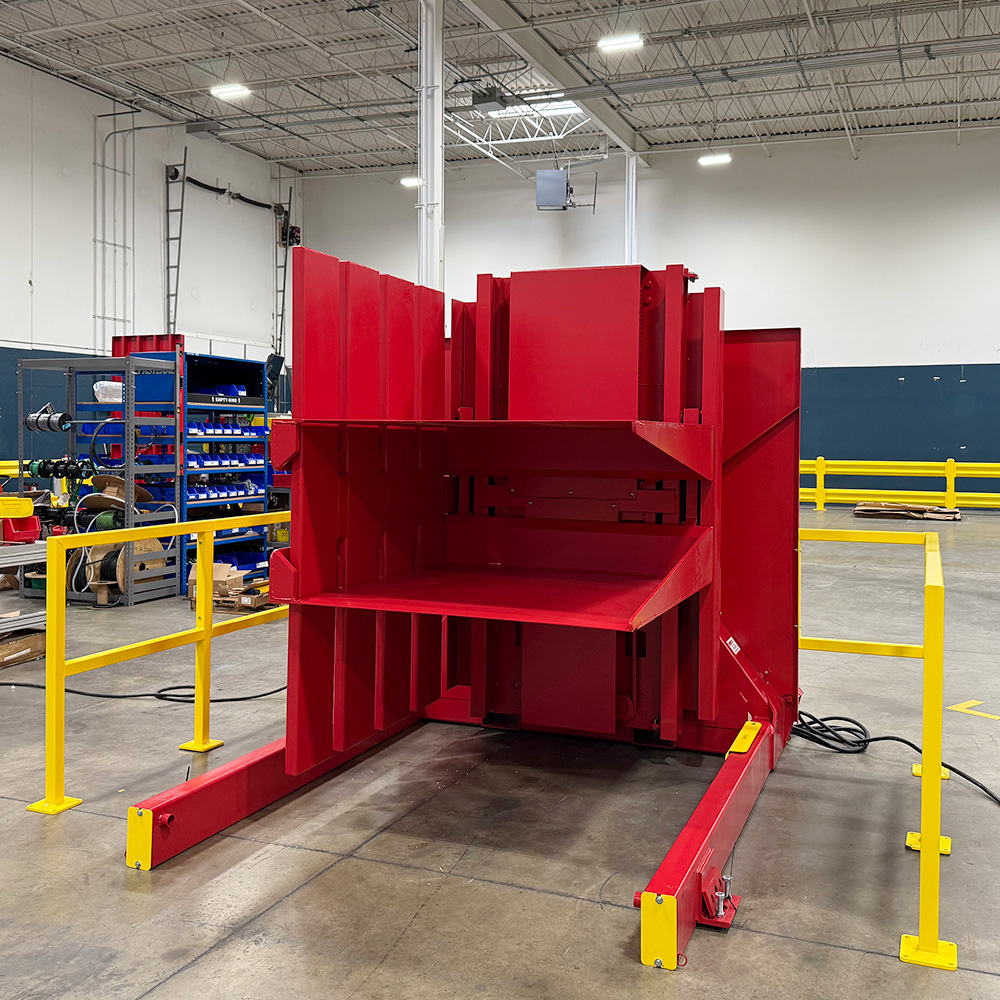

GL-75 Ground Loaded Pallet Inverter Image 6

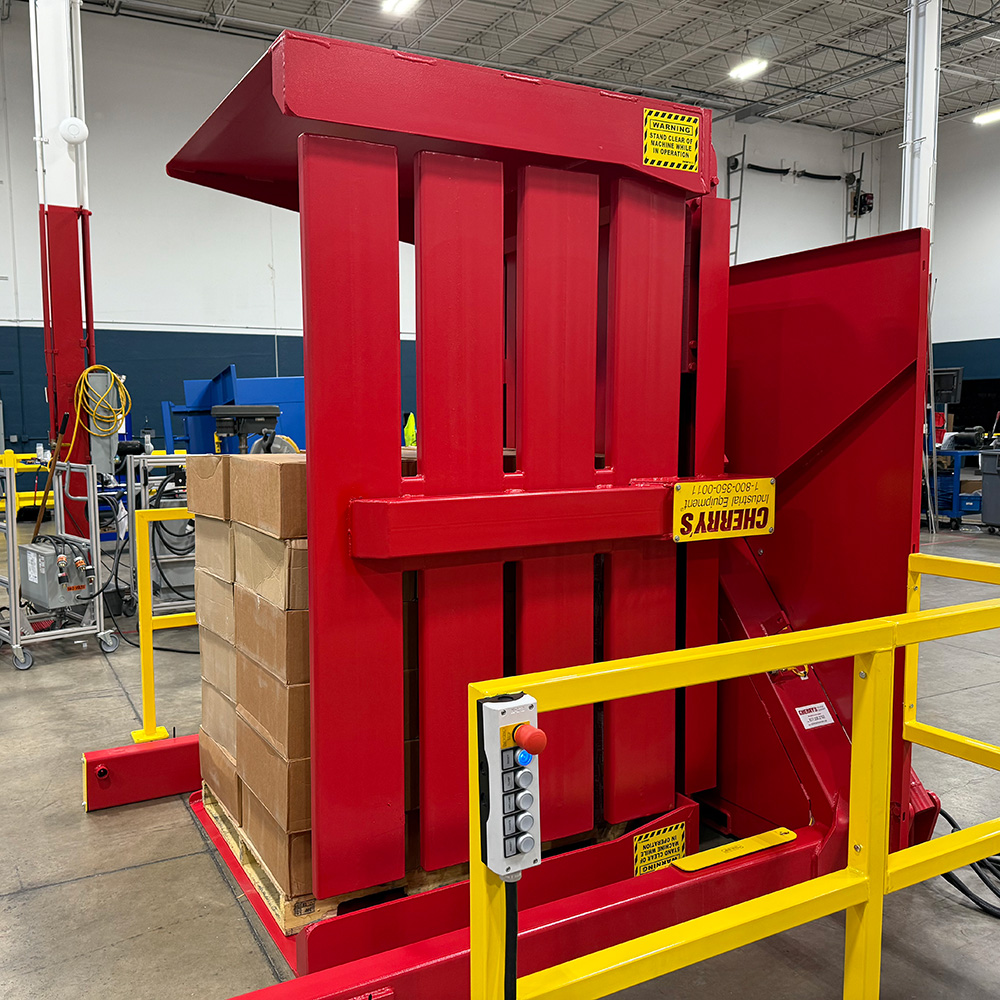

GL-75 Ground Loaded Pallet Inverter Image 7
GL-75 Ground Loaded Pallet Inverter Image 8

See it in the Wild

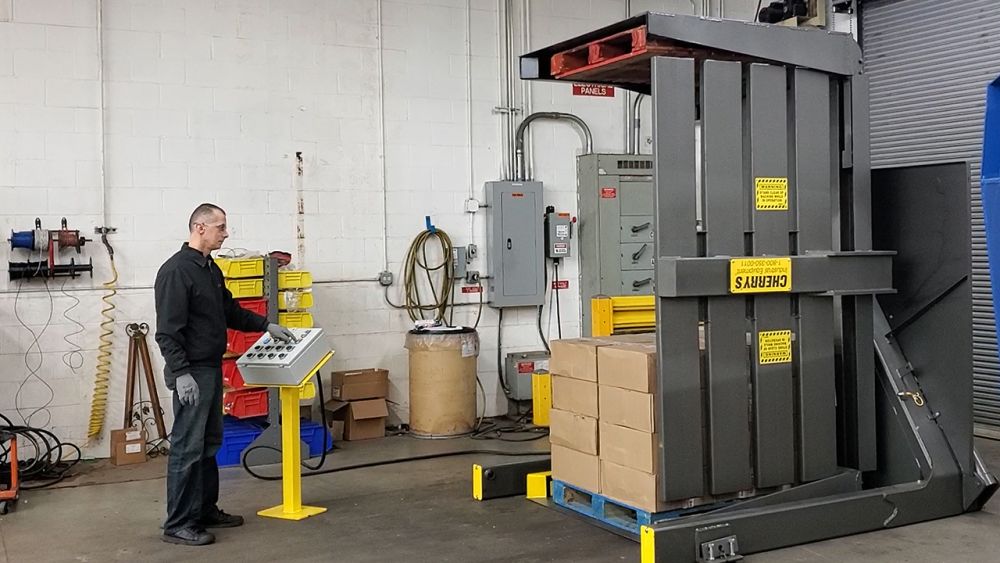

GL Pallet Inverter with automatic controls with manual override GL Pallet Inverter with automatic controls with manual override
GL Pallet Inverter with pallet grippers GL Pallet Inverter with pallet grippers

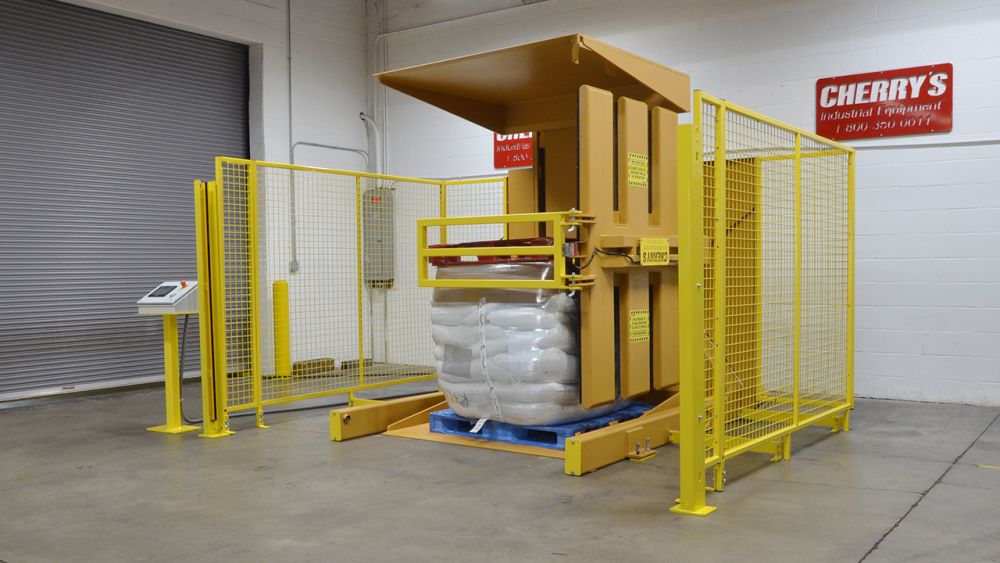

GL Pallet Inverter with product containment gate GL Pallet Inverter with product containment gate
Stainless steel lined GL Pallet Inverter Stainless steel lined GL Pallet Inverter

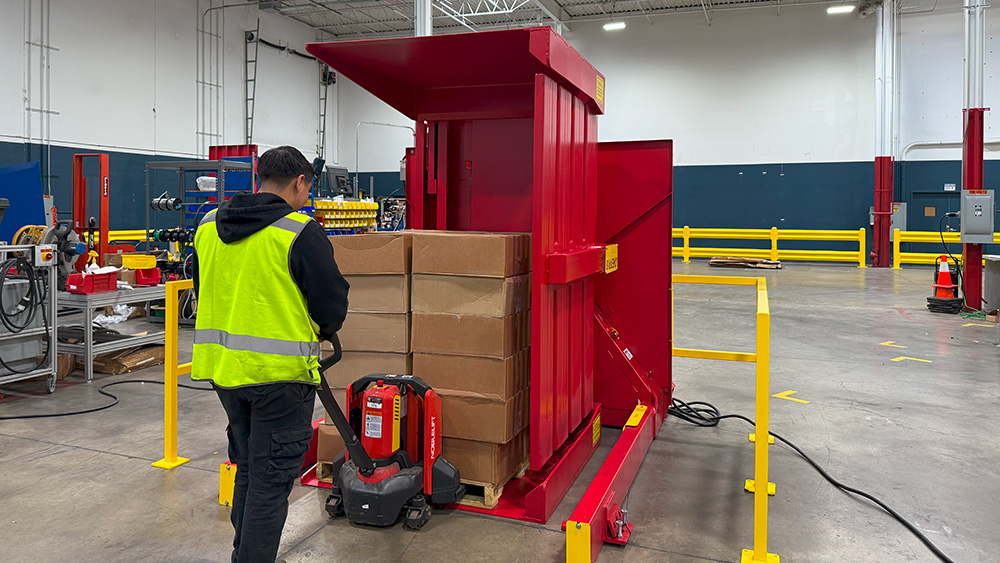

Ground Loaded Pallet Inverter Ground Loaded Pallet Inverter

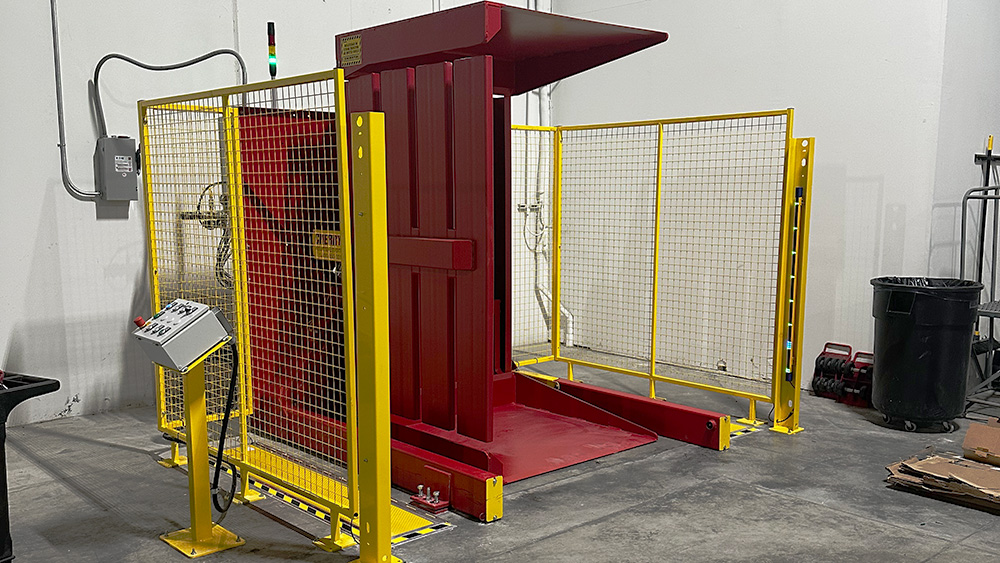

GL Pallet Inverter with perimeter guarding and light curtains GL Pallet Inverter with perimeter guarding and light curtains
×

Product Information

The GL-75 Pallet Inverter's compact footprint and floor level access is best suited for staging areas near clean rooms and production areas or where forklift use is prohibited. Dual clamping plates travel in unison, near perfect center balance provides stable inversion of tall or short partial loads. Standard Features include: UL508 Certified electrical panel, six button operator pendant, maintenance lock bar, foot switch to protect pinch point and 2" square tube heavy duty machinery guards. Three year parts and labor warranty.


Product Variations

SKU Controls Motor HP/ Pump Displacement Cycle Time (seconds) Safety Circuit (Pld)
GL-75 Push buttons 5/3.7 15 Invert/15 Rotate Standard
GL-75HSP Push buttons 5/6.6 9 Invert/7 Rotate Standard

Product Tour


Specifications


ModelGL-75
Controls6 Button pendant with E-stop & LC reset
Energy Saver FunctionYes
Loading Table Size50" x 50"
Max. Jaw Opening94" Overall
Usable Jaw Opening75" effective
Min. Jaw Opening26"
FinishSafety Red 2-Part Epoxy Paint
Capacity4,400 lbs.
Adjustable Clamp Pressure400-2000 PSI
System Pressure2200 PSI
Maintenance Lock Outs5
Motor5 HP
Power Source208/230/460/575V
CertificationsUL 508a Certified Panel
Warranty3 year parts and 1 year labor. Extended warranty available.
FOBRoselle, IL
Loading HeightGround level
Operating Width94" excluding guards
Operating Depth95.125"
Operating Height94.25"
Width With GuardsGR-124.75"/HSG-127.25"
Shipping weight*5700
Shipping Dimensions96" L x 84" W x 84" H
Side wall tube supports4
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

The standard operator controls are an energy saver pendant with press and maintain push buttons that illuminate when activated. A safety rated pendant adds a reset button and E-stop plus a PLd safety circuit to the main panel. A variety of additional control configuration options are available for the GL-75including: an operator console, HMI touchscreen, auto controls, RF radio remote and high-speed motion controls.


Operator pendantOperator pendant

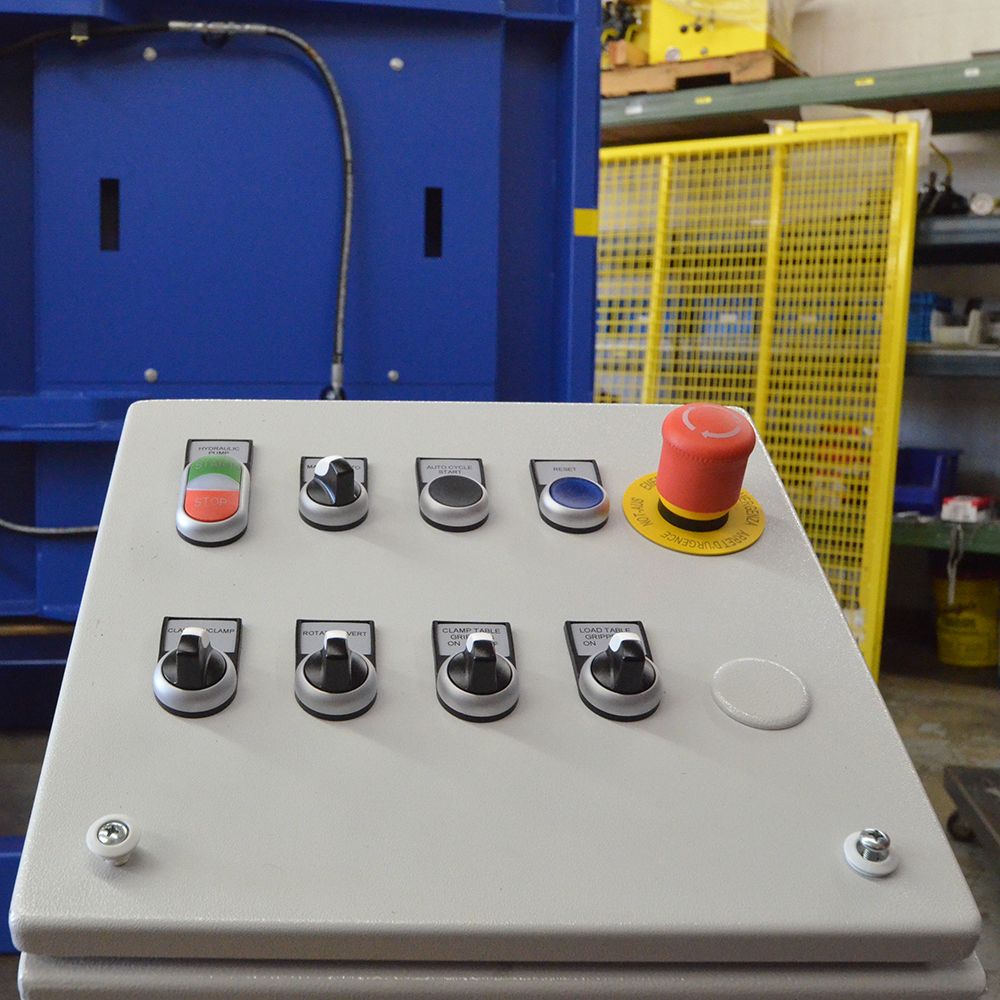

Control ConsoleControl Console
HMI TouchscreenHMI Touchscreen

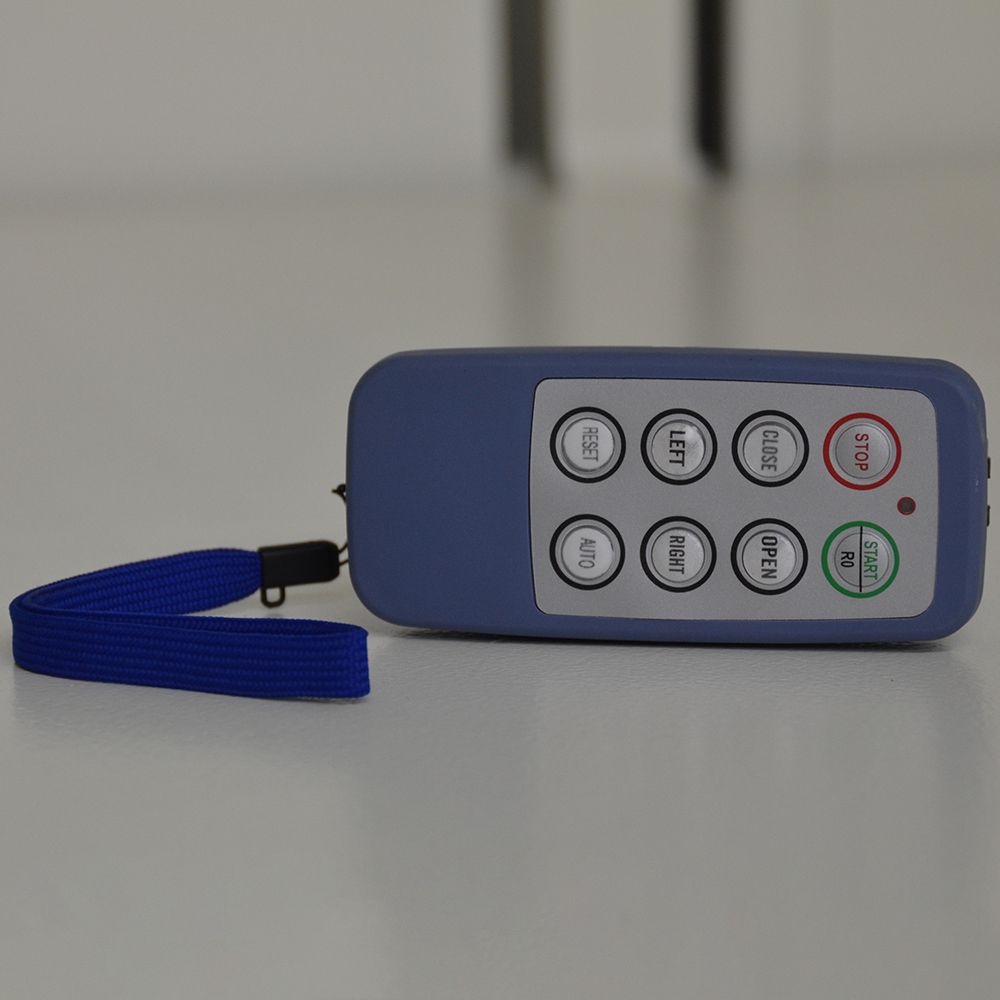

Radio RemoteRadio Remote

Guards

The GL-75 has standard rail guarding to protect against injury or forklift damage. Personnel perimeter guarding can be configured to enhance the safety of the operator and maintenance personnel. Options include Bosch guarding with removable maintenance sections, 3-sided 78 high style perimeter guards or category 4 light curtains. These guards protect the front entrance and surrounding areas of the equipment.


Rail guardsRail guards

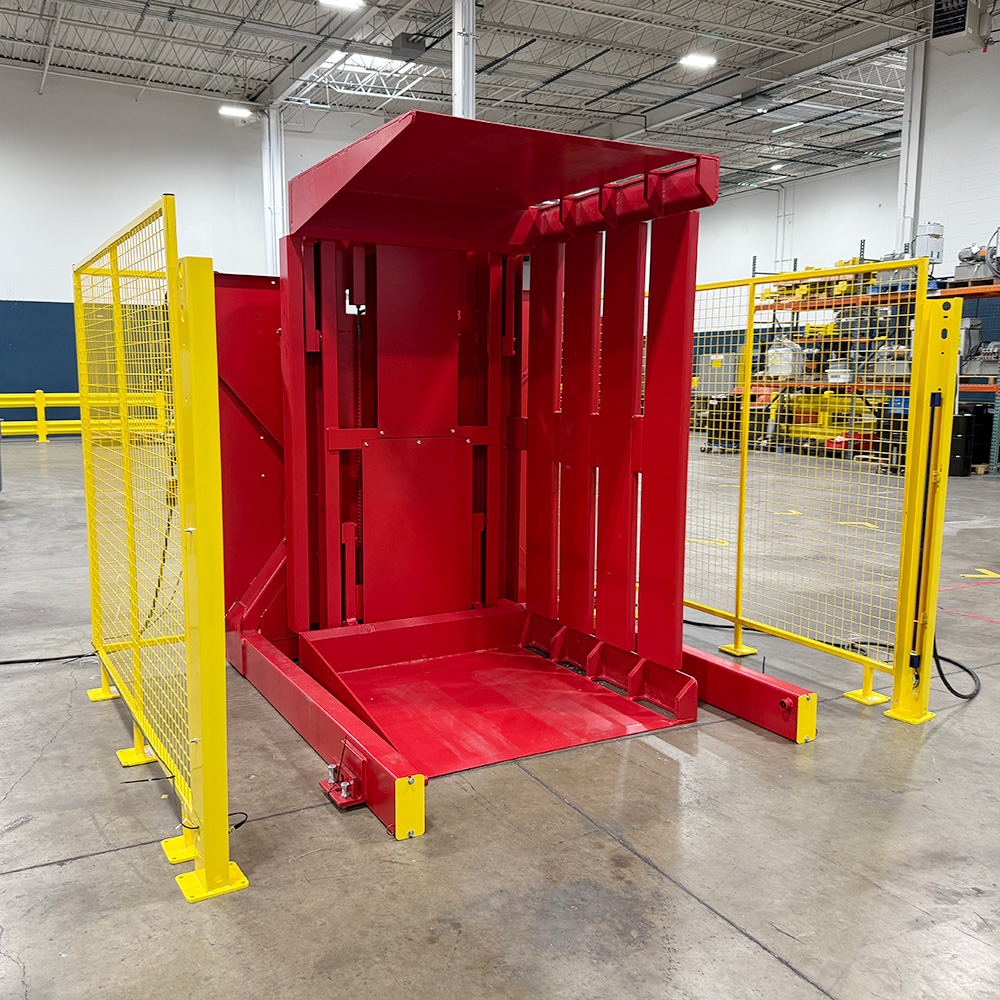

High Style GuardsHigh Style Guards
Light CurtainsLight Curtains

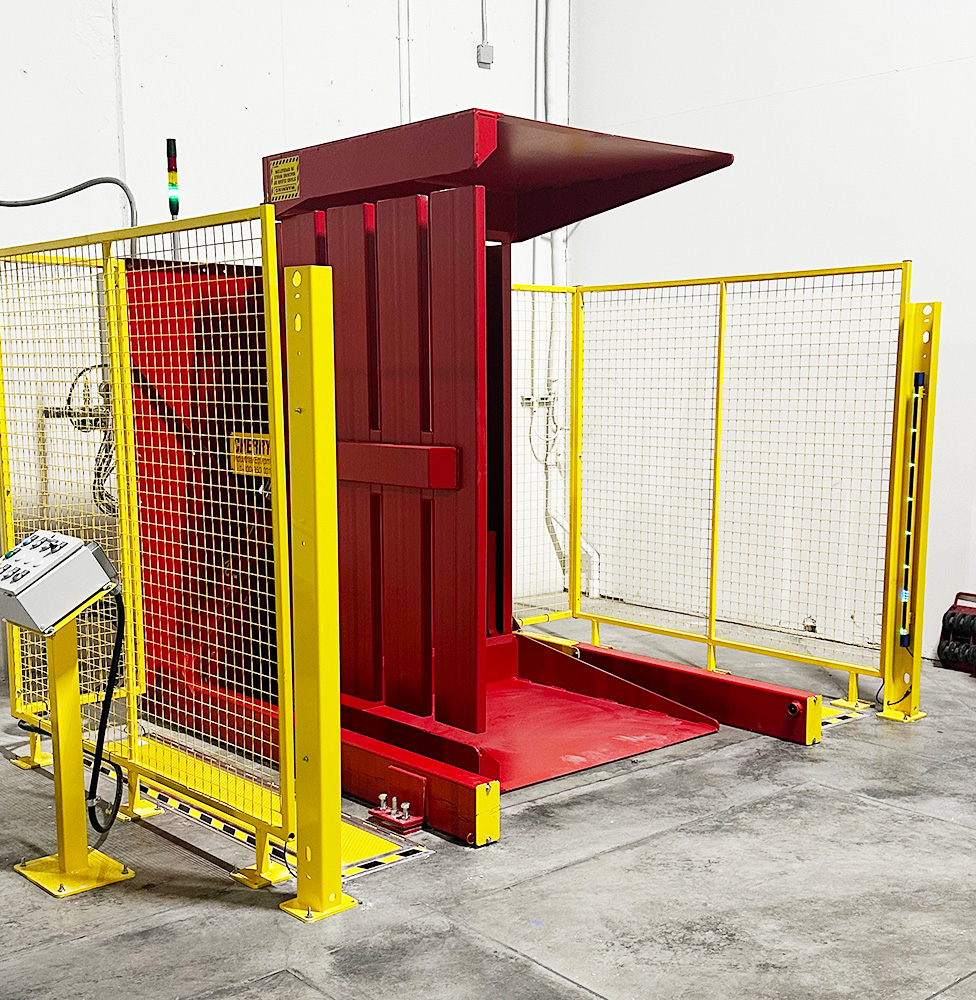

Safety MatsSafety Mats

Options

The GL-75 ships complete with floor anchors, hydraulic oil, operator controls, rail guarding and hydraulic power unit. Custom paint colors, custom safety gate, stainless steel finishes and upgraded components are available to meet your application or corporate specifications.


Paint color/finishPaint color/finish
Custom Safety GateCustom Safety Gate
Stainless steel surfacesStainless steel surfaces
High speed controlsHigh speed controls
