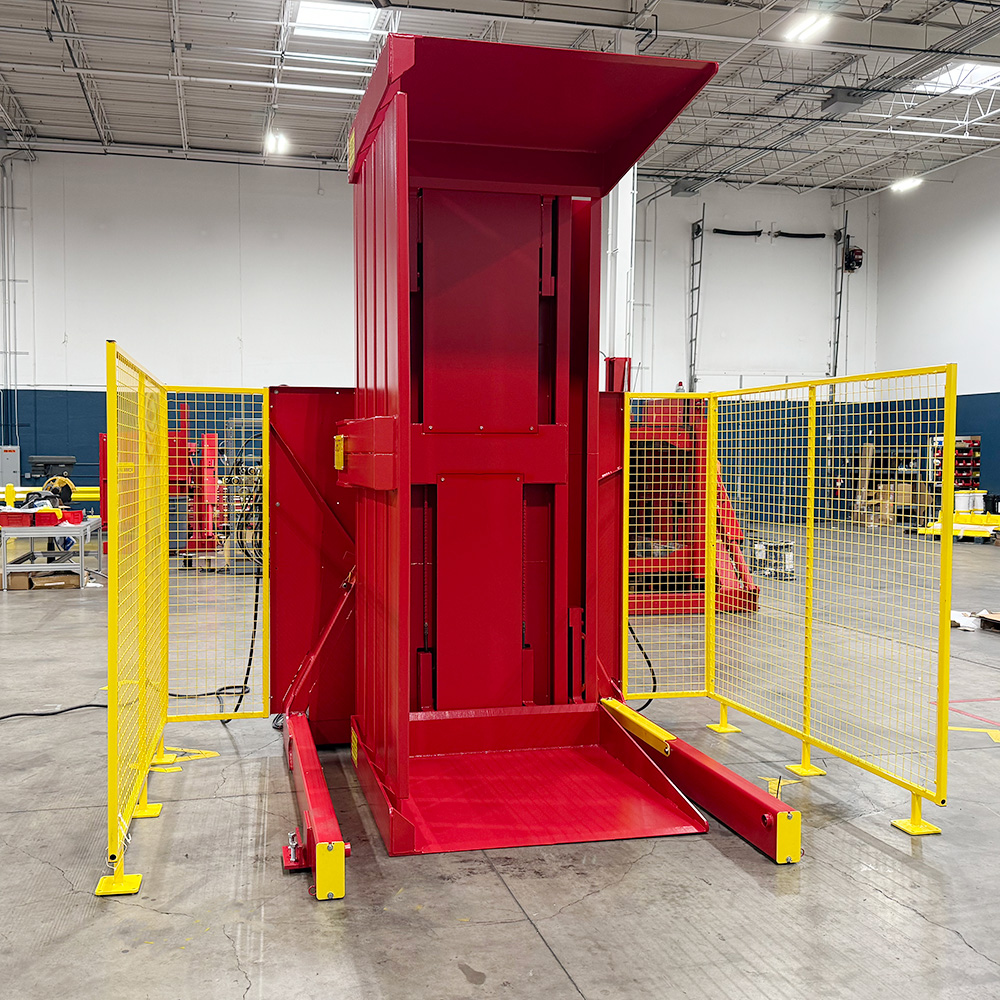

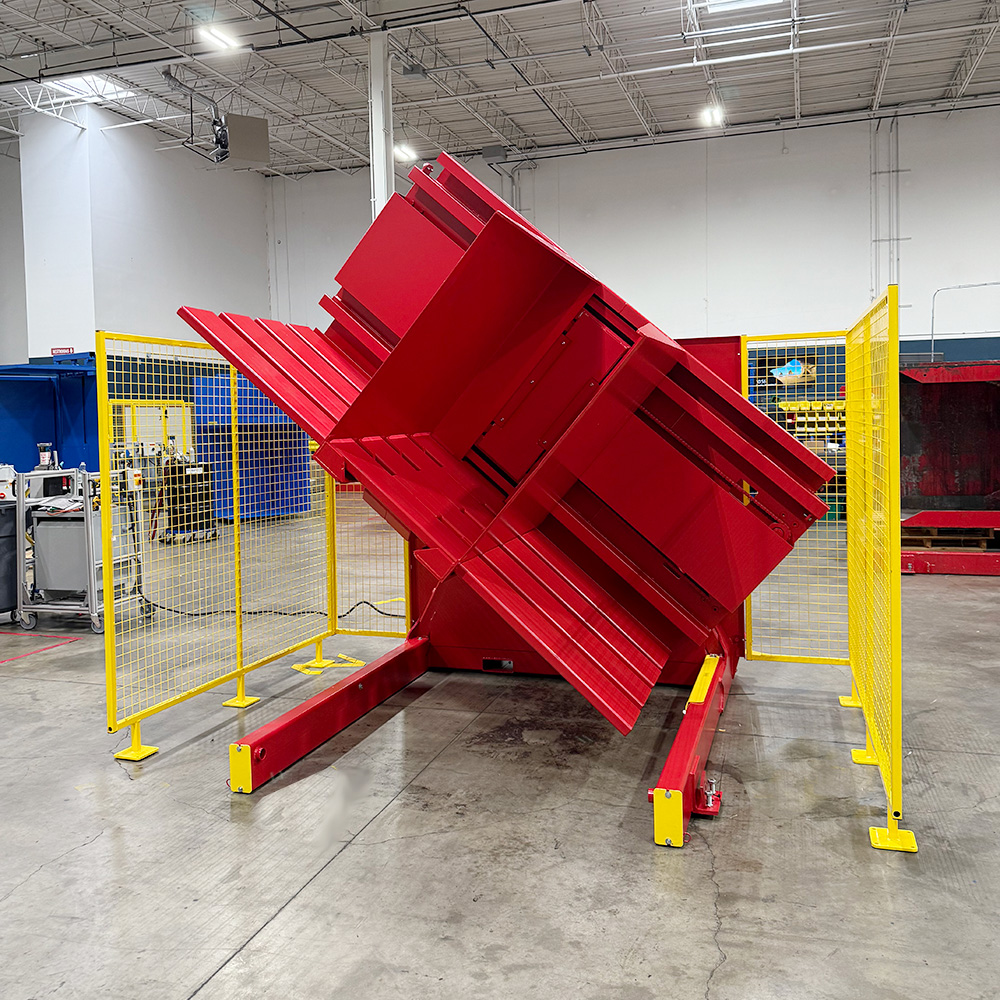

GL-110 Ground Loaded Pallet Inverter

Product Information

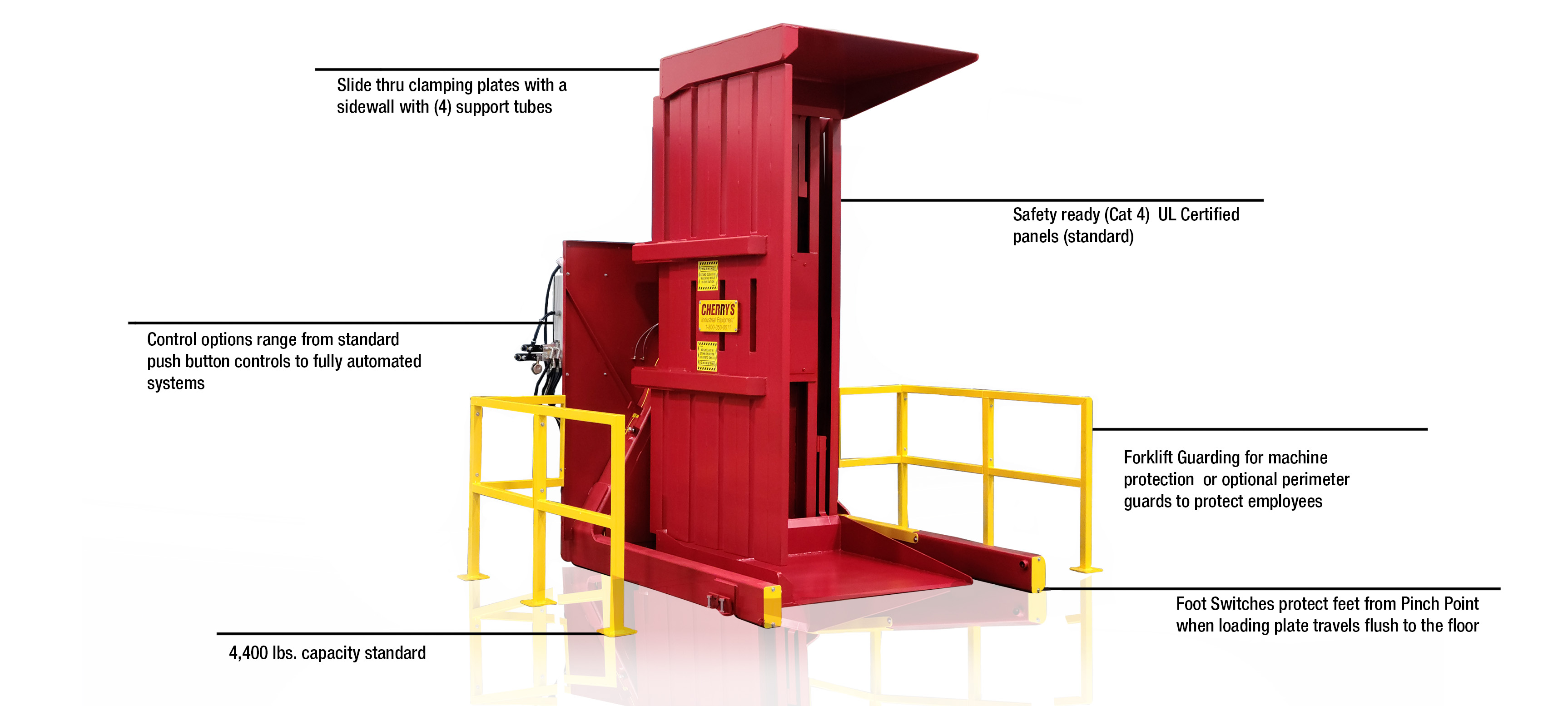

The GL-110 dual-clamp pallet inverter features an advanced design that provides exceptional balance and ensures maximum stability when inverting short, tall, or partial loads. The dual clamping plates travel flush to the ground or floor, eliminating the need for ramp installation. The adjustable clamping pressure reduces the risk of crushing materials. GL-94 skid turner features, benefits and specs include: Compact footprint facilitates use in confined warehousing or production areas, six-button operator pendant makes the pallet inverter easy to use and control, UL508-certified electrical panel ensures safe operation, heavy-duty machinery guards protect against forklift collisions and a three-year parts and labor warranty.

Product Variations

SKU	Controls	Motor HP/Pump Displacement	Cycle Time (seconds)	Safety Circuit (Pld)
GL-110	Push button	5/3.7	18 Invert/18 Rotate	Standard
GL-110HSP	Push button	5/6.6	10 Invert/8 Rotate	Standard

Specifications

Model	GL-110
Controls	6 Button pendant with E-stop & LC reset
Energy Saver Function	Yes
Loading Table Size	50"x 50"
Max. Jaw Opening	127" (Loading)
Usable Jaw Opening	110" Max.Usable
Min. Jaw Opening	32" Min
Finish	Safety Red 2-Part Epoxy Paint

Capacity	4,400 lbs.
Adjustable Clamp Pressure	400-2000 PSI
System Pressure	2200 PSI
Maintenance Lock Outs	5
Motor	5HP
Power Source	208/230/460/575V
Certifications	UL 508a Certified Panel
Warranty	3 year parts 1 year labor. Extended warranty available.

FOB	Roselle, IL
Loading Height	Ground Level
Operating Width	126" excluding guards
Operating Depth	95.125"
Operating Height	127"
Width With Guards	GR-132"/HSG-143.25"
Side wall tube supports	4
Brand	Cherry's Industrial Equipment Corp

Configuration Options

Controls

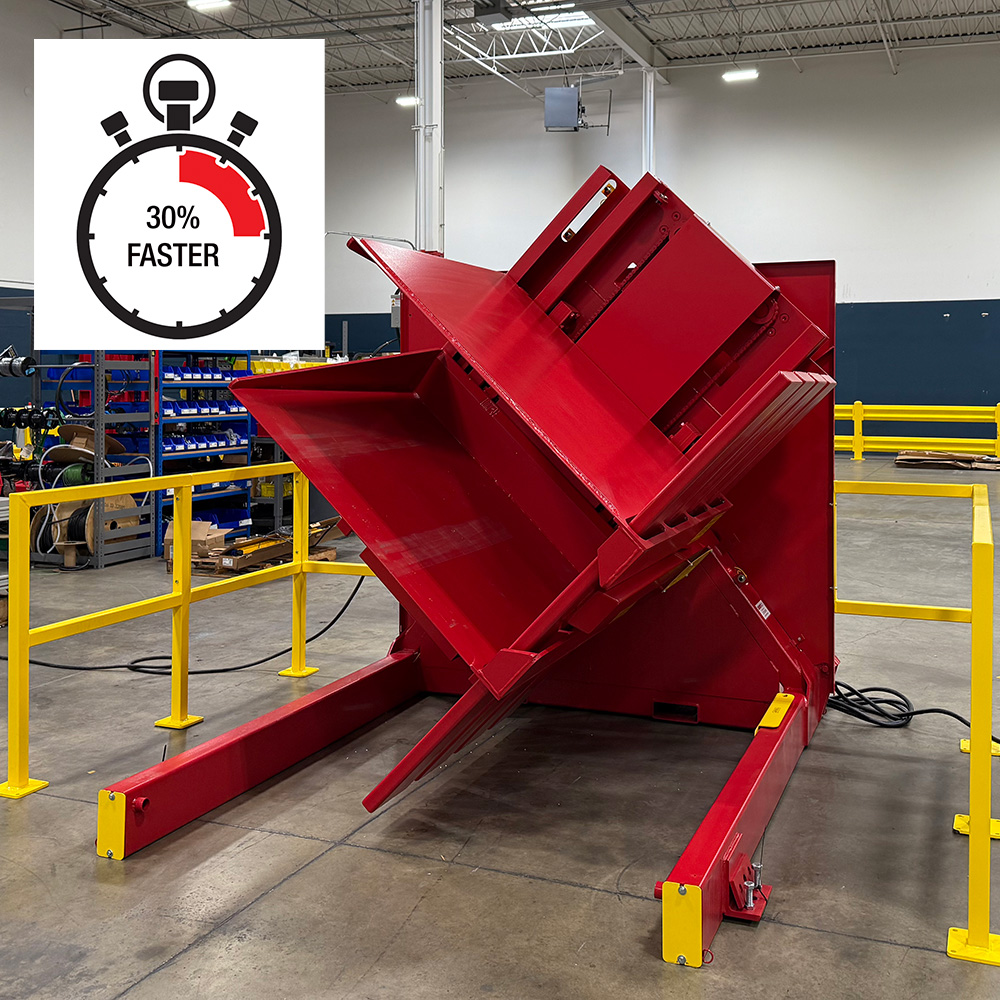

The standard operator controls are an energy saver pendant with press and maintain push buttons that illuminate when activated. A safety rated pendant adds a reset button and E-stop plus a PLd safety circuit to the main panel. A variety of additional control configuration options are available for the GL-110 including: an operator console, HMI touchscreen, auto controls, RF radio remote and high-speed motion controls.

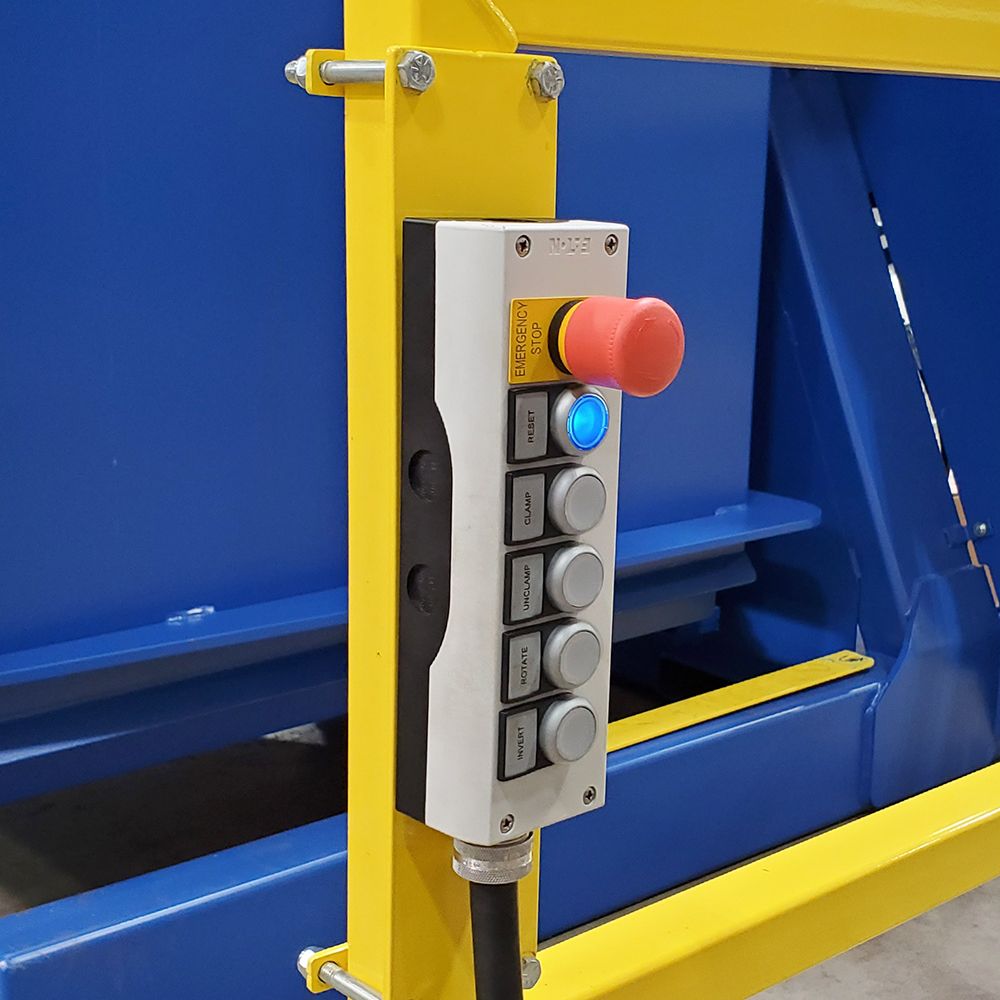

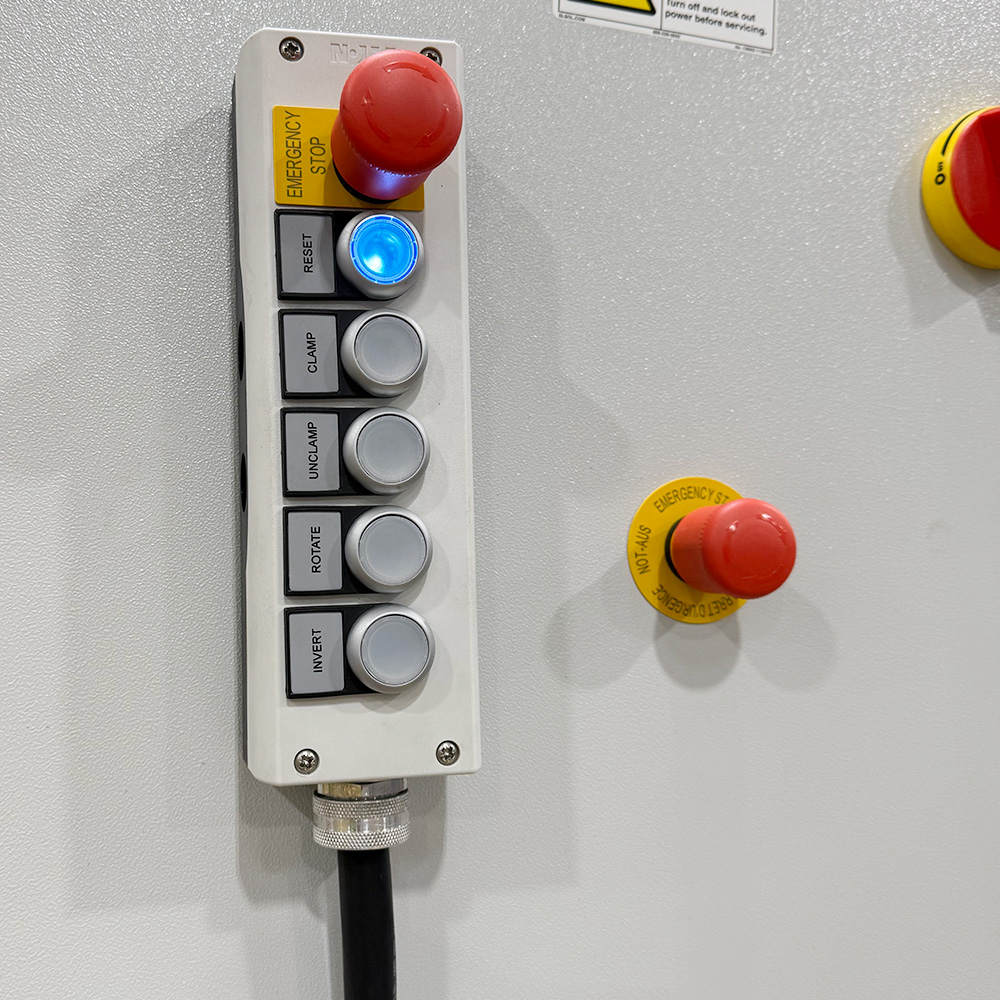

Push Button Pendant Control

Control Console

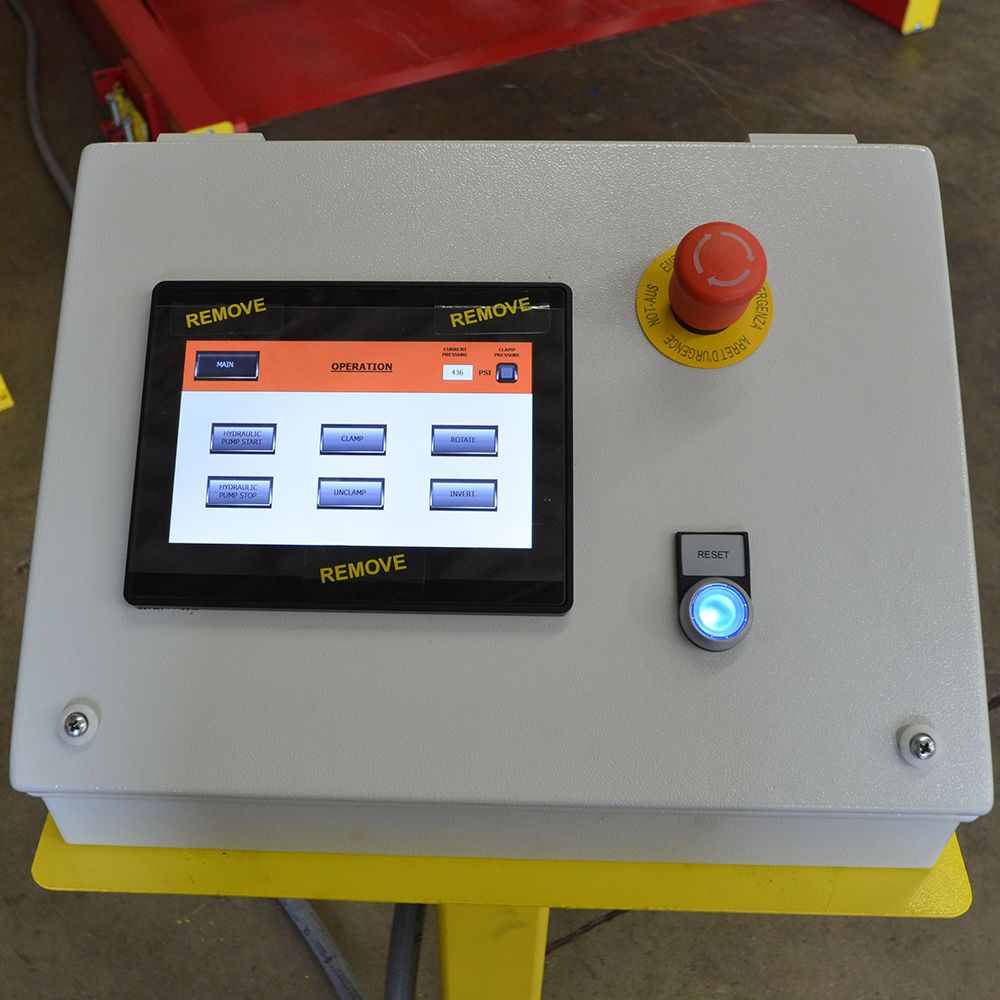

HMI Control Panel

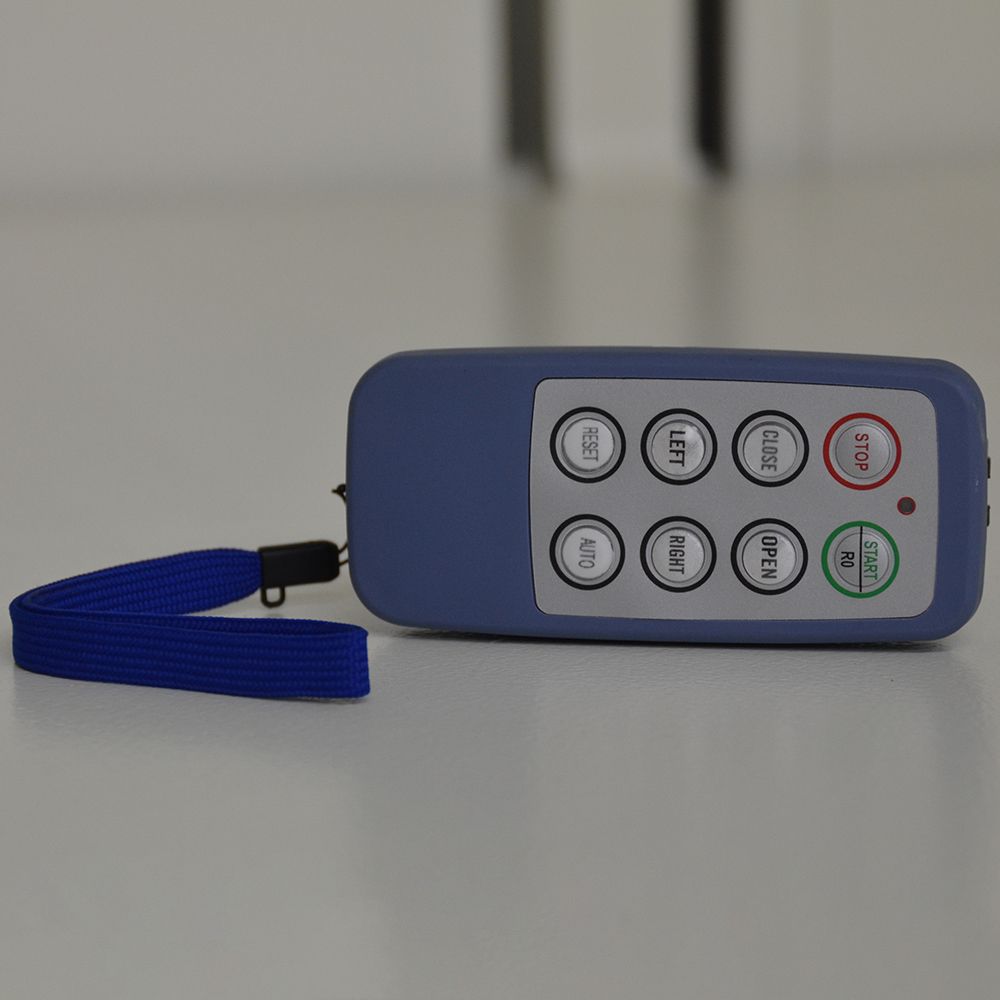

Remote Control

Guards

The GL-110 has standard rail guarding to protect against injury or forklift damage. Personnel perimeter guarding can be configured to enhance the safety of the operator and maintenance personnel. Options include Bosch guarding with removable maintenance sections, 3-sided 78” high style perimeter guards or category 4 light curtains. These guards protect the front entrance and surrounding areas of the equipment.

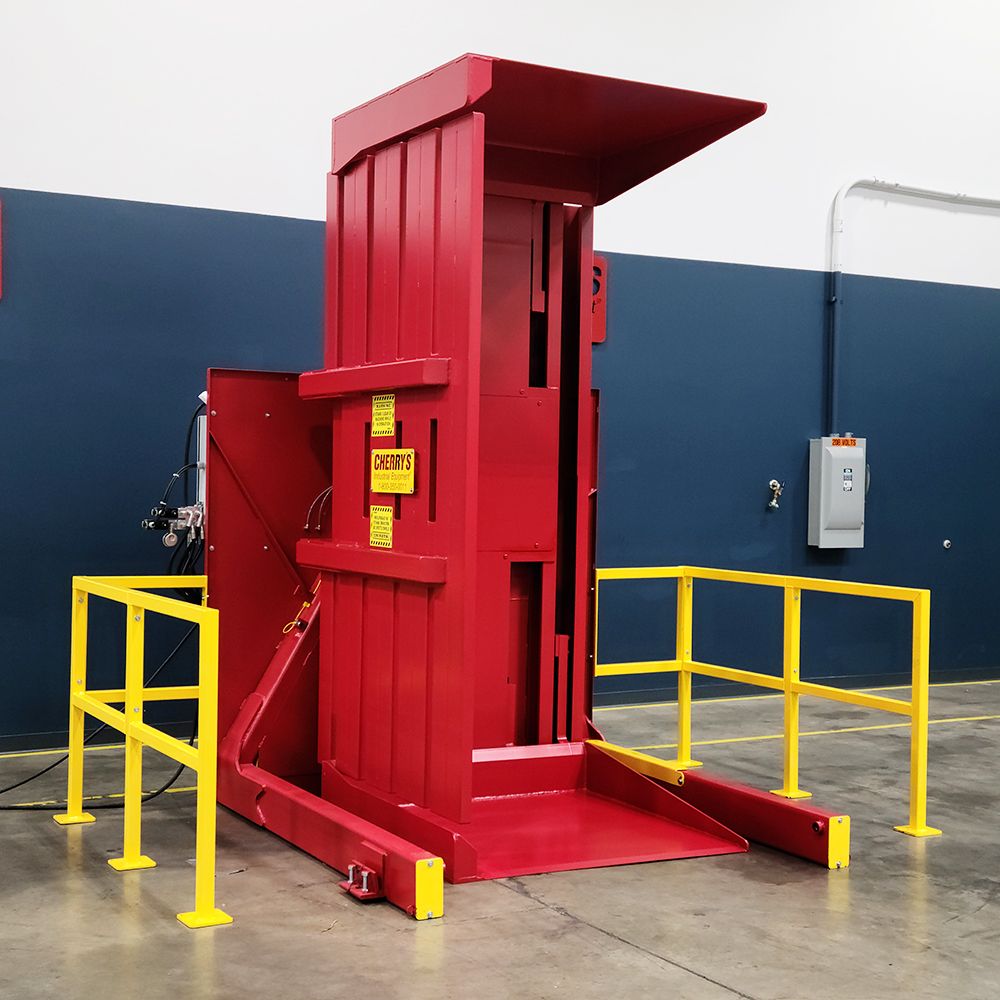

Rail guards

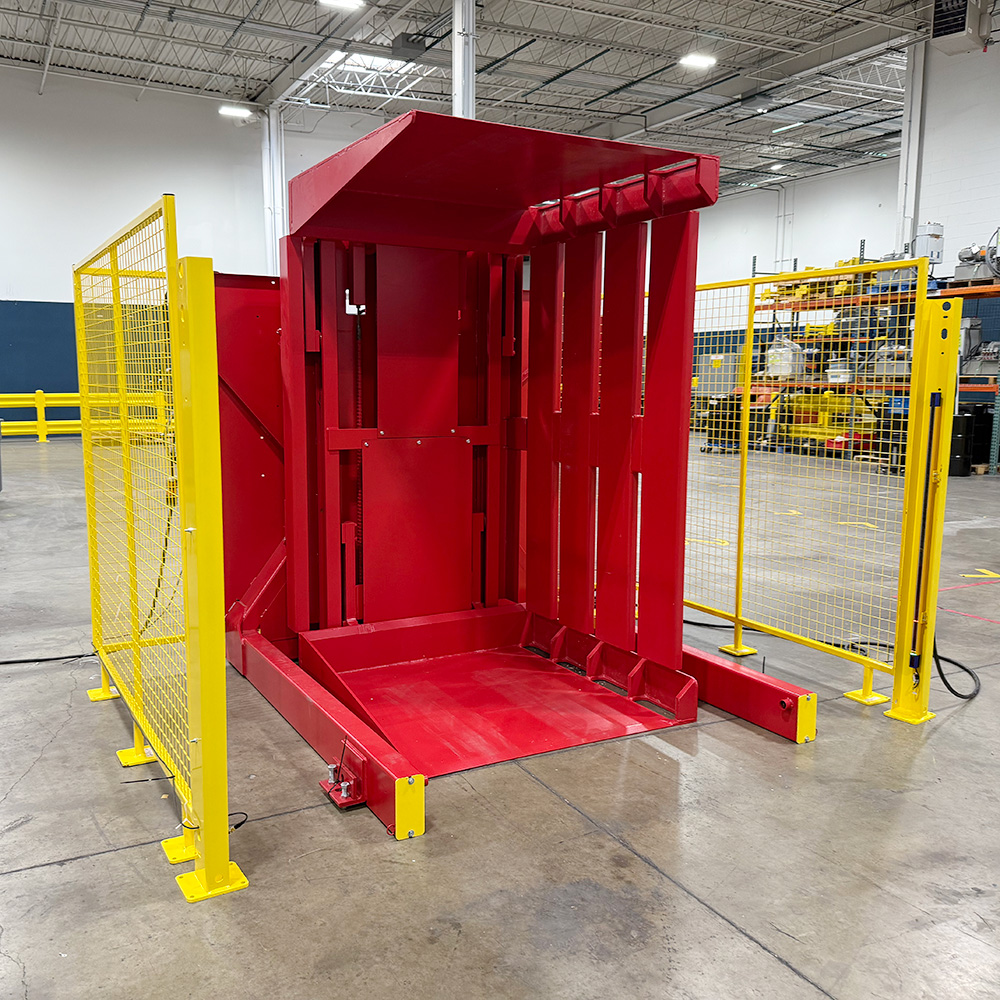

High Style Guards

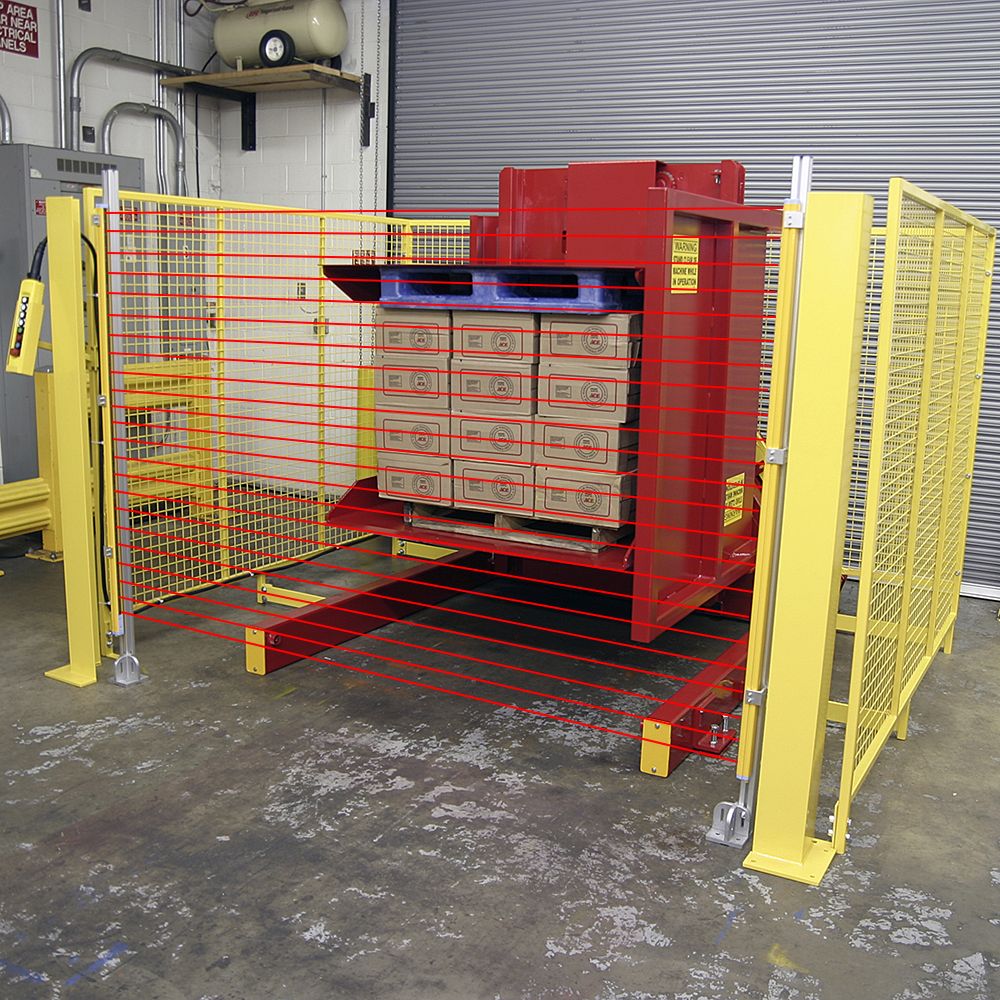

Light Curtains

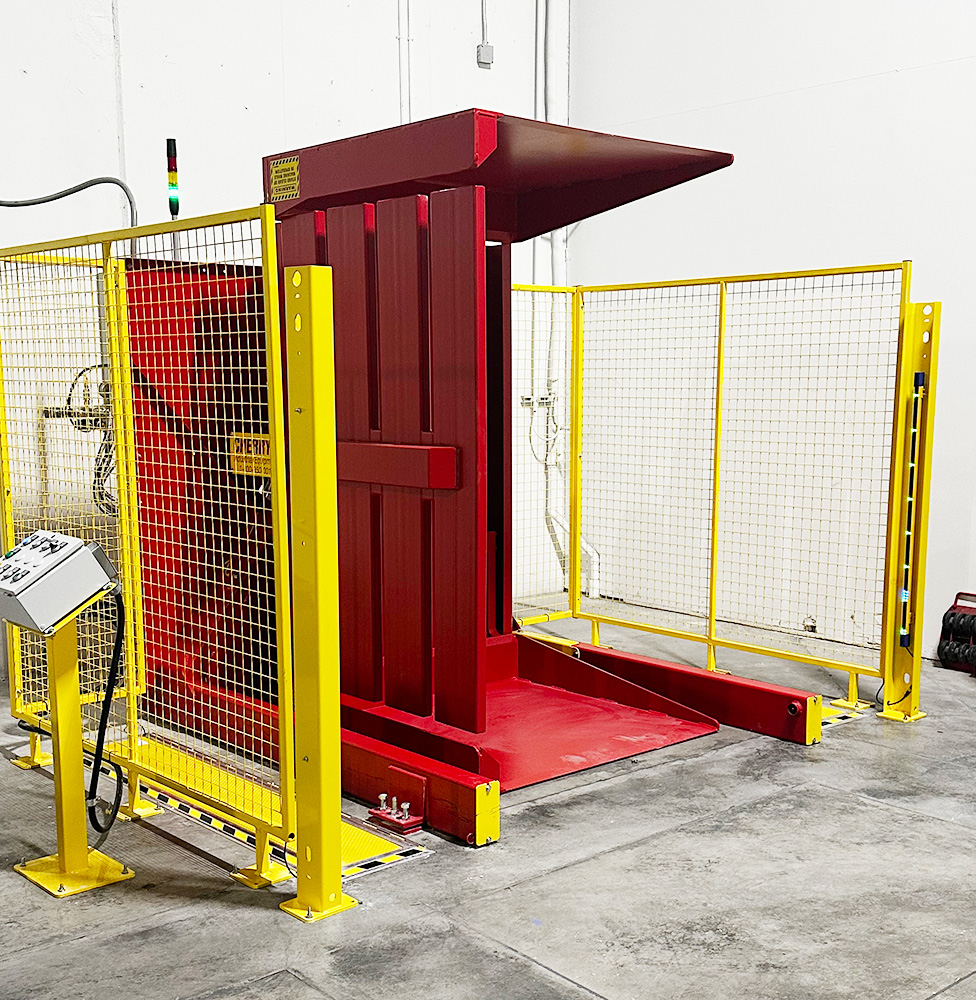

Safety Mats

Options

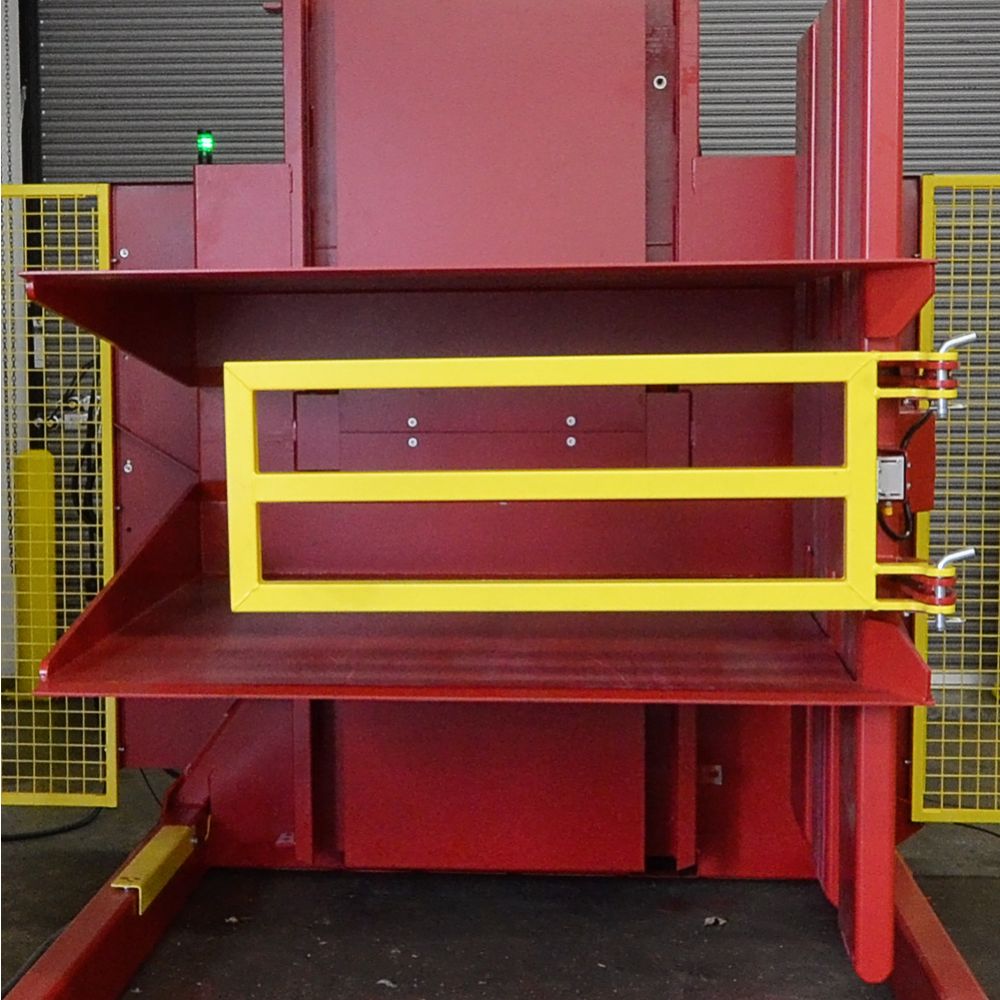

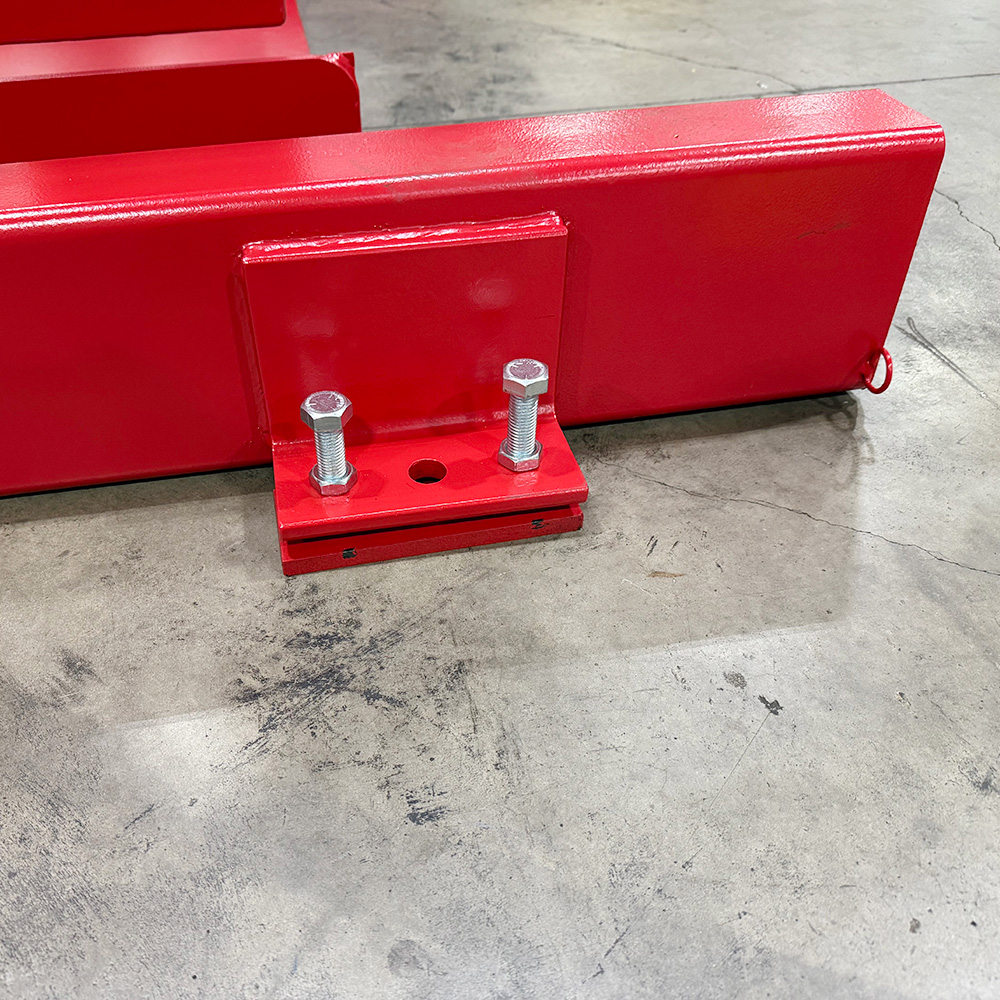

The GL-110 ships complete with floor anchors, hydraulic oil, operator controls, rail guarding and hydraulic power unit. Custom paint colors, custom safety gate, stainless steel finishes and upgraded components are available to meet your application or corporate specifications.
