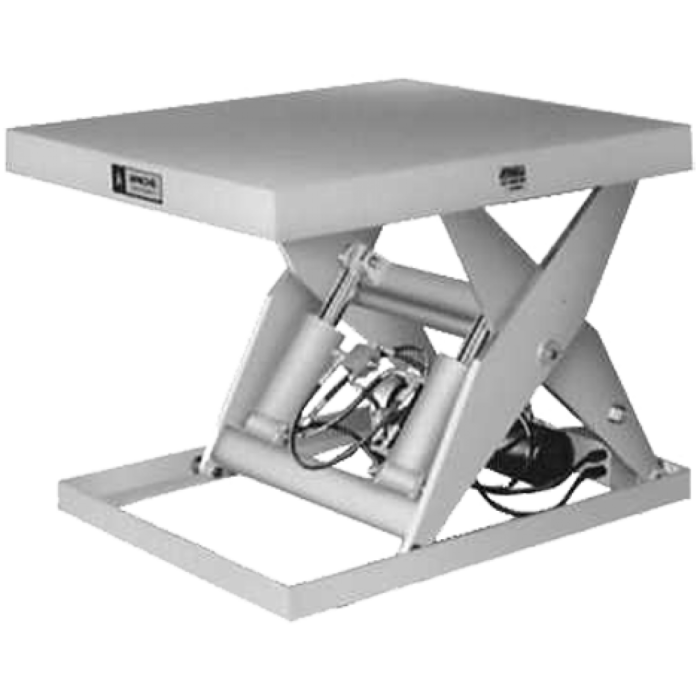

EZ4000 Sanitary Low Profile Lift Table


EZ4000

Mepaco's Stainless Steel Hydraulic lift table is capable of handling loads up to 4,000 lbs. and able to have a lowered height of 9-5/16".

Call 847-443-3861 to speak with our experts

EZ4000 Sanitary Low Profile Lift Table

See it in the Wild

Stainless Steel Lift Tables in a Wet Area Stainless Steel Lift Tables in a Wet Area
×

Product Information

This lift table can be used for applications that require sanitary washdown for constant cleanliness. Stainless steel is often a requirement in the food or pharmaceutical industries, so this table is ideal to be used in many processing warehouses. Made of heavy-duty T304 Stainless Steel the EZ4000 has a working capacity of 4,000 lbs. This unit is equipped with a platform size of 48" x 42", a raised platform height of 36" (Lowered to 9"), relief valve to prevent overloading, control valve to provide a safe descension in the event of an electrical failure, and a 115 volt single phase hydraulic drive w/ power unit (Integrally Mounted). USDA Approved.

Specifications


ModelEZ4000
Capacity4,000 lbs
Raised Height36"
Platform Size42" x 48"
Vertical Travel27"
Overall Dimensions50¼" W x 54¾" L x 53½" H
FinishPickle Passivated finish
Height35" - 53.5"
BrandMepaco
Elevating Time30 seconds / 24 seconds lowering time
Voltage115/1/60
Motor1 HP TEFC with 1.09 GPM pump (Remotely Mounted)
Estimated Product AvailabilityShips in 1-3 business days
Shipping weight*850
Shipping Class*110
