EM1-500-4848-2 Hydraulic Upender

EM1-500-4848-2

Economy 90 degree tipper with a rated capacity up to 2000 lbs. Loading/Unloading tables are 48"W x 48"L. Equipped with a push button hand control. Must be floor anchored prior to use.

Select Capacity

2,000 Lbs

4,000 Lbs

6,000 Lbs

Request a Quote

Call 847-443-3861 to speak with our experts

EM1-500-4848-2 Hydraulic Upender Image 1

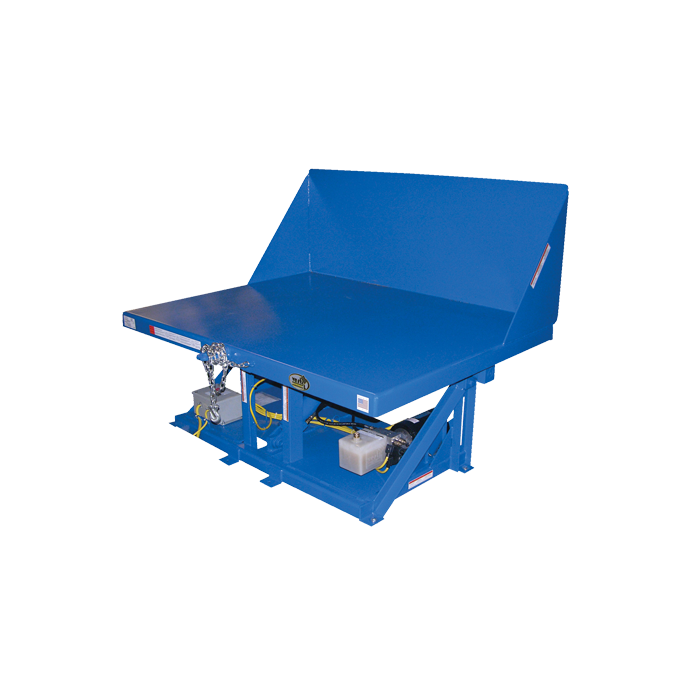

EM1-500-4848-2 Hydraulic Upender Image 2

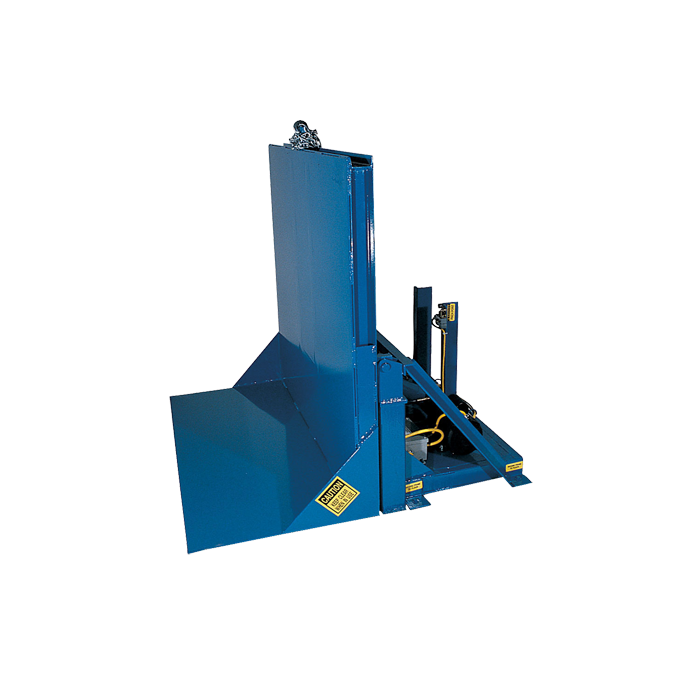

EM1-500-4848-2 Hydraulic Upender Image 3

Product Information

The EM1-500-4848-2 is specifically designed to tilt pallets, crates, boxes and/or baskets 90 degree to facilitate easy container loading or unloading and is ideal for upending products in shipping and receiving operations. Unique design minimizes pinch points to meet OSHA requirements. Equipped with an industrial quality, 56 frame 2 HP motor which delivers best torque with minimal amperage draw for maximum life. Standard voltage is 208-230/460 V 3 phase, with other voltages available.

Specifications

Model	EM1-500-4848-2
Motor	56 Frame 2 HP
Controls	24V Push Button Hand Control
Horizontal Height	24''
Max. Tilt	90°
Certifications	0

Usable Size W x L	48'' x 48''
Capacity	2,000 lbs
Loading Table Size	48" x 48"
Brand	Vestil
FOB	Angola,IN
Warranty	1 YEAR

NMFC	120080
Shipping weight*	869
Shipping Dimensions	70 x 52 x 52
Shipping Class*	175
