Electric Pallet Dispenser

Product Information

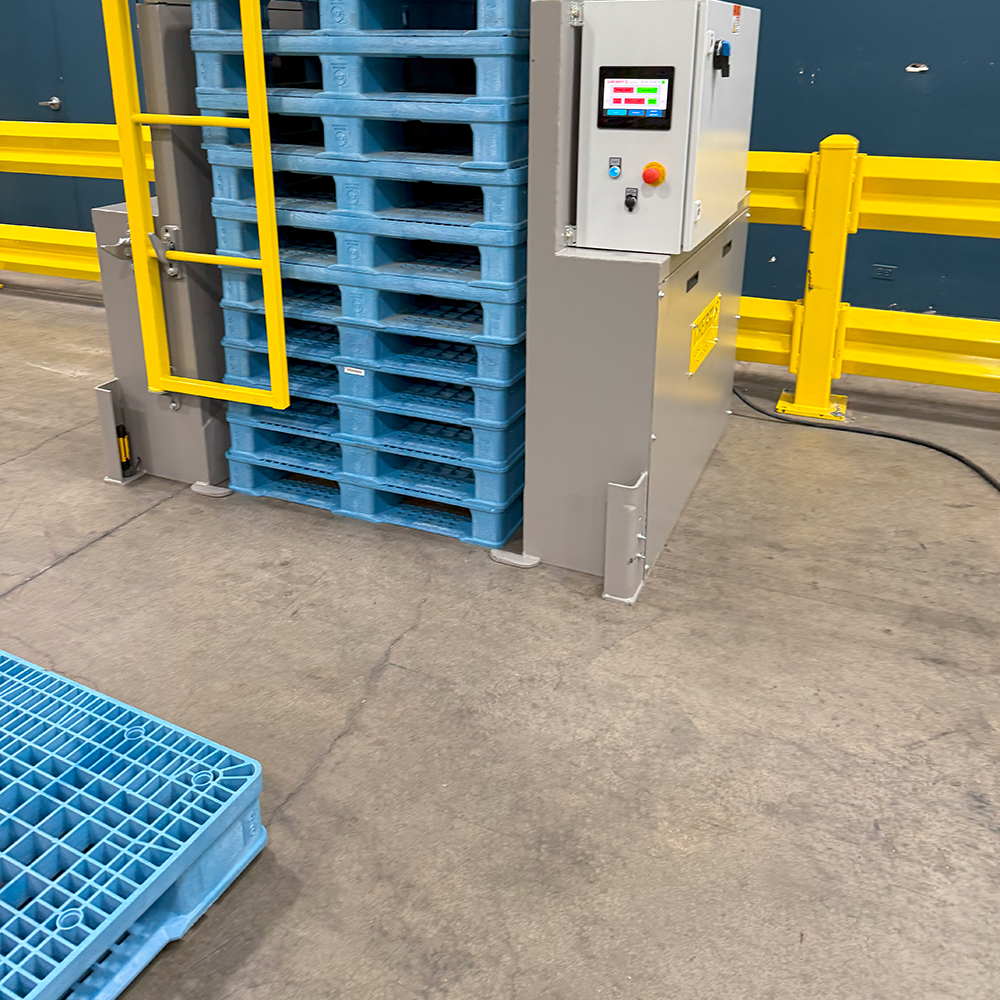

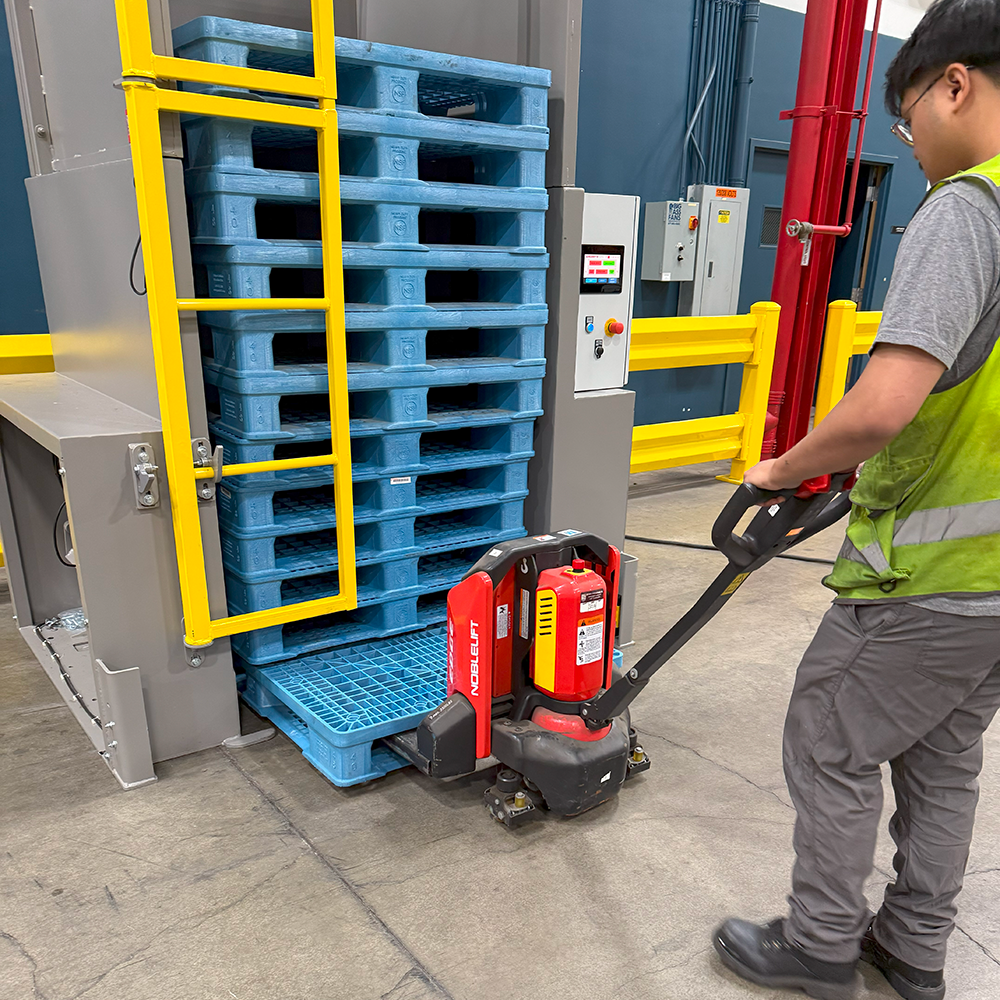

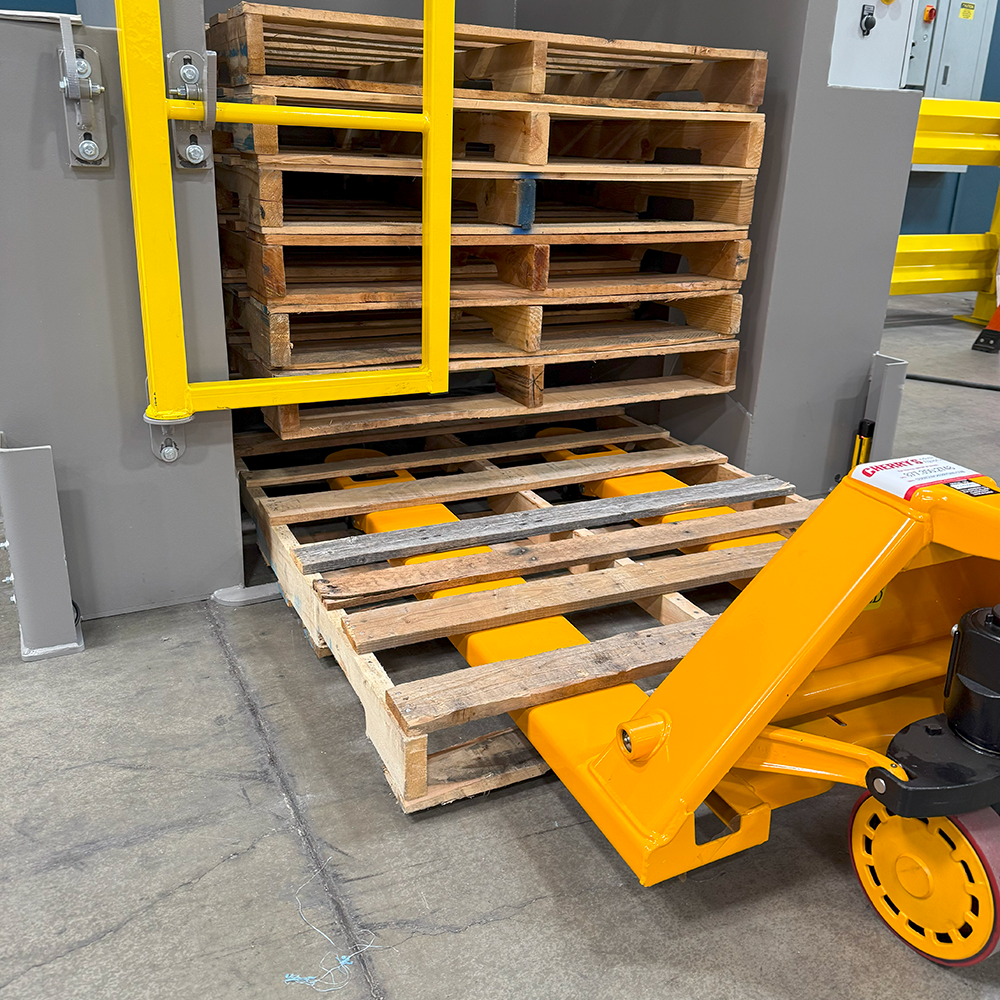

This fully automatic, electric pallet dispenser provides hands-free pallet stacking and dispensing at ground level—without the use of hydraulics. Designed for centralized storage of 18–20 block or stringer pallets, it reduces manual handling while improving operator safety and consistency.

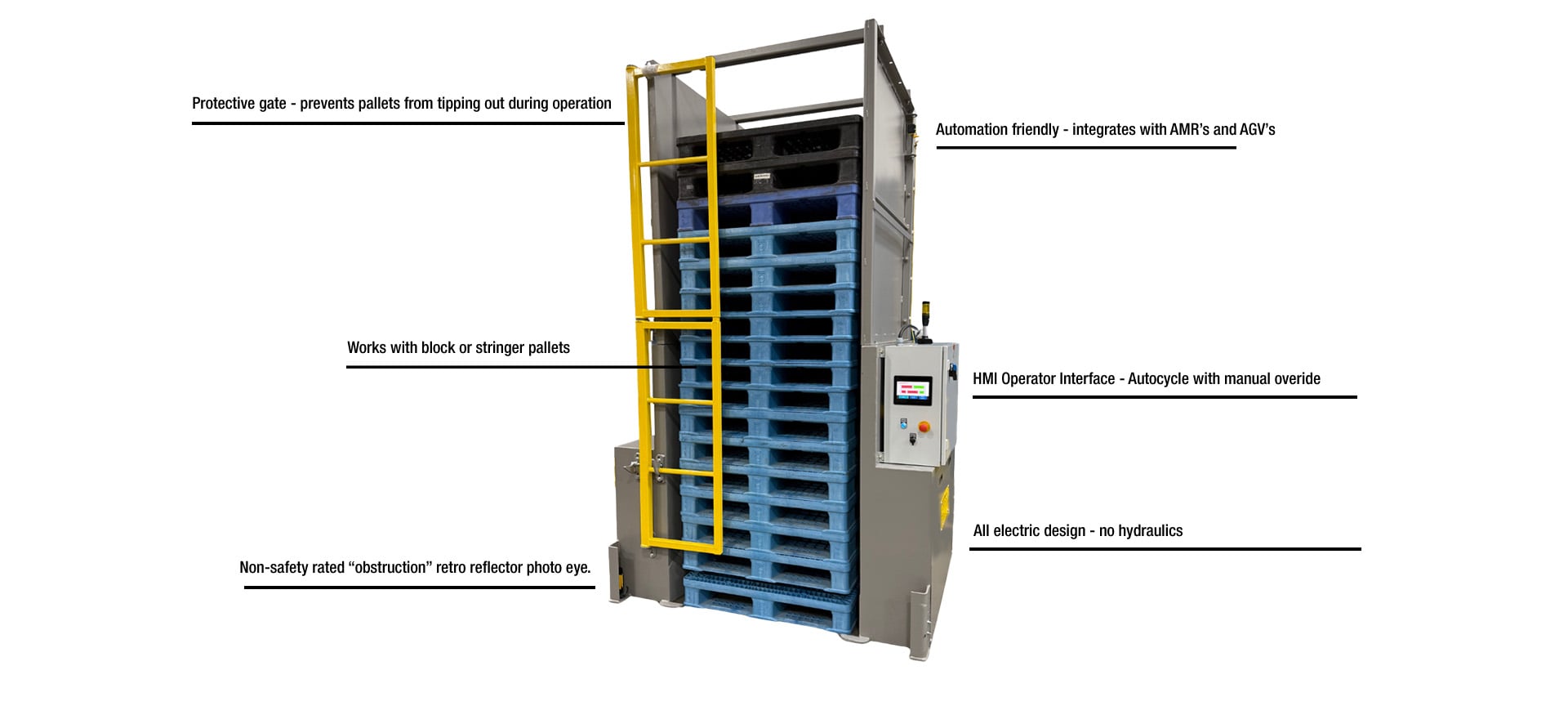

A compact design and small footprint make it easy to integrate into space-constrained automation environments. Standard features include an intuitive HMI control panel, protective safety gate, and optional foot and gate switches for flexible operation. Engineered for automated facilities, the dispenser integrates seamlessly with AGVs and AMRs and supports remote monitoring for smart, connected warehouse management.

Specifications

Model	EPD-1400
Number of Pallets	18/20 Block/Stringer
Type of Pallets	40x48 (4 way entry, non nestable pallets)
Power Source	3-phase (230/460/575V)
PLC	Eaton EASY-E4

Auto Controls	EXOR HMI with E-stop and manual overide
Control Voltage	24V
Cycle Time	30 seconds (approx.)
Operating Dimensions	74"W x 72.5"D x 120" H
Lift Mechanism	Actuators with pins

Discharge Height	Ground Level
Shipping Weight	1,900 lbs
Approvals	UL Certified Standard, CSA Available
Brand	Cherry's Industrial Equipment Corp

Configuration Options

Standard Features

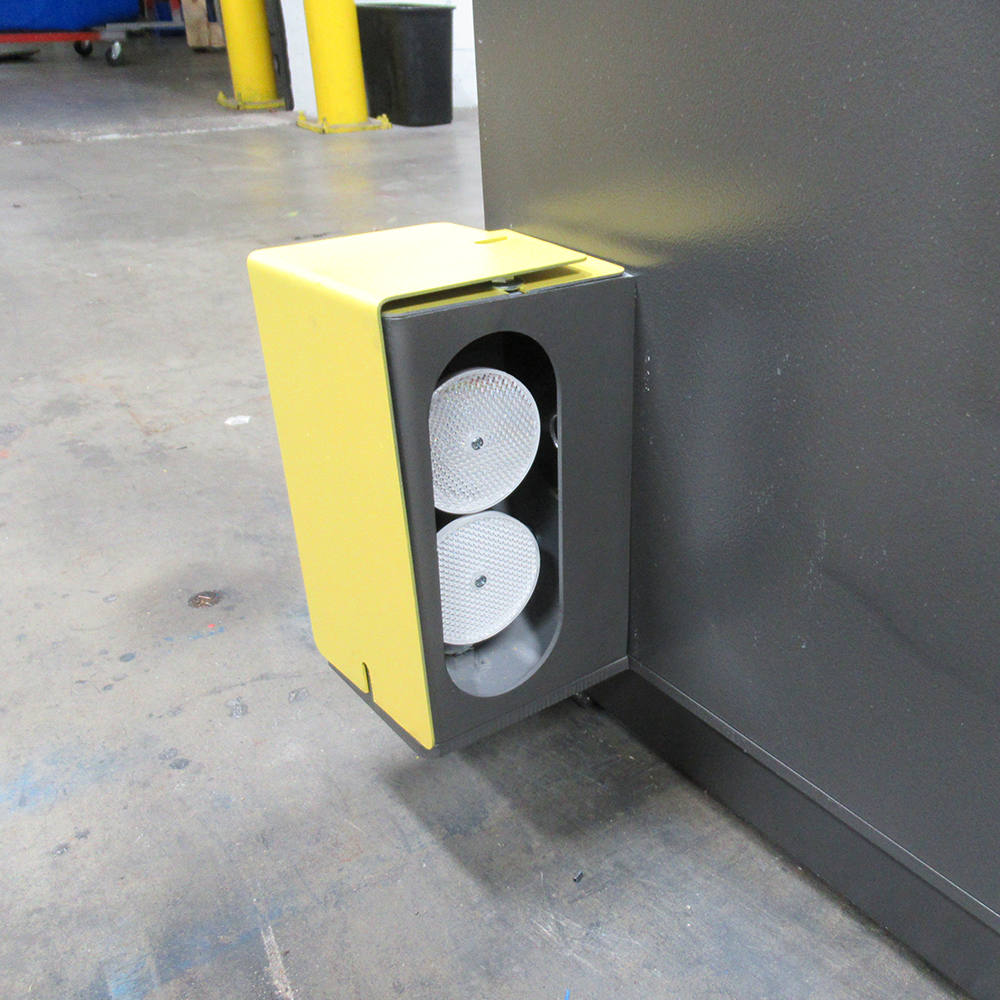

Standard features include auto-cycle mode with manual override for safe, flexible operation. A retroreflective photo eye helps prevent pallet tipping by detecting obstructions. Flashing indicators signal when the machine is empty or full for efficient performance.

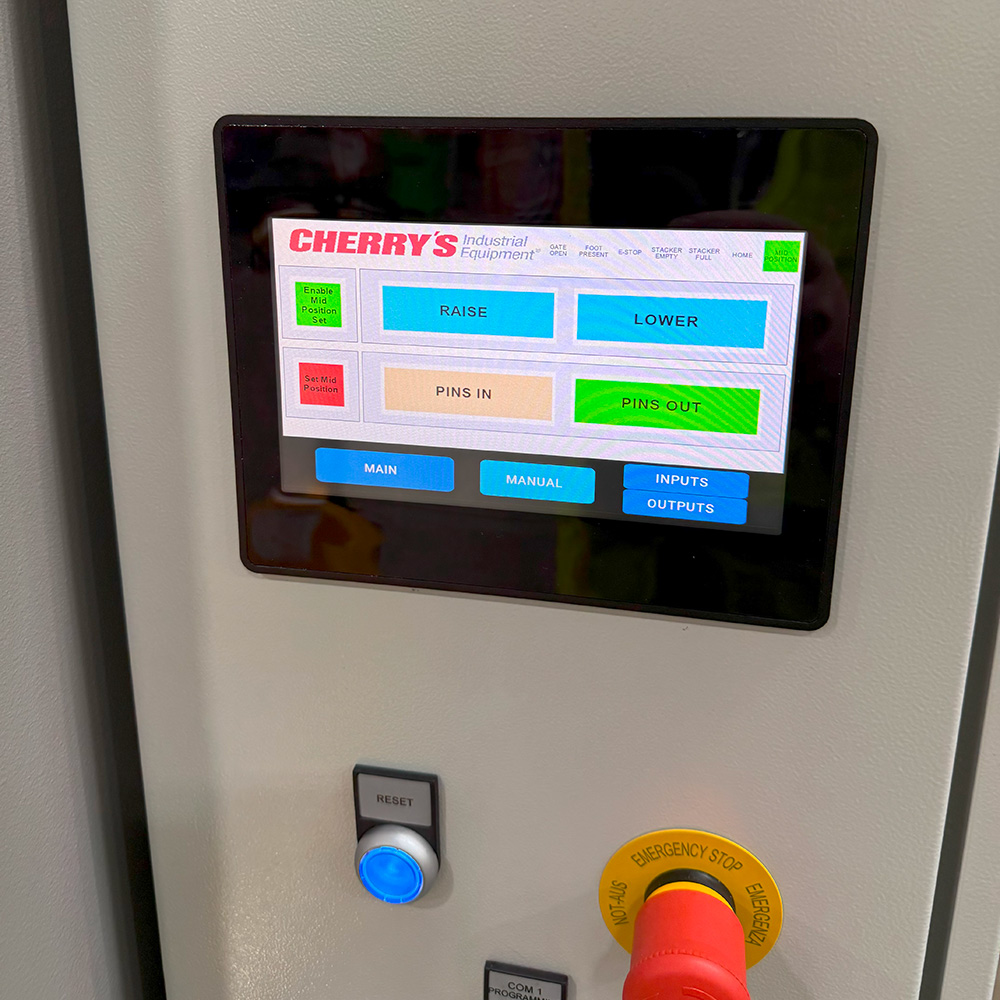

HMI Operator Interface

Foot Switch

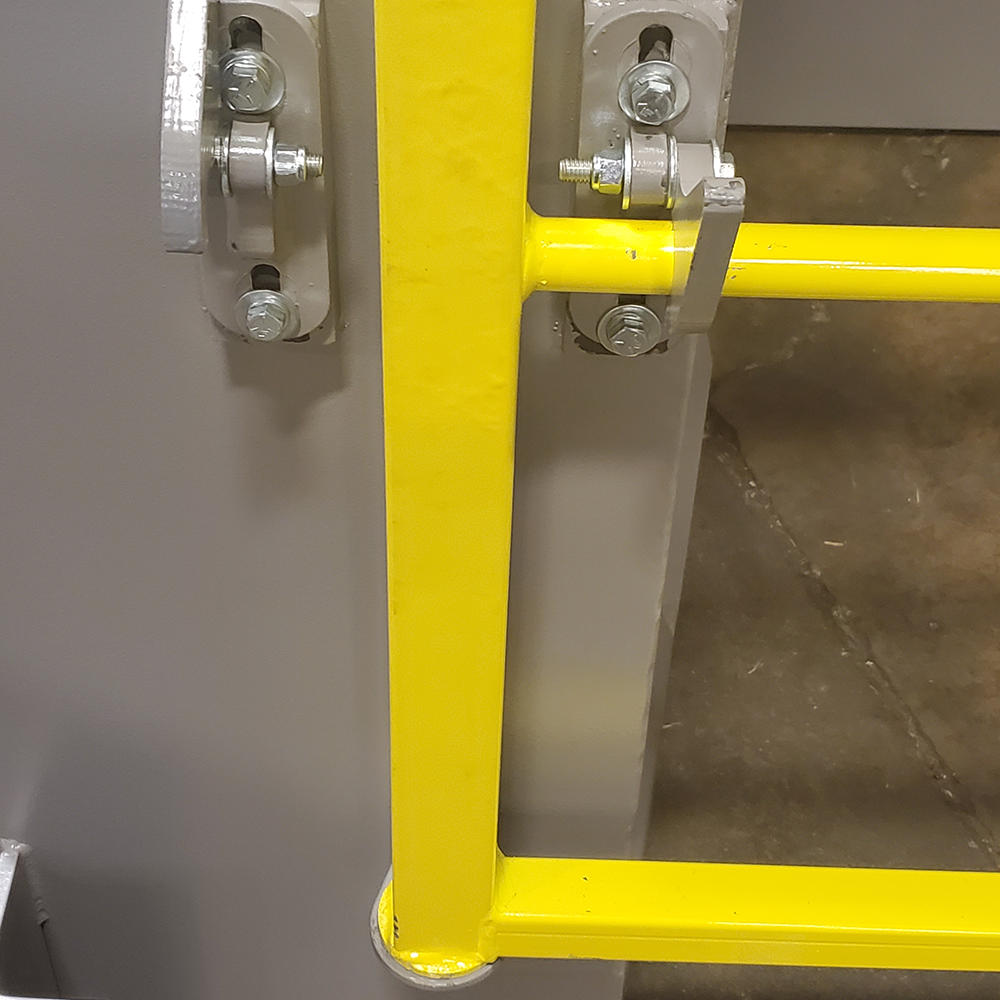

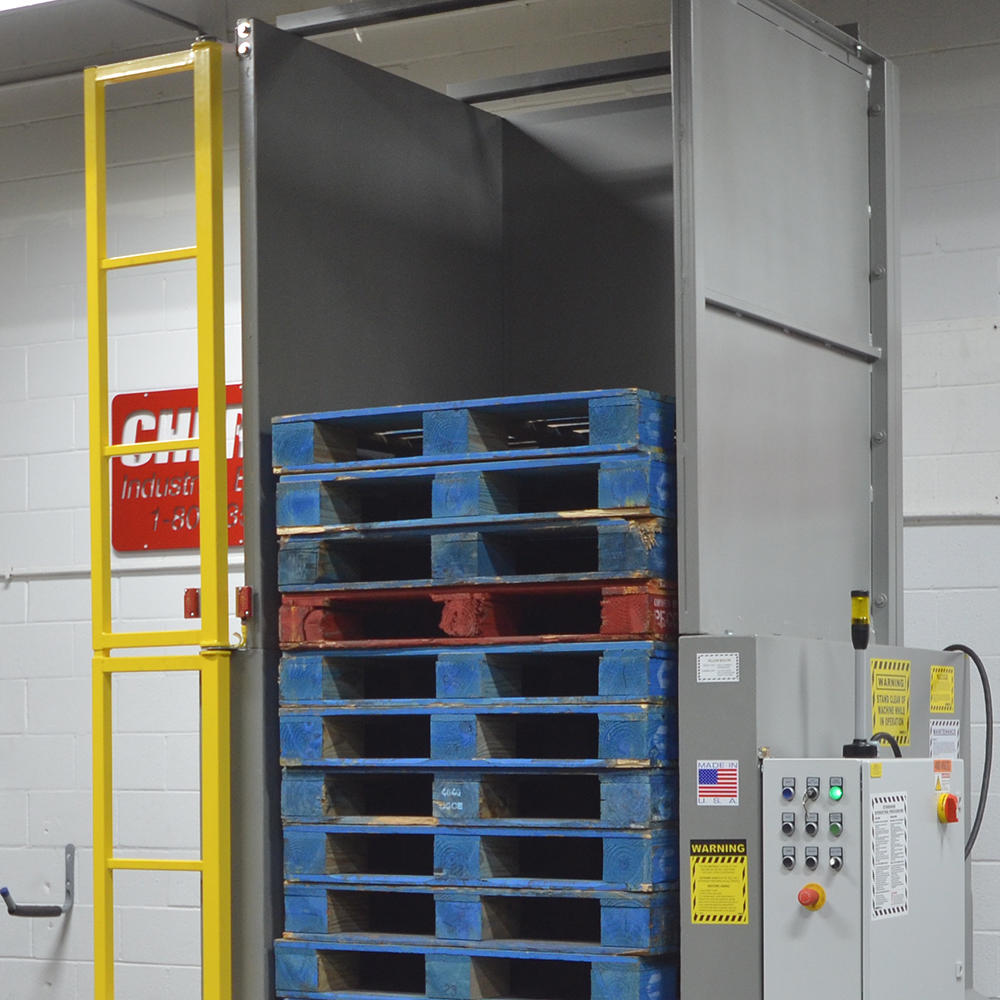

Protective Gate

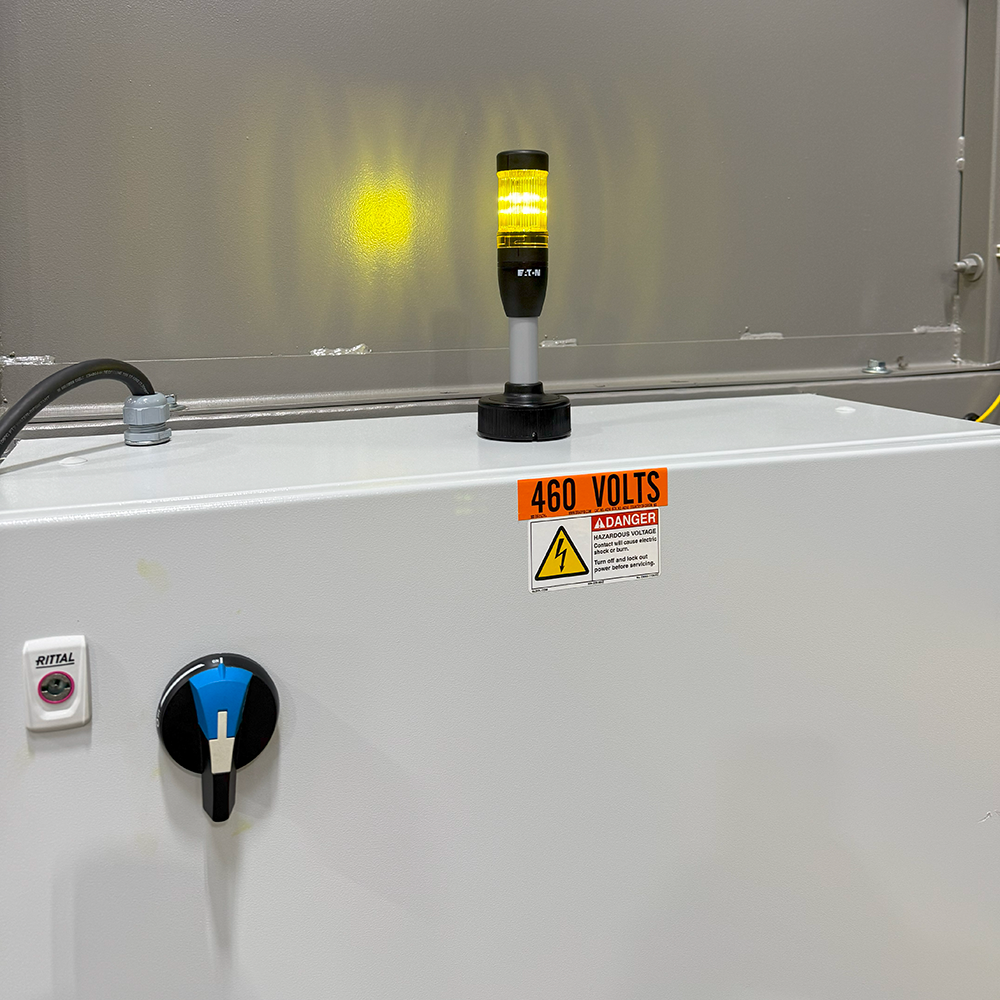

Indicator Light

Options

Optional features include remote monitoring for performance tracking and voltage separation for easier maintenance. A safety-rated foot obstruction switch enhances operator protection. Crash guards and bollards add durability in high-traffic areas.

Remote Monitoring

Voltage Seperation

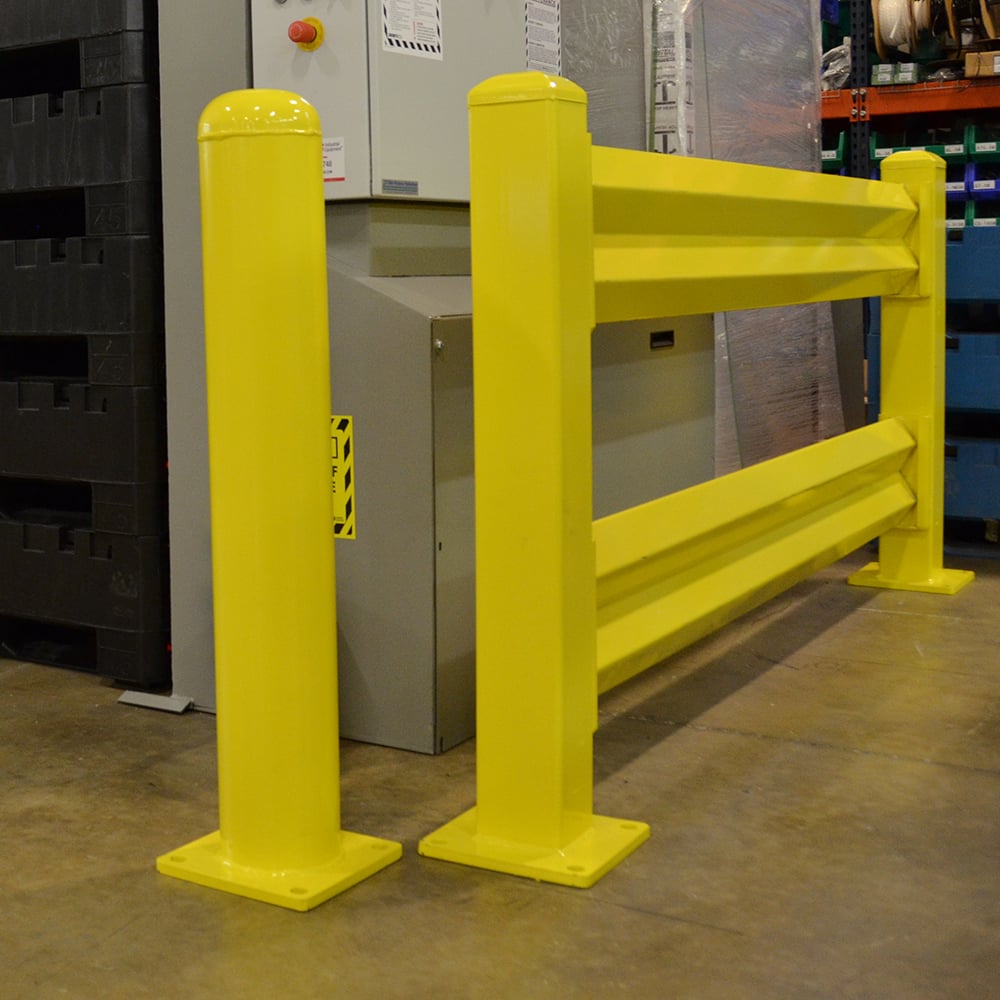

Protective crash guards

Safety rated foot obstruction sensor

Options

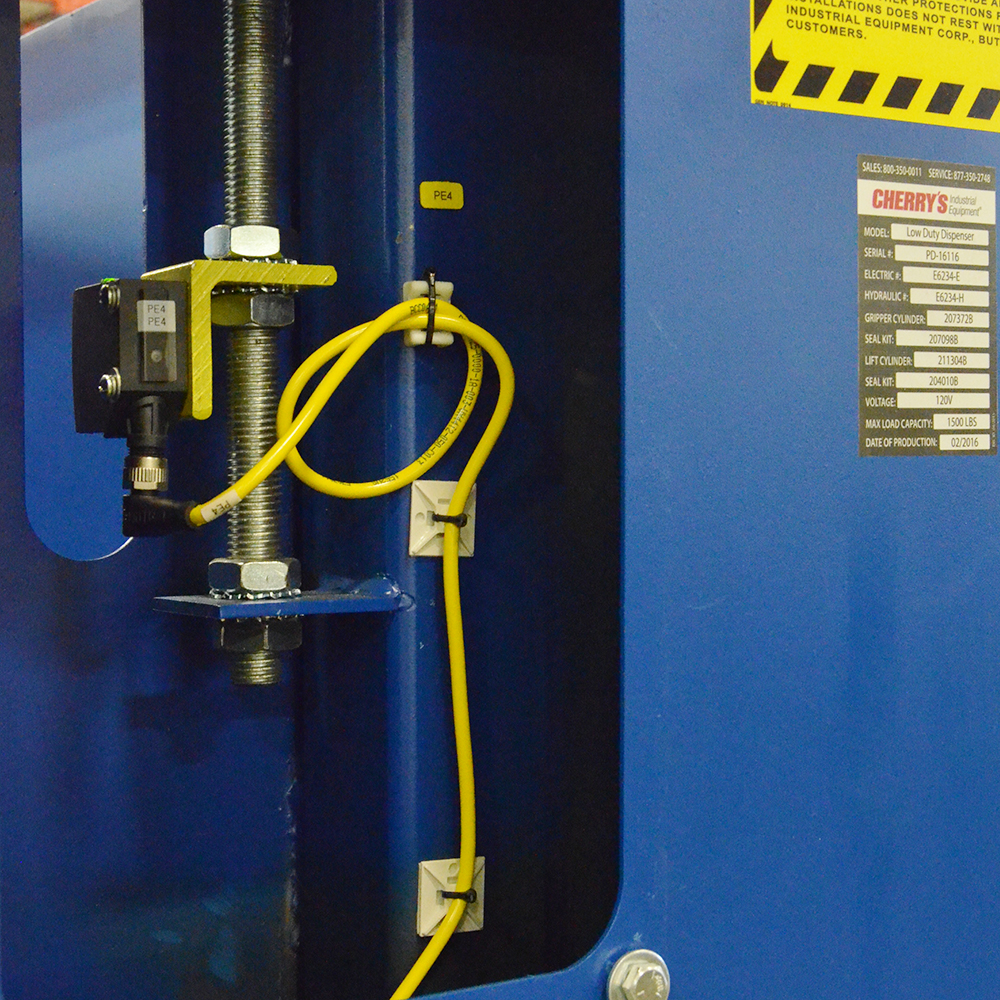

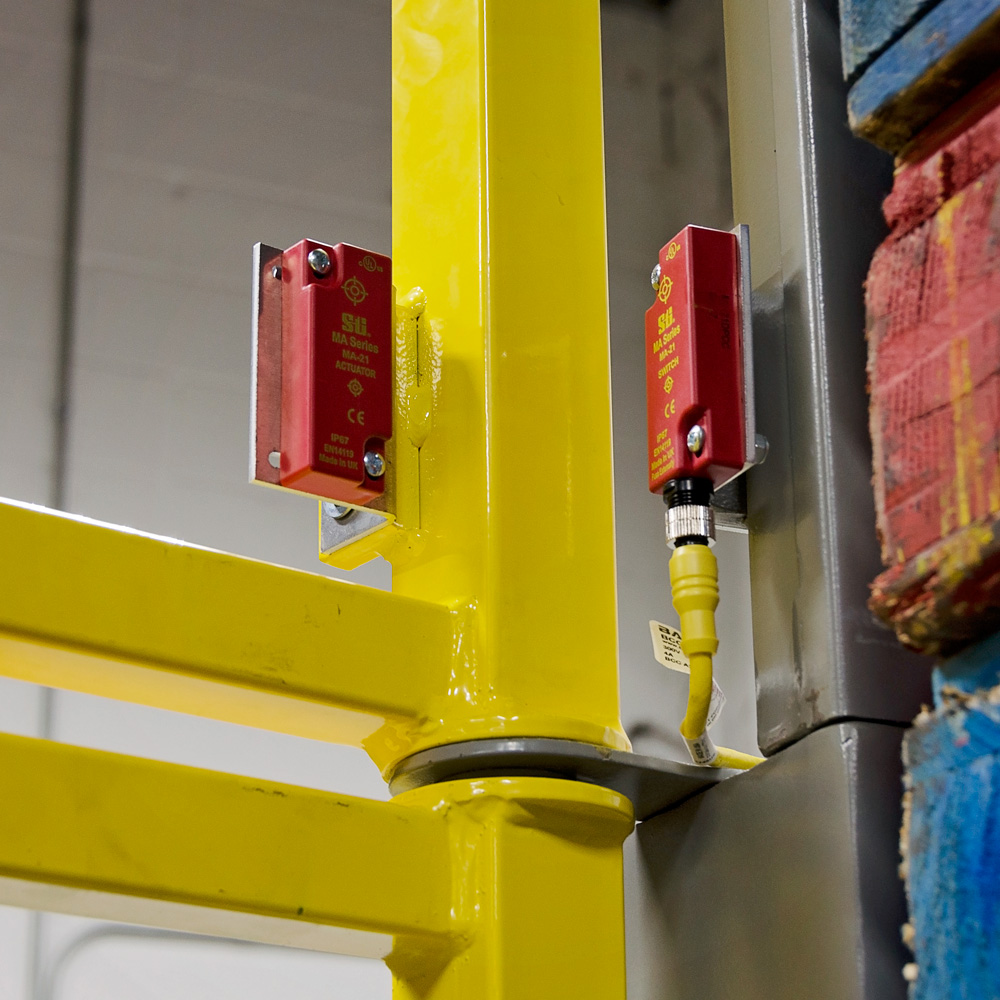

Additional options include a dispenser full photo eye and safety gate switch for enhanced safety. Custom paint finishes and builds are available for pallet sizes beyond the standard 40x48. These options allow for greater flexibility and seamless integration into your specific application.
